IC-525-T - Pregnant KLIPSCH - Free user manual and instructions

Product Type	In-Ceiling Speaker
Woofer Size	5.25 inches
Tweeter Size	1 inch pivoting
Impedance	8 ohms
Sensitivity	90 dB @ 1W/1m
Frequency Response	70 Hz - 20 kHz (±3 dB)
Power Handling (RMS)	50 watts
Power Handling (Peak)	100 watts
Cutout Diameter	7.5 inches (190.5 mm)
Mounting Depth	4.0 inches (101.6 mm)
Dimensions (Grille)	9.0 inches (228.6 mm) diameter
Weight	5.0 lbs (2.27 kg)
Grille Material	Paintable, magnetic
Tweeter Adjustment	15° pivotable
Enclosure Material	ABS plastic
Mounting Clamps	Dual dog-leg
Safety Certification	UL/CE compliant
Recommended Back Box	Optional (sold separately)
Wiring	Spring-loaded terminals
Intended Use	Indoor, ceiling mount

Frequently Asked Questions - IC-525-T KLIPSCH

What tools are needed for installation?

You will need a drywall saw, screwdriver, wire stripper, and a template for cutting the hole. Ensure you have the appropriate speaker wire.

Can this speaker be used outdoors?

No, the IC-525-T is designed for indoor use only. For outdoor installations, consider Klipsch's AW series.

How do I connect the speaker wire?

Strip 1/2 inch of insulation from each wire, press the corresponding spring terminal, insert the wire, then release. Ensure positive to red terminal, negative to black.

What is the recommended amplifier power?

Use an amplifier rated between 10 and 100 watts RMS per channel at 8 ohms. Higher power may cause damage.

Can the grille be painted?

Yes, the grille is paintable. Remove the grille, clean it, and apply thin coats of spray paint. Let dry completely before reattaching.

What is the cutout size?

The required cutout diameter is 7.5 inches (190.5 mm). Use the included template for precise cutting.

Are back boxes required?

Back boxes are not required but are recommended for optimal sound quality and to prevent sound leakage between rooms. They also help meet fire codes.

Can I adjust the tweeter direction?

Yes, the 1-inch pivoting tweeter can be angled up to 15 degrees to direct sound toward the listening area.

How do I remove the grille?

The grille is held magnetically. Gently pull it away from the speaker frame. If needed, use a flat tool to pry.

What should I do if there is no sound?

Check the amplifier is on and the source is playing. Verify speaker wire connections at both ends. Ensure the impedance matches the amplifier. If still no sound, test the speaker with another source.

USER MANUAL IC-525-T KLIPSCH

Modern living room interior with large window overlooking cityscape, featuring a 'USA' seal above the ceiling and modern furniture (no visible text or symbols)

Custom Installation Buyer's Guide

2019-2020

Klinssch

Plain wooden surface with parallel horizontal lines, no text or symbols visible

TABLE OF CONTENTS
THX CINEMA SERIES

THX-8000-L	5
THX-8000-S	5
THX-5002-L	5
THX-5002-S	6
THX-504-L	6
THX-502-L	6

SHALLOW DEPTH

SLM-5400-C	22
SLM-3400-C	22

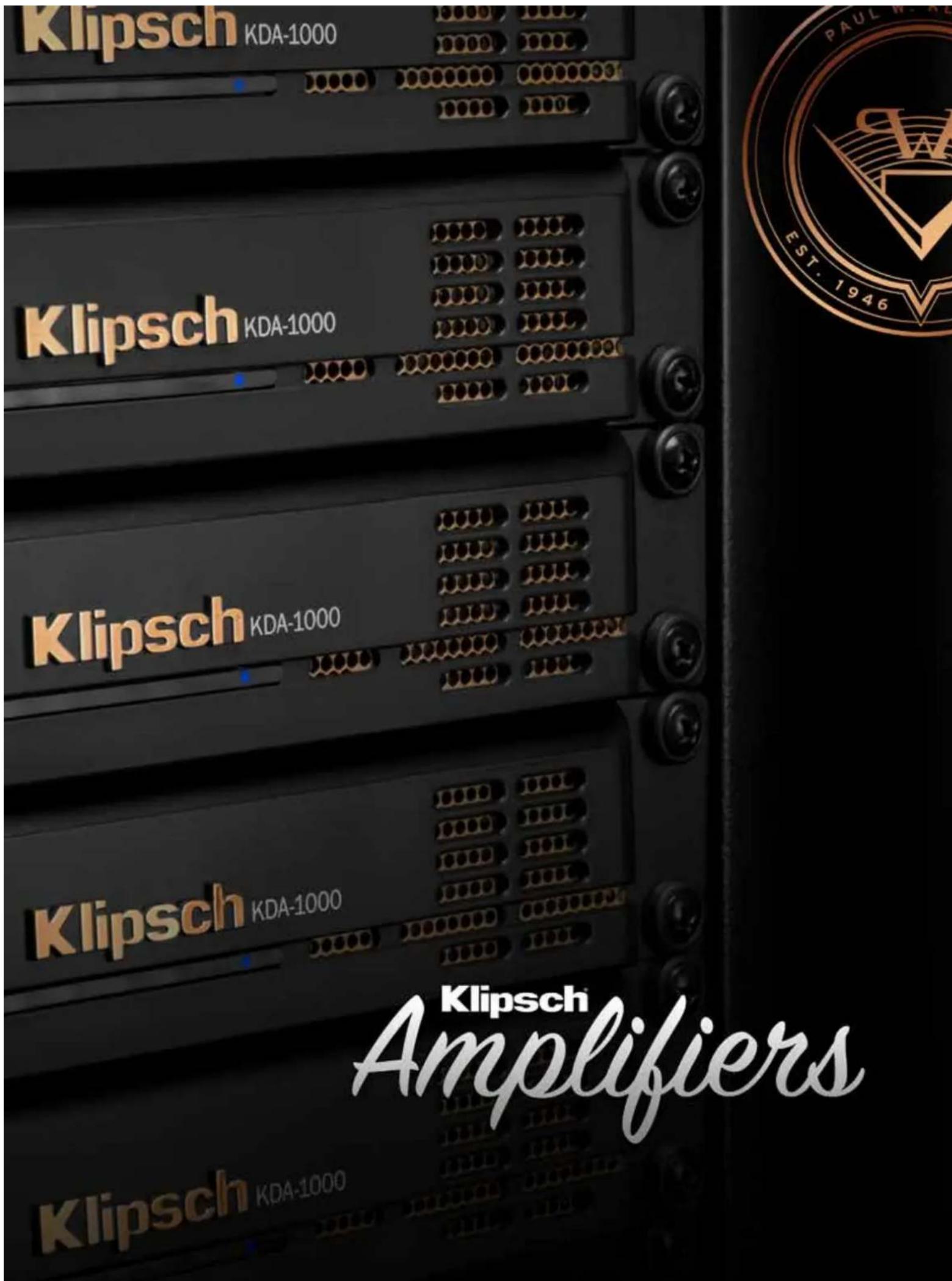

AMPLIFIERS

KDA-1000	40
KDA-500	40
KA-1000-THX	41
RSA-500	41
PRO-200A	42
AMAZON ECHO	42
INPUT AMP

ARCHITECTURAL
ACCESSORIES

INSTALLATION KITS	24
GRILLE BRACKETS	26
RATED ENCLOSURES	26

SUBWOOFERS

C-310ASWI	44
C-308ASWI	44
PRO-1200SW	46
PRO-1000SW	46
PRO-800SW	46
KW-120-THX	47

PROFESSIONAL SERIES

PRO-180RPC LCR	8
PRO-180RPC	8
PRO-160RPC	9
PRO-250RPW LCR	9
PRO-180RPW	10
PRO-160RPW	10
PRO-25RW LCR	12
PRO-18RW	12
PRO-16RW	14
PRO-18RC	14
PRO-16RC	14
PRO-24RW LCR	15
PRO-14RW	15
PRO-14RC	15
PRO-1200SW	16
PRO-1000SW	16
PRO-800SW	16

THX ULTRA SERIES

KL-650-THX	27
KL-525-THX	27
KS-525-THX	28
KW-120-THX	28
KA-1000-THX	28

REFERENCE PREMIERE DESIGNER ON-WALL

RP-440D SB	30
RP-640D	30
RP-240D	31
RP-140D	31

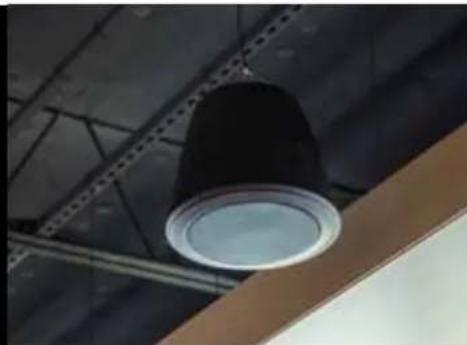

COMMERCIAL SPEAKERS

IC-800-T	47
IC-650-T	48
IC-525-T	48
500-T-SC	48
IC-400-T	49
KPH-800	49
KPH-650	49
KPH-525	49
CP-6T	50
CA-800-T	51
CA-650-T	51
CA-525-T	52
800-TSW	52

CUSTOMIZED HERITAGE THEATER BAR

CUSTOMIZED HERITAGETHEATER BAR

32

DESIGNER SERIES

DS-180CSM	18
DS-180CDT	18
DS-160CDT	18
DS-160CSM	19
DS-160C	19
DS-160W	19
DS-250W LCR	20

OUTDOOR SPEAKERS

AW-650	33
AW-525	33
CP-6	33
AW-400	34
PRO-650T-LS	34
PRO-500T-LS	34
PRO-12SW-LS	35
PRO-10SW-LS	35
ACCESSORIES	35
PRO-10SW-RK	37
PRO-650T-RK	38
PRO-500T-RK	38

CUSTOM SERIES

CS-16C II	20
CS-18C	21
CS-16CSM	21
CS-16W	21

73 YEARS AGO THE GENESIS OF SOMETHING VERY SPECIAL OCCURRED IN A TINY TIN SHED IN HOPE, ARKANSAS

In 1946 Paul W. Klipsch – genius, madman and maverick – designed and hand-built the legendary Klipschorn® loudspeaker with the goal of bringing live music into his living room. He was an American audio pioneer and a true eccentric. PWK gave rise to speaker technologies that would forever impact generations of music lovers.

Today, in this honored tradition, we move forward, pushing the boundaries of art and science – while driving new technologies to deliver an ever-incredible listening experience.

Remember great sound? We never forgot.

We are THE KEEPERS OF THE SOUND®

THX®

ULTRA2™

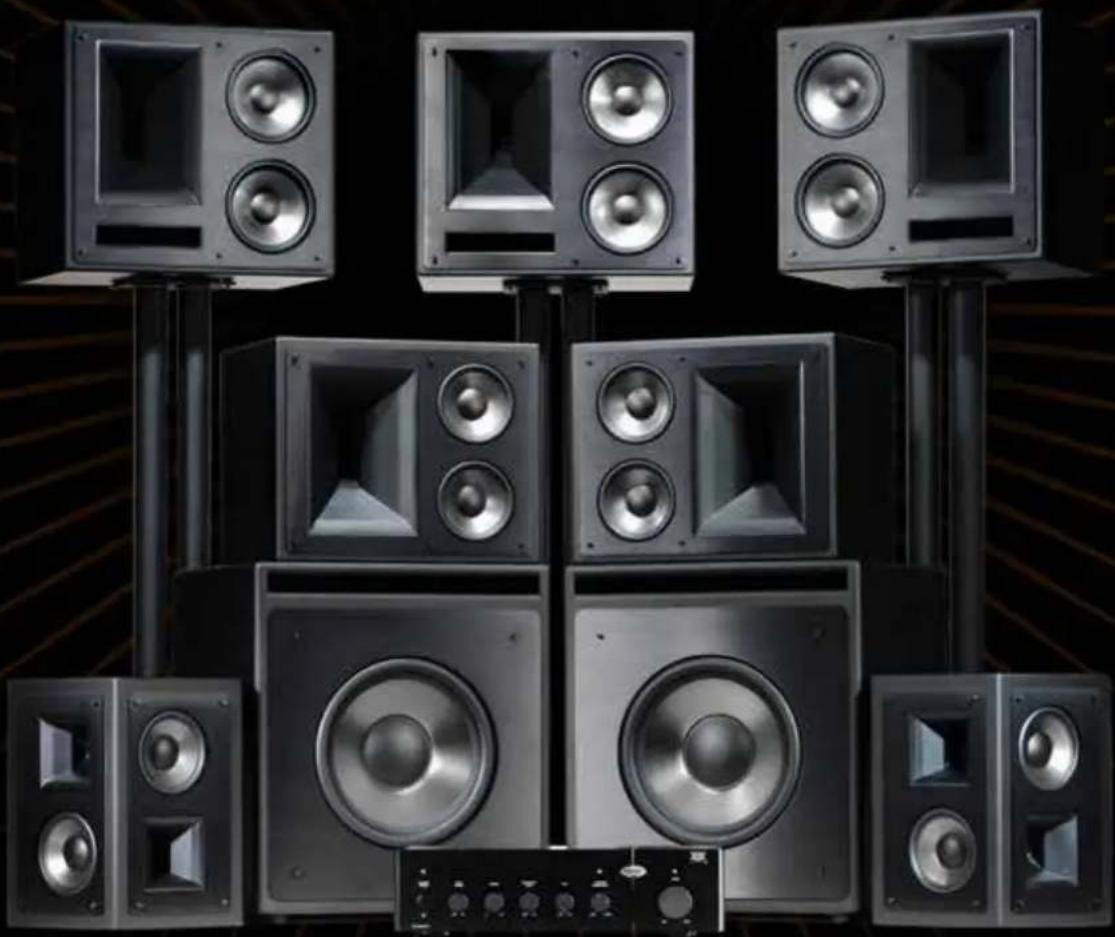

Collection of black studio speakers with various speaker models arranged in a cluster, no visible text or labels.

Don't say we didn't warn you

Once you hear it. you'll have to have it

THX® CINEMA SERIES

This extraordinary custom home theater series brings cinema-quality sound to the comforts of home by using Klipsch's renowned, professional-grade technology. These THX Ultra and Select certified speakers expertly deliver the raw explosiveness and fine detail of any film format and will shatter your expectations for home theater performance. The flat magnetic grille allows these in-wall and in-ceiling speakers to melt seamlessly into your home theater.

• THX Certified for high performance home cinema • THX Ultra and THX Select Certified models

Close-up of a speaker cone with concentric rings and central hub (no text or symbols visible)

• THX Ultra Certified in-wall LCR speaker for rooms over 3000 cubic feet
  • Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille

THX-8000-L 8" IN-WALL LCR SPEAKER

FREQUENCY RESPONSE 80Hz-23kHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

HIGH FREQUENCY DRIVER 1" (2.54cm) Titanium dome compression driver mated to 80° x 80° Tractrix Horn

LOW FREQUENCY DRIVER 8" (20cm) Aluminum Cone Woofer

DIMENSIONS 20.63" (52.4cm) H x 11.63" (29.54cm) W

MOUNTING DEPTH 3.88" (9.85cm)

CUTOUT DIMENSIONS 19.13" (48.59cm) H x 10.12" (25.7cm) W

WEIGHT 17.5 lbs. (7.9kg)

INSTALLATION KIT IK-802-W (sold separately)

• THX Ultra Certified in-wall surround speaker for rooms over 3000 cubic feet
  • Cinema quality sound in an architectural format
• Fully enclosed back box
  ■ Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille

Circular black speaker with two speakers and a geometric logo on the front (no text or symbols)

• THX Ultra Certified in-wall LCR speaker for rooms over 3000 cubic feet
  • Cinema quality sound in an architectural format
• Fully enclosed back box
• Flat, magnetic, paintable grille

IMPEDANCE 8 ohms compatible

DIMENSIONS 20.63" (52.4cm) H x 11.63" (29.54cm) W

MOUNTING DEPTH 3.88" (9.85cm)

CUTOUT DIMENSIONS 19.13" (48.59cm) H x 10.12" (25.7cm) W

WEIGHT 17.5 lbs. (7.9kg)

INSTALLATION KIT IK-802-W (sold separately)

THX-5002-L DUAL 5.25" IN-CEILING LCR SPEAKER

FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB

SENSITIVITY 93dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

CROSSOVER FREQUENCY 1200 Hz & 1800 Hz

POWER HANDLING (CONT/PEAK) 100W /400W

HIGH FREQUENCY DRIVER 1" (2.5cm) Titanium tweeler in a 7.5 x 3.75" 60-90-110 VCT 45° Skewed horn

LOW FREQUENCY DRIVER Two 5.25" (16.51cm) Cerametallic Woofers

DIMENSIONS ∅ 14.89" (37.82cm)

MOUNTING DEPTH 9.23" (23.44cm)

CUTOUT DIMENSIONS ∅ 13.39" (34.01cm)

WEIGHT 12 lbs (5.4kg)

INSTALLATION KIT IK-502-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 9 kg

19.9 lbs

PART NUMBER

1066109

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 8.57 kg

18.9 lbs

PART NUMBER

1066110

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 7.2 kg

15.9 lbs

PART NUMBER

1066119

NOTES:

Circular black speaker or audio device with two speakers and a circuit board, no visible text or symbols

• THX Ultra Certified in-ceiling surround speaker for rooms over 3000 cubic feet
  • Cinema quality sound in an architectural format
• Fully enclosed back box
• Wide Dispersion Sound Technology (WDST)
• Flat, magnetic, paintable grille

THX-5002-S DUAL 5.25" IN-CEILING SURROUND SPEAKER

FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB
SENSITIVITY 93dB @ 2.83W/l meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2500Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER	Two 1" Titanium tweeters in vertically stacked Tractrix horns
LOW FREQUENCY DRIVER	Two 5.25" (16.51cm) Cerametallic Woofers
DIMENSIONS	∅ 14.89" (37.82cm)
MOUNTING DEPTH 9.23" (23.44cm)
CUTOUT DIMENSIONS ∅ 13.39" (34.01cm)
WEIGHT II lbs. (5.0kg)
INSTALLATION KIT IK-502-C (solid separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 6.3 kg

13.9 lbs

PART NUMBER

1066125

NOTES:

Black rectangular electronic device with four circular speakers and a central speaker (no visible text or symbols)

• THX Select Certified in-wall speaker for rooms up to 2000 cubic feet
• Cinema quality sound in an architectural format
• Flat, magnetic, paintable grille

THX-504-L QUAD 5.25" IN-WALL SPEAKER

FREQUENCY RESPONSE 46Hz-20kHz +/- 3dB
SENSITIVITY 92dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 250 Hz & 2100 Hz
POWER HANDLING (CONT/PEAK) 150W /600W
HIGH FREQUENCY DRIVER	1" (2.54cm) Titanium diaphragm compression drivermaled to 90° x 90° square Tractrix Horn
LOW FREQUENCY DRIVER Four 5.25" (13.3cm) high-output, fiberglass cone woofers
DIMENSIONS 28.88" (73.35cm) H x 8.13" (20.65cm) W
MOUNTING DEPTH 3.52" (8.94cm)
CUTOUT DIMENSIONS 27.24" (69.19cm) H x 6.5" (16.51cm) W
WEIGHT 18.3 lbs (8.3kg)
INSTALLATION KIT IK-504-W (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 9 kg

19.9 lbs

PART NUMBER

1066127

NOTES:

• THX Select Certified in-wall speaker for rooms up to 2000 cubic feet
- Cinema quality sound in an architectural format
- Flat, magnetic, paintable grille

THX-502-L DUAL 5.25" IN-WALL SPEAKER

FREQUENCY RESPONSE 46Hz-20kHz +/-3dB
SENSITIVITY 92dB @ 2.83W/1 meter
IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2100Hz & 1200Hz
POWER HANDLING (CONT/PEAK) 100W /400W
HIGH FREQUENCY DRIVER	1" (2.54cm) Titanium diaphragm compression drivermaled to 90° x 90° square Tractrix Horn
LOW FREQUENCY DRIVER Dual 5.25" (13.3cm) high-output, fiberglass cone woofers
DIMENSIONS 17.98" (45.66cm) H x 8.11" (20.59cm) W
MOUNTING DEPTH 3.49" (8.86cm)
CUTOUT DIMENSIONS 16.42" (41.7cm) H x 6.57" (16.68cm) W
WEIGHT 9.6 lbs (4.4kg)
INSTALLATION KIT IK-502-W or IK-502-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 5.4 kg

11.9 lbs

PART NUMBER

1066128

NOTES:

SECUREIT

Legendary Reference Premiere Sound

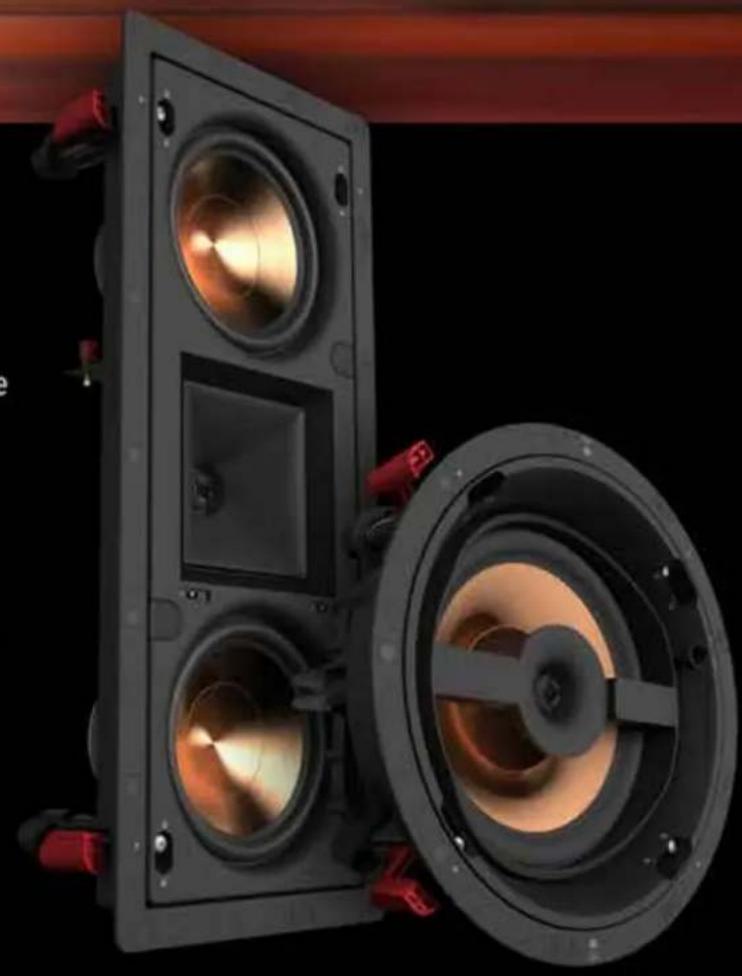

SecureFit ^™ installation system, bezel-free magnetic grilles

Klipsch®

REFERENCE

PREMIERE

PROFESSIONAL

SERIES

PROFESSIONAL SERIES REFERENCE PREMIERE

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series.

Modern interior scene with a wooden TV set, a potted plant, and wall art (no visible text or symbols)

IN-CEILING

Top-down view of a black speaker grille with orange central hub and red mounting points (no text or symbols)

• Angled In-Ceiling LCR speaker for home theater or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included

Close-up of a black speaker emitting sound waves, no visible text or symbols

• In-Ceiling speaker for home theater, distributed audio or 2-channel listening
• SecureFit™ Installation System
• Round and square grilles included
  ■ PVC Paint Shield included

PRO-180RPC LCR 8" IN-CEILING LCR SPEAKER

FREQUENCY RESPONSE 52Hz - 23kHz +/- 3dB

SENSITIVITY 96dB @1M, @2.83V

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER Angled 1" (2.54cm) titanium dome sweeler mated to a composite coated FEA optimized horn

LOW FREQUENCY DRIVER Angled 8" (20.32cm) Cerametallic woofer, angled 45"

DIMENSIONS 12.7" W x 12.7" H x 5.89" D (32.3cm H x 32.3cm W x 15cm D)

MOUNTING DEPTH 5.68" (14.4cm)

CUTOUT DIMENSIONS 11.57" (29.4cm)

WEIGHT 8.4lbs. (3.8kg)

INSTALLATION KIT

IK-810-C (sold separately)

PRO-180RPC 8" IN-CEILING SPEAKER

FREQUENCY RESPONSE 52Hz - 23kHz +/- 3dB

SENSITIVITY 96dB @1M, @2.83V

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) titanium dome tweeter mated to a composite coated round Tractrix® horn

LOW FREQUENCY DRIVER 8" (20.32cm) Cerametallic woofer

DIMENSIONS 10.89" W x 10.89" H x 4.83" D (27.7cm H x 27.7cm W x 12.3cm D)

MOUNTING DEPTH 4.58" (11.6cm)

CUTOUT DIMENSIONS 9.72" (24.7cm)

WEIGHT 7.4lbs. (3.36kg)

INSTALLATION KIT

IK-800-C or IK-600-C II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 4.3 kg

9.5 lbs

PART NUMBER

1063968

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.9kg

8.6 lbs

PART NUMBER

1063967

NOTES:

Top-down view of a black speaker emitting warm light (no text or symbols visible)

• In-Ceiling speaker for home theater, distributed audio or 2-channel listening
• SecureFit™ Installation System
  • Round and square grilles included
• PVC Paint Shield included

PRO-160RPC 6.5" IN-CEILING SPEAKER

FREQUENCY RESPONSE 56Hz - 23kHz +/- 3dB
SENSITIVITY 95dB @1M, @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 100°
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER	1" (2.54cm) titanium dome tweeter mated to a composite coated round Tractrix® horn
LOW FREQUENCY DRIVER 6.5" (16.51cm) Cerametallic woofer
DIMENSIONS 9.31" W x 9.31" H x 4.71" D (23.7cm H x 23.7cm W x 12cm D)
MOUNTING DEPTH 4.46" (11.3cm)
CUTOUT DIMENSIONS 8.15" (20.7cm)
WEIGHT 7lbs. (3.18kg)
INSTALLATION KIT	IK-650-C or IK-650-C II(sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.7 kg

8.15 lbs

PART NUMBER

1063966

NOTES:

IN-WALL

• In-Wall LCR speaker for home theater or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included

PRO-250RPW LCR DUAL 5.25" IN-WALL LCR SPEAKER

FREQUENCY RESPONSE 46Hz - 23kHz +/- 3dB
SENSITIVITY 94dB @IM, @ 2.83V/I meter
IMPEDANCE 8 ohms compatible
COVERAGE ANGLE 90° x 90°
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER	1" (2.54cm) titanium dome tweeter maled to a composite coated hybrid cross section Tractrix® horn
LOW FREQUENCY DRIVER Dual 5.25" (13.34cm) Cerametallic woofers
DIMENSIONS 7.65" W x 17.53" H x 3.81" D (19.4cm H x 44.5cm W x 9.7cm D)
MOUNTING DEPTH 3.68" (9.3cm)
CUTOUT DIMENSIONS 6.5" H X 16.38" W (16.5cm H X 41.6cm W)
WEIGHT 6.5 lbs. (2.95kg)
INSTALLATION KIT	IK-502-Wor IK-502-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.5 kg

7.7 lbs

PART NUMBER

1063965

NOTES:

Close-up of a black speaker with a large orange cone, no visible text or symbols

• In-Wall speaker for home theater, distributed audio or 2-channel listening
- SecureFit™ Installation System
- Flat, magnetic grille
• PVC Paint Shield included

PRO-180RPW 8" IN-WALL SPEAKER

FREQUENCY RESPONSE 52Hz-23kHz +/- 3dB

SENSITIVITY 96dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 90° x 90°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn

LOW FREQUENCY DRIVER 8" (20.32cm) Cerametallic woofer

DIMENSIONS 10.3" W x 15.89" H x 4.01" D (26.2cm H x 40.4cm W x 10.2cm D)

MOUNTING DEPTH 3.88" (9.9cm)

CUTOUT DIMENSIONS 9.13" H X 14.72" W (23.2cm H X 37.4cm W)

WEIGHT 7.9 lbs. (3.6kg)

INSTALLATION KIT IK-800-W or IK-800-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 4.1 kg

9 lbs

PART NUMBER

1064064

NOTES:

Close-up of a black speaker with a glowing orange lens (no text or symbols visible)

• In-Wall speaker for home theater, distributed audio or 2-channel listening
- SecureFit™ Installation System
- Flat, magnetic grille
• PVC Paint Shield included

PRO-160RPW 6.5" IN-WALL SPEAKER

FREQUENCY RESPONSE 56Hz-23kHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 90° x 90°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) Titanium dome tweeter mated to a composite coated hybrid cross section Tractrix® Horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) Cerametallic woofer

DIMENSIONS 9.1" W x 14.22" H x 3.9" D (23.1cm H x 36.1cm W x 9.9cm D)

MOUNTING DEPTH 3.77" (9.6cm)

CUTOUT DIMENSIONS 7.95" H X 13.07" W (20.2cm H X 33.2cm W)

WEIGHT 7.2 lbs. (3.25kg)

INSTALLATION KIT IK-650-W or IK-650-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.75 kg

8.26 lbs

PART NUMBER

1063963

NOTES:

Legendary Reference Sound

SecureFit™ installation system, bezel-free magnetic grilles

Klipsch®

REFERENCE

PROFESSIONAL

SERIES

PROFESSIONAL SERIES REFERENCE

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference series.

- True Reference acoustics • SecureFit™ Installation System • Minimal footprint models available

Interior scene with a white sofa, gray textured wall, and a potted plant (no text or symbols visible)

IN-WALL

• In-wall LCR speaker for home theater or 2-channel listening
- SecureFit™ Installation System
- Flat, magnetic grille
• PVC Paint Shield included

PRO-25RW LCR DUAL 5.25" IN-WALL LCR SPEAKER

FREQUENCY RESPONSE 50Hz-23kHz +/- 3dB

SENSITIVITY 93dB @ 2.83V/l meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 75W /300W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn

LOW FREQUENCY DRIVER Dual 5.25" (16.51cm) IMG woofers

DIMENSIONS 7.65" W x 17.53" H x 3.81" D (19.4cm H x 44.5cm W x 9.7cm D)

MOUNTING DEPTH 3.68" (9.3cm)

CUTOUT DIMENSIONS 6.5" W X 16.38" H (16.5cm W X 41.6cm H)

WEIGHT 6.5 lbs. (2.95kg)

INSTALLATION KIT IK-502-W or IK-502-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.5 kg

7.7 lbs

PART NUMBER

1064445

NOTES:

Close-up of a black wall-mounted speaker with a golden ambient cone (no text or symbols visible)

• In-wall speaker for home theater, distributed audio or 2-channel listening
• SecureFit™ Installation System
• Flat, magnetic grille
• PVC Paint Shield included

PRO-18RW 8" IN-WALL SPEAKER

FREQUENCY RESPONSE 56Hz-23kHz +/- 3dB

SENSITIVITY 95dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a 90°x90° Tractrix® Horn

LOW FREQUENCY DRIVER 8" (20.32cm) IMG woofer

DIMENSIONS 10.3" W x 15.89" H x 4.0" D (26.2cm H x 40.4cm W x 10.2cm D)

MOUNTING DEPTH 3.88" (9.9cm)

CUTOUT DIMENSIONS 9.13" W X 14.72" H (23.2cm W X 37.4cm H)

WEIGHT 7.9 lbs. (3.6kg)

INSTALLATION KIT IK-800-W or IK-800-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 4.1 kg

9 lbs

PART NUMBER

1064444

NOTES:

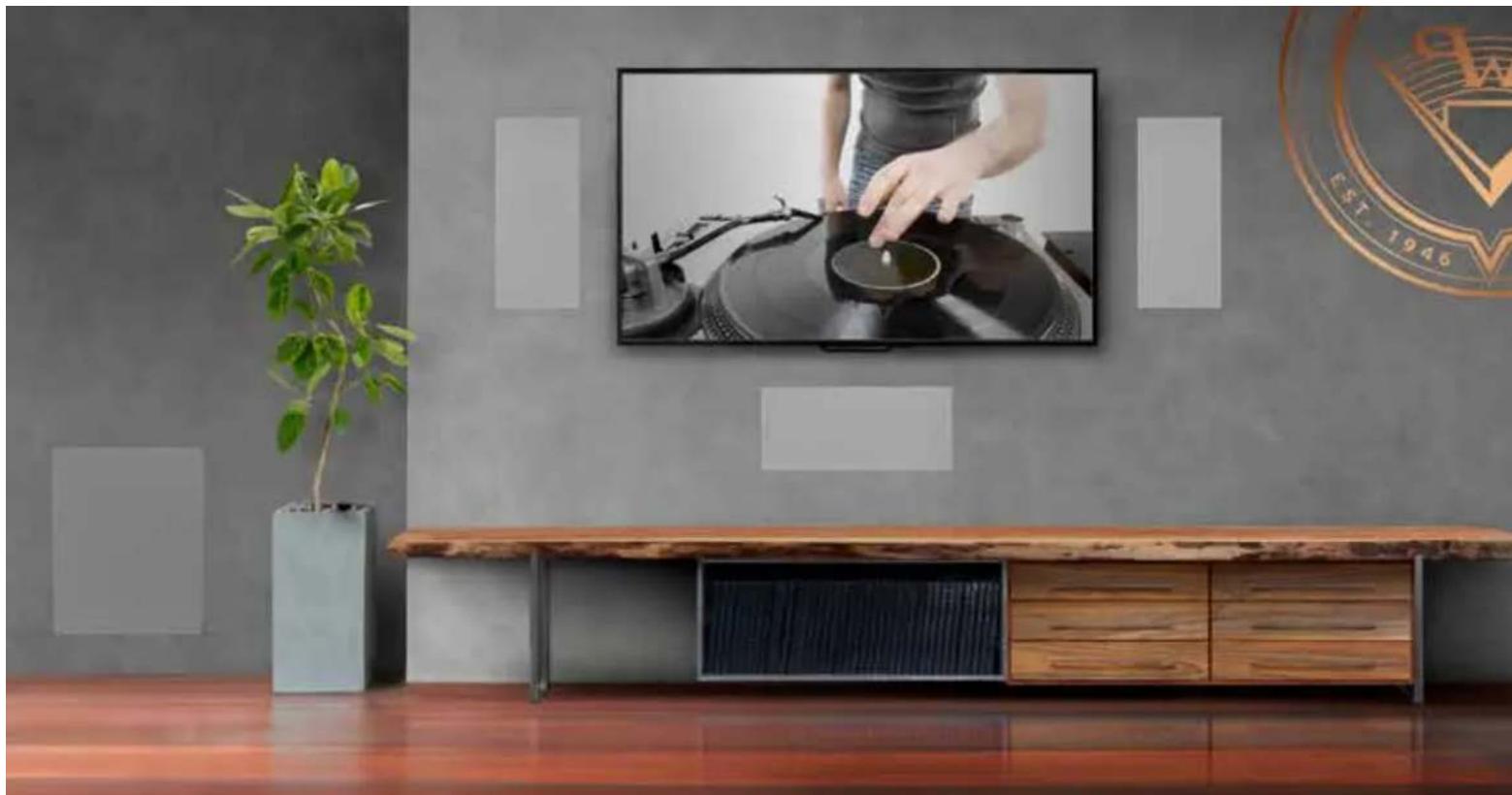

Modern interior scene with a wooden TV set, a potted plant, and a wall-mounted CD or DVD player; no visible text or symbols.

SECUREFIT

With updated horns and drivers, New Klipsch Reference Professional and Reference Premiere Professional series speakers deliver all the power, detail and emotion of our legendary towers and monitors. A more robust bezel, the SecureFit™ two-part system, provides for a simple installation while reducing overall baffle vibration by 45%. Grille options and magnetic paint shield are included with the integrator in mind.

Exterior view of a black multi-lens TV with two circular speakers and red connectors (no text or symbols visible)

Included with

Klipsch

REFERENCE

PROFESSIONAL

SERIES

Klipsch

REFERENCE PREMIERE

PROFESSIONAL

SERIES

Close-up of a black speaker with a copper lens, no visible text or symbols

• In-wall speaker for home theater, distributed audio or 2-channel listening
• SecureFit™ Installation System
  • Round and square grilles included
  • PVC Paint Shield included

PRO-16RW 6.5" IN-WALL SPEAKER

FREQUENCY RESPONSE 60Hz-23kHz +/- 3dB

SENSITIVITY 93dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a round Tractrix Horn

LOW FREQUENCY DRIVER 6.5" (16.5cm) IMG Woofer

DIMENSIONS 9.1" W x 14.22" H x 3.91" D (23.1cm H x 36.1cm W x 9.9cm D)

MOUNTING DEPTH 3.78" (9.6cm)

CUTOUT DIMENSIONS 7.95"W X 13.07" H (20.2cm W X 33.2cm H)

WEIGHT 7.2 lbs. (3.25kg)

INSTALLATION KIT IK-650-W or IK-650-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.75 kg

8.26 lbs

PART NUMBER

1064443

SECUREIT

NOTES:

IN-CEILING

Close-up of a black speaker head with orange tones and red connectors (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
- SecureFit™ Installation System
• Round and square grilles included
• PVC Paint Shield included

PRO-18RC 8" IN-CEILING SPEAKER

FREQUENCY RESPONSE 56Hz - 23kHz +/- 3dB

SENSITIVITY 95dB @ 2.83V/I meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a round Tractrix * horn

LOW FREQUENCY DRIVER 8" (20.32cm) IMG woofer

DIAMETER 10.89" (27.7cm)

CUTOUT DIAMETER 9.72" (24.7cm)

MOUNTING DEPTH 6.35" (16.1cm)

WEIGHT 7.4 lbs. (3.36kg)

INSTALLATION KIT IK-800-C or IK-800-C II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.8 kg

8.3 lbs

PART NUMBER

1064447

SECUREIT

NOTES:

Top-down view of a black speaker with concentric rings and red connectors (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
• SecureFit™ Installation System
  ■ Round and square grilles included
  • PVC Paint Shield included

PRO-16RC 6.5" IN-CEILING SPEAKER

FREQUENCY RESPONSE 63Hz - 23kHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) aluminum dome tweeter mated to a round Tractrix ^® horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) IMG woofer

DIAMETER 9.31" (23.7cm)

CUTOUT DIAMETER 8.15" (20.7cm)

MOUNTING DEPTH 6.15" (15.6cm)

WEIGHT 7 lbs. (3.18kg)

INSTALLATION KIT IK-650-C or IK-650-C II(sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.6 kg

7.9 lbs

PART NUMBER

1064446

SECUREIT

NOTES:

MINIMAL FOOTPRINT IN-WALL

Close-up of a black speaker tower with two speakers and a square button (no text or symbols visible)

• In-wall LCR speaker for home theater or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat, magnetic grille
  ■ PVC Paint Shield included

Close-up of a black speaker with a golden speaker cone (no visible text or symbols)

• In-wall speaker for home theater, distributed audio or 2-channel listening
• Minimal visual footprint
• SkyHook™ Installation System
• Flat magnetic grille
• PVC Paint Shield included

PRO-24RW LCR MINIMAL FOOTPRINT DUAL 4" IN-WALL LCR SPEAKER

FREQUENCY RESPONSE 68Hz-23kHz +/- 3dB

SENSITIVITY 89dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 30W /120W

HIGH FREQUENCY DRIVER .75" (1.9cm) aluminum dome tweeter

LOW FREQUENCY DRIVER Dual 4" (10.16cm) IMG Woofers

DIMENSIONS 6.36" W x 13.42" H x 3.32" D (16.2cm H x 34.1cm W x 8.4cm D)

MOUNTING DEPTH 3.17" (8.1cm)

CUTOUT DIMENSIONS 5.26" W X 12.35" H (13.4cm W X 31.4cm H)

WEIGHT 4.5 lbs. (2.1kg)

INSTALLATION KIT IK-402-W (sold separately)

PRO-14RW MINIMAL FOOTPRINT 4" IN-WALL SPEAKER

FREQUENCY RESPONSE 70Hz-23kHz +/- 3dB

SENSITIVITY 88dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 30W /120W

HIGH FREQUENCY DRIVER 1" (2.54cm) Silk dome tweeter mated to 90° x 90° Tractrix Horn

LOW FREQUENCY DRIVER Dual 4" (10.2cm) Polypropylene Woofers

DIMENSIONS 6.38" W x 9.2" H x 3.56" D (16.2cm H x 23.4cm W x 9cm D)

MOUNTING DEPTH 3.41" (8.7cm)

CUTOUT DIMENSIONS 5.26" W X 8.13" H (13.4cm W X 20.7cm H)

WEIGHT 4lbs (1.8kg)

INSTALLATION KIT IK-400-W (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.6 kg

5.73 lbs

PART NUMBER

1064449

SKY HOOK

CINCH BY SWARM

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.3 kg

5 lbs

PART NUMBER

1064448

SKY HOOK

CINCH BY SWARM

NOTES:

MINIMAL FOOTPRINT IN-CEILING

Circular mechanical component with concentric rings and central hub (no visible text or symbols)

• In-wall speaker for home theater, distributed audio or 2-channel listening
- Minimal visual footprint
■ SkyHook™ Installation System
• Round and square grilles included
• PVC Paint Shield included

PRO-14RC MINIMAL FOOTPRINT 3.5" IN-CEILING SPEAKER

FREQUENCY RESPONSE 72Hz - 23kHz +/- 3dB

SENSITIVITY 88dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 30W /120W

HIGH FREQUENCY DRIVER .75" (1.9cm) aluminum dome tweeler

LOW FREQUENCY DRIVER 3.5" (8.89cm) IMG woofer

DIAMETER 4.86" (12.4cm)

CUTOUT DIAMETER 4.21" (10.7cm)

MOUNTING DEPTH 3.89" (9.9cm)

WEIGHT 4 lbs. (1.8kg)

INSTALLATION KIT IK-400-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.3 kg

5 lbs

PART NUMBER

1064450

SKY HOOK

CINCH BY SWARM

NOTES:

• Full stud-bay-in-wall subwoofer for new construction
- Ideal for home cinema or high performance distributed audio
- Easily installs into any standard stud-bay

PRO-1200SW 12" IN-WALL SUBWOOFER

FREQUENCY RANGE 21Hz - 100Hz +/- 3dB *

SYSTEM TYPE Sealed Box

WOOFER 12" (25.4cm) Long-Throw Cerametallic *

MAXIMUM OUTPUT* 112dB @ 70Hz

POWER HANDLING 250W RMS / 600W Peak

IMPEDANCE 8 ohms

ENCLOSURE MATERIAL MDF

FINISH Black Polymer Veneer with White, Paintable Grille

PRODUCT DIMENSIONS 65.75" H x 15.69" W x 3.47" D (1670.05mm x 398mm x 100mm)

MOUNTING DEPTH 3.4" (88.138mm)

CUTOUT DIMENSIONS 14.25" x 14.25" (361.95mm x 361.95mm)

PRODUCT WEIGHT 35.5 lbs (16.1 kg)

* With Klipsch KDA Amplifier DSP Preset

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 16.6 kg

36.6 lbs

PART NUMBER

1064595

NOTES:

Black square speaker with a golden central lens (no text or symbols visible)

• 10" Long-throw Cerametallic "woofer for superior low frequency response
  ■ Performs as the anchor for a home theater system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrofit or new construction applications
• Compatible with the KDA-500 amplifier (see page XX)

PRO-1000SW 10" IN-WALL SUBWOOFER

FREQUENCY RANGE 24-100Hz +/- 3dB *

SYSTEM TYPE Sealed Box

WOOFER 10" (25.4cm) Long-Throw Cerametallic

MAXIMUM OUTPUT* 109dB @ 70Hz

POWER HANDLING 200W RMS / 500W Peak

IMPEDANCE 8 ohms

ENCLOSURE MATERIAL HDF

FINISH Black Polymer Veneer with White, Paintable Grille

PRODUCT DIMENSIONS 21.97" x 17.56" x 4.0" (558mm x 448mm x 102mm)

MOUNTING DEPTH 3.94" (100mm)

CUTOUT DIMENSIONS 20.24" x 14.41" (514.096mm x 366.014mm)

PRODUCT WEIGHT 20.3 lbs (9.2 kg)

* With Klipsch KDA Amplifier DSP Preset

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 9.8 kg

21.6 lbs

PART NUMBER

1063646

NOTES:

Black rectangular device with a black pipe fitting and red connectors (no text or symbols visible)

• In-ceiling bandpass dual voice coil subwoofer for new construction or retrofit
• Minimal visual footprint
  • Round and square grilles included
  • Floor vent boot kit accessory (sold separately)

PRO-800SW 8" IN-WALL SUBWOOFER

FREQUENCY RANGE 38Hz - 125Hz +/- 3dB
SYSTEM TYPE Bandpass via flexible port tube
WOOFER 8" (203cm) Dual Voice Coil Long-Throw Cerametallic	"
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Peak
IMPEDANCE 2 x 8 ohms
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS	Cabinet: 6.9" H x 21.1" W x 14.2" D (176mm x 536mm x 361mm)Grille: 5" (127mm)
MOUNTING DEPTH 7" (178mm)
CUTOUT DIAMETER 4.25" (108mm)
PRODUCT WEIGHT 22.1 lbs (10.1 kg)
ACCESSORIES	PRO-800SW Vent Boot Kit (Sold Separately)

* With Klipsch KDA Amplifier DSP Preset

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 10.6 kg

23.4 lbs

PART NUMBER

1064594

NOTES:

SKY HOOK® CINCH BY SWARM

Klipsch Designer series and Custom series speakers combine lighting-fast installation and great sound - with designer aesthetics in mind. Skyhook tool-free installation has been upgraded to SkyHook Cinch.

SkyHook Cinch provides a 75% faster installation time and tighter, more flush fit to the surface installed even if it's uneven. Simply cut the hole, connect the speaker wire and push the speaker into place. One-click. That's it. The pre-tensioned dog-legs automatically engage and lock in place for solid, ultra reliable installation.

Time is Money

Super-fast Sky Hook™ installation system, bezel-free magnetic grilles

DESIGNER SERIES

Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series delivers true Klipsch sound perfectly suited for distributed audio systems or small home theaters. These speakers utilize the fast, easy SkyHook™ tool-free installation system that reduces install time by up to 75%.

- SkyHook™ Installation System • Tractrix® Horn technology • Magnetic, bezel-free grilles

Interior view of a modern kitchen with glass partitions, wooden chairs, and white flowers (no visible text or symbols)

IN-CEILING

Close-up of a black speaker or audio component with no visible text or symbols

• In-ceiling stereo speaker for distributed audio
  • SkyHook* ultra-fast Installation System
• Flat, magnetic grille

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
  • SkyHook' ultra-fast Installation System
  ■ Controlled Dispersion Technology (CDT) allows tweter and woofer to be aimed
• Flat, magnetic grille

Close-up of a black speaker grille with concentric rings and mounting holes (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
• SkyHook' ultra-fast Installation System
  ■ Controlled Dispersion Technology (CDT) allows tweter and woofer to be aimed
• Flat, magnetic grille

DS-180CSM

8" STEREO IN-CEILING SPEAKER

FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER Dual .75" (1.9cm) silk dome tweeters

LOW FREQUENCY DRIVER 8" (20.32cm) Polypropylene woofer

DIAMETER 10.88" (27.6cm)

CUTOUT DIAMETER 9.57" (24.3cm)

MOUNTING DEPTH 4.24" (10.8cm)

WEIGHT 7.4 lbs. (3.36kg)

INSTALLATION KIT IK-800-C II (sold separately)

FIRE RATED ENCLOSURE ME-800-C (sold separately)

DS-180CDT

8" IN-CEILING PIVOTING SPEAKER

FREQUENCY RESPONSE 64Hz-20KHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.5cm) silk dome tweeter mated to a round Tractrix * Horn

LOW FREQUENCY DRIVER 8" (20.32cm) polypropylene woofer

DIAMETER 10.88" (27.6cm)

CUTOUT DIAMETER 9.57" (24.3cm)

MOUNTING DEPTH 4.66" (11.8cm)

WEIGHT 7.4 lbs. (3.36 kg)

INSTALLATION KIT IK-800-C II (sold separately)

FIRE RATED ENCLOSURE ME-800-C (sold separately)

DS-160CDT

6.5" IN-CEILING PIVOTING SPEAKER

FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.5cm) silk dome tweeter maetd to a round Tractrix Horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) Polypropylene woofer

DIAMETER 9.3" (23.6cm)

CUTOUT DIAMETER 7.99" (20.3cm)

MOUNTING DEPTH 4.41" (11.2cm)

WEIGHT 7 lbs. (3.18kg)

INSTALLATION KIT IK-650-C II (sold separately)

FIRE RATED ENCLOSURE ME-650-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.8 kg

8.37 lbs

PART NUMBER

1064169

SKY HOOK

CINCH BY SWARM

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.8 kg

8.37 lbs

PART NUMBER

1064167

SKY HOOK

CINCH BY SWARM

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.6 kg

7.91bs

PART NUMBER

1064166

SKY HOOK

CINCH BY SWARM

NOTES:

Close-up of a black circular speaker or speaker with visible sound waves and mounting holes (no text or symbols)

• In-ceiling stereo speaker for distributed audio
  • SkyHook' ultra-fast Installation System
• Flat, magnetic grille

DS-160CSM

6.5" STEREO IN-CEILING SPEAKER

FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER Dual .75" (1.9cm) silk dome tweeters

LOW FREQUENCY DRIVER 6.5" (16.51cm) Dual voice coil polypropylene woofer

DIAMETER 9.3" (23.6cm)

CUTOUT DIAMETER 7.99" (20.3cm)

MOUNTING DEPTH 3.99" (10.1cm)

WEIGHT 7 lbs (3.18kg)

INSTALLATION KIT IK-650-C II (sold separately)

FIRE RATED ENCLOSURE ME-650-C (sold separately)

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
  • SkyHook' ultra-fast Installation System
• Flat, magnetic grille

DS-160C

6.5" IN-CEILLING SPEAKER

FREQUENCY RESPONSE 65Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

COVERAGE ANGLE 100°

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.5cm) silk dome tweeter mated to a round Tractrix * Horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) Polypropylene woofer

DIAMETER 9.3" (23.6cm)

CUTOUT DIAMETER 7.99" (20.3cm)

MOUNTING DEPTH 3.99" (10.7cm)

WEIGHT 7 lbs (3.18 kg)

INSTALLATION KIT IK-650-C II (sold separately)

FIRE RATED ENCLOSURE ME-650-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.7 kg

8.1 lbs

PART NUMBER

1064168

SKY HOOK

CINCH BY SWARM

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.7 kg

8.1 lbs

PART NUMBER

1064165

SKY HOOK

CINCH BY SWARM

NOTES:

IN-WALL

Close-up of a black speaker or audio device with two circular speakers (no visible text or symbols)

• In-wall speaker for home theater, distributed audio or 2-channel listening
- SkyHook" ultra-fast Installation System
- Flat, magnetic grille

DS-160W

6.5" IN-WALL SPEAKER

FREQUENCY RESPONSE 65Hz-20kHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) Silk dome tweeter mated to a round Tractrix * Horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) Polypropylene Woofer

DIMENSIONS 9.11" W x 14.23" H x 3.46" D (23.1cm H x 36.1cm W x 8.8cm D)

MOUNTING DEPTH 3.31" (8.4cm)

CUTOUT DIMENSIONS 7.87" W X 12.99" H (20cm W X 33cm H)

WEIGHT 7.2 lbs. (3.25kg)

INSTALLATION KIT IK-650-W II (sold separately)

FIRE RATED ENCLOSURE ME-650-W (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.75 kg

8.26 lbs

PART NUMBER

1064163

SKY HOOK

CINCH BY SWARM

NOTES:

Close-up of a black speaker tower with two large speakers and a central button (no text or symbols visible)

• In-wall speaker for home theater or 2-channel listening
  • SkyHook "ultra-fast Installation System
• Flat, magnetic grille

DS-250W LCR DUAL 5.25" IN-WALL LCR SPEAKER

FREQUENCY RESPONSE 45Hz-20kHz +/- 3dB

SENSITIVITY 92dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 60W /240W

HIGH FREQUENCY DRIVER 1" (2.54cm) Silk dome tweeter mated to a round Tractrix * Horn

LOW FREQUENCY DRIVER Dual 5.25" (13.34cm) Polypropylene Woofers

DIMENSIONS 7.65"W x 17.54"H x 3.12"D (19.4cm H x 44.5cm W x 7.9cm D)

MOUNTING DEPTH 297" (7.5cm)

CUTOUT DIMENSIONS 6.42" W X 16.3" H (16.3cm W X 41.4cm H)

WEIGHT 6.5lbs (2.95kg)

INSTALLATION KIT IK-502-W II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.5 kg

7.7 lbs

PART NUMBER

1064164

SKY HOOK

CINCH BY SWARM

NOTES:

CUSTOM SERIES

Using the same design principals of our premium architectural and box speaker lines, the all new Klipsch Custom series delivers true Klipsch sound for distributed audio or small home theater. These speakers utilize the exclusive SkyHook™ tool-free installation system to engage the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

Interior scene with a wooden cabinet, dark brick wall, and hanging items (no visible text or symbols)

IN-CEILING

Circular black speaker or speaker with concentric rings and small red connectors at the base (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
■ SkyHook™ ultra-fast Installation System
- Flat, magnetic grille

CS-16C II 6.5" IN-CEILING SPEAKER

FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 35W /140W

HIGH FREQUENCY DRIVER 1" (2.5cm) polymer dome tweeler

LOW FREQUENCY DRIVER 6.5" (16.51cm) poly woofer

DIAMETER 9.3" (23.6cm)

CUTOUT DIAMETER 7.99" (20.3cm)

MOUNTING DEPTH 3.91" (9.9cm)

WEIGHT 5.1 lbs (2.3 kg)

INSTALLATION KIT IK-650-C II (sold separately)

FIRE RATED ENCLOSURE ME-650-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.6 kg

5.7 lbs

PART NUMBER

1064160

SKY HOOK

CINCH BY SWARM

NOTES:

Top-down view of a black speaker or speaker with concentric rings and small components (no text or symbols visible)

• In-ceiling speaker for home theater, distributed audio or 2-channel listening
• SkyHook™ ultra-fast Installation System
- Flat, magnetic grille

Close-up of a black circular speaker or speaker with visible internal components and mounting holes (no text or symbols)

• In-ceiling stereo speaker for distributed audio
  • SkyHook™ ultra-fast Installation System
• Flat, magnetic grille

CS-18C 8" IN-CEILING SPEAKER

FREQUENCY RESPONSE 55Hz-20KHz +/- 3dB

SENSITIVITY 92dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 40W /160W

HIGH FREQUENCY DRIVER 1" (2.54cm) polymer dome tweeter

LOW FREQUENCY DRIVER 8" (20.32cm) polymer woofer

DIAMETER 10.88" (27.6cm)

CUTOUT DIAMETER 9.57" (24.3cm)

MOUNTING DEPTH 4.17" (10.6cm)

WEIGHT 7.4 lbs (3.36 kg)

INSTALLATION KIT IK-800-C II (sold separately)

FIRE RATED ENCLOSURE ME-800-C (sold separately)

CS-16CSM 6.5" STEREO IN- CEILING SPEAKER

FREQUENCY RESPONSE 57Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 40W /160W

HIGH FREQUENCY DRIVER Dual .75" (1.9cm) polymer dome tweeters

LOW FREQUENCY DRIVER 6.5" (16.51cm) dual voice coil polymer woofer

DIAMETER 9.3" (23.6cm)

CUTOUT DIAMETER 7.99" (20.3cm)

MOUNTING DEPTH 3.99" (10.1cm)

WEIGHT 7 lbs (3.18 kg)

INSTALLATION KIT IK-650-C II (sold separately)

FIRE RATED ENCLOSURE ME-650-C (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.9 kg

6.4 lbs

PART NUMBER

1064161

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 7.5 kg

16.5 lbs

PART NUMBER

1064162

NOTES:

IN-WALL

Close-up of a black speaker or audio device with a circular lens and mounting holes (no visible text or symbols)

• In-wall speaker for home theater, distributed audio or 2-channel listening
- SkyHook™ ultra-fast Installation System
- Flat, magnetic grille

CS-16W 6.5" IN-WALL SPEAKER

FREQUENCY RESPONSE 57Hz-20kHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 40W /160W

HIGH FREQUENCY DRIVER 1" (2.54cm) polymer tweeter

LOW FREQUENCY DRIVER 6.5" (16.5cm) polymer woofer

DIMENSIONS 9.11" W x 14.23" H x 3.43" D (23.1cm H x 36.1cm W x 8.7cm D)

MOUNTING DEPTH 3.28" (8.3cm)

CUTOUT DIMENSIONS 7.87" W X 12.99" H (20cm W X 33cm H)

WEIGHT 7.2 lbs. (3.25kg)

INSTALLATION KIT IK-650-W II (sold separately)

FIRE RATED ENCLOSURE ME-650-W (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.75 kg

8.26lbs

PART NUMBER

1064159

NOTES:

SHALLOW DEPTH SPEAKERS

ARCHITECTURAL CUSTOM

Creating a benchmark in architectural audio excellence, the Reference Series shallow depth in-ceiling architectural speakers deliver a level of realism and subtlety that surpasses and even intimidates competing designs. With ultra-slim 50mm back boxes, these speakers belie their size with full, detailed sound in any installation.

- Ultra-slim in-ceiling speakers · Great performance in any installation

Close-up of a black speaker grille with orange ambient lighting (no text or symbols visible)

• Ultra-slim in-ceiling speaker
• 50mm deep fire-rated back box
• Flat, magnetic grille - round and square grilles included

Close-up of a black speaker grille with orange ambient lighting (no text or symbols visible)

• Ultra-slim in-ceiling speaker
• 50mm deep fire-rated back box
• Flat, magnetic grille - round and square grilles included

SLM-5400-C 4" SHALLOW DEPTH IN-CEILING SPEAKER

FREQUENCY RESPONSE 90Hz-20KHz +/- 3dB

SENSITIVITY 91dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

RECOMMENDED AMP POWER 50W

POWER HANDLING 120W Peak

HIGH FREQUENCY DRIVER 1" (2.5cm) titanium dome tweeter with a round Tractrix Horn

LOW FREQUENCY DRIVER 4" (10.2cm) Cerametallic * woofer

DIAMETER 9.516" (24.17cm)

CUTOUT DIAMETER 8.15" (20.7cm)

MOUNTING DEPTH 1.97" (5cm)

WEIGHT 7.4 lbs. (3.35kg)

INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)

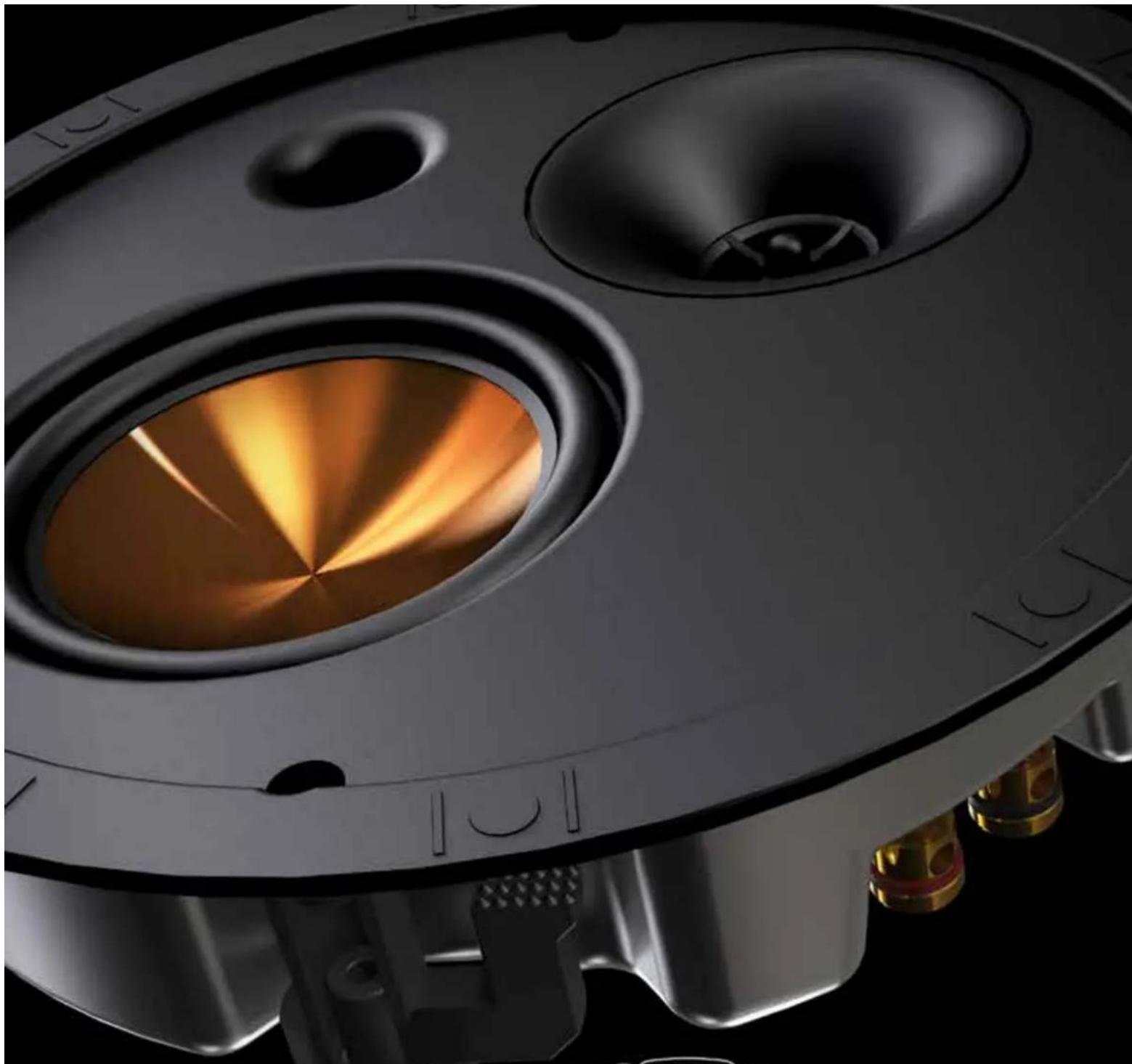

SLM-3400-C 4" SHALLOW DEPTH IN-CEILING SPEAKER

FREQUENCY RESPONSE 92Hz-20KHz +/- 3dB

SENSITIVITY 90dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

RECOMMENDED AMP POWER 50W

POWER HANDLING 120W Peak

HIGH FREQUENCY DRIVER 1" (2.5cm) aluminum dome tweeter with a round Tractrix Horn

LOW FREQUENCY DRIVER 4" (10.2cm) IMG woofer

DIAMETER 10.516" (26.7cm)

CUTOUT DIAMETER 8.15" (20.7cm)

MOUNTING DEPTH 1.97" (5cm)

WEIGHT 7.4 lbs. (3.35kg)

INSTALLATION KIT IK-650-C or IK-650-C II (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.6 kg

8 lbs

PART NUMBER

1063201

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 3.6 kg

8 lbs

PART NUMBER

1063200

NOTES:

Close-up of a metallic mechanical component with a bright, reflective interior and multiple circular ports (no visible text or symbols)

Klipsch

REFERENCE

ULTRA-SLIM SPEAKERS

GREAT DEPTH FROM THE SHALLOWS

ULTRA-SLIM 50MM (1.97")

THIN IS IN

Some of the most compact in-ceiling speakers on the market, the SLM-5400-C and SLM-3400-C feature an ultra-slim (50mm) depth with a fully enclosed back box and legendary KLIPSCH acoustic performance. The thin fire-rated metal back box provides exceptional sound isolation and low frequency response.

Featuring the same powerful acoustic design as the legendary Reference architectural series, these speakers bring classic Klipsch sound to an ultra-slim package. The flat, magnetic, minimum bezel grille gives a modern and discreet look for great sound in the spaces where we live.

ACCESSORIES

At Klipsch, we make products to suit any need, but we also realize that not everyone will use our products in the same way. That's why we offer stylish and useful accessories to protect your investment, customize your speaker installations and maximize your listening experience.

INSTALLATION KITS

IK-810-C INSTALLATION BRACKET FOR 8" IN-CEILING LCR SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 1.3 kg | 3 lbs

FOR USE WITH PRO-180RPC LCR

PART NUMBER

1065326

Simple illustration of a blue square frame and two white cylindrical objects (no text or symbols)

IK-802-W INSTALLATION BRACKET FOR THX ULTRA2

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 1.3 kg | 3 lbs

FOR USE WITH THX Ultra2 in-wall speakers and in-wall subwoofer

PART NUMBER

1007229

IK-800-C INSTALLATION BRACKET FOR 8" IN-CEILING SPEAKER

SHIPPING QUANTITY Each

SHIPPING WEIGHT .45 kg | 1 lbs

FOR USE WITH PRO-180RPC, PRO-18RC, DS-180CDT, CS-18C

PART NUMBER

1001180

IK-800-C II INSTALLATION BRACKET FOR 8" IN-CEILING SPEAKER

SHIPPING QUANTITY 10-Pack

SHIPPING WEIGHT 4.5 kg | 10 lbs

FOR USE WITH PRO-180RPC, PRO-18RC, DS-180CDT, DS-180CSM, CS-18C

PART NUMBER

1065322

IK-800-W INSTALLATION BRACKET FOR 8" IN-WALL SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-180RPW, PRO-18RW

PART NUMBER

1001178

IK-800-W II INSTALLATION BRACKET FOR 8" IN-WALL SPEAKER

SHIPPING QUANTITY 10-Pack

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-180RPW, PRO-18RW

PART NUMBER

1065324

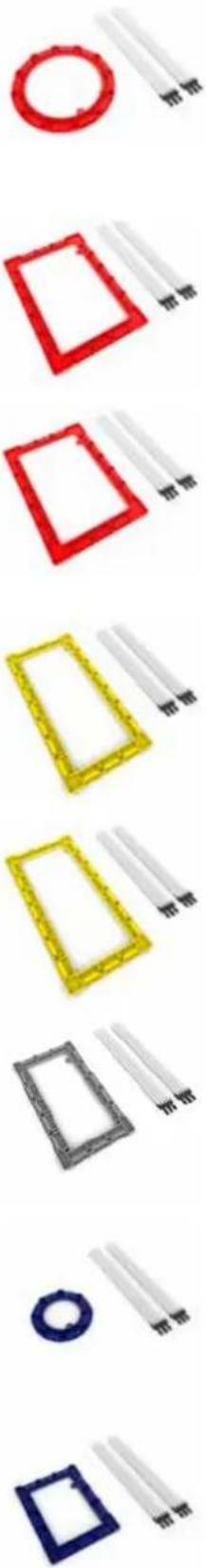

PRO-16-SBR INSTALLATION BRACKET FOR 6.5" IN-CEILING SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, CS-16C II

PART NUMBER

1001179

IK-650-C II INSTALLATION BRACKET FOR 6.5" IN-CEILING SPEAKER

SHIPPING QUANTITY 10-Pack

SHIPPING WEIGHT 4.5 kg | 10 lbs

FOR USE WITH PRO-160RPC, PRO-16RC, DS-160C, DS-160CDT, DS-160CSM, CS-16C II, CS-16CSM

IK-650-W INSTALLATION BRACKET FOR 6.5" IN-WALL SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-160RPW, PRO-16RW

IK-650-W II INSTALLATION BRACKET FOR 6.5" IN-WALL SPEAKER

SHIPPING QUANTITY 10-Pack

SHIPPING WEIGHT 4.5 kg | 10 lbs

FOR USE WITH PRO-160RPW, PRO-16RW, DS-160W, CS-16W

IK-502-W INSTALLATION BRACKET FOR DUAL 5.25" IN-WALL LCR SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-250RPW LCR, PRO-25RW LCR

IK-502-W II INSTALLATION BRACKET FOR DUAL 5.25" IN-WALL LCR SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-250RPW LCR, PRO-25RW LCR, DS-250W LCR

IK-402-W INSTALLATION BRACKET FOR DUAL 4" IN-WALL LCR SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-24RW LCR

IK-400-C INSTALLATION BRACKET FOR 3.5" IN-CEILING SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-14RC

IK-400-W INSTALLATION BRACKET FOR 4" IN-WALL SPEAKER

SHIPPING QUANTITY Pair

SHIPPING WEIGHT 0.9 kg | 2 lbs

FOR USE WITH PRO-14RW

PART NUMBER

1065321

PART NUMBER

1001177

PART NUMBER

1065323

PART NUMBER

1009682

PART NUMBER

1065325

PART NUMBER

1065328

PART NUMBER

1065327

PART NUMBER

1065329

Metal mechanical component with flanged ends and a cylindrical head (no visible text or symbols)

PRO-800SW VENT BOOT KIT

SHIPPING QUANTITY Each

SHIPPING WEIGHT 0.89 kg | 1.98lbs

VENT AREA DIMENSION 4" x 10" (10.16 cm x 25.4 cm)

FOR USE WITH PRO-800SW

PART NUMBER

1064948

GRILLE BRACKETS

IK-800-C GRILLE BRACKET

GRILLE ATTACHMENT KIT FOR 8" IN-CEILING INSTALLATION KITS

SHIPPING QUANTITY 10 pack (grilles included)

SHIPPING WEIGHT 4.5 kg | 10 lbs

FOR USE WITH IK-800-C, IK-800-C II

PART NUMBER

1065331

IK-650-C GRILLE BRACKET

GRILLE ATTACHMENT KIT FOR 6.5" IN-CEILING INSTALLATION KITS

SHIPPING QUANTITY 10 pack (grilles included)

SHIPPING WEIGHT 4.5 kg | 10 lbs

FOR USE WITH IK-650-C, IK-650-C II

PART NUMBER

1065330

FIRE RATED ENCLOSURES

Designed to meet UL2043 requirements for installation in plenum spaces Tested to comply with: UL 263 · ASTM E119-98 · NFPA 251 · UBC 7-1 · ULC CAN/ULC-S101-M89

ME-800-C FIRE RATED ENCLOSURE

SHIPPING QUANTITY Single

SHIPPING WEIGHT 7.25 kg | 16 lbs

FOR USE WITH All 8-inch round in-ceiling models

PART NUMBER

1001184

Designed to meet UL2043 requirements for installation in plenum spaces Tested to comply with: UL 263 · ASTM E119-98 · NFPA 251 · UBC 7-1 · ULC CAN/ULC-S101-M89

ME-650-C FIRE RATED ENCLOSURE

SHIPPING QUANTITY Single

SHIPPING WEIGHT 4.1 kg | 9.2 lbs

FOR USE WITH All 6.5-inch round in-ceiling models

PART NUMBER

1001183

THX® ULTRA™ SERIES

Utilizing the same professional-grade technology as our renowned commercial theater systems, every Klipsch THX ^® . Ultra speaker brings real cinema sound to the comforts of home. Expertly delivering the raw explosiveness and fine detail of any film format, these products – which can be assembled in a variety of combinations – will forever shatter your expectations for home theater performance.

• THX Ultra certified • For rooms 3,000 cubic feet or larger

Interior view of a large theater with red seating and ceiling lighting (no visible text or symbols)

LCR SPEAKERS

Black speaker chamber with two speakers and a central screen (no text or symbols visible)

• THX Ultra certified LCR speaker
  • Front-firing port for low bass extension
  • Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate wall or ceiling mounting using standard hardware

Black studio speaker chamber with two speakers and a triangular vent (no text or symbols visible)

• THX Ultra certified LCR speaker
• Sealed enclosure
  • Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate wall or ceiling mounting using standard hardware

KL-650-THX DUAL 6.5" LCR SPEAKER

FREQUENCY RESPONSE 48 Hz - 20 kHz +/- 3dB
SENSITIVITY 97dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 150W/600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1400Hz
HIGH FREQUENCY DRIVER	1" (2.5cm) magnetically shielded, titanium-dome compression driverwith 9.6 oz ceramic magnet structure with a 10" x 6" rectangular 90°x 60° TractrixHorn
LOW FREQUENCY DRIVER	Two 6.5" (16.5cm) magnetically shielded. Cerametallic cone, cast aluminum frame woofers
ENCLOSURE MATERIAL Medium density fiberboard (MDF)
ENCLOSURE TYPE Bass reflex via front-firing port
INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)
HEIGHT 15" (38.1cm)
WIDTH 17" (43.2cm)
DEPTH 12.5" (31.8cm)
WEIGHT	39 lbs (17.7 kg)
MOUNTING	4-bolt pattern 1/4" 20 threaded inserts
FINISH	Galaxy Black cabinet with Black anodized aluminum fascia

KL-525-THX DUAL 5.25" LCR SPEAKER

FREQUENCY RESPONSE 80 Hz - 20 kHz +/- 3dB
SENSITIVITY 94dB @ 2.83V/l meter
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1500Hz
HIGH FREQUENCY DRIVER	1" (2.5cm) magnetically shielded, titanium-dome compression driverwith 9.6 oz ceramic magnet structure with a 10" x 6" rectangular 90°x 60° TractrixHorn
LOW FREQUENCY DRIVER	Two 5.25" (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woofers
ENCLOSURE MATERIAL Medium density fiberboard (MDF)
ENCLOSURE TYPE	Sealed
INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)
HEIGHT	12.75" (32.4cm)
WIDTH	16" (40.6cm)
DEPTH	12.5" (31.8cm)
WEIGHT	32 lbs (14.5kg)
MOUNTING	4-boit pattern 1/4"-20 threaded inserts
FINISH	Galaxy Black cabinet with Black anodized aluminum fascia

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 20.6 kg

45.5 lbs

PART NUMBER

1010651(Left)

1010650(Right)

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 20.6 kg

45.5 lbs

PART NUMBER

1010648

NOTES:

SURROUND

Black square speaker tower with two speakers and two side slippers (no text or symbols visible)

• THX Ultra certified LCR speaker
  • Wide Dispersion Surround Technology (WDST)
  • Top-of-the-line internal wiring
• Omni-Mount suspension points facilitate wall or ceiling mounting using standard hardware

KS-525-THX

DUAL 5.25" SURROUND

FREQUENCY RESPONSE 80 Hz - 20 kHz +/- 3dB

SENSITIVITY 96dB @ 2.83V/1 meter

POWER HANDLING (CONT/PEAK) 100W/400W

NOMINAL IMPEDANCE 8 Ohms Compatible

HIGH FREQUENCY DRIVER Two 1" (2.5cm) magnetically shielded, titanium-dome compression driver with 9.6 oz ceramic magnet structure with a 5" square 90°x 60° Tractrix Horn

LOW FREQUENCY DRIVER Two 5.25" (13.3cm) magnetically shielded, Cerametallic cone, cast aluminum frame woolers

ENCLOSURE MATERIAL Medium density fiberboard (MDF)

ENCLOSURE TYPE Sealed

INPUTS Two sets of binding post speaker terminals (connected via bass strap jumpers)

HEIGHT 13.75" (35cm)

WIDTH 13" (33cm)

DEPTH 8.5" (21.6cm)

WEIGHT 20 lbs (9.1kg)

MOUNTING Dual keyholes and 2-bolt pattern 1/4"-20 threaded inserts

FINISH Galaxy Black cabinet with Black anodized aluminum fascia

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 20.3 kg

44.75 lbs

PART NUMBER

1010647

NOTES:

SUBWOOFER

Black studio speaker with a circular sound block (no text or symbols visible)

• THX Ultra certified passive subwoofer
- Front-firing port
- Top-of-the-line internal wiring
• For use with KA-1000-THX amplifier

KW-120-THX

12" PASSIVE SUBWOOFER

FREQUENCY RESPONSE 20 Hz - 200 Hz +/- 3dB

MAX ACOUSTIC OUTPUT 130dB @ 30Hz, 122dB @ 20Hz, 112dB @ 15Hz 1/8 space, 1 meter (2 enclosures side-by-side per THX Ultra2)

AMPLIFIER Use only with KA-1000-THX

NOMINAL IMPEDANCE 8 Ohms Compatible

LOW FREQUENCY DRIVER 12" (30.5cm) front-firing, Cerametallic cone, cast aluminum frame drivers with a 240oz ceramic magnet structure

ENCLOSURE MATERIAL Medium density fiberboard (MDF)

ENCLOSURE TYPE Bass reflex via front-firing port

INPUTS 1 Speakon NL2 jack and included cable

WIDTH 17.75" (45.1cm)

DEPTH 17.75" (31.8cm)

WEIGHT 80 lbs (36.3kg)

FINISH Galaxy Black cabinet with Black anodized aluminum fascia

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 93 lbs

PART NUMBER

1010649

NOTES:

THX® ULTRA™ AMPLIFIER

Black industrial electronic device with multiple ports and indicator lights (no visible text or labels)

■ Delivers 1000 watts into a 4 Ohm load
- Can support two high performance subwoofers
- Finished in black with a machined aluminum front panel and knobs

KA-1000-THX

THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER

FREQUENCY RESPONSE 20 Hz - 1 kHz +/- 3dB

AMPLIFIER High-Efficiency Class D

AMPLIFIER POWER FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD

AUTO POWER ON 2 second ON delay, 15 minute off delay

LOW PASS CROSSOVER Continuously variable from 40 Hz-120Hz, 24dB/octave slope above 120z (non-THX mode)

INPUTS 2 Gold-plated RCA phono jacks

OUTPUTS 2 Gold-plated RCA phono jacks (unfiltered) 2 Speakon ^® NL2 jacks

DIMENSIONS 4.75" (12.1cm) H x 17.5" (44.5cm) W x 12.25" (31.1cm) D

FINISH Black anodized aluminum

VOLTAGE 110/120 VAC 60Hz

EXPORT VOLTAGE 230 VAC 50/60Hz

FEATURES THX On/Off

Boundary Gain Compensation On/Off

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 31 lbs

PART NUMBER

221200080011 (120V)

221200080012 (230V)

NOTES:

High performance. low profile - Legendary Reference Premiere Sound

Klipsch®

REFERENCE

PREMIERE

DESIGNER

ON-WALL

REFERENCE PREMIERE DESIGNER ON-WALL

Klipsch Reference Premiere Designer On-Wall is a first class low-profile home audio solution, offering minimalist home theater system speakers that add beauty to any room. With its modern-day aesthetic and legendary sonic signature – great sound has never looked so good.

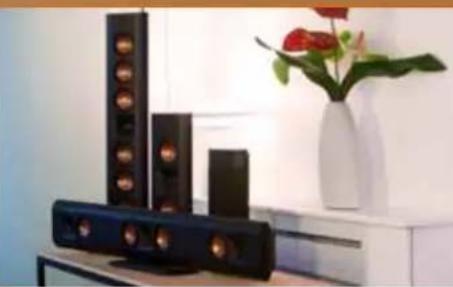

Modern indoor lighting setup with black speakers and a white vase, no visible text or symbols

• 3-Channel passive LCR sound bar
- Wall-mountable or table-mountable with included glass base
- True Reference Premiere acoustics in a slim on-wall solution

RP-440D SB SLIM ON-WALL 3-CHANNEL PASSIVE LCR SOUND BAR

FREQUENCY RESPONSE	65Hz - 24Hz ± 1.3dB
SENSITIVITY	92 dB @ 2.83W/l meter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER	Three 1" (2.54cm) Titanium diaphragm compression drivers mated to a 90" x 90" square Tractrix® Horn
LOW FREQUENCY DRIVER	Four 3.5" (8.89 cm) active long-throw cerametallic woofers (One each for left and right channels, two for center channel)
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reflex
INPUTS Single wire 5-way binding posts (3 sets)
HEIGHT 6" (15.24cm)
WIDTH 42" (106.68cm)
DEPTH 2.4" (6.10cm)
WEIGHT 12 lbs (5.44 kg)
FINISH Matte black paint

SHIPPING QUANTITY:	Single
SHIPPING WEIGHT:	6 kg
	13.22 lbs

PART NUMBER

1064178 (Black)

NOTES:

Black vertical bar with six gold-colored circular buttons arranged vertically (no text or symbols visible)

• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with included glass base
• True Reference Premiere acoustics in a slim on-wall solution

RP-640D SLIM ON-WALL LCRS SPEAKER

FREQUENCY RESPONSE	55Hz - 24kHz +/-3dB
SENSITIVITY 94dB @ 2.83V/t meter
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER	1" (2.54cm) Titanium diaphragm compression driver mated to a 90" x 90" square Tractrix® Horn
LOW FREQUENCY DRIVER	Two 3.5" (8.89 cm) active long-throw cerametallic woofersFour 3.5" (8.89 cm) passive cerametallic radiators
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reflex via passive radiators
INPUTS Single wire 5-way binding posts
HEIGHT 28.5" (72.39cm)
WIDTH 6" (15.24cm)
DEPTH 2.4" (6.1cm)
WEIGHT 8 lbs (3.63 kg)
FINISH Matte black paint

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 4.1 kg

9 lbs

PART NUMBER

1064179 (Black)

NOTES:

• Slim on-wall LCRS speaker
• Wall-mountable or table-mountable with included glass base
• True Reference Premiere acoustics in a slim on-wall solution

RP-240D SLIM ON-WALL LCRS SPEAKER

FREQUENCY RESPONSE	67Hz - 24kHz +/-3dB
SENSITIVITY 94dB @ 2.83V/t meter
POWER HANDLING (CONT/PEAK) 75W/300W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER	1" (2.54cm) Titanium diaphragm compression driver mated to a 90" x 90" square Tractrix® Horn
LOW FREQUENCY DRIVER Two 3.5" (8.89 cm) long-throw cerametallic woofers
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reflex
INPUTS Single wire 5-way binding posts
HEIGHT 16" (40.64cm)
WIDTH 6" (15.24cm)
DEPTH 2.4" (6.1cm)
WEIGHT 5.25lbs (2.38 kg)
FINISH Matte black paint

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.9 kg

6.4 lbs

PART NUMBER

1064180 (Black)

NOTES:

• Slim on-wall LCRS speaker
  • Wall-mountable or table-mountable with included glass base
• True Reference Premiere acoustics in a slim on-wall solution

RP-140D SLIM ON-WALL LCRS SPEAKER

FREQUENCY RESPONSE	69Hz - 24kHz+/-3dB
SENSITIVITY 91dB @ 2.83V/1 meter
POWER HANDLING (CONT/PEAK) 50W/200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER	1" (2.54cm) Titanium diaphragm compression driver mated to a 90" x 90" square Tractrix® Horn
LOW FREQUENCY DRIVER	3.5" (8.89 cm) long-throw cerametallic woofer
ENCLOSURE MATERIAL Injection molded polymer
ENCLOSURE TYPE Bass-reflex
INPUTS Single wire 5-way binding posts
HEIGHT 12" (30.48cm)
WIDTH 6" (15.24cm)
DEPTH 2.4" (6.1cm)
WEIGHT 3.75 lbs (1.7 kg)
FINISH Matte black paint

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 2.2 kg

4.85 lbs

PART NUMBER

1064181 (Black)

NOTES:

CUSTOMIZED HERITAGE THEATER BAR

Interior living room scene with armchairs, a coffee table, and wall art (no visible text or symbols)

CUSTOMIZED HERITAGE THEATER BAR

The Heritage Theater Bar is a passive LCR sound bar that blends the acoustics and classic, nostalgic design legacy of founder Paul W. Klipsch with the most premium materials and latest technologies available today. Assembled in the USA, the Heritage Theater Bar is the perfect combination of sonic performance and architectural elegance. Customizable Heritage Theater Bars range in width from 49.5" to 80". A standard 49.5" model is also available and designed to match most 55" televisions.

Interior scene with a wooden lampshade and glass bottles on a dark surface (no visible text or symbols)

FINISH OPTIONS

American Walnut

Satin Black Ash

Natural Cherry

Distressed Oak

Primed White

Raw Ash
Ready for Paint Ready for Stain

GRILLE OPTIONS

Black Knit

Taupe Knit

Gray Knit

Cream Knit

CUSTOM WIDTH 49.5" - 80"

CUSTOMIZED HERITAGE THEATER BAR

FREQUENCY RESPONSE 120Hz - 20kHz +/-13 dB

SENSITIVITY 90dB @ 2.83V/1M

MAXIMUM CONTINUOUS OUTPUT 106 dB (112 dB peak)

POWER HANDLING (NOM./PEAK) 75W / 300 W

REC. AMPLIFIER POWER 50W - 150W

NOMINAL IMPEDANCE 8 ohms compatible

CROSSOVER 2,800 Hz

3/4" (19cm) Titanium diaphragm compression driver mated to a 90° x 90° Tractrix Horn

LOW FREQUENCY DRIVER Dual 4" (10.2cm) Black Cerametallic woofers

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Sealed box

INPUTS Spring loaded input terminals (left, center, right)

GRILLE CLOTH Black knit

WIDTH 49.5" (125.7cm) to 80" (203.2cm)

DEPTH 4" (10.2cm)

WEIGHT

26 lbs. (11.8kg)

ACCESSORIES

Low-profile wall hanging bracket and wall mounting template

SHIPPING QUANTITY: Single

SHIPPING WEIGHT:

QUICK SHIP

35 lbs (16 kg)

CUSTOM

35-52 lbs (16-24 kg)

PART NUMBER

QUICK SHIP

American Walnut - 1066275

Satin Black Ash - 1065987

CUSTOM

49.5" - 65" - 1066279

65.1" - 80" - 1066277

NOTES:

Klipsch

Outdoor

SPEAKERS

ALL-WEATHER SERIES

When you want to listen to your favorite music by the pool or want to provide background music while you entertain guests on your patio, our line of outdoor speakers has you covered. The Klipsch All-Weather loudspeaker line delivers clear, dynamic performances while providing more sound per watt than comparably sized speakers, allowing for better sound coverage in a smaller package.

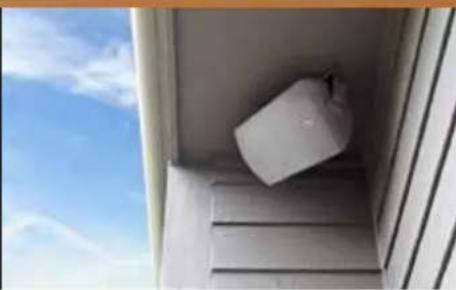

Exterior view of a building corner with a white cylindrical object hanging against a blue sky (no text or symbols visible)

Exterior view of a black industrial speaker or sound unit with no visible text or symbols

• Paintable, UV-resistant ABS enclosure with rustproof aluminum grille
  • Supplied with C-style mounting bracket and stainless steel hardware

AW-650 6.5" ALL-WEATHER SPEAKER

FREQUENCY RESPONSE 70Hz-20KHz +/- 3dB

SENSITIVITY 95dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

DIMENSIONS 15" (38.1cm) H x 9.5" (21.4cm) W x II" (27.9 cm) D

WEIGHT 9 lbs (4.1 kg)

FINISH Black or White enclosure and grille

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 11.8 kg

26 lbs

PART NUMBER

1009316 (Black)

097093000001 (White)

NOTES:

Exterior view of a black industrial speaker or speaker unit (no visible text or symbols)

• Paintable, UV-resistant ABS enclosure with rustproof aluminum grille
• Supplied with C-style mounting bracket and stainless steel hardware

AW-525 5.25" ALL-WEATHER SPEAKER

FREQUENCY RESPONSE 80Hz-20KHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

DIMENSIONS 11.8" (30cm) H x 8" (20.3cm) W x 9" (22.9 cm) D

WEIGHT 6.5 lbs (3kg)

FINISH Black or White enclosure and grille

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 8.1 kg

18 lbs

PART NUMBER

1009313 (Black)

097090000001(White)

NOTES:

Black electronic speaker with visible sound waves and mounting brackets (no text or symbols)

• Quick, easy installation
• Multipurpose design

CP-6 5.25" COMPACT HIGH PERFORMANCE SPEAKER

FREQUENCY RESPONSE 70Hz-22KHz +/- 3dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

TERMINALS Front baffle mounted accessed via rear pull-through

DIMENSIONS 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D

MOUNTING DEPTH 6.9"(17.5cm) D

WEIGHT 5.8 lbs (2.6kg)

FINISH Black or White enclosure and grille

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 7.8 kg

17.19 lbs

PART NUMBER

1016297 (Black)

1060387 (White)

NOTES:

Exterior view of a modern office building (no signage)

• Paintable, UV-resistant ABS enclosure with rustproof aluminum grille
  • Supplied with C-style mounting bracket and stainless steel hardware

AW-400 4" ALL-WEATHER SPEAKER

FREQUENCY RESPONSE 91Hz-20KHz +/- 3dB

SENSITIVITY 91dB @@ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

CROSSOVER FREQUENCY 2940Hz

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.5 cm) titanium dome tweeter with a 90° x 90° Tractrix Horn

LOW FREQUENCY DRIVER 4" (10.2cm) IMG woofer

DIMENSIONS 9.5" (24.1cm) H x 6.5" (16.5cm) W x 7.25" (18.4 cm) D

WEIGHT 5 lbs (2.3 kg)

FINISH White enclosure and grille

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 5.5 kg

12.11 bs

PART NUMBER

097085000001

NOTES:

PROFESSIONAL SERIES LANDSCAPE SPEAKERS

The new Klipsch Landscape Series is a horn-loaded, all-weather, durable, low-distortion, high-efficiency system - designed from the ground up with 70 years of high-performance audio experience by one of the most legendary and reliable audio companies in the world.

• Landscape Satellites and Subwoofers for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures

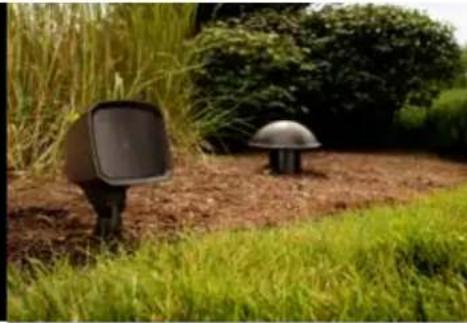

Outdoor scene with two vintage TV-style objects on a grassy field, surrounded by tall grass and trees (no visible text or symbols)

Close-up of a black plastic electronic device with a cylindrical port and a curved top (no visible text or symbols)

• All-new custom Tractrix® Horn provides ultra-wide 105" horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer with 8-ohm bypass
  • All-weather durability - IP45 rating

PRO-650T-LS 6.5" LANDSCAPE SATELLITE

FREQUENCY RANGE	100Hz - 24kHz +/- 3dB92Hz - 30kHz +/- 6dB77Hz - 35kHz +/- 10dB
HIGH FREQUENCY DRIVER	1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105° custom Tractrix® horn
LOW FREQUENCY DRIVER 6.5" (16.51cm) IMG Woofer
SENSITIVITY 90 dB @ 2.83W/l meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SETTINGS	70V: 6.25W, 12.5W, 25W, 50W100V: 12.5W, 25W, 50W8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 8.27" x 8.82" x 11.02" (210mm x 224mm x 280mm)
PRODUCT WEIGHT	7 lbs (3.18 kg)
ACCESSORIES	PRO-18-GS 18" Ground Stake (PN: 1063448) (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT:	4.5 kg
	10 lbs

PART NUMBER

1063139

NOTES:

Close-up of a black plastic electronic device with a cylindrical port and a curved top (no visible text or symbols)

• All-new custom Tractrix® Horn provides ultra-wide 105° horizontal dispersion
• 50 watt, 70V/100V multi-tap transformer with 8-ohm bypass
• All-weather durability - IP45 rating

PRO-500T-LS 5" LANDSCAPE SATELLITE

FREQUENCY RANGE	130Hz - 30kHz +/- 3dB113Hz - 32kHz +/- 6dB93Hz - 36kHz +/- 10dB
HIGH FREQUENCY DRIVER	1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105° custom Tractrix® horn
LOW FREQUENCY DRIVER 5" (12.7cm) IMG Woofer
SENSITIVITY 88 dB @ 2.83W/1 meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SETTINGS	70V: 3.75W, 7.5W, 15W, 30W100V: 7.5W, 15W, 30W8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated, Glass-Filled ABS Cabinet
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 6.3" x 6.85" x 8.5" (160mm x 174mm x 216mm)
PRODUCT WEIGHT	5 lbs (2.27 kg)
ACCESSORIES	PRO-10-6S 10" Ground Stake (PN: 1063447) (sold separately)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT:	3.6 kg
	8 lbs

PART NUMBER

1063137

NOTES:

3D rendering of a black cylindrical device with a dome-shaped top and mounting brackets (no text or symbols visible)

• Long-throw 12" IMG woofer
• Dual voice coil design for transformerless 70V/100V/8 Ohm compatibility
• All-weather durability - IP45 rating

Black cylindrical object with a dome-shaped top, resembling a trash bin or container (no text or symbols visible)

• Long-throw 10" IMG woofer
• Dual voice coil design for transformerless 70V/100V/8 Ohm compatibility
  • All-weather durability - IP45 rating

PRO-12SW-LS
12" DIRECT BURIAL SUBWOOFER

FREQUENCY RANGE	34Hz - 100Hz +/- 3dB29Hz - 110Hz +/- 6dB25Hz - 125Hz +/- 10dB
SYSTEM TYPE Band Pass Full Burial
WOOFER 12" (30.48cm) IMG Dual Voice Coil
SENSITIVITY 90 dB @ 2.83W/1 meter
POWER HANDLING 250W
IMPEDANCE	70V @ 300W (Transformerless)8 Ohm Stereo4 Ohm Mono
ENCLOSURE MATERIAL	Canopy: Rustproof, UV Resistant AluminumCabinet: Heavy Duty, High Impact Polyethylene
FINISH	Canopy: Metallic Brown, PaintableCabinet: Matte Black, Paintable
PRODUCT DIMENSIONS 25" x 16.14" x 26.42" (635mm x 410mm x 671mm)
PRODUCT WEIGHT 55 lbs (25 kg)

PRO-10SW-LS
10" HALF BURIAL SUBWOOFER

FREQUENCY RANGE	47Hz - 103Hz +/- 3dB40Hz - 110Hz +/- 6dB33Hz - 123Hz +/- 10dB
SYSTEM TYPE Band Pass Half Burial
WOOFER 10" (25.4cm) IMG Dual Voice Coil
SENSITIVITY 90 dB @ 2.83V/I meter
POWER HANDLING 200W
IMPEDANCE	70V @ 250W (Transformerless)8 Ohm Stereo4 Ohm Mono
ENCLOSURE MATERIAL	Canopy: Rustproof, UV Resistant AluminumCabinet: Heavy Duty, High Impact Polyethylene
FINISH	Canopy: Metallic Brown, PaintableCabinet: Matte Black, Paintable
PRODUCT DIMENSIONS 21.85" x 16.10" x 16.10" (555mm x 409mm x 409mm)
PRODUCT WEIGHT 35 lbs (15.91 kg)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 34 kg

75 lbs

PART NUMBER
1063141
NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 22.6 kg

50 lbs

PART NUMBER

1063140

NOTES:

ACCESSORIES

PRO-18-GS
18" GROUND STAKE

MATERIAL	Ground Stake: Glass-Filled (25%) ABSSecurity Plate: Galvanized Stamped Steel
INCLUDED IN-BOX 18" Ground Stake, 7" Security Plate, Installation Manual
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 17.99" x 3.35" x 3.35" (457mm x 85mm x 85mm)
PRODUCT WEIGHT 2 lbs (0.91 kg)
RECOMMENDED FOR USE WITH PRO-650T-LS 6.5" Landscape Satellite (PN: 1063139)

PRO-10-GS
10" GROUND STAKE

MATERIAL	Ground Stake: Glass-Filled (25%) ABSSecurity Plate: Galvanized Stamped Steel
INCLUDED IN-BOX 10" Ground Stake, 7" Security Plate, Installation Manual
FINISH Brown Matte, Paintable
PRODUCT DIMENSIONS 11.81" x 3.35" x 3.35" (300mm x 85mm x 85mm)
PRODUCT WEIGHT 2 lbs (0.91 kg)
RECOMMENDED FOR USE WITH PRO-500T-LS 5" Landscape Satellite (PN: 1063137)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 1.3 kg

3 lbs

PART NUMBER
1063448
NOTES:

SHIPPING QUANTITY:	Single
SHIPPING WEIGHT:	1.3 kg
	3 lbs
PART NUMBER
	1063447
NOTES:

Black metal bracket with mounting flange and side mount (no text or symbols visible)

PRO-1-SM

FOR USE WITH PRO-500T-LS (1063137) and PRO-650T-LS (1063139)

CONSTRUCTION Rustproof aluminum parts with stainless steel hardware

MAXIMUM PITCH 45° up, 90° down

PITCH INCREMENTS

MAXIMUM PAN 100° clockwise, 100° counterclockwise

WEIGHT 1.2 lbs / .54 kg

DIMENSIONS 1.68" x 11.12" x 4.13" (4.3cm x 29.5cm x 10.5cm)

PACKED AS Eaches

FINISH Satin Black

ACCESSORIES (NOT INCLUDED) 5/16" Washers (2) and Mounting Hardware

1" Tree Strap

Square U-Bolt for Pole Mounting (1.25" Minimum Width)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 10 lbs

PART NUMBER

1063139

NOTES:

PROFESSIONAL SERIES ROCK SPEAKERS

With IMG woofers and Tractrix horn-loaded Aluminum Dome Tweeters, the Pro Series rock speakers use the same high performance acoustic design philosophies of our legendary indoor products, bringing the world's most dynamic, powerful, detailed sound to your outdoor living space. From small residential systems to massive commercial installs, the Klipsch Pro Series rock speakers are designed to make any installation job quick and easy. For distributed line application, the Pro Series rock speakers feature a 70V/100V multi-tap transformer with 8 ohm bypass, allowing for exceptional balance at any listening location - all selectable from an easily accessible, tool-free rotary switch on the back of the speaker.

• Rock satellites and subwoofer for full-range outdoor performance • 70V/100V/8 Ohm compatibility
• UV-resistant enclosures

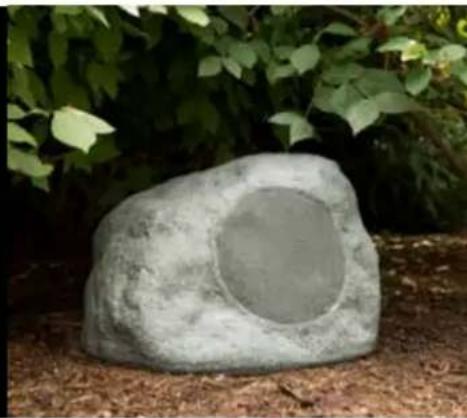

Large stone with a circular hole on its surface, surrounded by green foliage (no text or symbols visible)

Close-up of a rough, gray stone with a circular hole and faint texture (no text or symbols)

• Rock subwoofer speaker
• Dual voice coil design for transformerless 70V/100V capability with 8-ohm bypass
• UV-resistant, mechanically reinforced fiberglass cabinet

PRO-10SW-RK

10" ROCK SUBWOOFER

FREQUENCY RANGE	47Hz - 103Hz +/- 3dB
	40Hz - 110Hz +/- 6dB
	33Hz - 123Hz +/- 10dB

SYSTEM TYPE Sealed box

WOOFER 10" (25.4cm) IMG Dual Voice Coil

SENSITIVITY 90 dB @ 2.83V/1 meter

POWER HANDLING 200W

IMPEDANCE	70V @ 250W (Transformerless)
	8 Ohm Stereo
	4 Ohm Mono

ENCLOSURE MATERIAL UV Treated Fiberglass

FINISH Granite or Sandstone

PRODUCT DIMENSIONS 13.39" x 18.43" x 20.67" (340mm x 468mm x 525mm)

PRODUCT WEIGHT 30 lbs (13.6 kg)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 16 kg

35.4 lbs

PART NUMBER

1063232 (Granite)

1063231 (Sandstone)

NOTES:

Close-up of a smooth, irregularly shaped stone with a circular hole in the center (no text or symbols visible)

• All-new custom Tractrix Horn provides ultra-wide 105° horizontal dispersion
• 70V/100V multi-tap transformer with 8-ohm bypass
  ■ UV-resistant, mechanically reinforced fiberglass cabinet

Close-up of a rough, irregularly shaped stone with a circular hole in the center (no text or symbols visible)

• All-new custom Tractrix Horn provides ultra-wide 105" horizontal dispersion
• 70V/100V multi-tap transformer with 8-ohm bypass
• UV-resistant, mechanically reinforced fiberglass cabinet

PRO-650T-RK
6.5" 2-WAY ROCK SATELLITE

FREQUENCY RANGE	100Hz - 24kHz +/- 3dB92Hz - 30kHz +/- 6dB77Hz - 35kHz +/- 10dB
HIGH FREQUENCY DRIVER	1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105° custom Tractrix® horn
LOW FREQUENCY DRIVER 6.5" (16.51cm) IMG Woofer
SENSITIVITY 90 dB @ 2.83W/l meter
COVERAGE ANGLE 105°
POWER HANDLING 100W Peak
70V / 100V TAP SETTINGS	70V: 6.25W, 12.5W, 25W, 50W100V: 12.5W, 25W, 50W8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated Fiberglass
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 10.91" x 9.65" x 13.43" (277mm x 245mm x 341mm)
PRODUCT WEIGHT 11 lbs (4.98 kg)

PRO-500T-RK
5" 2-WAY ROCK SATELLITE

FREQUENCY RANGE	130Hz - 30kHz +/- 3dB113Hz - 32kHz +/- 6dB93Hz - 36kHz +/- 10dB
HIGH FREQUENCY DRIVER	1" (2.54cm) Aluminum Dome Tweeter mated to an all new 105° custom Tractrix® horn
LOW FREQUENCY DRIVER 5" (12.7cm) IMG Woofer
SENSITIVITY 88 dB @ 2.83W/l meter
COVERAGE ANGLE 105°
POWER HANDLING 60W Peak
70V / 100V TAP SETTINGS	70V: 3.75W, 7.5W, 15W, 30W100V: 7.5W, 15W, 30W8 Ohm Bypass
ENCLOSURE MATERIAL UV Treated Fiberglass
FINISH Granite or Sandstone
PRODUCT DIMENSIONS 9.21" x 9.72" x 10.43" (234mm x 247mm x 265mm)
PRODUCT WEIGHT 8 lbs (3.62 kg)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 6.6 kg

14.7 lbs

PART NUMBER

1063230 (Granite)

1063229 (Sandstone)

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 5.1 kg

11.2 lbs

PART NUMBER

1063228 (Granite)

1063227 (Sandstone)

NOTES:

KLIPSCH DSP MULTI-ZONE AMPLIFIERS

The Klipsch KDA Series DSP Amplifiers deliver legendary Klipsch power and performance in a sleek, high-tech, one rack solution. The KDA Amplifiers boast class G power, for clean dynamic power in any type or size of installation. With 2-way IP Network control drivers and 70V/100V and low impedance compatibility, the Klipsch DSP Multi-Zone Amplifiers provide maximum installation flexibility.

Close-up of server racks with visible Kipusch branding (no readable text beyond branding)

• High performance power platform
  • 70V/100V and low impedance compatibility
• Flexible I/O

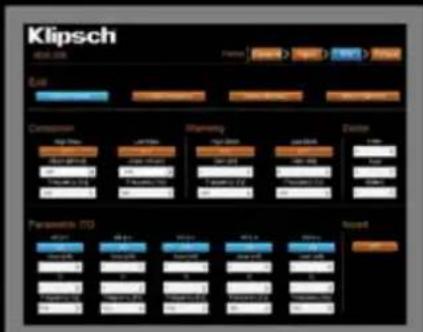

  ■ State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control

KDA-1000 4 IN X 4 OUT 1000W DSP AMPLIFIER

AMPLIFIER TYPE	High efficiency class G/H
AMPLIFIER POWER	1000 watts total system power | 4 x 250 watts per channel | 2 x 500
INPUTS	Balanced: 4 x Phoenix line level (up to 12 AWG wire) | Unbalanced: 4 x RCA line level
IP CONTROL	Control CCRESTRON ELAN B7 SU:C
OUTPUTS	4 x Phoenix speaker level (up to 12 AWG wire) | 4 x RCA line level (throughs)
INPUT SENSITIVITY 750mV balanced | 0dBU
INPUT IMPEDENCE Balanced 40k
THD <1% @ rated output
SIGNAL TO NOISE -100dB below rated output
ENCLOSURE MATERIAL Front face: ABS plastic | Case: Machine formed steel
RACK UNIT 1RU
PRODUCT DIMENSIONS 1.73" (44mm) x 19.02" (483mm) x 14.29" (363mm)
PRODUCT WEIGHT	15 lbs. (6.82 kg)
MOUNTING	Removable 1RU rack ears | removable rubber feet
BUILT FROM	2016

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 18 lbs

PART NUMBER

1063258 (120V)

NOTES:

• High performance power platform
• 70V/100V and low impedance compatibility
• Flexible I/O
  • State-of-the-art DSP control and set-up
• Ethernet port for 2-Way IP Ethernet Control

KDA-500 4 IN X 4 OUT 500W DSP AMPLIFIER

AMPLIFIER TYPE	High efficiency class G/H
AMPLIFIER POWER	500 watts total system power | 4 x 125 watts per channel | 2 x 250
INPUTS	Balanced: 4 x Phoenix line level (up to 12 AWG wire) | Unbalanced: 4 x RCA line level
IP CONTROL	Control CCRESTRON ELAN B7 8U:C
OUTPUTS	4 x Phoenix speaker level (up to 12 AWG wire) | 4 x RCA line level (throughs)
INPUT SENSITIVITY 750mV balanced | 0dBU
INPUT IMPEDENCE Balanced 40k
THD <1% @ rated output
SIGNAL TO NOISE -100dB below rated output
ENCLOSURE MATERIAL Front face: ABS plastic | Case: Machine formed steel
RACK UNIT 1RU
PRODUCT DIMENSIONS 1.73" (44mm) x 19.02" (483mm) x 14.29" (363mm)
PRODUCT WEIGHT	15 lbs. (6.82 kg)
MOUNTING	Removable IRU rack ears | removable rubber feet
BUILT FROM	2016

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 18 lbs

PART NUMBER

1063257 (120V)

NOTES:

CUSTOM DSP INTERFACE

Customize Kipsch DSP Multi-Zone Amplifiers through streamlined web-based menus - including Klipsch speaker presets - for one-click optimization.

THX® ULTRA2™ AMPLIFIERS

Black electronic device with multiple ports and buttons (no visible text or labels)

• THX Ultra2 certified subwoofer amplifier
- Can support two high performance subwoofers
- Finished in black with a machined aluminum front panel and knobs

KA-1000-THX
THX CERTIFIED CLASS D SUBWOOFER AMPLIFIER

FREQUENCY RESPONSE 20 Hz - 1 kHz +/- 3dB
AMPLIFIER High-Efficiency Class D
AMPLIFIER POWER	FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THDDynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
AUTO POWER ON 2 second ON delay, 15 minute off delay
LOW PASS CROSSOVER	Continuously variable from 40Hz-120Hz, 24dB/octave slope above 120z (non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS 2 Gold-plated RCA phono jacks (unfiltered)2 Speakon® NL2 jacks
DIMENSIONS 4.75" (12.1cm) H x 17.5" (44.5cm) W x 12.25" (31.1cm) D
FINISH Black anodized aluminum
VOLTAGE 110/120 VAC 60Hz
EXPORT VOLTAGE 230 VAC 50/60Hz

FEATURES THX On/Off
Boundary Gain Compensation On/Off

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 31 lbs

PART NUMBER

221200080011 (120V)

NOTES:

REFERENCE AMPLIFIERS

• EQ preset for use with the RW-5802 subwoofer
• Selectable signal-sensing or voltage triggered auto-on/off circuit
  • Line and speaker level inputs

RSA-500
500W/4 OHM DIGITAL HYBRID SUBWOOFER AMPLIFIER

AMPLIFIER TYPE	Bash Digital Hybrid
AMPLIFIER POWER	FTC Rated Power: 500W continuous into 4 ohms @ <2% THD Dynamic Power: 1000W
FRONT CONTROLS	Volume and Variable Crossover
REAR CONTROLS	Phase Switch (0/180), EO Selector, Trigger Input, Power Mode Selector, Main Power Switch
INPUTS	L/R and LFE Line-level RCA jacksL/R High-level speaker binding posts
OUTPUTS L/R and LFE Line-level RCA jacks (unfiltered)L/R speaker binding posts
DIMENSIONS 3.5" (8.9cm) H x 16.8" (42.7cm) W
DIMENSIONS WITH FEET	3.8" (9.6cm) H x 16.8" (42.7cm) W
WEIGHT	17.5 lbs (7.9kg)
VOLTAGE 110/120 VAC 60Hz
FINISH	Black Anodized Brushed Aluminum

ACCESSORIES Rack Ears (included) *For use only with RW-5802

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 21 lbs

PART NUMBER

1001188

NOTES:

PROFESSIONAL AMPLIFIERS

Exterior view of a black Kipsch audio device (no visible text or symbols on body)

• Bridgeable 2-channel amplifier
  • Full-range or low-pass operation
• Daisy chain capability

PRO-200A
2 X 100W STEREO/SUBWOOFER AMPLIFIER

RATED POWER OUTPUT 2 x 100 Watts (Stereo) into 4 ohm Load200 Watts (BTL) into 8 ohm Load
TOTAL HARMONIC DISTORTION <0.1%
SIGNAL-TO-NOISE RATIO >100dB
CROSSOVER FREQUENCY @ Min position 18.5-55.2Hz 40Hz/0dB ref@ Max position 18.2-168.8Hz 40Hz/0dB ref
AUTO TURN ON SENSITIVITY 5mV +/-2mV Full Range 1KHz5mV +/-2mV Input 50 Hz
DELAY "OFF" TIME	8 minutes
LINE OUT FREQ. RESPONSE	20Hz +/-5K - 20 KHz +/-5K 1KHz/0dB ref
INPUT IMPEDANCE LINE IN	9.2K ohm +/-5%
MAX. NOISE+HUM VOL MAX	<1.0mV, Input Shorted
POWER REQUIREMENT	115V 60Hz or 220 - 240V 50Hz
DIMENSIONS	5.5" (14cm) H 5.69" (14.5cm) W 12.75" (32.4cm) D
CLEARANCE FOR VENTILATION	Top: Min. 0.375" (10mm) | Back: Min. 2" (50mm)
WEIGHT	11 lbs (5.3kg)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 13 lbs

PART NUMBER

1062388

NOTES:

AMAZON ECHO INPUT AMPLIFIERS

NEW

Simple circular diagram with a central symbol and a small dot above it, labeled 'E' (no text or numbers within the diagram itself)

KVA-110

AMPLIFIER POWER 110W Total System Power, 2 x 55W per channel
AMPLIFIER TYPE Class D
INPUTS Amazon Echo Input (3.5mm Audio Input and Micro-USB Power)
OUTPUTS 2 x Phoenix Speaker Level (Recommended 16/2 wire), Subwoofer LFE
INSTALLATION Pre-construction - double gang box, Retrofit - doglegs (included)
CUTOUT DIMENSIONS 3.875" x 3.875" (9.8cm x 9.8cm)
PRODUCT DIMENSIONS 4.92" x 4.92" x 1.75" (12.5cm x 12.5cm x 4.4cm)
SHIPPING DIMENSIONS 7.125" x 5.25" x 3" (18.1cm x 13.3cm x 11.2cm)
INPUT POWER 24V, 3M
POWER CONNECTION DC Input Wall Plate
ACCESSORIES	DC Input Wall Plate, Optical/Analog Input Wall Plate, Subwoofer Output Plate, Doglegs and hardware, AC Adapter

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 1.06 lbs

PART NUMBER

120V: 1068198

NOTES:

NEW

Simple 3D-rendered sphere with two small circular markings, labeled 'Epoch' at the bottom (no other text or symbols)

KVA-40

AMPLIFIER POWER 40W Total System Power, 2 x 20W per channel

AMPLIFIER TYPE Class D

INPUTS Amazon Echo Input (3.5mm Audio Input and Micro-USB Power)

OUTPUTS 2 x Phoenix Speaker Level (Recommended 16/2 wire)

INSTALLATION Pre-construction - double gang box, Retrofit - doglegs (included)

CUTOUT DIMENSIONS 3.875" x 3.875" (9.8cm x 9.8cm)

PRODUCT DIMENSIONS 4.92" x 4.92" x 1.75" (12.5cm x 12.5cm x 4.4cm)

SHIPPING DIMENSIONS 7.125" x 5.25" x 3" (18.1cm x 13.3cm x 11.2cm)

INPUT POWER 24V, 3A

POWER CONNECTION DC Input Wall Plate

ACCESSORIES DC Input Wall Plate, Doglegs and hardware, AC Adapter

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 1.06 lbs

PART NUMBER

120V: 1068200

NOTES:

Robust custom tuning with app-controlled compact subwoolers

Klipsch

C-SERIES

SUBWOOFERS

C-SERIES

Black cube-shaped electronic device with a circular vent, no visible text or symbols

• High performance app controlled compact subwoofer
- Klipsch LowControl App for iOS/Android provides automatic room correction and fully customizable EQ with presets
• Supports multiple input types
- Ethernet input for IP control
- Piano gloss finish for premium look

C-310ASWi 10" HIGH PERFORMANCE COMPACT SUBWOOFER

FREQUENCY RANGE 25-150Hz +/- 3dB
SYSTEM TYPE Bass-reflex via dual side-firing passive radiators
WOOFER 10" (20.3cm) Active / Dual 10" passive
MAXIMUM OUTPUT 116dB @ 35Hz
POWER HANDLING 400W RMS
ENCLOSURE MATERIAL MDF
INPUTS	Line level RCA, Balanced XLR, High level, Wireless (with optional transmitter sold separately)
IP CONTROL	Control CCRESTRON ELAN 857 80:6
PRODUCT DIMENSIONS 13.42" x 13.42" x 13.42" (341mm x 341mm x 341mm)
PRODUCT WEIGHT 39 lbs (17.69 kg)
FINISH Piano gloss black

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 18.2 kg

40.1 lbs

PART NUMBER

1064619 (Black)

NOTES:

Black cube-shaped electronic device with a circular vent and speaker grille (no visible text or symbols)

• High performance app controlled compact subwoofer
- Klipsch LowControl App for iOS/Android provides automatic room correction and fully customizable EQ with presets
• Supports multiple input types
- Ethernet input for IP control
- Piano gloss finish for premium look

C-308ASWi 8" HIGH PERFORMANCE COMPACT SUBWOOFER

FREQUENCY RANGE 28-150Hz +/- 3dB
SYSTEM TYPE Bass-reflex via dual side-firing passive radiators
WOOFER 8" (20.3cm) Active / Dual 8" passive
MAXIMUM OUTPUT 110dB @ 35Hz
POWER HANDLING 300W RMS
ENCLOSURE MATERIAL MDF
INPUTS	Line level RCA, Balanced XLR, High level, Wireless (with optional transmitter sold separately)
IP CONTROL	Control CCRESTRON ELAN 307 80:6
PRODUCT DIMENSIONS 11.22" x 11.22" x 11.22" (285mm x 285mm x 285mm)
PRODUCT WEIGHT 27 lbs (12.25 kg)
FINISH Piano gloss black

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 12.75 kg

28.1lbs

PART NUMBER

1064615 (Black)

NOTES:

Three identical white panels with circular bovine light fixtures, placed side by side against a dark background (no text or symbols visible)

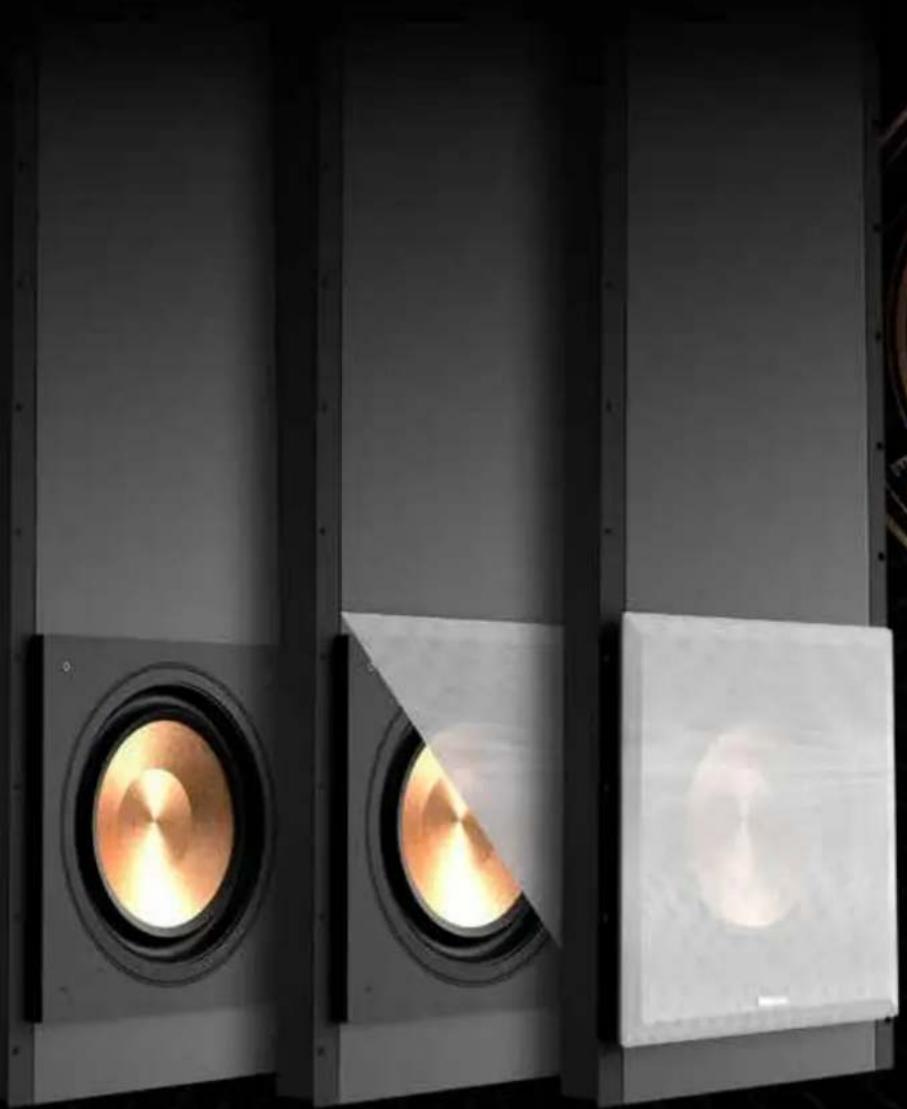

Secret Weapon Pro-1200SW

Hidden full-size enclosure - high output, exceptional bass

Klipsch

REFERENCE

PREMIERE

PROFESSIONAL

SERIES

• Full stud-bay-in-wall subwoofer for new construction
- Ideal for home cinema or high performance distributed audio
- Easily installs into any standard stud-bay

Black square speaker with a golden central lens (no text or symbols visible)

• 10" Long-throw Cerametallic "woofer for superior low frequency response
  • Performs as the anchor for a home theater system or a premium distributed audio solution
• MDF enclosure
• Flat, paintable, white magnetic grille
• Suitable for retrofit or new construction applications
• Compatible with the KDA-500 amplifier (see page 47)

Exterior view of a black rectangular electronic device with a black pipe fitting and red connectors (no text or symbols visible)

• In-ceiling bandpass dual voice coil subwoofer for new construction or retrofit
• Minimal visual footprint
  • Round and square grilles included
• Floor vent boot kit accessory (sold separately)

PRO-1200SW 12" IN-WALL SUBWOOFER

FREQUENCY RANGE 21Hz - 100Hz +/- 3dB *

SYSTEM TYPE Sealed Box

WOOFER 12" (25.4cm) Long Throw Cerametallic

MAXIMUM OUTPUT* 112dB @ 70Hz

POWER HANDLING 250W RMS / 600W Peak

IMPEDANCE 8 Ohm

ENCLOSURE MATERIAL NDF

FINISH Black Polymer Veneer with White, Paintable Crille

PRODUCT DIMENSIONS 65.75" H x 15.69" W x 3.47" D (1670.05mm x 398mm x 100mm)

MOUNTING DEPTH 3.4" (88.138mm)

CUTOUT DIMENSIONS 14.25" x 14.25" (361.95mm x 361.95mm)

PRODUCT WEIGHT 35.5 lbs (16.1 kg)

* With Klipsch KDA Amplifier DSP Preset

PRO-1000SW 10" IN-WALL SUBWOOFER

FREQUENCY RANGE 24-100Hz +/- 3dB *

SYSTEM TYPE Sealed Box

WOOFER 10" (25.4cm) Long-Throw CerametallicTM

MAXIMUM OUTPUT* 109dB @ 70Hz

POWER HANDLING 200W RMS / 500W Peak

IMPEDANCE 8 Ohm

ENCLOSURE MATERIAL HDF

FINISH Black Polymer Veneer with White, Paintable Grille

PRODUCT DIMENSIONS 21.97" x 17.56" x 4.0" (558mm x 448mm x 102mm)

MOUNTING DEPTH 3.94" (100mm)

CUTOUT DIMENSIONS 20.24" x 14.41" (514.096mm x 366.014mm)

PRODUCT WEIGHT 20.3 lbs (9.2 kg)

* With Klipsch KDA Amplifier DSP Preset

PRO-800SW 8" IN-CEILING BAND PASS SUBWOOFER

FREQUENCY RANGE	38Hz - 125Hz +/- 3dB
SYSTEM TYPE Bandpass via flexible port tube
WOOFER 8" (203cm) Dual Voice Coil Long-Throw Cerametallic	“
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Peak
IMPEDANCE 2 x 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Vencer with White, Paintable Grille
PRODUCT DIMENSIONS	Cabinet: 6.9" H x 2L1" W x 14.2" D (176mm x 536mm x 361mm)Grille: 5" (127mm)
MOUNTING DEPTH 7" (178mm)
CUTOUT DIAMETER	4.25" (108mm)
PRODUCT WEIGHT 22.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)

* With Klipsch KDA Amplifier DSP Preset

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 16.6 kg

36.6 lbs

PART NUMBER

1064595

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 9.8 kg

21.6 lbs

PART NUMBER

1063646

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 10.6 kg

23.4 lbs

PART NUMBER

1064594

1064948 (Floor Vent Boot Kit)

NOTES:

Black square speaker with a circular sound block, no visible text or symbols

• THX Ultra2 certified passive subwoofer
- Front-firing port
- Top-of-the-line internal wiring
- For use with KA-1000-THX amplifier

KW-120-THX 12" PASSIVE SUBWOOFER

FREQUENCY RESPONSE 20 Hz - 200 Hz +/- 3dB

MAX ACOUSTIC OUTPUT 130dB @ 30Hz, 122dB @ 20Hz, 112dB@ 15Hz 1/8 space, 1 meter (2 enclosures side-by-side per THX Ultra2)

AMPLIFIER Use only with KA-1000-THX

NOMINAL IMPEDANCE 8 Ohms Compatible

LOW FREQUENCY DRIVER 12" (30.5cm) front-firing, Cerametallic cone, cast aluminum frame drivers with a 240oz ceramic magnet structure

ENCLOSURE MATERIAL Medium density fiberboard (MDF)

ENCLOSURE TYPE Bass reflex via front-firing port

INPUTS 1 Speakon NL2 jack and included cable

WIDTH 17.75" (45.1cm)

DEPTH 17.75" (31.8cm)

WEIGHT 80 lbs (36.3kg)

FINISH Galaxy Black cabinet with Black anodized aluminum fascia

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 93 lbs

PART NUMBER

1010649

NOTES:

COMMERCIAL IN-CEILING

The Klipsch Commercial In-Ceiling series of loudspeakers packs proven materials and wide dispersion horn technology into installer-friendly products. Designed to mix and match with Klipsch CA-T speakers, these IC speakers have been included in a number of major installations nationally – from Bloomingdale's in New York City to Ron Jon Surf Shop in Orlando.

Close-up of a ceiling-mounted ceiling light fixture with a black conical shade and circular opening (no text or symbols visible)

Close-up of a camera lens assembly with no visible text or symbols

• Tight 75° coverage pattern for high ceiling applications
• 100 watt, low insertion loss, multi-tap transformer for high output and less compression
• 70-volt, 100-volt or low impedance operation selectable via a front baffle switch

IC-800-T FULL RANGE 8" TWO-WAY IN-CEILING SPEAKER

FREQUENCY RESPONSE	49Hz-20KHz +/- 4dB
SENSITIVITY	92dB @ 2.83V/1 meter
IMPEDANCE	6.5 ohms (in 8 ohm bypass mode)
POWER HANDLING (CONT/PEAK)	100W /400W
HIGH FREQUENCY DRIVER	1" (2.54cm) titanium diaphragm compression driver
LOW FREQUENCY DRIVER	8" (20.32cm) woofer
DIAMETER	9.5" (24.13cm)
CUTOUT DIAMETER	12.625" (32.1cm)
MOUNTING DEPTH	12.75" (32.4cm)
WEIGHT	21 lbs (9.5 kg)
INSTALLATION KIT	061347 (sold separately)
TAP SETTINGS	70V - 100W, 50W, 25W, 12.5W100V - 100W, 50W, 25W

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 10 kg

22 lbs

PART NUMBER

1062346 (Black)

1062347 (White)

NOTES:

Close-up of a circular speaker grille with visible sound waves and no text or symbols

• Wider, shorter design to fit low ceilings
• 70-volt, 100-volt or 8-ohm operation selectable via a front baffle switch
• Tractrix® Port design for deep bass with less compression

Close-up of a circular mechanical component with central lens and mounting holes (no visible text or symbols)

• Wider, shorter design to fit low ceilings
• 70-volt, 100-volt or 8-ohm operation selectable via a front baffle switch
• Tractrix® Port design for deep bass with less compression

Close-up of a circular mechanical component with concentric rings and small holes (no text or symbols visible)

• Includes 15 watt 70/100 volt multi-tap transformer
• 70-volt, 100-volt or 8-ohm operation selectable via a front baffle switch
• Tractrix® Port design for deep bass with less compression

IC-650-T 6.5" IN-CEILING SPEAKER

FREQUENCY RESPONSE 50Hz-20KHz +/- 4dB

SENSITIVITY 90dB @ 2.83V/I meter

IMPEDANCE 8 ohms

POWER HANDLING (CONT/PEAK) 80W /320W

HIGH FREQUENCY DRIVER 1" (2.5cm) titanium compression tweeter on a modified Tractrix horn

LOW FREQUENCY DRIVER 6.5" (16.51cm) woofer

DIAMETER 11.7" (29.7cm)

CUTOUT DIAMETER 10.125" (25.7cm)

MOUNTING DEPTH 10.1" (25.65cm)

WEIGHT 11.3 lbs (5.12 kg)

INSTALLATION KIT IK-650-C (sold separately)

TAP SETTINGS

70V - 60W, 30W, 15W, 7.5W 100V - 60W, 30W, 15W

IC-525-T 5.25" IN-CEILING SPEAKER

FREQUENCY RESPONSE 65Hz-20KHz +/- 4dB

SENSITIVITY 89dB @ 2.83V/I meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) Titanium compression driver on 3.5" (8.89cm) round modified Tractrix® horn

LOW FREQUENCY DRIVER 5.25" (16.51cm) woofer

DIAMETER 10.75" (27.3cm)

CUTOUT DIAMETER 9.125" (23.2cm)

MOUNTING DEPTH 8.2" (20.8cm)

WEIGHT 7 lbs. (3.2kg)

INSTALLATION KIT 1010413 (sold separately)

TAP SETTINGS

70V - 30W, 15W, 7.5W, 3.8W 100V - 30W, 15W, 7.5W

IC-500-T-SC SHALLOW DEPTH 5" 2-WAY IN-CEILING SPEAKER

FREQUENCY RESPONSE 95Hz-20KHz +/- 4dB

SENSITIVITY 87dB @ 2.83V/1 meter

IMPEDANCE 8 ohms compatible

POWER HANDLING (CONT/PEAK) 50W /200W

HIGH FREQUENCY DRIVER 1" (2.54cm) titanium diaphragm compression driver

LOW FREQUENCY DRIVER 5" (12.7cm) woofer

DIAMETER 10.75" (27.3cm)

CUTOUT DIAMETER 9.125" (23.2cm)

MOUNTING DEPTH 4.125" (10.5cm)

WEIGHT 5.5 lbs. (2.5kg)

INSTALLATION KIT 1010413 (sold separately)

TAP SETTINGS

70V - 15W, 7.5W, 3.8W, 1.9W 100V - 15W, 7.5W, 3.8W

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 11.2 kg 24.7 lbs

PART NUMBER

1008721 (Black)

1007627 (White)

NOTES:

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 7.4 kg 16.3 lbs

PART NUMBER

1008720 (Black)

1007626 (White)

NOTES:

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 6 kg

13.2 lbs

PART NUMBER

1062344 (Black)

1062345 (White)

NOTES:

Circular mechanical component with concentric rings and central hole (no visible text or symbols)

• 70-volt, 100-volt or 8-ohm operation selectable via front baffle switch
• Tractrix® Port design for deep bass with less compression
• Tractrix® Horn tweeter for smooth sound

IC-400-T 5" 2-WAY IN-CEILING SPEAKER

FREQUENCY RESPONSE 70Hz - 20kHz +/- 4dB, -10dB 50Hz
SENSITIVITY 86dB @ 2.83V/1 meter
IMPEDANCE 8 ohms compatible
POWER HANDLING (CONT/PEAK) 50W /200W
HIGH FREQUENCY DRIVER 1" (2.54cm) titanium diaphragm compression driver on modified Tractrix® horn
LOW FREQUENCY DRIVER 5" (12.7cm) woofer
DIAMETER 10.75" (27.31cm)
CUTOUT DIAMETER 9.125" (23.18cm)
MOUNTING DEPTH 7.3" (18.54cm)
WEIGHT 6.25 lbs. (2.83kg)
TAP SETTINGS	70V - 15W, 7.5W, 3.8W, 1.9W100V - 15W, 7.5W, 3.8W
INSTALLATION KIT	Mud Ring Kit (Part #1010413) (sold separately)Pendant Housing (Part #1016408 - White) (sold separately)Pendant Housing (Part #1016409 - Black) (sold separately)

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 6.6 kg

14.5 lbs

PART NUMBER

1008719 (Black)

1007625 (White)

NOTES:

PENDANT HOUSINGS

When overhead sound distribution is a challenge due to either a high ceiling or a lack of a suspended ceiling, Klipsch Pendant Housings combine with Klipsch In-Ceiling speakers for an aesthetically pleasing, great sounding solution.

• Aluminum Pendant Housing in Black, White or Paintable for customization
- Perfect for high-ceiling structures or areas with no suspended ceiling for direct, overhead distributed sound
- Includes the necessary mounting hardware for typical suspended installation scenarios

Technical line drawing of a lamp and conical lamp assembly (no text or symbols)

White conical frustum with rounded edges (no text or symbols)

KPH-800 12.5" PENDANT HOUSING

PACKAGE CONTENTS	One Pendant housing, One 9.5" (2.5m) drop cable with balance cables and S-hooks, One Fast Link cable joiner
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS	16.8" (42.7cm) Base diameter, 12.5" (31.8cm) Flange diameter, 13.7" (34.8cm) Height
WEIGHT 2.2 lbs (1 kg)
WORKS WITH	IC-800-T, IC-SW-8T2
COLORS	White (paintable)

KPH-650 10.3" PENDANT HOUSING

PACKAGE CONTENTS	Two Pendant housings, Two 9.5" (2.5m) drop cables with balance cables and S-hooks, Two Fast Link cable joiners
ENCLOSURE 1.5mm Aluminum housing
DIMENSIONS	12.3" (32.2m) Base diameter, 10.3" (26.2cm) Flange diameter, 11.2" (28.5cm) Height
WEIGHT 2 lbs (0.9 kg)
WORKS WITH	IC-650-TUL
COLORS	Black or White (paintable)

KPH-525 9.7" PENDANT HOUSING

PACKAGE CONTENTS	Two Pendant housings, Two 9.5" (2.5m) drop cables with balance cables and S-hooks, Two Fast Link cable joiners
ENCLOSURE 1mm Aluminum housing
DIMENSIONS	11.6" (29.5cm) Base diameter, 9.7" (24.6cm) Flange diameter, 9.4" (23.9cm) Height
WEIGHT 1.25 lbs (0.57 kg)
WORKS WITH	IC-400-T, IC-500T-SC, IC-525-TUL
COLORS	Black or White (paintable)

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 1.5 kg

3.3 lbs

PART NUMBER

1063456

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 4.5 kg

9.9 lbs

PART NUMBER

1063455 (Black)

1063454 (White)

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 1.5 kg

3.3 lbs

PART NUMBER

1016409 (Black)

1016408 (White)

COMPACT PERFORMANCE SERIES

The Klipsch Compact Performance Series is designed for high-performance sound indoors or out. The CP-6, in paintable Black or White, is designed to quickly wall-mount with the included brackets or rest on a shelf or bookcase in equally appealing form. Traditional Klipsch lifelike sound with Tractrix horns, utilize them for deck or patio sound, as part of a 2-channel music system or as surrounds in a Home Theater system. Their versatility is endless.

Exterior view of a black wall-mounted electrical switch mounted on a brick wall (no text or symbols visible)

Black rectangular electronic device with speaker grille and mounting holes (no visible text or symbols)

• Quick, easy installation
• Multipurpose design

CP-6T 5.25" COMPACT HIGH PERFORMANCE SPEAKER

FREQUENCY RESPONSE 83Hz-22kHz +/− 3dB
SENSITIVITY 94dB
IMPEDANCE 8 ohm @ 2.83V/1 meter (8 ohm bypass)
CROSSOVER FREQUENCY 3kHz 12dB octave
POWER HANDLING (CONT/PEAK) 75W /300W
HIGH FREQUENCY DRIVER .75" (1.9cm) aluminum dome tweeter with a 90° x 90° Tractrix Horn
LOW FREQUENCY DRIVER 5.25" (13.3cm) long-throw IMG woofer
TERMINALS Front baffle mounted accessed via rear pull-through
DIMENSIONS 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D
MOUNTING DEPTH 6.9"(17.5cm) D
WEIGHT	6.85 lbs. (3.1kg)
FINISH	Black or White enclosure and grille
TAP SETTINGS	70V - 30W, 15W, 7W, 3.75W100V - 30W, 15W, 7W, 3.75W

SHIPPING QUANTITY: Pair

SHIPPING WEIGHT: 7 kg

15.43 lbs

PART NUMBER

1016298 (Black)

1060388 (White)

NOTES:

COMMERCIAL ALL-WEATHER SERIES

These compact full-range loudspeakers deliver big time sound and worry free performance. Designed for distributed audio applications, these amazing little speakers are equally at home in outdoor or indoor background music and paging applications in both commercial and recreational environments.

Close-up of a metallic cylindrical structure with attached mechanical components against a cloudy sky (no visible text or symbols)

Exterior view of a black speaker or audio device with no visible text or symbols

■ Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
- Paintable UV-resistant ABS enclosure with rustproof aluminum grille
• Very high sensitivity and power handling
- 90° x 90° Tractrix® Horn tweeter for clean, clear highs
• Supplied with C-style mounting bracket and stainless steel hardware

CA-800T ALL-PURPOSE 8" 2-WAY SPEAKER

FREQUENCY RESPONSE 64Hz-17.5kHz +/- 4dB
SENSITIVITY 96dB @ 2.83V/1 meter
IMPEDANCE 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high pass / 12dB octave low pass
POWER HANDLING 100W
HIGH FREQUENCY DRIVER K-150-A 1" titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1183-A 8" woofer with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS	11.125"(28.26cm) H x 156.375"(41.53cm) W x 12.31"(31.27cm) D
WEIGHT	18 lbs. (8.16kg)
FINISH	Black or White (paintable)
TAP SETTINGS	70V - 60W, 30W, 15W, 7.5W, 3.75W100V - 60W, 30W, 15W, 7.5W, 3.75W

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 9.4 kg

20.7 lbs

PART NUMBER

097150000001 (Black)

097097000001 (White)

NOTES:

Black electronic device with speaker grille and front panel (no visible text or symbols)

• Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
- Very high sensitivity and power handling
- 6.5" IMG cone woofer and a 1" Titanium dome tweeter
- 90^ × 90^ Tractrix* Horn tweeter for clean, clear highs
- Paintable UV-resistant ABS enclosure with rustproof aluminum grille

CA-650T ALL-PURPOSE 6.5" 2-WAY SPEAKER

FREQUENCY RESPONSE 69Hz-20kHz +/- 4dB
SENSITIVITY 95dB @ 2.83V/1 meter
IMPEDANCE 8 ohm
CROSSOVER FREQUENCY 1.9kHz 12dB octave high pass / 12dB octave low pass
POWER HANDLING 85W
HIGH FREQUENCY DRIVER K-150-A 1" titanium diaphragm compression driver
LOW FREQUENCY DRIVER K-1182-A 6.5" woofer with IMG cone
INPUT CONNECTORS 4 position terminal strip
MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille
DIMENSIONS	9.5"(24.13cm) H x 15.2"(38.56cm) W x 10.875"(27.62cm) D
WEIGHT	13 lbs. (5.9kg)
FINISH	Black or White (paintable)
TAP SETTINGS	70V - 60W, 30W, 15W, 7.5W, 3.75W100V - 60W, 30W, 15W, 7.5W

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 7.1 kg

15.6 lbs

PART NUMBER

097148000001 (Black)

097092000001 (White)

NOTES:

• Built-in 30-watt 70V/100V multi-tap transformer with 8-ohm bypass
- Very high sensitivity and power handling
- 90° x 90° Tractrix® Horn tweeter for clean, clear highs
- Paintable UV-resistant ABS enclosure with rustproof aluminum grille
- Supplied with C-style mounting bracket and stainless steel hardware

White and black electronic device with speaker grille (no visible text or symbols)

• Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
- Paintable UV-resistant ABS enclosure with rustproof aluminum grille
- Supplied with C-style mounting bracket and stainless steel hardware

CA-525T ALL-PURPOSE 5.25" 2-WAY SPEAKER

FREQUENCY RESPONSE 75Hz-15kHz +/- 4dB

SENSITIVITY 94dB @ 2.83V/1 meter

IMPEDANCE 6 ohm

CROSSOVER FREQUENCY 2.9kHz 18dB octave high-pass / 12dB octave low-pass

POWER HANDLING 75W

HIGH FREQUENCY DRIVER K-150-A 1" titanium diaphragm compression driver

LOW FREQUENCY DRIVER K-1181-A 5.25" woofer with IMG cone

INPUT CONNECTORS 4 position terminal strip

MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille

DIMENSIONS 8.125"(20.64cm) H x 12"(30.48cm) W x 8.875"(22.54cm) D

WEIGHT 9 lbs. (4.1kg)

FINISH Black or White (paintable)

TAP SETTINGS	70V - 30W, 15W, 7.5W, 3.75W, 1.8W
	100V - 30W, 15W, 7.5W, 3.75W

CA-800-TSW ALL-PURPOSE 8" SUBWOOFER

FREQUENCY RESPONSE 51Hz-135kHz +/- 4dB

SENSITIVITY 92dB @ 2.83V/1 meter

IMPEDANCE 6 ohm

CROSSOVER FREQUENCY 150Hz 12dB octave

POWER HANDLING 150W

LOW FREQUENCY DRIVER K-1185-A 8" woofer with IMG cone

INPUT CONNECTORS 4 point terminal strip

MATERIAL All-weather ABS plastic enclosure with rustproof aluminum grille

DIMENSIONS 11.1" (28.3cm) H x 16.4" (41.5cm) W x 12.3" (31.3cm) D

WEIGHT 20 lbs. (9.07kg)

FINISH Black or White (paintable)

TAP SETTINGS	70V - 60W, 30W, 15W, 7.5W, 3.75W
	100V - 60W, 30W, 15W, 7.5W, 3.75W

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 5 kg

11 lbs

PART NUMBER

097147000001 (Black)

097087000001 (White)

NOTES:

SHIPPING QUANTITY: Single

SHIPPING WEIGHT: 10.7 kg

23.6 lbs

PART NUMBER

097149000001 (Black)

097096000001 (White)

NOTES:

Interior of an anechoic chamber with foam acoustic foam panels and a metallic probe, no visible text or symbols.

WE NEVER, EVER STOP INNOVATING

For 70 years Klipsch Group has designed and engineered its products in-house with some of the most talented, skilled and passionate people in the industry - starting with our founder, Paul W. Klipsch, in a tin shed in Hope, Arkansas. Today, our advanced acoustic research and development continues at our state-of-the-art facility in Indianapolis, Indiana. The world-class Klipsch Design & Technology Center is home to some of the most brilliant minds in consumer electronics and some of the most legendary products the industry has ever heard. We continue to innovate, honoring the principals and ideals of PWK, reaching ever-farther towards that perfect sound.

VISIT KLIPSCH.COM/CUSTOM

FOLLOW US

D2071 Klipsch Group, Inc. Klipsch, Keepers of the sound. Tractrix, Klipsch Gallery, Klipschorn, La Scala, Heresy, Groove and Stadium are trademarks of Klipsch Group, Inc. registered in the U.S. and other countries. a wholly owned subsidiary of voix international corporation. The BlueGold® word mark and logos are registered trademarks owned by Blueath Sig, Inc. and any use of such marks by Klipsch Group, Inc. is under license. The Apple® software is copyright CSR PLC or its group companies. All rights reserved. The APP™ mark is a trademark of CSR PLC or one of its companies and may be registered in and of more jurisdictions. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI licensing LLC in the United States also other countries. Dolby, Pio Logic, Dolby Atmos and the Deulie B symbol are registered trademarks of Dolby Laboratories. For DTS patents see HTTP/WAPLENTS/DISCOM. Manufactured under license from DTS. Licensing Limited, DTS, the symbol, & DTS and the symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS. Inc. & DTS, Inc. All rights reserved.

Silhouette of a city skyline with multiple skyscrapers and a bridge, rendered in grayscale (no text or symbols)

DESIGNED WITH PRIDE IN INDIANAPOLIS

Exterior view of a modern white car dealership with a fountain in front, surrounded by greenery and a lake under a blue sky (no signage or text visible)

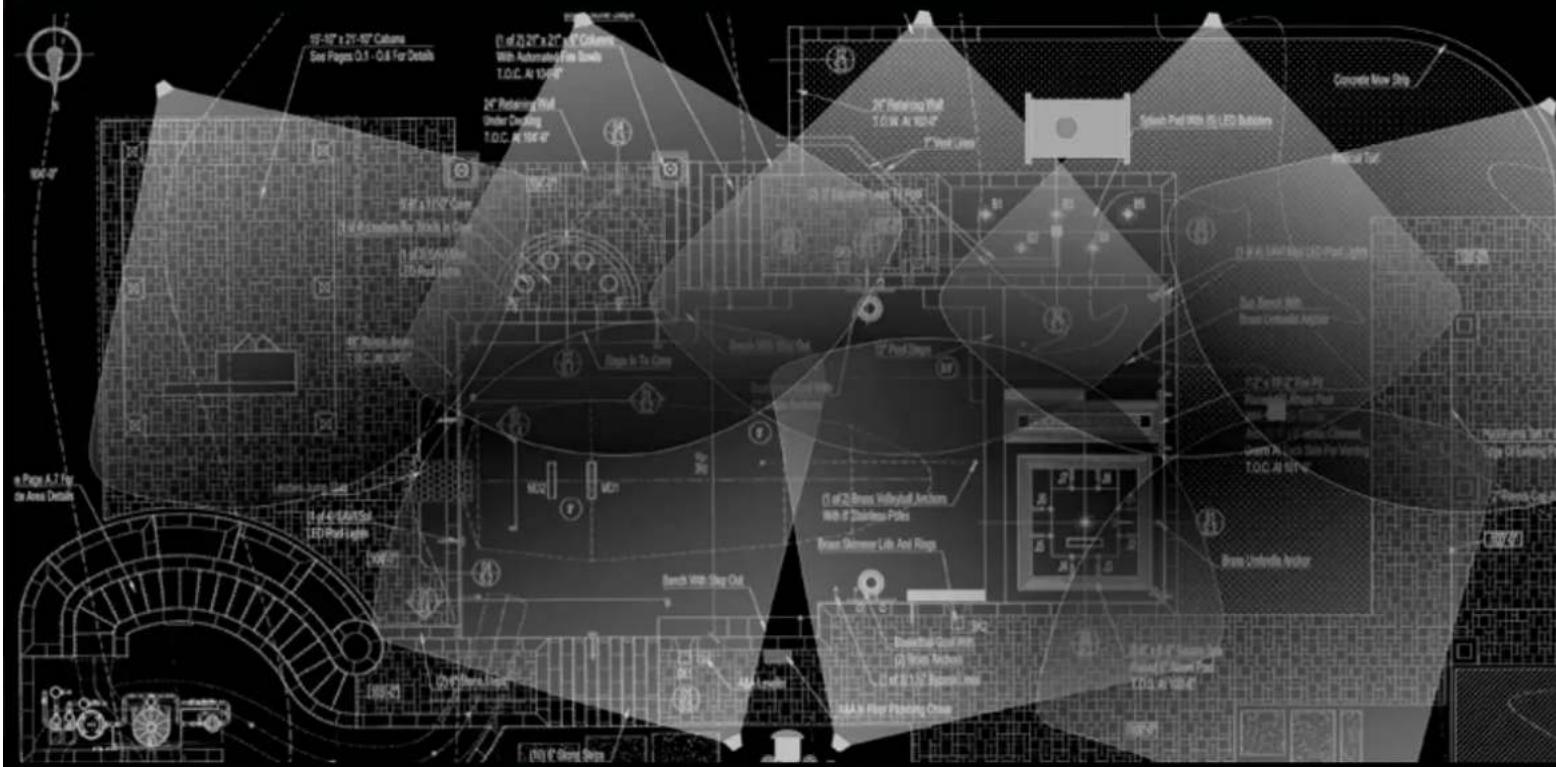

KLIPSCH OFFERS FREE DESIGN SERVICES

You need to make the best impression, from the initial job quote through the completed installation. We can help you choose the best Klipsch speakers and components for the application and help design a system that thoroughly impresses.

Send your plans, questions and concepts to us at: [e-mail]

CI INTEGRATION PARTNERS

d-tools

System Integration Software

PORTAL

ADDRESS.AFMG.EUD-TOOLS.COM PORTAL.I

KLIPSCHDEALER.COM

Same day shipping

Place orders and pay by credit card

Real-time inventory levels, order history and account info

Special deals

GO TO KLIPSCHDEALER.COM TO GET SIGNED UP

DEALER RESOURCES

Product Marketing Assets - klipsch.com/share

Product Launch Assets - klipsch.com/channel

Firmware - klipsch.com/firmware

Support - [e-mail]

Orders - [e-mail]

Marketing - [e-mail]

Klipsch

v01-190809
