USER MANUAL KI255BFS KELVINATOR

Instructions for Installation 3

Cautions for Safety 4

Operation 4

Cleaning and Maintenance 6

D oor Reverse 7

Troubleshooting----9

Technical Specifications ----10

Please read this users operation manual before using.
Appearance of refrigerator refer to production
Because of product improvement, your refrigerator may not be completely consistent with this user manual

General

This type of refrigerator is widely used in places such as hotels, offices, students dormitories and houses. It has a high efficiency compressor and classic structure Distribution. It enjoys the advantages of low electric consumption, driving freezing capability and easy use.

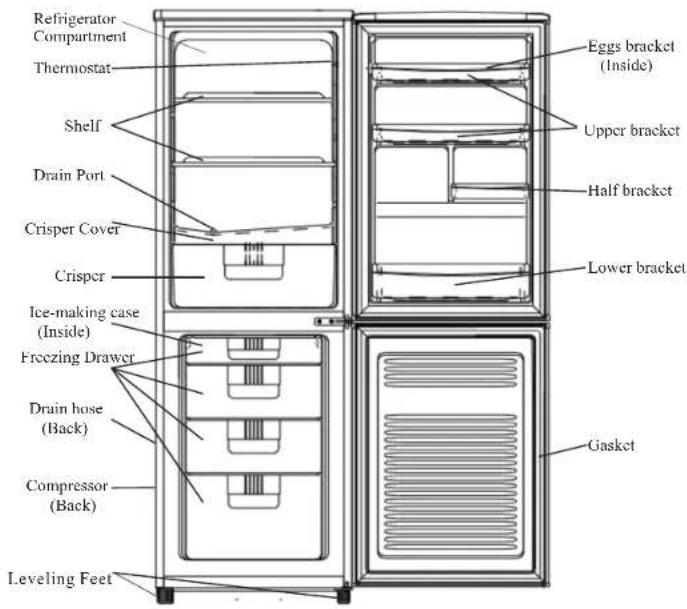

Structure Illustration

Refrigerator Compartment Thermostat Shelf Drain Port Crisper Cover Crisper Ice-making case (Inside) Freezing Drawer Drain hose (Back) Compressor (Back) Leveling Feet Eggs bracket (Inside) Upper bracket Half bracket Lower bracket Gasket

Note: This illustration is only for general reference.

Instructions for Installation:

1. Do not tilt the refrigerator for more than 45 from the upright position when moving it. Avoid collision and violent vibration during transportation.

Do not apply force to any part such as the condenser, the door and its handle in order to prevent refrigerator from deforming, as this will influence the performance.

Two cartoon characters: one with a sad expression and the other with a frowning face (no text or symbols)

1. Ensure that there is enough space around the refrigerator in order to let it work well.

30cm 10cm 10cm 10cm

1. The refrigerator should be kept away from high temperature, sunshine or humid conditions.

Illustration of two cartoon characters with expressive faces and dynamic motion, one standing on a surface with a sun in the background (no text or symbols)

1. The refrigerator should be placed on solid floor to avoid much noise.
2. For your safety and protection, this unit is grounded through the power cord plug when plugged into a matching wall outlet. If you are not sure whether your wall outlet properly grounded, please consult a qualified electrician..

Cautions for Safety:

1. It must be checked that the voltag should be the same as the rated voltage before the refrigerator is used.
2. The power plug should have its own separated socket in order to prevent the electric wire from being over heated by other plugs.
   3 Don not allow children to tamper with the controls or play with the product.
   4 Don not hang heavy objects onto the door of the product to avoid the refrigerator turning over..
   5 It is dangerous to alter the specifications or attempt to modify this products in any way
   Do not place scaled container or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode resulting to damage to the freezer or people.
3. Do not splash water on to the refrigerator. Otherwise it may cause malfunctions of the refrigerator or electric shock.
   Do not store flammable materials such as alcohol, gasoline, L.P gas and glue etc, in the refrigerator.
   9 Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.
   10 When you change the light bulb or when the refrigerator is not in use for long periods, disconnect it from the electricity supply..
   11 Wait for 5 minutes before restart the unit after the power supply blackout..

Operation:

1. When operating the refrigerator for the first time, set the thermostatic dial at 3, connect the electric wire and run it without loading any food. Usually this takes 2 or 3 hours. Then set the thermostatic dial at the desired setting and place foods into the refrigerator.

1. The temperature of the refrigerator can be adjusted by turning the thermostatic dial. setting of the thermostatic dial at 3\~4 is the most suitable for general operation. The higher the number the colder the temperature. When you set it to 0, the refrigerator will stop.

2. Do not put too many foods in the refrigerator. Open the door as less as possible in order to maintain the temperature of the refrigerator and always leave warm food to cool down to room temperature before putting into the refrigerator to save electric consumption.

1. When making ice cubes, fill the ice-making case with drinkable water. And put it into the freezer. It takes about 2 or 3 hours to make ice cubes. Pieces of ice cube can be removed by twisting it. Do not press it up and down, otherwise, it may be broken.

1. Frost in fridge compartment can defrost automatically and the water can flow to the water collection pan which support the compressor. The condensate water will evaporate by the heat of compressor. If the drain hose in compressor compartment is not installed well, do install it again before use. Defrost the freezer compartment whenever the layer of frost on the surface reaches 3 or 4 mm. When defrosting, remove all foods and appendix, set the thermostat at 0 position and open the door. After the frost has melted, discard the water and dry up the interior of the refrigerator, The refrigerator can then be restarted by turning its thermostat to the desired setting.

CautionsCautions

• When defrosting, never use any sharp or metallic objects to remove the frost on the surface of the evaporator as this will damage the evaporator.
• Do not store bottled beverage in the freezing compartment, so as to prevent it from being broken and damaging the refrigerator.
• Keep space between the food packets to allow the cold air to circulate smoothly in fridge or freezer compartment..

Cleaning and Maintenance:

1. When cleaning the refrigerator, disconnect the electric wire. Rub it carefully with a piece of cloth soaked with neutral cleanser, then wipe it clean with fresh Water. Do not wash the refrigerator with water directly to prevent the unit from rust and breakdown.

1. Never use acids, chemical solution, thinner, gasoline or the likes to clean the refrigerator because they may damage the painting cover and plastic parts of it

Detergent W/N W/N

1. Once or twice a year dust the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

Door Reverse

Reversing the Door

Before you reverse the refrigerator door, you should ensure the refrigerator is unplugged and empty and have someone to help you. During the process Screwdriver and adjustable spanner will be used.

Undo the four retaining screws of the worktop and remove the worktop

Undo the retaining screws of the top bracket and remove the top bracket. Then take away the upper door and put it in a safe place.

While supporting the lower door, remove the central bracket by undo the 2 screws.

Take away the lower door from the bottom hinge pin. Tilt the fridge onto its back and rest it on a firm surface.

Remove the bottom bracket by unscrewing. Remove and reverse the adjustable foot from left side to right side and remove the fixed screw in the left side.

Remove the lower hinge pin using a spanner. Turn the hinge bracket over and replace it in the same slot. Replace the bottom bracket on the other side and lift the refrigerator upright.

Illustration of a hand holding a small object near a table with control buttons (no text or symbols)

Reverse the blanking plugs. Remove the door hinge caps on both doors (top and bottom) and Insert on the opposite side of the door.

Line drawing of a bathroom sink with faucet and toilet (no text or symbols)

Replace the central bracket while refitting the lower door, To assist with final adjustment do not fully tighten the bracket screws.

Unscrew the hinge pin from the top bracket using the spanner. Turn the bracket over and replace it in the same slot.

Refit the top bracket while refitting the upper door. Do not fully tighten screws.

Check that doors are aligned horizontally and vertically and that all seals are closed on the cabinet before finally tighten the central hinge and the top bracket. Remove and reverse the plastic insert of the worktop before refit the worktop. Re-adjust the levelling feet.

Troubleshooting

1. When the refrigerator does not operate: ensure that

• The electric power is supplied and the voltage is normal.
•The fuse is not burned out
•The power plug is plugged in firmly in the socket.
• The thermostat setting is not in 0 position..

1. When the refrigerator is not cool enough: ensure that

• The thermostat is at the correct setting.
• There are enough space around the refrigerator.
• The doors are not opened too frequently and for too long.
• The refrigerator is not under direct sunlight or placed near the heat source.
• There are not too many foods and hot foods in the refrigerator.

1. When the foods in the refrigerator are frozen

• The thermostat is at the correct setting.
• There are not too much foods which contain much moisture in the refrigerator.

1. When the refrigerator operates too noisily:

• The refrigerator is properly levelled.
• The refrigerator is not touching objects around it.
- The containers or solid packages stored inside are not touching each other.

1. When the refrigerator can not run in winter:

- The compensate switch is off. It should be turned on as the ambient temperature is less than 10 degree.

1. When there is water spill to the ground:

• The drain hole is blocked
- The drain hose in compressor compartment is not installed well.

1. When the refrigerator run continuous in summer without stop:

• There are too much food in the refrigerator.
• The thermostat dial is at higher position such as 7 etc.
• The door of refrigerator is opened too frequently.
• The ventilation is not good around the refrigerator.
- The door is not closed well or the door gasket is deformed..

Note:

During the period of high relative humidity, moisture may form on the surface of the refrigerator. It is not malfunction. You may just wipe it up yourself. If your refrigerator is still not functioning properly after making the above checks, please contact with the maintenance service department without any delay.

We promise that refrigerator guarantee in one year, appendix free guarantee in three years ( since day of buy, With invoice day Issue accurate).

Purchase invoice is the evidence of guarantees, please keep it. If you have

Any question in the course of using, you please contact local technology service center,

Technical Specifications

* For the detailed specifications please refer to the nameplate at the back of the refrigerator.
* The specifications are subject to change without prior notice due to product improvement.
