Product Type	Network Card / Adapter
Model	CNP-GLAN1
Brand	Canyon
Interface	PCI Express (PCIe)
Ethernet Speed	10/100/1000 Mbps (Gigabit Ethernet)
Connector Type	RJ-45
Compliance Standards	IEEE 802.3, 802.3u, 802.3ab
Operating Systems Supported	Windows, Linux, macOS
Dimensions (approx.)	120 mm x 80 mm x 20 mm
Weight (approx.)	50 g
Power Consumption	2.5 W (typical)
LED Indicators	Link/Activity, Speed
Jumbo Frame Support	Yes
Wake-on-LAN	Supported
Auto-Negotiation	Yes
Full Duplex	Supported
Flow Control	IEEE 802.3x
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Cleaning Instructions	Use a soft, dry cloth. Do not use liquids or solvents.
Safety Precautions	Do not open the device; avoid exposure to moisture and extreme temperatures.
Warranty	Standard 1-year limited warranty
Package Contents	Network card, driver CD, user manual

Frequently Asked Questions - CNP-GLAN1 Canyon

How do I install the Canyon CNP-GLAN1 network adapter?

Turn off your computer and unplug it. Open the case, insert the card into an available PCIe slot, and secure it. Close the case, power on, install drivers from the included CD or download from the Canyon website.

Is the CNP-GLAN1 compatible with Windows 10?

Yes, it supports Windows 10, 8, 7, as well as Linux and macOS. Drivers are included.

What does the LED indicator mean?

The Link/Activity LED is solid when connected and blinks during activity. The Speed LED indicates gigabit (green) or 100/10 Mbps (amber).

Does the adapter support Wake-on-LAN?

Yes, Wake-on-LAN is supported. Enable it in the operating system and BIOS settings.

What is the maximum data transfer speed?

The adapter supports up to 1000 Mbps (Gigabit) in full duplex mode.

Can I use this card in a PCIe x16 slot?

Yes, it can be used in any standard PCIe slot (x1, x4, x8, x16). It will work at its native speed.

My computer doesn't detect the card. What should I do?

Check that the card is firmly seated in the slot. Ensure the BIOS has PCIe devices enabled. Try a different slot. Update or reinstall drivers.

Is it compatible with cat5e cables?

Yes, it works with Cat5e and higher cables for Gigabit speeds.

Does it support Jumbo Frames?

Yes, Jumbo Frames up to 9K bytes are supported. Configure in the driver settings.

How do I clean the network card?

Use a soft, dry cloth. Avoid liquids and solvents. Ensure the device is unplugged before cleaning.

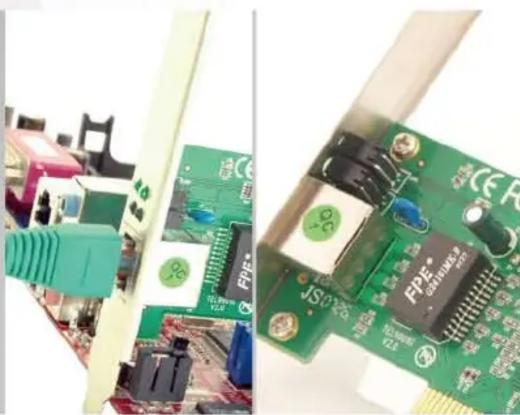

USER MANUAL CNP-GLAN1 Canyon

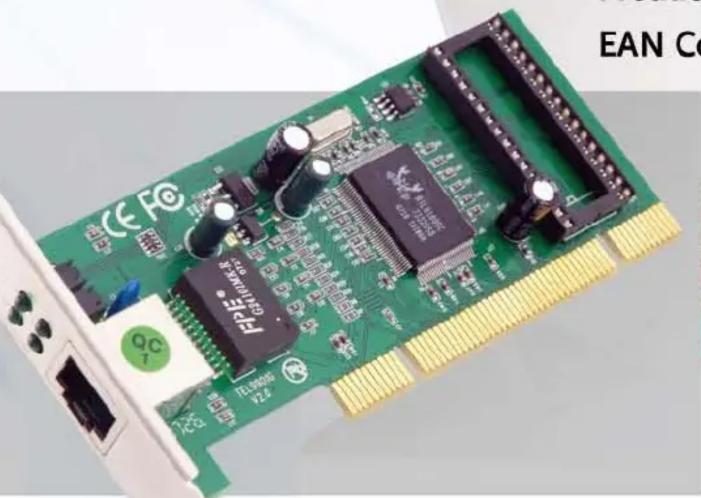

Gigabit PCI Lan Card

CNP-GLAN1

Key Features

• Supports 32-bit 33/66MHz PCI Bus
• 10/100/1000Mbps Auto-Negotiation
• Complies with PCI 2.1/2.2

Quick Guide: Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, French, German, Greek, Hungarian, Italian, Lithuanian, Polish, Portuguese, Russian, Serbian, Slovenian, Slovakian, Spanish

Product Code: CNP-GLAN1

EAN Code: 8717371846503

Image and/or product information are subject to change without prior notice.
