CSP630 - Loudspeaker PHILIPS - Free user manual and instructions

Brand	Philips
Model	CSP630
Product Type	Car Stereo Speaker
Speaker Type	16.5 cm (6.5") 3-Way Coaxial
RMS Power	40 W
Peak Music Power	210 W
Sensitivity	90 dB (1W/m)
Frequency Response	40 Hz - 30 kHz
Impedance	4 ohms
Magnet Mass	7.6 Oz (215 g)
Mounting Depth	58 mm
Mounting Hole Diameter	Approx. 146 mm (for 16.5 cm speaker)
Installation Options	Front/Rear Door or Rear Tray
Included Accessories	2 Speakers, 2 Grille Nets & Frames, 2 Speaker Wires, 8 Screws, 8 Shrapnel Washers
Cleaning	Use a soft, damp cloth; avoid alcohol, chemicals or household cleaners
Safety Precautions	Use only supplied mounting hardware; keep away from magnetic media; do not exceed peak power
Warranty	Register at www.philips.com/welcome
Compliance	Radio interference requirements of the European Community

Frequently Asked Questions - CSP630 PHILIPS

What tools are needed for installing the CSP630 speakers?

You will need a drill, screwdriver, wire strippers, and the mounting template from the packaging box.

Can I install the speakers in the rear tray?

Yes, the CSP630 can be mounted on the rear tray following the same steps as door mounting. Ensure sufficient depth and clearance.

What is the recommended amplifier impedance for these speakers?

Each speaker is 4 ohms. For stereo, two speakers present an 8 ohm load per channel. Do not wire in parallel to a bridged 2-channel amplifier (2 ohm mono load) as it may damage the amplifier.

How do I connect the speaker wires?

Connect the black wire to the negative (-) terminal and the black wire with white line to the positive (+) terminal. Ensure correct polarity for best sound quality.

What is the difference between CSP530 and CSP630?

The CSP630 is a 16.5 cm (6.5") speaker with higher power handling (40W RMS, 210W peak) and deeper mounting depth (58 mm) compared to the CSP530 (13 cm, 35W RMS, 180W peak, 47 mm depth). The CSP630 also has slightly higher sensitivity (90 dB vs 89 dB).

Can I use the speakers without the grille net?

Yes, the speaker grille can be mounted without the grille net if desired, for aesthetic reasons.

How should I clean the speakers?

Clean with a soft, damp cloth. Do not use alcohol, chemicals, or household cleaners as they may damage the surface.

What should I do if I encounter problems with the speakers?

Do not attempt to repair yourself. Visit www.philips.com/welcome for support, and have the model and serial number ready.

Are these speakers compatible with any car?

They fit most cars with standard 16.5 cm (6.5") mounting holes, but check mounting depth (58 mm) and ensure no interference with windows or other components.

What is the frequency response of the CSP630?

The frequency response is 40 Hz to 30 kHz, providing a wide range for clear highs and deep bass.

USER MANUAL CSP630 PHILIPS

Always there to help you

Register your product and get support at

www.philips.com/welcome

Close-up of a black and white electronic speaker with visible sound waves and a Philips logo (no text or symbols on the speaker body)

CSP530

Close-up of a black speaker with exposed microphone and speaker grille (no text or symbols visible)

CSP630

User manual

PHILIPS

Contents

1 Important 2

Safety 2

Notice 2

2 Your car stereo speakers 2

Introduction 3

What's in the box 3

3 Installation 3

Option 1: Mount on door (front or rear) 4

Option 2: Mount on rear tray 7

4 Product information 7

5 Troubleshooting 8

1 Important

Safety

• Read and understand all instructions before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.
  • Use only the supplied mounting hardware for a safe and secure installation.
• Do not continuously use the speaker system beyond the peak power handling capacity.
• Keep credit cards, watches, recorded tapes etc. with magnetic coding away from the speaker system to prevent damage caused by the magnets in the speakers.
• Clean the apparatus with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

Notice

This product complies with the radio interference requirements of the European Community.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Any changes or modifications made to this device that are not expressly approved by WOOX Innovations may void the user's authority to operate the equipment. 2013 © WOOX Innovations Limited. All rights reserved.

Specifications are subject to change without notice. WOOX reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

2 Your car stereo speakers

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the speakers, you can enjoy high power music with vivid sound.

What's in the box

Check and identify the contents of your package:

① Speakers (×2)
② Grille net + Frame (x2)
③ Speaker wire (x2)
④ Screw (x8)
⑤ Shrapnel (x8)

①

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

②

③

④

5

3 Installation

A depth of at least 46mm is required to mount the speaker. Measure the depth of the area where you are to mount the speaker, and ensure that the speaker does not obstruct any other components of the car.

Option 1: Mount on door (front or rear)

You can mount the speakers on the front/rear door of your car.

Simple line drawing of a magnifying glass with a handle, no text or symbols present

Note

• Make sure that nothing obstructs around the mounting location of the door.
- A hole for mounting may already be cut out of the inner panel of the door (front or rear). In this case, you need to modify the board only.
- Ensure that the speaker terminals, frame or magnet do not interfere with any inner parts, such as the window mechanism in the door (when you open or close the window), etc. Also ensure that the speaker grille does not touch any inner fittings, such as the window cranks, door handles, arm rests etc.

1 Turn off the car ignition key.

- If the power is on, the click noise generated by the connection may damage the speakers.

2 Cut out the mounting template from the packing box.
3 Paste the template on the location selected for mounting the speaker.
4 Mark the cut-off hole and the 4 bolt holes.

Illustration of a handheld electric drill with a circular target and pointer (no text or symbols)

5 Cut out the marked area and drill the bolt holes.

Line drawing of a car interior showing seat, dashboard, and window (no text or symbols)

6 Remove the grille net.

7 Strip the speaker wires and connect them to the amplifier.

• Black wire: connect to “-” (negative) terminal
• Black (white lined): connect to “+” (positive) terminal

    B --> F["Left"]
    C --> G["Black"]
    D --> H["Black"]

    B --> I["Right"]
    C --> J["White lined"]
    D --> K["White lined"]
    E --> L["Car speaker"]

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333

    note1["Right: Правый, Онfa, Правий"] --> A
    note2["White lined: С белым покрытием, Ак сызығы бар, 3 білим покриттям"] --> B
    note3["White lined: С белым покрытием, Ак сызығы бар, 3 білим покриттям"] --> C
    note4["Right: Правый, Онfa, Правий"] --> E
    note5["Car speaker: Автомобильная АС, Динамиктер, Гучномовці"] --> E

Note

- Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may degrade sound quality.

- Two 4-ohm speakers, wired in stereo, present a 8 ohm load to each channel of the amplifier. Most two channel amplifiers work well in this configuration. However, if two 4-ohm speakers, wired in parallel to a bridged two -channel amplifier, present a 2-ohm mono load to the amplifier. Most 2-channel amplifiers do not support 2-ohm mono operation! Amplifier damage may result!

8 Mount on the speaker as shown below.

Technical line drawing of a door frame assembly with exploded view and internal components (no text or symbols)

9 Press and insert the edges of the grille net.

Tip

- The speaker grille can be mounted without the grille net, if you like.

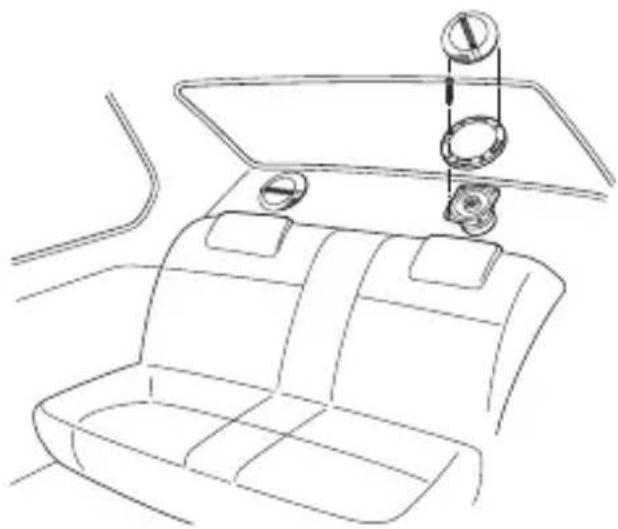

Option 2: Mount on rear tray

You can also mount the speakers into the surface of the rear tray.

Follow the steps in section "Option 1: Mount in door" to mount the speakers into the rear tray:

Line drawing of a car backseat with seat covers and overhead display (no text or symbols)

4 Product information

Note

• Product information is subject to change without prior notice.

Model CSP530 CSP630
Speaker type 13 cm, 3-way coaxial speaker		16.5 cm, 3-way coaxial speaker
RMS power (Watts) 35 W 40 W
Peak music power (Watts) 180 W 210 W
Sensitivity (dB/W/m) 89 dB	90 dB
Frequency response (Hz)	45-30 kHz	40-30 kHz
Impedance (ohms)	4 ohms	4 ohms
Magnet mass (Oz)	6.4 Oz	7.6 Oz
Mounting depth (mm)	47 mm	58 mm

5 Troubleshooting

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, go to the web site

(www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

2013 © WOOX Innovations Limited.

All rights reserved.

This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred to in this document as WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.

CSP530\630_00_UM_V2.0
