| Product Type | Stroller |
| Brand | Da-Lite |
| Model | BK-211 |
| Dimensions (Unfolded) | Approx. 32 x 22 x 40 inches (81 x 56 x 102 cm) |
| Dimensions (Folded) | Approx. 14 x 22 x 32 inches (36 x 56 x 81 cm) |
| Weight | Approx. 18 lbs (8.2 kg) |
| Recommended Age | 6 months to 4 years (up to 50 lbs / 22.7 kg) |
| Material | Aluminum frame, polyester fabric |
| Safety Features | 5-point harness, parking brake, safety wrist strap |
| Canopy | Adjustable, with UV protection |
| Recline | Multi-position recline (up to 170°) |
| Folding Mechanism | One-hand compact fold with auto-lock |
| Wheels | Front swivel lockable, rear brake, all-terrain tires |
| Storage Basket | Large under-seat basket (up to 10 lbs capacity) |
| Cleaning | Wipe frame with damp cloth; machine washable seat pad (cold, gentle cycle) |
| Maintenance | Check screws and harness periodically; lubricate wheels if needed |
| Warranty | 1 year limited warranty |
Frequently Asked Questions - BK-211 DA-LITE
How do I assemble the Da-Lite BK-211 stroller?
Assembly requires attaching the wheels, canopy, and bumper bar. Refer to the included manual, but typically the frame opens with a one-hand mechanism. Ensure all locks click into place before use.
What is the weight limit for the BK-211?
The stroller is rated for children up to 50 lbs (22.7 kg) or about 4 years old, whichever comes first.
How do I fold the stroller?
The BK-211 features a one-hand compact fold. Pull the folding trigger (usually on the handle) while pushing down slightly, and the stroller will collapse. Secure the auto-lock after folding.
Can the seat recline fully?
Yes, the backrest can recline to a near-flat position (up to 170°), suitable for naps. Adjust using the strap or lever behind the seat.
How do I clean the fabric?
The seat pad is removable and machine washable in cold water on a gentle cycle. Air dry. Frame can be wiped with a damp cloth.
Is the canopy sun-protective?
Yes, the adjustable canopy provides UV protection (UPF 50+). It can be extended with a pop-out visor for extra coverage.
How do I engage the brake?
The parking brake is a foot-operated bar on the rear axle. Press down to lock both rear wheels; press the release button to unlock.
What type of wheels does it have?
The BK-211 has all-terrain tires (front swivel with lock, rear fixed). The front wheels can be locked straight for stability on rough terrain.
How do I adjust the handlebar height?
The handlebar has 3 height positions. Squeeze the adjustment button (usually at the center) and slide up or down until it clicks.
Can I use a car seat with this stroller?
This stroller is not compatible with car seats; it is designed as a standalone stroller. For an infant, use the full recline position.
User questions about BK-211 DA-LITE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Stroller in PDF format for free! Find your manual BK-211 - DA-LITE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BK-211 by DA-LITE.
USER MANUAL BK-211 DA-LITE
REVISION 11/03
INST SHEET
2 PK END PANELS PACKAGE =1557
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3552 |
| 2 | INSTRUCTION SHEET | 1 | E-730 |
| 3 | NAME/PLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3862 |
| a | BOLT, HEX, 1/4"-20 X 1 1/4" | 12 | 3585 |
| b | WASHER, FL-T | 12 | 8778 |
| c | WASHER, LOCK 1/4" I.D. SPLIT | 12 | 46307 |
2 PK SLOPING SHELF PACKAGE ≈3558
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 2 | 3601 |
1 PK SLOPING SHELF PACKAGE #3559
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 1 | 3601 |
4" CASTER PACK 5625 [STANDARD]
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SWIVEL | 2 | 4753 |
| 2 | 4" CASTER, SWIVEL W/ IBRAKE | 2 | 4754 |
| 3 | PACKAGE SET (CRINGS, 8 EA.) | 1 | 9939 |
1.5" CASTER PACK 5975 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWIVEL | 2 | 5973 |
| 2 | 5" CASTER, SWIVEL W/ IBRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA-) | 1 | 9939 |
| 2 PK END PANELS PACKAGE #3557 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3560 |
| 2 | INSTRUCTION SHEET | 1 | E=230 |
| 3 | NAMD LATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a BOLT, HEK, 1/4"-20 X 1 1/1 | 12 | 3585 | |
| b WASHER, FLAT | 12 | 8778 | |
| c WASHER, LOCK 1/4" I.D. SPLIT | 12 | 46307 | |
| 2 PK SLOPING SHELF PACKAGE #3558 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 2 | 3601 |
| 1 PK FLAT SHELF PACKAGE #3603 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | FLAT SHELF ASSEMBLY | 1 | 5316 |
| * 4" CASTER PACK 5675 (STANDARD) | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SWVEL | 2 | 4753 |
| 2 | 4" CASTER, SWVEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |
| * 5" CASTER PACK 5975 (OPTIONAL) | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWVEL | 2 | 5973 |
| 2 | 5" CASTER, SWVEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |


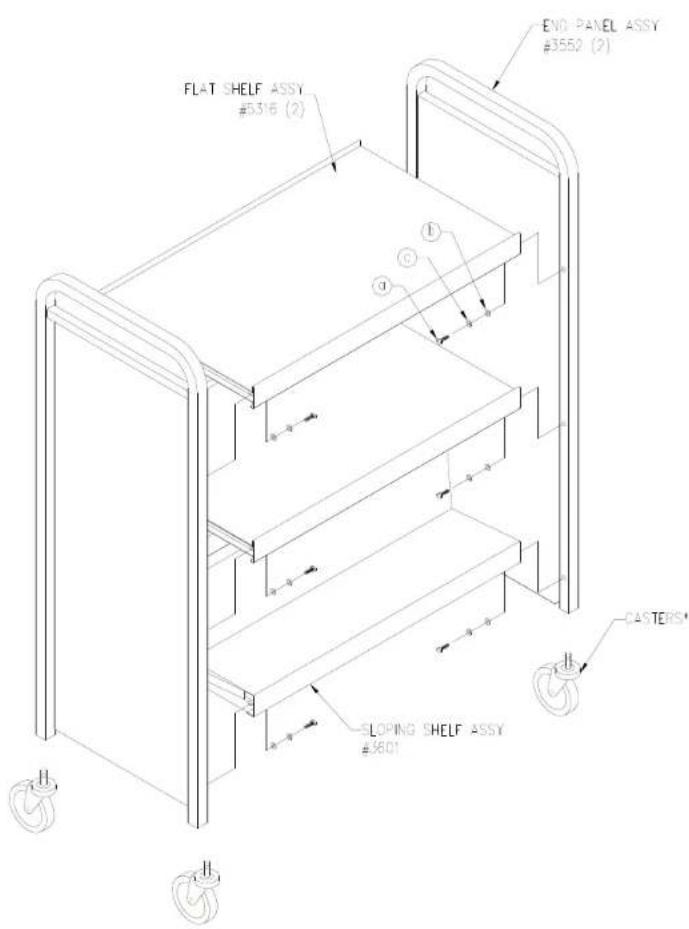

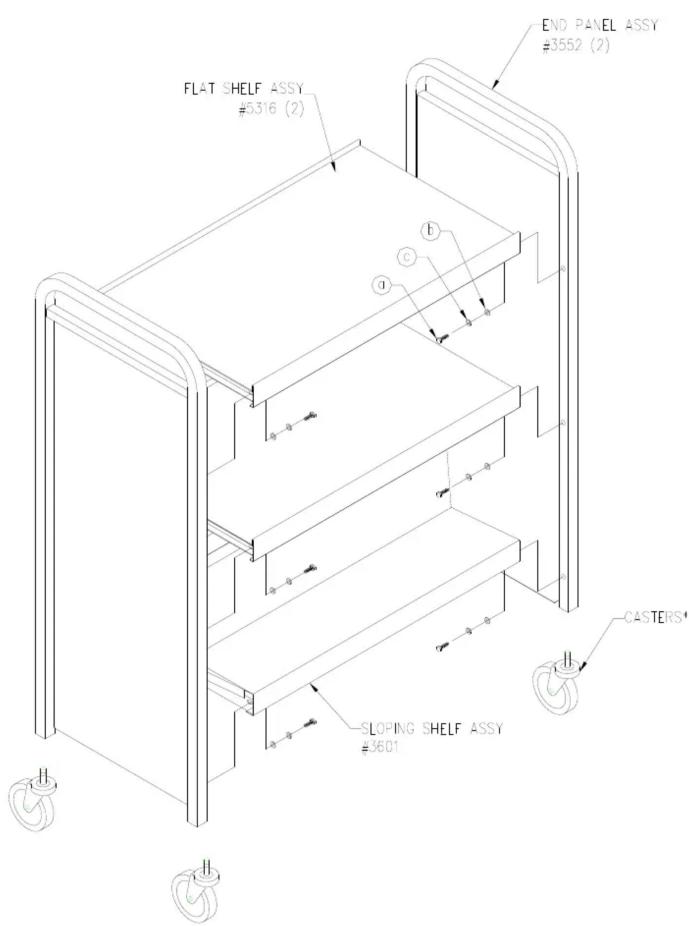

FLAT SHELF ASSY #3316 (2) END PANEL ASSY #3552 (2) LOPEN SHELF ASSY #3601 CASTERS*HH-102 (7040)
REVISION
INST SHEET
2 PK END PANELS PACKAGE #3557
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3552 |
| 2 | INSTRUCTION SHEET | 1 | E-230 |
| 3 | NAMEPLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a | BOLT, HEX, 1/4"=20 X 1 1/4" | 12 | 3585 |
| b | WASHER, FL&T | 12 | 8778 |
| c | WASHER, LOCK 1/4" L/D. SPLIT | 12 | 46307 |
1 PK SLOPING SHELF PACKAGE #3559
| ITEM | DESCRIPTION | STY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 1 | 3601 |
2 PKS FLAT SHELF PACKAGE #5603
| ITEM | DESCRIPTION | QTY | PN |
| 1 | FLAT SHELF ASSEMBLY | 1 | 5316 |
4' CASTER PACK 5625 (STANDARD)
| ITEM/ | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SMVEL | 2 | 4753 |
| 2 | 4" CASTER, SMVEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (ORINGS, R.EA.) | 1 | 9939 |
- 5" CASTER PACK 5975 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SMVEL | 2 | 5973 |
| 2 | 5" CASTER, SMVEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, B E4.) | 1 | 9939 |


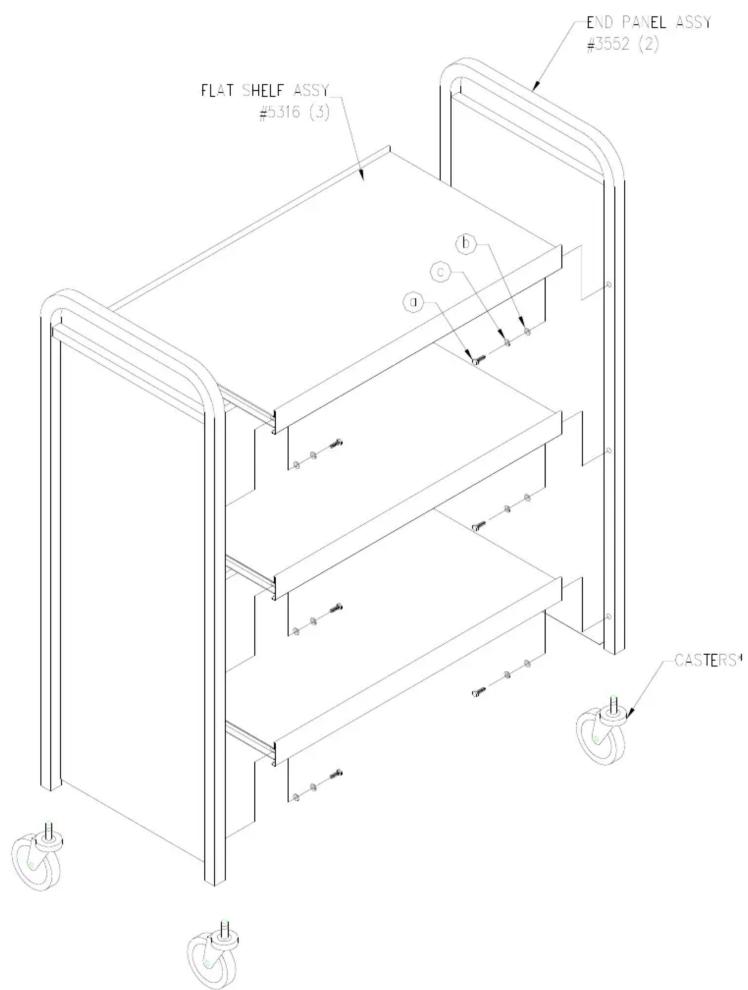

END PANEL ASSY #3552 (2) FLAT SHELF ASSY #5.316 (3) CASTERSHH-103 (7041)
REVISION
INST. SHEET
2 PK END PANELS PACKAGE #3557
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3552 |
| 2 | INSTRUCTION SHEET | 1 | E-230 |
| 3 | NAMEPLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a | BOLT, HEX, 1/4"-20 X 1 1/4" | 12 | 3585 |
| b | WASHER, FLAT | 12 | 8778 |
| c | WASHER, LOCK 1/4" LD, SPLIT | 12 | 46307 |
3 PKS FLAT SHELF PACKAGE #5603
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 1 | 5.016 |
4 4" CASTER PACK 5625 (STANDARD)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SWIVEL | 2 | 47/53 |
| 2 | 4" CASTER, SWIVEL W/ BRAKE | 2 | 47/54 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 99.59 |
1 5" CASTER PACK 5975 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWIVEL | 2 | 5973 |
| 2 | 5" CASTER, SWIVEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |
