USER MANUAL BK-212 DA-LITE
REVISION 11/03
INST. SHEET
2 PK END PANELS PACKAGE #3557
| ITEM | DESCRIPTION | QTY | PIN |
| 1 | END PANEL ASSEMBLY | 2 | 3552 |
| 2 | INSTRUCTION SHEET | 1 | E-230 |
| 3 | NAME/PLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a | BOLT, HEX, 1/4"-20 X 1 1/4" | 12 | 3585 |
| b | WASHER, FL-T | 12 | 8778 |
| c | WASHER, LOCK 1/4" I.D. SPLIT | 12 | 46307 |
2 PK SLOPING SHELF PACKAGE #3558
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 2 | 3601 |
1 PK SLOPING SHELF PACKAGE #3559
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 1 | 3601 |
4 4" CASTER PACK 5625 (STANDARD)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SWIVEL | 2 | 4753 |
| 2 | 4" CASTER, SWIVEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (CRINGS, 8 EA.) | 1 | 9939 |
4.5" CASTER PACK 5975 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWIVEL | 2 | 5973 |
| 2 | 5" CASTER, SWIVEL W/ IBRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA-) | 1 | 9939 |


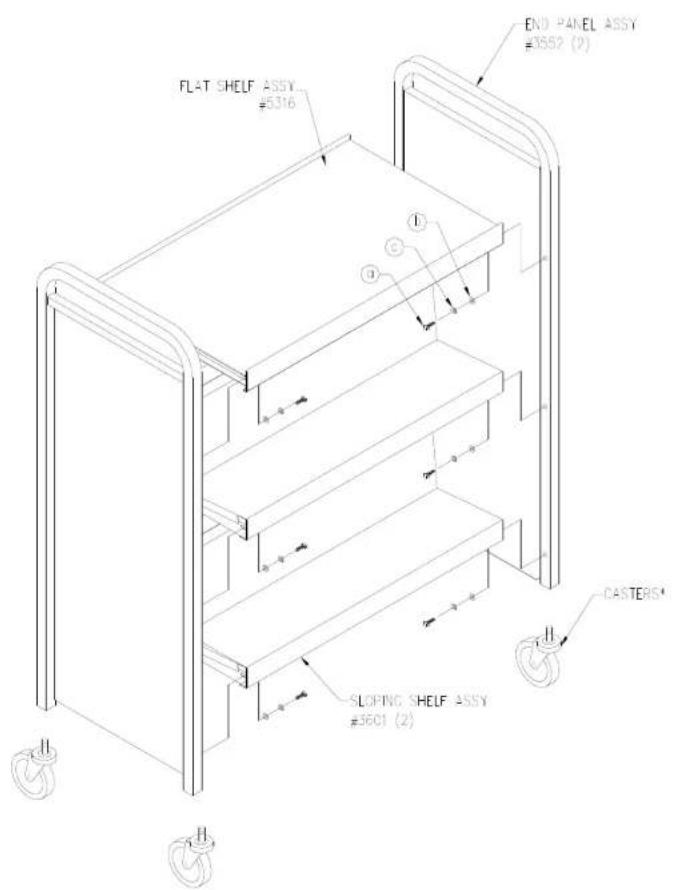

END PANEL ASSY #3552 (2) FLAT SHELF ASSY #5316 SLOPING SHELF ASSY #3601 (2) CASTERS*HH-101 (7039)
| 2 PK END PANELS PACKAGE #3557 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3562 |
| 2 | INSTRUCTION SHEET | 1 | E=240 |
| 3 | NAMD LATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a BOLT, HEX, 1/4"-20 X 1 1/4 | 12 | 3585 | |
| b WASHER, FLAT | 12 | 8778 | |
| c WASHER, LOCK 1/4" I.D. SPLIT | 12 | 46307 | |
| 2 PK SLOPING SHELF PACKAGE #3558 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 2 | 3601 |
| 1 PK FLAT SHELF PACKAGE #5603 | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | FLAT SHELF ASSEMBLY | 1 | 5316 |
| * 1" CASTER PACK 5675 (STANDARD) | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 4" CASTER, SWHEL | 2 | 4753 |
| 2 | 4" CASTER, SWHEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |
| * 5" CASTER PACK 5975 (OPTIONAL) | |||
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWHEL | 2 | 5973 |
| 2 | 5" CASTER, SWHEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |
REVISION:
INST SHEET
2 PK END PANELS PACKAGE #3557
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3592 |
| 2 | INSTRUCTION SHEET | 1 | E-230 |
| 3 | NAMEPLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a | BOLT, HEX, 1/4"–20 X 1/4" | 12 | 3585 |
| b | WASHER, FL-ST | 12 | 8778 |
| c | WASHER, LOCK 1/4" I.D. SPLIT | 12 | 46307 |
1 PK SLOPING SHELF PACKAGE #3559
| ITEM | DESCRIPTION | STY | PN |
| 1 | SLOPING SHELF ASSEMBLY | 1 | 3601 |
2 PKS FLAT SHELF PACKAGE #5603
| ITEM | DESCRIPTION | CTY | PN |
| 1 | FLAT SHELF ASSEMBLY | 1 | 5316 |
4' CASTER PACK 5625 (STANDARD)
| ITEM/ | DESCRIPTION | QTY | PN |
| 1 | 4"CASTER, SMIVEL | 2 | 4753 |
| 2 | 4"CASTER, SMIVEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (ORINGS, R.EA.) | 1 | 9939 |
15' CASTER PACK 5975 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SIMVEL | 2 | 5973 |
| 2 | 5" CASTER, SIMVEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, B'E4.) | 1 | 9939 |
REVISION
INST. SHEET
2 PK END PANELS PACKAGE #5557
| ITEM | DESCRIPTION | QTY | PN |
| 1 | END PANEL ASSEMBLY | 2 | 3552 |
| 2 | INSTRUCTION SHEET | 1 | E-230 |
| 3 | NAMEPLATE | 1 | 6092 |
| 4 | PACKAGE SET | 1 | 3562 |
| a | BOLT, HEX, 1/4"-20 X 1 1/4" | 12 | 3585 |
| b | WASHER, FLAT | 12 | 8778 |
| c | WASHER, LOCK 1/4" LD, SPLIT | 12 | 46307 |
- PKS FLAT SHELF PACKAGE #9603
| ITEM | DESCRIPTION | QTY | PN |
| 1 | SLCPING SHELF ASSEMBLY | 1 | 5016 |
4" CASTER PACK 5625 (STANDARD)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 1" CASTER, SWIVEL | 2 | 4753 |
| 2 | 4" CASTER, SWIVEL W/ BRAKE | 2 | 4754 |
| 3 | PACKAGE SET (ORINGS, B.E.A.) | 1 | 9939 |
4 5" CASTER PACK 5375 (OPTIONAL)
| ITEM | DESCRIPTION | QTY | PN |
| 1 | 5" CASTER, SWIVEL | 2 | 5973 |
| 2 | 5" CASTER, SWIVEL W/ BRAKE | 2 | 5974 |
| 3 | PACKAGE SET (ORINGS, 8 EA.) | 1 | 9939 |
