Product Type	Upper Arm Blood Pressure Monitor
Model	UA-705
Brand	A&D Medical
Measurement Method	Oscillometric
Arm Circumference Range	22–32 cm (standard cuff)
Power Source	4 x AA batteries or AC adapter (optional)
Display	Digital LCD, large digits
Memory	Up to 60 readings with date and time
Measurement Range	Pressure: 20–280 mmHg, Pulse: 40–200 beats/min
Accuracy	Pressure: ±3 mmHg, Pulse: ±5%
Dimensions (Unit)	Approx. 135 x 60 x 140 mm (W x H x D)
Weight	Approx. 300 g (without batteries)
Irregular Heartbeat Detection	Yes
WHO Classification Indicator	Yes
Auto Shut-Off	Yes, after 1 minute of inactivity
Clinical Validation	Validated per ESH and BHS protocols
Cuff Type	Standard cuff (22–32 cm), extra large cuff available separately
Accessories Included	Cuff, batteries, instruction manual, storage case
Cleaning	Wipe with a dry soft cloth. Do not use solvents or immerse in water.
Storage Conditions	Temperature: -20°C to 60°C, Humidity: 10%–90% RH
Operating Conditions	Temperature: 10°C to 40°C, Humidity: 15%–85% RH
Warranty	2 years (varies by region)
Certifications	CE, FDA, ISO 13485

Frequently Asked Questions - UA-705 A&D Médical

How do I set the date and time on the UA-705?

Press and hold the SET button for 3 seconds. Use the MEM button to adjust the year, month, day, hour, and minute, pressing SET to confirm each step.

How many readings does the UA-705 memory store?

The monitor stores up to 60 readings with date and time stamps.

What does the irregular heartbeat symbol mean?

It indicates that an irregular heartbeat was detected during measurement. This is not a diagnostic tool; consult your doctor if it appears frequently.

Can I use an AC adapter instead of batteries?

Yes, an optional AC adapter (6V, 600mA) can be used. Ensure the adapter is specifically designed for this model.

How do I clean the UA-705 monitor and cuff?

Wipe the monitor with a soft, dry cloth. Clean the cuff with a damp cloth and mild detergent, then air dry. Do not immerse any part in water.

What size cuff does the UA-705 use?

It comes with a standard cuff for arm circumference 22–32 cm. An optional large cuff (32–42 cm) is available separately.

Why does my reading vary each time?

Blood pressure fluctuates naturally. Ensure you rest for 5 minutes before measurement, sit quietly with feet flat, and place the cuff at heart level. Take multiple readings at the same time daily.

How do I delete stored readings?

Press and hold the MEM button for 3 seconds until the memory icon blinks, then press START to delete all readings. Individual deletion is not possible.

Is the UA-705 suitable for use during pregnancy?

This monitor is not clinically validated for pre-eclampsia and may not be accurate during pregnancy. Consult your healthcare provider for appropriate monitoring.

What does the WHO classification indicator do?

It categorizes your blood pressure into optimal, normal, high-normal, mild, moderate, or severe using color bars and arrows, based on WHO guidelines.

USER MANUAL UA-705 A&D Médical

Please read this important information before using your monitor.

Please remember that only a medical practitioner is qualified to interpret your blood pressure measurements. Use of this device should not replace regular medical examinations.
Have your physician review your procedure for using this device. He or she will want to verify blood pressure measurements before prescribing or adjusting medications.
Consult your physician if you have any doubt about your readings. Should a mechanical problem occur, contact A&D Medical.
Make sure to use the correct cuff size when measuring your blood pressure.
Do not attempt to service, calibrate, or repair this monitor.
Because your UA-705 monitor contains delicate, high-precision parts, avoid exposing it to extremes in temperature or humidity or to direct sunlight, shock and dust. A&D Medical guarantees the accuracy of this monitor only when it is stored and used within the temperature and humidity ranges noted on page E-18.
Clean the monitor and cuff with a dry, soft cloth or a cloth dampened with water and a mild detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean monitor or cuff.
Remove and replace batteries if monitor is not used for more than six months. Alkaline batteries recommended.

PRECAUTIONS

The UA-705 is designed to be used at home, by those who are eighteen (18) years and older, to monitor blood pressure (systolic and diastolic) and pulse rate. It is not designed for ambulatory use.

LIFE SOURCE®

Fast. Easy. Accurate.

Congratulations on purchasing a state-of-the-art LifeSource® blood pressure monitor—one of the most technologically advanced monitors available today. Designed for ease of use and accuracy, this monitor will facilitate your daily blood pressure regimen.

Physicians agree that daily self-monitoring of blood pressure is an important step individuals can take to maintain cardiovascular health and prevent the serious consequences associated with undetected and untreated hypertension.

A&D Medical has been manufacturing high quality healthcare products for over 20 years. We are committed to providing you and your family with monitoring devices that provide the utmost in accuracy and convenience.

LifeSource - Designed for Life.

WHAT DISPLAY SYMBOLS MEAN ..... E-2

MONITOR COMPONENTS

HOW UA-705 WORKS

BEFORE YOU START ....E-4

SELECTING THE CORRECT CUFF SIZE ..... E-5

ABOUT AVERAGE READING ....E-10

ABOUT PRESSURE RATING INDICATOR™ .....E-10

ABOUT MEMORY ....E-11

ABOUT BLOOD PRESSURE ....E-12 — E-16

TROUBLESHOOTING ....E-17

SPECIFICATIONS E-18

CONTACT INFORMATION ...... E-19

FRENCH INSTRUCTIONS ...... F-1

SPANISH INSTRUCTIONS ..... S-1

Display Symbol	Condition/Cause	Recommended Action
	The symbol shown while measurement is in progress. It blinks while detecting the pulse.	Measurement is in progress, remain as still as possible.
	An irregular heartbeat or body movement may have occurred. Refer to page E-9 for more information on irregular heartbeats.	Take measurement again and consult with your physician.
	Previous measurement stored in MEMORY.
	The battery power indicator during measurement.	Replace all batteries with new ones when the symbol blinks. Alkaline batteries recommended.
Battery Low	The batteries are low when it blinks.
	Unstable blood pressure due to excessive body movement.	Try the measurement again. Remain very still during the measurement.
	The systolic and diastolic values are within 10 mmHg of each other.	Fasten the cuff correctly, and try the measurement again.
	The pressure value did not increase during inflation.	Check for air leaks along the tube and around the air socket.
	The cuff is not fastened correctly.	Refasten the cuff and retake measurement.
	There is an air leak in the cuff or monitor.	Make sure tube is properly connected to cuff and monitor.
	The pulse is not detected correctly.	Try the measurement again. Remain very still during the measurement.
###	Cuff Inflation Meter	Measurement is in progress, remain as still as possible.
	Pressure Rating IndicatorTM	Refer to the section “About Pressure Rating Indicator” for further explanation.
	Appears on display prior to and during measurement. Blinks if there is air in cuff at power up.	Press exhaust button to release air.
	Cuff needs to be inflated for proper measurement.	Inflate cuff 30 to 40 mmHg above your normal systolic pressure.

HOW UA-705 WORKS

LifeSource® blood pressure monitors are easy to use, accurate and digitally display full measurement readouts. Our technology is based on the “oscillo-metric method” – a noninvasive blood pressure determination. The term “oscillation” refers to any measure of vibrations caused by the arterial pulse. Our monitor examines the pulsatile pressure generated by the arterial wall as it expands and contracts against the cuff with each heartbeat.

The cuff is inflated until the artery is fully blocked. The inflation speed is maximized and the pressure level is optimized by the device. The monitor takes measurements while the cuff is both inflating and deflating. This results in a faster measurement providing greater comfort to the user.

BEFORE YOU START

You must install 1 type AA (1.5 volt) battery and attach the cuff to the monitor before using it (alkaline batteries recommended). To install battery (or replace it if the "Low Battery" symbol appears on display), proceed as follows:

1. Remove battery cover by gently pushing down on handle and pulling cover off monitor.

Step 3

1. Place the battery in compartment with positive (+) and negative (−) terminals matching those indicated in the compartment. Be sure battery makes contact with compartment terminals.

Step 1

1. Replace cover by sliding it into the compartment and gently pressing into place.

Step 2

NOTE: Rechargeable batteries will not work with this monitor.

Using the correct cuff size is important for an accurate reading. A cuff that is too large will produce a reading that is lower than the correct blood pressure; a cuff that is too small will produce a reading that is higher than the correct blood pressure. With your arm hanging at the side of your body, measure the circumference of your upper arm at the midpoint between the shoulder and elbow.

ARM SIZE	RECOMMENDED CUFF SIZE	REPLACEMENT CUFF MODEL#
9.4" - 14.2" (24-36cm)	Medium Cuff	UA-280
14.2" - 17.7" (36-45cm)	Large Cuff	UA-281

NOTE: The LifeSource small cuff is not compatible with the UA-705 monitor.

■ Cuff Size Indicator On The Cuff

Our cuff has an indicator which tells you whether you are using the correct cuff size or not. Place the cuff on your arm (see Page E-6 to learn how to put the cuff on correctly) and if the Index Mark ▲ points within the Proper Fit Range, you are using the correct cuff size. If the Index points outside of the Proper Fit Range, contact A&D Medical at 1-888-726-9966 (in Canada, call Auto Control Medical at 1-800-461-0991) for more information on where to obtain a cuff replacement.

NOTE: If the cuff size indicator falls on a borderline between two size categories, pick either one and make sure to use the same cuff size for each measurement.

Tips for Blood Pressure Monitoring:

Relax for about 5 minutes before measurement.
Do not smoke or ingest caffeine at least 30 minutes prior to measurement.
Remove constricting clothing and place cuff on bare arm.
Unless your physician recommends otherwise, use left arm to measure pressure.
Do not talk during measurement.
Do not cross legs and keep you feet flat on floor during measurement.

Now you are ready. Follow these simple steps:

1. Sit comfortably with your left arm resting on a flat surface so that the center of your upper arm is at the same height as your heart.

1. Lay left arm on the table, palm up and thread cuff end through metal loop, smooth side against arm. Then position the tube off-center toward the inner side of arm in line with the little finger.

2. Pull the end of the cuff to tighten it, fold back the extra material, and fasten securely. The cuff should be snug but not too tight. You should be able to insert two fingers between the cuff and your arm.

Illustration of a hand holding a document with an arrow indicating direction (no text or symbols)

IMPORTANT: Measure pressure at the same time each day.

1. Confirm that the index ▲ points within the proper fit range.

2. Press the START button. Your average blood pressure reading will appear with the number of measurements stored in memory (i.e. A25 = total of 25 measurements stored in memory) and a flashing ▲ symbol, indicating that monitor is ready for measurement.

NOTE: If the √ symbol is displayed, the cuff has some air trapped in it. Press the exhaust valve button until the ∧ symbol is displayed. You may have to press on the cuff while holding the exhaust valve to release all the air in the cuff.

1. When the ▲ symbol is displayed, begin cuff inflation by squeezing the inflator bulb repeatedly. It may take a few seconds for the ▲ symbol to appear.

2. Stop squeezing the inflator bulb when ▲symbol disappears or until cuff pressure reaches about 30 mmHg to 40 mmHg above expected systolic pressure. If inflating to a level above your expected systolic pressure, we recommend using the chart shown below to determine your inflation level.

Usual Systolic	Inflate to
Up to 130	160
131-170	200
171-210	240
211-250	280

1. When the correct pressurization has been reached, the automatic exhaust mechanism will gradually reduce the pressure in the cuff. Sit quietly during measurement. The ♥ symbol will blink with your pulse beat.

NOTE: Exhaust rate cannot be adjusted during measurement. If you wish to stop inflation at any time, press the exhaust valve to release the pressure in the cuff.

1. After you see the measurement results displayed on the screen, press the exhaust valve to release the excess air from the cuff. If you move your arm before pressing the exhaust valve, the result on the screen will be deleted. The monitor shuts off automatically in about 30 seconds. You can also press the START button to shut off the monitor.

2. Remove cuff and make a note of your blood pressure and pulse rate on the chart in the back of the manual, indicating date and time of measurement. Additional logbook charts can be downloaded and printed for free at www.LifeSourceOnline.com or www.autocontrol.com.

We advise that you record the date and time after each measurement because an accurate blood pressure history relies not on single or sporadic readings but on a pattern over time.

NOTE: Allow at least 5 minutes between measurements on the same person.

The UA-705 Blood Pressure Monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. The Irregular Heartbeat symbol “♥” will appear in the display window in the event an Irregular Heartbeat has occurred during measurement. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeat intervals during the blood pressure measurement. It is important that you relax, remain still and refrain from talking during measurements.

NOTE: We recommend contacting your physician if you see this symbol frequently.

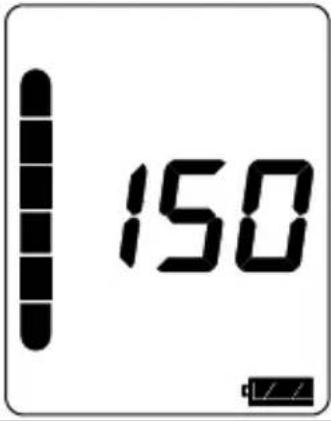

ABOUT CUFF INFLATION METER

The Cuff Inflation Meter is located on the left side of the display screen to tell you when the blood pressure monitor is inflating and deflating the cuff. The Cuff Inflation Meter moves up during inflation and moves down during deflation.

Inflation in Progress Inflation Complete Deflation/Measurementin Progress

The UA-705 provides an average blood pressure reading based on the total measurements stored in memory. When taking a measurement, the average blood pressure reading will appear and the number of measurements stored in memory will flash several times before the cuff begins to inflate. The average blood pressure reading will also appear briefly when you recall the measurements stored in memory.

NUMBER OF MEASUREMENTS STORED IN MEMORY

ABOUT PRESSURE RATING INDICATOR™

The Pressure Rating Indicator™ is a feature which provides a snapshot of your blood pressure classification based on your measurements. This will let you quickly know what your blood pressure readings mean. Each segment of the bar indicator corresponds to the Seventh Report of the Joint National Committee (JNC7) on Prevention, Evaluation and Treatment of High Blood Pressure from the National Heart, Lung and Blood Institute - May 2003. For a more detailed look at this blood pressure classification, please refer to “Assessing High Blood Pressure” on page E-13.

Pressure Rating Indicator™

■: The indicator displays a segment, based on the current measurement, corresponding to the JNC7 Classification.

NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.) in addition to your blood pressure measurement, the Pressure Rating Indicator is approximate. Please consult with your physician for interpretation and diagnosis of your blood pressure measurements.

NOTE: Residents outside of the United States (e.g.. Canada and Mexico) should refer to the WHO Classification Table on page E-13 for assessment of their blood pressure measurement.

The UA-705 automatically stores up to 30 blood pressure and pulse measurements in its memory. Measurements stored in memory are assigned an index number in the order of the newest to the oldest. The oldest reading displays as "n01".

To retrieve readings, follow these simple steps:

1. When the display screen is blank, press and hold the START button. While holding down the START button, you will see the average reading displayed first. You will then see the memory index number (e.g. n04) of the most recent reading followed by the measurement. Release the START button when you see the memory index number.

2. The display will shut off automatically a few seconds after all of the readings are displayed. To turn off the monitor at any time, press the START button.

To clear the measurement history from memory, remove the battery from the unit and then place the battery back into the battery holder.

NOTE: If there are no measurements stored in memory, you will see two 0s displayed vertically followed by a blinking "A00".

NOTE: Stored measurements will be lost if batteries become low or are removed.

■ What Is Blood Pressure?

Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts; diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg).

■ What Affects Blood Pressure?

Blood pressure is affected by many factors: age, weight, time of day, activity level, climate, altitude and season. Certain activities can significantly alter one's blood pressure. Walking can raise systolic pressure by 12 mmHg and diastolic pressure by 5.5 mmHg. Sleeping can decrease systolic blood pressure by as much as 10 mmHg. Taking your blood pressure repeatedly without waiting an interval of 5 minutes between readings, or without raising your arm to allow blood to flow back to the heart, can also affect it.

In addition to these factors, beverages containing caffeine or alcohol, certain medications, emotional stress and even tight-fitting clothes can make a difference in the readings.

■ What Causes Variations In Blood Pressure?

An individual's blood pressure varies greatly from day to day and season to season. For hypersensitive individuals, these variations are even more pronounced. Normally, blood pressure rises during work or play and falls to its lowest levels during sleep.

Fluctuation within a day (case: 35 year old male)

■ Assessing High Blood Pressure for Adults

The following standards for assessing high blood pressure (without regard to age or gender) have been established as a guideline. Please note that other risk factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration and may affect these figures. Consult with your physician for an accurate assessment.

JNC7 Classification Table – for Adults within the U.S.

BP Classification Systolic (mmHg) Diastolic (mmHg)

Normal less than 120 and less than 80

Prehypertension 120-139 or 80-89

Stage 1 Hypertension 140-159 or 90-99

Stage 2 Hypertension 160 or greater than 100 or equal to or equal to

SOURCE: The Seventh Report of the Joint National Committee on Prevention, Evaluation and Treatment of High Blood Pressure for Adults. National Heart, Lung and Blood Institute - May 2003.

WHO Classification Table – for Adults outside of the U.S. (e.g. Canada, Mexico)

BP Classification Systolic (mmHg) Diastolic (mmHg)
Optimal	less than 120 and less than 80
Normal less than 130 or less than 85
High-Normal	130-139 or 85-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension 160-179 or 100-109
Stage 3 Hypertension	greater than 180 or greater than 110or equal to or equal to

SOURCE: Standards to assess high blood pressure, without regard to age or gender, have been established by the World Health Organization (WHO).

■ What Is Hypertension?

Hypertension (high blood pressure) is the diagnosis given when readings consistently rise above normal. It is well known that hypertension can lead to stroke, heart attack or other illness if left untreated. Referred to as a “silent killer” because it does not always produce symptoms that alert you to the problem, hypertension is treatable when diagnosed early.

■ Can Hypertension Be Controlled?

In many individuals, hypertension can be controlled by altering lifestyle and-minimizing stress, and by appropriate medication prescribed and monitored by your doctor. The American Heart Association recommends the following lifestyle suggestions to prevent or control hypertension:

• Don’t smoke. Have regular physical
  ■ Reduce salt and fat intake. checkups.
• Maintain proper weight. Monitor your blood
  Exercise routinely. pressure at periodic intervals.

■ Why Measure Blood Pressure at Home?

It is now well known that, for many individuals, blood pressure readings taken in a doctor's office or hospital setting might be elevated as a result of apprehension and anxiety. This response is commonly called “white coat hypertension.” In any case, self-measurement at home supplements your doctor's readings and provides a more accurate, complete blood pressure history. In addition, clinical studies have shown that the detection and treatment of hypertension is improved when patients both consult their physicians and monitor their own blood pressure at home.

■ Answers to Why Your Readings Are Different Between Home and at the Doctor's Office

Why are my readings different between home and at a doctor's office?

Your blood pressure readings taken in a doctor's office or hospital setting may be elevated as a result of apprehension and anxiety. This response is known as white coat hypertension.

When I bring my monitor to a doctor's office, why do I get a different measurement from my monitor to that taken by a doctor or nurse?

The healthcare professional may be using a different sized cuff. The size of the bladder inside the cuff is critical for the accuracy of the measurement. This may give you a different reading. A cuff too large will produce a reading that is lower than the correct blood pressure; a cuff that is too small will produce a reading that is higher than the correct blood pressure. There may also be other factors that can cause the difference in measurements.

■ Keys to Successful Monitoring:

Blood pressure fluctuates throughout the day. We recommend that you are consistent in your daily measurement routine:

• Measure at the same time every day.
- Sit in the same chair/position.
- Do not cross legs and keep your feet flat on the floor.
- Relax for 5 minutes before measurement.
- Use the correct cuff size to get an accurate reading.
- Sit still during measurement – no talking, eating or sudden movements.
• Record your measurement in a logbook.

■ Establishing Baseline Measurements

The most important method to get an accurate blood pressure measurement is consistency. To get the most benefit out of your monitor, it is important to establish a “baseline measurement.” This helps build a foundation of measurements that you can use to compare against future readings. To build this baseline measurement, devote two weeks for consistent blood pressure monitoring. This involves doing everything the same way when you measure (e.g. measuring during the same time of day, in the same location, sitting in the same chair, using the same cuff, etc.). Once you establish your baseline measurement, you can start evaluating if your measurement has been affected based on things lifestyle changes or medication treatment.

■ How Do I Record My Blood Pressure?

Blood pressure readings are typically recorded with the systolic pressure written first, followed by a slash mark and the diastolic pressure. For example, 120 mmHg systolic and 80 mmHg diastolic measurements are written as 120/80. Pulse is simply written with the letter “P” followed by the pulse rate—P 72, for example. Please see the back of the manual for the blood pressure tracking record.

■ Customer Support Tools Online

Additional tools are available on www.LifeSourceOnline.com (in Canada - www.autocontrol.com) to help you get the most out of your blood pressure monitoring. These include:

• Large Print Instruction Manuals
- Animated Operating Instructions for select models
• Additional Logbook Sheets

Problem	Probable cause	Corrective action
Nothing appears in the display, after pressing the START button.	Battery is drained.	Replace battery with new one. Alkaline battery recommended.
	Battery terminals are not in the correct position.	Reinstall the battery with negative and positive terminals matching those indicated in the battery compartment.
The cuff does not deflate properly	Battery voltage is too low. Low battery symbol blinks. [If the battery is drained completely, the mark does not appear.]	Replace battery with new ones. Alkaline battery recommended.
The unit does not measure. Readings are too high or too low.	The cuff is not fastened properly.	Fasten the cuff correctly.
	You moved your arm or body during the measurement.	Make sure you remain very still and quiet during the measurement.
	The cuff position is not correct.	Sit comfortably and still. Make sure the cuff is at the same level as your heart.
	You are using the wrong size cuff.	See Pg. E-5 "Selecting the Correct Cuff."
	Taking too many readings on the same arm in a short period of time.	Relax five minutes before each measurement.
The value is different from that measured at a clinic or doctor's office.	The healthcare professional may be using a different sized cuff.	See Pg. E-15 "Answers to Why Your Readings Are Different Between Home and the Doctor's Office."
	Your measurements may be elevated by white coat hypertension	See Pg. E-14 "Why Measure Blood Pressure at Home."

NOTE: If the actions described above do not solve the problem, call 1-888-726-9966 (In Canada - 1-800-461-0991). Do not attempt to repair the device yourself.

Model	UA-705
Type	Oscillometric
Display	Digital character height; Pressure (15.0 mm)/pulse (10.0 mm) display simultaneously
Memory	30 readings
Measurement range	Pressure: 20 mmHg to 280 mmHgPulse: 40 pulses to 200 pulses/minute
Accuracy	Pressure: ±3 mmHg or ±2%, whichever is greater Pulse: ±5%
Pressurization	Manually by inflator bulb
Depressurization	Constant-air release-valve system
Deflation	Hand-held push button
Power source	1 type "AA" (1.5 volt) battery (included)
Battery life	Approximately 2,000 measurements
Operating environment	50°F to 104°F (10°C to 40°C)Less than 85% relative humidity
Storage environment	-4°F to 140°F (-10°C to 60°C)Less than 95% relative humidity
Dimensions	Width: 3.2" (81 mm)Depth: 4.2" (105mm)Height: 2.2" (54 mm)
Weight	4.3 oz. (120 g) without battery

Blood pressure measurements determined by the UA-705 are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method within the limits prescribed by the American National Standards Institute for electronic or automated sphygmomanometers.

Our products are designed and manufactured using the latest scientific and technological methods, and offer accurate, easy to use, home monitoring and treatment options. Our full product line includes:

Digital Blood Pressure Monitors
■ Manual Blood Pressure Kits
■ Blood Pressure Cuffs
Stethoscopes
■ Personal Health Scales
Nebulizers
Digital Thermometers

This LifeSource blood pressure product is covered by a Lifetime Warranty. See warranty card for details.

Visit our web site at www.LifeSourceOnline.com for warranty registration.

For more information regarding use, care or servicing of your blood pressure monitor, contact:

In USA

Distributed by A& D Engineering, Inc.

1756 Automation Parkway

San Jose, CA 95131 USA

LifeSource (Toll-Free): 1-888-726-9966

www.LifeSourceOnline.com

For Canadian Residents, please contact:

Auto Control Medical

6695 Millcreek Drive, Unit 5

Mississauga, Ontario

L5N 5R8 Canada

Auto Control (Toll-Free): 1-800-461-0991

www.autocontrol.com
