Product Type	Workbench
Brand	Topex
Model	07A420
Working Height	790 mm
Folded Dimensions (W x H x D)	610 x 1030 x 195 mm
Workbench Top Length	605 mm
Max. Width of Workbench Top (spaced)	380 mm
Workbench Top Spacing Range	0 - 110 mm
Max. Load	100 kg
Weight	6.5 kg
Material	Chipboard (top), Steel (frame)
Features	Expandable top, vice-like clamping, adjustable rotating jaws, foldable for storage
Jaws Included	4 pieces
Legs	1 set (4 legs)
Feet	4 pieces
Guides	2 pieces
Cross-bars	2 pieces
Installation Hardware	Bolts, screws, nuts, washers included
Intended Use	Woodworking, home tinkering, garage, allotment
Safety Notes	Do not stand on bench, avoid excessive load, place on hard even surface
Cleaning	Wipe with dry cloth, avoid moisture
Repairability	Replacement parts available (jaws, feet, etc.)

Frequently Asked Questions - 07A420 Topex

What is the maximum load capacity of the Topex 07A420 workbench?

The maximum load capacity is 100 kg.

Can the workbench be folded for storage?

Yes, the workbench can be folded flat for storage and transportation by lifting the leg spacing supports.

What are the folded dimensions of the workbench?

Folded dimensions are 610 x 1030 x 195 mm (width x height x depth).

How do I adjust the workbench top to clamp a workpiece?

Turn the cranks counterclockwise to space the top parts, place jaws in the holes, then turn cranks clockwise to clamp the workpiece. Rotate both cranks simultaneously to keep the top parallel.

Is the workbench suitable for woodworking?

Yes, it is designed for small woodworking workshops, home tinkering, garage, and allotment use.

What materials are the workbench top and frame made of?

The top is made of chipboard and the frame is steel.

How many jaws are included and what are they used for?

Four jaws are included. They can be placed in the workbench top holes to hold objects of various shapes and sizes.

What should I avoid when using the workbench?

Avoid standing on the workbench, exceeding the maximum load, and placing heavy objects abruptly. Always use on a hard, even surface.

How do I clean the workbench?

Clean with a dry cloth. Avoid moisture to prevent damage to the chipboard top.

Are replacement parts available for the Topex 07A420?

Yes, replacement parts such as jaws, feet, and hardware are available. Refer to the parts list in the manual.

USER MANUAL 07A420 Topex

Metal workbench with metal frame and four black connectors, no visible text or symbols

Metal ladder with attached metal plates and mounting holes, labeled 'A' in top-left corner (no text or symbols on the ladder itself)

White metal workbench with black clamps and a flat top, no visible text or symbols

White metal frame with two black buttons and a flat top, no visible text or symbols

PL

INSTRUKCJA OBSŁUGI STOŁU WARSZTATOWEGO

07A420

PRZEZNACZENIE

Work bench is an invaluable piece of equipment for small woodworking workshops for all those, who like to tinker at home, in a garage or allotment. Additional advantages of the product are: expandable working top that can be used like a vice, compact size, option to fold flat for storage and transportation, durable steel frame, simple set up and cleaning, small weight (fig. A).

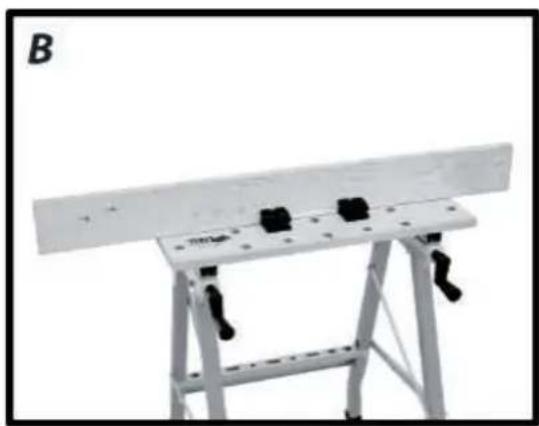

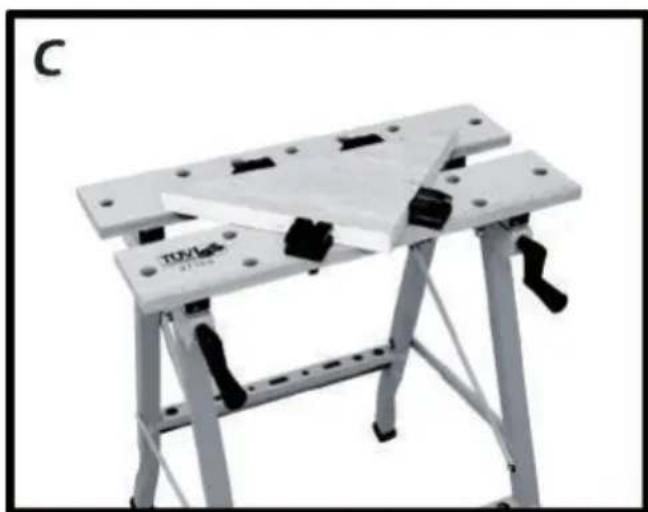

Adjustable, rotating jaws allow for versatile fixing and holding objects of various shapes and sizes, e.g. boards, slats, pins and other items (fig. B, C).

Work bench height was designed optimally to provide very good working conditions.

DESCRIPTION OF WORK BENCH ITEMS

Work top1.

Guide2.

Crank3.

1. Leg

2. Cross-bar

3. Foot

4. Jaw

INSTALLATION

• Join cross-bars (5) and legs (4) with supplied screws, washers and nuts.
• Install guides (2) on work tops (1) with screws. Make sure the work top grooves are positioned inwards.
• Attach guides (2) (with work tops) to legs (4) with supplied screws, washers and nuts.
• Put feet (6) on legs (4) (long side towards outer corner).
• Place jaws (7) in holes of work top (1) accordingly to needs for the task at hand.

CAUTION!

• Before using the work bench make sure that legs are positioned properly and secured with leg spacing support and that they rest on hard, even surface.
• Make sure the feet are placed appropriately to prevent work bench skidding on the ground.

– Never use cross-bars as a ladder step. Do not stand on the work bench.

- Do not excess allowable load of the work bench.

- Put heavy objects on the work bench top delicately, so the load applied to the work bench body increases gradually.

USE

• Space work bench top parts to desired distance by turning cranks located in the guides counterclockwise.
• Place jaws appropriately in the work bench top holes.
• Fix processed workpiece in jaws by turning cranks clockwise.

CAUTION!

• Rotate both cranks at a time to preserve parallel position of two parts of the work bench top.
• Otherwise the guide units may get jammed or damaged.
• If there is no possibility to properly clamp the workpiece, change jaws distance.
• To fold the work bench lift leg spacing supports.

MAIN SPECIFICATIONS:

• Working height 790 mm
• Dimensions when folded (width x height x depth) 610 x 1030 x 195 mm
• Work bench top spacing range 0 - 110 mm
• Work bench top length 605 mm
• Max. width of work bench top (spaced) 380 mm
• Max. load 100 kg
• Work bench top material Chipboard
• Weight 6.5 kg

LIST OF PARTS

Working top - 2 pcs1.

Guide - 2 pcs2.

Cross-bar - 2 pcs3.

Legs - 1 set4.

Feet - 4 pcs5.

Jaws - 4 pcs6.

Bolts, screws, nuts and washers - 1 set7.
