HR2695 - Blender PHILIPS - Free user manual and instructions

Product Type	Blender
Brand	Philips
Model	HR2695
Dimensions (H x W x D)	Approx. 40 x 18 x 18 cm
Weight	Approx. 1.5 kg
Power Consumption	350 W
Voltage	220-240 V, 50/60 Hz
Capacity	1.5 L
Material	Plastic jar, stainless steel blades
Speed Settings	2 speeds plus pulse
Functions	Blending, mixing, crushing ice
Safety Features	Non-slip feet, safety lock lid
Cleaning	Detachable parts dishwasher safe
Parts Included	Blender jar, lid, blade unit, motor base
Repairability	Spare parts available via Philips service
Warranty	2 years

Frequently Asked Questions - HR2695 PHILIPS

Can I crush ice with the Philips HR2695 blender?

Yes, the HR2695 is designed to crush ice. Use the pulse function for best results.

How do I clean the blender jar?

Detach the jar and blade unit. Rinse immediately after use. Most parts are dishwasher safe. Hand wash the blade unit with care.

What is the maximum capacity of the blender?

The jar has a maximum capacity of 1.5 liters. Do not fill above the max line to avoid spillage.

Why does the blender not start?

Ensure the lid is securely locked onto the jar and the jar is correctly placed on the motor base. The safety lock prevents operation if not assembled properly.

Can I blend hot liquids?

No, do not blend hot liquids as pressure buildup can cause the lid to open. Allow liquids to cool to room temperature first.

What is the power rating of the HR2695?

The blender has a 350 watt motor, suitable for everyday blending tasks.

Are spare parts available for this model?

Yes, spare parts such as jars, lids, and blade units can be ordered through Philips service centers or authorized dealers.

How do I use the pulse function?

Press and hold the Pulse button for short bursts. Release to stop. Ideal for chopping or crushing ice.

Is the blender BPA-free?

Yes, the plastic jar is made from BPA-free materials for safe food contact.

Can I use the blender to make smoothies?

Absolutely. Add fruits, vegetables, and liquid. Use speed 2 for smooth and consistent smoothies.

USER MANUAL HR2695 PHILIPS

Close-up of a Philips 1200W blender with metallic body and handle (no visible text or symbols on the device itself)

Simple line drawing of an open book with a grid pattern on the left and a closed page on the right (no text or symbols)

-1

1_

-1

1

-1

1_

-1

1

English 6

Türkçe 18

6 English

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description

1 Motor unit
2 Blender bar with integrated blade unit
3 Beater gear unit
4 Beaters
5 Beaker
- Food processor (HR2695/01)
6 Small pusher
7 Pusher
8 Gear release button
9 Gear box
10 Food processor bowl lid
11 Plastic disc
A: Disc insert for slicing
B: Disc insert for shredding
12 Shaft
13 Blade unit
14 Food processor bowl

Important

Danger

Warning

- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.

• Before using the appliance, check that the power voltage corresponds to that indicated on the rating plate.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not touch the cutting edges of the blade unit when handling.
• Do not touch the sharp cutting edges of the blade unit when handling, emptying the bowl and during cleaning.
• Always unplug the appliance when it is not being used or when putting the parts in or when taking parts out or before any maintenance or cleaning operation.
• Avoid contact with moving parts. Keep hands, hair, clothing as well as spatula and other utensils away from attachment and beaters during operation to reduce the risk of injury to persons, and/or damage to the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment in order to avoid a hazard.

8 English

• The use of attachments which are not recommended or sold by the manufacturer, may cause fire, electric shock or injury. Don't use those attachments or parts in your appliance.
• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.
• Make sure the appliance is properly cleaned. Especially the surfaces in contact with food. Please refer to the "cleaning and maintenance" section for cleaning details.
• This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms, or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
• Never use a blade unit without a chopper or a food processor bowl.
• To avoid splashing, always immerse the blender bar, the beaters into the ingredients before you switch on the appliance, especially when you process hot ingredients.
• Do not use the appliance in outdoors.
• Do not let cord hang over edge of table or counter.
• Remove attachments from the appliance before cleaning or washing.
• Always make sure bowl lid is locked securely in place before motor is turned on.
• Be sure that all parts and accessories are fully secured in position before operating the appliance. Do not touch the accessories and blades until motor stops.

Caution

• Do not overload the food processor or exceed maximum capacity. Warn of potential injury from misuse.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, approaching parts that move in use or cleaning. For the operating times and speed setting for accessories, please refer to section "processing quantities and processing time".
• Never fill the beaker, and food processor (specific types only) with ingredients that are hotter than 60°C.
• After cleaning, let the blender bar dry. Store it either horizontally or with the blade pointing upwards. Make sure the blade unit is completely dry before you store the blender bar.

Before first use

Thoroughly clean all parts that will come into food contact before you use the appliance for the first time (see chapter 'Cleaning').

Make sure all parts are completely dry before you start using the appliance.

Using the appliance

Using bar blender

You can use this attachment to prepare dips, sauces, soups, mayonnaise, baby food and milkshakes.

Do not process ingredients such as ice cubes, frozen ingredients or fruits with stones.

1 Turn the blender bar anti-clockwise to lock it to the motor unit.
2 Put the ingredients into a beaker or other bowls.
3 Connect the power plug to the power supply.

4 Lower the blade guard completely in the ingredients in order to avoid splashing.

Line drawing of a hand gripping a cylindrical object (no text or symbols)

5 Switch on the appliance by pressing the trigger switch. You can increase the speed by pressing the switch harder.
6 Move the appliance slowly up and down and in circles to blend the ingredients.
7 After you have finished blending, release the trigger switch to turn the appliance off and unplug the appliance.

Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming. Never put ingredients that are hotter than 60"C into the bowl.

Using beating attachment

You can use this attachment for whipping cream, sponge cakes, beating egg whites and ready-mix desserts.

Do not process ingredients such as ice cubes, frozen ingredients or fruits with stones.

10

English

1 Attach the beater accessory to the beater accessory gear unit.

2 Turn the beater gear unit anti-clockwise to lock it to the motor unit.

3 Put the ingredients into a bowl.

4 Connect the power plug to the power supply.

5 Lower the beater accessory completely in the ingredients to avoid splashing.

6 Switch on the appliance by pressing the trigger switch. You can increase the speed by pressing the switch harder.

7 Move the appliance slowly and in circles to blend the ingredients.

8 After use, release the trigger switch to turn the appliance off and unplug the appliance.

If you want to process a small quantity, tilt the bowl slightly for a quicker result.

When you beat egg whites, use a large bowl for the best result.

In order to get a good result, the bowl and the tool must be completely fat free and there must not be a rest of egg yolk in the egg whites.

To prevent splashing, start at a low speed and continue with a higher speed after around 1 minute.

Using food processor

The food processor is intended for chopping, slicing, and shredding ingredients.

- The blade unit is intended for chopping ingredients such as onions, raw meat, herbs, nuts, etc.

- The slicing disc is intended for slicing ingredients like carrots, cucumber, etc.

- The shredding disc is intended for shredding ingredients like carrots, cheese, etc.

Using the chopping blade

1 Attached the blade unit in the food processor bowl.
2 Put the ingredients in the bowl.
3 Turn the food processor lid clockwise to lock it to the bowl. You will hear a click when it is locked.
4 Turn the motor unit clockwise to lock it to the gear box.
5 Attach the motor unit with gear box to the food processor lid.
6 Connect the power plug to the power supply.

12 English

Line drawing of a hand holding a small object over a cylindrical container (no text or symbols)

7 Press and hold the trigger switch to activate the appliance until all ingredients are cut.

8 After use, release the trigger switch to turn the appliance off and unplug the appliance.

9 Press the release button on the bowl handle, and remove the food processor lid from the bowl.

10 Empty and the bowl.

Using the slicing or shredding disc

1 Attach the slicing or shredding insert to the plastic disc.

2 Attach the shaft in the food processor bowl.

3 Attach the disc on the shaft.

4 Turn the food processor lid clockwise to lock it to the bowl. You will hear a click when it is locked.

5 Turn the motor unit clockwise to lock it to the gear box.

6 Attach the assembled gear box to the food processor lid. 7 Connect the power plug to the power supply.

Line drawing of a hand pouring liquid into a beaker with a measuring tool (no text or symbols)

8 Place the ingredients into the bowl through the feeding tube of the lid.

Line drawing of a hand pouring liquid into a measuring cup with a stopper (no text or symbols)

9 Use the pusher to ensure all ingredients are pushed into the bowl.

14

English

Line drawing of a hand holding a measuring cup over a container (no text or symbols)

10 Press and hold the trigger switch to activate the appliance at desired speed.

11 After use, release the trigger switch to turn off the appliance.

12 Unplug the appliance.

13 Press the release button on the bowl handle, and remove the food processor lid from the bowl.

14 Empty and the bowl.

Be careful when handling the blade unit as it is extremely sharp.

Never use your fingers or objects such as forks or knives to push.

Do not use the chopping blade and slicing or shredding disc at the same time.

Processing quantities and processing time

	250 ml	1 min
	500 m	1 min
	200 g	1 min
	5 x egg white	3 mins
	250 ml	3 mins
	500 g	30 sec
	250 g	40 sec
	300 g	60 sec
	500 g	15 x P
	80 g	20 sec

	500 g	20 sec
	500 g	20 sec
	500 g	20 sec

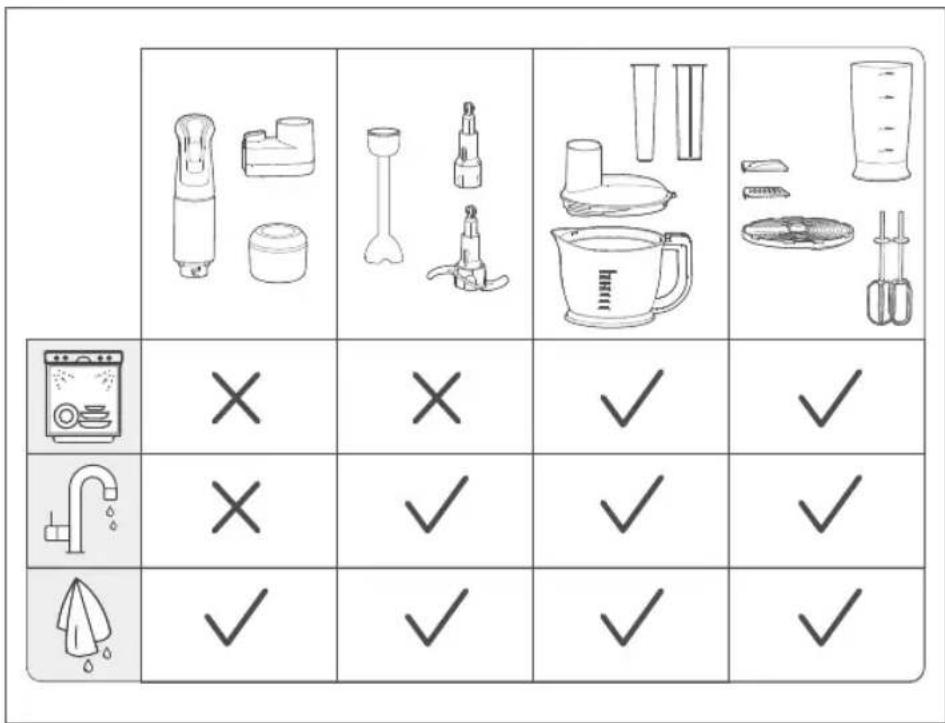

Cleaning and Maintenance

Always unplug the appliance after use and before removing and cleaning attachments.

To make cleaning easier, rinse removable attachments and bowl right after use. Clean and dry the attachments and bowl. Please see the cleaning instructions table below. Avoid using scouring pads, harsh detergents and and abrasives. Dry with a soft, clean cloth.

Wipe the motor units with a slightly damp cloth, do not immerse the motor unit in water.

After cleaning, let the blender bar dry. Store it either horizontally or with the blade pointing upwards. Make sure the blade unit is completely dry before you store the blender bar.

You can wash the surfaces around the blades on the chopping stick under tap I water but be careful and try not to get water around the clutch area.

Electromagnetic fields (EMF)

This Philips appliance complies with the standards regarding electromagnetic fields (EMF).

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Unless otherwise indicated, all packaging material in the box is made of recycled paper; see the PAP marking on the box.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.philips.com/support.
