Bolden 50552-BNK - Lighting Craftmade - Free user manual and instructions

Product Type	Ceiling Light Fixture
Model Number	Bolden 50552-BNK
Brand	Craftmade
Color Finish	Brushed Nickel
Dimensions (Height)	12 inches (approximate)
Dimensions (Diameter)	16 inches (approximate)
Weight	4.5 lbs (approximate)
Power Supply	Hardwired, 120V AC
Bulb Type	Incandescent or LED (E26 base)
Bulb Count	3 bulbs (not included)
Max Wattage per Bulb	60W (or equivalent LED)
Dimmable	Yes (with compatible dimmer switch)
Installation Type	Ceiling mount
Material	Metal and glass
Indoor/Outdoor	Indoor use only
Safety Certification	UL Listed
Maintenance	Wipe with dry cloth; do not use abrasive cleaners
Spare Parts	Bulbs, mounting bracket, screws (included)
Warranty	1 year limited warranty

Frequently Asked Questions - Bolden 50552-BNK Craftmade

What type of bulbs does the Bolden 50552-BNK require?

The fixture uses standard E26 base bulbs, either incandescent up to 60W or LED equivalent. Bulbs are not included.

Can I use LED bulbs to save energy?

Yes, LED bulbs with E26 base are compatible and provide energy savings. Ensure they are dimmable if using a dimmer switch.

Is the fixture dimmable?

Yes, the Bolden 50552-BNK is dimmable when used with a compatible dimmer switch and dimmable bulbs.

How do I install the ceiling light?

Turn off power at the breaker. Connect the fixture wires to the house wires (black to black, white to white, ground to ground). Secure the mounting bracket and attach the fixture. Refer to the manual for detailed steps.

What is the recommended cleaning method?

Clean with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth then dry immediately. Avoid harsh chemicals or abrasive materials.

What is the weight of the fixture?

The approximate weight is 4.5 lbs, so it requires a standard ceiling electrical box rated for that weight.

Can this light be installed in a bathroom or outdoors?

No, this fixture is rated for indoor use only. It is not damp or wet location rated, so avoid bathrooms, covered porches, or outdoors.

Does the fixture include mounting hardware?

Yes, the package includes a mounting bracket, screws, wire nuts, and other necessary hardware for installation.

What should I do if the light flickers?

Check bulb connections and ensure bulbs are tightened. If using a dimmer, verify compatibility and that bulbs are dimmable. Also check wire connections for loose joints.

Is there a warranty for the Craftmade Bolden 50552-BNK?

Craftmade offers a 1-year limited warranty against defects in materials and workmanship. Contact customer support for assistance.

USER MANUAL Bolden 50552-BNK Craftmade

BOLDEN #50552-BNK/#50552-BNK-WG/#50552-FB/#50552-FB-WG

PLEASE READ AND SAVE FOR FUTURE REFERENCE. CAUTION

1. Turn off the main power at the circuit breaker before installing the fixture in order to prevent possible shock.
2. All electrical connections must be in accordance with local and National Electrical Code (N.E.C.) standards. If you are unfamiliar with proper electrical wiring connections, obtain the services of a qualified electrician.

GENERAL

Remove all parts and hardware from the box and make sure that none are missing by referencing the illustrations provided.

Bulb Required (not included): 3 -Medium Base 60 Watt Max.SS

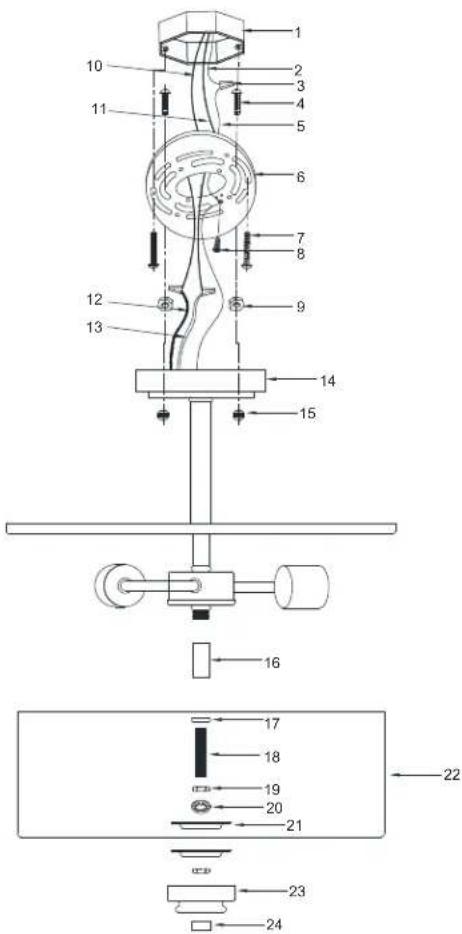

3-LIGHT CONVERTIBLE SEMI FLUSH

1. OUTLET BOX (NOT INCLUDED)
2. SUPPLY GROUND WIRE (not included)
3. WIRE CONNECTORS
4. FIXTURE SCREWS
5. FIXTURE GROUND WIRE
6. MOUTING PLATE
7. OUTLET BOX SCREWS and WASHERS (pre-attached to outlet box)
8. GROUND SCREW(pre-attached)
9. HEX NUTS(pre-attached)
10. WHITE SUPPLY WIRE(not included)
11. BLACK SUPPLY WIRE(not included)
12. RIBBED(or WHITE)FIXTURE LEAD WIRE
13. SMOOTH(or BLACK)FIXTURE LEAD WIRE
14. FIXTURE
15. DECORATIVE NUTS
16. TUBE
17. CAP
18. THREADED ROD
19. HEX NUT(pre-attached)
20. LOCK WASHER
21. SHADE PLATES(pre-attached)
22. SHADE
    23.FINIAL PLATE
    24.FINIAL
