Product Type	Short Throw Video Projector
Brand	InFocus
Model	Genesis II SP224ST
Brightness	2200 ANSI Lumens
Native Resolution	1920 x 1080 (Full HD)
Contrast Ratio	10000:1
Lamp Life (Normal)	5000 hours
Lamp Life (Eco)	7000 hours
Throw Ratio	0.49:1
Zoom	Fixed (No Zoom)
Keystone Correction	Vertical ±40°
Inputs	HDMI 1.4a, VGA, Composite, USB (for power)
Outputs	3.5mm Audio Jack
Speaker	2W Mono
Dimensions (W x D x H)	345 x 245 x 105 mm
Weight	2.8 kg
Power Consumption	260W (Max)
Noise Level	33 dB (Normal) / 29 dB (Eco)
Lamp Type	Osram P-VIP 200W
Cleaning	Wipe with dry cloth; do not use abrasive cleaners

Frequently Asked Questions - Genesis II SP224ST INFOCUS

How do I replace the lamp on my InFocus Genesis II SP224ST?

Turn off the projector and unplug it. Wait 30 minutes for the lamp to cool. Remove the lamp cover screw, slide out the old lamp module, insert the new one, and replace the cover. Reset the lamp timer via the menu Settings > Lamp Hours > Reset.

What is the recommended projection distance for a 100-inch screen?

With a throw ratio of 0.49:1, the projector needs to be about 1.08 meters (42 inches) from the screen to project a 100-inch diagonal image.

Can I connect my laptop via VGA?

Yes, the Genesis II SP224ST has a VGA input. Use a standard VGA cable. You may also need an audio cable for sound, as VGA does not carry audio.

How do I adjust the keystone?

Press the Keystone button on the remote or control panel. Use the arrow keys to adjust vertical keystone (up to ±40°). For best quality, keep keystone correction minimal.

My remote control is not working. What should I do?

First, check the batteries. Replace them if needed. Ensure there is no obstruction between the remote and the IR sensor on the projector. Point the remote directly at the sensor.

Can I use the projector for gaming?

Yes, but be aware of input lag. The Genesis II SP224ST has an estimated input lag of 30-40 ms in game mode. Enable Game Mode in the picture settings to reduce lag.

What do I do if the picture is blurry?

Adjust the focus ring on the lens. If using keystone correction, excessive correction can soften the image. Also ensure the projector is perpendicular to the screen.

How often should I clean the air filter?

Clean the air filter every 100 hours of use. Remove the filter cover, wash the filter with mild soap and water, let it dry completely, and reinstall.

Does the projector support 3D?

No, the InFocus Genesis II SP224ST does not support 3D content. It is designed for standard 2D projection.

What is the maximum screen size?

The maximum recommended screen size is about 200 inches diagonally, but for best brightness and clarity, a 100-120 inch screen is ideal.

USER MANUAL Genesis II SP224ST INFOCUS

Illustration of a projector with a circular lens and ventilation grille (no text or symbols)

USERS GUIDE SCREENPLAY VISTA, GENESIS I, GENESIS II SERIES

REGULATORY MODEL	SERIES NAME LENS TYPE	/RESOLUTION SVGA XGA WXGA 1080P WUXGA
P122 SCREENPLAY VISTA	STANDARD THROW – SP2234	SP2236	SP2238 –
P123 SCREENPLAY VISTA	SHORT THROW –			SP2234ST	SP2236ST	SP2238ST	–
P124	SCREENPLAY GENESIS I	STANDARD THROW	SP122	SP124	SP126	–	–
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229
P126	SCREENPLAY GENESIS II	SHORT THROW	–	SP224ST	SP226ST	–	–

TABLE OF CONTENTS

1. ABOUT THIS GUIDE .... 5

1.1 DESCRIPTION OF THE USER....5
1.2 CONVENTIONS USED IN THIS GUIDE ....5
1.3 EXPLANATION OF SAFETY WARNINGS ....5
1.4 RETAINING INSTRUCTIONS 5
1.5 OBTAINING DOCUMENTATION AND INFORMATION 6
1.6 DOCUMENTATION FEEDBACK......6
1.7 SUPPORT AND SERVICE 6

2. PRODUCT DESCRIPTION ....7

2.1 FEATURES....7
2.2 INTENDED USE AND REASONABLY FORESEEABLE MISUSE....9
2.3 PRODUCT ELEMENTS 9
2.3.1 FRONT 9
2.3.2 RIGHT SIDE....10
2.3.3 LEFT SIDE....11

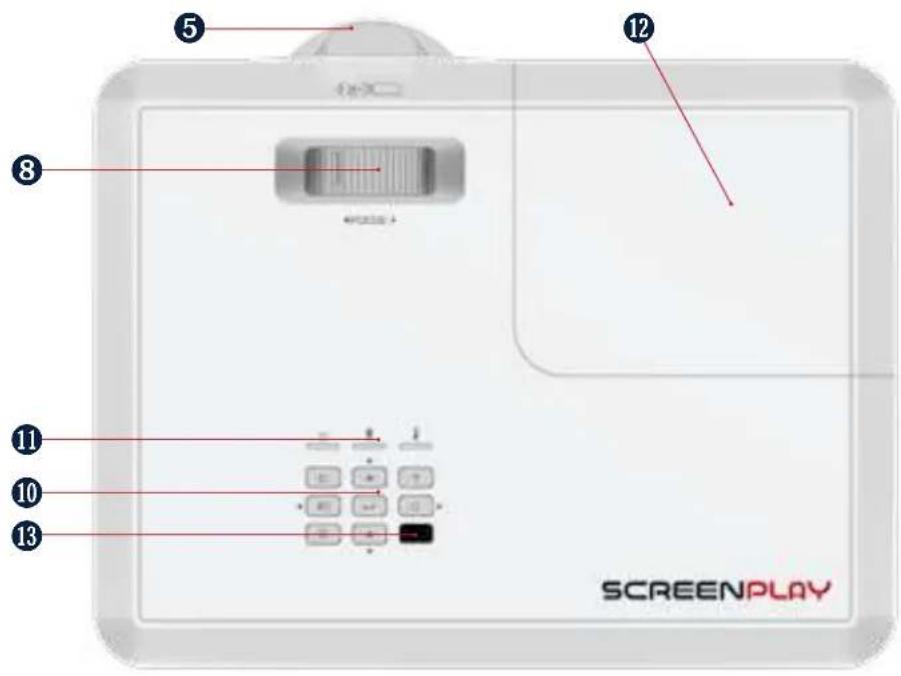

2.3.4 TOP 12

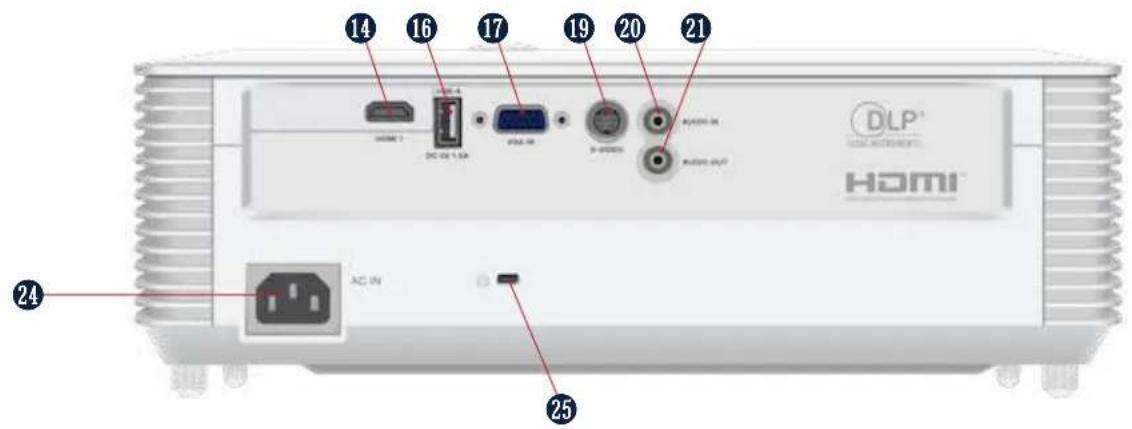

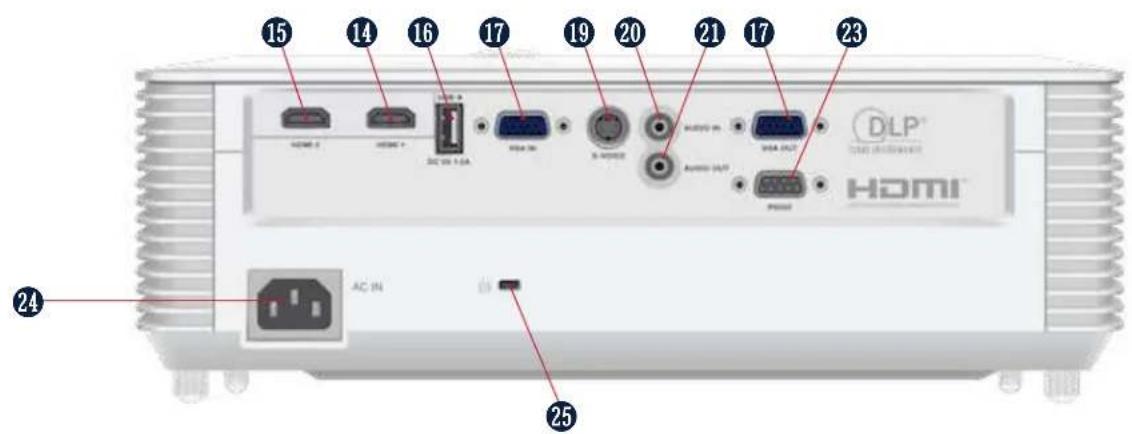

2.3.5 BACK....13

3. SAFETY 15

3.1 HOW TO USE THE PRODUCT SAFELY 15
3.1.1 VULNERABLE PEOPLE SAFETY INFORMATION ....15
3.1.2 TECHNICAL LIFE SPAN 15
3.1.3 INTENDED USE SAFETY INFORMATION ....15
3.1.4 INSTALLATION SAFETY INFORMATION 15
3.1.5 ELECTRICAL SAFETY INFORMATION 16
3.1.6 SAFETY INFORMATION ....16
3.1.7 MAINTENANCE SAFETY INFORMATION ....16
3.1.8 SERVICE AND REPAIR SAFETY INFORMATION ....16

3.2 SAFE DISPOSAL 16

3.3 GRAPHICAL SYMBOLS....16

4. UNPACKING AND INSTALLING 17

4.1 PACKAGING CONTENTS....17
4.2 INSTALLATION INSTRUCTIONS....17

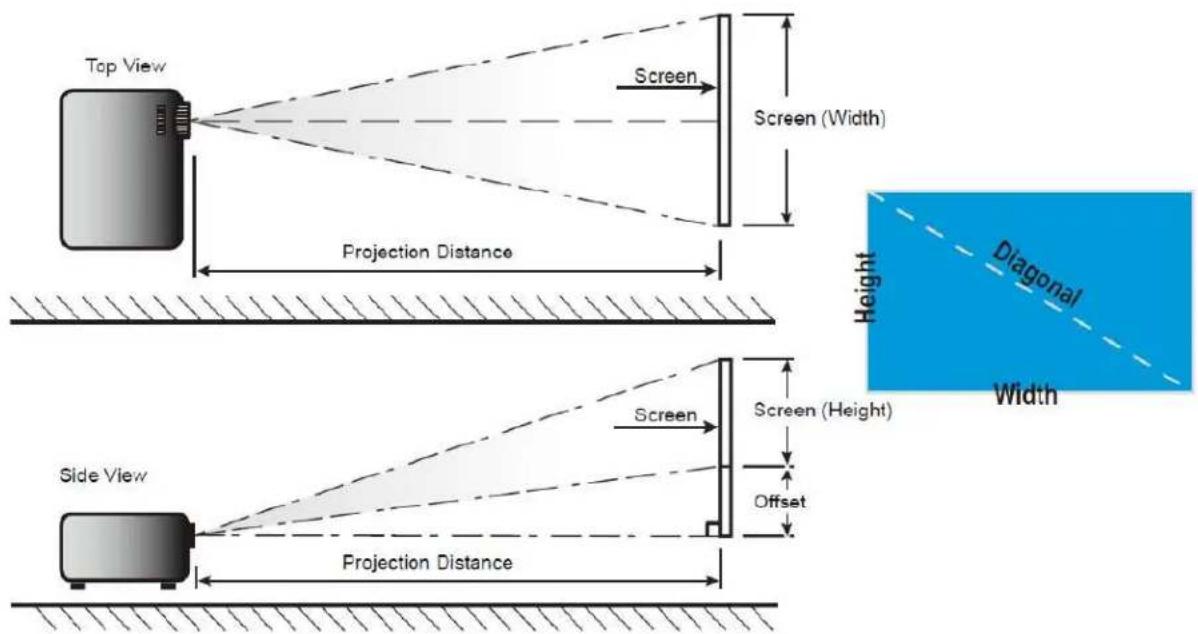

4.3 PLACEMENT AND DISTANCE FROM THE SCREEN....18
4.3.1 PROJECTION DISTANCE AND SCREEN SIZE 18

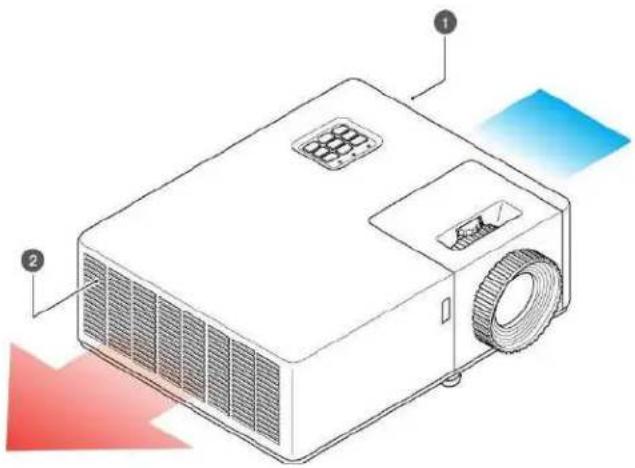

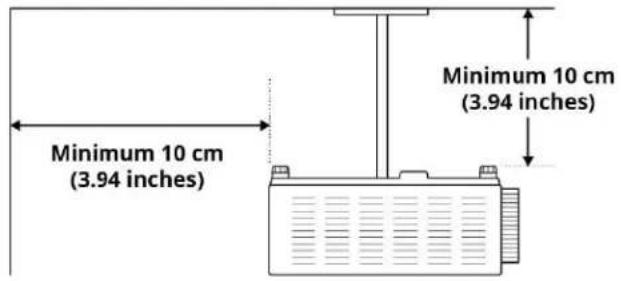

4.4 CLEARANCE 24

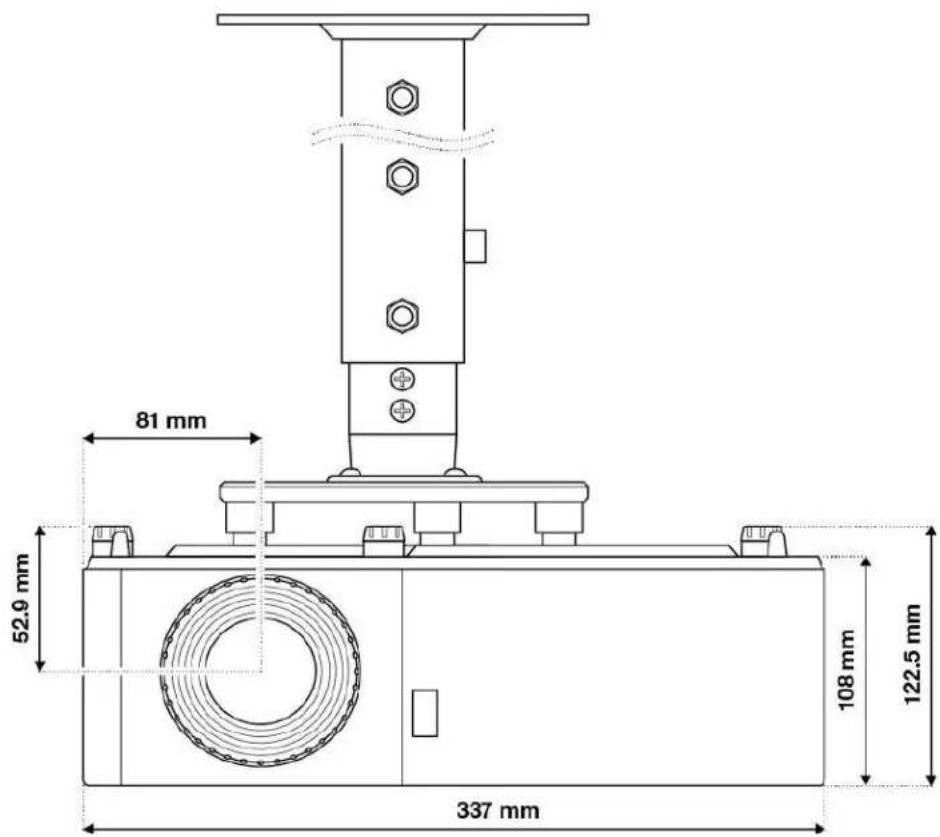

4.5 CEILING MOUNT 25

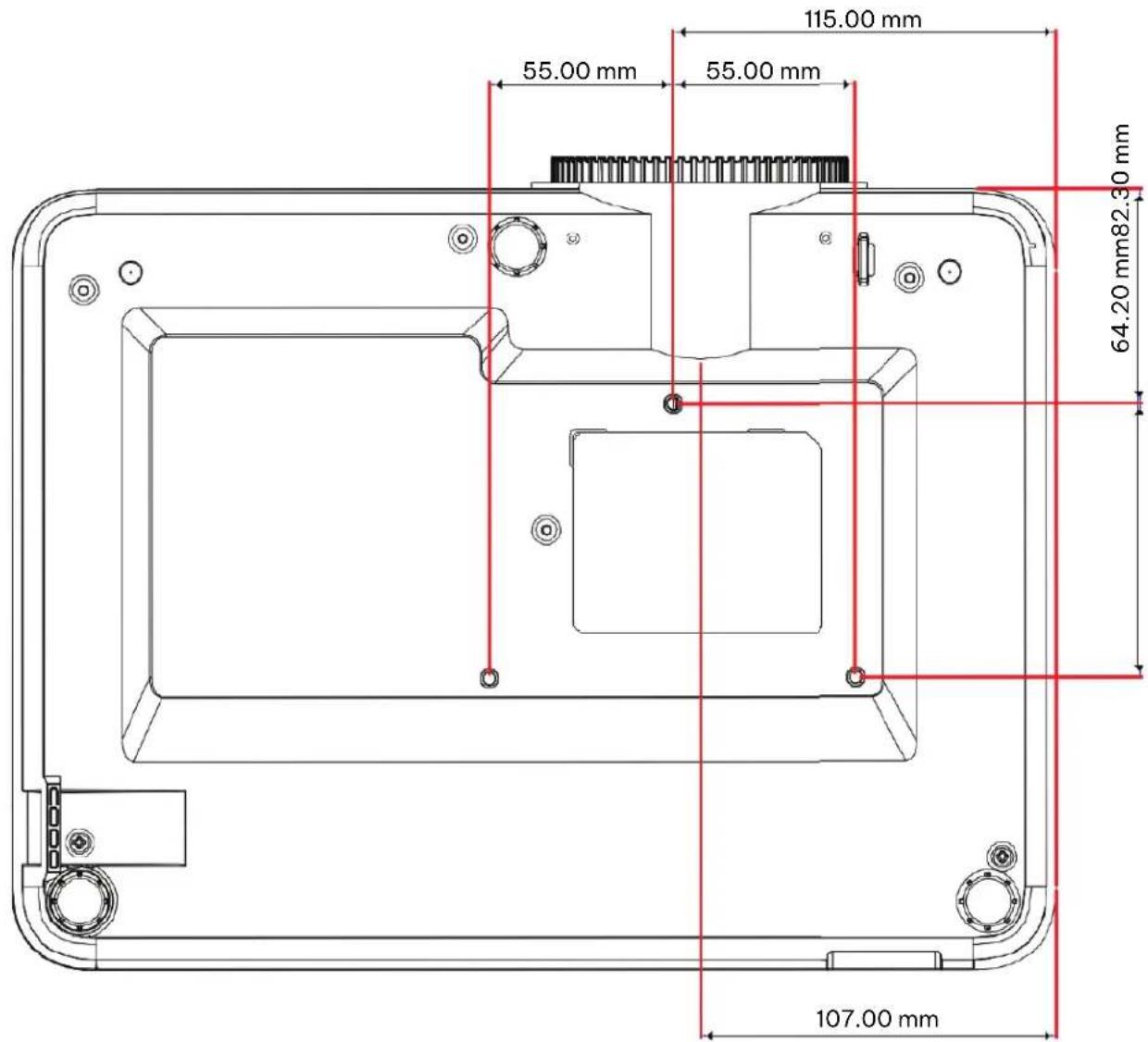

4.6 MOUNTING HOLE DIAGRAM 26

5. ADJUSTING....27

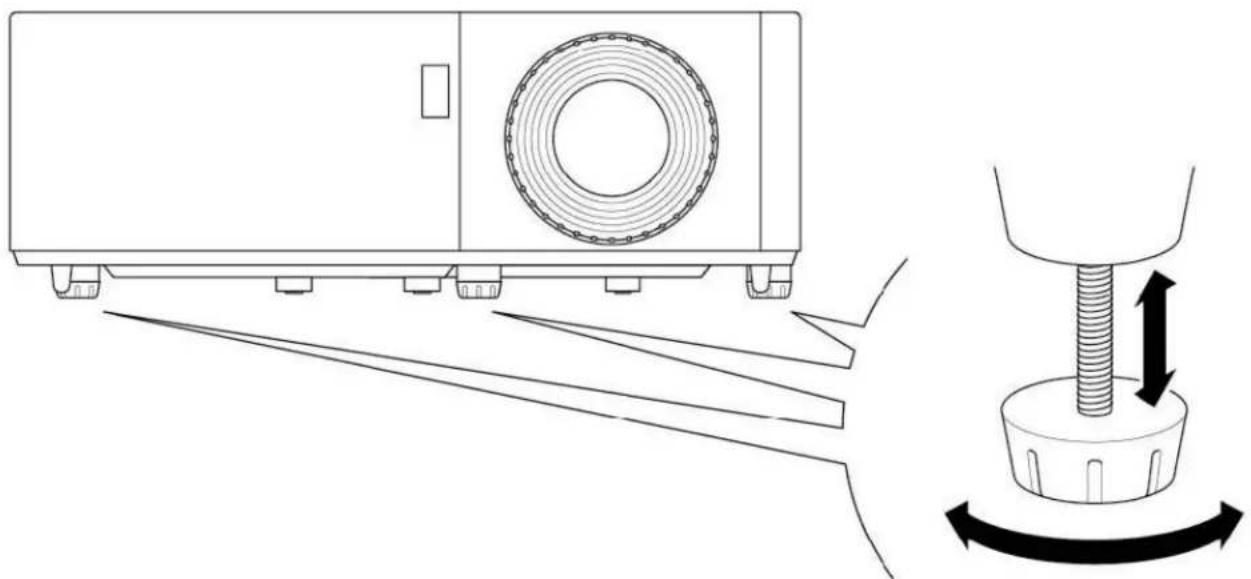

5.1 ADJUSTING THE IMAGE HEIGHT AND TILT 27
5.2 ADJUSTING THE ZOOM, LENS SHIFT AND FOCUS....27
5.3 ADJUSTING THE VERTICAL AND HORIZONTAL KEYSTONE....27

6. CONNECTING 29

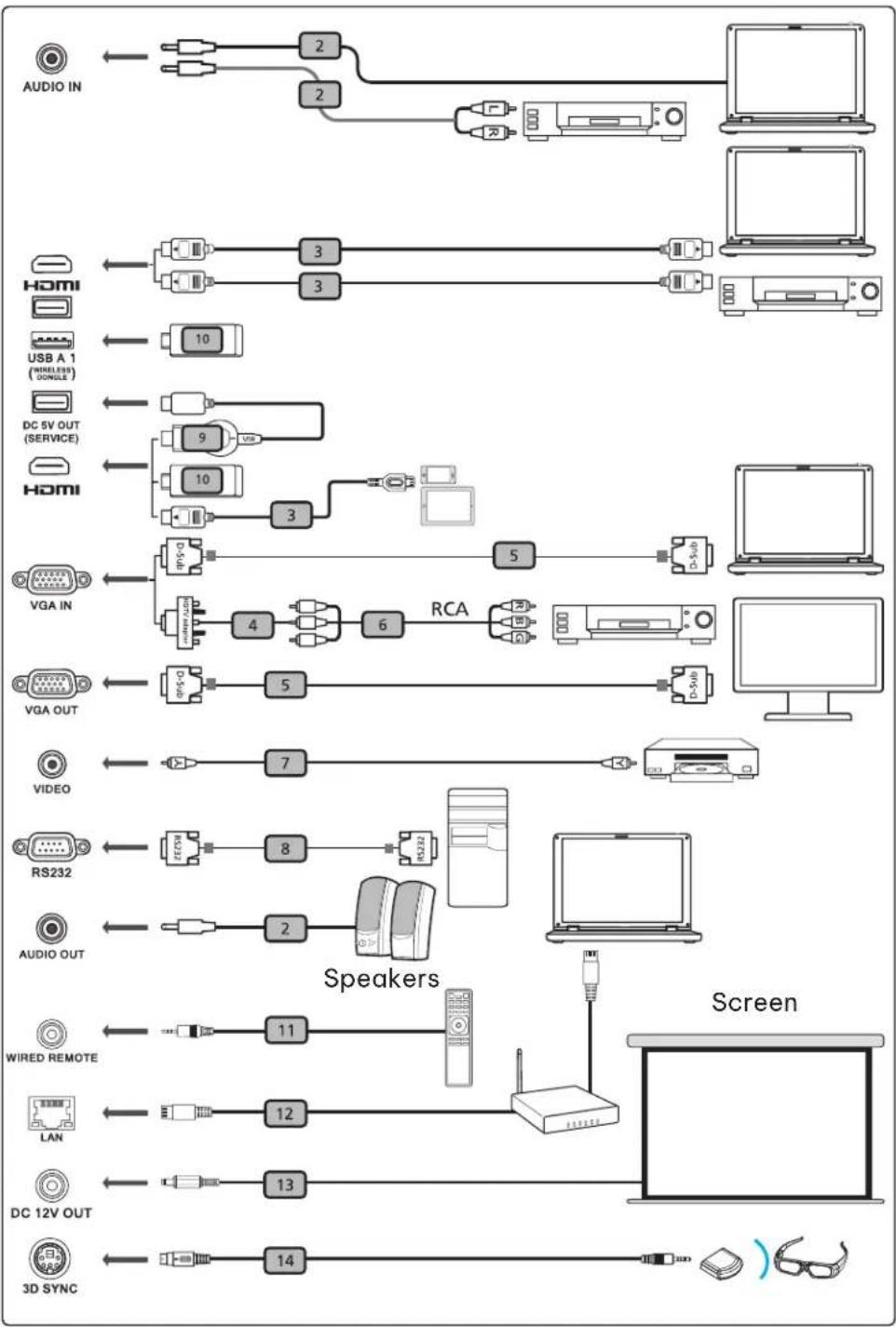

6.1 CONNECTION DIAGRAM....29

7. USING....30

7.1 LEDs 30

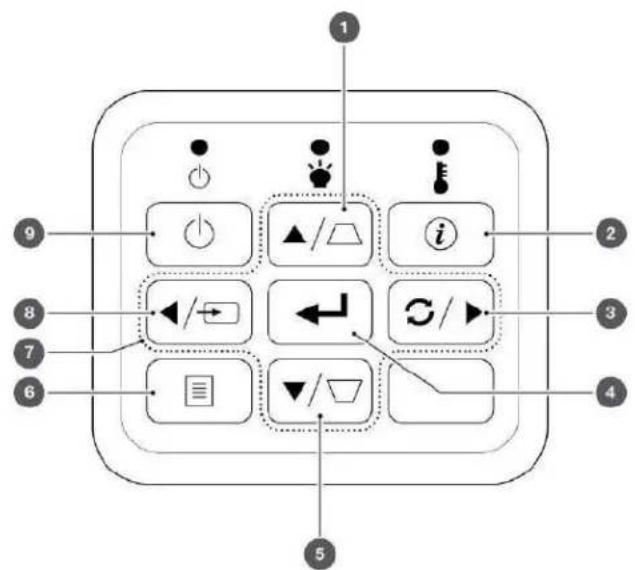

7.2 KEYPAD 30

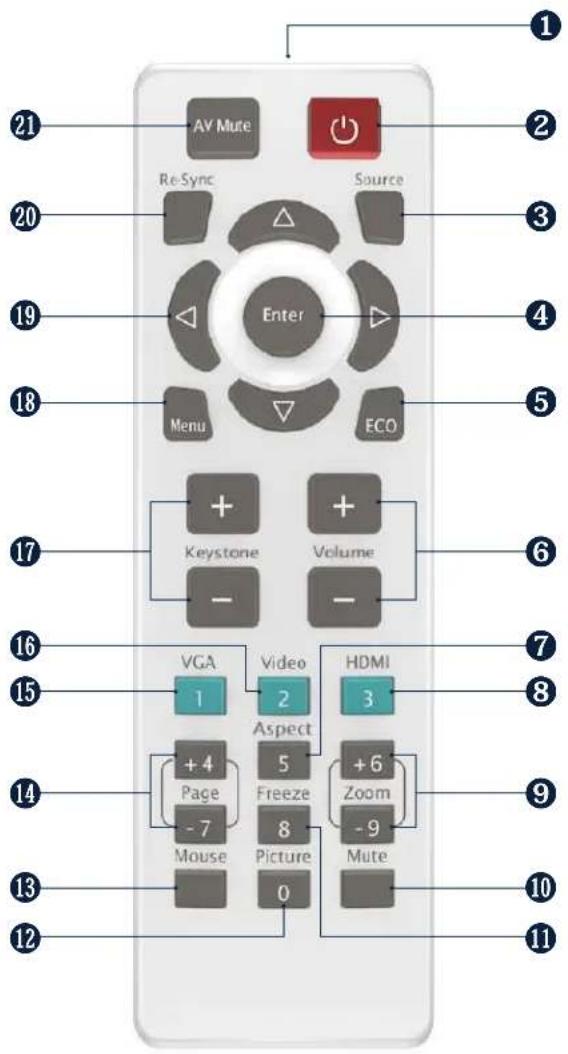

7.3 REMOTE CONTROL 31

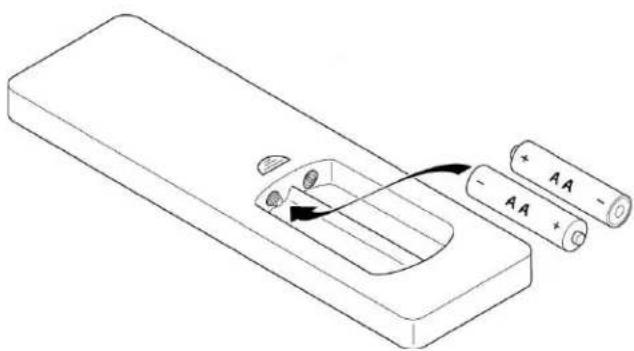

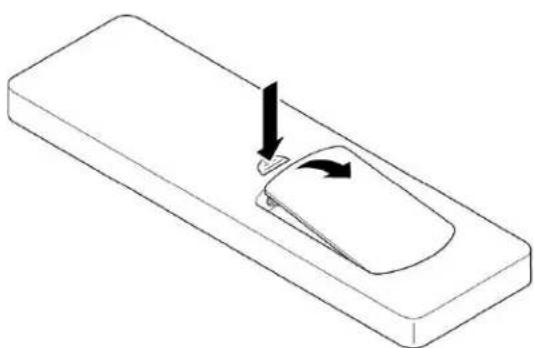

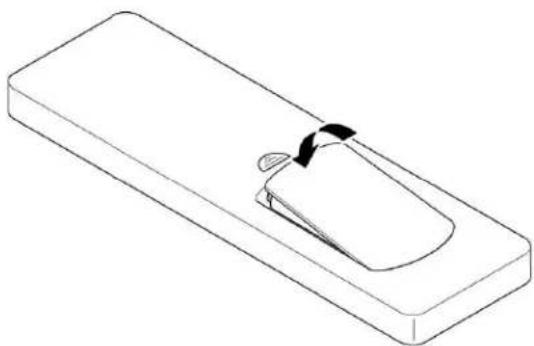

7.3.1 INSTALLING BATTERIES IN THE REMOTE CONTROL....32
7.3.2 REMOTE CONTROL IR CODES....33

7.4 REMOTE CONTROL EFFECTIVE RANGE 33
7.5 TURNING THE PROJECTOR ON....34
7.6 SELECTING A INPUT SOURCE 34
7.7 TURNING THE PROJECTOR TO STANDBY MODE....34
7.8 VIEWING 3D CONTENT 35

7.8.1 PHOTOSENSITIVE SEIZURE WARNING AND OTHER HEALTH RISKS....35
7.8.2 ENABLEING 3D MODE 36
7.8.3 ENABLING AUTO 3D MODE.... 36

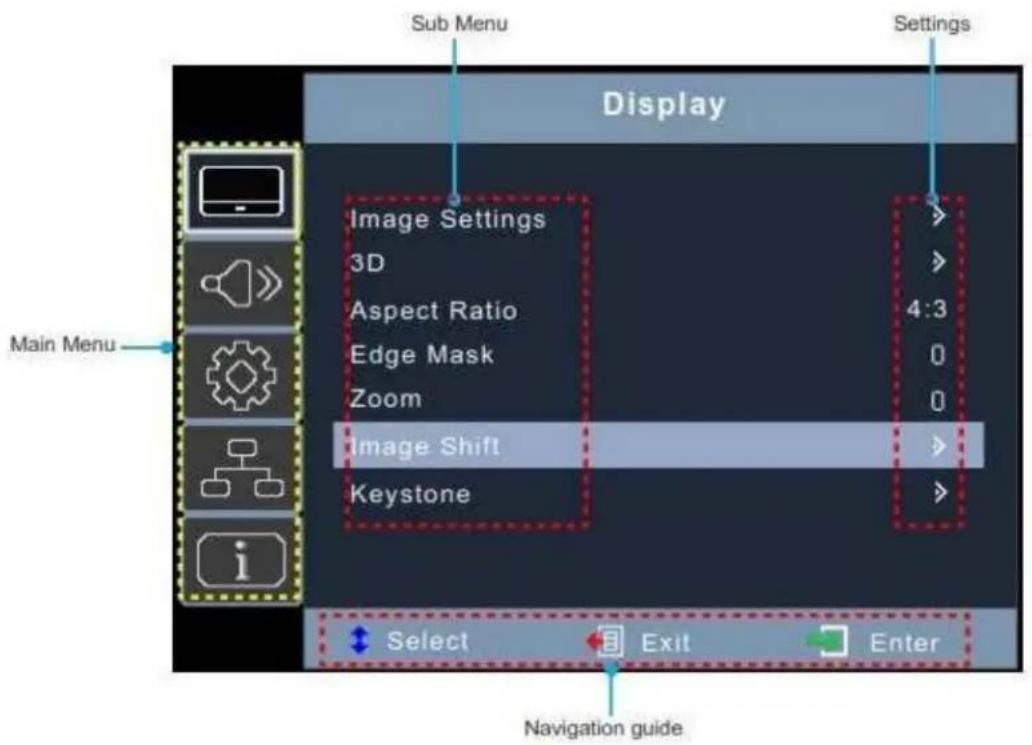

8. USING THE ON SCREEN DISPLAY (OSD)......37

8.1 SELECTING THE LANGUAGE FOR THE ON SCREEN MENU....37
8.2 SELECTING A DISPLAY MODE 37
8.3 ADJUSTING THE IMAGE COLOUR AND TEMPERATURE 38
8.4 ADJUSTING THE SHARPNESS OF THE IMAGE 38
8.5 MAGNIFYING THE IMAGE 38
8.6 SELECTING AN ASPECT RATIO 38
8.7 ADJUSTING THE BRIGHTNESS....39
8.8 ENABLEING ECO MODE 39
8.9 ENABLING CLOSED CAPTIONS....39
8.10 DISPLAYING A TEST PATTERN 39
8.11 PREVENTING UNAUTHORIZED USE 39
8.12 CHANGING THE PASSWORD 39

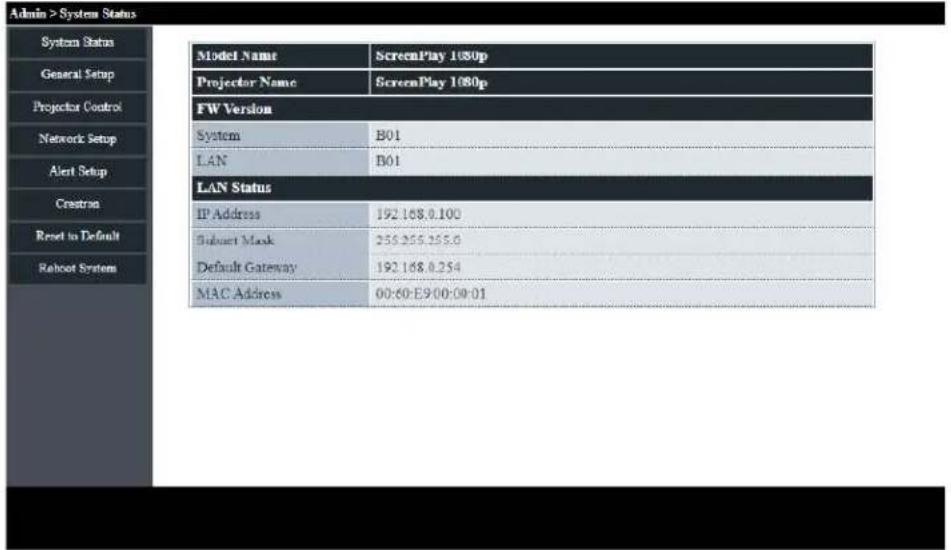

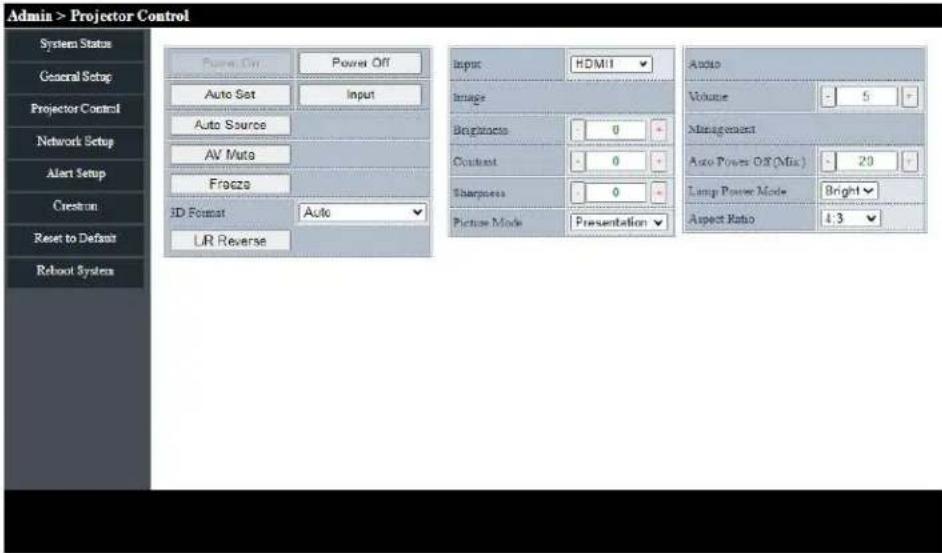

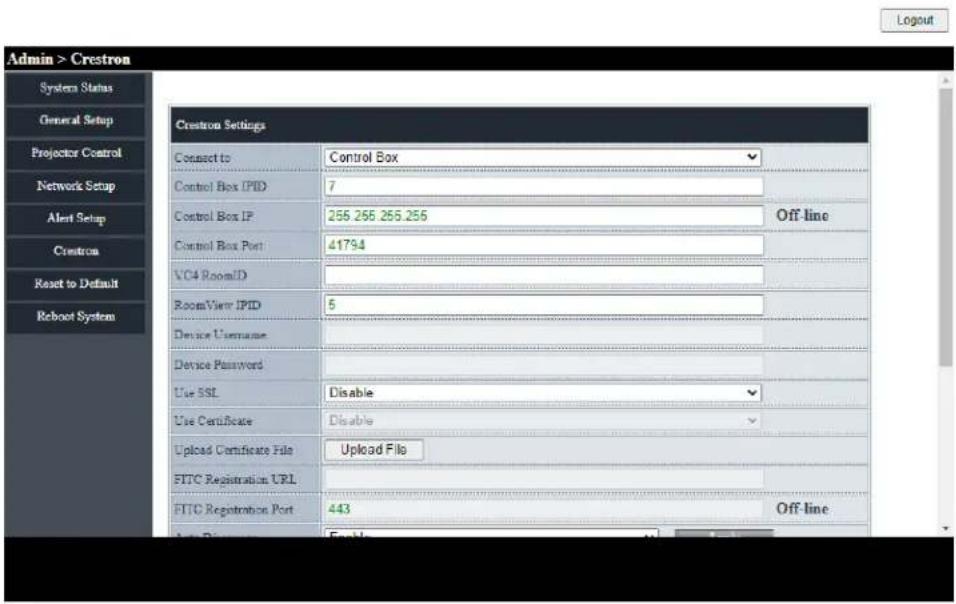

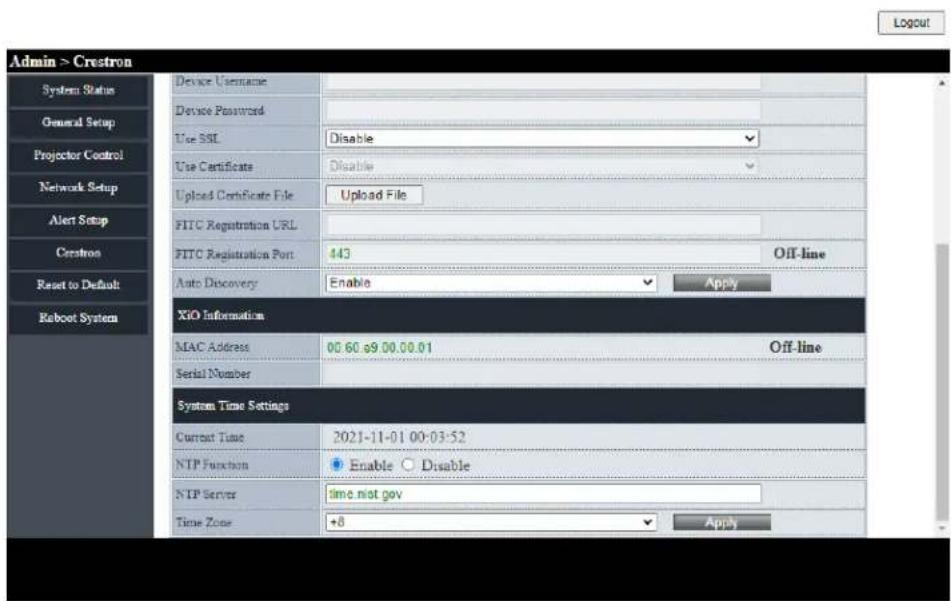

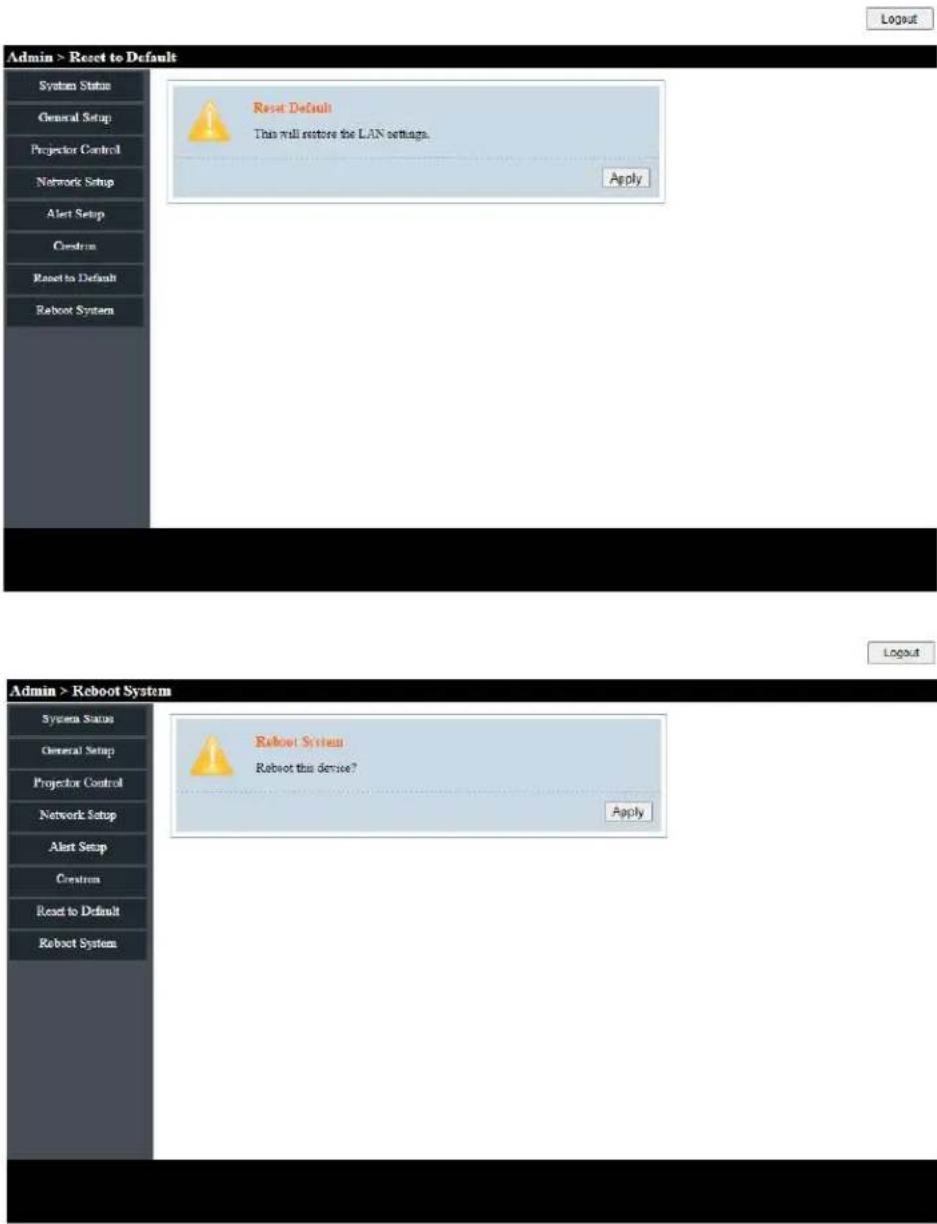

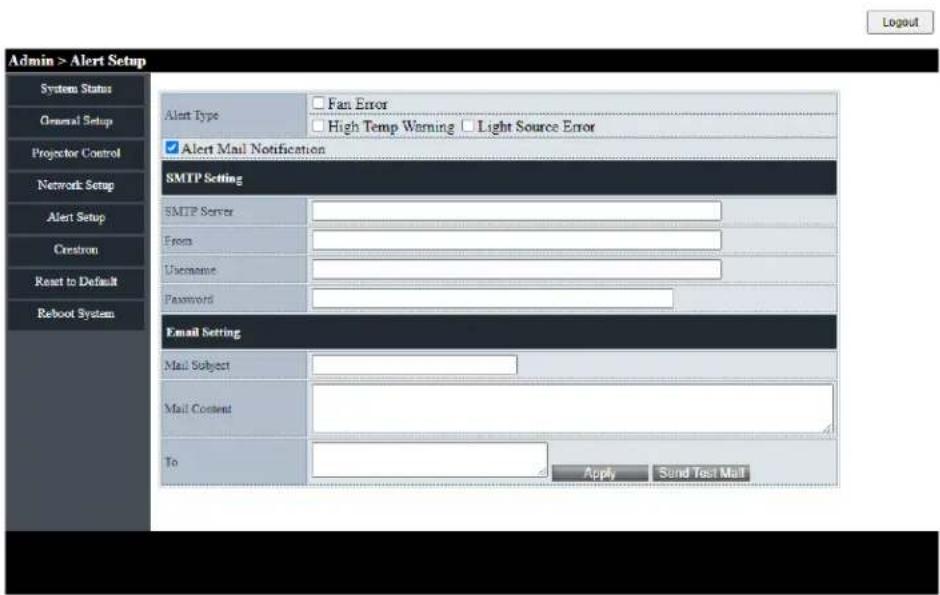

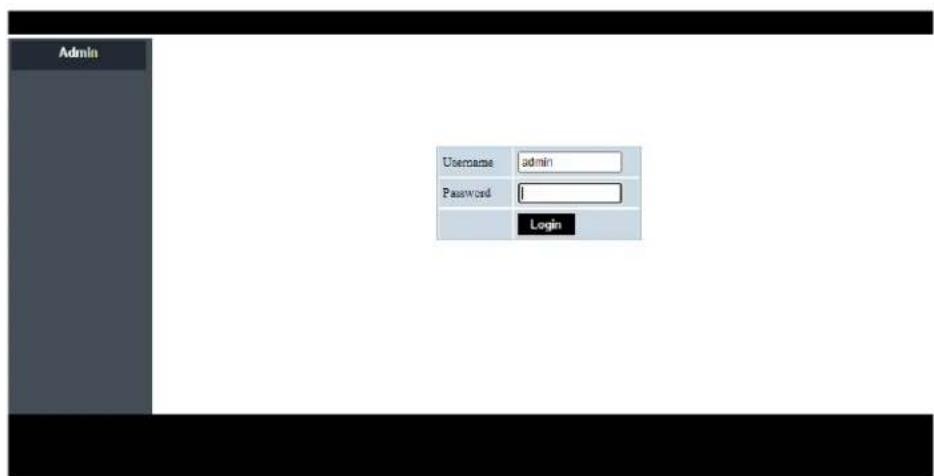

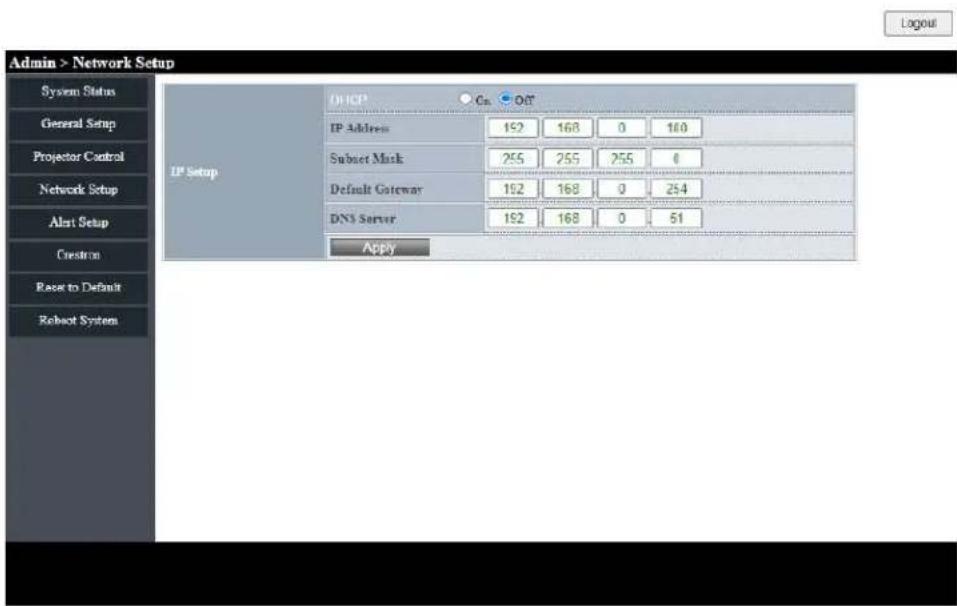

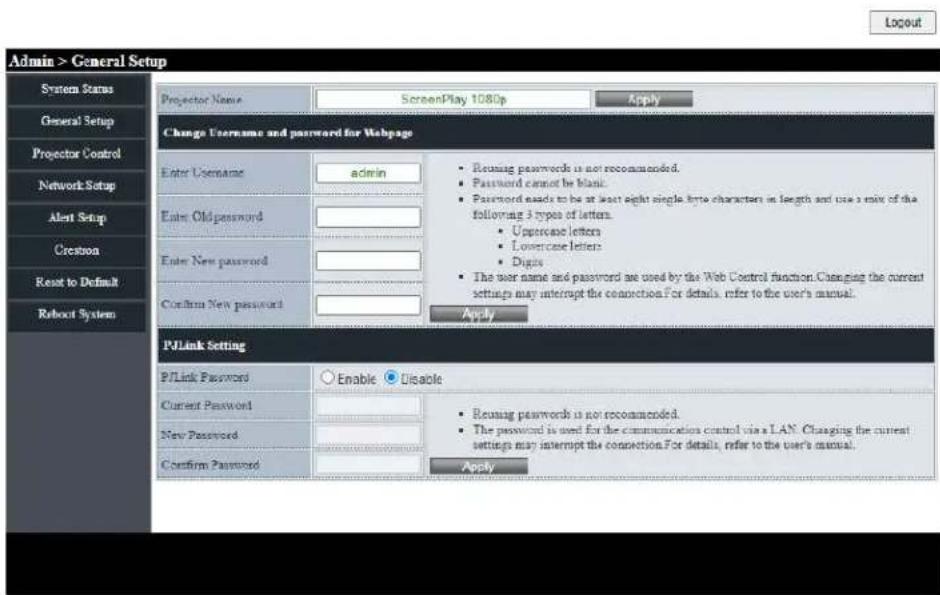

8.13 CONTROLLING THE PROJECTOR FROM A WEB BROWSER....40

9. CLEANING 45

9.1 CLEANING THE LENS 45
9.2 CLEANING THE CASE....45
9.3 CLEANING THE AIR VENTS 45

10. SANITATION......45

11. DISPOSAL......46

11.1 DISPOSAL OF ELECTRICAL COMPONENTS....46
11.2 DISPOSAL OF PACKAGING WASTE 46

12. TROUBLESHOOTING....47

12.1 LED INDICATOR LIGHTS....47
12.2 SOLVING ON/OFF ISSUES 47
12.3 SOLVING IMAGE ISSUES 47
12.4 SOLVING VIDEO, AUDIO AND REMOTE CONTROL ISSUES 48
12.5 SERVICING 49

13. ADDITIONAL INFORMATION .... 49

13.1 RS232 PIN ASSIGNMENTS 49
13.2 RS232 PROTOCOL FUNCTION LIST 49

13.2.1 RS232 PROJECTOR COMMAND CODES....50
13.2.2 SENT FROM PROJECTOR AUTOMATICALLY 64
13.2.3 RS232 CODES READ FROM PROJECTOR 65

13.3 SUPPORTED RESOLUTIONS AND REFRESH RATES....68
13.4 ON SCREEN DISPLAY (OSD) MENU TREE....70

14. SPECIFICATIONS....79

14.1 VISTA, P122 & P123, SPECIFICATIONS....79
14.2 GENESIS I, P124, SPECIFICATIONS....81

14.3 GENESIS II P125 & P126, SPECIFICATIONS 83

1. PRODUCT COMPLIANCE 85

15.1 FOR USERS IN THE UNITED STATES 85

15.2 FOR USERS IN CANADA 85

15.3 FOR USERS IN EUROPEAN UNION 86

15.4 FOR USERS IN THE UNITED KINGDON AND NORTHERN IRELAND 86

15.5 FOR USERS IN RUISSIA....87

1. WARRANTY 88

1.1 DESCRIPTION OF THE USER

This document is intended for anyone who will install, setup, or use the projector.

1.2 CONVENTIONS USED IN THIS GUIDE

The following style conventions are used in this document:

Bold

• Names of product elements, commands, options, and programs.
• Names of interface elements (such windows, dialog boxes, buttons, fields, and menus).
• Interface elements the user selects, clicks, taps, or types.

Italic

• Publication titles.
- Emphasis (for example, a new term).

1.3 EXPLANATION OF SAFETY WARNINGS

WARNING

"WARNING" indicates a hazard with a medium to high level of risk which, could result in death or serious injury.

ATTENTION

"ATTENTION" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

INFORMATION

"INFORMATION" Indicates information considered important, but not hazard-related.

1.4 RETAINING INSTRUCTIONS

Keep all safety information and instructions for future reference and pass them on to subsequent users of the product.

WARNING

Ensure that each person who uses the product has read and understood this guide and its safety instructions before using this product. Failure to do so can result in serious injury or death.

ATTENTION

Follow all the instructions. This will avoid fire, explosions, electric shocks, or other hazards that may result in damage to property and/or severe or fatal injuries.

INFORMATION

The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.

1.5 OBTAINING DOCUMENTATION AND INFORMATION

The latest version of this document can be obtained by visiting:

• https://www.screenplay.net/projectors/vista
• https://www.screenplay.net/projectors/genesis1
• https://www.screenplay.net/projectors/genesis_II

1.6 DOCUMENTATION FEEDBACK

If you are reading product documentation on the internet, any comments can be submitted Here. We appreciate your comments.

1.7 SUPPORT AND SERVICE

Please contact the support team in your region for technical and product support. Alternatively, you may contact your local distributor if you are in Asia or Australia.

Americas

Monday - Friday

6am - 5pm PST

[phone]

[e-mail]

screenplay.net/support

Europe, Middle East & Africa

Monday - Friday

8am - 5pm CET

[e-mail]

screenplay.net/support

Asia Pacific

Monday - Friday

8am - 5pm ICT

[e-mail]

screenplay.net/support

2.1 FEATURES

GENESIS I GENESIS II VISTA

P124 P125 P126 P122 P123

SP122

SP124

SP126

SP222

SP224

SP226

SP228

SP229

SP234ST

SP236ST

SP2234

SP2236

SP2238

SP2234ST

SP2236ST

SP2238ST

Nine Picture Modes including DICOM Simulation, User Definable and ISF Night & Day

●

●

●

●

●

●

●

●

●

●

●

●

Seven Wall Colour Modes

●

●

●

●

●

●

●

●

●

●

●

●

Brightness, Sharpness, Contrast, Colour, Tint, Gamma Adjustment Settings

●

●

●

●

●

●

●

●

●

●

●

●

10 Step BrilliantColor Implementation

●

●

●

●

●

●

●

●

●

●

●

●

Individual Hue, Saturation and Gain Adjustments for RGB, C. M, Y.W

●

●

●

●

●

●

●

●

●

●

●

●

RGB Gain/Bias Adjustments

●

●

●

●

●

●

●

●

●

●

●

●

Five Colour Space Adjustment Settings

●

●

●

●

●

●

●

●

●

●

●

●

White and Black Level Adjustments

●

●

●

●

●

●

●

●

●

●

●

●

IRE and Signal Settings and Adjustments

●

●

●

●

●

●

●

●

●

●

●

●

Aspect Ratio Format Settings

●

●

●

●

●

●

●

●

●

●

●

●

4:3

●

●

●

●

●

●

●

●

●

●

●

●

16:9

●

●

●

●

●

●

●

●

●

●

●

●

16:10

●

●

●

●

●

●

●

●

●

●

●

●

Letter Box

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Native

●

●

●

●

●

●

●

●

●

●

●

●

Auto

●

●

●

●

●

●

●

●

●

●

●

●

Digital Edge Masking

●

●

●

●

●

●

●

●

●

●

●

●

Digital Image Shift - Horizontal & Vertical

●

●

●

●

●

●

●

●

●

●

●

●

Digital Zoom

●

●

●

●

●

●

●

●

●

●

●

●

Vertical Keystone Adjustment

●

●

●

●

●

●

●

●

●

●

●

●

3D Activation, DLP -Link Settings & Formats

●

●

●

●

●

●

●

●

●

●

●

●

3D Sync Invert

●

●

●

●

●

●

●

●

●

●

●

●

2D to 3D Setting

●

●

●

●

●

●

●

●

●

●

●

●

Enhanced Low Latency Gaming Mode

●

●

●

●

●

●

●

●

●

●

●

●

Picture Mode Lock

●

●

●

●

●

●

●

●

●

●

●

●

27 Selectable OSD Languages

●

●

●

●

●

●

●

●

●

●

●

●

Projection Modes - Front, Rear, Front Ceiling, Rear Ceiling OSD Menu Positioning

●

●

●

●

●

●

●

●

●

●

●

●

Screen Type - Aspect Ratio Locking 16:10

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Screen Type - Aspect Ratio Locking 16:9

●

●

●

●

●

●

●

●

●

●

●

●

Security On/Off Setting

●

●

●

●

●

●

●

●

●

●

●

●

Security Timer

Security Password Selector

Assignable Project ID Number

Audio Input and Volume Settings

HDMI Link Activation and Settings

Startup Logo Removal and Background Colour Selector Projector Information Messaging Override

Input Source Lock Auto Source Setting High Altitude Setting Keypad Lock Setting Built in Test Patterns IR Faction Setting

15 user presets with single key activation Direct Power On Setting

Signal Power On Setting

Auto Power Off Setting

Sleep Timer Setting

Quick Resume Setting

VGA Out Standby Setting

USB-A Power Setting

Lamp Usage Reminder Setting

Lamp Brightness Mode

Projector Information Table

24/7 Operation

Waveform Lamp Colour Enhancement AV Mute

AV Mute

Crestron Connect Certified

2.2 INTENDED USE AND REASONABLY FORESEEABLE MISUSE

The product may only be used in accordance with the instructions described in this guide. Any use other than those described in this guide is considered non-intended use and will void the warranty.

The ambient operating environment should be free of airborne smoke, grease, oil, and other contaminants that can affect the operation or performance of the projector.

WARNING

Do not use the product near water or moisture. Do not expose the product to rain, steam or condensation to reduce the risk of fire or electric shock.

2.3 PRODUCT ELEMENTS

2.3.1 FRONT

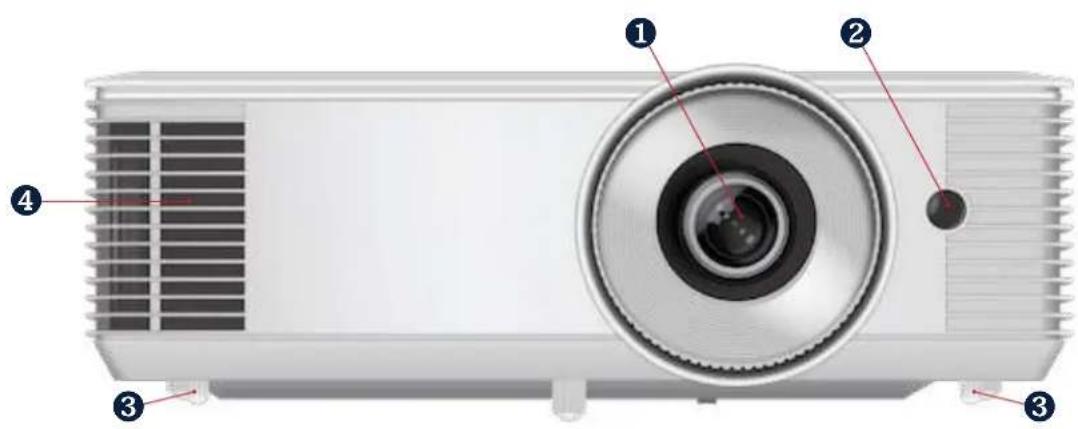

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P122	SCREENPLAY VISTA	STANDARD THROW	-	SP2234	SP2236	SP2238	-
P124	SCREENPLAY GENESIS I	STANDARD THROW	SP122	SP124	SP126	-	-
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA

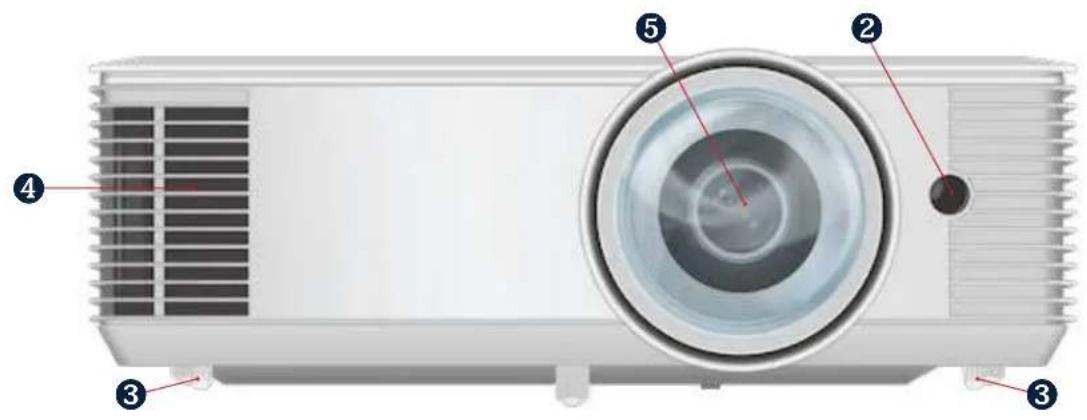

P123 SCREENPLAY VISTA SHORT THROW –				SP2234ST	SP2236ST	SP2238ST	–
P126 SCREENPLAY GENESIS II SHORT THROW – SP224ST SP226ST		– –

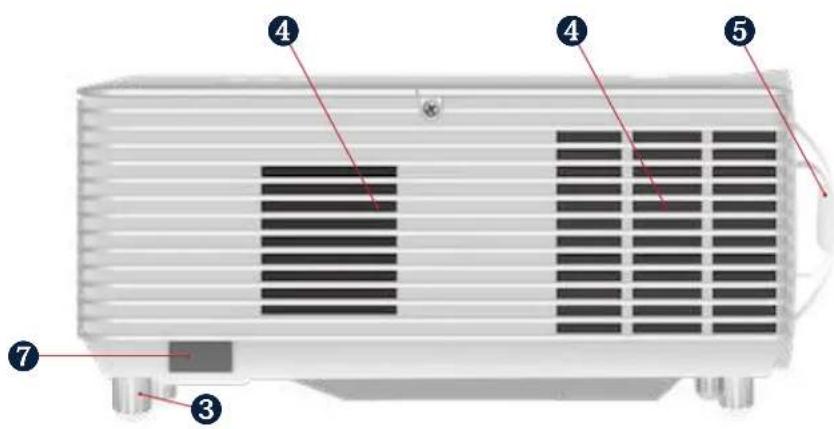

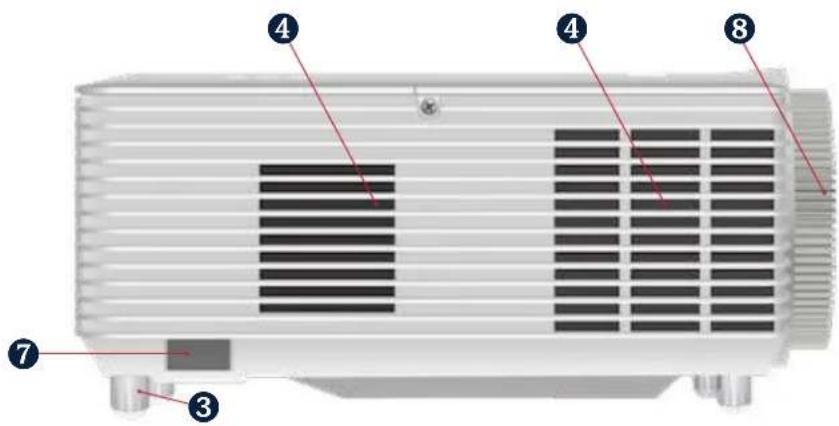

2.3.2 RIGHT SIDE

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P122	SCREENPLAY VISTA	STANDARD THROW	-	SP2234	SP2236	SP2238	-
P124	SCREENPLAY GENESIS I	STANDARD THROW	SP122	SP124	SP126	-	-
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P123 SCREENPLAY VISTA SHORT THROW				SP2234ST	SP2236ST	SP2238ST	-
P126 SCREENPLAY GENESIS II SHORT THROW - SP224ST SP226ST		--

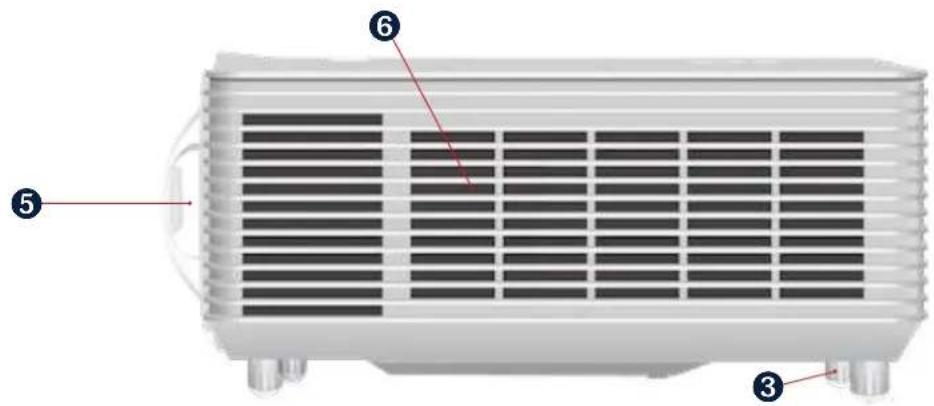

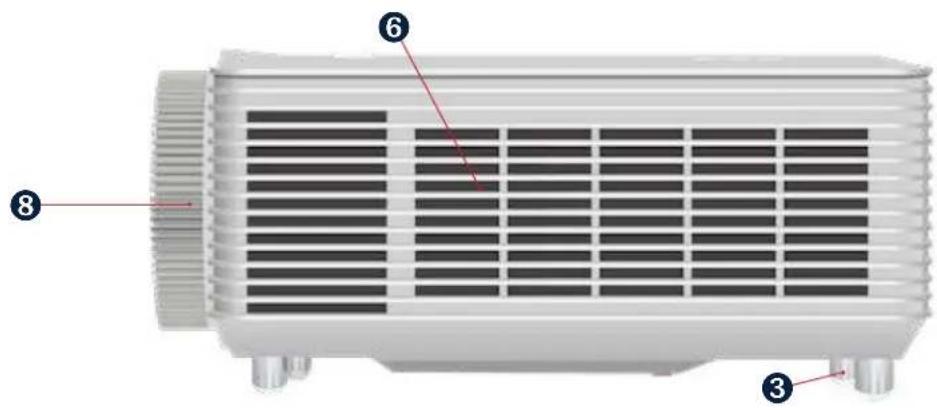

2.3.3 LEFT SIDE

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P122	SCREENPLAY VISTA	STANDARD THROW	-	SP2234	SP2236	SP2238	-
P124	SCREENPLAY GENESIS I	STANDARD THROW	SP122	SP124	SP126	-	-
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P123 SCREENPLAY VISTA SHORT THROW –				SP2234ST	SP2236ST	SP2238ST	–
P126 SCREENPLAY GENESIS II SHORT	THROW – SP224ST SP226ST	–	–

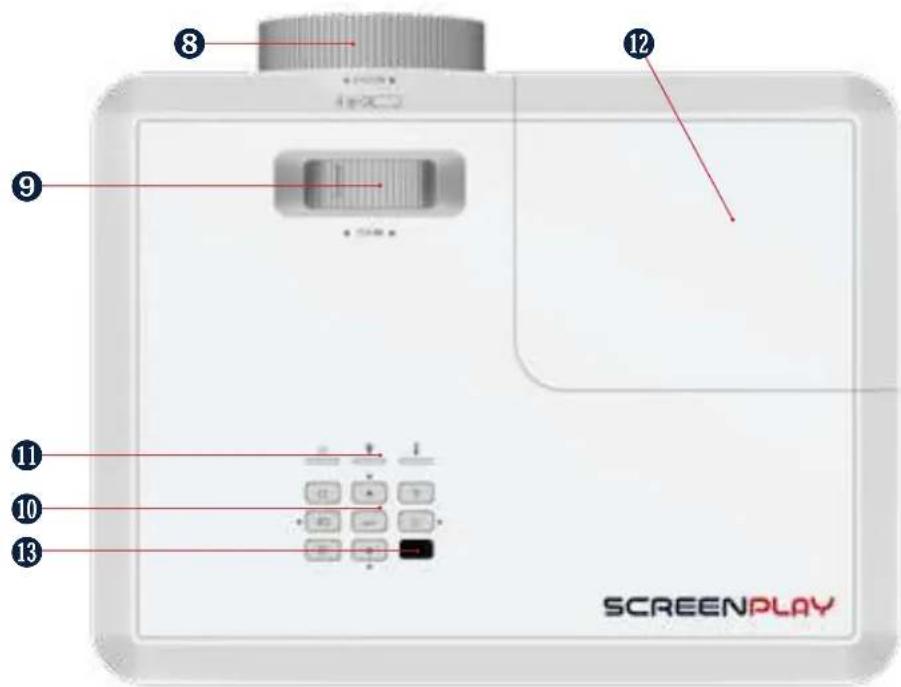

2.3.4 TOP

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P122	SCREENPLAY VISTA	STANDARD THROW	-	SP2234	SP2236	SP2238	-
P124	SCREENPLAY GENESIS I	STANDARD THROW	SP122	SP124	SP126	-	-
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P123 SCREENPLAY VISTA SHORT THROW				SP2234ST	SP2236ST	SP2238ST	-
P126 SCREENPLAY GENESIS II SHORT		THROW - SP224ST SP226ST	--

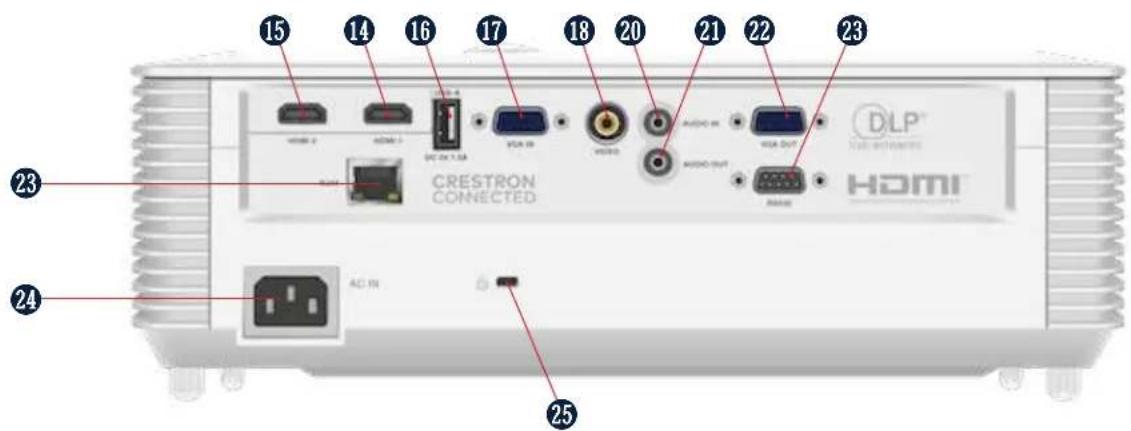

2.3.5 BACK

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P122	SCREENPLAY VISTA	STANDARD THROW	-	SP2234	SP2236	SP2238	-
P123 SCREENPLAY VISTA SHORT THROW				SP2234ST	SP2236ST	SP2238ST	-

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P124 SCREENPLAY GENESIS I STANDARD THROW SP122 SP124 SP126 --

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/RESOLUTION	SVGA	XGA	WXGA	1080P	WUXGA
P125	SCREENPLAY GENESIS II	STANDARD THROW	SP222	SP224	SP226	SP228	SP229
P126	SCREENPLAY GENESIS II	SHORT THROW	-	SP224ST	SP226ST	-	-

REFERENCE	DESCRIPTION	REFERENCE	DESCRIPTION
1	Standard throw zoom lens	14	HDMI 1, 1.4 Input
2	Remote control IR receiver 1	15 HDMI	2, 1.4 Input
3	Adjustable feet	16	USB A for service and wireless dongle power 5v/1.5A
4	Air exhaust grill	17	VGA Input
5	Short throw fixed lens	18	Composite Input
6	Air Intake grill	19	S-VIDEO Input
7	Cable and Lock slot	20	3.5mm Audio Input
8 Focus	adjustment ring 21 3.5mm Audio Output
9 Zoom	adjustment ring 22 VGA Output
10 Keypad	23 RS232 Control
11 LED function	lights 23 RJ45 Networking and Control
12 Lamp	door 24 Power Cord AC IN
13 Remote control IR receiver	2 25 Kensington Lock Slot

3. SAFETY

3.1 HOW TO USE THE PRODUCT SAFELY

WARNING

Read and understand this guide and its safety instructions before using this product. Failure to do so can result in serious injury.

3.1.1 VULNERABLE PEOPLE SAFETY INFORMATION

This device is not intended for use by persons (including children) with restricted physical, sensory or intellectual capability or lack of experience and/or knowledge.

The projector complies with the safety standards for electromagnetic devices. Contact your physician prior to use if you have a pacemaker or other implanted device.

3.1.2 TECHNICAL LIFE SPAN

The technical lifespan of the projector is five years or 20,000 hours of use in normal mode and 30,000 hours of use in ECO mode under normal operating conditions (whichever comes first).

3.1.3 INTENDED USE SAFETY INFORMATION

Use the projector only for its intended use as described in this user guide.

Do not expose the projector to temperatures above 104 F / 40 C or below 32 F / 0 C.

3.1.4 INSTALLATION SAFETY INFORMATION

Check the projector for damage before installation. If there is any visible damage, do not connect the projector and contact ScreenPlay.

Do not install the projector:

• Near heat sources such as radiators, heat registers, stoves, or other devices that produce heat
• Near water or in direct sunlight
• In an enclosure such as a book case or a cabinet that restricts air flow

3.1.5 ELECTRICAL SAFETY INFORMATION

Check for damage before connecting the power cable.

Only connect the projector to a grounded socket with earth leakage protection using the provided power cable.

Immediately unplug the projector from the wall outlet:

• If it has been damaged
- If water or another substance enters the projector
- If you smell smoke or other odours coming from the projector
• During lightning storms
- When unused for long periods of time

3.1.6 SAFETY INFORMATION

WARNING

Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

3.1.7 MAINTENANCE SAFETY INFORMATION

Review the instructions in the CLEANING section before cleaning the projector.

Disconnect the power supply before cleaning the projector. Do not use abrasive cleaning cloths or chemicals.

3.1.8 SERVICE AND REPAIR SAFETY INFORMATION

The projector contains no user serviceable parts. Contact ScreenPlay for service or repair.

3.2 SAFE DISPOSAL

Follow the instructions in the DISPOSAL section in this user guide for safe disposal of the projector.

3.3 GRAPHICAL SYMBOLS

The following table describes the safety and regulatory symbols and marks on the packaging and product.

SYMBOL MEANING
	The CCC mark on the product is the manufacturer's declaration that the product complies with the essential requirements for the relevant safety legislation of China.
	The CE mark on the product is the manufacturer's declaration that the product complies with the essential requirements of the relevant European health, safety, and environmental protection legislation.
	The cTUVus seal on a product is a seal of quality that confirms that the product has been tested by the German TV testing organization for use in the US and Canada.The EAC mark on the product is the manufacturer's declaration that the product complies with the essential requirements of the relevant safety legislation of the Eurasian Economic Union (EAEU).
	The FCC mark on the product is the manufacturer's declaration that the product's electromagnetic radiation is below the limits specified by the Federal Communication Commission (FCC).
	The NOM mark on the product is the manufacturer's declaration that the product complies with the essential requirements of the relevant Mexican safety legislation.
	The RoHS mark on the product is the manufacturer's declaration that the product complies with the essential requirements of the relevant European Union safety legislation.
	The Waste Electrical and Electronic Equipment (WEEE) symbol on the product, the accessories, or packaging indicates that this device shall not be treated as unsorted municipal waste, but shall be collected separately.
	The certification scheme of the Bureau of Indian Standards (BIS) is mandatory for specific electronic products in India. The BIS mark on the product is the manufacturer's declaration that the product complies with the essential requirements of the relevant India safety legislation

4. UNPACKING AND INSTALLING

4.1 PACKAGING CONTENTS

The projector packaging will contain:

• Projector
• Power cable
• VGA cable
• Remote control (batteries not included)
• Simplified users guide

4.2 INSTALLATION INSTRUCTIONS

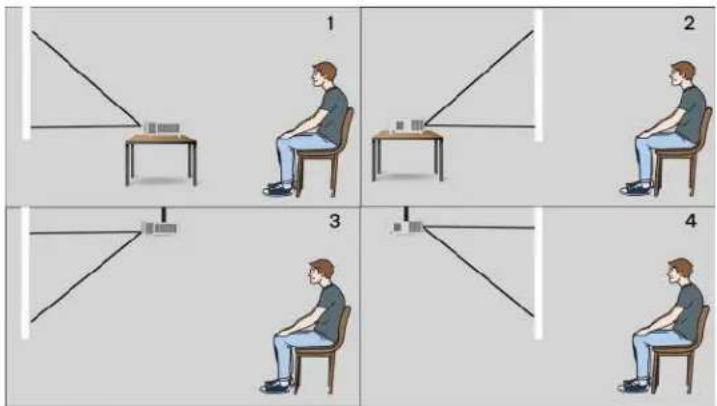

Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

1. Table mounted front proejection
2. Table mounted rear projection
3. Ceiling mounted front projection
4. Ceiling mounted rear projection

4.3 PLACEMENT AND DISTANCE FROM THE SCREEN

The projected image size will increase based on the projector's distance from the screen or projection surface. You can use the following tables to determine the best location for the projector and screen.

4.3.1 PROJECTION DISTANCE AND SCREEN SIZE

SP2234_RT_XGA 1.3* ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width Hight Width		Hight Wide	Tele Wide Tele
30	0,61	0,46	24,02	18,11	0,9	1,2	35,43	47,24	7	2,8
40	0,81	0,61	31,89	24,02	1,2	1,6	47,24	62,99	9	3,5
50	1,02	0,76	40,16	29,92	1,5	2,0	59,06	78,74	12	4,7
60	1,22	0,91	48,03	35,83	1,8	2,4	70,87	94,49	14	5,5
70	1,42	1,07	55,91	42,13	2,1	2,7	82,68	106,30	16	6,3
80	1,63	1,22	64,17	48,03	2,4	3,1	94,49	122,05	18	7,1
90	1,83	1,37	72,05	53,94	2,7	3,5	106,30	137,80	21	8,3
100	2,03	1,52	79,92	59,84	3,0	3,9	118,11	153,54	23	9,1
120	2,44	1,83	96,06	72,05	3,6	4,7	141,73	185,04	27	10,6
150	3,05	2,29	120,08	90,16	4,5	5,9	177,17	232,28	34	13,4
200	4,06	3,05	159,84	120,08	6,0	7,8	236,22	307,09	46	18,1
250	5,08	3,81	200,00	150,00	7,5	9,8	295,28	385,83	57	22,4
300	6,1	4,57	240,16	179,92	9,0	==	354,33	==	69	27,2

SP2236_RT_WXGA 1.3× ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width H	ght Width	Hight Wide	Tele Wide Tele
30	0.65	0.4	25.59	15.75	0.8	1.0	31.5	39.4	5	1.97
40	0.86	0.54	33.86	21.26	1.0	1.3	39.4	51.2	7	2.76
50	1.08	0.67	42.52	26.38	1.3	1.7	51.2	66.9	9	3.54
60	1.29	0.81	50.79	31.89	1.5	2.0	59.1	78.7	10	3.94
70	1.51	0.94	59.45	37.01	1.8	2.3	70.9	90.6	12	4.72
80	1.72	1.08	67.72	42.52	2.0	2.7	78.7	106.3	13	5.12
90	1.94	1.21	76.38	47.64	2.3	3.0	90.6	118.1	15	5.91
100	2.15	1.35	84.65	53.15	2.6	3.3	102.4	129.9	16	6.30
120	2.58	1.62	101.57	63.78	3.1	4.0	122.0	157.5	20	7.87
150	3.23	2.02	127.17	79.53	3.8	5.0	149.6	196.9	25	9.84
200	4.31	2.69	169.69	105.91	5.1	6.7	200.8	263.8	34	13.39
250	5.38	3.37	211.81	132.68	6.4	8.3	252.0	326.8	41	16.14
300	6.46	4.04	254.33	159.06	7.7	==	303.1	==	52	20.47

SP2238_RT_1080p 1.3* ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width	Hight	Width	Hight	Wide	Tele	Wide	Tele
30	0,66	0,37	25,98	14,57	0,8	1	31,50	39,37	6	2,36
40	0,89	0,50	35,04	19,69	1	1,3	39,37	51,18	8	3,15
50	1,11	0,62	43,70	24,41	1,3	1,6	51,18	62,99	10	3,94
60	1,33	0,75	52,36	29,53	1,5	2	59,06	78,74	12	4,72
70	1,55	0,87	61,02	34,25	1,8	2,3	70,87	90,55	14	5,51
80	1,77	1,00	69,69	39,37	2	2,6	78,74	102,36	16	6,30
90	1,99	1,12	78,35	44,09	2,3	2,9	90,55	114,17	18	7,09
100	2,21	1,25	87,01	49,21	2,5	3,3	98,43	129,92	19	7,48
120	2,66	1,49	104,72	58,66	3	3,9	118,11	153,54	24	9,45
150	3,32	1,87	130,71	73,62	3,8	4,9	149,61	192,91	30	11,81
200	4,43	2,49	174,41	98,03	5	6,5	196,85	255,91	40	15,75
250	5,53	3,11	217,72	122,44	6,3	8,1	248,03	318,90	50	19,69
300	6,64	3,74	261,42	147,24	7,5	==	295,28	==	59	23,23

SP2234ST_ST_XGA 1:1× ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)						(cm) (inch)
	Width Hight Width		Hight Fix Fix
40	0,81	0,61	32,01	24,02	0,5	19,69	9	3,54
50	1,02	0,76	40,00	30,00	0,63	24,80	11,8	4,65
60	1,22	0,91	47,99	35,98	0,75	29,53	13,6	5,35
70	1,42	1,07	55,98	42,01	0,88	34,65	16,3	6,42
80	1,63	1,22	64,02	47,99	1	39,37	18,1	7,13
90	1,83	1,37	72,01	54,02	1,13	44,49	20,8	8,19
100	2,03	1,52	80,00	60,00	1,25	49,21	22,6	8,90
120	2,44	1,83	95,98	72,01	1,5	59,06	27,1	10,67
150	3,05	2,29	120,00	90,00	1,88	74,02	34,4	13,54
180	3,66	2,74	144,02	107,99	2,26	88,98	40,7	16,02
250	5,08	3,81	200,00	150,00	3,13	123,23	57	22,44
303	6,16	4,62	242,40	181,81	3,8	149,61	69,2	27,24

SP2236SST_ST_WXGA 1:1* ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)						(cm) (inch)
	Width Hight	W	dth Hight	Fix Fix
40	0,86	0,54	33,92	21,20	0,45	17,72	7,15	2,81
50	1,08	0,67	42,40	26,50	0,56	22,05	8,69	3,42
60 1,29	0,81	50,88 31,80	0,67 26,38	10,23	4,03
70	1,51	0,94	59,36	37,10	0,79	31,10	11,77	4,63
80	1,72	1,08	67,84	42,40	0,9	35,43	13,3	5,24
90	1,94	1,21	76,32	47,70	1,01	39,76	14,84	5,84
100	2,15	1,35	84,80	53,00	1,12	44,09	16,38	6,45
120	2,58	1,62	101,76	63,60	1,35	53,15	20,46	8,06
150	3,23	2,02	127,20	79,50	1,68	66,14	25,07	9,87
180	3,88	2,42	152,64	95,40	2,02	79,53	29,68	11,69
250	5,38	3,37	212,00	132,50	2,81	110,63	41,45	16,32
302,9	6,52	4,08	256,86	160,54	3,4	133,86	50,24	19,78

SP2238ST_ST_1080p1:1* ZOOM

Diagonal Screen	Screen size Projection distance				Offset
	(m) (inch) (m) (inch)						(cm) (inch)
	Width H	ght Width	Hight Fix Fix
40 0,89	0,50 34,86	19,61	0,44 17,32	8,19	3,22
50	1,11	0,62	43,58	24,51	0,55	21,65	9,74	3,83
60	1,33	0,75	52,30	29,42	0,66	25,98	12,28	4,83
70	1,55	0,87	61,01	34,32	0,77	30,31	13,83	5,44
80	1,77	1,00	69,72	39,22	0,88	34,65	16,38	6,45
90	1,99	1,12	78,44	44,12	0,99	38,98	17,93	7,06
100	2,21	1,25	87,16	49,03	1,10	43,31	19,47	7,67
120	2,66	1,49	104,59	58,83	1,32	51,97	23,57	9,28
150	3,32	1,87	130,74	73,54	1,65	64,96	30,21	11,89
180	3,98	2,24	156,88	88,25	1,98	77,95	35,85	14,11
250	5,53	3,11	217,89	122,57	2,75	108,27	49,68	19,56
302,9	6,71	3,77	264,00	148,50	3,33	131,10	60,81	23,94

SP122, SP124, SP222, SP224_RT_SVGA & XGA_1.1* ZOOM

Diagonal Screen	Screen size				Projection distance				Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width	Hight	Width	Hight	Wide	Tele	Wide	Tele
30	0.61	0.46	24.00	18.00	1.18	1.32	46.56	51.84	6.86	2.70
40	0.81	0.61	32.00	24.00	1.58	1.76	62.08	69.12	9.14	3.60
50	1.02	0.76	40.00	30.00	1.97	2.19	77.60	86.40	11.43	4.50
60	1.22	0.91	48.00	36.00	2.37	2.63	93.12	103.68	13.72	5.40
70	1.42	1.07	56.00	42.00	2.76	3.07	108.64	120.96	16.00	6.30
80	1.63	1.22	64.00	48.00	3.15	3.51	124.16	138.24	18.29	7.20
90	1.83	1.37	72.00	54.00	3.55	3.95	139.68	155.52	20.57	8.10
100	2.03	1.52	80.00	60.00	3.94	4.39	155.20	172.80	22.86	9.00
120	2.44	1.83	96.00	72.00	4.73	5.27	186.24	207.36	27.43	10.80
150	3.05	2.29	120.00	90.00	5.91	6.58	232.80	259.20	34.29	13.50
200	4.06	3.05	160.00	120.00	7.88	8.78	310.40	345.60	45.72	18.00
250	5.08	3.81	200.00	150.00	9.86	10.97	388.00	432.00	57.15	22.50
300	6.10	4.57	240.00	180.00	11.83	13.17	465.60	518.40	68.58	27.00

SP126, SP226_RT_WXGA_1.1× ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width Hight Width		Hight Wide	Tele Wide Tele
30 0.6	5	0.40 25.4	15.90 1.00	1.11 39.18 43	76 5.01	1.97
40	0.86	0.54	33.92	21.20	1.33	1.48	52.24	58.34	6.68	2.63
50	1.08	0.67	42.40	26.50	1.66	1.85	65.30	72.93	8.35	3.29
60	1.29	0.81	50.88	31.80	1.99	2.22	78.36	87.51	10.02	3.94
70	1.51	0.94	59.36	37.10	2.32	2.59	91.41	102.10	11.68	4.60
80	1.72	1.08	67.84	42.40	2.65	2.96	104.47	116.68	13.35	5.26
90	1.94	1.21	76.32	47.70	2.99	3.33	117.53	131.27	15.02	5.91
100	2.15	1.35	84.80	53.00	3.32	3.70	130.59	145.86	16.69	6.57
120	2.58	1.62	101.76	63.60	3.98	4.45	156.71	175.03	20.03	7.89
150	3.23	2.02	127.20	79.50	4.98	5.56	195.89	218.78	25.04	9.86
200	4.31	2.69	169.60	106.00	6.63	7.41	261.18	291.71	33.39	13.14
250	5.38	3.37	212.00	132.50	8.29	9.26	326.48	364.64	41.73	16.43
300	6.46	4.04	254.40	159.00	9.95	11.11	391.78	437.57	50.08	19.72

SP228_RT_1080p_1.1* ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width Hight Width		Hight	Wide Tele Wide Tele
30	0.66	0.37	26.15	14.71	0.98	1.08	38.44	42.36	5.98	2.35
40	0.89	0.50	34.86	19.61	1.30	1.43	51.25	56.48	7.97	3.14
50	1.11	0.62	43.58	24.51	1.63	1.79	64.06	70.60	9.96	3.92
60	1.33	0.75	52.29	29.42	1.95	2.15	76.87	84.72	11.95	4.71
70	1.55	0.87	61.01	34.32	2.28	2.51	89.69	98.84	13.95	5.49
80	1.77	1.00	69.73	39.22	2.60	2.87	102.50	112.96	15.94	6.28
90	1.99	1.12	78.44	44.12	2.93	3.23	115.31	127.08	17.93	7.06
100	2.21	1.25	87.16	49.03	3.25	3.59	128.12	141.20	19.92	7.84
120	2.66	1.49	104.59	58.83	3.91	4.30	153.75	169.43	23.91	9.41
150	3.32	1.87	130.74	73.54	4.88	5.38	192.18	211.79	29.89	11.77
200	4.43	2.49	174.32	98.05	6.51	7.17	256.24	282.39	39.85	15.69
250	5.53	3.11	217.89	122.57	8.14	8.97	320.30	352.99	49.81	19.61
300	6.64	3.74	261.47	147.08	9.76	10.76	384.36	423.59	59.77	23.53

SP229_RT_WUXGA_1,1× ZOOM

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width H	ght Width	Hight Wide	Tele Wide T	tele
30 0.6	5 0.40 25.4	4 15.90 0.95	1.05 37.40	41.21	4.04 1.59
40	0.86	0.54	33.92	21.20	1.27	1.40	49.86	54.95	5.38	2.12
50	1.08	0.67	42.40	26.50	1.58	1.74	62.33	68.69	6.73	2.65
60	1.29	0.81	50.88	31.80	1.90	2.09	74.79	82.43	8.08	3.18
70	1.51	0.94	59.36	37.10	2.22	2.44	87.26	96.16	9.42	3.71
80	1.72	1.08	67.84	42.40	2.53	2.79	99.72	109.90	10.77	4.24
90	1.94	1.21	76.32	47.70	2.85	3.14	112.19	123.64	12.12	4.77
100	2.15	1.35	84.80	53.00	3.17	3.49	124.66	137.38	13.46	5.30
120	2.58	1.62	101.76	63.60	3.80	4.19	149.59	164.85	16.15	6.36
150	3.23	2.02	127.20	79.50	4.75	5.23	186.98	206.06	20.19	7.95
200	4.31	2.69	169.60	106.00	6.33	6.98	249.31	274.75	26.92	10.60
250	5.38	3.37	212.00	132.50	7.92	8.72	311.64	343.44	33.65	13.25
300	6.46	4.04	254.40	159.00	9.50	10.47	373.97	412.13	40.39	15.90

SP224ST_ST_XGA_Fixed Lens

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width H	ght Width	Hight Fixed		Fixed
30	0.61	0.46	24.00	18.00	0.32		12.48		5.67	2.23
40	0.81	0.61	32.00	24.00	0.42		16.64		7.56	2.98
50	1.02	0.76	40.00	30.00	0.53		20.80		9.45	3.72
60	1.22	0.91	48.00	36.00	0.63		24.96		11.34	4.46
70	1.42	1.07	56.00	42.00	0.74		29.12		13.23	5.21
80	1.63	1.22	64.00	48.00	0.85		33.28		15.12	5.95
90	1.83	1.37	72.00	54.00	0.95		37.44		17.01	6.70
100	2.03	1.52	80.00	60.00	1.06		41.60		18.90	7.44
120	2.44	1.83	96.00	72.00	1.27		49.92		22.68	8.93
150	3.05	2.29	120.00	90.00	1.58		62.40		28.35	11.16
200	4.06	3.05	160.00	120.00	2.11		83.20		37.80	14.88
250	5.08	3.81	200.00	150.00	2.64		104.00		47.24	18.60
300	6.10	4.57	240.00	180.00	3.17		124.80		56.69	22.32

SP226ST_ST_WXGA_Fixed Lens

Diagonal Screen	Screen size Projection distance Offset
	(m) (inch) (m) (inch)								(cm) (inch)
	Width Hight Width		Hight Fixed	Fixed
30	0.65	0.40	25.44	15.90	0.34		13.23		5.01	1.97
40	0.86	0.54	33.92	21.20	0.45		17.64		6.68	2.63
50	1.08	0.67	42.40	26.50	0.56		22.05		8.35	3.29
60	1.29	0.81	50.88	31.80	0.67		26.46		10.02	3.94
70	1.51	0.94	59.36	37.10	0.78		30.87		11.68	4.60
80	1.72	1.08	67.84	42.40	0.90		35.28		13.35	5.26
90	1.94	1.21	76.32	47.70	1.01		39.69		15.02	5.91
100	2.15	1.35	84.80	53.00	1.12		44.10		16.69	6.57
120	2.58	1.62	101.76	63.60	1.34		52.92		20.03	7.89
150	3.23	2.02	127.20	79.50	1.68		66.14		25.04	9.86
200	4.31	2.69	169.60	106.00	2.24		88.19		33.39	13.14
250	5.38	3.37	212.00	132.50	2.80		110.24		41.73	16.43
300	6.46	4.04	254.40	159.00	3.36		132.29		50.08	19.72

4.4 CLEARANCE

Allow at least 30cm clearance around the intake and exhaust vent and ensure that the intake vents do not recycle hot air from the exhaust vent.

① Air intake vent
② Air outtake vent

When operating the projector in an enclosed space:

• The surrounding air temperature within the enclosure should not exceed operation temperature while the projector is running
• The air intake and exhaust vents should be unobstructed
- The enclosure should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air

4.5 CEILING MOUNT

• Screw type: M4×10
  • Minimum screw length: 10mm

INFORMATION

"Please note that damage resulting from incorrect installation will void the warranty. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

4.6 MOUNTING HOLE DIAGRAM

When using a ceiling mount, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

Avoid installing the projector near a heat source.

5.1 ADJUSTING THE IMAGE HEIGHT AND TILT

The projector's height and tilt can be adjusted with the tilt adjustment feet and ring. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the foot clockwise or counterclockwise to raise or lower the projector.

Technical line drawing of a mechanical device with a threaded fastener and rotating base (no text or symbols)

5.2 ADJUSTING THE ZOOM, LENS SHIFT AND FOCUS

To adjust the image size, turn the zoom ring clockwise or counterclockwise to increase or decrease the projected image size.

To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically. (Not available on all models.)

To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

5.3 ADJUSTING THE VERTICAL AND HORIZONTAL KEYSTONE

If one side of the image is shorter than the other, for example the top is shorter than the bottom, you can either reposition the projector or use keystone correction.

To adjust the top or bottom of the picture (the pitch), angle the projector lower or higher. If that is not possible, adjust the vertical keystone:

Press the Menu button on the projector keypad or the Menu button on the remote control to open the OSD menu.

Select Image > V Keystone

Adjust the settings by using the arrow keys keys

Press the Return symbol or Enter button to select a setting.

Press the Menu symbol or *Menu *button to close the OSD menu. The menu will close and the projector will automatically save the new settings.

To adjust the left or right side of the picture (the yaw), turn the projector slightly left or right. If that is not possible, adjust the horizontal keystone:

Press the Menu button on the projector keypad or the Menu button on the remote control to open the OSD menu.

Select *Image > H Keystone *

Note horizontal keystone correction is not available on all models

Adjust the settings by using the *Arrow *keys.

Press press the Return symbol or *Enter *button to select a setting.

Press the Menu button to close the OSD menu. The menu will close and the projector will automatically save the new settings.

INFORMATION

"Ensure that the projection screen or projection surface is within the required distance from the projector. Refer to "4.3 Placement distance from screen" for more information.

6.1 CONNECTION DIAGRAM

# Description # Description
1 Power cord 8 RS232 cable
2 Audio cable 9 WirelessHD dongle
3 HDMI (MHL) cable 10 Wireless dongle
4 VGA to component/HDTV adapter 11 Wired remote control
5 VGA cable 12 LAN cable
6 3 RCA component cable 13 12V DC cable
7 Composite video cable 14 3D SYNC cable

INFORMATION

Not all inputs are available on all models.

7. USING

7.1 LEDs

① Power
② Lamp
③ Temperature

7.2 KEYPAD

① Up / Keystone correction +
② Information
③ Right / Re-sync
4 Enter
⑤ PowerDown / Keystone correction -
6 Menu
⑦ Directional arrows
8 Left / Source
⑨ Power

7.3 REMOTE CONTROL

1 IR LED
② Power
③ Source
4 Enter
⑤ ECO
6 Volume
⑦ Aspect
⑧ HDMI – Press once for HDMI 1 and twice for HDMI 2
9 Zoom
10 Mute
11 Freeze
12 Picture
13 Mouse
14 Page
15 VGA
16 Video
17 Keystone correction
18 Menu
19 Directional keys
20 Re-sync
21 AV Mute

INFORMATION

Some keys may have no function for models that do not support the key's feature.

7.3.1 INSTALLING BATTERIES IN THE REMOTE CONTROL

The remote requires two AAA batteries (not included).

1. Remove the battery cover on the back of the remote control.

Isometric line drawing of a rectangular object with a curved top and a small circular feature, showing directional arrows (no text or symbols)

1. Insert AAA batteries in the battery compartment. Ensure each battery's polarity ± is aligned correctly.

Diagram of a battery pack with two batteries and an internal component, no text or symbols present

1. Replace back cover on the remote control and press down until it clicks in to place.

Isometric line drawing of a rectangular device with a curved arrow indicating rotation or movement (no text or symbols)

ATTENTION

The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Incorrect battery usage may cause leakage of battery fluid and battery rupture, which could result in fire, injury or corrosion of the remote. When replacing batteries, take the following precautions.

Do not use batteries of different types or mix old and new batteries.

Remove the batteries if you will not be using the projector for a long period of time.

Do not expose batteries to heat or flame and do not put them in water.

Dispose of used batteries according to local regulations.

Keep batteries out of the reach of children. Batteries are choking hazards and are very dangerous if swallowed.

7.3.2 REMOTE CONTROL IR CODES

NUMBER	FUNCTION REPEATFORMAT BYTE1 BYTE2 BYTE3 BYTE4 COMMENTS
1 AV mute F1 87 4E 51 AE
2	Power On/Off	F1	87	4E	17	E8
3	Re-Sync	F1	87	4E	33	CC
4	Up	F2	87	4E	13	EC	Do Volume+ when no OSD
5	Source	F1	87	4E	10	EF
6	Left	F2	87	4E	11	EE	Do Source when no OSD
7	Enter	F1	87	4E	32	CD
8	Right	F2	87	4E	12	ED	Do Re-Sync when no OSD
9	Menu	F1	87	4E	02	FD
10	Down	F2	87	4E	14	EB	Do Volume- when no OSD
11	Eco	F1	87	4E	77	88	Open Brightness Mode menu
12	Keystone+	F2	87	4E	20	DF
13	Volume+	F2	87	4E	08	F7
14	Keystone-	F2	87	4E	21	DE
15	Volume-	F2	87	4E	04	FB
16	VGA (1)	F1	87	4E	19	E6
17	Video (2)	F1	87	4E	1A	E5
18	HDMI (3)	F1	87	4E	71	8E	Toggle HDMI 1 and HDMI 2
19	Page+(4)	F1	87	4E	7D	82	Page+ not supported
20	Aspect (5)	F1	87	4E	34	CB
21	Zoom+	F1	87	4E	52	AD
22	page-(7)	F1	87	4E	7E	81	Page- not supported
23	Freeze	F1	87	4E	0E	F1
24	Zoom-	F1	87	4E	53	AC
25	Mouse	F1	87	4E	3E	C1	Mouse not supported
26	Picture	F1	87	4E	2C	D3	Open Display Mode menu
27	Mute	F1	87	4E	29	D6

7.4 REMOTE CONTROL EFFECTIVE RANGE

You can locate the infrared (IR) remote control sensors on the top of the projector next to the keypad and on the front to the left of the lens. Hold the remote control at an angle within 60 degrees perpendicular of the projector's IR remote control sensor. Ensure that there are no obstacles between the remote control and the IR sensor on the projector.

The distance between the remote control and the IR sensor should be less than 12 meters (39.4 feet). If the remote control is less than 20cm (8 inches) from the IR sensor, the remote control might become ineffective. The effective range is approximately 5 meters (16.4 feet) when reflecting the IR beam using a screen. The range will depend on the screen's surface and reflectivity. Direct sunlight or fluorescent lamps can reduce the range of the remote control.

7.5 TURNING THE PROJECTOR ON

1. Securely connect the mains cable to the projector and to a mains outlet. When connected, the Power LED will turn red.
2. Connect a signal/source cable to a source device and the projector.
3. Remove the lens cap.
4. Press the Power button on the keypad or the symbol on the remote control.

The ScreenPlay startup screen will appear after approximately 10 seconds. The Power LED will flash blue and then steady blue.

ATTENTION

Make sure that people cannot step on any electrical cables or trip over the cables. Do not put objects on the cables.

7.6 SELECTING A INPUT SOURCE

1. Turn on the connected source, such as a computer or DVD player, or connect a digital media player, such as a Google Chromecast.
2. Press the Source button on the keypad or remote control to select the input source.
3. Play the content on the source device.

INFORMATION

You can set up the projector to automatically detect an active source and turn itself on and project the source content automatically. To turn on this feature, press the Menu button on the remote control or keypad, navigate to Settings > Power Settings > Signal Power, and select On.

INFORMATION

Your projector has a Direct Power On setting. This setting will automatically turn on the projector when a power source is connected. To turn on this feature, press the Menu button on the remote control or keypad, navigate to Settings > Power Settings > Direct Power On, and select on.

7.7 TURNING THE PROJECTOR TO STANDBY MODE

1. Press the Power button on the keypad or remote control. The following message will appear: Power Off?

2. Press the Power button again to confirm turning off your projector. If the Power button is not pressed a second time, the message will disappear after 10 seconds and the projector will not turn off. The cooling fans will operate for about 10 seconds and the Power LED will flash blue. When the Power LED changes to solid red, the projector has entered standby mode.

3. Replace the lens cap.

INFORMATION

If you want to turn the projector on again, wait 100 seconds.

Always allow the projector fan to turn off after you power down and before you unplug the projector power cable from the electrical outlet.

7.8 VIEWING 3D CONTENT

Please follow all warnings and precautions as recommended before you or your child use the 3D function of this projector and view 3D projected content.

ATTENTION

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing 3D content.

7.8.1 PHOTOSENSITIVE SEIZURE WARNING AND OTHER HEALTH RISKS

ATTENTION

- Some viewers may experience an epileptic seizure or stroke when exposed to specific flashing images or lights contained in certain Projector pictures or video games. If you suffer from or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.

- Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.

- We recommend that the projectors 3D functionality not be used by pregnant women, sufferers of serious medical conditions, persons who are sleep-deprived or under the influence of alcohol.

- If you experience any of the following symptoms, stop viewing 3D content immediately and consult a medical specialist: (1) altered vision; (2) lightheadedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

- Watching 3D projected content may also cause motion sickness, perceptual aftereffects, disorientation, eye strain, and decreased postural stability. Users should take frequent breaks to lessen the potential of these effects. If you have any of the above symptoms, immediately discontinue using this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

- Watching 3D projected content while sitting too close to the screen for an extended period may damage your eyesight. The ideal viewing distance should be at least three times the screen height. We recommend that the viewer's eyes are level with the screen.

- Watching 3D projected content while wearing 3D glasses for an extended period may cause headaches or fatigue. If you experience a headache, tiredness or dizziness, stop viewing the 3D projection and rest.

- Do not use 3D glasses for any other purpose than for watching 3D projected content.

- Wearing the 3D glasses for any other purpose (such as spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and weaken your eyesight.

- Viewing 3D projected content may cause disorientation for some viewers. Accordingly, DO NOT place your 3D projector near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

To enable 3D mode, the input frame rate should be set to 60Hz. Other frame rate are not supported. For the best 3D performance, use a resolution of 1920 × 1080 . 4K ( 3840 × 2160 ) resolution is not supported in 3D mode.

1. Select Display > Display Mode > 3D > 3D Mode.

2. Select* On*.

If the 3D Mode is set to Off, the 2D-3D and 3D sync Invert functions will not be selectable.

These functions can only be selected if the 3D mode is set to On.

1. Press Enter.

2. If you only want to view the left or right frame: * Select Display > Display Mode > 3D > 3D-2D.

* Select L (left) or R (right). * Press Enter.

1. If you want to turn off the 3D sync invert function:

2. Select Display > Display Mode > 3D > 3D Sync Invert.

3. Select Off.
4. Press Enter.

7.8.3 ENABLING AUTO 3D MODE

1. Select Display > Display Mode > 3D > 3D Format.
2. Select Auto.
3. Press Enter.

Other options:

• SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
• Frame Sequential: Display 3D signal in "Frame Sequential" format.

The multilingual On Screen Display (OSD) menus can be used to setup and adjust the projector.

8.1 SELECTING THE LANGUAGE FOR THE ON SCREEN MENU

1. Select Setup > Options > Language
2. Select a language.
3. Press Enter.

8.2 SELECTING A DISPLAY MODE

1. Select Display > Image Settings > Display Mode.

2. Select a display mode:

3. Presentation: Suitable for giving presentations using a PC.

4. Bright: The brightest possible setting when using a PC.
5. HDR SIM.: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic colour using the REC.2020 colour gamut. This mode will be automatically enabled if HDR content is sent to the projector (4K UHD Blu-ray, 1080p/4K UHDHDR/HLG games, or 4K UHD streaming video). While HDR mode is active, other displays cannot be selected as HDR delivers colour that is highly accurate and exceeds the colour performance of the other display modes. HDR mode can also be manually selected for use with non HLG content for simulation effect.
6. HLG SIM.: Decodes and displays Hybrid Log Gamma (HLG) content for the deepest blacks, brightest whites, and vivid cinematic colour using the REC.2020 colour gamut. This mode will be automatically

enabled if HLG content is sent to the projector (4K UHD Blu-ray, 1080p/4K UHDHDR/HLG games, or 4K UHD streaming video). HLG mode can also be manually selected for use with non HLG content for simulation effect.

• Cinema: Provides the best colour reproduction for watching movies.
• Game: Increases the brightness and decreases the response time for playing video games with minimal lag.
• sRGB: Standardized accurate colour reproduction.
• DICOM SIM.: Simulation mode for viewing monochrome images such as X-rays.
- User: Saved user settings.
• 3D: To experience 3D, you will need 3D glasses and a video source that is capable of sending 3D content.

1. Press Enter.

INFORMATION

The display settings are only visible when an active source is connected to the projector.

8.3 ADJUSTING THE IMAGE COLOUR AND TEMPERATURE

1. Select Display > Image Settings > Color Settings > Color Temperature.
2. Select a value.
3. Press Enter.

INFORMATION

The Display settings are only visible when an active source is connected to the projector.

8.4 ADJUSTING THE SHARPNESS OF THE IMAGE

1. Select Display > Image Settings > Color.
2. Press Enter.

8.5 MAGNIFYING THE IMAGE

1. Select Display > Zoom.
2. Press Enter.

8.6 SELECTING AN ASPECT RATIO

1. Select Display > Aspect Ratio.
2. Select the desired aspect ratio.
3. Press Enter.

1. Select Display > Image Settings > Brightness Mode.
2. Select a brightness mode.
3. Press Enter.

8.8 ENABLEING ECO MODE

1. Select Display > Image Settings > Brightness Mode.
2. Select Eco.
3. Press Enter.

8.9 ENABLING CLOSED CAPTIONS

1. Select Setup > Options > Closed Caption.
2. Select CC1 *or *CC2.
3. Press Enter.

8.10 DISPLAYING A TEST PATTERN

1. Select Setup > Test Pattern.
2. Select a test pattern.
3. Press Enter.

8.11 PREVENTING UNAUTHORIZED USE

1. Select Setup * > *Security > Security.
2. Select* On*. The default password is 1234.
3. Press Enter.

8.12 CHANGING THE PASSWORD

1. Select Setup > Security > Change Password.
2. Type the new password.
3. Press Enter.

INFORMATION

Do not lose the password. The password can only be reset at an authorized ScreenPlay repair facility.

8.13 CONTROLLING THE PROJECTOR FROM A WEB BROWSER

1. Connect the projector to an active network port using the RJ45 port on the back of the projector.
2. Select* Network* > LAN > DHCP.
3. Select On.
4. Press Enter.
5. Select Network > LAN *> IP Address* to view the projector's IP address.
6. Open a web browser.
7. Type the projector's IP address type the user name and password. The default user name and password is admin.
8. Click Login. The projector's configuration page appears.

INFORMATION

This section is only applicable to p122 and p123 vista products.

Logout

Logout

Web Control Aspect Ratio Support list below

Aspect Ratio XGA WXGA 1080P
4:3 V V V
16:9	V	V (Follow OSD->Screen Type)
16 :10 V (Follow OSD->Screen Type)
LBX V V
Native V V V
AUTO V V V

Notice

If web page select the unsupport aspect ratio, projector will do nothing and the web will show the aspect ratio same with OSO.

The aspect ratio of WXGA model will change due to the screen type setting.

INFORMATION

Only applicable to Superior Series

8.14 DIRECTLY CONNECTING A COMPUTER TO THE PROJECTOR

1. Select Network > LAN > DHCP.
2. Select Off.
3. Press Enter.
4. Select Network > LAN.
5. Configure the IP address, Subnet Mask, Gateway, and DNS settings.
6. Set the computer to use the same IP address, subnet mask, gateway, and DNS settings.
7. Open a web browser.
8. Type the projector's IP address type the user name and password. The default user name and password is admin.

INFORMATION

Only applicable to Superior Series.

9. CLEANING

Do not use canned air or any type of abrasive pad, paper towel, scouring powder, glass cleaner, or solvent (such as alcohol, paint thinner or benzene).

Unplug the projector before cleaning.

9.1 CLEANING THE LENS

Clean the projector's lens with a lightly damp cloth. Do not spray liquid directly onto the lens.

9.2 CLEANING THE CASE

Clean the projector's case using a lightly damp cloth.

9.3 CLEANING THE AIR VENTS

Clean the air intake vents with a soft and dry cloth, a soft brush, or a small vacuum cleaner designed for cleaning electrical devices.

10. SANITATION

• Using only lightly dampened microfibre cloth to avoid malfunction and possible permanent damage to electronic parts, lightly clean the surface of the product, avoiding any connection points, ventilation holes or the lens.
  • After the application, dry the product with a clean and dry microfibre cloth.

Please follow all safety and handling instructions listed with the cleaning solution and keep out of reach of children. For schools conducting an overall deep clean of their facilities, here are steps to appropriately protect your ScreenPlay product in advance of chemicals being sprayed or fogging devices being employed:

• Disconnect the product from its power source.
• Cover the product to prevent damage to internal electronic components.
• Remember to remove any covering before use.

Please ensure that those with access to your ScreenPlay products are aware of the cleaning procedure.

ATTENTION

Ensure your ScreenPlay product is fully covered on all sides before facilities deep cleaning. Chemicals must not be allowed to enter or be sprayed on to the surface of the product, this will avoid any damage to the internal electronic components and outer casing parts.

INFORMATION

Good personal hygiene practices of washing and drying hands should be employed before and after use of ScreenPlay products.

Should you have any questions relating to these procedures please contact ScreenPlay Technical Support. Contact details can be found Here.

11. DISPOSAL

11.1 DISPOSAL OF ELECTRICAL COMPONENTS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

The symbol on the product, the accessories or packaging indicates that this device shall not be treated as unsorted municipal waste, but shall be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment if you live within the EU and in other European countries that operate separate collection systems for waste electrical and electronic equipment. By disposing of the device in the proper manner, you help to avoid possible hazards for the environment and public health that may otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources.

11.2 DISPOSAL OF PACKAGING WASTE

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health.

12.1 LED INDICATOR LIGHTS

The following table describes the LED indicator light colours and their meaning.

LED INDICATOR MEANING
Power Blue solid Normal operation
Power	Blue flashing	The projector is warming up, shutting down, or cooling down. The remote control may be disabled while the indicator is flashing blue.
Power Red solid Standby mode
Power Off Off or Sleep mode
Lamp	Red flashing	lamp failure
Temperature	Red flashing	Fan failure
Temperature	Red solid	Over temperature

The projector will automatically shutdown if there is a laser failure, a fan failure or if the projector has overheated. Unplug the power cable from the projector, wait 30 seconds, and try again. If the warning indicators light up or flash, contact your nearest service center for assistance.

12.2 SOLVING ON/OFF ISSUES

The following table provides solutions for potential issues that may occur when the projector is turned on or off.

ISSUE	CAUSE	SOLUTION
Projector will not turn on.	No power	Check that the power cable is connected. Check that the power indicator is on.
Projector will not turn on.	The projector has overheated	Make sure there is at least 30cm of clearance around the intake and exhaust vents. Wait five minutes and try turning the projector on again. If the projector is being used above 5500 ft/1600 m, use the On Screen Display (OSD) menu to set High Altitude to on.
Projector turns off by itself.	The Auto Power Off timer is set	Use the On Screen Display (OSD) menu to adjust the auto power of setting.

12.3 SOLVING IMAGE ISSUES

The following table provides solutions for potential image issues.

ISSUE	CAUSE	SOLUTION
No image	Incorrect source is selected.	Press the SOURCE button or one of the source buttons again.
No image	Source cable is not connected.	Ensure the source cable is securely connected to the projector and source device
No image	Source is not playing	Make sure the source has not stopped or paused the video. If the source is a computer, make sure the PC is not in a screen saving or power saving mode and resend the video to the projector.
No image	AV-Mute is on	Ensure the AV-MUTE (video off) buttons has not been pressed.
No image	Brightness and/or contrast setting is too low	Use the On Screen Display (OSD) menu to adjust the brightness and contrast
ISSUE CAUSE SOLUTION
Image is reversed	Orientation is set incorrectly.	Use the On Screen Display (OSD) menu to adjust the orientation.
Image has slanted sides	Projector is not positioned perpendicularly to the screen.	Ensure the projector is centered on the screen and below the bottom of the screen
Image has slanted sides	Keystone is not set correctly.	Press the keystone + or - buttons to adjust the image alignment.
Image is too small or too large.	Projector is too far from or too close to the screen.	Move the projector
Image is too small or too large.	The zoom is not set correctly.	Press the Zoom + or - buttons to adjust the zoom.
Image is too dark	ECO mode is enabled Check if the projector is in the Forced ECO mode because the ambient temperature is too high.
Image is blurry	Focus is not set correctly.	Use the focus ring to adjust the focus.
Image is blurry	Projector is too close or too far from the screen.	Ensure that the distance between the projector and screen is within the adjustment range of the lens.
Image is blurry	Smudge or condensation on the lens.	Clean the lens. Condensation may form on the lens if the projector is cold, brought into a warm place, and turned on.
Image is scrolling or flickering.	Source resolution and/or frequency is not supported.	Make sure that the source's resolution and frequency are supported by the projector.

12.4 SOLVING VIDEO, AUDIO AND REMOTE CONTROL ISSUES

The following table provides solutions for potential video, audio, and remote control issues.

ISSUE CAUSE SOLUTION
Video is frozen the Freeze button has been pressed.		Press the Freeze button on the remote to unfreeze the video.
Video is stretched	16:9 (wide) source is setup incorrectly.	Ensure the source is set to use the 16:9 (wide) display format.
Video is stretched	Letterbox (LBX) source is setup incorrectly.	Use the On Screen Display (OSD) menu to set the aspect ratio to LBX.
Video is stretched	4:3 source is setup incorrectly.	Use the On Screen Display (OSD) menu to set the aspect ratio to 4:3.
No audio	Projector is muted.	Press the Mute button to unmute the projector.
No audio	Volume setting is too low.	Press the volume + button to increase the volume.
No audio	Source cable is not connected.	Ensure the source cable is securely connected to the projector and source device.
No audio	Source is muted.	Ensure the source has not been muted.
Remote does not work.	Batteries expired.	Install new batteries.
Remote does not work.	Batteries installed incorrectly.	Remove and reinstall the batteries.
Remote does not work.	Remote is too far from projector.	The remote should be within 16.4 feet (5m) of the projector.
Remote does not work.	IR receiver cannot detect remote.	Ensure there are no obstructions between the remote and the projector's IR receiver. Ensure the operating angle of the remote control is within ± 20^ to the projector's IR receiver. Ensure there are no fluorescent light sources shining on the projector's IR receiver.

If you are still experiencing technical issues with your projector, please contact ScreenPlay Customer Support Here

12.5 SERVICING

Servicing is required when the projector has been damaged, exposed to rain or moisture, does not operate normally, or has been dropped. All servicing and repairs should be performed by an authorized ScreenPlay representative.

13. ADDITIONAL INFORMATION

13.1 RS232 PIN ASSIGNMENTS

PIN NUMBER BO DETAILED TIMING
1 -
2 RDX
3 TXD
4	-
5 GND
6	-
7	-
8	-
9	-

13.2 RS232 PROTOCOL FUNCTION LIST

FUNCTION	VALUE
BAUD RATE 19200
PARITY BIT NONE
DATA BIT	8
STOP BIT	1
ON DELAY	20 SECONDS
POWER DOWN DELAY	20 SECONDS
SOURCE CHANGE DELAY	8 SECONDS
INTERCOMMAND DELAY MINIMUM	500 MILLISECONDS
INTERCHARACTER DELAY MINIMUM	2 MILLISECONDS

13.2.1 RS232 PROJECTOR COMMAND CODES

INDEX ASC	CODE HEX	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S001~XX001		7E 30 30 3030 20 31 0D	Power On Yes	Yes Yes
S001~XX000		7E 30 30 3030 20 30 0D	Power	Off (0/2 for backward compatible)	Yes Yes Yes
S002	~XX001~nnnn	7E 30 30 3030 20 31 20a 0D	Power ON with Password ~nnnn	“nnnn = Password ~0000 (a=7E 30 30 30 30) ~9999 (a=7E 39 39 39 39)”	Yes Yes Yes
S003~XX011		7E 30 30 3031 20 31 0D	Resync Yes Yes	Yes
S004~XX021		7E 30 30 3032 20 31 0D	AV Mute	On Yes Yes Yes
S004	~XX020	7E 30 30 3032 20 30 0D	AV Mute	Off (0/2 for backward compatible)	Yes Yes Yes
S005~XX031		7E 30 30 3033 20 31 0D	Mute	On Yes Yes Yes
S005	~XX030	7E 30 30 3033 20 30 0D	Mute	Off (0/2 for backward compatible)	Yes Yes Yes
S006~XX041		7E 30 30 3034 20 31 0D	Freeze		Yes	Yes	Yes
S006	~XX040	7E 30 30 3034 20 30 0D	Unfreeze	(0/2 for backward compatible)	Yes Yes Yes
S007~XX051		7E 30 30 3035 20 31 0D	Zoom Plus		Yes Yes Yes
S008~XX061		7E 30 30 3036 20 31 0D	Zoom Minus		Yes Yes Yes
S009~XX110		7E 30 30 3131 20 30 0D	IR Function	Off	No	No	No
S009	~XX111	7E 30 30 3131 20 31 0D	IR Function	On	No	No	No
S010~XX125		7E 30 30 3132 20 35 0D	Direct Source Commands	VGA	Yes Yes Yes
S010~XX129		7E 30 30 3132 20 39 0D	Direct Source Commands	S-Video	No	No	No
S010	~XX1210	7E 30 30 3132 20 31 30 0D	Direct Source Commands	Video	Yes Yes Yes
S010	~XX121	7E 30 30 3132 20 31 0D	Direct Source Commands	HDMI (HDMI 1) Yes Yes	Yes Yes Yes
S010	~XX1215	7E 30 30 3132 20 31 35 0D	Direct Source Commands	HDMI 2	Yes Yes Yes
S011	~XX201	7E 30 30 3230 20 31 0D	Picture Mode	Presentation	Yes	Yes	Yes

INDEX ASCI	ICODE HEXCODE FUNCTION VALUE/RANGE			SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S011~XX20 2		7E 30 30 3230 20 32 0D	Picture Mode Bright Yes Yes Yes
S011~XX20 3		7E 30 30 3230 20 33 0D	Picture Mode Movie (Cinema) Yes Yes Yes
S011~XX20 4		7E 30 30 3230 20 34 0D	Picture Mode sRGB Yes Yes Yes
S011~XX20 13		7E 30 30 3230 20 31 33 0D	Picture Mode	DICOM SIM.	Yes Yes Yes
S011~XX20 5		7E 30 30 3230 20 35 0D	Picture Mode	User Yes Yes Yes
S011~XX20 9		7E 30 30 3230 20 39 0D	Picture Mode	3D	Yes Yes Yes
S011~XX20 12		7E 30 30 3230 20 31 32 0D	Picture Mode Game Yes Yes Yes
S011	~XX20 22	7E 30 30 3230 20 32 32 0D	Picture Mode	HDR SIM.	Yes Yes Yes
S011	~XX20 26	7E 30 30 3230 20 32 36 0D	Picture Mode	HLG SIM.	Yes Yes Yes
S012	~XX21 n	7E 30 30 3231 20 a 0D	Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S013	~XX22 n	7E 30 30 3232 20 a 0D	Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S014~XX23 n		7E 30 30 3233 20 a 0D	Sharpness	n = 1 (a=31) ~ 15 (a=31 35)	Yes Yes Yes
S015~XX24 n		7E 30 30 3234 20 a 0D	RGB Gain/Bias Red Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S016~XX25 n		7E 30 30 3235 20 a 0D	RGB Gain/Bias Green Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S017	~XX26 n	7E 30 30 3236 20 a 0D	RGB Gain/Bias Blue Gain	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S018	~XX27 n	7E 30 30 3237 20 a 0D	RGB Gain/Bias Red Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S019~XX28 n		7E 30 30 3238 20 a 0D	RGB Gain/Bias Green Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S020	~XX29 n	7E 30 30 3239 20 a 0D	RGB Gain/Bias Blue Bias	n = -50 (a=2D 35 30) ~ 50 (a=35 30)	Yes Yes Yes
S021~XX34 n		7E 30 30 3334 20 a 0D	BrilliantColorTM	n = 1 (a=30) ~ 10 (a=31 30)	Yes Yes Yes
S022~XX35 1		7E 30 30 3335 20 31 0D	Gamma	Film	Yes Yes Yes
S022	~XX35 2	7E 30 30 3335 20 32 0D	Gamma	Video	Yes Yes Yes

INDEX ASC	CODE HEX	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S022~XX3	5 3	7E 30 30 3335 20 33 0D	Gamma Graphics	Yes Yes Yes
S022~XX3	5 4	7E 30 30 3335 20 34 0D	Gamma Standard	(2.2) Yes Yes Yes
S022~XX3	5 5	7E 30 30 3335 20 35 0D	Gamma 1.8 Yes	Yes Yes
S022~XX3	5 6	7E 30 30 3335 20 36 0D	Gamma 2.0	Yes Yes Yes
S022	~XX35 12	7E 30 30 3335 20 31 310D	Gamma 2.4	Yes Yes Yes
S022~XX3	5 8	7E 30 30 3335 20 38 0D	Gamma 2.6	Yes Yes Yes
S023~XX3	6 4	7E 30 30 3336 20 34 0D	Colour Temp.	Warm	Yes Yes Yes
S023	~XX36 1	7E 30 30 3336 20 31 0D	Colour Temp. Standard	Yes Yes Yes
S023~XX3	6 2	7E 30 30 3336 20 32 0D	Colour Temp.	Cool	Yes Yes Yes
S023~XX3	6 3	7E 30 30 3336 20 33 0D	Colour Temp.	Cold	Yes Yes Yes
S024	~XX37 1	7E 30 30 3337 20 31 0D	Colour Space	Auto	Yes Yes Yes
S024	~XX37 2	7E 30 30 3337 20 32 0D	Colour Space	RGB\RGB	Yes Yes Yes
S024	~XX37 3	7E 30 30 3337 20 33 0D	Colour Space	YUV	Yes Yes Yes
S024	~XX37 4	7E 30 30 3337 20 34 0D	Colour Space	RGB	Yes	Yes	Yes
S025~XX4	4 n	7E 30 30 3435 20 a 0D	Tint	n = -50 (a=2D 35 30)~50 (a=35 30)	Yes Yes Yes
S026~XX4	5 n	7E 30 30 3434 20 a 0D	Colour (Saturation)	n = -50 (a=2D 35 30)~50 (a=35 30)	Yes Yes Yes
S027	~XX46 1	7E 30 30 3436 20 31 0D	Brightness Brightness -	Yes Yes Yes
S027	~XX46 2	7E 30 30 3436 20 32 0D	Brightness Brightness +	Yes Yes Yes
S028	~XX47 1	7E 30 30 3437 20 31 0D	Contrast	Contrast -	Yes Yes Yes
S028	~XX47 2	7E 30 30 3437 20 32 0D	Contrast	Contrast +	Yes Yes Yes
S029	~XX59 1	7E 30 30 3539 20 31 0D	Four corners	top-left (right+)	Yes	Yes	Yes
S029~XX5	9 2	7E 30 30 3539 20 32 0D	Four corners	top-left (left+)	Yes	Yes	Yes
S029~XX5	9 3	7E 30 30 3539 20 33 0D	Four corners	top-left (up +)	Yes	Yes	Yes

INDEX ASCI	ICODE HEXCODE FUNCTION VALUE/RANGE			SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S029 ~XX59 4		7E 30 30 3539 20 34 0D	Four corners top-left (down +) Yes Yes Yes
S029 ~XX59 5		7E 30 30 3539 20 35 0D	Four corners top right (right +) Yes Yes Yes
S029 ~XX59 6		7E 30 30 3539 20 36 0D	Four corners top right (left +) Yes Yes Yes
S029 ~XX59 7		7E 30 30 3539 20 37 0D	Four corners top right (up +)	Yes	Yes	Yes
S029 ~XX59 8		7E 30 30 3539 20 38 0D	Four corners top right (down +)	Yes	Yes	Yes
S029 ~XX59 9		7E 30 30 3539 20 39 0D	Four corners Bottom-left (right+)	Yes	Yes	Yes
S029 ~XX59 10		7E 30 30 3539 20 31 30 0D	Four corners Bottom-left (left+)	Yes	Yes	Yes
S029 ~XX59 11		7E 30 30 3539 20 31 31 0D	Four corners Bottom-left (Up+)	Yes	Yes	Yes
S029 ~XX59 12		7E 30 30 3539 20 31 32 0D	Four corners Bottom-left (down+)	Yes	Yes	Yes
S029 ~XX59 13		7E 30 30 3539 20 31 33 0D	Four corners Bottom-right (right+)	Yes	Yes	Yes
S029 ~XX59 14		7E 30 30 3539 20 31 34 0D	Four corners Bottom-right (left+)	Yes	Yes	Yes
S029 ~XX59 15		7E 30 30 3539 20 31 35 0D	Four corners Bottom-right (Up+)	Yes	Yes	Yes
S029 ~XX59 16		7E 30 30 3539 20 31 36 0D	Four corners Bottom-right (down+)	Yes Yes Yes
S030 ~XX60 1		7E 30 30 3630 20 31 0D	Format (Aspect Ratio)	4:3	Yes Yes
S030 ~XX60 2		7E 30 30 3630 20 32 0D	Format (Aspect Ratio)	16:9	Yes Yes Yes
S030 ~XX60 3		7E 30 30 3630 20 33 0D	Format (Aspect Ratio)	16:10	Yes	No
S030 ~XX60 5		7E 30 30 3630 20 35 0D	Format (Aspect Ratio)	LBX	Yes Yes Yes
S030 ~XX60 6		7E 30 30 3630 20 36 0D	Format (Aspect Ratio)	Native	Yes Yes Yes
S030 ~XX60 7		7E 30 30 3630 20 37 0D	Format (Aspect Ratio)	Auto	Yes Yes Yes
S031 ~XX61 n		7E 30 30 3631 20 a 0D	Edge mask	n = 0 (a=30) - 10 (a=31 30)	Yes Yes Yes
INDEX ASCIICODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S032~XX62 n	7E 30 30 3632 20 a 0D	Zoom	n = -5 (a=2D 35) ~ 25(a=32 35)	Yes Yes Yes
S033~XX63 n	7E 30 30 3633 20 a 0D	H Image Shift	n = -100 (a=2D 31 3030) ~ 100 (a= 31 3030)	Yes Yes Yes
S034~XX64 n	7E 30 30 3634 20 a 0D	V Image Shift	n = -100 (a=2D 31 3030) ~ 100 (a= 31 3030)	Yes Yes Yes
S035~XX65 n	7E 30 30 3635 20 a 0D	H Keystone	n = -30 (a=2D 33 30)~ 30 (a=33 30)	Yes Yes Yes
S036~XX66 n	7E 30 30 3636 20 a 0D	V Keystone	n = -30 (a=2D 33 30)~ 30 (a=33 30)	Yes Yes Yes
S037~XX69 1	7E 30 30 3639 20 31 0D	Auto Keystone On	Yes Yes Yes
S037~XX69 0	7E 30 30 3639 20 30 0D	Auto Keystone	Off (0/2 for backwardcompatible)	Yes Yes Yes
S037~XX70 1	7E 30 30 3730 20 31 0D	Language English	Yes Yes Yes
S037~XX70 2	7E 30 30 3730 20 32 0D	Language	Deutsch	Yes	Yes	Yes
S037~XX70 3	7E 30 30 3730 20 33 0D	Language	Français	Yes Yes Yes
S037~XX70 4	7E 30 30 3730 20 34 0D	Language	Italiana	Yes Yes Yes
S037~XX70 5	7E 30 30 3730 20 35 0D	Language	Español	Yes Yes Yes
S037~XX70 6	7E 30 30 3730 20 36 0D	Language	Português	Yes Yes Yes
S037	~XX70 7	7E 30 30 3730 20 37 0D	Language Polski	Yes Yes Yes
S037~XX70 8	7E 30 30 3730 20 38 0D	Language	Nederlands	Yes Yes Yes
S037~XX70 9	7E 30 30 3730 20 39 0D	Language	Svenska	Yes	Yes	Yes
S037	~XX70 10	7E 30 30 3730 20 31 300D	Language	Norsk/Dansk	Yes	Yes
S037~XX70 11	7E 30 30 3730 20 31 310D	Language	Suomi	Yes Yes Yes
S037	~XX70 12	7E 30 30 3730 20 31 320D	Language	ελληνικά	Yes Yes Yes
S037	~XX70 13	7E 30 30 3730 20 31 330D	Language	繁體中文	Yes Yes Yes

INDEX ASCI	ICODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S037 ~XX70	14	7E 30 30 3730 20 31 340D	Language	简体中文	Yes Yes Yes
S037 ~XX70	15	7E 30 30 3730 20 31 350D	Language	日本語	Yes Yes Yes
S037 ~XX70	16	7E 30 30 3730 20 31 360D	Language	한국어	Yes Yes Yes
S037 ~XX70	17	7E 30 30 3730 20 31 370D	Language	Русский	Yes Yes Yes
S037 ~XX70	18	7E 30 30 3730 20 31 380D	Language Magyar	Yes Yes Yes
S037 ~XX70	19	7E 30 30 3730 20 31 390D	Language Češtin	Yes Yes Yes
S037 ~XX70	20	7E 30 30 3730 20 32 300D	Language	يَبْرِع	Yes Yes Yes
S037 ~XX70	21	7E 30 30 3730 20 32 310D	Language	يُلْنَ	Yes Yes Yes
S037 ~XX70	22	7E 30 30 3730 20 32 320D	Language Türkçe	Yes Yes Yes
S037 ~XX70	23	7E 30 30 3730 20 32 330D	Language	يَسْرِاف	Yes Yes Yes
S037 ~XX70	24	7E 30 30 3730 20 32 340D	Language	हानी	No No No
S037 ~XX70	25	7E 30 30 3730 20 32 350D	Language	Tiếng Việt	Yes	Yes	Yes
S037 ~XX70	26	7E 30 30 3730 20 32 360D	Language	Bahasa Indonesia	Yes	Yes	Yes
S037	~XX70 27	7E 30 30 3730 20 32 370D	Language	Română	Yes	Yes	Yes
S037 ~XX70	28	7E 30 30 3730 20 32 380D	Language	Slovenčina	Yes	Yes	Yes
S037 ~XX70	29	7E 30 30 3730 20 32 390D	Language	Pilipino No No No
INDEX ASCI	CODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S037~XX70	30	7E 30 30 3730 20 33 300D	Language Melayu	No No No
S037~XX70	31	7E 30 30 3730 20 33 310D	Language	बांगला	No No No
S039~XX71	11	7E 30 30 3731 20 31 0D	Projection	Front	Yes	Yes	Yes
S039	~XX71 2	7E 30 30 3731 20 32 0D	Projection	Rear	Yes	Yes	Yes
S039	~XX71 3	7E 30 30 3731 20 33 0D	Projection	Front-Ceiling	Yes	Yes	Yes
S039	~XX71 4	7E 30 30 3731 20 34 0D	Projection	Rear-Ceiling	Yes	Yes	Yes
S040	~XX72 1	7E 30 30 3732 20 31 0D	Menu Location	Top Left	Yes	Yes	Yes
S040	~XX72 2	7E 30 30 3732 20 32 0D	Menu Location	Top Right	Yes	Yes	Yes
S040	~XX72 3	7E 30 30 3732 20 33 0D	Menu Location	Centre	Yes	Yes	Yes
S040	~XX72 4	7E 30 30 3732 20 34 0D	Menu Location	Bottom Left	Yes	Yes	Yes
S040	~XX72 5	7E 30 30 3732 20 35 0D	Menu Location	Bottom Right	Yes	Yes	Yes
S041	~XX73 n	7E 30 30 3733 20 a 0D	Signal Frequency	n = -10 (a=2D 31 30) ~10 (a=31 30) By signal	Yes	Yes	Yes
S042	~XX74 n	7E 30 30 3734 20 a 0D	Signal Phase	n = 0 (a=30) ~ 31(a=33 31) By signal	Yes	Yes	Yes
S043	~XX75 n	7E 30 30 3735 20 a 0D	Signal H. Position	n = -5 (a=2D 35) ~ 5(a=35) By timing	Yes	Yes	Yes
S044	~XX76 n	7E 30 30 3736 20 a 0D	Signal V. Position	n = -5 (a=2D 35) ~ 5(a=35) By timing	Yes	Yes	Yes
S045	~XX77 n	7E 30 3037 37 20aabbcc 0D	Security SecurityTimer Month/Day/Hour	“n = mm/dd/hh mm=00 (aa=30 30) ~12 (aa=31 32) dd= 00 (bb=30 30) ~30 (bb=33 30) hh=00 (cc=30 30) ~ 24(cc=32 34)”	Yes	Yes	Yes
S046	~XX78 1~nnnn	7E 30 30 3738 20 31 0D	Security	"On with password~nnnn = ~0000 (a= 7E30 30 30 30) ~9999(a=7E 39 39 39 39)”	Yes	Yes	Yes
S046	~XX78 0~nnnn	7E 30 30 3738 20 32 20a 0D	Security	“Off (0/2 forbackwardcompatible) withpassword ~nnnn =~0000 (a= 7E 30 3030 30) ~9999 (a=7E39 39 39 39)”	Yes	Yes	Yes

INDEX ASCI	ICODE HEXCODE FUNCTION VALUE/RANGE			SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S047~XX79 n	7E 30 30 3739 20 a 0D	Projector ID	n = 00 (a=30 30) ~ 99(a=39 39)	No No No
S048~XX801	7E 30 30 3830 20 31 0D	Mute On Yes Yes Yes
S048~XX800	7E 30 30 3830 20 30 0D	Mute	Off (0/2 for backward compatible)	Yes Yes Yes
S049~XX81 n	7E 30 30 3831 20 a 0D	Volume (Audio)	n = 0 (a=30) ~ 10(a=31 30)	Yes Yes Yes
S050~XX821	7E 30 30 3832 20 31 0D	Logo	Default	Yes	Yes	Yes
S050	~XX82 2	7E 30 30 3832 20 32 0D	Logo	User	No No No
S050	~XX82 3	7E 30 30 3832 20 33 0D	Logo	Neutral	Yes	Yes
S051~XX880	7E 30 30 3838 20 30 0D	Closed Captioning	Off	Yes	Yes	Yes
S051	~XX88 1	7E 30 30 3838 20 31 0D	Closed Captioning	CC1 Yes Yes Yes
S051~XX88 2	7E 30 30 3838 20 32 0D	Closed Captioning	CC2	Yes Yes Yes
S052~XX901	7E 30 30 3931 20 31 0D	"Screen Type(Only for WXGA/WUXGA)"	16:10	Yes No Yes
S052~XX900	7E 30 30 3931 20 30 0D	-	16:9	Yes	No	Yes
S053	~XX911	7E 30 30 3931 20 31 0D	Signal Automatic	On	Yes Yes Yes
S053~XX910	7E 30 30 3931 20 30 0D	Signal Automatic	Off	Yes	Yes	Yes
S054	~XX1011	7E 30 30 3130 31 20 31 0D	High Altitude	On	Yes	Yes
S054~XX1010	7E 30 30 3130 31 20 30 0D	High Altitude	Off (0/2 for backward compatible)	Yes Yes Yes
S055~XX1021	7E 30 30 3130 32 20 31 0D	Information Hide	On	No No No
S055	~XX102 0	7E 30 30 3130 32 20 30 0D	Information Hide	Off (0/2 for backward compatible)	No No No
S056~XX1031	7E 30 30 3130 33 20 31 0D	Keypad Lock	On	No	No	No
S056	~XX103 0	7E 30 30 3130 33 20 30 0D	Keypad Lock	Off (0/2 for backward compatible)	No No No
INDEX ASCIICODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S057~XX104 0	7E 30 30 3130 34 20 300D	Background Color None Yes Yes Yes
S057~XX104 1	7E 30 30 3130 34 20 310D	Background Color Blue Yes Yes Yes
S057~XX104 3	7E 30 30 3130 34 20 330D	Background Color	Red	Yes	Yes	Yes
S057~XX104 4	7E 30 30 3130 34 20 340D	Background Color	Green	Yes	Yes	Yes
S057~XX104 6	7E 30 30 3130 34 20 360D	Background Color	Gray	Yes	Yes	Yes
S057	~XX104 7	7E 30 30 3130 34 20 370D	Background Color	Logo	Yes	Yes
S058~XX105 1	7E 30 30 3130 35 20 310D	Direct Power On	On	Yes	Yes	Yes
S058~XX105 0	7E 30 30 3130 35 20 300D	Direct Power On	Off (0/2 for backward compatible)	Yes Yes Yes
S059~XX106 n	7E 30 30 3130 36 20 a0D	"Auto Power Off(min)" (5 minutes for each step)."	n = 0 (a=30) ~ 180(a=31 38 30)	Yes Yes Yes
S060	~XX107 n	7E 30 30 3130 37 20 a0D	"Sleep Timer (min)" (30 minutes for each step)."	n = 0 (a=30) ~ 990(a=39 39 30)	No	No
S061	~XX109 1	7E 30 30 3130 39 20 310D	Lamp Reminder	On	No	No
	~XX109 0	7E 30 30 3130 39 20 300D	Lamp Reminder	Off (0/2 for backward compatible)	No	No
S062	~XX110 1	7E 30 30 3131 30 20 310D	Brightness Mode	Bright	No	No
	~XX110 2	7E 30 30 3131 30 20 320D	Brightness Mode	Eco	Yes	Yes
	~XX110 4	7E 30 30 3131 30 20 340D	Brightness Mode	Dynamic Yes Yes	Yes
	~XX110 6	7E 30 30 3131 30 20 360D	Brightness Mode	Power	Yes	Yes

INDEX ASCI	CODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S063 ~XX111	1	7E 30 30 3131 31 20 310D	Lamp Reset Yes No No No
S064 ~XX121	2	7E 30 30 3131 32 20 310D	Reset to Default Yes(P.S When security is off)	"Yes with no password (Security is Off)"	Yes Yes Yes
S065	~XX112 1~nnnn	7E 30 30 3131 32 20 310D	Reset to Default Yes(P.S When security is On/ Off)	"Yes with no password (Security is Off)"	Yes Yes Yes
S066 ~XX131	1	7E 30 30 3131 33 20 310D	Signal Power On	On	Yes	Yes	Yes
	~XX113 0	7E 30 30 3131 33 20 300D	Signal Power On	Off (0/2 for backward compatible)	Yes Yes Yes
S067	~XX114 1	7E 30 30 3131 34 20 310D	Power Mode(Standby)	Active	Yes Yes Yes
	~XX114 0	7E 30 30 3131 34 20 300D	Power Mode(Standby)	Eco. (<0.5W)	Yes Yes Yes
S068 ~XX151	1	7E 30 30 3131 35 20 310D	Quick Resume	On	No No No
	~XX115 0	7E 30 30 3131 35 20 300D	Quick Resume	Off (0/2 for backward compatible)	No No No
S069	~XX140 10	7E 30 30 3134 30 20 3130 0D	IR Function	Up	Yes Yes Yes
	~XX140 11	7E 30 30 3134 30 20 3131 0D	IR Function Left	Yes Yes Yes
	~XX140 12	7E 30 30 3134 30 20 3132 0D	IR Function	Enter (for Projection MENU)	Yes Yes Yes
	~XX140 13	7E 30 30 3134 30 20 3133 0D	IR Function	Right	Yes Yes Yes
	~XX140 14	7E 30 30 3134 30 20 3134 0D	IR Function	Down	Yes	Yes	Yes
	~XX140 15	7E 30 30 3134 30 20 3135 0D	IR Function	Keystone +	Yes Yes Yes
	~XX140 16	7E 30 30 3134 30 20 3136 0D	IR Function	Keystone -	Yes Yes Yes
INDEX ASCI	CODE HEX	CODE FUNCTION	VALUE/RANGE
	~XX140 17	7E 30 30 3134 30 20 3137 0D	IR Function Volume - Yes Yes Yes
	~XX140 18	7E 30 30 3134 30 20 3138 0D	IR Function Volume + Yes Yes Yes
	~XX140 19	7E 30 30 3134 30 20 3139 0D	IR Function Brightness Yes Yes Yes
	~XX140 20	7E 30 30 3134 30 20 3230 0D	IR Function Menu Yes Yes Yes
	~XX140 21	7E 30 30 3134 30 20 3231 0D	IR Function Zoom Yes Yes Yes
	~XX140 28	7E 30 30 3134 30 20 3238 0D	IR Function	Contrast	Yes Yes Yes
	~XX140 47	7E 30 30 3134 30 20 3437 0D	IR Function	Source	Yes Yes Yes
S070	~XX195 0	7E 30 30 3139 35 20 300D	Test Pattern	Off	Yes	Yes	Yes
	~XX195 1	7E 30 30 3139 35 20 310D	Test Pattern	Grid (White)	Yes	Yes	Yes
	~XX195 2	7E 30 30 3139 35 20 320D	Test Pattern	White	Yes	Yes	Yes
	~XX195 3	7E 30 30 3139 35 20 330D	Test Pattern	Grid (Green)	Yes	Yes	Yes
	~XX195 4	7E 30 30 3139 35 20 340D	Test Pattern	Grid (Magenta)	Yes	Yes	Yes
S071	~XX200 n	7E 30 30 3230 30 20 a0D	White level	n = 0 (a=30) - 31(a=33 31)	No	No	No
S072	~XX201 n	7E 30 30 3230 31 20 a0D	Black level	n = -5 (a=2D 35) - 5(a=35)	No	No	No
S073	~XX204 1	7E 30 30 3230 34 20 310D	IRE	0	No	No	No
	~XX204 0	7E 30 30 3230 34 20 300D	IRE	7.5	No	No	No
INDEX ASCI	CODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S074 -XX210 n		7E 30 30 3230 30 20 n0D	Display message onthe OSD	n: 1-30 characters Yes Yes Yes
S075 -XX215 1		7E 30 30 3231 35 20 310D	Colour Setting Reset Yes Yes Yes
S076 -XX230 0		7E 30 30 3233 30 20 300D	3D Mode Off	Yes Yes Yes
	~XX230 1	7E 30 30 3233 30 20 310D	3D Mode	DLP-Link	Yes	Yes	Yes
S077	~XX231 0	7E 30 30 3233 31 20 300D	3D Sync Invert	Off	Yes	Yes	Yes
	~XX2311	7E 30 30 3233 31 20 310D	3D Sync Invert	On	Yes Yes Yes
S078 -XX313 1		7E 30 30 3331 33 20 310D	Information Menu	On	Yes Yes Yes
	~XX313 0	7E 30 30 3331 33 20 300D	Information Menu	Off (0/2 for backwardcompatible)	Yes Yes Yes
S079	~XX320 1	7E 30 30 3332 30 20 310D	Optional FilterInstalled	Yes	No	No	No
	~XX320 0	7E 30 30 3332 30 20 300D	Optional FilterInstalled	No (0/2 for backwardcompatible)	No	No	No
S080	~XX322 0	7E 30 30 3332 32 20 300D	Filter Reminder	Off	No	No	No
	~XX322 1	7E 30 30 3332 32 20 310D	Filter Reminder	300hr	No	No	No
	~XX322 2	7E 30 30 3332 32 20 320D	Filter Reminder	500hr	No	No	No
	~XX322 3	7E 30 30 3332 32 20 330D	Filter Reminder	800hr	No	No	No
	~XX322 4	7E 30 30 3332 32 20 340D	Filter Reminder	1000hr	No	No	No
S081 -XX323 1		7E 30 30 3332 33 20 310D	Filter Reset	Yes	No	No	No
INDEX ASCIICODE HEXC		CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S082~XX327 n		7E 30 30 3332 37 20 a0D	Colour Setting RedHue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S083~XX328 n		7E 30 30 3332 38 20 a0D	Colour SettingGreen Hue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S084~XX329 n		7E 30 30 3332 39 20 a0D	Colour Setting BlueHue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S085~XX330 n		7E 30 30 3333 30 20 a0D	Colour Setting CyanHue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S086~XX331 n		7E 30 30 3333 31 20 a0D	Colour SettingYellow Hue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S087~XX332 n		7E 30 30 3333 32 20 a0D	Colour SettingMagenta Hue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S088~XX333 n		7E 30 30 3333 33 20 a0D	Colour Setting RedStutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S089~XX334 n		7E 30 30 3333 34 20 a0D	Colour SettingGreen Stutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S090~XX335 n		7E 30 30 3333 35 20 a0D	Colour Setting BlueStutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S091~XX336 n		7E 30 30 3333 36 20 a0D	Colour Setting CyanStutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S092~XX337 n		7E 30 30 3333 37 20 a0D	Colour SettingYellow Stutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S093~XX338 n		7E 30 30 3333 38 20 a0D	Colour SettingMagenta Stutation	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S094~XX339 n		7E 30 30 3333 39 20 a0D	Colour Setting RedGain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S095~XX340 n		7E 30 30 3334 30 20 a0D	Colour SettingGreen Gain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S096~XX341 n		7E 30 30 3334 31 20 a0D	Colour Setting BlueGain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S097~XX342 n		7E 30 30 3334 32 20 a0D	Colour Setting CyanGain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes

INDEX ASCI	CODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S098 ~XX3	43 n	7E 30 30 3334 33 20 a0D	Colour SettingYellow Gain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S099 ~XX3	44 n	7E 30 30 3334 34 20 a0D	Colour SettingMagenta Gain	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S100 ~XX3	45 n	7E 30 30 3334 35 20 a0D	Colour SettingWhite Red	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S101 ~XX3	46 n	7E 30 30 3334 36 20 a0D	Colour SettingWhite Green	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S102 ~XX3	47 n	7E 30 30 3334 37 20 a0D	Colour SettingWhite Blue	n = -50 (a=2D 35 30)~ 50 (a=35 30)	Yes Yes Yes
S103 ~XX3	48 1	7E 30 30 3334 38 20 310D	Display Mode Lock On No No		No
S103	~XX348 0	7E 30 30 3334 38 20 300D	Display Mode Lock	Off	No	No	No
S104	~XX400 0	7E 30 30 3430 30 20 300D	3D→2D	3D	Yes	Yes	Yes
S104	~XX400 1	7E 30 30 3430 30 20 310D	3D→2D	L	Yes	Yes	Yes
S104	~XX400 2	7E 30 30 3430 30 20 320D	3D→2D	R	Yes	Yes	Yes
S105	~XX405 0	7E 30 30 3430 35 20 300D	3D Format Auto	Yes Yes Yes
S105	~XX405 1	7E 30 30 3430 35 20 310D	3D Format	SBS	Yes Yes Yes
S105	~XX405 2	7E 30 30 3430 35 20 320D	3D Format	Top and Bottom	Yes Yes Yes
S105	~XX405 3	7E 30 30 3430 35 20 330D	3D Format	Frame Sequential Yes Yes Yes
S106 ~XX5	06 0	7E 30 30 3530 36 20 300D	Wall Colour OFF (Whiteboard) Yes Yes Yes
S106	~XX506 1	7E 30 30 3530 36 20 310D	Wall Colour	Blackboard	Yes	Yes	Yes
INDEX ASC	CODE HEXC	CODE FUNCTION	VALUE/RANGE		SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
S106 ~XX5	06 7	7E 30 30 3530 36 20 370D	Wall Colour Light	Yellow Yes Yes Yes
S106 ~XX5	06 3	7E 30 30 3530 36 20 330D	Wall Colour Light	Green Yes Yes Yes
S106 ~XX5	06 4	7E 30 30 3530 36 20 340D	Wall Colour Light	Blue Yes Yes Yes
S106 ~XX5	06 5	7E 30 30 3530 36 20 350D	Wall Colour Pink	Yes Yes Yes
S106 ~XX5	06 6	7E 30 30 3530 36 20 360D	Wall Colour	Gray	Yes	Yes	Yes
S107	~XX511 0	7E 30 30 3531 31 20 300D	HDMI Link(CEC)	Off (0/2 for backward compatible)	Yes Yes Yes
S107	~XX511 1	7E 30 30 3531 31 20 310D	HDMI Link(CEC)	On	Yes	Yes	Yes
S108 ~XX5	63 0	7E 30 30 3536 33 20 300D	Auto Source	Off (0/2 for backward compatible)	Yes Yes Yes
S108	~XX563 1	7E 30 30 3536 33 20 310D	Auto Source	On	Yes	Yes	Yes

13.2.2 SENT FROM PROJECTOR AUTOMATICALLY

INDEX ASC	CODE HEXC	CODE FUNCTION	PROJECTORR	RETURN	SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
A001	N/A	N/A	“Projector Informationa=0, Standbya=1, Warminga=2, Coolinga=3, Out of Rangea=6, Fan Locka=7, Over Temperaturea=8, Lamp(SSI)Hours Running Out”	INFOa	Yes Yes Yes

13.2.3 RS232 CODES READ FROM PROJECTOR

INDEX ASCIICODE		HEXCODE	FUNCTION PROJECTORRETURN	SP2234P2234ST	SP2236SP2236ST	SP2238SP2238ST
R001~XX871		7E 30 3038 37 2031 0D	LAN Settings /Network State	Oka (a=0 Disconnecteda=1 Connected)	Yes Yes	Yes
R002~XX873		7E 30 3038 37 2033 0D	LAN Settings /IPAddress	Okaaa_bbb_ccc_ddd Yes	Yes Yes
R003~XX1081		7E 30 3031 30 3820 31 0D	“Lamp Hoursaaaa=(5 digits) TotalLamp Hours”	Okaaaaa Yes Yes Yes
R004~XX1211		7E 30 3031 32 3120 31 0D	“Input SourceCommandsa=0, Nonea=7, HDMI (HDMI1)a=2, VGaa=4, S-Videoa=5, Videoa=8, HDMI 2”	Oka Yes Yes Yes
R005~XX1221		7E 30 3031 32 3220 31 0D	“Software Versionaaaa=SoftwareVersion”	Okaaaa	Yes Yes Yes
R006~XX1231		7E 30 3031 32 3320 31 0D	“Display Modea=0, Nonea=1, Presentationa=2, Brighta=3, Movie (Cinema)a=4, sRGBa=5, Usera=9, 3Da=12, Gamea=13, DICOM SIM.a=22, HDR SIM.a=26, HLG SIM.”	Oka Yes Yes Yes
R007~XX1241		7E 30 3031 32 3420 31 0D	“Power Statea=0, Offa=1, On”	Oka Yes Yes Yes
R008~XX1251		7E 30 3031 32 3520 31 0D	“Brightnessaaa=-50~+50”	Okaaa	Yes Yes Yes
R009~XX1261		7E 30 3031 32 3620 31 0D	“Contrastaaa=-50~+50”	Okaaa	Yes Yes Yes
R010~XX1271		7E 30 3031 32 3720 31 0D	“Aspect Ratioaa=0, Noneaa=1, 4:3aa=2, 16:9aa=3, 16:10aa=5, LBXaa=6, Nativeaa=7, Auto”	Okaa	Yes	Yes Yes
INDEX ASCIICODE		HEXCODE	FUNCTION PROJECTORRETURN	SP2234SP2234ST	SP2236SP2236ST	SP2238SP2238ST
R011~XX128 1		7E 30 3031 32 3820 31 0D	“Color Temperaturea=0, Standarda=1, Coola=2, Coldα=3, Warm”	Oka Yes Yes Yes
R012~XX129 1		7E 30 3031 32 3920 31 0D	“Projection Modea=0, Fronta=1, Reara=2, Front-Ceilingα=3, Rear - Ceiling”	Oka Yes Yes Yes
R013~XX150 1		7E 30 3031 35 3020 31 1D	“Informationα=Power Statusα=0, Power Offα=1, Power Onbbbbb=Lamp Hourscc=Input Sourcecc=00, Nonecc=02, VGAcc=05, Videocc=07, HDMI 1cc=08, HDMI 2dddd=Software Versionee=Display Modeee=00, Noneee=01, Presentationee=02, Brightee=03, Movie (Cinema)ee=04, sRGBee=05, Useree=09, 3Dee=10, DICOM SIM.ee=12, Gameee=22, HDR SIM.ee=26, HLG SIM.”	Okabbbb bcc ddddee Yes	Yes Yes
R014~XX150 4		7E 30 3031 35 3020 34 0D	“Resolutionα=string (e.g. Ok1920×1080)”	Oka Yes Yes Yes
R020~XX150 16		7E 30 3031 35 3020 31 360D	“Standby Power Modea=0, Eco.a=1, Active”	Oka Yes Yes Yes
R015~XX150 19		7E 30 3031 35 3020 31 390D	“Refresh rateα=string (e.g. Ok60Hz)”	Oka Yes Yes Yes
INDEX ASCIICODE		HEXCODE	FUNCTION PROJECTORRETURN	SP2234P2234ST	SP2236SP2236ST	SP2238SP2238ST
R016 ~XX1511		7E 30 3031 35 3120 31 0D	“Model Namea=1, SVGAa=2, XGAa=3, WXGAa=4, 1080pa=5, WUXGA”	Oka Yes Yes Yes
R017 ~XX3211		7E 30 3033 32 3120 31 0D	“Filter Usage Hoursaaaa=00000-99999”	Okaaaaa No No No
R018 ~XX3521		7E 30 3033 35 3220 31 0D	“System Temperatureaaa=000-999”	Okaaa Yes Yes Yes
R019 ~XX3531		7E 30 3033 35 3320 31 0D	“Serial Numbera=string”	Oka Yes Yes Yes
R020 ~XX3551		7E 30 3033 35 3520 31 0D	“AV Mutea=0, Offa=1, On”	Oka Yes Yes Yes
R021 ~XX3561		7E 30 3033 35 3620 31 0D	“Mutea=0, Offa=1, On”	Oka Yes Yes Yes
R022 ~XX5431		7E 30 3035 34 3320 31 0D	“H Image Shiftaaaa=-100~+100”	Okaaaa Yes Yes Yes
R023	~XX543 2	7E 30 3035 34 3320 32 0D	“V Image Shiftaaaa=-100~+100”	Okaaaa Yes Yes Yes
R024	~XX543 3	7E 30 3035 34 3320 33 0D	“V Keystoneaaa=-40~+40”	Okaaa Yes Yes Yes
R025	~XX543 4	7E 30 3035 34 3320 34 0D	“H Keystoneaaa=-40~+40”	Okaaa Yes Yes Yes
R026 ~XX5551		7E 30 3035 35 3520 31 0D	LAN MAC Address	Ok##:###:###:###:###	Yes Yes Yes
R027	~XX5581	7E 30 3035 35 3820 31 0D	“Projector IDaa=00-99”	Okaa	Yes Yes Yes

13.3 SUPPORTED RESOLUTIONS AND REFRESH RATES

Video Compatibility

NTSC NTSC M/J, 3.58MHz, 4.43MHz

PAL PAL B/D/G/H/I/M/N, 4.43MHz

SECAM SECAM B/D/G/K/K1/L, 4.25/4.4 MHz

SDTV 480i/p, 576i/p

HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)

Note Video timing detail

Signal Resolution Refresh Rate(Hz) Notes
TV(NTSC)	720×480	60	For Composite Video /S-video
TV(PAL,SECAM)	720×576	50
SDTV(480I)	720×480	60	For Component
SDTV(480P)	720×480	60
SDTV(576I)	720×576	50
SDTV(576P)	720×576	50
HDTV(720p)	1280×720	50/60
HDTV(1080I)	1920×1080	50/60
HDTV(1080p)	1920×1080	24/50/60

True 3D Video Compatibility table

Input Resolutions	HDMI 1.4a 3D Input	Input timing
		1280×720P @ 50Hz Top-and-Bottom
		1280×720P @ 60Hz Top-and-Bottom
		1280×720P @ 50Hz	Frame packing
		1280×720P @ 60Hz	Frame packing
		1920×1080i @50 Hz	Side-by-Side (Half)
		1920×1080i @60 Hz	Side-by-Side (Half)
		1920×1080P @24 Hz	Top-and-Bottom
		1920×1080P @24 Hz	Frame packing
	HDMI 1.3	1920×1080i @ 50Hz	Side-by-Side(Half)	SBS mode is on
		1920×1080i @ 60Hz
		1280×720P @50Hz
		1280×720P @60Hz
		800×600 @ 60Hz
		1024×768 @ 60Hz

Input Resolutions HDMI 1.3	1920×1080i @ 50Hz	Top-and-Bottom TAB mode is on
	1920×1080i @ 60Hz
	1280×720P @50Hz
	1280×720P @60Hz
	800×600 @ 60Hz
	1024×768 @ 60Hz
	480i HQFS		3D format is Frame sequential

If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode Support NVIDIA 3DTV Play if there is no patent fee from InFocus

Note 1080i@25Hz and 720p@50Hz will run in 100Hz; other 3D timing will run in 120Hz.

VESA standards

Computer Signal (Analog RGB Compatible)

Signal Resolution	Refresh Rate(Hz) Notes for Mac
VGA 640×480	60/67/72/85 Mac 60/72/85/
SVGA 800×600		56/60(*2)/72/85/120(*2)
XGA	1024×768	48/50/60(*2)/70/75/85/120(*2)
HDTV(720P)	1280×720	50/60(*2)/120(*2)
WXGA	1280×768	60/75/85
	1280×800	48/50/60
WXGA(*3)	1366×768	60
SXGA	1280×1024	60/75/85
SXGA+	1400×1050	60
UXGA 1600×1200		60
HDTV(1080p)	1920×1080	24/50/60
WUXGA	1920×1200(*1)	60/50hz

(*1) 1920×1200 @60Hz only support RB (reduced blanking)
(*2) Support 3D timing for 3D Ready projector (STD) and True 3D projector (Option)
(*3) Window 10 standard timing

13.4 ON SCREEN DISPLAY (OSD) MENU TREE


SETTING 1 SETTING	2 SETTING 3 VALUES	COMMENTS
Picture Mode			Presentation	1. RGB source default: Presentation2. YUV source default: Movie3. 3D on default: 3D4. ISF Day and ISF Night are valid while ISF Mode is On or Unlock
			Bright
			Movie
			sRGB
			DICOM SIM.
			User
			3D
			ISF Day
			ISF Night
Wall Colour			Whiteboard
			Blackboard
			Light Yellow
			Light Green
			Light Blue
			Pink
			Gray
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Colour -50 ~ 50 Only for YUV source
Tint			-50 ~ 50	Only for YUV source
Advanced	Gamma		Film	1. Picture Mode is DICOM SIM. Gamma item will be hide.2. Wall Colour is Blackboard. Gamma item will be hide.
			Video
			Graphics
			Standard (2.2)
			1.8
			2.0
			2.4
	BrilliantColorTM		1 ~ 10
	Colour Temp		Warm
			Medium
			Cold
	Colour Settings	Red- Hue	-50 ~ 50
		Red- Saturation	-50 ~ 50
		Red- Gain	-50 ~ 50
		Exit
Advanced	Colour Settings	Green- Hue -50 ~ 50
		Green- Saturation -50 ~ 50
		Green- Gain -50 ~ 50
		Exit
		Blue- Hue -50 ~ 50
		Blue- Saturation -50 ~ 50
		Blue- Gain -50 ~ 50
		Exit
		Cyan- Hue -50 ~ 50
		Cyan-Saturation -50 ~ 50
		Cyan- Gain -50 ~ 50
		Exit
		Magenta- Hue -50 ~ 50
		Magenta- Saturation	-50 ~ 50
		Magenta- Gain -50 ~ 50
		Exit
		Yellow- Hue	-50 ~ 50
		Yellow- Saturation	-50 ~ 50
		Yellow- Gain	-50 ~ 50
		Exit
		White- Red	-50 ~ 50
		White- Green	-50 ~ 50
		White- Blue	-50 ~ 50
		Exit
		Reset
		Exit
	RGB Gain/Bias	Red Gain	-50 ~ 50
		Green Gain -50 ~ 50
		Blue Gain	-50 ~ 50
		Red Bias	-50 ~ 50
		Green Bias -50 ~ 50
		Blue Bias	-50 ~ 50
		Reset
		Exit
	Colour Space		AUTO
			RGB	Only for non-HDMI source
			RGB (0~255)	Only for HDMI source
			RGB (16~235)	Only for HDMI source
			YUV
Advanced	White Level 0 ~ 31 Only for Video
	Black Level -5 ~ 5 Only for Video
	IRE		0 For Video Input Source	NTSC Signal default: 7.5PAL Signal default: 0IRE Adjustment Only for NTSC-M/NTSC-J/NTSC-4.43/PAL-M/PAL-60
			7.5
	Signal	Automatic	Off	Only for Analog VGA source
			On
		Phase 0 ~ 31
		Frequency -10 ~ 10
		H. Position -5 ~ 5
		V. Position -5 ~ 5
		Exit
	Exit

Display

INFORMATION

Zoom has a total of 30 step adjustment, each step representing 0.04× adjustment from -0.8 to 2.0× Brightness Power, each step represents 5% power adjustment from 100% to 50%

SETTING 1 SETTING	2 SETTING 3 VALUES	COMMENTS
Format			4:3
			16:9	For all models but WXGA models depend on Screen Type selection
			16:10	Only for WXGA models depend on Screen Type selection
			LBX Only for WXGA, 1080p models.
			Native Original image without any scaling
			Auto
Edge Mask 0 ~ 10
Zoom			-5 ~ 25
Image Shift	H		-100 ~ 100 One step: 2
	V		-100 ~ 100 One step: 2
	Exit
V Keystone			-40 ~ 40 for RT
			-20 ~ 20 (TBD)	for STNote: the V keystone range of 1080p ST: -10~10 in 3D mode by DDP4422 limitation
3D	3D Mode		Off
			DLP-Link
	3D-2D		3D
			L Only display left frame
			R Only display right frame
	3D Format		Auto
			SBS SBS = Side by Side Half
			Top and Bottom
			Frame Sequential
	3D Sync. Invert		Off
			On
	Exit
Enhanced Gaming			Off	1. Only for 1920x1080 60Hz timing2. Disable Keystone/Overscan/Zoom/Image Shift/Aspect Ratio when turn On
			On
Picture Mode Lock			Off
			On

Audio

SETTING 1 SETTING 2 SETTING 3 VALUES
Mute -	-	Off / On (ICON)
Volume	-	-	0-10

Setup

INFORMATION

Power Mode, Eco/Active – Eco disables LAN and puts USB in to standby mode, Active leaves LAN active and USB in to standby

SETTING 1 SETTING	2 SETTING 3 VALUE	Remark
Language			English English
			Deutsch German
			Français French
			Svenska Swedish
			Español Spanish
			Português Portuguese
			Polski Polish
			Nederlands Dutch
			हर्दी	Hindi
			Norsk/Dansk Norwegian	/Danish
			Pilipino Filipino
			Melayu Malay
			Română Romanian
			Italiana Italian
			简体中文	Simplified Chinese
			Suomi Finnish
			ελληνικά	Greek
			Русский	Russian
			Magyar	Hungarian
			Čeština	Czech
			يَبْرِع	Arabic
			‘الله’	Thai
			Türkçe	Turkish
			يُسْرَاف	Farsi
			Tiếng Việt	Vietnamese
			Bahasa Indonesia	Indonesian
			बांश्ला	Bengali
Projection			Front (ICON)
			Rear (ICON)
			Front–Ceiling (ICON)
			Rear–Ceiling (ICON)
Menu Location			Top-Left (ICON)
			Top-Right (ICON)Center (ICON)
Menu Location
			Bottom-Left (ICON)
			Bottom-Right (ICON)
Screen Type			16:10	1. Only for WXGA models2. Relate to Format
			16:9
Security	Security		Off	Default PIN: 1234
			On
	Security Timer	Month 0 ~ 12
		Day 0 ~ 30
		Hour 0 ~ 24
	Change Password	PIN is 4 digitals
Project ID 0 ~ 99
Audio Settings	Mute		Off
			On
	Volume 0 ~ 10
	Audio Input		Default	Only for HDMI source
			AUDIO IN
	Exit
HDMI Link Settings	HDMI Link		Off
			On
	Power On Link		Mutual
			PJ -> Device
			Device -> PJ
	Power Off Link		Off
			On
Network	Network State Connect/Disconnect		DHCP Off, default IP configure	setting:IP Address: 192.168.0.100Subnet Mask: 255.255.255.0Gateway: 192.168.0.254DNS: 192.168.0.1Support Network Functions:Crestron 2.0 => Port 41794Extron => Port 2023AMX Device Discovery => Port9131PJ Link => Port 4352Telnet => Port 23HTTP => Port 80, WebpageControl
	DHCP		Off
			On
	IP Address		xxx.xxx.xxx.xxx
	Subnet mask		xxx.xxx.xxx.xxx
	Gateway		xxx.xxx.xxx.xxx
	DNS xxx.xxx.xxx.xxx
	Apply	Yes
		No
	Exit
Advanced	Logo		Default
			Neutral	Same as below BackgroundColour setting
Advanced	Background Colour		Black
			Red
			Blue
			Green
			White
			Logo
	Information Hide		Off	Warning message & power off not hide
			On
	Exit

OPTIONS

SETTING 1 SETTING	2 SETTING 3 VALUE	COMMENTS
Input Source			VGA
			Video
			HDMI 1
			HDMI 2
			Exit
Auto Source			Off
			On
High Altitude			Off
			On
Keypad Lock			Off	1. Keypad unlock hotkey:Press the "Enter" key on keypad for 5s to release keypad lock2. Relate to IR Function:If Keypad Lock setting from Off to On, IR Function will be automatically changed to On.
			On
Test Pattern			Red Grid
			Green Grid
			Blue Grid
			White
Remote Settings	IR Function		Off Relate to Keypad Lock:
			On	If IR Function setting from On to Off, Keypad Lock will be automatically changed to Off.
	User 1		AV Mute	Executed through the "AV Mute" key on the remote control
			Wall Colour
			Brightness
			Contrast
			Gamma
SETTING 1 SETTING	2 SETTING 3 VALUE COMMENTS
Remote Settings User 1			Colour Temp.	Executed through the "AV Mute" key on the remote control
			Colour Settings
			RGB Gain/Bias
			Language
			Projection
			Security
			Test Pattern
			Auto Power Off (min)
			Sleep Timer (min)
			Lamp Settings
			INFO
Advanced	Direct Power On		Off
			On
	Signal Power On		Off
			On
	Auto Power Off (min)		0 ~ 180	One step: 5
	Sleep Timer (min) 0 ~ 990 One step: 30
	Quick Resume		Off
			On
	VGA Out (Standby)		Off
			On
	USB Power		Off	Standby not supported
			On
	Exit
Lamp Settings	Lamp Hours (Display Only) Range 0~99999
	Lamp Reminder		Off
			On
	Brightness Mode		Bright
			Eco
			Dynamic
	Lamp Reset		No
			Yes
	Exit
Reset			No
			Yes

Information

INFORMATION

The information menu provides information on the active source and other details of the projector, there are no adjustable settings in this section of the menu.

SETTING 1 SETTING	2 SETTING 3 VALUE	Remark
Regulatory			P122 for RTP123 for ST
Serial Number (DisplayOnly)
Input Source (DisplayOnly)
Resolution (DisplayOnly)
Refresh Rate (DisplayOnly)
Picture Mode (DisplayOnly)
Lamp Hours	Bright (DisplayOnly) Range 0~99999
	Eco. (DisplayOnly) Range 0~99999
	Dynamic (DisplayOnly) Range 0~99999
	Total		(DisplayOnly)	Range 0~99999
Brightness Mode			(DisplayOnly)
Firmware Version	System		(DisplayOnly)
	MCU		(DisplayOnly)
Project ID			(DisplayOnly)

INFORMATION

All specifications are subject to change without notice.

14.1 VISTA, P122 & P123, SPECIFICATIONS

	SP2234 SP2236 SP2238			SP2234ST SP2236ST SP2238ST
Product Series VISTA
Display Technology Texas Instruments DLP*
Panel Size 0.55" DMD 0.65" DMD 0.65" DMD 0.55" DMD 0.65" DMD
Native Resolution XGA WXGA 1080p XGA WXGA 1080p
Pixels	1024×768	1280×800	1920×1080	1024×768	1280×800	1920×1080
Aspect Ratio	4:3	16:10	16:9	4:3	16:10	16:9
Contrast Ratio	30000:1
Brightness (Lumens)	4600	4700	4400	4200	4300	4000
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15~97.55
Vertical Sync. Range (Hz)	54~85
Uniformity (%)	80
LENS
Lens	1.3×			1:1 Fixed
Lens Zoom Adjustment	Manual			-
Image Offset (%)	115	112.4	116	115	112.4	116
Focal Length (mm)	21.85~24.01			7.15
F-Stop	2.43	2.7	2.43	2.8	2.43	2.8
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	±40°			±20°
Projection Factor	1.48~1.93	1.19~1.54	1.13~1.47	0.617	0.521	0.496
Projection Distance (Meters/Feet)	1.0~9.1/3.28~29.85	1.0~7.7/3.28~22.26	1.0~10.0/3.28~32.80	0.4~3.8/1.31~12.46	0.4~3.4/1.31~11.15	0.4~3.3/1.31~10.82
Optical Zoom	1.3:1			1:1
Digital Zoom Demagnification / Magnification	0.8×~2.0×
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	√	√	√	√	√	√
Composite Video	√	√	√	√	√	√
S-Video	-	-	-	-	-	-
HDMITM 1.4	√√	√√	√√	√√	√√	√√

	SP2234 SP2236 SP2238				SP2234ST SP2236ST SP2238ST
RJ45 - LAN 10/100/1000	✓ ✓	✓ ✓ ✓	✓
3.5 mm Stereo Mini Jack	✓ ✓	✓ ✓ ✓	✓
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)	✓ ✓	✓ ✓ ✓	✓
3.5 mm Stereo Mini Jack	✓ ✓	✓ ✓ ✓	✓
Powered USB-A for Wireless Dongle	✓ ✓	✓ ✓ ✓	✓
CONNECTIVITY- OTHER
RS232	✓ ✓	✓ ✓ ✓	✓
All Major 3D Formats	✓ ✓	✓ ✓ ✓	✓
USB-A for Service	✓ ✓	✓ ✓ ✓	✓
POWER
Power Supply 100 - 240 V AC; 50 - 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) <2.0
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in) 313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds) 2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in) 395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds) 4.1 / 9.0
Fan Noise (dB) 27
Audio (W)	1 x 10
Operating Temperature (Celsius/Fahrenheit)	5 - 40 / 41 - 104
Operating Humidity (%) 10 - 85
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-10 - 60 / 14 - 140
Storage Humidity (%)	10 - 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector	✓ ✓	✓ ✓ ✓	✓
Simplified Users Guide	✓ ✓	✓ ✓ ✓	✓
VGA Cable	✓ ✓	✓ ✓ ✓	✓
Regional Power Cord	✓ ✓	✓ ✓ ✓	✓
Remote Control (no Battery)	✓ ✓	✓ ✓ ✓	✓

14.2 GENESIS I, P124, SPECIFICATIONS

	SP122 SP1	24 SP126
Product Series GENESIS I
Display Technology Texas Instruments DLP®
Panel Size 0.55" DMD 0.65" DMD
Native Resolution SVGA XGA WXGA
Pixels	800×600	1024×768	1280×800
Aspect Ratio	4:3		16:10
Contrast Ratio	30000:1
Brightness (Lumens)	4000
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15 ~ 97.55
Vertical Sync. Range (Hz)	54 ~ 85
Uniformity (%)	80
LENS
Lens	1.1x
Lens Zoom Adjustment	Manual
Image Offset (%)	115		112.4
Focal Length (mm)	21.85 ~ 24.01
F-Stop	2.41
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	±40°
Projection Factor	1.94 ~ 2.16:1		1.54 ~ 1.72:1
Projection Distance (Meters/Feet)	1.2 ~ 12.0 / 3.94 ~ 39.36		1.0 ~ 10.0 / 3.28 ~ 32.80
Optical Zoom	1.1:1
Digital Zoom Demagnification / Magnification	0.8x ~ 2.0x
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	√
Composite Video	—
S-Video	√
HDMI ^TM 1.4	√
RJ45 - LAN 10/100/1000	—
3.5 mm Stereo Mini Jack	√
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)	—
3.5 mm Stereo Mini Jack	√
Powered USB-A for Wireless Dongle	√
CONNECTIVITY- OTHER
RS232	—
All Major 3D Formats	√
USB-A for Service	√
POWER
Power Supply 100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W)	—
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in)	313×236×96.4 /12.4×9.3×3.8
Product Weight (Kilograms/Pounds) 2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)	395×337×166 / 15.6×13.3×6.5
Packaged Weight (Kilograms/Pounds) 4.1 / 9.0
Fan Noise (dB) 27
Audio (W) 1×3
Operating Temperature (Celsius/Fahrenheit)	5 ~ 40 / 41 ~ 104
Operating Humidity (%) 10 ~ 85
Max Operating Altitude (meters / feet) 3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-10 ~ 60 / 14 ~ 140
Storage Humidity (%)	10 ~ 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector	√ √	√
Simplified Users Guide	√	√ √
VGA Cable	√	√ √
Regional Power Cord	√	√ √
Remote Control (no Battery)	√	√ √

14.3 GENESIS II P125 & P126, SPECIFICATIONS

	SP222 SP	224 SP226	SP228 SP229	SP224ST SP	226ST
Product Series GENESIS II
Display Technology Texas Instruments DLP®
Panel Size 0.55" DMD 0.65" DMD 0.47" DMD 0.48" DMD 0.55" DMD 0.65 DMD
Native Resolution	SVGA	XGA	WXGA	1080p	WUXGA	XGA	WXGA
Pixels	800×600	1024×768	1280×800	1920×1080	1920×1200	1024×768	1280×800
Aspect Ratio	4:3		16:10	16:9	16:10	4:3	16:10
Contrast Ratio	30000:1
Brightness (Lumens)	4000					3800
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15~97.55
Vertical Sync. Range (Hz)	54~85
Uniformity (%)	80
LENS
Lens	1.1x					1:1 Fixed
Lens Zoom Adjustment	Manual					-
Image Offset (%)	115		112.4	116	110	115	112.4
Focal Length (mm)	21.85~24.01					7.15
F-Stop	2.41			2.1		2.7	2.8
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	±40°					±20°
Projection Factor	1.94~2.16:1		1.54~1.72:1	1.47~1.62:1		0.621:1	0.52:1
Projection Distance (Meters/Feet)	1.2~12.0/3.94~39.36		1.0~10.0/3.28~32.80	1.0~9.8m/3.28~32.14	1.0~9.5/3.28~31.16	0.4~3.76/1.31~12.33	0.4~3.37/1.31~11.05
Optical Zoom	1.1:1					1:1
Digital Zoom Demagnification / Magnification	0.8x~2.0x
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	☑
Composite Video	-
S-Video	☑
HDMITM 1.4	☑ ☑
RJ45 - LAN 10/100/1000	-
3.5 mm Stereo Mini Jack	☑
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
CONNECTIVITY- OTHER
RS232
All Major 3D Formats
USB-A for Service
POWER
Power Supply 100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W)	—
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in)	313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/ Pounds)	2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)	395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/ Pounds)	4.1 / 9.0
Fan Noise (dB) 27
Audio (W) 1 x 10
Operating Temperature (Celsius/ Fahrenheit)	5 ~ 40 / 41 ~ 104
Operating Humidity (%) 10 ~ 85
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/ Fahrenheit)	-10 ~ 60 / 14 ~ 140
Storage Humidity (%) 10 ~ 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector	✓ ✓	✓ ✓	✓ ✓	✓ ✓
Simplified Users Guide	✓ ✓	✓ ✓	✓ ✓	✓
VGA Cable	✓ ✓	✓ ✓	✓ ✓	✓
Regional Power Cord	✓ ✓	✓ ✓	✓ ✓	✓
Remote Control (no Battery)	✓ ✓	✓ ✓	✓ ✓	✓

15. PRODUCT COMPLIANCE

15.1 FOR USERS IN THE UNITED STATES

INFORMATION

FCC COMPLIANCE STATEMENT – CLASS B

This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class "B" computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, or any other form of communication, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate the product. Where shielded interface cables have been provided with the product, specified additional components or accessories elsewhere defined to be used with the installation of the product, they shall be used in order to ensure compliance with FCC regulations.

US Importer and Local Representative in accordance with FCC regulations

Maxnerva Technology Services USA LLC

13190 SW 68th Parkway, Suite 120

Portland, Oregon 97223,

15.2 FOR USERS IN CANADA

INFORMATION

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC equipment provided that the following conditions are met. If the cables include a EMI ferrite core, attach the ferrite core end of the cable to the projector. Use the cables which are included with the projector or specified.

**Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Complies with IDA Standards DA103121

15.3 FOR USERS IN EUROPEAN UNION

INFORMATION

EU COMPLIANCE

INFORMATION

CE COMPLIANCE STATEMENT

Electromagnetic Compatibility Statement: Meets 2014/30/EU Directive Low Voltage Directive: Meets 2014/35/EU Directive

EU Importer

Grand Field Technology Limited

Room 1001, 10/F, Houston Centre, 63 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong.

EU Authorised Representative

24hour Solutions B.V.

Van Nelleweg 1,

3044 BC, Rotterdam,

The Netherlands

[e-mail]

www.24hour-ar.com

15.4 FOR USERS IN THE UNITED KINGDON AND NORTHERN IRELAND

INFORMATION

UK COMPLIANCE

INFORMATION

UKCA COMPLIANCE STATEMENT

Electromagnetic Compatibility Regulations 2016

Electrical Equipment (Safety) Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Manufacturer, Importer and Authorised Representative in accordance with natational directives

Manufacturer

Maxnerva Technology Services Limited

Room 1001, 10/F, Houston Centre, 63 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong.

UK Authorised Representative in accordance with UK regulations

24hour Solutions Ltd.

15 Beaufort Court

Admirals Way, Canary Wharf

London, E14 9XL, UK

[phone]

Company ID 13630765

15.5 FOR USERS IN RUISSIA

INFORMATION

Russian Authorised Representative

Maxnerva has appointed AUVIX LLC, 129085, c. Moscow, Zvezdny Boulevard, 21, bldg. 1. as the authorised representative in Russia and this product is compliant with TR TC 004/2011, TR TC 020/2011 and TR CU 020/2011 local conformity testing and approvals.

This document details the terms and conditions for the Maxnerva limited warranty supplied with ScreenPlay branded products. Maxnerva is understood to include all company entities involved in the sale or supply of ScreenPlay branded products and includes Maxnerva Technology Services Ltd. Maxnerva Technology Services US LLC., Grand Field Technology, Wisecloud Technology Service Inc. and Maxnerva (Shenzhen) Technology Services Limited collectively referred to as "Maxnerva."

EFFECTIVE DATE

ScreenPlay branded product purchases effective 1st October 2023

WHO THE WARRANTY PROTECTS

The ScreenPlay limited warranty is valid for the first end-user purchase; it is non-transferable.

WARRANTY STATEMENT

Maxnerva warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, Maxnerva or a Maxnerva authorized service company will, in a commercially reasonable time, remedy defects in materials, design and workmanship free of charge by repairing, or should Maxnerva in its discretion deem it necessary, replacing the product in accordance with this warranty (unless otherwise required by law). Replacement products may include remanufactured products or products with neutral or alternative branding of the same or similar performance, which may consist of refurbished parts or components. Maxnerva will process each valid claim as quickly as practicable within the constraints of its operational procedures.

Maxnerva shall not be held responsible or liable for any loss, financial, consequential, or otherwise caused due to any delay whatsoever in the supply of a refurbished or replacement Projector under this warranty.

The balance of time remaining on the customer's original limited warranty will cover the replacement product. Maxnerva provides no warranty for any third-party software, whether included with the product or installed by the customer, installation of any unauthorized or third-party hardware parts or components (e.g., Projector Lamps).

DEAD ON ARRIVAL (DOA)

All new sealed ScreenPlay products carry a fourteen (30) day Dead on Arrival (DOA) warranty policy for the first consumer purchaser. A new replacement unit will be provided if the product is found to be non-operational within fourteen (30) days of purchase or fails due to a manufacturing fault. You are responsible for returning the product in its original "new" condition, with no cosmetic marking or damage and with all packaging and accessories included. Maxnerva will cover two-way freight. For valid DOA claims.

Please indicate whether you prefer a warranty repair when communicating with the ScreenPlay customer service or technical support representative.

WARRANTY PERIOD

PRODUCT WARRANTY PERIOD
Laser Illumination Projectors Five Years or 20000 Hours
Lamp Illumination Projectors Two Years
Interactive Touch Displays Three Years
Open Pluggable Specification (OPS) Two Years
Original Lamp 1 Year or 1000 Hours
Replacement Lamps 3 Months
Accessories 3 Months

WHAT THE WARRANTY DOES NOT COVER

1. Any product on which the serial number is removed, erased, defaced, altered, modified or illegible.

2. Products that are not genuine ScreenPlay Products.

3. Damage, deterioration, or malfunction resulting from:

- Accident, misuse, neglect, fire, water, lightning, or other acts of nature,

- Unauthorized product modification or failure to follow instructions supplied with the product.

- Repair or attempted repair by anyone not authorized by Maxnerva.

- Damage to or loss of programs, data, or removable storage media.

- Software or data loss occurring during repair or replacement.

- Any damage to the product due to shipment.

- Removal or installation of the product.

- Causes external to the product, such as electric power fluctuations or failure.

- Use of supplies or parts not meeting Maxnerva specifications.

• Normal wear and tear.

- Failure of the owner to perform periodic product maintenance as stated in the user's guide.

- Any other cause which does not relate to a product defect.

- Damage caused by static (non-moving) images displayed for lengthy periods (image burn-in)

- Any third-party software included with the product or installed by the customer.

• Installation of any unauthorized hardware, accessories, consumable parts, or components

- Damage to, or abuse of, the coating on the surface of the product through inappropriate cleaning as described in the product User Guide

EXTENDED WARRANTY

All extended warranty must be purchased within one month (30 days) from the product purchase date. The Warranty Period starts at the time of the product's original purchase by the first end-user.

This warranty extends product warranty terms and warranty period in the ScreenPlay limited warranty document as follows:

EXTENSION DETAILS EXTENDS LIMITED WARRANTY BY
SPEPW1 Extends Lamp Illumination Projector Warranty 1 Year
SPEPW2 Extends Lamp Illumination Projector Warranty 2 Years
SPELW1 Extends Lamp Warranty 1 Year
SPELW2 Extends Lamp Warranty 2 Years
SPEDW1 Extends Display Warranty 1 Year
SPEDW2 Extends Display Warranty 2 Years
SPEOW1	Extends OPS Warranty	1 Year
SPEOW2	Extends OPS Warranty	2 Years

Extended warranties cannot be stacked to obtain extended warranty periods of more than two years. The Warranty Period will not be extended, renewed, or otherwise affected due to:

1. Subsequent resale or

2. Repair of the product; or

3. Replacement of the product

OBTAINING WARRANTY SERVICE

Submit your request using the service form or contact your local ScreenPlay support, information and details can be located at www.screenplay.net/support

Be sure to read our RMA instructions closely to ensure a smooth and timely process of your report; these will be sent to you with the RMA confirmation.

Products presented for delivery at ScreenPlay repair or logistics centres without an assigned RMA will be refused and returned to the sender. Products delivered to ScreenPlay repair or logistics centres damaged will be held, and customers will be notified. It is the responsibility of the sender to file claims directly with their freight carrier company.

OTHER IMPORTANT NOTICES

This warranty applies exclusively to the complete failure of the Projector. It does not apply to normal wear and tear, such as reduced brightness over time.

The user is advised that Lamps are classed as consumable items. Maxnerva gives no guarantee that the expected life will always be achieved.

Maxnerva reserves the right, at its absolute discretion, to determine the validity of any Warranty claim. Maxnerva's decision will be final.

All parts of the product or other equipment that Maxnerva has replaced shall become the property of Maxnerva. If a product is found not to be covered by the terms and conditions of this Warranty, Maxnerva reserves the right to charge a handling fee.

LIMITATION OF IMPLIED WARRANTIES

To the extent allowed by local law, this product is provided to you "as is" without warranties or conditions of any kind, whether oral or written, express or implied. Maxnerva specifically disclaims any implied warranties or conditions of merchantability, satisfactory quality, noninfringement and fitness for a particular purpose.

EXCLUSION OF DAMAGES

Maxnerva's liability is limited to the cost of repair or replacement of the product. Maxnerva shall not be liable for the following;

1. Damage to other property caused by any defects in the product.
2. Any other damages, whether direct, special, incidental, consequential, or otherwise.

3. Any claim against the customer by any other party.

4. Damages based upon inconvenience, lost profit, lost data or downtime costs, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

LOCAL LAW

This warranty gives you specific legal rights, and you may also have other rights which vary from locality to locality. Some localities do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

TRADEMARKS

ScreenPlay and the ScreenPlay wordmark are registered trademarks of Maxnerva.

All other trademarks or registered trademarks are property of their respective companies.

Copyright © 2023 by Maxnerva Technology Services Limited.

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without prior written permission.
