BX 7715PRO - Loudspeaker Glemm - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Glemm
Model	BX 7715PRO
Dimensions (W x H x D)	20 cm x 10 cm x 10 cm
Weight	1.0 kg
Power Supply	Built-in rechargeable battery (2000 mAh) via USB-C
Battery Life	Up to 8 hours at moderate volume
Charging Time	Approximately 3 hours
Bluetooth Version	5.0 with A2DP and AVRCP profiles
Wireless Range	Up to 10 meters (33 feet)
Audio Inputs	Bluetooth, AUX 3.5 mm, FM radio
Speaker Configuration	Single full-range driver with passive radiator
Output Power	10W RMS
Frequency Response	80 Hz – 20 kHz
Functions	Bluetooth streaming, FM radio, AUX input, TF card playback, built-in microphone for hands-free calls
Controls	Power, Volume +/-, Play/Pause, Mode, Next/Previous track
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
Safety	Do not expose to extreme temperatures. Keep away from children. Use only the supplied cable.
Spare Parts and Repairability	Replaceable battery and USB port. Contact Glemm support for spare parts.
General Information	Designed for indoor and outdoor use. Compatible with most Bluetooth devices.

Frequently Asked Questions - BX 7715PRO Glemm

How do I pair my Glemm BX 7715PRO with my phone?

Turn on the speaker by pressing the Power button for 3 seconds. The speaker will enter pairing mode (LED flashes blue). On your phone, enable Bluetooth and select 'Glemm BX 7715PRO' from the list. If prompted, enter PIN 0000.

How do I switch between Bluetooth and FM radio?

Press the Mode button to cycle through Bluetooth, FM radio, AUX, and TF card modes. In FM mode, the speaker automatically scans stations when first entered.

How long does the battery last?

The built-in 2000 mAh battery provides up to 8 hours of playback at moderate volume. Actual battery life may vary depending on volume and usage.

How do I charge the speaker?

Connect the included USB-C cable to the charger port (5V, 1A recommended). The LED turns red during charging and goes off when fully charged. Charging takes approximately 3 hours.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source. However, this may increase charging time and generate more heat.

How do I reset the speaker?

If the speaker becomes unresponsive, press and hold the Power button for 10 seconds until it turns off. Then turn it on again normally.

The speaker is not connecting via Bluetooth. What should I do?

First, ensure the speaker is in pairing mode (LED flashing). Turn off Bluetooth on your device, wait 10 seconds, and turn it on again. Also, clear previous pairings by holding the Play/Pause button for 5 seconds.

How do I use the TF card slot?

Insert a microSD card (up to 32GB) into the slot with the gold contacts facing down. Press the Mode button to switch to TF card mode. Music will play automatically.

Can I use the speaker as a hands-free speakerphone?

Yes, the built-in microphone allows you to answer calls. When a call comes in, press the Play/Pause button to answer. Press again to end. To reject, long press the button.

Is the speaker waterproof?

The Glemm BX 7715PRO is not waterproof. Avoid exposure to rain, splashes, or submersion. It is designed for indoor and outdoor use but should be kept dry.

USER MANUAL BX 7715PRO Glemm

• OTROS IDOMAS •
• OUTRAS LÍNGUAS •

DIFFUSORE Speaker

TELECOMANDO Remote control

CAVO ALIMENT. Power cable

MANUALE Instructions

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

GRAZIE PER IL VOSTRO ACQUISTO

Hereby, KARMA ITALIANA SRL declares that the radio equipment type speaker with bluetooth BX 7715PRO is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• This device works with dangerous 110 - 240V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage indicated on the product. A wrong voltage would seriously damage the fixture.
  • To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to ground.
• Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
  • Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a damp cloth, avoiding solvents or detergents of any kind.
  • If the product is used in the presence of children they must be supervised.
  • To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING: to reduce the risk of electric shock, do not remove the cover. No serviceable parts for the user inside. For servicing refer to qualified personnel.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

The product's remote control contains a battery, which according to the European Directive 2013/56/EU, cannot be disposed of with normal household waste. Please inquire about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for the environment and health.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
  • This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the private area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

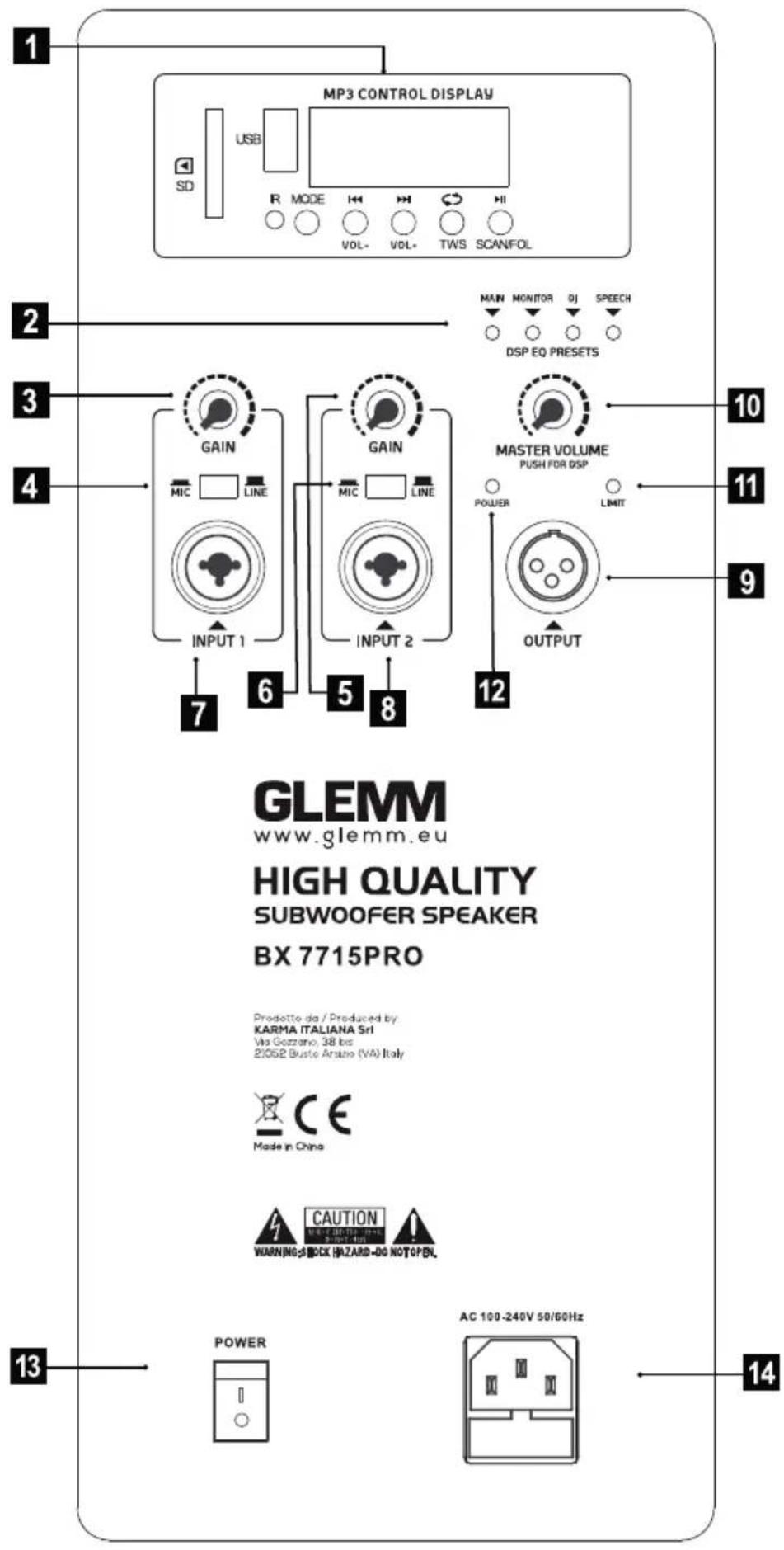

Put the speaker in the desired position, taking care that it is a dry and ventilated place. If you wish to mount the speaker on a tripod stand use the specific hole on the bottom. Once you have mounted it on the stand, secure it by turning the fixing knob clockwise.

The socket (7) can be used to connect both a line signal and microphone signal by means of a balanced XLR connector or of an unbalanced jack 6.3mm connector. Use the switch (4) to select the desired type of signal. To improve the signal and obtain the best quality, you can adjust it by gently turning the gain rotary knob (3).

The socket (8) can be used to connect both a line signal and microphone signal by means of a balanced XLR connector or of an unbalanced jack 6,3mm connector. Use the button (6) to select the desired type of signal. To improve the signal and obtain the best quality, you can adjust it by gently turning the gain rotary knob (5).

If you need to send the audio signal to a further speaker o to another audio fixture, you can use XLR socket named OUTPUT (9).

Connect then the power cable to the socket (14) and on the other side to a 110V/220V electrical outlet.

Once you have completed the connections you can use the switch (13) to turn on the speaker: the led (12) will light up. Make sure that an audio signal is present; then adjust the general volume by means of the MASTER control (10). If the fixture doesn't turn on, disconnect the power cable from the socket (14), then check if the fuse under the socket is ok. If damaged replace it with one of the same amperage.

During playback check that the led (11) is not constantly on. This would indicate that the signal level is too high. Use the gain controls (3-5) of the master volume (10) to reduce the level until the led turns off.

MULTIMEDIA PLAYER

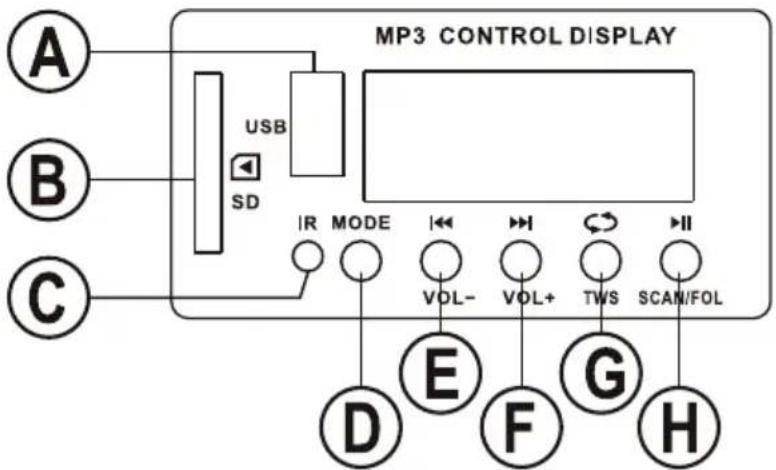

The speaker includes a sophisticated multimedia player to play mp3 tracks both from USB sticks (using the A port) and from SD cards (using the B port). It can moreover receive audio from smartphones, tablets or PC via bluetooth.

By pressing the MODE button (D) to select the desired audio source you will have the possibility to select the desired audio source (BT, SD, USB, Radio).

Use the key (E) to go back to the beginning of the track or to previous track. With a long press it reduces the volume of the multimedia module.

The key (F) allows to skip to the next track. With a long press it increases the volume of the multimedia volume.

The key (G) activates the playback of one or all the tracks or the shuffle function for the random playback of the tracks. With a long press it activates the TWS function to play bluetooth audio on two speakers of this model at the same time.

The key (H) is used for the play/pause function. With a long press it starts the station scanning (if in radio mode) or to scroll through the folders saved on a memory device.

The master volume control (10) has also another function: If pressed it activates the DSP equalization, which features 4 modes: MAIN, MONITOR; DJ and SPEECH. The leds (2) light up to indicate the current equalization mode.

REMOTE CONTROL

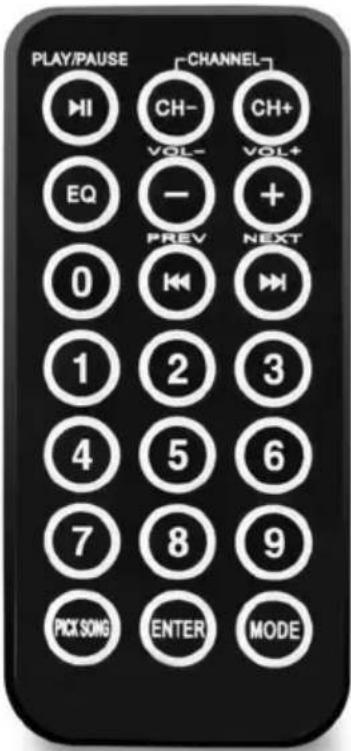

The packaging includes a practical infrared remote control to adjust the main functions from a distance. Don't cover the sensor (C) next to the MODE key so that it can pick up the remote control's signal.

TECHNICAL SPECIFICATIONS

AMPLIFIER	CLASS-D + CLASS AB
MAX / RMS POWER	600W / 350W
WOOFER	15" VOICE COIL:2.5" MAGNET: 500Z
WOOFER IMPEDANCE	8 OHM
TWEETER	1.75" (44MM)
FUNCTIONS	MP3, BLUETOOTH (5.3 CON TWS), FM RADIO
LINE INPUTS	2 (XLR + 6,3MM)
MICROPHONE INPUTS	2 (XLR + 6,3MM)
FREQUENCY RESPONSE	45 HZ - 18 KHZ
MAX SPL	125 DB
REMOTE CONTROL	INFRARED, BATTERY 3V CR 2025
POWER SUPPLY	110V -240V ~ 50/60 HZ
COLOR	BLACK
DIMENSIONS	440 X 470 X 710 MM
WEIGHT	27,5 KG

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

GLEMM

Prodotto da/ produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

Ver. 24.1
