Product Type	Air Filtration System
Brand	RIKON
Model	61-200
Airflow (CFM)	480 / 750 / 950 (Low/Med/High)
Motor	1/4 HP, 115V, 60Hz
Filtration	Outer: 5 micron, Inner: 1 micron
Room Coverage	20' x 20' x 8' (14 air changes per hour)
Timer Settings	Auto-off: 2H / 4H / 8H
Sound Level	Low 61 dB, Med 69 dB, High 74 dB
Net Weight	66 lbs
Power Cord	3-prong grounding plug, 115V
Remote Control	Included (On/Off, Timer, Speed)
Manual Controls	On/Off, Timer, Speed, Fuse switch
Filter Type	Outer foam filter + Inner fine filter
Filter Maintenance	Clean inner filter with air or water; replace as needed
Mounting Options	Ceiling or wall mount using eyebolts or angle brackets
Included Accessories	Remote device, spare parts bag, warranty card, manual
Warranty	5-year limited warranty (original purchaser)
Safety Features	Grounding required, fuse overload protection

Frequently Asked Questions - 61-200 RIKON

How do I mount the air filtration system to the ceiling?

Use four eyebolts (included) to hang the unit. Alternatively, attach the four angle brackets to the cabinet lip using hex cap screws and lock washers, then secure to ceiling joists.

How do I change the filters?

First, unplug the unit. Disengage the two filter clips to remove the outer filter. Then pull out the inner filter. The inner filter can be blown clean with air or washed. Replace filters when clogged to maintain airflow.

What does the timer function do?

The timer allows auto-off after 2, 4, or 8 hours. Press the Time button repeatedly to cycle through settings. The corresponding LED (2H, 4H, 8H) will light up on the control panel.

Can I use the air cleaner without the remote?

Yes. The control panel on the unit has identical functions: On/Off, Time, and Speed buttons. You can operate it manually without the remote.

Why is the fuse popping out?

The fuse switch pops out in case of overload or electrical fault. Wait 3-5 minutes before pressing the fuse switch back in. If it pops again, check for blockages or consult a qualified electrician.

What type of power outlet is required?

The unit requires a properly grounded 3-prong outlet (115V, 60Hz). Do not remove the grounding prong. If using a 2-prong outlet, a temporary adapter with a ground tab may be used only until a grounded outlet is installed.

How often should I clean or replace the filters?

Frequency depends on usage. Check filters regularly; when they appear dirty or airflow decreases, clean the inner filter (by blowing air or washing) and replace outer filter if necessary. Always handle soiled filters with a dust mask.

What is the warranty coverage?

RIKON offers a 5-year limited warranty to the original purchaser against defects in materials and workmanship. It does not cover misuse, normal wear, or accessories. Proof of purchase is required.

Can I use this unit for workshop dust collection?

This air filtration system is designed to recirculate and filter airborne dust particles in a workshop. It is not a dust collector for direct connection to tools but helps maintain air quality by capturing fine dust.

How do I reset the fuse after it pops?

Wait 3-5 minutes for the internal components to cool. Then press the fuse switch (located on the control panel) back in until it clicks. Ensure the cause of overload is resolved before restarting.

USER MANUAL 61-200 RIKON

Air Filtration System

Model: 61-200

RIKOK POWER TOOLS

Record the serial number and date of purchase in your manual for future reference.

Serial number: ____

Date of purchase: ____

For more information:

www.rikontools.com or [e-mail]

For Parts or Questions:

[e-mail] or 877-884-5167

Safety Warning

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. If you have any questions about its application, do not use the tool until you have contacted us and we have advised you.

General Safety Warnings

KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific potential hazards.

DANGER

ALWAYS GROUND ALL TOOLS.

If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle. If you use an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a known ground. Never remove the third prong of the plug.

ALWAYS AVOID DANGEROUS ENVIRONMENTS.

Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.

▲ DANGER

ALWAYS REMOVE THE ADJUSTING KEYS AND WRENCHES FROM TOOLS AFTER USE.

Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.

ALWAYS KEEP YOUR WORK AREA CLEAN. Cluttered areas and benches invite accidents.

▲ DANGER

ALWAYS KEEP VISITORS AWAY FROM RUNNING MACHINES.

All visitors should be kept a safe distance from the work area.

ALWAYS MAKE THE WORKSHOP CHILDPROOF.

Childproof with padlocks, master switches, or by removing starter keys.

DANGER

NEVER OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS, MEDICATION, OR ALCOHOL.

▲ DANGER

ALWAYS WEAR PROPER APPAREL.

Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is recommended for the best footing.

▲ DANGER

ALWAYS USE SAFETY GLASSES AND WEAR HEARING PROTECTION.

Also use a face or dust mask if the cutting operation is dusty.

▲ DANGER

NEVER OVERREACH.

Keep your proper footing and balance at all times.

▲ DANGER

Serious injury could occur if the tool is tipped or if the cutting tool is accidentally

▲ DANGER

ALWAYS DISCONNECT TOOLS.

Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters.

ALWAYS AVOID ACCIDENTAL STARTING.

Make sure switch is in "OFF" position before plugging in cord.

NEVER LEAVE TOOLS RUNNING UNATTENDED.

DANGER

ALWAYS CHECK FOR DAMAGED PARTS.

Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other damaged parts should immediately be properly repaired or replaced.

Special Safety Rules For Dust Collection

1. Do not operate this machine until you have read all of the following instructions.

2. Do not attempt to operate this machine until it is completely assembled.

3. Do not turn ON this machine if any pieces are missing.

4. If you are not familiar with the operation of the machine, obtain assistance from a qualified person.

5. It is highly recommended that this machine be placed on a level surface.

6. Always wear protective eyewear prior to operating this machine.

7. Do not operate this machine if you are under the influence of drugs and/or alcohol.

8. Remove all jewelry prior to operating this machine.

9. Do not wear any gloves while operating this machine.

10. Always make sure the power switch is in the OFF position prior to plugging in the machine.

11. Always make sure the power switch is in the OFF position when doing any assembly or setup operation.

12. Always wear a dust mask when cleaning or working near a dust collector.

13. The use of any accessories or attachments not recommended may cause injury to you and damage your machine.

14. This machine must be properly grounded.

15. Always keep your face and hands clear of moving parts such as impellors and fans.

16. Keep these instructions for future reference.

California Proposition 65 Warning

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

For more detailed information about California Proposition 65 log onto rikontools.com.

SAVE THESE INSTRUCTIONS.

Refer to them often.

Table of Contents

Safety Warnings....2-3

Dust Collection Safety Rules....3

Specifications....4

Unpacking and Contents....5

Getting to Know Your Air Filtration System....6

Assembly....6-7

Operation....8

Maintenance....9

Notes....10

Wiring Diagram....10

Electrical Requirements....11

Explosion Diagram....12

Parts List....13

Warranty....14

Specifications

Model Number	61-200
Air Flow (CFM)	480/750/950
Motor	1/4HP, 115V, 60Hz
Filtration (Micron)	5 Micron Outer/1 Micron Inner
Volume	20'x20'x8' 14x PER HR
Filtration Timing	Auto Off: 2HR/4HR/8HR
Sound Level (dB)	Low 61dB/Med 69dB/High 74dB
Net Weight	66lbs

Unpacking and Checking Contents

Unpack your air fi ltration system from its carton and check to see that you have all of the following items. Do not turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to your machine.

A. Air Filtration
B. Warranty Card
C. Spare Parts Bag
D. Remote Device
E. Manual

B

C

D

Air Filtration System MUSIC 01-091

Item Description

1 Air filtration body
2 Control plate
3 Power cord

Assembly

The machine must not be plugged in and the power switch must be in the OFF position until assembly is complete.

Tools Required for Assembly

Item Description

2 Phillips Screwdriver

10mm Wrench

Unpacking and Clean-up

1. Carefully finish removing all contents from shipping carton. Compare contents of the shipping carton with the list of contents above. Place parts on a protected surface.
2. Report any shipping damage to your local distributor.
3. Clean all rust protected surfaces. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage painted surfaces.
4. Set packing material and shipping carton to the side. Do not discard until machine has been set up and is running properly.

Assembly

1. Remove all packing and hardware from inside of the unit by removing the outer filter and inner filters.
2. The air filtration unit can be hung from the ceiling. Hang the unit using four eyebolts (A, Fig.01).

Fig.01

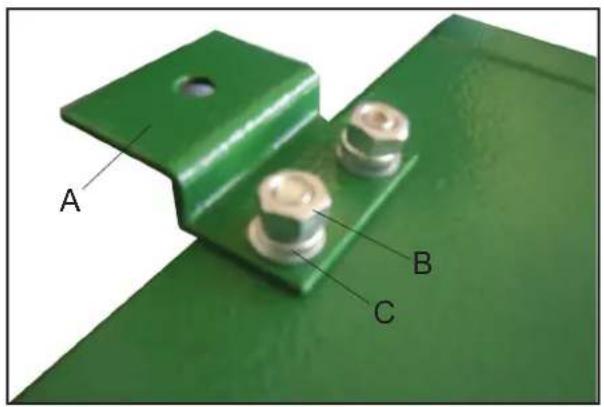

Four angle brackets can also be used for mounting to the ceiling, or wall.

1. Place one end of bracket underneath the lip of the cabinet.
2. Attach the bracket (A, Fig.02) with two hex cap screws (B, Fig.02) and two lock washers (C, Fig.02).
3. Repeat steps for remaining three brackets.

Fig.02

1. Locate hardware to install the filter clips.
2. Slide spring onto threaded portion of knob and screw into the side of the cabinet (Fig.03).
3. Pull back spring and slide filter clip between spring and cabinet.(Fig.03).

Hand inserting a black clip into a green panel with white lattice pattern (no text or symbols visible)

Fig.03

Operation

Remote Control:

1. The on/off button (Fig.04) turns the unit on and off. Pressing this button will start the fan on the low speed.
2. Time button (Fig.04) controls the three different settings.

2H will light up on the back of the unit with one press of the time button. The air filtration system will operate for 2 hours then shut off.

4H will light up on the back of the unit by pressing the time button twice. The air filtration system will operate for 4 hours then shut off.

8H will light up on the back of the unit by pressing the time button three times. The air filtration system will operate for 8 hours then shut off.

1. Speed button (Fig.04) controls the three different settings, Low, Medium and High.

Manual Control:

The air filtration system can also be operated manually. The control panel loacted at the end of the unit has the same functions as the remote control above:

On/Off button (A, Fig.05)

Time button (B, Fig.05)

Speed button (A, Fig.05)

Fuse switch (C, Fig.05) will pop out in case of overload. Wait 3-5 minutes before resetting the fuse switch.

Fig.04

Fig.05

Maintenance

Changing the Filters

WARNING

To reduce the risk of injury disconnect the air cleaner from the power source (unplug) before servicing or changing filters. Failure to comply may cause serious injury!

There are two filters that need to be changed.

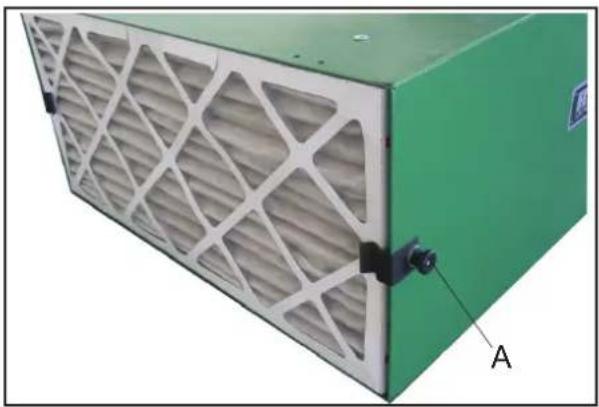

The outer filter can be removed by disengaging the two filter clips (A, Fig.06). Pull the filter out, or use a screwdriver to pry out the filter.

The inner filter (Fig.07) can now be pulled out of the unit. The inner filter can be blown out with air, or washed out.

The filters should be replaced depending on the amount of usage. Clogged filters will reduce the amount of air circulation.

There is an arrow indicating the air flow direction on the outer filter. Make sure the filter is inserted facing the proper direction.

NOTE: Care should be taken when handling soiled or contaminated filters. As certain fine dusts can be harmful. Always wear a suitable mask for additional protection.

Green industrial air vent unit with diamond-shaped ventilation grilles and labeled component A (no text or symbols on the device itself)

Fig.06

Two transparent plastic sheets with white bands placed inside a metal frame, against a plain yellow background (no text or symbols visible)

Fig.07

Notes

Use this section to record maintenance, service and any calls to Technical Support:

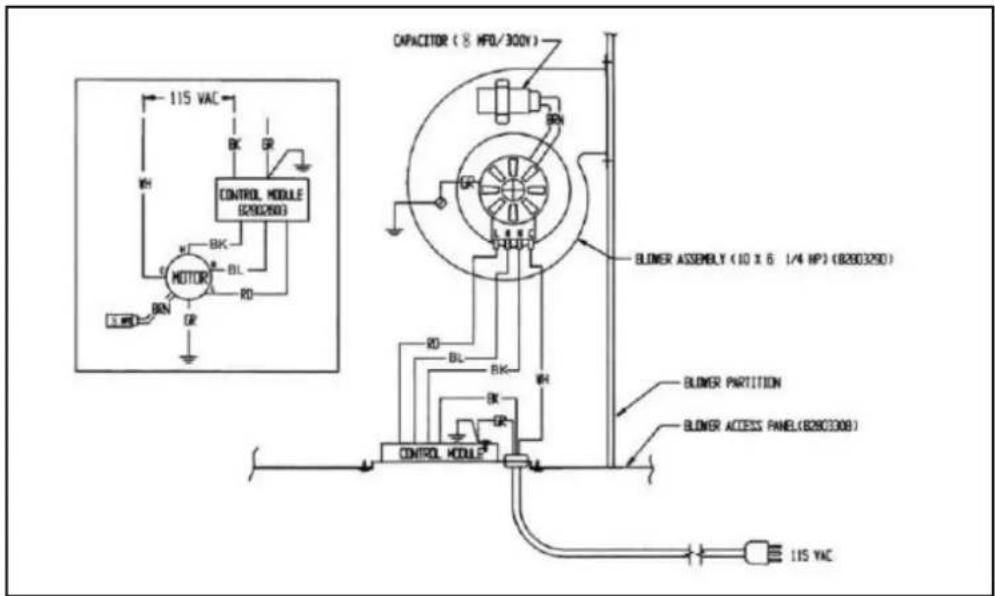

Wiring Diagram

WARNING: This machine must be grounded.

Replacement of the power supply cable should only be done by a qualified electrician.

Electrical Requirements

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor, with insulation having an outer surface that is green with or without yellow stripes, is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal.

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.

Use only three wire extension cords that have three-prong grounding plugs and three-pole receptacles that accept the tool's plug.*

Repair or replace a damaged or worn cord immediately.

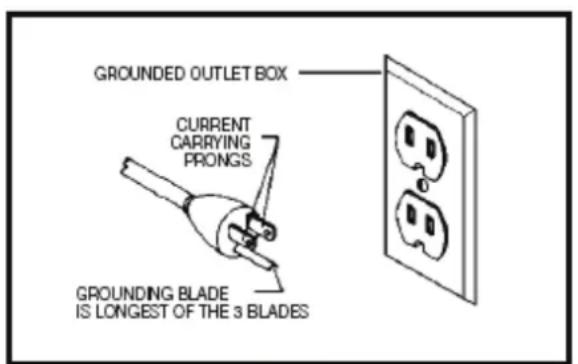

This tool is intended for use on a circuit that has an outlet that looks the one illustrated in Figure A below. The tool has a grounding plug that looks like the grounding plug as illustrated in Figure A below. A temporary adapter, which locks like the adapter as illustrated in Figure B below, may be used to connect this plug to a two-pole receptacle, as shown in Figure B if a properly grounded outlet is not available.** The temporary adapter should only be used until a properly grounded outlet can be installed by a qualified electrician. The green colored rigid ear or tab, extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet box.

* Canadian electrical codes require extension cords to be certified SJT type or better. ** Use of an adapter in Canada is not acceptable.

Fig. A

Fig. B

Explosion Diagram

Parts List

KEY No. Description Part No.

61-200-1	Filter Board	JMAC1001030100
61-200-2	Filter Bag	JMAC1001030200
61-200-3	Wing Nut	402011
61-200-4	Spring	JMAC1001130003
61-200-5	Washer	WSH6GB96Z
61-200-6	Pin Plate	JMAC1001130002
61-200-7	Body	JMAC1001011000
61-200-8	Screw	M6X16GB818Z
61-200-9	Plug	U93182300
61-200-10	Strain Relief	403106
61-200-11	Protection	SB8
61-200-12	Plate Cover	JMAC1001090001
61-200-13	Screw	ST4D2X13GB16824D1Z
61-200-14	Plate	JL79080002-091W
61-200-15	Circuit Board	CB115A
61-200-16	Screw	M3X8GB818Z
61-200-17	Nut	M6GB6170Z
61-200-18	Fastner	JMAC1001130001
61-200-19	Screw	M6X10GB818Z
61-200-20	Hook	M6X16GB825Z
61-200-21	Fan Cover	JMAC1001020001
61-200-22	Fan Asst	JL79061000
61-200-23	Fan Cover	JMAC1001020002
61-200-24	Nut	M6GB6177Z
61-200-25	Bolt	M5X10GB5789Z
61-200-26	Screw	M8X12GB70Z
61-200-27	Clip	JL79060006
61-200-28	Screw	ST4D2X13GB16824D1Z
61-200-29	Fan	JL79050000
61-200-30	Motor	G7212646-00001G
61-200-31	Screw	M8X50GB5781Z
61-200-32	Nut	M8GB6177Z
61-200-33	Bracket Washer	JL79060003
61-200-34	Motor Mat	JL79060004
61-200-35	Motor Bracket	JL79060005
61-200-36	Washer	WSH6GB5287Z
61-200-37	Screw	M6X35GB5789Z
61-200-38	Remote Control	YKQ03

NOTE: Please reference the KEY No. when calling for replacement parts.

RIKON

POWER TOOLS

5-Year Limited Warranty

RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This warranty does not cover products used for commercial, industrial or educational purposes.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs or belts and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To take advantage of this warranty, please fill out the enclosed warranty card and send it to: RIKON Warranty

16 Progress Rd.

Billerica, MA 01821

The card must be entirely completed in order for it to be valid. If you have any questions please contact us at 877-884-5167 or [e-mail].

BIKON POWER TOOLS

For more information:

16 Progress Rd

Billerica, MA 01821

877-884-5167 / 978-528-5380

[e-mail]

www.rikontools.com
