Product Type	6.5-inch 2-Way Coaxial Car Speaker
Brand	Infinity
Model	Kappa Emit-N MKII
Speaker Size	6.5 inches (165 mm)
Woofer Material	Polypropylene cone with rubber surround
Tweeter Type	1-inch (25 mm) Edge-driven textile dome
Power Handling (RMS)	60 Watts
Power Handling (Peak)	180 Watts
Impedance	4 ohms
Frequency Response	50 Hz - 20 kHz
Sensitivity	92 dB (2.83V/1m)
Mounting Depth	2.5 inches (63 mm)
Mounting Hole Diameter	5.6 inches (142 mm)
Crossover Type	Integrated 12 dB/octave high-pass
Grille Included	Yes, flush-mount and surface-mount
Installation Hardware	Screws, wire terminals, and adapters included
Cleaning Instructions	Wipe with a dry microfiber cloth. Do not use solvents.
Safety Warnings	Disconnect battery before installation; avoid sharp edges.
Repairability	Replacement parts available through authorized dealers; professional service recommended
Warranty	1 year against manufacturing defects

Frequently Asked Questions - Kappa Emit-N MKII INFINITY

What is the power handling of the Infinity Kappa Emit-N MKII?

The RMS power handling is 60 watts and peak power handling is 180 watts, ensuring clear sound at high volumes.

What size is the speaker?

It is a 6.5-inch (165 mm) speaker, commonly used in car door panels and rear decks.

Is the Infinity Kappa Emit-N MKII a coaxial or component speaker?

It is a coaxial speaker with an integrated tweeter, making installation straightforward in factory locations.

What is the impedance of this speaker?

The impedance is 4 ohms, which matches most car audio amplifiers and factory systems.

Does it come with a grille?

Yes, it includes both flush-mount and surface-mount grilles for versatile installation.

What is the mounting depth?

The mounting depth is 2.5 inches (63 mm), making it compatible with many vehicles with limited space.

How do I clean the speakers?

Use a dry or slightly damp microfiber cloth to wipe the grille. Avoid liquids on the cone or tweeter.

Can I use these speakers with a factory stereo?

Yes, they work with factory stereos, but for best performance, use an external amplifier.

What tools are needed for installation?

Basic tools: screwdriver, wire stripper, drill (if needed), and panel removal tools. Always disconnect the battery first.

Where can I find replacement parts or service?

Contact Infinity authorized dealers or a professional car audio shop. The speaker is not user-serviceable; re-coning requires expertise.

USER MANUAL Kappa Emit-N MKII INFINITY

Thank you for purchasing a pair of Infinity Kappa EMIT-N™ MK II Tweeters. You've selected a premium car audio product that offers extended high-frequency response, advanced materials, and a compact size to fit virtually any interior location.

Kappa EMIT-N MK II Tweeters are easy to install. Each one is housed in an attractive surface-mount enclosure with grille and is equipped with an attached color- and terminal-keyed wire pigtail. For flush-mount applications (see back page), a pair of flush-mount clips and cups are included.

IMPORTANT

Installation of automotive stereo components requires extensive experience in dealing with a variety of mechanical and electrical procedures. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your Authorized Infinity Car Audio Dealer about professional installation options.

Surface-Mount Installation

1. At the chosen site, use the surface-mount bracket (with two holes) or template (see Figure 1) to mark locations of mounting holes. A 5/16" diameter feed-through hole is required to pass the tweeter wires and pre-attached terminals. Make sure the proposed hole will not extend beyond the tweeter's boundary.
2. Use a hole punch to create drilling guides. Clear away any carpet or other material prior to drilling. Use a drill with 516 " bit to create a feed-through hole at each tweeter location. Then use a 18 " bit to drill two mounting holes.
3. Fasten each surface-mount plate with supplied screws. Route wires from a crossover through each feed-through hole, and connect each pigtail.
4. Carefully align the openings on the back of each tweeter with the tabs on the surface-mount bracket. Slide each tweeter down on its plate to lock it into place, as shown in Figure 2.

TWEETER TOP

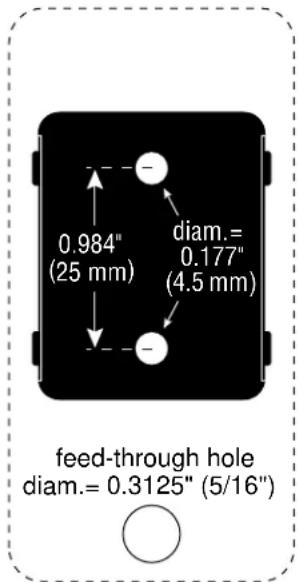

Figure 1. Use this template to surface-mount a Kappa EMIT-N MK II Tweeter. The vertical position provides best high-frequency dispersion.

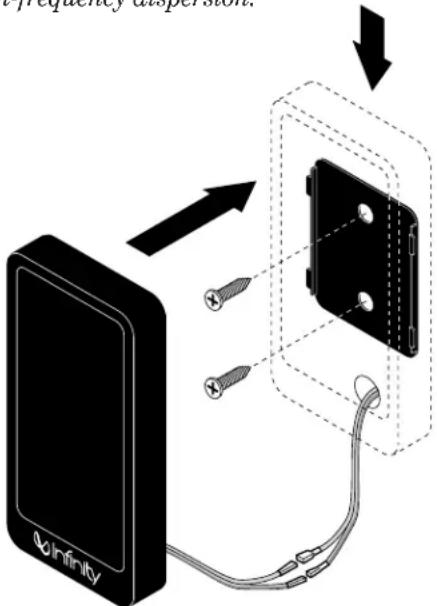

Figure 2. After installing the surface-mount plate, slide the Kappa EMIT-N MK II Tweeter down on the plate to lock in place.

Infinity®

Infinity Systems, Inc. • 9409 Owensmouth Avenue Chatsworth, CA 91311, USA• [phone]• FAX [phone]

Infinity

CAR AUDIO

Kappa EMIT-N™ MK II Tweeter

INSTRUCTIONS

Flush-Mount Installation

To flush-mount Kappa EMIT-N MK II Tweeters, first remove the panels at each selected site. Make sure there is minimum mounting depth of 1" behind each panel.

1. At a chosen site, use the template shown in Figure 3 to create a hole in the panel for each flush-mount cup.
2. Insert a machine screw (enclosed) through the flush-mount plate, align its tabs with the channel openings on the back of the tweeter, and slide it down to lock it in place, as shown in Figure 4.
3. Route the tweeter's attached wire pigtail through the opening in the flush-mount cup and gently press the tweeter into the cup.
4. Place the cup and tweeter into the panel hole and fasten it by using the retaining clip and enclosed wing nut (see Figure 4).
5. Connect the tweeter wires to a crossover and re-install the panel.

Warranty Information

Infinity Kappa EMIT-N MK II Tweeters are covered by our full one-year parts and labor warranty. Keep your original dated bill of sale in case warranty service is required. For detailed warranty statement, contact Customer Service at the address below.

Specifications

Impedance: 4 ohms

Crossover: 5 kHz

Power Capacity: 50 watts with crossover

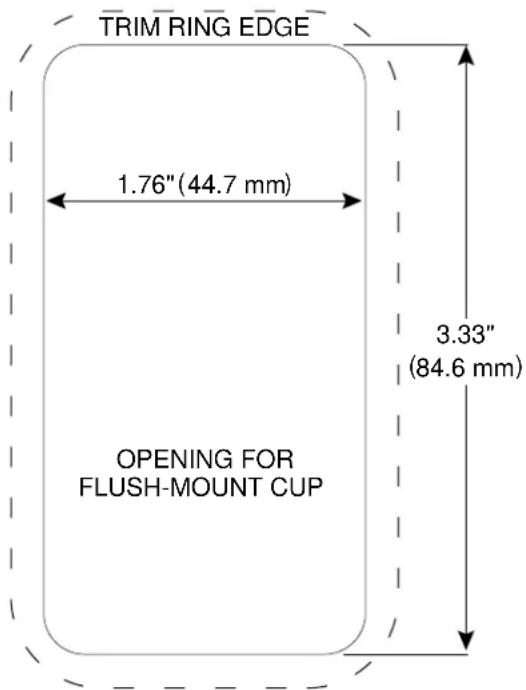

Figure 3. Use this template to flush-mount a Kappa EMIT-N MK II Tweeter.

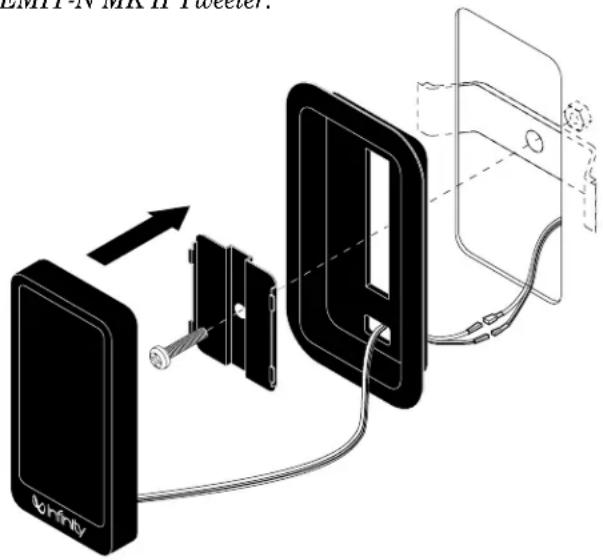

Figure 4. After sliding the flush-mount clip onto the back of the Kappa EMIT-N MK II tweeter, use the supplied hardware to fasten cup to the panel.
