| Product Type | Floorstanding Loudspeaker |
| Model | Debut 3.0 DF63 |
| Brand | ELAC |
| Dimensions (H x W x D) | 1060 x 190 x 267 mm (41.7 x 7.5 x 10.5 in) |
| Weight (each) | 18.2 kg (40.1 lb) |
| Recommended Amplifier Power | 30 - 150 W per channel |
| Impedance | 6 Ohms |
| Sensitivity | 87 dB (2.83 V / 1 m) |
| Frequency Response | 46 Hz - 35 kHz |
| Woofer Type | 2 x 5.25 in (133 mm) Aramid Fiber Cone |
| Tweeter Type | 1 in (25 mm) Soft Dome with Waveguide |
| Cabinet Design | Bass Reflex with Rear Port |
| Crossover Frequency | 2.7 kHz |
| Finish | Black Ash Vinyl or Walnut Vinyl |
| Bi-Wiring / Bi-Amping | Yes (removable jumper links) |
| Magnetic Grille | Yes, detachable |
| Recommended Placement | Free-standing, at least 20 cm from rear wall |
| Cleaning Instructions | Wipe with dry cloth; avoid solvents |
| Safety Precautions | Do not expose to moisture or direct sunlight; ensure stable placement |
| Warranty | 5 years (conditions apply) |
Frequently Asked Questions - Debut 3.0 DF63 ELAC
What is the recommended amplifier power for the ELAC Debut 3.0 DF63?
The recommended amplifier power range is 30 to 150 watts per channel. Ensure your amplifier is stable into 6 Ohm loads.
Can the DF63 be bi-wired or bi-amped?
Yes, the speaker terminals have removable jumper links that allow bi-wiring or bi-amping. Remove the jumpers to use separate cables for the woofers and tweeter.

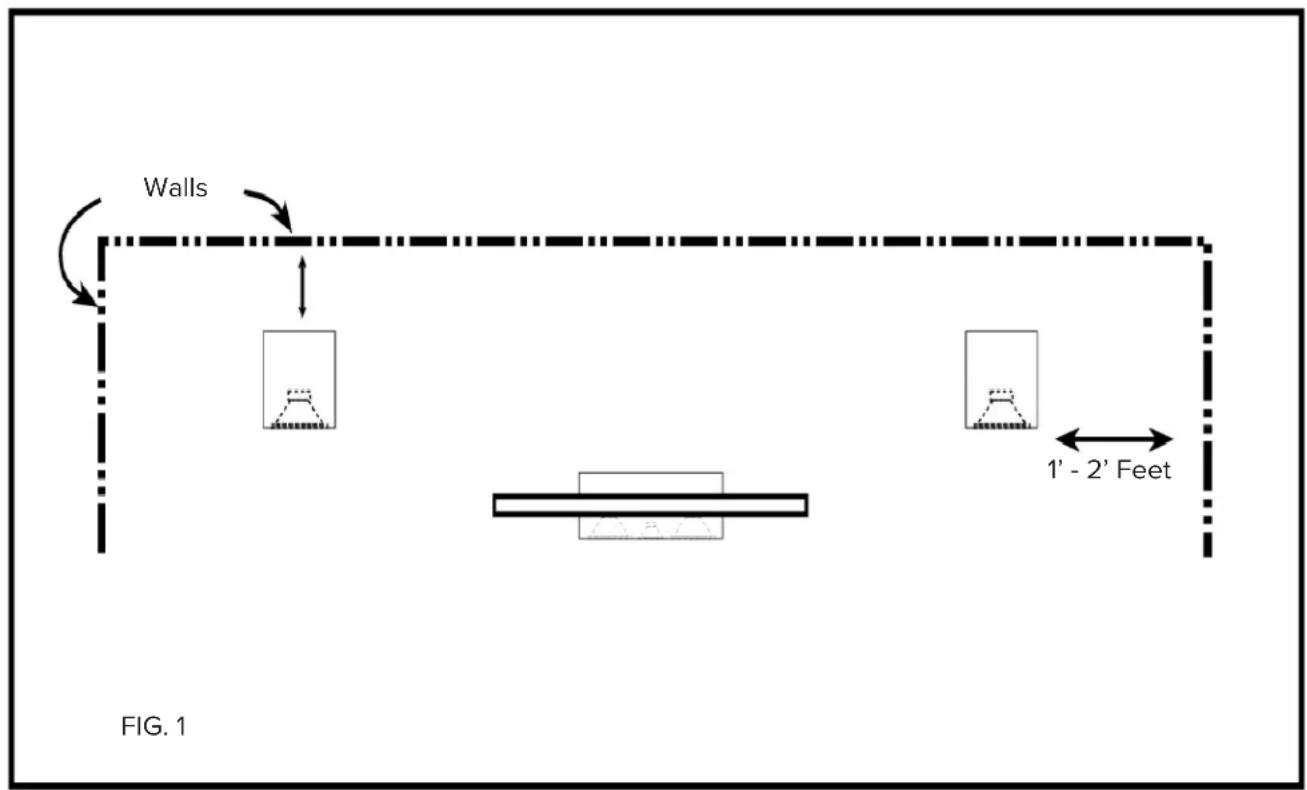

What is the ideal placement for these floorstanding speakers?
Place the speakers at least 20 cm (8 in) from the rear wall and away from corners to avoid boomy bass. Toe them in slightly toward the listening position for optimal imaging.
Is there a break-in period for the Debut 3.0 DF63?
Yes, the speakers benefit from a break-in period of about 20-50 hours of normal use. The sound will become smoother and more dynamic over time.
How should I clean the speaker cabinet and grille?
Use a soft, dry cloth to wipe the cabinet. For the grille, gently vacuum or use a lint roller. Avoid any liquids or abrasive cleaners.
What amplifiers are compatible with the DF63?
Any quality amplifier rated between 30-150W per channel at 6 Ohms will work. Both solid-state and tube amplifiers are suitable, provided they meet the power and impedance requirements.
What is the warranty period for ELAC Debut 3.0 DF63 speakers?
ELAC offers a 5-year limited warranty for the original purchaser. Coverage includes defects in materials and workmanship but not damage from misuse.

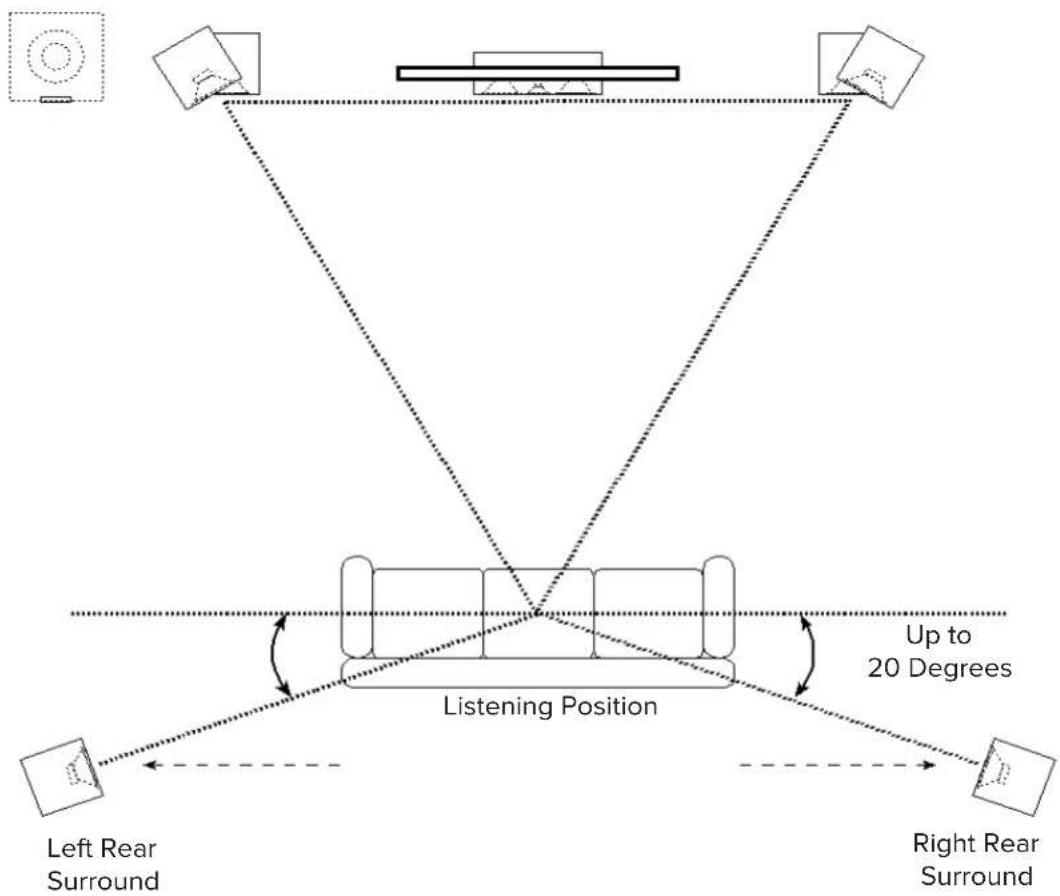

Can I use the DF63 in a home theater system?
Absolutely. The DF63 works well as front left/right speakers in a home theater setup. Pair with a quality center channel and subwoofer for a complete system.
How do I connect the speaker wires to the terminals?
The terminals accept banana plugs, spade lugs, or bare wire. Unscrew the knob, insert the wire, and tighten. Ensure correct polarity (+/-) for proper phase.
What should I do if I hear distortion at high volumes?
Distortion often indicates clipping from the amplifier. Reduce the volume or use a more powerful amplifier. Also check that speaker wires are secure and the impedance is within the amplifier's range.
