Product Type	LED Outdoor/Indoor Wall Light
Model	Hampton 3201AN-LED
Brand	Hinkley Lighting
Light Source	Integrated LED (non-replaceable)
Wattage	12W (equivalent to 60W incandescent)
Color Temperature	3000K (Warm White)
Lumens	800 lm
Voltage	120V AC, 60Hz
Dimmable	Yes, with compatible dimmer (triac)
Material	Aluminum housing, clear glass lens
Finish	Antique Nickel (AN)
Dimensions (H x W x D)	8.5" x 5.5" x 7.5"
Weight	2.5 lbs
Mounting	Wall mount, junction box not included
Wet Location Rated	Yes, suitable for covered outdoor areas
Energy Star Rated	Yes
Warranty	1 year limited warranty
Installation	Hardwired, requires electrical wiring
Cleaning	Wipe with damp cloth; no harsh chemicals
Safety Certifications	UL listed for damp locations
Bulb Type	Integrated LED module (not replaceable)

Frequently Asked Questions - Hampton 3201AN-LED Hinkley Lighting

Is the Hinkley Hampton 3201AN-LED suitable for outdoor use?

What is the color temperature of this light?

Can I dim this LED light?

How do I install this wall light?

What are the dimensions of the fixture?

Can I replace the LED bulb?

What is the wattage equivalent?

How do I clean the Hampton wall light?

What is the warranty period?

Is this light energy efficient?

USER MANUAL Hampton 3201AN-LED Hinkley Lighting

Drawing 1 - Fixture Assembly

Mechanical assembly diagram showing a multi-stage setup with rotating components and a labeled component (no text or symbols present)

Drawing 2 - Fixture Assembly

Technical diagram of a mechanical device with numbered components and directional arrow indicating motion or force

Drawing 3 - Mounting Instructions

Labeled diagram of a scientific apparatus with six numbered components (A–F) for identification.

assembly instructions

Family: Hampton | Item No. 3201

T24 JA8-2016

start here

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first assembling the main body structure, installing the mounting hardware to the junction box, mounting the fixture to the ceiling and then installing the shade.

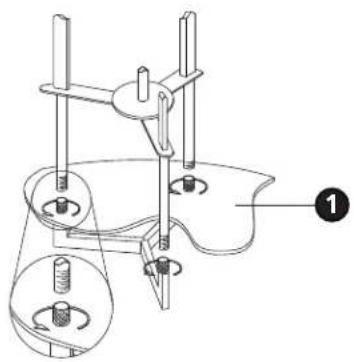

1. Attach acrylic lens assembly (1) by threading coupler (2) onto end of lower upright stems (3) - see Drawings 1 and 2.

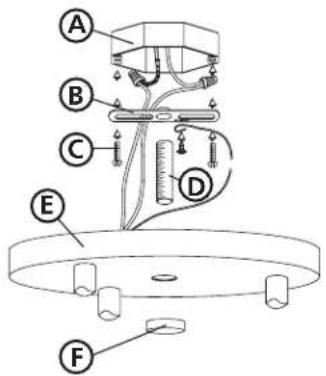

2. Fasten mounting strap (B) to outlet box (A) with the original box screws (C) - see Drawing 3.

3. Thread nipple (D) into mounting strap (B) approximately 3/8".

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then refer back to this page to continue installation of this fixture.

1. Slip canopy (E) over nipple (D) and up against ceiling - see Drawing 3.

2. Thread decorative finial (F) onto end of nipple (D).

3. Fixture can now be lamped accordingly.

4. Slip shade (4) onto acrylic assembly (1) - see Drawing 2.

Drawing 1 - Flush Mount

supply wire A C E + - 1 2 + - B D twist-on connectors fixture leads

Drawing 2 - Chain Hung

supply wire A C + - E twist-on connectors 1 2 B D fixture leads

Drawing 3 - Post-Mount

supply wire A C + - E twist-on connectors B D fixture leads E

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

wiring instructions

Indoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth, unmarked side of the two-conductor cord) to positive fixture lead (B) with appropriately sized twist on connector - see Drawings 1 or 2.
2. Connect negative supply wire (C) (typically white or the ribbed, marked side of the two-conductor cord) to negative fixture lead (D).
3. Please refer to the grounding instructions below to complete all electrical connections.

Outdoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth unmarked side of the two-conductor cord) to positive fixture lead (B) with appropriately sized twist on connector - see Drawings 2 or 3.
2. Connect negative supply wire (C) (typically white or the ribbed, marked side of the two-conductor cord) to negative fixture lead (D).
3. Cover open end of connectors with silicone sealant to form a watertight seal.
4. If installing a wall mount fixture, use caulk to seal gaps between the fixture mounting plate (backplate) and the wall. This will help prevent water from entering the outlet box. If the wall surface is lap siding, use caulk and a fixture mounting platform specially.
5. Please refer to the grounding instructions below to complete all electrical connections.

grounding instructions

Flush Mount Fixtures

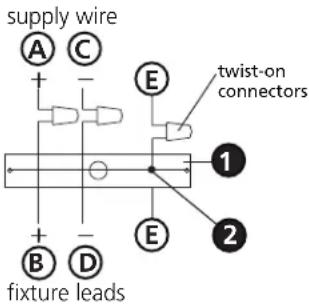

For positive grounding in a 3-wire electrical system, fasten the fixture ground wire (E) (typically copper or green plastic coated) to the fixture mounting strap (1) with the ground screw (2) - see Drawing 1.
