Product Type	Rotating Wall Mount for Flat Screens
Brand	B-Tech
Model	BT7550
Screen Size Compatibility	37" - 65"
Maximum Weight Capacity	70 kg (154 lbs)
VESA Compatible Patterns	200x200 mm, 300x300 mm, 400x400 mm
Rotation	90° (tool-free, lockable at any angle)
Tilt	Up to -4.5°
Depth from Wall	75 mm (at 0° tilt)
Mounting System	Keyhole mount for quick installation
Cable Management	Integrated
Color	Black
Material	Steel
Suitable for Interactive Touchscreens	Yes
Compatibility	Can be used standalone or with System X range and pole mount collars
Installation Tools Required	13mm spanner, crosshead screwdriver, drill, 10mm masonry bit or 6mm wood bit, pencil
Included Hardware	Interface kit with M4, M6, M8 screws and spacers; wall fixing kit with coach screws, washers, plugs
Maintenance	Periodically check all fixings for tightness and signs of wear. Clean with a soft, damp cloth; do not use abrasive cleaners.
Safety	Do not exceed maximum load. Ensure wall structure can support combined weight. Use all supplied hardware. If in doubt, consult professional installer.
Spare Parts and Repairability	Contact B-Tech for spare parts. Refer to manual for disassembly. Not designed for user repair beyond screw replacement.
General Information	Versatile rotating mount for large flat screens with portrait/landscape orientation, easy adjustment, and cable management.

Frequently Asked Questions - BT7550 B-Tech

What is the maximum weight capacity of the BT7550?

The maximum weight capacity is 70 kg (154 lbs). Do not mount a screen that exceeds this limit.

What VESA patterns does the BT7550 support?

The BT7550 supports VESA patterns of 200x200 mm, 300x300 mm, and 400x400 mm.

Can the BT7550 rotate the screen to portrait mode?

Yes, it can rotate 90° from landscape to portrait orientation. The rotation is tool-free and can be locked at any angle.

How do I lock the rotation angle?

Use a 13mm spanner to fully tighten all M8 nuts on the interface plate before attaching it to the screen. This prevents further rotation.

Is the tilt adjustable?

Yes, the tilt is adjustable up to -4.5° (downward tilt). Adjust by partially tightening the screws and setting the desired tilt before fully tightening.

Can I mount the BT7550 on a drywall?

Yes, but only if the drywall is securely fixed to a wooden stud, concrete block, or other permanent structure. Installing directly on drywall board alone is not safe.

What tools are needed for installation?

You will need a 13mm spanner, crosshead screwdriver, drill, 10mm masonry bit or 6mm wood bit, and a pencil for marking. A stud finder is optional.

Does the mount come with all necessary hardware?

Yes, the mount includes a full interface kit with M4, M6, M8 screws and spacers, and a fixing kit with coach screws, washers, and wall plugs.

Is the BT7550 compatible with interactive touchscreens?

Yes, the BT7550 is designed to be suitable for interactive touchscreens. The lockable rotation and tilt allow for stable positioning.

How do I clean and maintain the mount?

Periodically check all screws and fixings for tightness. Clean the mount with a soft, damp cloth; avoid abrasive cleaners. Refer to the manual for further care instructions.

USER MANUAL BT7550 B-Tech

Black diamond-shaped geometric pattern with white and gray triangular cutouts on a black background (no text or symbols)

FEATURES

• Rotates a mounted screen from landscape to portrait orientation
• Recommended for screens between 37" - 65"
  • Max load: 70kg (154lbs)
• Fits screens with VESA® patterns: 200 x 200mm, 300 x 300mm and 400 x 400mm
• 90^ toolless rotation
• Can be locked at any angle
• Suitable for interactive touchscreens
• Adjustable tilt up to -4.5^ , ideal for Samsung Flip®
  • Depth from wall: 75mm (at 0° tilt)
• Can be used as a standalone wall mount or attached to a suitable screen mount
• Compatible with B-Tech's System X range and B-Tech collars for pole mounted installations
  • Integrated cable management
  • Keyhole mounting for a quick and easy installation

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....5

Installation Example....10

Product Dimensions....11

B-Tech Contact Details....12

INSTALLATION TOOLS REQUIRED

13mm (1/2") Spanner

Crosshead screwdriver

Drill

10mm (7/16") Masonary or 6mm (1/4") Wood Drill Bit

Pencil

Stud finder (optional)

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use screens heavier than the maximum indicated may instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech International Design and Manufacturing Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Design and Manufacturing Limited recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of wall prior to installation as some walls are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Technical line drawing of a rectangular panel with multiple recessed slots and mounting holes (no text or symbols)

Item	Part Name	Qty
1	MOUNTING PLATE	1

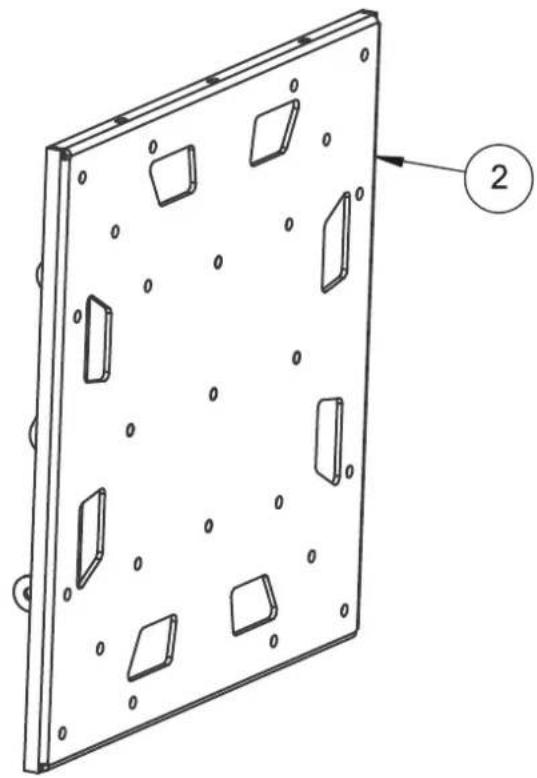

2	INTERFACE PLATE	1
3	M8 PLASTIC WASHER	4
4	M8 x 16mm SCREW	4
5	5mm HEX KEY	1

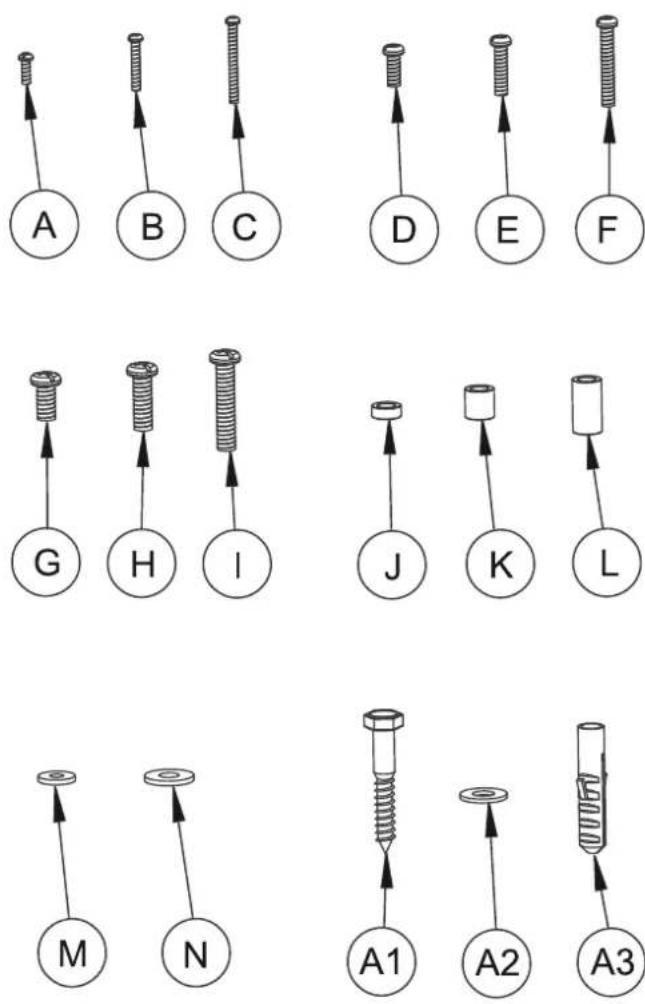

Interface Kit
A	M4 x 16mm SCREW	4
B	M4 x 25mm SCREW	4
C	M4 x 40mm SCREW	4
D	M6 x 16mm SCREW	4
E	M6 x 25mm SCREW	4
F	M6 x 40mm SCREW	4
G	M8 x 16mm SCREW	4
H	M8 x 25mm SCREW	4
I	M8 x 40mm SCREW	4
J	M8 x 5mm SPACER	4
K	M8 x 13mm SPACER	4
L	M8 x 24mm SPACER	4
M	M4 METAL WASHER	4
N	M6 METAL WASHER	4
Fixing Kit
A1	M8 x 50mm COACH SCREW	4
A2	M8 METAL WASHER	4
A3	N° 10 WALL PLUG	4

INSTALLATION INSTRUCTIONS

1

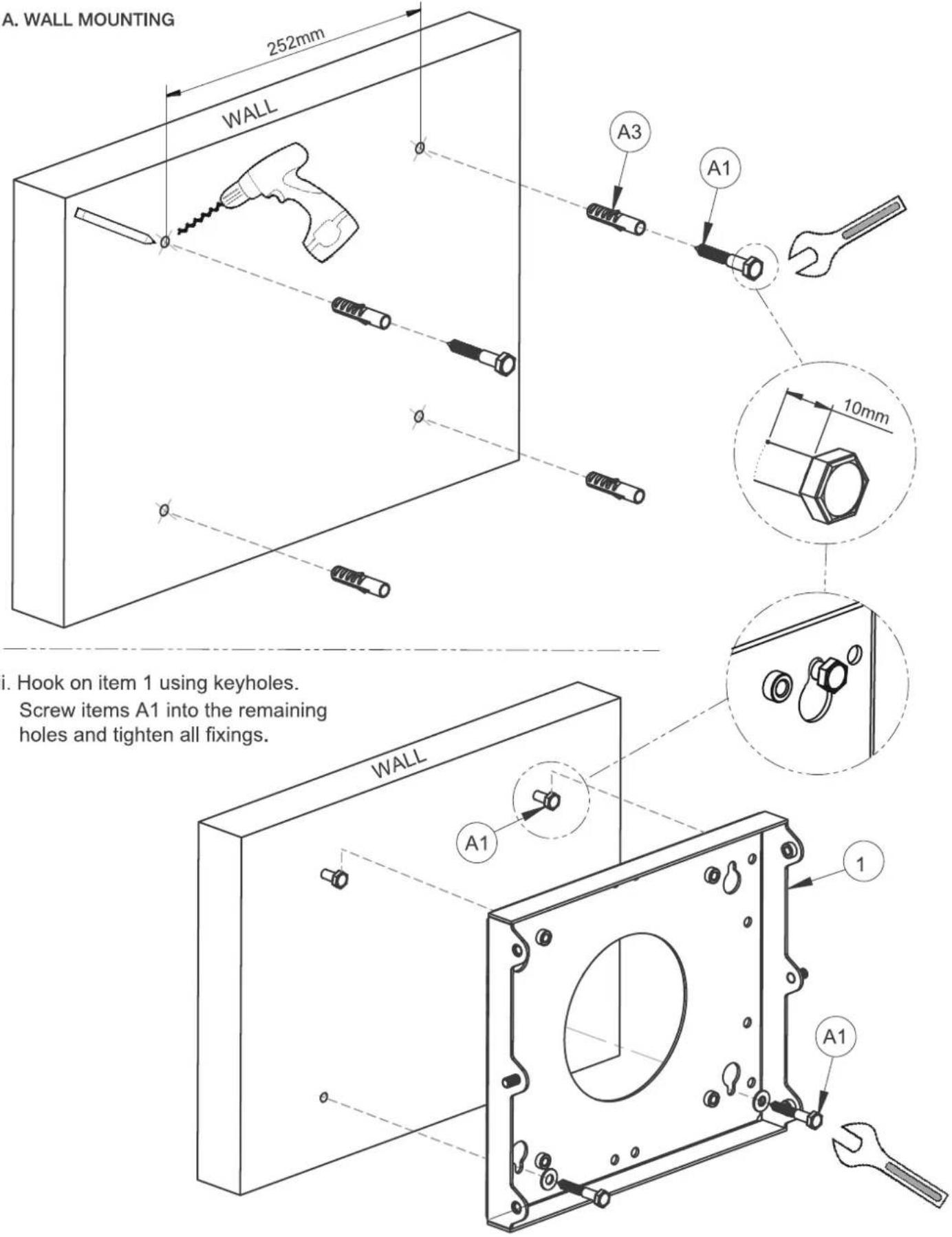

Fix Mounting Plate

i. Mark and drill four fixing holes and insert item A3 into the holes. Screw two of item A1 into the top holes, do not fully tighten. Allow a gap (approx 10mm) to hook on item 1.

B. SINGLE POLE MOUNTING

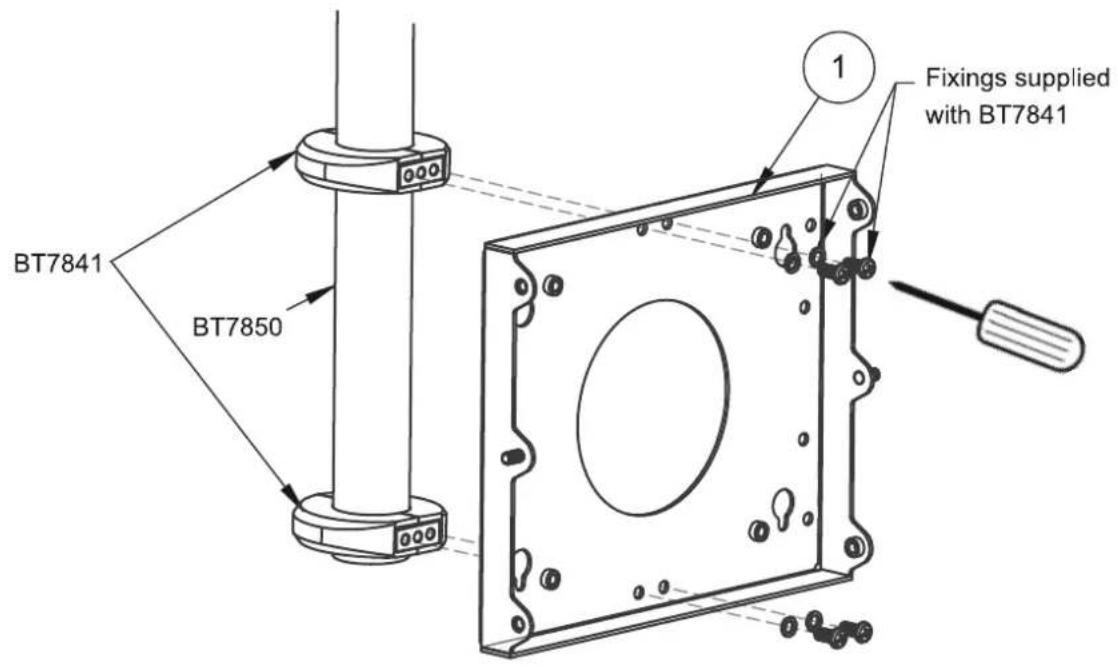

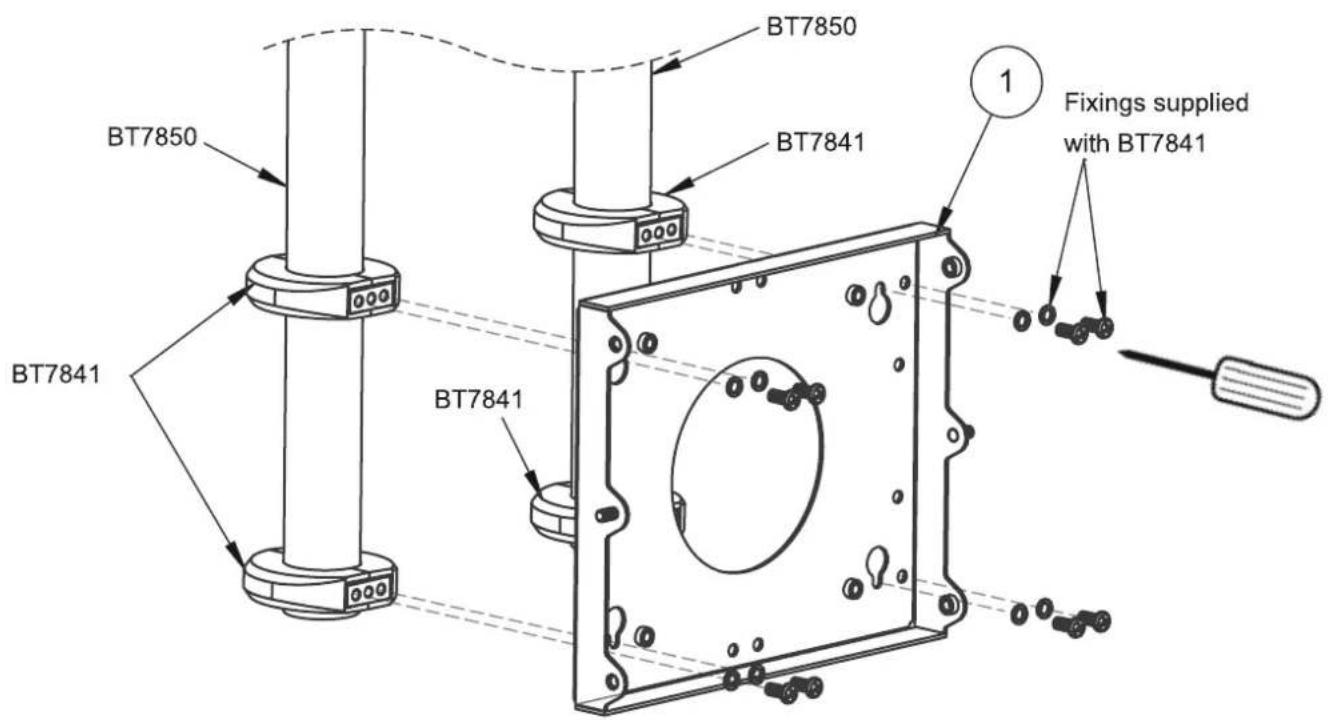

C. DOUBLE POLE MOUNTING

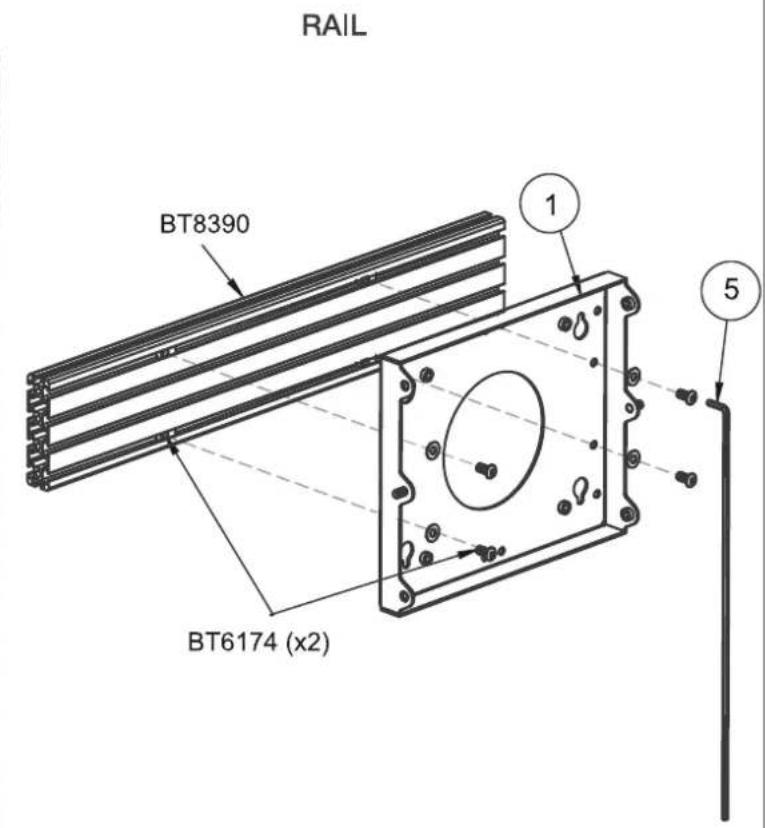

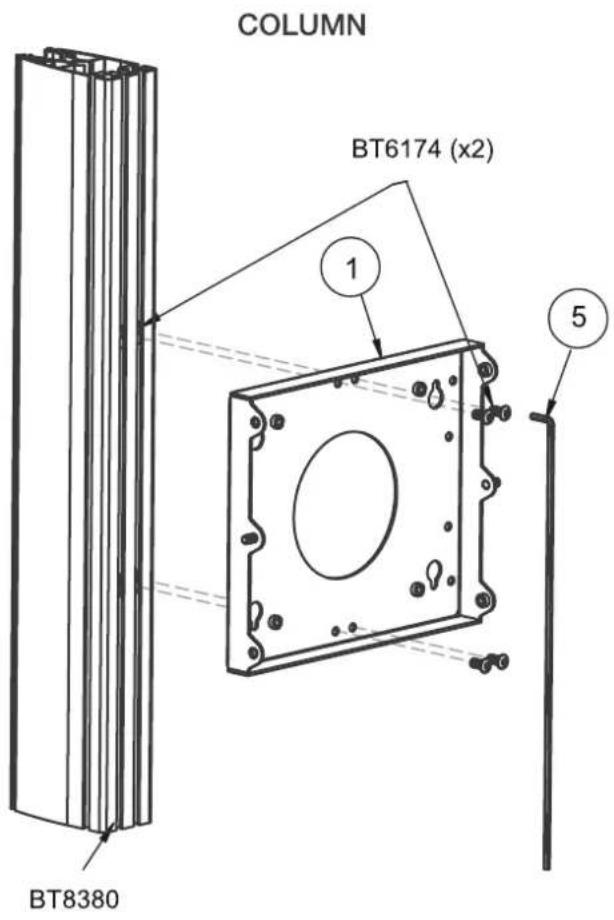

D. SYSTEM X MOUNTING

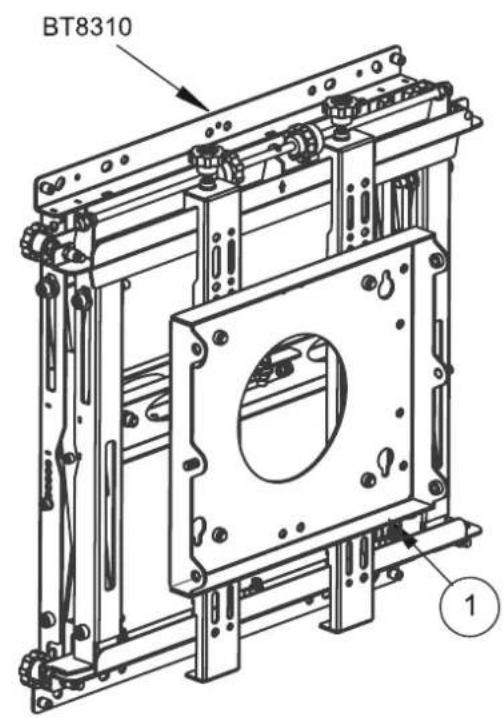

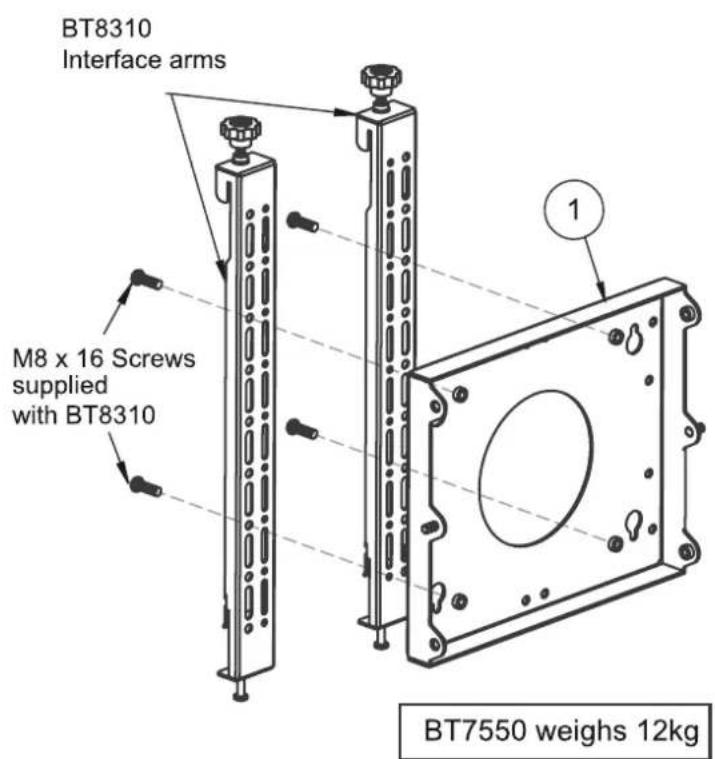

E. MOUNTING ONTO A FLAT SCREEN MOUNT

Warning: Do not exceed max load of the flat screen mount when the weight of the BT7550 is combined with the screen weight

z

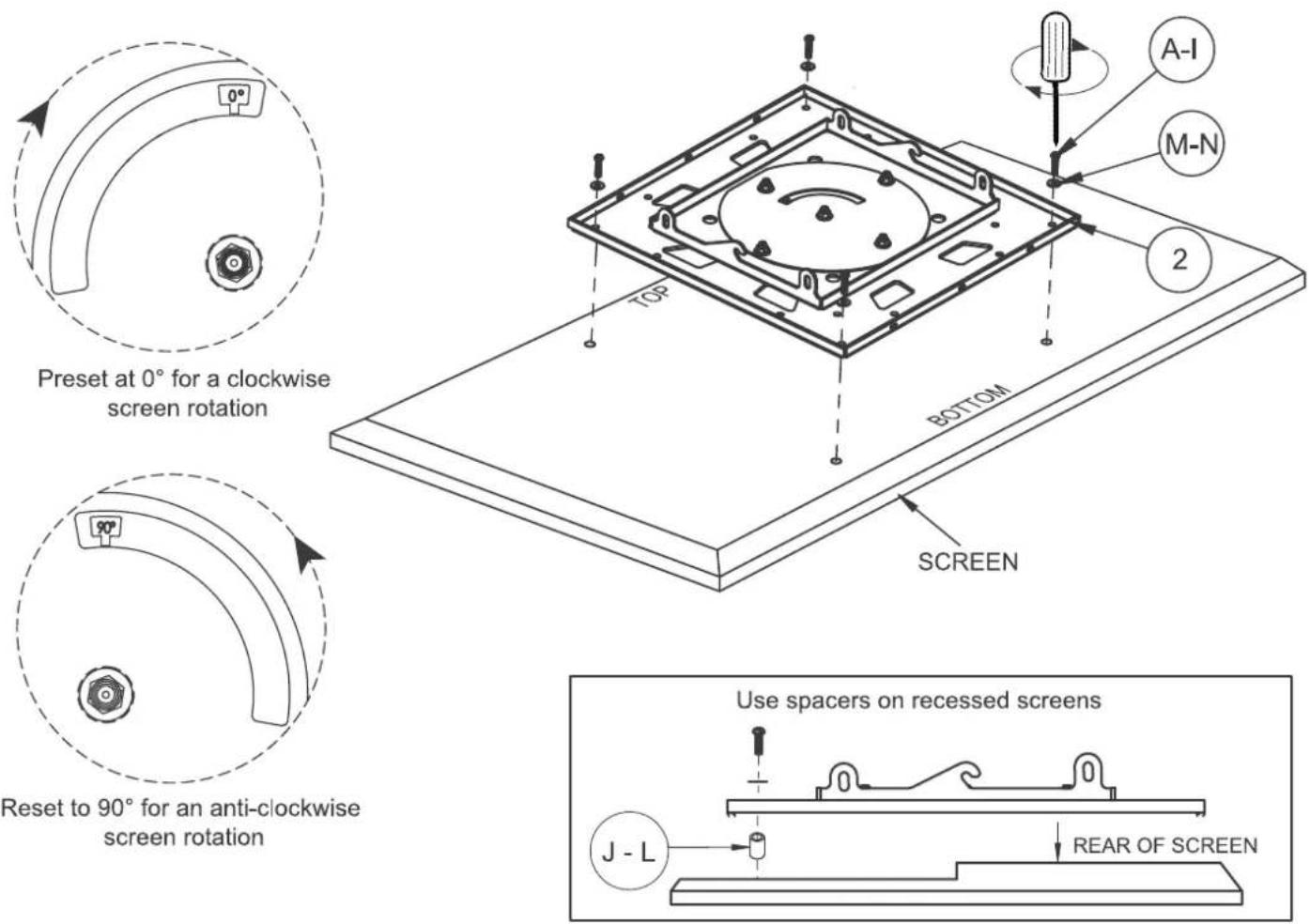

Attach Interface Plate to Screen

Attach item 2 to the rear of the screen using the interface kit provided.

Note: If the screen needs to rotate in an anti-clockwise direction.

Set the angle to 90° on item 2 before attaching the plate to the screen.

See below if the installation requires the screen to be locked at an angle.

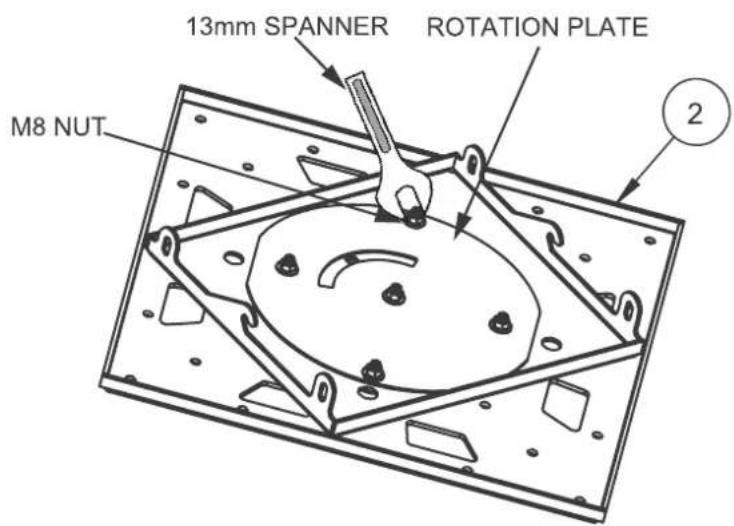

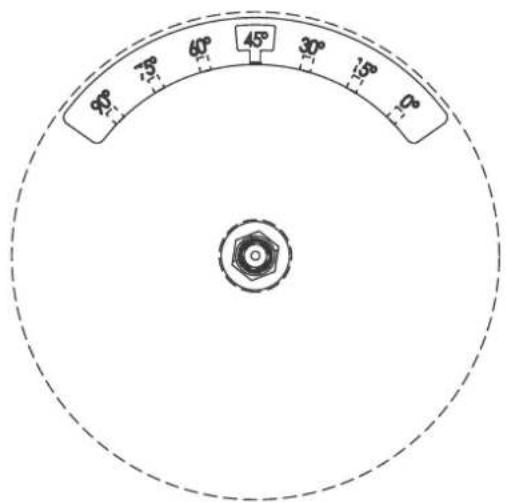

Lock Angle (Optional)

If the installation requires the screen to be locked in position, set the angle on the rotation plate before attaching item 2 to the screen. Use a 13mm spanner to fully tighten all the M8 Nuts on item 2, preventing any further rotation.

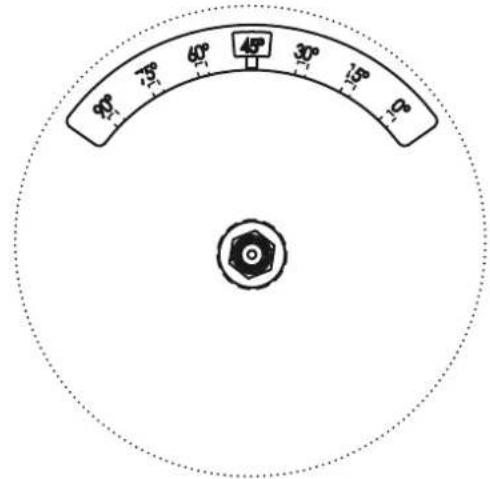

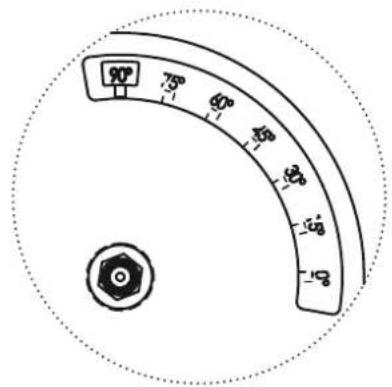

Angle guide shows:
0^ , 15^ , 30^ , 45^ , 60^ , 75^ and 90^

3

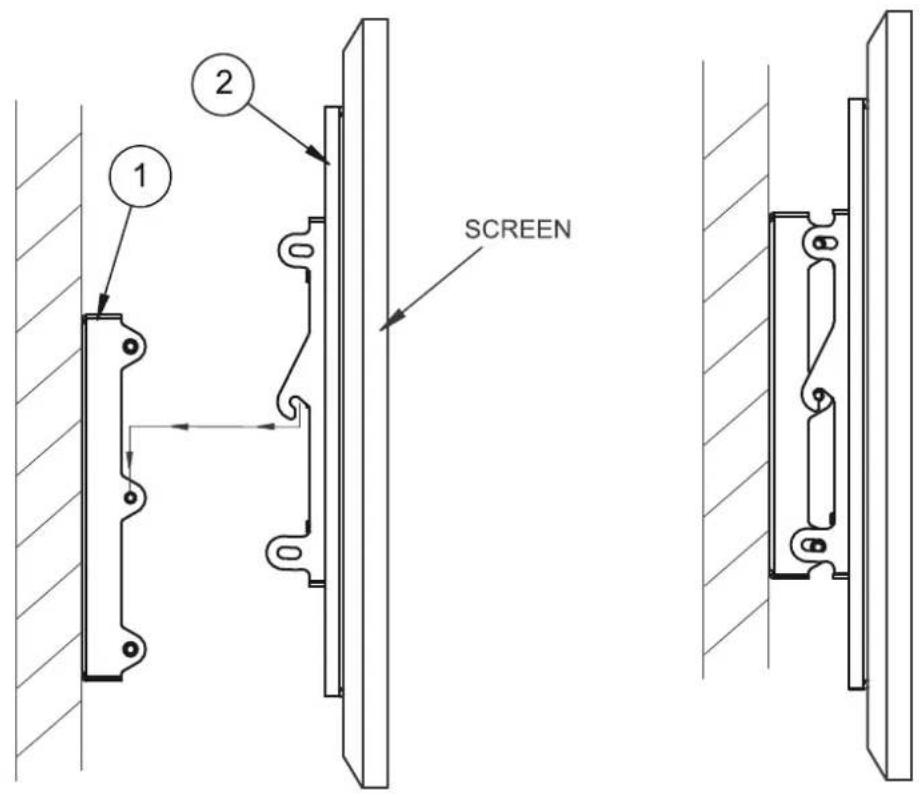

Hook Screen onto the Mounting Plate

Hook screen onto item 1.

4

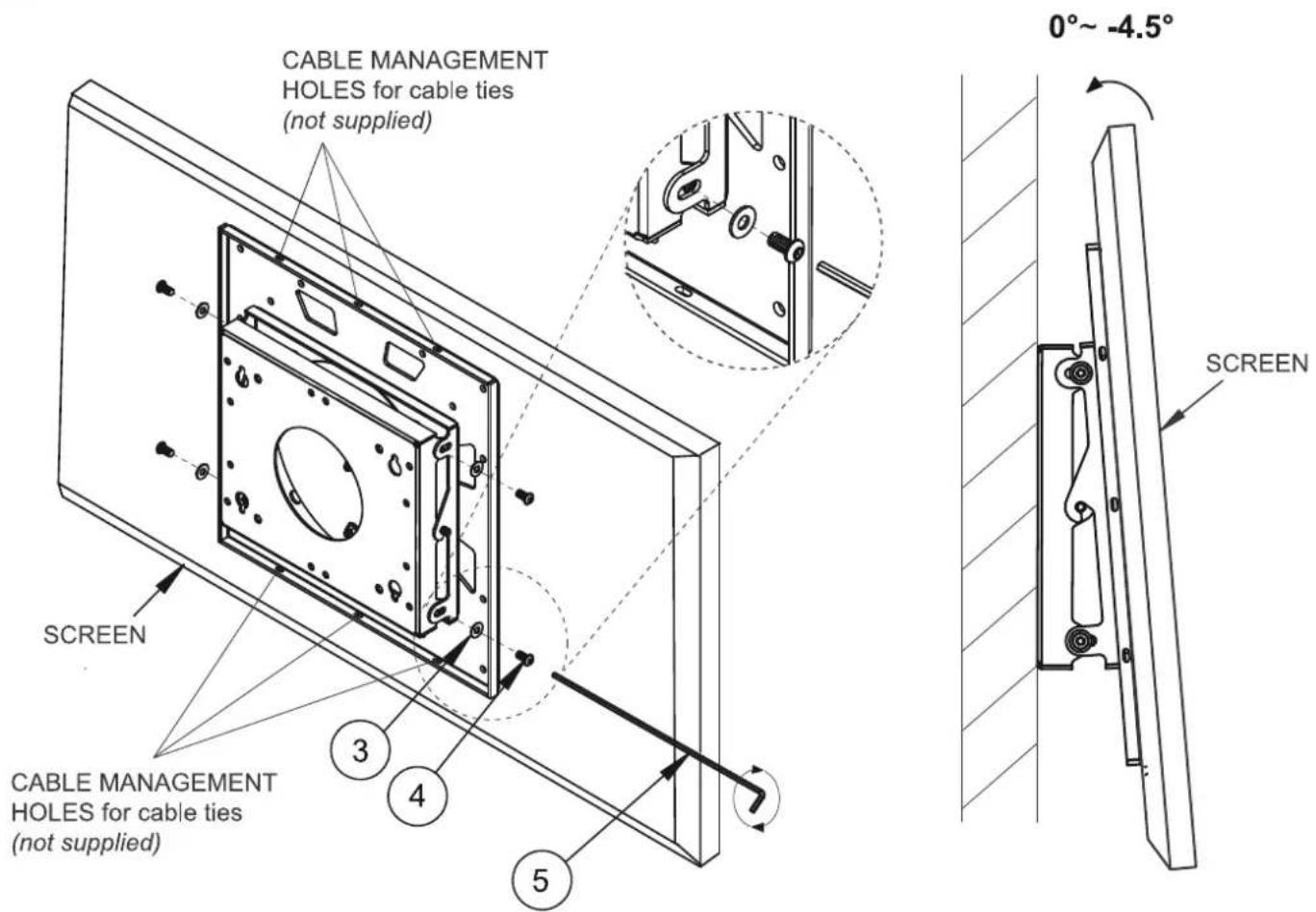

Secure Interface Plate on Mounting Plate and Set Tilt (if required)
Insert items 3 & 4 into items 1 & 2. Do not fully tighten until the tilt has been set.

5

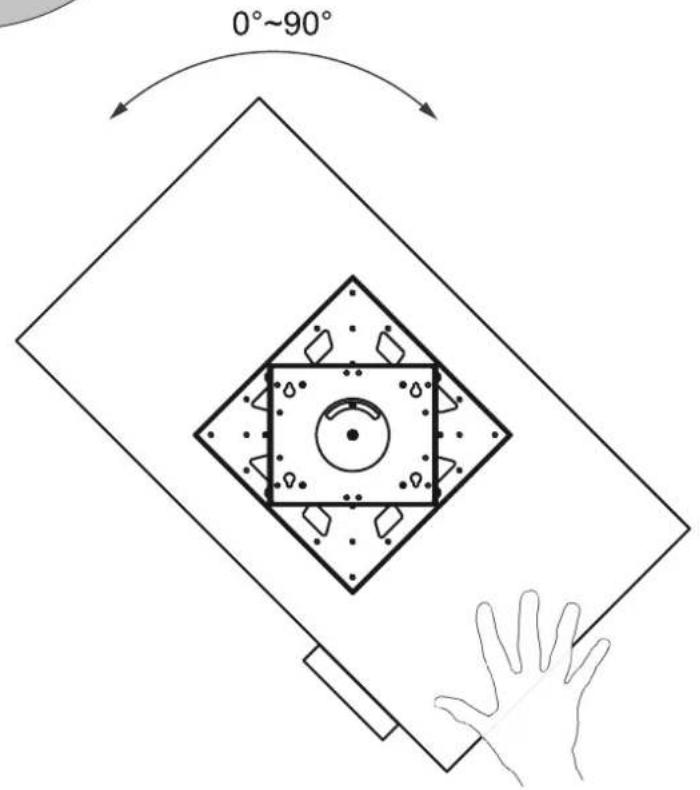

Free Rotation

Pure geometric diagram showing a rectangle with dashed and solid lines, no text or symbols present

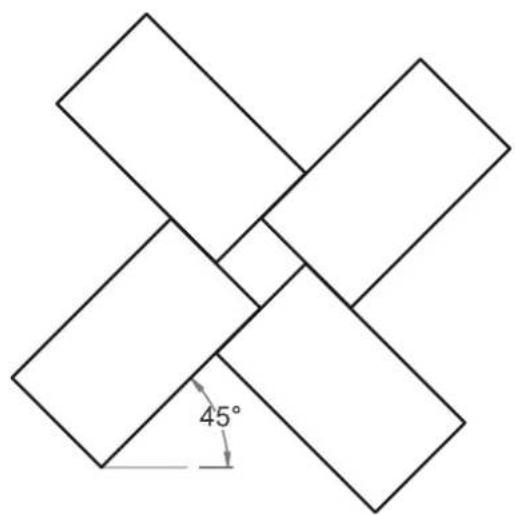

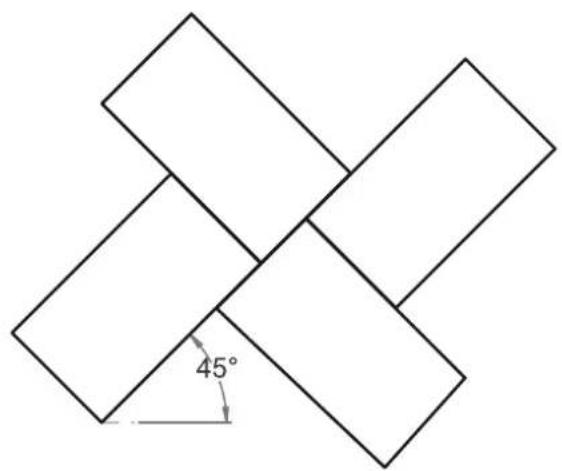

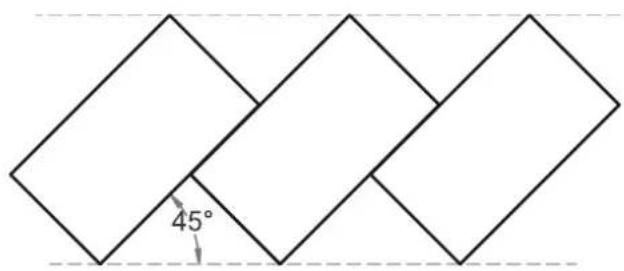

EXAMPLES OF 45° MULTI-SCREEN INSTALLATIONS

BT7550

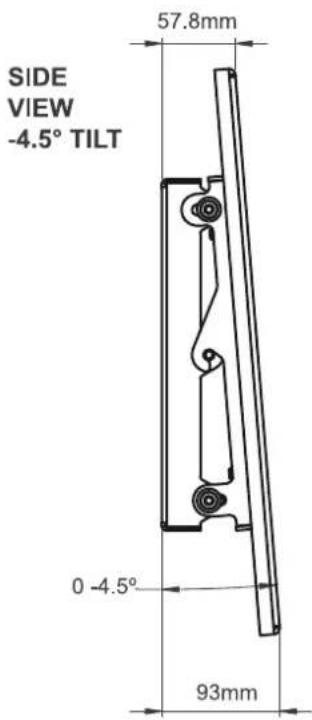

PRODUCT DIMENSIONS

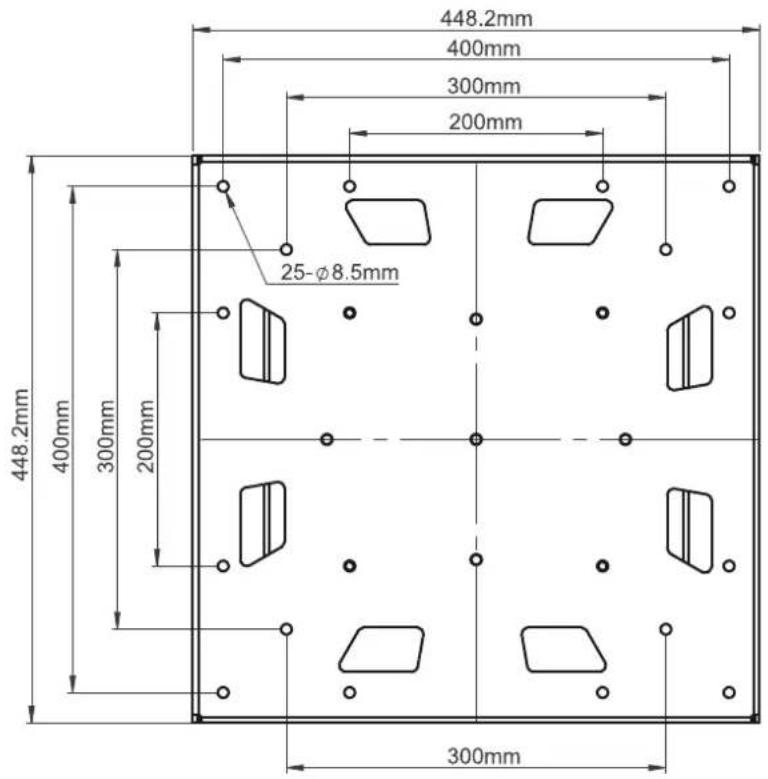

FRONT VIEW

SIDE VIEW 0° TILT

Technical line drawing of a mechanical component with dimension标注 (75.5mm), no readable text or symbols present.

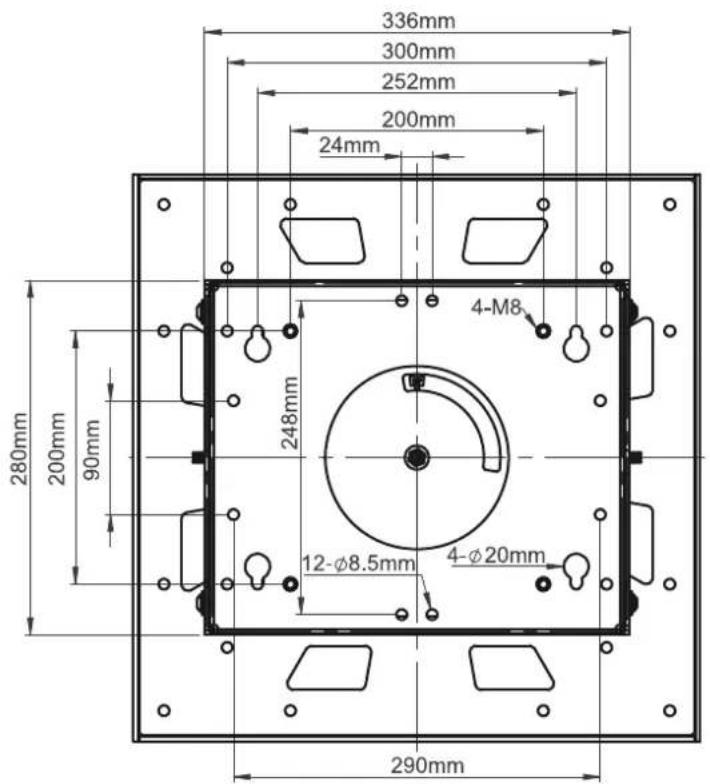

BACK VIEW

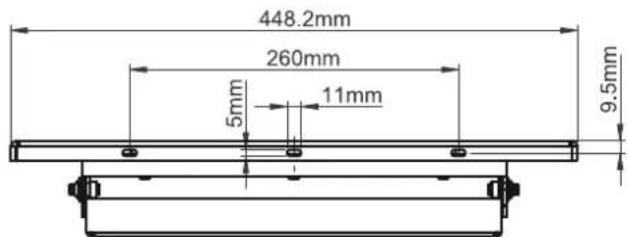

TOP VIEW

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
