Product Type	Digital Camera
Model	Minolta MND25
Image Sensor	8MP CMOS
Photo Resolution	Up to 48MP (interpolated)
Video Resolution	Up to 4K
Zoom	16x Digital Zoom
LCD Screen	3.0" IPS 16:9
Flash	White LED Flash
Battery	Lithium-Ion 3.7V, 1500mAh
Storage Media	MicroSD / MicroSDXC up to 128GB
Dimensions (WxHxD)	4.87 x 2.8 x 1.7 in
Weight	7.4 oz
Special Features	Selfie Mirror, Face Detection, Smile Capture, Beauty Filter, Webcam Mode
Scene Modes	Auto, Night, Portrait, Landscape, Backlight, Sport, Party, Beach, High Sensitivity
White Balance	Auto, Daylight, Cloudy, Fluorescent, Tungsten
ISO Sensitivity	Auto, 100, 200, 400
Color Effects	20 modes including Normal, Black & White, Sepia, Vivid, LOMO, etc.
Connectivity	MicroUSB, External Microphone Port
Cleaning	Use a soft dry cloth; avoid abrasive chemicals
Safety Certifications	FCC Part 15 (Class B), CE, RoHS
Spare Parts & Repairability	Contact Minolta support at 800-441-1100

Frequently Asked Questions - MND25 MINOLTA

How do I charge the Minolta MND25 battery?

Connect the camera to the included AC adapter using the USB cable. Open the USB port door on the side of the camera, insert the small end, and plug the adapter into a power outlet. The status LED glows red during charging and turns off when fully charged.

How do I insert a memory card?

Ensure the camera is off, open the battery door, and insert a MicroSD card (Class 10 or above) with metal contacts facing inwards. Push until it clicks. To remove, press the card inward to eject. Format the card first via the settings menu.

How do I use the selfie mirror?

Turn the camera so the lens faces you. Look into the selfie mirror above the lens, frame your shot, and press the shutter button to take a photo or start video recording. Clean the mirror with a soft, dry cloth if needed.

Can I use the camera as a webcam?

Yes. Connect the camera to a computer via USB, power it on, and select 'Camera' mode on the screen (use UP/DOWN to switch from 'MSDC'). The camera will function as a webcam. It can also be used for file transfer in 'MSDC' mode.

How do I set the self-timer?

In Photo mode, press the LEFT/Self Timer button repeatedly to cycle through Off, 2s, 5s, and 10s delay. The selected delay icon appears on the screen. Press the shutter to start the countdown.

What flash modes are available?

Press the UP/FLASH button in Photo mode to cycle through Off, Auto, and On. The flash icon indicates the active mode. Flash only works in Photo mode.

How do I delete photos or videos?

In Playback mode, press the DOWN/DELETE button to delete the current file, or press MENU, select 'Delete', and choose 'This Image/Video' or 'All'. Deleted files cannot be recovered; protect important files first.

What should I do if condensation forms?

Avoid sudden temperature changes. If condensation occurs, turn off the camera and let it acclimate in a dry environment at room temperature. Placing the camera in a plastic bag before moving between hot and cold areas helps prevent condensation.

How do I restore factory settings?

Press MENU in Photo or Video mode, navigate to the wrench icon settings, select 'Restore Default Settings', choose 'Yes', and press OK. This resets all menu settings but does not delete media on the memory card.

What is the maximum memory card size supported?

The Minolta MND25 supports MicroSD and MicroSDXC cards up to 128GB. Use Class 10 or higher for optimal performance. Format the card in the camera before first use.

USER MANUAL MND25 MINOLTA

Blue ULTRA HD digital camera with visible lens and control panel (no text or symbols on body)

MND25 User Manual

About this Manual

Congratulations on purchasing the Minolta MND25 Digital Camera!

The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User's Guide may differ somewhat from the screens and configuration of the actual camera.

Copyright

This manual contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Elite Brands Inc. © 2023.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Warning

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating

conditions for satisfying RF exposure compliance.

FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg

CE Mark Warning

This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Safety and Handling Precautions

Camera Information

• Do not disassemble or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch and put pressure on the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.
• Do not use the flash or LED Light near a person's eyes to prevent possible eye injury.
• To prevent you from falling over or resulting in traffic accident, please do not use the camera while you are walking, driving or riding a vehicle.
• Please handle the camera strap with care, and never place the strap around the neck of an infant or child. Wrapping the strap around a neck may cause suffocation.
• Do not subject the LCD screen to impact.
• To prevent the risk of fire or electric shock, do not expose the inside of this product to rain or moisture.

Battery Information

• Turn off the camera before installing or removing the battery.
• Use only the provided batteries or type of battery and charger that came with your camera. Using other types of battery or charger may damage the device and invalidate the warranty.
• Inserting the battery upside down can cause damage to the product and possibly cause an explosion.
• When the camera is used for an extended period of time, it is normal for the camera body to feel warm.
• Download all pictures and remove the battery from the camera if you are going to store the camera for a long period of time.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
• Please keep the batteries out of the reach of children to prevent from swallowing the batteries, which might cause poisoning.
• If the battery's color or shape changes in any way, stop using the battery

immediately.

USB Adaptor Information

• Do not expose the adapter to high temperatures or moisture places. Otherwise, it may cause fire or electric shock.
• Do not attempt to repair, disassemble, change or transform the adapter.
• Avoid sudden changes in temperature, which may cause condensation on the adapter's internal surfaces. Please do not use it immediately in this situation.
• Do not touch the plug with wet hands. Otherwise, it may cause electric shock.
• Do not use the travel voltage converter or AC/DC power inverter. Otherwise, it may cause damage, overheating, malfunction or fire to the camera.

Notes about Opening and Closing the Battery Door

• Make sure the camera and your hands are not wet.
- Make sure that there are no debris inside the battery-chamber or memory card slot.
- Make sure that the battery cover is firmly closed and the security lock is in the lock position.

Precautions When Cleaning

• Do not puncture the microphone or speaker openings with a sharp implement.
• If the inside of the camera is damaged, the waterproof performance will deteriorate.
• Do not use soap, natural detergents, or chemicals such as benzene for cleaning.

Do Not Apply Strong Impact to the Camera

The product may malfunction if subjected to strong shock or vibration. In addition, do not touch or apply force to the lens.

Avoid Sudden Changes in Temperature

Sudden changes in temperature, such as when entering or leaving a heated building on a cold day, can cause condensation to form inside the device. To prevent condensation, place the device in a carrying case or a plastic bag before exposing it to sudden changes in temperature.

Keep Away from Strong Magnetic Fields

Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Doing so could result in loss of data or camera malfunction.

Do Not Point the Lens at Strong Light Sources for Extended Periods

Avoid pointing the lens at the sun or other strong light source light sources for extended periods when using or storing the camera. Intense light may cause the image sensor to deteriorate or produce a white blur effect in photographs.

1. About Your Camera

Turn the Product Off before Removing or Disconnecting the Power Source or Memory Card

Do not remove the battery while the product is on, or while images are being saved or deleted. Forcibly cutting power in these circumstances could result in loss of data or cause damage to the memory card or internal circuitry.

Notes about the LCD Screen

• The LCD Screen is constructed with extremely high precision; At least 99.99% of pixels are effective, with no more than 0.01% being missing or defective. Hence, while these displays may contain pixels that are always lit (white, red, blue or green) or always off (black), this is not a malfunction and has no effect on images recorded with the device.
• Images viewed on the LCD screen may be difficult to see under certain lighting.
• Do not apply pressure to the LCD screen, as this could cause damage or malfunction.

The Battery

Precautions for Use

• Note that the battery may become hot after use.
- Do not use the battery at ambient temperatures below 0^ C ( 32^ F) or above 40^ C ( 104^ F) as this could cause damage or malfunction.
- If you notice any abnormalities such as excessive heat, smoke, or an unusual smell coming from the battery, immediately discontinue use and consult your retailer.
- After removing the battery from the camera or optional battery charger, put the battery in a plastic bag, etc. in order to insulate it.

Charging the Battery

Check the battery level before using the camera and replace or charge the battery if necessary.

• Charge the battery indoors with an ambient temperature of 5°C (41°F) to 35°C (95°F) before use.
• A high battery temperature may prevent the battery from charging properly or completely, and may reduce battery performance. Note that the battery may become hot after use; wait for the battery to cool before charging. When charging the battery inserted into this camera using the Charging AC Adapter or a computer, the battery is not charged at battery temperature below 5°C (41°F) or above 55°C (131°F).
• When the battery is between 45^ (113°F) - 55°C (131°F), the chargeable capacity may decrease.
• Do not continue charging once the battery is fully charged as this will result in reduce battery performance.
• The battery temperature may increase during charging. However, this is not a malfunction.

Using the Battery When Cold

1. About Your Camera

On cold days, the capacity of batteries tends to decrease. If an exhausted battery is used at a low temperature, the camera may not turn on. Keep spare batteries in a warm place and exchange as necessary. Once warmed, a cold battery may recover some of its charge.

Recycling Used Batteries

Replace the battery when it no longer holds a charge. Used batteries are a valuable resource. Please recycle used batteries in accordance with local regulations.

Cleaning After Using the Camera

Use a blower to remove any dust or lint that adheres to the lens, monitor or camera body. To remove fingerprints or other stains that cannot be removed with a blower, gently wipe the parts with a soft dry cloth. If you wipe with too much pressure or with a rough cloth, it may damage the camera or cause a malfunction.

Storage

If you do not intend to use the camera for an extended period, remove the battery and avoid storing the camera in any of the following types of locations:

• Places that are poorly ventilated or subject to humidity of over 60%
• Place exposed to temperatures above 50^ (122°F) or below -10°C (14°F).
• Place next to equipment that produces strong electromagnetic field, such as television or radios.

To prevent mold or mildew, take the camera out of storage at least once a month, and turn it on and release the shutter a few times before putting it away again.

1. About Your Camera

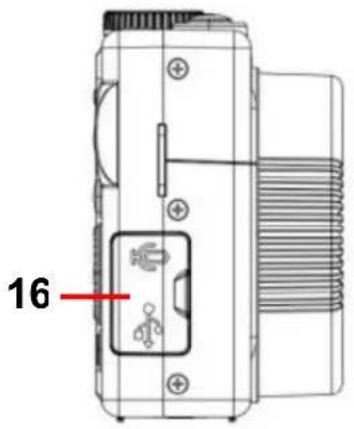

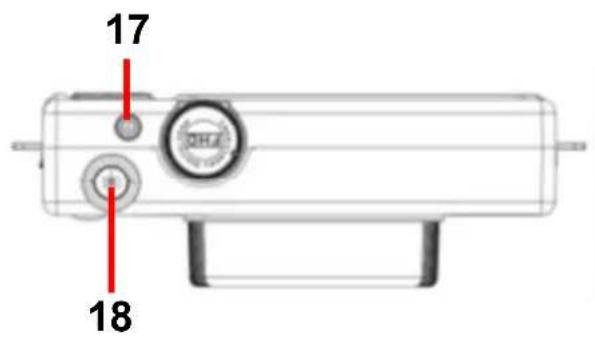

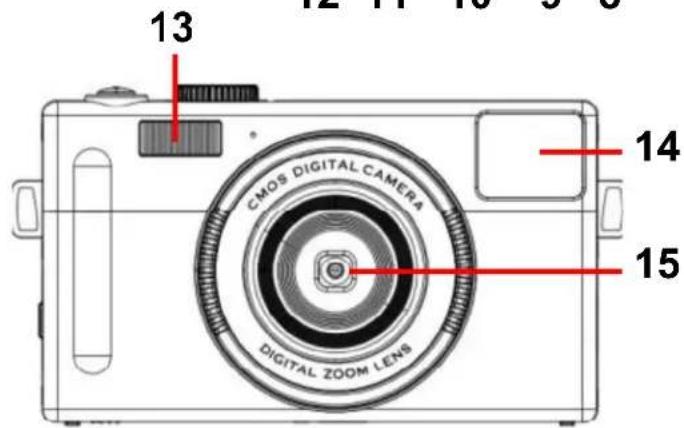

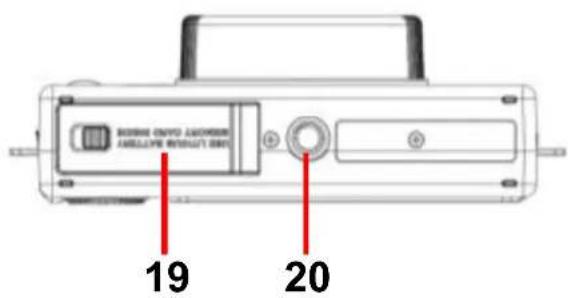

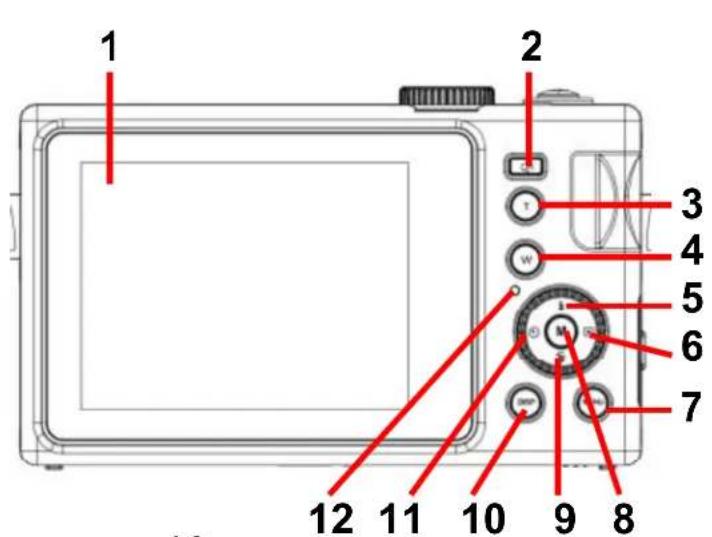

1.1 Camera Interface

1. LCD Screen	8. Ok | Mode	15. Camera Lens
2. Mute 9. Down | Delete 16. USB & Mic Port Door
3. Zoom In	10. Display	17. Power
4. Zoom Out 11. Left | Self Timer 18. Shutter
5. Up | Flash 12. Status LED		19. Battery & Memory Card Door
6. Right | Playback	13. LED Flash	20. Tripod Mount
7. Menu	14. Selfie Mirror

1. About Your Camera

1.2 Button Function Description

Function Description
Power Tap once to power on and off.
Mute	Tap once to turn all sounds on the camera off and on. This setting can also be accessed in the settings menu under “Button Sound”.
Zoom In	In Photo or Video: Press to zoom in. In Playback: Tap to zoom in on an image.
Zoom Out	In Video or Photo: Press to zoom out. In Playback: Tap to zoom out on a zoomed in image, or to see multiple images on the screen at once.
Up | Flash	In Photo: Tap to change the flash setting from Off, Auto, On. In Playback: Tap to scroll through files when viewing multiple files on the screen at once. In Playback: Tap to move the image on the screen while zoomed in or cropping an image. In Video Playback: Tap to increase the volume of a playing video. In Menus: Tap to scroll through menus and submenus.
Right | Playback	In Photo or Video: Press to enter playback mode. In Playback: Tap to scroll through saved files. In Playback: Tap to move the image on the screen while zoomed in or cropping an image. In Menus: Tap to scroll through menus and submenus.
Menu In Video, Photo or Playback: Tap to access menus.
Ok | Mode	In Photo or Video: Tap to switch between Photo and Video modes. In Video: While recording, tap to pause the recording and tap again to resume recording.
Down | Delete	In Photo or Video: Press to access the delete menu for the last captured file. In Playback: Tap to scroll through files when viewing multiple files on the screen at once. In Playback: Tap to move the image on the screen while zoomed in or cropping an image. In Video Playback: Tap to decrease the volume of a playing video. In Menus: Tap to scroll through menus and submenus.

1. About Your Camera

Display	In Photo or Video: Press to change what is displayed on the LCD screen and to turn the LCD screen off and on.
Left | Self Timer	In Photo: Tap to change the self timer setting from Off to 2 second delay to 5 second delay and to 10 second delay.In Playback: Tap to scroll through saved files.In Playback: Tap to move the image on the screen while zoomed in or cropping an image.In Menus: Tap to scroll through menus and submenus.
Status LED	LED light showing the status of the camera.
LED Flash	LED Flash used to help capture images in dark environments.
Selfie Mirror	Allows you to take the perfect selfie by seeing what the camera lens sees.
Camera Lens	Front capture device for all video and photo.
USB & Mic Port Door	Door covering the USB port and external Microphone port.
Shutter	In Photo: Half-press to focus an image and fully press to capture a photo.In Video: Press to start and stop recording.In Video Playback: Press to start playing a recorded video, press again to stop.
Battery & Memory Card Door	Door to cover the battery compartment and memory card slot.
Tripod Mount	Mount port for attaching to a tripod nut.
Zoom In Video	or Photo: Slide to zoom in and out.
Mic Port Used	to connect an external microphone.

2. First Use

2. First Use

2.1 To Open the Battery Door

Unlock the battery door by sliding the battery door latch toward the center of the camera. Use a fingernail or other pointy object when sliding the latch to get a better grip. When the latch is fully open, the door will swing up.

2.2 Installing the Battery

Insert the lithium-ion battery into the battery compartment with the metal contacts facing the inside of the camera. The battery can only be inserted one way. To remove the battery, open the battery door and slide the battery locking tab down and the battery will pop out.

Diagram of a computer monitor with an attached battery and a red arrow indicating a component (no text or symbols present)

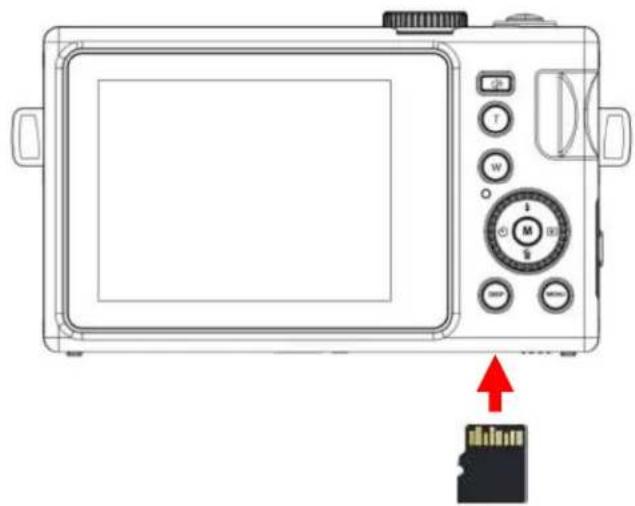

2.3 Installing the Memory Card

Insert the included Micro SD memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the SD memory card by following the steps below:

1. Ensure that the camera is powered off.
2. Open the battery door to access the memory card slot.
3. Insert the memory card. Ensure that the metal contacts are inserted first. Push the memory card down until you hear an audible click.

The memory card can only be inserted in one way. Do not force the card in if it will not go in smoothly.

2. First Use

1. To remove the memory card, simply push in and the card will eject back out.

Front view of a digital camera with control panel and external memory card (no text or symbols on device body)

NOTE:

• Please format the memory card before using the camera (Caution, this will erase all data on the card).
• Do not remove or insert the memory card when recording. It may damage the card or cause data loss.
  • Memory card rating must be Class 10 or above.

2.4 Charging the Battery

Connect your camera to the included AC adaptor with the USB cable provided for charging. Open the USB port door on the side of the camera to access the USB port. Insert the small end of the USB plug into the camera's USB port, and the larger end in to the included AC adaptor. While charging the camera, the LED status light will light up solid red, when finished charging the light will turn off.

2.5 Powering the Camera On/Off

Tap the POWER button once to power the camera on. Tap the POWER button again to turn the camera off.

If the camera's battery is low, a "Low Power" message will display on the screen and it will automatically shut down within a few seconds to prevent memory corruption or loss.

2. First Use

2.6 Switching Modes

Press the MODE/OK button to cycle between Photo and Video modes. While in Photo or Video modes, press the RIGHT/PLAYBACK button to enter playback mode.

2.7 Connecting to a Computer

Your camera can connect to a computer to transfer photo and video files for viewing and editing or you can also use the camera as a webcam. Once connected and powered on, the camera's screen will show "MSDC", where you can access the stored files on your computer, and camera, where you can use the camera as a web cam. Use the UP or DOWN buttons to select your desired mode. Press the MODE/OK to select your desired mode.

2.8 Selfie Mirror

Your camera has a built-in selfie mirror that allows you to capture the perfect selfie. To use the selfie mirror, simply turn the camera around so that the lens is facing you. Then, while looking at the selfie mirror, move the camera around until you are centered on the mirror. Then press the SHUTTER button to capture a photo or start recording a video. If the mirror gets dirty, wipe it with a soft non-abrasive dry cloth.

2.9 Flash

The LED flash is used to help brighten dark environments allowing you to capture images with clarity. While in Photo mode, press the UP/FLASH button to change the flash mode. The flash modes are, Off, Auto and On. The flash icon on the LCD screen will show the active flash mode. Please note: flash is only active in photo mode.

2.10 Using the Zoom Function

This camera has a digital zoom function. To operate the zoom function, press the ZOOM IN button to zoom in closer to the subject, and press the ZOOM OUT button to zoom away from the subject.

3. Using the Camera

3.1 Photo Shooting

Power the camera on and it will be ready to take pictures right away. You may tap the MODE button once to switch to video mode.

1. Line up your shot by looking at the LCD screen to see what is in the shot.
2. Hold the camera steady and fully press the SHUTTER button to capture a photo.
3. Half-press the SHUTTER button to focus the lens on your target. When the yellow box outline turns green, the target surrounded by the box will now be in focus. Now fully press the SHUTTER button to capture a photo.
4. The number of photos that can be captured at a particular resolution will be displayed in the top right corner of the screen.
5. The number of photos that can be captured will be displayed as 0 on the screen if there is no memory card inserted in the camera's memory card slot.
6. The number of remaining photos is determined by the selected photo resolution. The higher the photo resolution, the lower the number of photos you are able to be save to the memory card. Before capturing any photos, you can select a preferred photo resolution.

3.1.1 Photo Burst

This function lets you set the number of photos captured with each photo burst.

1. In Photo Mode press the MENU button.
2. Select 'Photo Burst' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Off, 3-Photo Burst).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.2 Image Size (Resolution)

This function sets the photo resolution. The higher the resolution, the greater the photo quality and the larger the file size of the photo.

1. In Photo Mode press the MENU button.
2. Select 'Image Size' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the

3. Using the Camera

MODE/OK button to confirm your selected resolution (48MP, 30MP, 24MP, 20MP, 12MP, 8MP, 5MP).

1. Press the MENU button to exit the settings menu without making a selection.

3.1.3 Scene Mode

This function adjusts the camera's settings to predetermined values that will produce the best image for that selected scene.

1. In Photo Mode press the MENU button.
2. Select 'Scene Mode' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (Auto, Night, Portrait, Landscape, Backlight, Sport, Party, Beach, High Sensitivity).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.4 Beauty Filter

This feature applies a filter effect on the people in the scene.

1. In Photo Mode press the MENU button.
2. Select 'Beauty Filter' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (On, Off).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.5 Face Detection

This function allows you to set your camera to detect faces in a scene and adjust your camera's setting for the most optimal picture. You can also enable your camera to capture a photo once a smile is detected on the faces in a scene.

1. In Photo Mode press the MENU button.
2. Select 'Face Detection' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (On, Off).
4. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.1.6 Smile Capture

This function allows you to set your camera to detect smiles in a scene and for it to capture a photo automatically.

1. In Photo Mode press the MENU button.
2. Select 'Smile Capture' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (On, Off).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.7 White Balance

White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.

1. In Photo Mode press the MENU button.
2. Select 'Writing BadenEET or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Auto, Daylight, Cloudy, Fluorescent, Tungsten).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.8 Exposure

This function adjusts the frame brightness in your photograph.

1. In Photo Mode press the MENU button.
2. Select 'Using the' LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (+3, +2, +1, 0, -1, -2, -3).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.9 ISO

This function adjusts the light sensitivity in your photograph.

1. In Photo Mode press the MENU button.
2. Select / using the LEFT or RIGHT buttons.

3. Using the Camera

1. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Auto, 100, 200, 400).
2. Press the MENU button to exit the settings menu without making a selection.

3.1.10 Quality

The Photo Quality function determines the level of compression the camera uses when saving photos to a memory card.

1. In Photo Mode press the MENU button.
2. Select 'Quality' using the LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Super Fine, Fine, Normal). Super Fine uses the least amount of compression for saving, and as a result produces a higher photo quality.
4. Press the MENU button to exit the settings menu without making a selection.

3.1.11 Sharpness

This function adjusts the visible detail of a photograph.

1. In Photo Mode press the MENU button.
2. Select 'Using the left or right buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Sharp, Normal, Soft).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.12 Color Effect

This function sets the color filter effect of a photograph.

1. In Photo Mode press the MENU button.
2. Select 'Color Effect' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Normal, Black & White, Sepia, Red, Green, Blue, Sunset, Warm, Cool, Over Exposure, IR, Binary, Vivid, Undertone, Dog Eye, Aibao, Gothic, Japan Style, LOMO, Negative).
4. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.1.13 Anti-Shake

This function enables photo capture in high speed and low-light by electronically minimizing motion blur and reducing camera shake.

1. In Photo Mode press the MENU button.
2. Select 'Anti-Shake' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (On, Off).
4. Press the MENU button to exit the settings menu without making a selection.

3.1.14 Date Stamp

This setting allows you to imprint a date & time onto your captured image files. Once an image file is captured with the imprint, the imprint cannot be removed.

1. In Photo Mode press the MENU button.
2. Select 'Date Stamp' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Off, Date, Date & Time).
4. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.2 Video Recording

To switch to Video mode power the camera on and press the MODE button, A camcorder icon will appear in the top left corner of the screen when you are in Video mode.

1. Line up your shot by looking at the LCD screen to see what is in view.
2. Hold the camera steady and fully press the SHUTTER button to begin recording.
3. When recording begins, a rolling timer will display at the top right corner of the screen and the LED status light will blink green. This indicates the recorded video time elapsed.
4. While recording, press the MODE/OK button to pause the recording, press the MODE/OK button again to resume recording.
5. Press the SHUTTER button to stop recording.
6. The recorded video files will automatically save onto the inserted memory card.

3.2.1 Movie Size (Video Resolution)

This function sets the video resolution. The higher the resolution, the greater the video quality and the larger the file size of the video.

1. In Video Mode press the MENU button.
2. Select 'Movie Size' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (4K, 2.7K, 1080P, 720P).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.2 Scene Mode

This function adjusts the camera's settings to predetermined values that will produce the best image for that selected scene.

1. In Video Mode press the MENU button.
2. Select 'Scene Mode' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (Auto, Night, Portrait, Landscape, Backlight, Sport, Party, Beach, High Sensitivity).

3. Using the Camera

1. Press the MENU button to exit the settings menu without making a selection.

3.2.3 Beauty Filter

This feature applies a filter effect on the people in the scene.

1. In Video Mode press the MENU button.
2. Select 'Beauty Filter' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected resolution (On, Off).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.4 White Balance

White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.

1. In Video Mode press the MENU button.
2. Select 'White Balance' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Auto, Daylight, Cloudy, Fluorescent, Tungsten).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.5 Exposure

This function adjusts the frame brightness in your photograph.

1. In Video Mode press the MENU button.
2. Select 'Exposure the' LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (+3, +2, +1, 0, -1, -2, -3).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.6 ISO

This function adjusts the light sensitivity in your photograph.

3. Using the Camera

1. In Video Mode press the MENU button.
2. Select /sing the LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Auto, 100, 200, 400).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.7 Quality

The Quality function determines the level of compression the camera uses when saving videos to a memory card.

1. In Video Mode press the MENU button.
2. Select 'Quality' using the LEFT or RIGHT buttons.

3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Super Fine, Fine, Normal). Super Fine uses the least amount of compression for saving, and as a result produces a higher photo quality.

4. Press the MENU button to exit the settings menu without making a selection.

3.2.8 Sharpness

This function adjusts the visible detail of a photograph.

1. In Video Mode press the MENU button.
2. Select 'Using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Sharp, Normal, Soft).
4. Press the MENU button to exit the settings menu without making a selection.

3.2.9 Date Stamp

This setting allows you to imprint a date & time onto your captured video files. Once a video file is captured with the imprint, the imprint cannot be removed.

1. In Video Mode press the MENU button.
2. Select 'Date Stamp' using the LEFT or RIGHT buttons.
3. Use the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Off, Date, Date &

3. Using the Camera

Time).

1. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.3 Playback Mode

Videos and photos captured on your camera can be easily played back.

1. In Photo or Video modes press the RIGHT/PLAYBACK button to enter Playback mode, previously recorded videos and captured images will show on the screen.
2. Press the LEFT or RIGHT buttons to cycle through the captured videos and photos stored on the memory card.
3. Press the ZOOM OUT button to view up to 9 photos and videos on the screen at once.
4. Then press the UP, DOWN, LEFT or RIGHT buttons to navigate the files and press the MODE/OK button to enter the highlighted file.
5. While viewing and image press the ZOOM IN button to zoom in on the image. Then press the UP, DOWN, LEFT or RIGHT buttons to move the image on the screen. Press the ZOOM IN and ZOOM OUT to control the level of zoom on the image. Press the SHUTTER button to exit the zoom and view the full image on the screen.
6. While viewing a recorded video, press the SHUTTER button to start the video, press the MODE/OK button to pause the video, press the MODE/OK button again to resume playing the video, press the UP button to increase the playback volume, press the DOWN button to decrease the playback volume and press the SHUTTER button to stop the video.
7. Press the DOWN/DELETE button to access the delete menu for the current image or video only.
8. Press the MENU button to exit the settings menu without making a selection.

3.3.1 Delete

This function is used to delete photos and videos. Photos and videos can be deleted singly or all at once.

1. In Playback Mode press the MENU button.
2. Select 'Delete the LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (This Image/Video, All).
4. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

NOTE: There is no way to recover deleted media. Once you delete a single file or all files, they cannot be recovered. Only files that are locked are protected from deletion in PLAYBACK mode.

3.3.2 Protect

This function protects the photo/video file. The file will be protected from being deleted accidentally. Files must be unprotected to be deleted.

1. In Playback Mode press the MENU button.
2. Select 'Resin' the LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Lock Current, Unlock Current, Lock All, Unlock All).
4. Press the MENU button to exit the settings menu without making a selection.

3.3.3 Rotate

This function allows you to rotate the currently displayed image. (This function is not available for recorded videos)

1. In Playback Mode press the MENU button.
2. Select 'Rotate' using the LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (90°, 180°, 270°).
4. Press the MENU button to exit the settings menu without making a selection.

3.3.4 Crop

This function is used to trim photos and save them as new pictures.

1. In Playback Mode, find the image you want to crop and view that image on the screen.
2. Then press the MENU button.
3. Select 'Osping/megleEFT or RIGHT buttons and press the MODE/OK button to start cropping.
4. A blue box will appear on the image, the area inside the box is the part of the image that will be saved as a new image.
5. Press the ZOOM IN button to enlarge the box, press the ZOOM OUT

3. Using the Camera

button to shrink the box.

1. Press the UP, DOWN, RIGHT or LEFT buttons to move the location of the box.
2. Press the SHUTTER button to confirm the crop section of the photo.
3. Press the SHUTTER button again to save the cropped image.
4. Press the MODE button at any time to exit the crop menu.

3.3.5 Slide Show

Photographs can be viewed as a slideshow on the camera.

1. In Playback Mode press the MENU button.
2. Select 'Sidesingthe LEFT or RIGHT buttons.
3. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (3 Seconds, 5 Seconds, 10 Seconds).
4. Press the MODE button to exit a playing slide show.
5. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.4 Settings Menu

The Settings Menu can be accessed while in Photo or Video mode. From the main screen, press the MENU button, then press the LEFT or RIGHT buttons until a wrench icon is highlighted.

NOTE: The settings menu cannot be accessed while the camcorder is recording a video file. If the camcorder is recording a file, you must stop recording before the settings menu can be accessed. To stop recording at any time, press the SHUTTER button.

3.4.1 Language

This function allows you to set the camera's interface language.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Language' UP or DOWN buttons and press the MODE/OK button to enter the 'Language'
4. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected language.
5. Press the MENU button to exit the settings menu without making a selection.

3.4.2 Date and Time Set

This function allows you to set the current time on your camera.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Date and Time Set' using the UP or DOWN buttons and press the OK button to enter the 'Date and TimenSet'
4. Press the UP or DOWN buttons to change the value of the highlighted field.
5. Press the LEFT or RIGHT buttons to change to the next field.
6. Press the MODE/OK button to save the time and to exit the settings menu.
7. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.4.3 Auto Power Off

This function sets the duration of time in which the camcorder will wait with no user input before automatically powering off.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Ausing Power UP For DOWN buttons and press the MODE/OK button to enter the 'Anou Power Off'
4. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Off, 1 Minute, 3 Minutes, 5 Minutes).
5. Press the MENU button to exit the settings menu without making a selection.

3.4.4 Button Sound

This function allows you to turn off the sounds of the camera.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Button to Use' or DOWN buttons and press the OK button to enter the 'Button Sound'
4. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (On, Off).
5. Press the MENU button to exit the settings menu without making a selection.

3.4.5 Frequency

This function sets the frequency of the camera from 50Hz to 60Hz. Please check the frequency of your location and set accordingly.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Fusing the UP or DOWN buttons and press the MODE/OK button to enter the 'Frequency'
4. Press the UP or DOWN buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (50 Hz, 60 Hz) the default frequency for the United States is 60Hz.
5. Press the MENU button to exit the settings menu without making a selection.

3. Using the Camera

3.4.6 Format Memory Card

The format setting erases all photos, videos and data stored on your memory card.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Fusing the Audio or DOWN' buttons and press the MODE/OK button to enter the 'Format Memory Card'
4. Press the LEFT or RIGHT buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Yes, No).
   NOTE: This will delete all of your media and cannot be undone.

3.4.7 Restore Default Settings

Factory default settings can be restored in this menu. This function will not delete the media stored on the memory card, and will only restore all of the menu's setting back to factory default settings.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Resign the Default Settings' and press the MODE/OK button to enter the 'Restore Default Settings'
4. Press the LEFT or RIGHT buttons to navigate the menu, and press the MODE/OK button to confirm your selected option (Yes, No).

3.4.8 Version

This setting displays the current firmware version of your camera.

1. In all Photo and Video Modes press the MENU button.
2. Press the LEFT or RIGHT buttons until a wrench icon is highlighted.
3. Select 'Version' using the UP or DOWN buttons and press the MODE/OK button to enter the 'Version' menu. The camera information will now be displayed on the screen.
4. Press the MODE/OK button to exit the Version menu.

4. Technical Specifications

1. Technical Specifications

Model Number Minolta MND25
Lens Auto 2.85 2.0 Focus • f= mm • F/
Zoom 16X Digital Zoom
Image Sensor 8MP CMOS Sensor
Shutter Electronic	Digital Image Stabilization
Pixels (photo)	JPEG: 480MP4•20 MPMP MP • MP • • 8 MP • 5 MP
Pixels (video) AVI: P 4K• 2.7K • 1080 • 720
ISO Sensitivity	Auto • 100 • 200 • 400
LCD Screen	3.0" IPS 16:9 LCD Screen
Assistive Light	White LED Flash
Power Saving Mode	OFF • 1 Minute • 3 Minutes • 5 Minutes
White Balance	Auto • Daylight • Cloudy • Fluorescent • Tungsten
Color Effects	Normal, Black & White, Sepia, Red, Green, Blue, Sunset, Warm, Cool, Over Exposure, IR, Binary, Vivid, Undertone, Dog Eye, Aibao, Gothic, Japan Style, LOMO, Negative
Special Features	Built-in Selfie Mirror • 9 Scene Modes • Smile Capture • Face Detection • Photo Burst •PC Webcam Mode • Color Effects • Beauty Filter
Recording Media	MicroSD • MicroSDXC; Maximum: 128GB
I/O Ports	MicroUSB • External Microphone Port • Microphone (built-in MIC) • Speaker
Power	Lithium-Ion 3.7V, 1,500mAh, 5.55Wh
Dimensions	4.87 x 2.8 x 1.7 in. • 7.4 oz.

MINOLTA®

Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license.

40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: [phone]

www.minoltadigital.com • www.elitebrands.com

Copyright © 2023 Elite Brands Inc.

If you're having difficulties with your camera, or would like further assistance, please call our toll-free technical support hotline at 800-441-1100. Please be sure to have your camera handy when calling.

MINOLTA®

MND25
