Product Type	Chandelier / Pendant Light
Brand	Golden Lighting
Model	Heartwood 8063-BA3 BUS
Dimensions	Height: 24 inches, Width: 20 inches
Weight	8 lbs
Power Source	Hardwired, 120V AC
Bulb Type	3 x 60W max E26 medium base bulbs (not included)
Material	Metal frame with wood accents
Finish	Brushed Brass / Bronze
Mounting Type	Ceiling mount, adjustable chain length
Installation	Professional installation recommended
Dimmable	Yes, when used with dimmable bulbs
Certification	UL listed, cETLus
Indoor/Outdoor	Indoor use only
Style	Rustic / Farmhouse
Warranty	1-year limited warranty

Frequently Asked Questions - Heartwood 8063-BA3 BUS Golden Lighting

What type of bulbs does the Heartwood 8063-BA3 BUS use?

The fixture uses 3 x 60W max E26 medium base bulbs (not included). Compatible with LED, CFL, or incandescent bulbs.

Can I install this light on a sloped ceiling?

Yes, the adjustable chain allows installation on sloped or vaulted ceilings up to a 45-degree angle.

Is the fixture dimmable?

Yes, when used with dimmable bulbs and a compatible dimmer switch. Ensure bulbs are marked as dimmable.

What is the maximum hanging length?

The chain can be adjusted up to 60 inches. Additional chain may be purchased separately if needed.

Does this lighting fixture include bulbs?

No, bulbs are not included. You need to purchase 3 x E26 base bulbs separately.

How do I clean and maintain the Heartwood chandelier?

Use a soft dry cloth to dust. For deeper cleaning, use a damp cloth with mild soap, then dry thoroughly. Avoid abrasive cleaners.

Is professional installation required?

While a skilled DIYer can install, professional installation is recommended for safety, especially for hardwired fixtures.

What is the weight of this chandelier?

The fixture weighs approximately 8 lbs. Ensure your ceiling junction box is rated to support at least 35 lbs.

What is the warranty?

Golden Lighting offers a 1-year limited warranty against defects in materials and workmanship.

Can I use this chandelier outdoors?

No, this fixture is intended for indoor use only. Exposure to moisture may cause damage.

USER MANUAL Heartwood 8063-BA3 BUS Golden Lighting

Elegant lighting for everyone living

PARTS & ASSEMBLY SHEET

Fixture Name: Heartwood 8063-BA3 BUS

This fixture assembled PO: ____ Date: ____

Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST Company Name: Co. Account #: to be filled out by retailer
Mounting Strap	1ea	Mounting Screws	4ea Dec ea
Hex nut 2ea		Wire connectors	2ea	Socket Washer	3ea
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments

FIXTURE ASSEMBLY INSTRUCTIONS

Read and review installation instruction sheet, but do not install before assembling the fixture.

8063-BA3 BUS

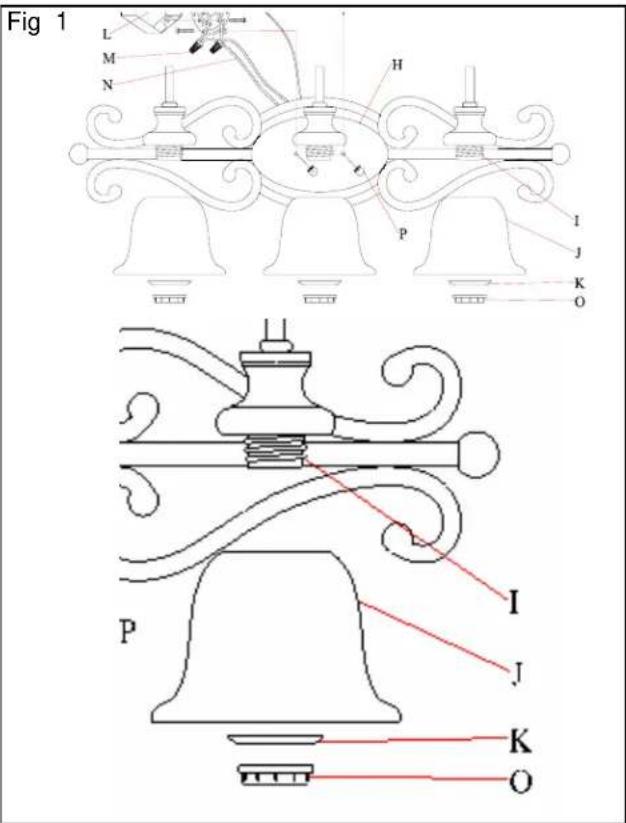

Fig 1 L M N H C P I J K O P I J K O

1. Slide the Glass Shade (J) and Socket Washer (K) over Socket( I ) and secure Glass Shade (J) by threading the Socket Ring(J) to Socket (I) until tight.
2. Install the light bulb in accordance with the fixture's specifications.
   (DO NOT EXCEED MAXIMUM WATTAGE RATING!)

NOTE: INSTALL THE GLASS ASSEMBLY AFTER THE FIXTURE IS HUNG.

For Customer Service, contact the place of purchase to arrange for replacement parts.

WARNING! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

HANGING THE FIXTURE(Fig.1)

1. Carefully remove the new fixture from the carton and the yellow bag that holes all your parts. Check that all parts are included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old fixture from wall, including the old mounting strap.
3. The Mounting Strap(F) contains several pairs of threaded holes, find the pair of holes that match the holes spacing in your fixture Back Plate(H) and thread the two Mounting Screws(D) half way into the Mounting Strap(F) and secure with Hex Nut (G).
4. Place the Mounting Strap(F) over the Junction Box (A) so the Mounting Screws(D) are vertical or horizontal, as required by fixture type.
5. Attach the Mounting Strap(F) to the Junction Box using the two mounting screws(H) and tighten securely with screw driver.

CONNECTING THE WIRES (Fig 2)

1. Attach the power supply wires to the fixture lead wires by connecting BLACK to BLACK (or SMOOTH) and WHITE to WHITE (or RIBBED).
2. Attach the GROUND wire(GREEN or COPPER) from the Junction Box and the fixture Ground wire to the green Ground Screw (I) on the Mounting Bracket (F) or connect both wires together using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you twist the wire connector (L) onto the wires.

1. Tuck these wire connections neatly into the Junction Box.

FINISHING THE INSTALLATION(Fig.3)

1. After tucking these wire connections neatly into the Junction Box and place the fixture Back Plate(H) over the two Mounting Screws(D) and secure the Back Plate(H) against the wall by threading two Deco Nuts(P) over the two Mounting Screws(D) until tight as shown on Fig.1.
2. Install the light bulbs and glass shade as per the fixture assembly sheet.

YOUR INSTALLATION IS NOW COMPLETE.

RETURN POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.

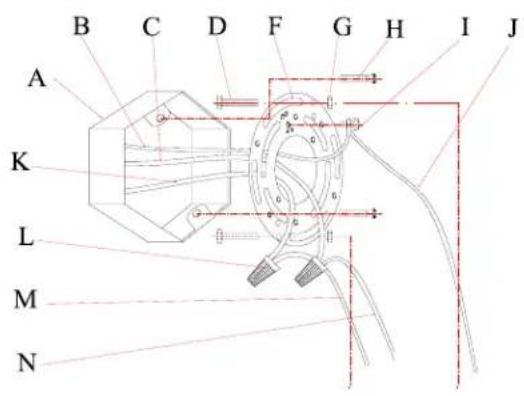

Fig. 1

A B C D F G H I J K L M N

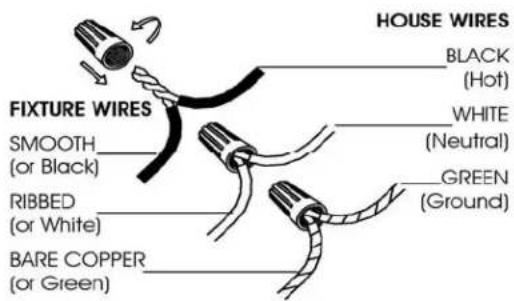

Fig. 2

HOUSE WIRES BLACK (Hot) WHITE (Neutral) GREEN (Ground) FIXTURE WIRES SMOOTH (or Black) RIBBED (or White) BARE COPPER (or Green)

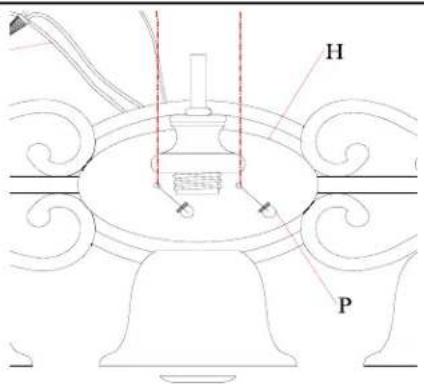

Fig. 3

H P

For Customer Service, contact the place of purchase to arrange for replacement parts.
