UA0399 - Docking Station LOGILINK - Free user manual and instructions

Product Type	Docking Station
Brand	LogiLink
Model	UA0399
Connectivity	USB-C
Video Output	HDMI (4K@30Hz), VGA (1080p@60Hz)
USB Ports	3x USB 3.0 Type-A
Ethernet	Gigabit RJ45
Card Reader	SD/TF
Power Delivery	USB-C PD 3.0 up to 100W
Compatibility	Windows, macOS, Linux, Chrome OS
Dimensions	200 x 70 x 20 mm (approx)
Weight	200 g (approx)
Material	Aluminum alloy
Color	Silver/Gray
Warranty	2 years
Maintenance	Clean with a dry, soft cloth
Safety Features	Overcurrent, overvoltage, short circuit protection
Spare Parts & Repairability	Not available; device is non-repairable

Frequently Asked Questions - UA0399 LOGILINK

Is this docking station compatible with my MacBook?

Yes, it is compatible with MacBooks (USB-C ports) and supports macOS. For older MacBooks with Thunderbolt 2, an adapter may be required.

Does it support dual monitors?

It supports one external monitor via HDMI (4K@30Hz) or VGA (1080p@60Hz). Dual monitor output is not supported simultaneously.

Can I charge my laptop through the docking station?

Yes, via the USB-C PD 3.0 port, it can deliver up to 100W to charge your laptop while using other features.

Does it require driver installation?

No, it is plug-and-play on most operating systems. For full functionality, ensure your USB-C port supports DisplayPort Alt Mode and Power Delivery.

What is the maximum display resolution?

HDMI: up to 4K @ 30Hz. VGA: up to 1080p @ 60Hz.

Can I use it with a USB-A device?

Yes, it has 3x USB 3.0 Type-A ports for connecting USB-A peripherals like mice, keyboards, or flash drives.

Is the cable detachable?

No, the USB-C cable is built-in and not detachable. Its length is approximately 15 cm.

Does it have an audio jack?

No, this model does not include a 3.5mm audio jack. Use your device's audio port or a USB audio adapter.

Is it compatible with Linux?

Yes, it works with Linux systems that support USB-C hubs. Most features are plug-and-play; Ethernet may require driver installation on some distributions.

What is the warranty period?

The LogiLink UA0399 comes with a 2-year warranty against manufacturing defects.

USER MANUAL UA0399 LOGILINK

Exterior view of a LogiLink USB flash drive (no text or symbols visible on the device body)

LogiLink®

USB 3.2 Gen 2x2 4-Port Hub with PD 100 W

Art. No.: UA0399

Ultra-slim USB 3.2 Gen 2x2 4-Port Hub is an instant expansion to your MacBook Pro ^® or other USB-C ^TM laptop with 100 W Power Delivery!

Features:

» Sophisticated aluminum body with ultra-slim design
» Designed for MacBook Pro and MacBook Air with 2 USB-C ports
» 4-port expansions: 1x USB-C (Thunderbolt 3 compatible) with PD 100 W, 1x USB-C and 2x USB-A 3.0
» Strong 100 W Power Delivery to charge 13" (61 W) or 15" (87 W) MacBook Pro® at full speed
» Enables you to mirror or extend the display of your laptop through USB-C (Thunderbolt 3) port, supporting resolutions up to 5K@60 Hz or 2x 4K@60 Hz displays
» Compatible with Windows, Mac OS, Chrome OS and Linux systems

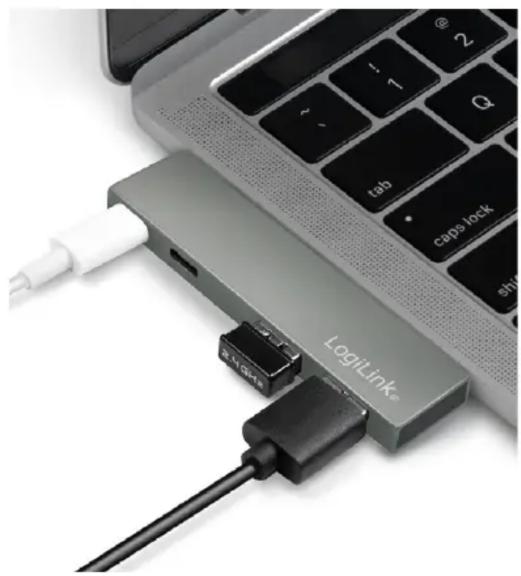

Close-up of a laptop keyboard with a LogiLink cable inserted, showing port connections (no readable text beyond branding)

Specifications:

Connection 1 2x USB-C male
Connection 2	2x USB-C female2x USB-A female
Power Delivery USB-C PD 3.0 (100 W)
Data Transfer Rate Up to 40 Gbps
Compatible Thunderbolt 3 Yes
Hot Plug and Plug & Play Yes
Protections Over-current/over-voltage
Power By USB bus powered
Housing Material Aluminum
Operating Temperature 0–45 °C
Operating Humidity	25–60 % RH (non-condensing)
Dimensions	8.3 x 2.7 x 0.8 cm
Weight	18 g

Compatible Devices:

Apple	MacBook Air 2020–2021
	MacBook Pro 2016–2022

Package Contents:

» 1 x USB-C 4-Port Hub
» 1 x User Manual

Package Information:

» Packing Dimension: 119 x 75 x 25 mm
» Packing Weight: 0.035 kg
» Carton Dimension: 400 x 270 x 245 mm
» Carton Q'ty: 100 pcs
» Carton Weight: 4.47 kg

! Please use Thunderbolt 3 port when charging.

Two LogiLink devices with visible ports and connectors, one with blue port labels (no text or symbols on the device body)
