USER MANUAL PAA 480TMZB Glemm

P.A. system amplifier

• OTROS IDOMAS •
• OUTRAS LINGUAS •

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

GRAZIE PER IL VOSTRO ACQUISTO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.glemm.eu where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• When you open the package check that product is intact and that all the accessories are included.
• This device works with dangerous 220V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage indicated on the product. A wrong voltage would seriously damage the fixture.
  • To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to ground. Never cut internal or external ground wires. Never remove ground wiring from the protective ground terminal.
  • Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
  • In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
  • Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
• Keep away from children's reach

Impedance speaker connection

This type of connection does not allow to limit individually the power of each single speaker, but it gives the possibility to obtain higher performances. The main rule to be respected is that the total impedance of the speakers must be compatible with the impedances managed from the amplifier to which the speakers will be connected (generally 4, 8, 16Ω). If you use more than one speaker, the value of impedance will be added up or divided depending on the type of connection (in series or in parallel). If you connect only one speaker you have to consider the impedance of the speaker itself.

Here are two examples of connection:

The impedances add up. In this example the 4 × 4Ω speakers can be connected to one amplifier suitable for 16Ω connections.

The impedances are divided. In this example the 4 x 16Ω speakers can be connected to one amplifier suitable for 4Ω connections.

Until you use few speakers it is easy to reach 4, 8, 16 Ω required by common amplifiers, but when using more speakers. it is necessary to choose a type of mixed series / parallel connection allowing us to obtain the desired impedance.

Here is an example:

Total= 4Ω with 400W total power

Series / parallel mixed wiring

In this example the impedance of the 4 and 8Ω speakers is added (being connected in series). Then the 4 groups of speakers, connected in parallel, halve their impedance to reach a total impedance of 4Ω.

Constant voltage speaker connection

It is the type of monophonic system realized in shops, conference rooms, churches and in any environment where a uniform sound diffusion in necessary, with maximum ease of installation and use. Only 2 wires are used, starting from the amplifier and getting up to the last speaker. On the amplifier you have to connect a wire to the "com"(common) terminal and the other wire to the terminal indicating 100V.

The two wires will go all around the installation, and they will be connected to the speakers or rather the transformers included in the speakers.

The speakers of this type, have generally a selector to set the emission power, from the minimum to the maximum value supported by the transformer.

As a matter of fact, it is possible to connect to the same 2 main wires, a number of speakers, even different from each other or with different power. The amplifier signal will reach the transformer present in each speaker and the transformer will provide the desired power.

When you operate on the amplifier volume, you will increase or lower the volume of all speakers in proportion. Important: the sum of the maximum power of the speakers must be equal to or less than the amplifier's maximum power.

EXAMPLE: You connect to the system 5 speakers for a total of 90W. The amplifier handles up to 110W: so in the future you will be able to connect other speakers, up to reach the amplifier's maximum power.

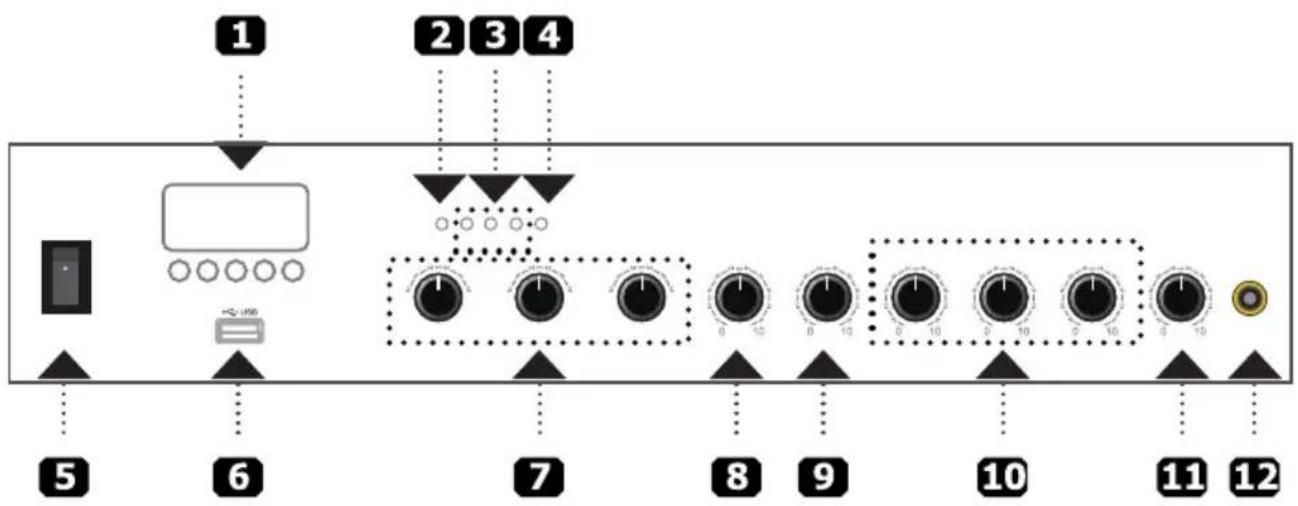

Fronte / Front Side

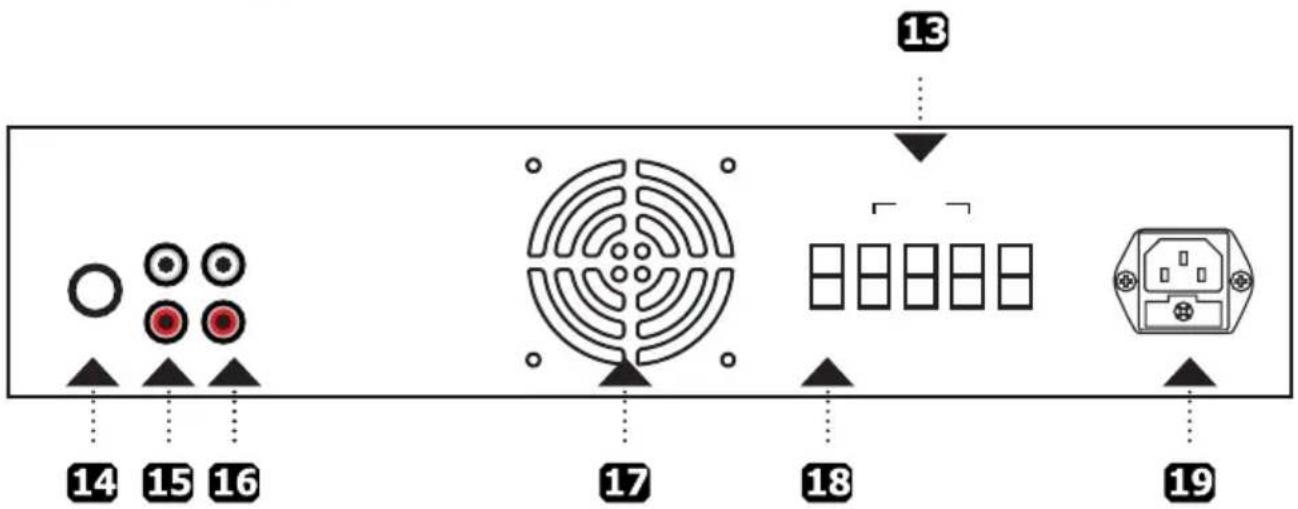

Retro / Rear Side

Funzioni

1. DISPLAY It will allow you to view the selected functions or Mp3 tracks information.
2. POWER LED It lights on to indicate that the fixture is correctly turned on.
3. LED SIGNAL It indicates the audio signal's level.
4. CLIP LED It indicates a signal overload. If it remains constantly on, lower immediately the volumes. The amplifier could go into protection mode and stop operation. In this case lower the volumes and turn the amplifier on again.
5. ON / OFF BUTTON Use it to turn on the product.
6. USB SOCKET Insert here a USB stick to play MP3 songs.
7. ZONE VOLUME CONTROLS Use them to adjust independently the volumes of your amplifier's zones.
8. BASS CONTROL To adjust bass tones.
9. TREBLE CONTROL To adjust trebles tones.
10. VOLUME CONTROLS They adjust the level of the sources connected to the related input sockets.
11. MIC1 (WITH PRIORITY)VOLUME CONTROL Use it to adjust the volume of the microphone with priority function.
12. MIC1 MICROPHONE INPUT It allows to connect a wired microphone with mono 6,3 jack connector.

13. ZONE OUTPUTS These terminals will allow you to use the amplifier's zones. You necessarily have to arrange a 100V connection, using the COM terminal and the zone terminals.

14. PRESE JACK 6,3mm Utilizzatele per collegare un microfono munito di cavo Jack 6,3mm mono.

15. PRESE RCA Utilizzatele per collegare apparecchi di linea muniti di cavo RCA.

16. AUX OUT Vi permetterà di collegare dispositivi di registrazione o amplificazione.

17. Il segnale proveniente da queste prese è di tipo pre-amplificato.

1. MORSETTI DI USCITA Utilizzateli per collegare i diffusori ad impedenza (4/8/16 Ohm).

2. PRESA DI ALIMENTAZIONE CON FUSIBILE Collegate il cavo di alimentazione alla presa per poter alimentare il dispositivo. La presa contiene un vano portafusibile. Estraetelo nel caso fosse necessario verificare e/o sostituire il fusibile.

3. 6,3 mm JACK SOCKETS Use them to connect a microphone with mono 6,3mm jack.

4. RCA SOCKETS Use them to connect line fixtures with RCA cables.

5. AUX OUT It is possible to connect here recording or amplification fixtures.

6. The signal coming from these sockets is a pre-amplified one.

7. COOLING FAN Ventilation fan, avoid to obstruct it.

8. OUTPUT TERMINALS Use them to connect speakers for low impedance operation (4/8/16 Ohms).

9. POWER SOCKET WITH FUSE Connect the power cable to this socket to power the device. The socket includes a fuse-holder. Take it out if it is necessary to check or replace the fuse.

Display

1. MODE BUTTON
   Press this button to choose the desired mode. It is also possible to activate the Bluetooth function.

2. PLAY PAUSE / BUTTON

Use it to start or pause playing.

1. FAST BACKWARD

PREVIOUS TRACK

Press this button to choose the previous track or run quickly the track backwards.

1. FAST FORWARD
   FOLLOWING TRACK
   Press this button to choose the following track or run quickly the track forward.

2. REPEAT BUTTON

Press it to activate the repetition of a single MP3 song or of the whole folder.

We list below the most common problems you can meet, trying to help you to solve them. If, after following our instructions, the problem still persists, turn the unit off, disconnect it and contact our authorized technical service.

Troubles	Possible causes	Tests and solutions
The unit is not powered	Lack of power supplyDamaged power cordDefective internal power supplyBlown fuse	Check power supplyCheck the power cordContact technical serviceReplace the fuse
Speakers do not emit audio	Wrong connectionsSpeakers are not compatiblePower supply circuit damaged	Check that the cables are connected to the correct terminalsCheck the impedance or voltageContact the technical service
MP3 files are not recognized	The USB flash drive is not formattedThe formatting is not correctThe tracks are not Mp3 format	Format the stickVerify that it is FAT32Other formats may not be recognized
Bluetooth function not work	Device not found	Check to find device on the list
The zones' volume cannot be adjusted	You are using 8 Ohm connectionsWrong connections	Zones are available only for 100V constant voltage systemsCheck that the cables are correctly connected to the terminals
Unit runs intermittently	Unit is too hot	Wait for the fixture to cool down and make sure the fan is not obstructed. The fixture must always be positioned in a ventilated position.

ATTENZIONE

RISCHIO DI SCOSSA ELETTRICA, NON APRIRE

AVVERTENZA: PER RIDURRE IL RISCHIO DI SCOSSA ELETTRICA, NON TOGLIETE IL COPERCHIO, NON CONTIENE PARTI UTILI PER L'UTENTE. PER L'ASSISTENZA FATE RIFERIMENTO A PERSONALE QUALIFICATO

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product.

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

The CE mark indicates that this product complies with the essential applicable European directives and their related standards. Compliance documentation in complete form can be asked to the company Karma Italiana Srl.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

CE

DICHIARAZIONE DI CONFORMITA' UE EU COMPLIANCE DECLARATION

Hereby, KARMA ITALIANA SRL declares that the radio equipment type amplifier with bluetooth mod. PAA 12OTMZB, PAA 24OTMZB and PAA 48OTMZB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

GLEMM

Prodotto da/ produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

ver. 23.1

Made in China
