Product Type	Wireless Amplifier System (Transmitter)
Brand	Glemm
Model	FRD TX
Power Supply	100-240V ~ 50/60Hz via included adaptor (output 5V 2A)
Operating Range	Up to 20 m (ideal conditions)
Inputs	Aux IN (3.5mm), MIC IN (6.3mm mono jack), Bluetooth, USB (MP3)
Outputs	Wireless transmission to unlimited speakers (FRD SPK1, SPK2, SPK3)
Tone Controls	Treble, Bass, Master Volume, Mic Volume
Radio	FM with auto station storage
Bluetooth Frequency	2.4 GHz
Display	Yes (shows function and information)
Remote Control	Included (battery CR 2025, 3V Lithium)
Dimensions (W x H x D)	167 x 45 x 120 mm
Weight	0.4 kg
Functions	Radio, Line, Bluetooth, MP3 Player
Cleaning	Use dry or slightly damp cloth; avoid solvents
Safety	Do not expose to moisture, high temperatures; disconnect when not in use; keep away from children
Warranty	2 years from purchase (1 year with invoice); excludes wear parts, batteries, modifications
Repairs	Contact authorized service center; do not attempt self-repair

Frequently Asked Questions - FRD TX Glemm

How do I pair the FRD TX transmitter with the speakers?

Connect the transmitter to power and turn it on. Use a paper clip to press and hold the pairing button (small hole) for 3 seconds until the LED flashes. Power on all speakers, then press the pairing button again. The LED will stay steady, indicating successful pairing. Test by adjusting the volume.

How can I connect my smartphone via Bluetooth?

Press the MODE button repeatedly until Bluetooth is selected. The transmitter will enter pairing mode. On your smartphone, scan for devices and select 'Glemm FRD TX' (or similar). Once paired, all audio from your phone will play through the speakers.

Can I add more speakers to the system later?

Yes, the system can be expanded with an unlimited number of FRD SPK1, FRD SPK2, or FRD SPK3 speakers, as long as they are within 20m of the transmitter.

What is the maximum operating range between transmitter and speakers?

In ideal conditions, the operating range is up to 20 meters. Walls and interference may reduce this distance.

How do I use the FM radio function?

Press MODE to select RADIO. Press the PLAY button once to auto-scan and save local stations. Use the previous/next buttons to cycle through saved stations.

How do I adjust the volume of an individual speaker?

For FRD SPK1 and FRD SPK2 speakers, there is a volume control on the back panel. The FRD SPK3 ceiling speaker does not have individual volume control; adjust overall volume from the transmitter.

What type of USB stick is supported for MP3 playback?

The USB port supports USB sticks formatted in FAT32 with MP3 files. The stick should be connected to the side USB port of the transmitter.

How do I replace the remote control battery?

The remote uses a CR 2025 3V lithium battery. Open the battery compartment, replace the battery with a new one of the same type, and close the compartment.

What should I do if the transmitter stops working?

First, check the power connection and ensure the adaptor is plugged in. If the issue persists, contact authorized technical service. Do not attempt to repair it yourself.

How do I clean the transmitter?

Use a dry or slightly damp cloth. Do not use solvents or detergents. Ensure the device is unplugged and cooled down before cleaning.

USER MANUAL FRD TX Glemm

Wireless amplifier system

• OUTRAS LINGUAS •
- OTROS IDOMAS •

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol indicates a risk of electric shock in case of wrong use or alteration of the product.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

The remote control is powered by a battery subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health.

GRAZIE PER IL VOSTRO ACQUISTO

COLLEGAMENTI

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.glemm.eu where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage indicated on the product. A wrong voltage would seriously damage the fixture.
• Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
• To avoid the risk of shortcircuits don't expose the product to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
  • Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power adaptor's cord and periodically check that it is in good condition.
• Don't use power adaptors with different features than the ones supplied with the product.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
• Keep away from children's reach
  • To prevent possible hearing damage, do not listen at high volume levels for long periods.

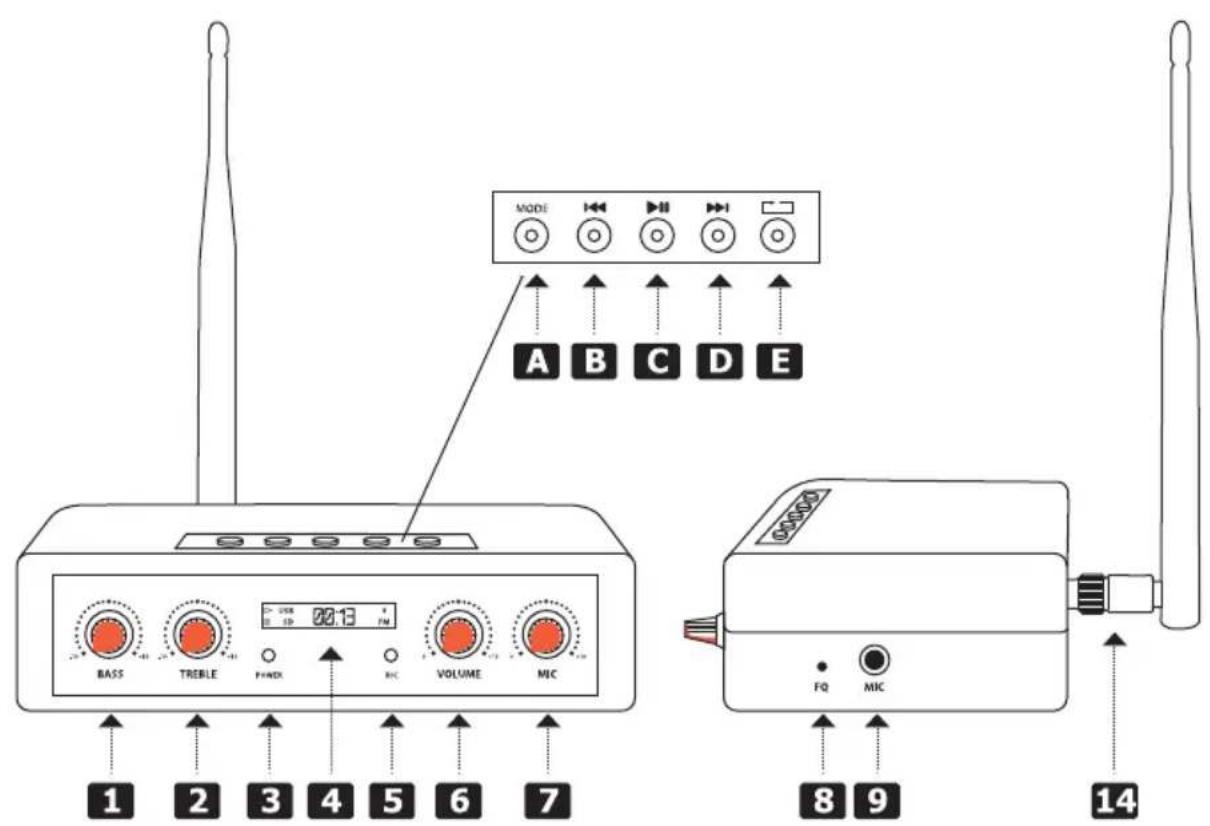

CONNECTIONS

1. Screw the bluetooth antenna into the socket (14).

2. Insert in the socket (15) the antenna cable for the FM radio.

3. Connect the included adaptor to the socket (13).

4. If you mean to play audio from an external fixture, you can connect it to the AUX (10) socket.

5.A USB stick containing tracks in MP3 format can be connected to the side USB port (11).

1. A wired microphone can be connected to the side socket MIC (9).

SETUP

We suggest, first of all, to pair the speakers to the transmitter, in order to carry out this operation more easily before installing the speakers.

PAIRING PROCEDURE:

- Connect the included adaptor to the transmitter's back socket (13), then turn it on using the button (12).

- Using a paper clip or a pointed object, press and hold for about 3 seconds the pairing button in the small hole (8). You'll notice that the led (3) flashes.

- Power at the same time all the speakers you need to pair, by connecting them with their adaptor. When all the speakers are powered, press again the pairing button (8). The led (3) will turn to steady on and the procedure is now finished. To test if the operation was carried out successfully turn the volume control (6) and check that all the speakers are amplifying the signal.

You can set on the transmitter the radio function (if necessary use the button MODE "A"). Even if no station has been detected yet, you should anyway hear a slight noise coming from the speakers, meaning that the connection is active.

- Once paired the speakers can be positioned at will (within a max range of 20m from the transmitter). You can mount them on the wall, just by using a wide head nail (that can be inserted into the hole "F").

- If you need to adjust the speakers' position, once mounted on the wall, you can use the included bracket, which can be fixed to the speaker by means of the screws and of the specific threads [G].

- If you mean to install them outdoor, make sure that the power cable (I) and the adaptor are adequately insulated. If necessary you can use a heat shrink sheath to insulate the connector.

- The system can be expanded at will (in the range of 20m, in ideal conditions). It is possible to add an unlimited number of speakers FRD SPK1, FRD SPK2 and FRD SPK3.

OPERATION

1. Use the power button (12) to turn on the fixture. The last function used will be kept in memory.
2. Press repeatedly the MODE (A) button to go to the desired function. The options are: RADIO, LINE, BLUETOOTH, MP3 PLAYER. The display (4) shows the selected function and related information.

RADIO FUNCTION

To save your local radio stations press once the PLAY (C) button and wait for the end of the scanning. To skip from one of the saved stations to another use the buttons (B) and (D).

LINE FUNCTION

Once you have selected this function make sure that the signal connected to the socket (10) is present.

BLUETOOTH FUNCTION

When you select this function, the device goes into pairing mode. Scan for the device in your smartphone's bluetooth menu and pair it. From this moment on the whole audio of the smartphone will be transmitted to the speakers.

MP3 PLAYER FUNCTION

When you select this function, the playback of the tracks stored on a USB stick will start.

The songs must be in MP3 format and the stick must be formatted in FAT 32 standard.

During playback it is possible to skip to the next or previous tracks, using the buttons (B and D).

Thanks to the (C) button you can pause or play again.

Using the (E) button you can set the repetition of a track or of all the tracks.

VOLUME ADJUSTMENT

Using the volume control (6) you can raise or lower the volume of all the speakers of your system. The speakers model FRD SPK1 and FRD SPK2 are endowed with a specific volume control (H), allowing to reduce the volume on the single speaker, independently from the volume set on the transmitter.

This control is not present in the ceiling speakers mod. FRD SPK3.

TONE ADJUSTMENT

The control (1) adjusts the level of bass tones.

The control (2) adjusts the level of treble tones.

MICROPHONE

The fixture is endowed with a standard mic socket (6,3 mm mono jack). The microphone's volume can be adjusted independently using the control [7].

REMOTE CONTROL

Thanks to the practical remote control (16) you can manage the main functions from a distance.

In case of malfunctioning check that the battery is not flat and if necessary replace it. For correct operation don't cover the infrared sensor (5) on the front panel.

Technical specifications TRANSMITTER (FRD TX)

POWER SUPPLY	Via power adaptor (included)Power adaptor input: 100 - 240V ~ 50/60HzPower adaptor output: 5V --- 2A
OPERATING RANGE	20m in ideal conditions
INPUTS	Aux IN, MIC IN, Bluetooth, USB
OUTPUTS	Wireless transmission to unlimited speakers
TONE CONTROLS	Treble, Bass, master volume and mic volume
RADIO	FM with auto station saving
BLUETOOTH FREQ.	2,4 Ghz
DISPLAY	Yes
REMOTE CONTROL BATTERY	CR 2025 - 3V Litium (included)
DIMENSIONS	167 x 45 x 120 mm
WEIGHT	0,4 Kg

SPEAKERS (FRD SPK1)

POWER SUPPLY	Via power adaptor (included)Power adaptor input: 100 - 240V ~ 50/60HzPower adaptor output: 7.5V --- 2A
OPERATING RANGE	20m in ideal conditions
WOOFER	5"
MAX POWER	50W * 2
VOLUME REDUCER	On the back panel
IP RATE	IP 65
BRACKET	Included and adjustable in two directions
DISTANCE FROM WALL	9 cm max
COLOUR	White
DIMENSIONS	160 x 235 x 135 mm
WEIGHT	1.52 Kg

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

CE

Hereby, KARMA ITALIANA SRL declares that the radio equipment type wireless amplification system model FREEDOM 2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

WARNING: In some countries the wi-fi band of this device could be subject to local restrictions of limitations of use. Please contact the telecommunications authority of your country for detailed information.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.glemm.eu or www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

GLEMM

Prodotto da/ Produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

Ver. 24.1

Made in China
