USER MANUAL 1PHG5000 Perfect Aire

Exterior view of a white industrial oven or processing unit with multiple slatted grilles and a handle (no visible text or symbols)

SAFETY INFORMATION .... 4

LOCATING HEATER 8

INSTALLATION 9

OPERATING INSTRUCTIONS....12

ADJUSTING AIR FLOW DIRECTION....13

MAINTENANCE....14

SPECIFICATIONS:

Voltage Rating: 240 V (60Hz)

Power Consumption: 5000/4000/3000W

WARNING

This heater requires hardwire installation (no plug). The installation of this product must be carried out by a Certified Electrician and in accordance with all local and national electrical codes.

IMPORTANT NOTE:

Read the manual carefully. Make sure to save this manual for future reference. Illustrations in this manual are for explanatory purposes only, your actual product may look slightly different.

WARNING Read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

IMPORTANT INSTRUCTIONS

When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handle(s) when moving this heater. DO NOT place it against walls, furniture, curtains, etc.
4. The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.
5. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
6. Extreme caution is necessary when any heater is used. Do not leave invalids or children unattended with an operating heater. Do not leave heaters unattended when in use.
7. Always turn off power to heater when not in use.
8. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been dropped, or damaged in any manner. Discard damaged heater or return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
9. This heater is not intended for use in bathrooms, laundry areas, showers or swimming pools and similar locations. NEVER locate heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water or other liquids.
10. DO NOT touch the control panel or plug with a wet hand.
11. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage the heater.

12. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.

13. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

14. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
15. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord.
16. Always disconnect power source from the unit before moving or cleaning, or whenever the heater is not in use.
17. Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards.
18. DO NOT use outdoors.
19. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.
20. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts.
21. Always use the product in an upright position.
22. This heater cannot achieve accurate temperature control of the environment, and thus cannot be used as insulation device for storage environment, items, animals and plants.
23. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

OVERHEAT SAFETY FEATURE

This heater is equipped with an overheat safety feature. When the heater's internal components reach a certain temperature that could cause overheating and possible fire, the heater will automatically shut off. The unit will reset automatically after it cools down.

SAVE THESE INSTRUCTIONS

DESCRIPTION

Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires located in the base of the unit. Features horizontal and vertical airflow, built-in thermostat and overheating safety thermal cut-out.

TECHNICAL SPECIFICATIONS

RATING POWER SUPPLY BTU/HOUR
5000W 240-1-60	17065
4000W 240-1-60	13651
3000W 240-1-60	11285

GENERAL SAFETY INFORMATION

WARNING

This heater requires hardwire installation (no plug). The installation of this product must be carried out by a Certified Electrician and in accordance with all local and national electrical codes.

WARNING

Read and understand all installation & operation instructions prior to operating this unit. Observe all safety instructions.

1. Use only copper wires rated for at least 167^ F.
2. Heater air flow must be directed parallel to or away from adjacent wall.
3. Observe all wall, floor and ceiling clearance requirements.
4. All wiring must be done according to national and local electrical codes. The heater must be grounded as a precaution against possible electrical shock. Heater circuit must be protected with proper fuses.
5. The mounting structure and the anchoring hardware must be capable of supporting the weight of the heater and the mounting bracket (if used).

6. All electrical power must be disconnected at the main service box, which must be locked before connecting, inspecting, cleaning or servicing the hater. This is an important precaution to prevent serious electric shock.

7. This is heater is not suitable for use in hazardous locations containing explosive liquids or vapors. This heater has hot or arcing or sparking pads inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.

8. This heater is not suitable for use in corrosive atmospheres such as marine greenhouses or chemical storage areas.
9. This heater must be mounted at least 8 feet off the floor. For specific clearances, please see next page.

WARNING

Improper installation or failure to follow the procedures

outlined in this instruction manual can result in serious electrical shock.

LOCATING HEATER

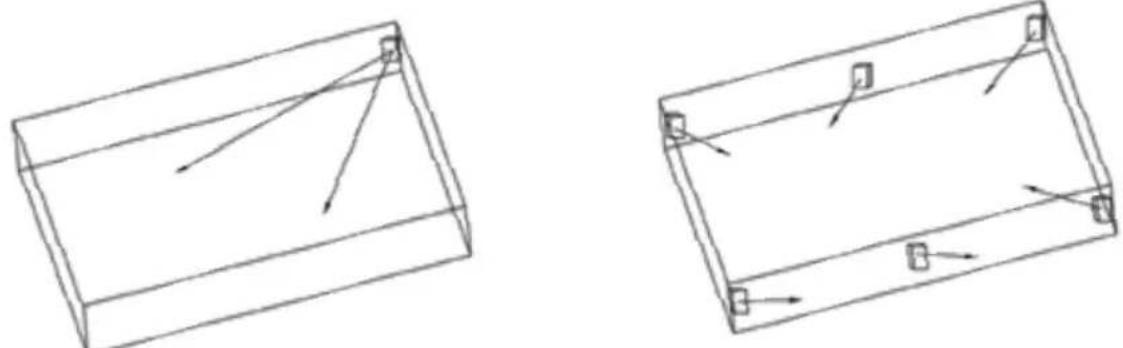

Install heater away from traffic areas, maintaining clearances stated. The air flow direction should not be restricted (ie. by columns or machinery). The air flow should wipe exposed walls rather than blowing directly on them. When more than one heater is used in an area, heaters should be installed so that the air discharge of each heater supports the air flow of the others, to provide best warm air circulation as shown.

LOCATING HEATER

Install heater away from traffic areas, maintaining clearances stated. The air flow direction should not be restricted (ie. by columns or machinery). The air flow should wipe exposed walls rather than blowing directly on them. When more than one heater is used in an area, heaters should be installed so that the air discharge of each heater supports the air flow of the others, to provide best warm air circulation as shown.

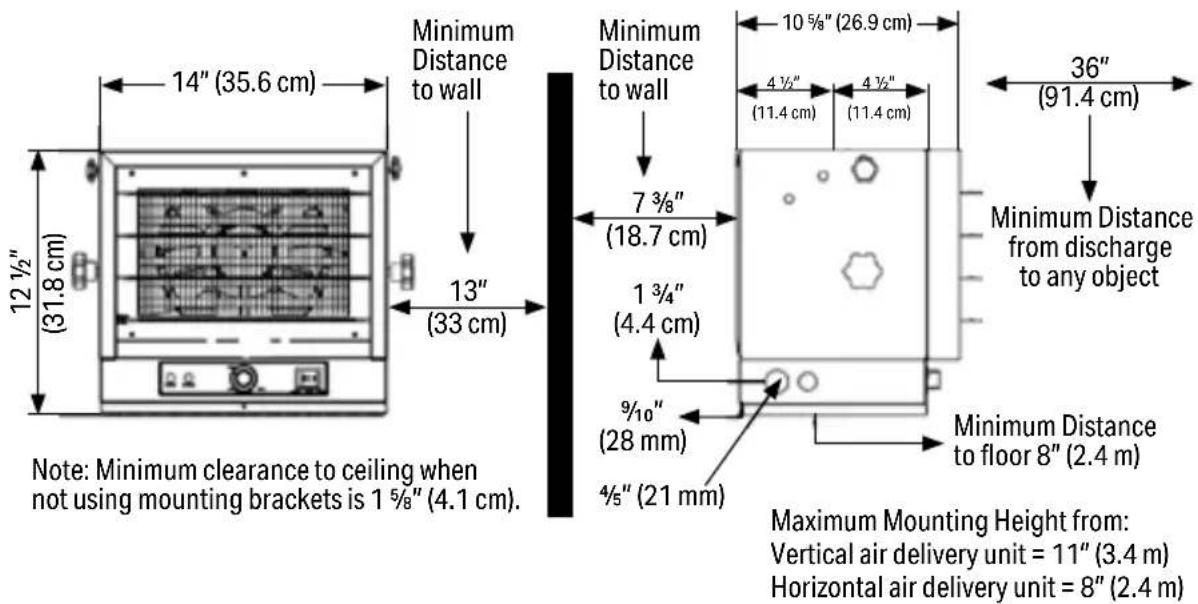

14" (35.6 cm) Minimum Distance to wall 12 ½" (31.8 cm) 13" (33 cm) Note: Minimum clearance to ceiling when not using mounting brackets is 1 ¾" (4.1 cm). Minimum Distance to wall 7 ¾" (18.7 cm) 1 ¾" (4.4 cm) 9/10" (28 mm) 4/5" (21 mm) 10 ¾" (26.9 cm) 4 ½" (11.4 cm) 4 ½" (11.4 cm) 36" (91.4 cm) Minimum Distance from discharge to any object Minimum Distance to floor 8" (2.4 m) Maximum Mounting Height from: Vertical air delivery unit = 11" (3.4 m) Horizontal air delivery unit = 8" (2.4 m)

Two technical line drawings of rectangular components with arrows indicating direction (no text or symbols)

Figure 3

MOUNTING THE BRACKET

1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have to install a wood piece on the ceiling as the heater must be securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket screws with a wrench and slipping the handle off over the screw heads.
3. Place a washer on screws before inserting through the holes in the mounting bracket and screw them securely into a ceiling joist.

NOTE: If you want to swivel the heater either to the right or left adding a washer to both sides of the bracket is recommended. A longer lag bolt may be required to properly secure the unit.

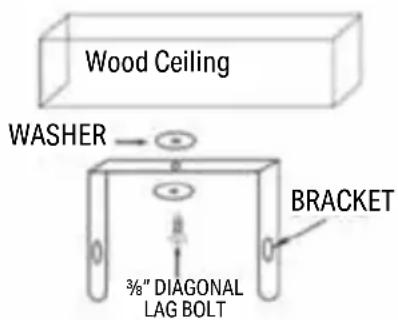

Wood Ceiling WASHER → 3/8" DIAGONAL LAG BOLT BRACKET

Wood Ceiling 3/8" DIAGONAL LAG BOLT BRACKET

Figure 4a - Single - Screw Mounting Figure 4b - Double - Screw Mounting

HANGING THE HEATER

1. Attach the heating unit to the mounting bracket.
2. Lift the heater up and into the mounting bracket.
3. Align the bracket screws with the keyhole slots in the mounting bracket.
4. If the heater is to be tilted it must be positioned in the keyhole slots. (See figure 5)
5. Tighten the bracket screws with a wrench so the unit is securely suspended at horizontal or vertical level.

Figure 5 Remove screw to open door Use top keyhole slots if heater is to be tilted down

CONNECTING THE POWER

HEATER RATING & VOLTAGE HEATER AMPS MAX. FUSE SIZE MIN. WIRE SIZE 75° C COPPER 5000W/240V 20.9 30 #10 (E) L1 AC240V 60Hz L2 Power light Terminal station Temperature control M Fumotor Heating element Switch 6000W 3000W 5000W Overheat

WARNING

This appliance must be grounded.

WARNING

The appliance must connect to a current protection circuit or device at 50 Amp or less before being connected to power supply.

1. Remove the screw from the front of the unit to connect the power to the heater.
2. Attach the cable connectors to the unit (See Figure 6) and slide the 10-gauge wire through the cable connector.

NOTE: All wiring must be accordance to national and local electrical codes in the United States. For certain applications conduit may be required (See Figure 6). Check local electrical codes. If you run the wiring in conduit and wish to be able to turn the heater be sure to purchase enough flexible conduit to allow the heater to be turned.

1. Connect the wire to the power block located in the base of the heater. (See Figure 7)

2. Turn on the power at the main service.

CAUTION: High temperatures - risk of fire. Keep flammable materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 ft. (0.9 m) from the front and top of the heater and keep them away from the sides and rear.

To reduce the risk of fire, do not use it in areas where gasoline, paint or flammable liquids are used or stored.

Figure 6

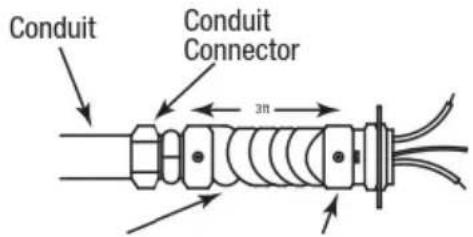

Connectors, cable, and hardware used to wire the heater

Conduit Conduit Connector 3n

1 2 Flexible NM Cable Connector

Figure 7

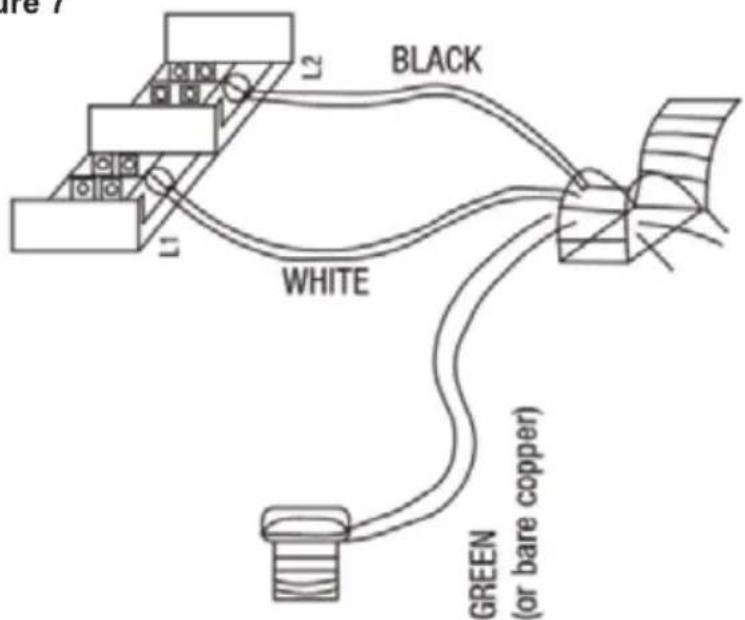

BLACK WHITE GREEN (or bare copper)

OPERATING INSTRUCTIONS

POWER CAUTION LOW OFF THERMOSTAT HIGH 5000W 3000W 4000W 1 2 3 4 5 6

1. Power indicator Yellow

2. CAUTION indicator Red

3. Temperature control switch

4. High Power

5. Low Power

6. Medium power

INSTRUCTIONS IN NORMAL MODE

POWER INDICATOR YELLOW	The power indicator lights up when the product is powered on.
CAUTION INDICATOR RED	When the internal temperature of the product is too high and the temperature limiter is disconnected, the fault lamp lights up
TEMPERATURE CONTROL SWITCH	Turn the Temperature control KNOB clockwise to the highest setting. When the room reaches a comfortable temperature, slowly turn the Temperature control KNOB counterclockwise until the heating element clicks OFF (the power light will not shut OFF). This is the point where the thermostat setting equals the room temperature. At this setting, the thermostat will automatically turn the heater ON and OFF to maintain the selected temperature.
HIGH POWER	High Power (5000W) is achieved when the switch is pressed to III and the adjustable temperature control is turned on.
LOW POWER	The low power (3000W) is realized when the switch is pressed to I and the adjustable temperature control is turned on.
MEDIUM POWER	The power (4000W) is realized when the switch is pressed to II and the adjustable temperature control is turned on.

The CAUTION indicator is on: In this case, immediately turn the heater OFF and inspect for any objects on or adjacent to the heater that may cause high temperatures. DO NOT OPERATE THE HEATER WITH THE CAUTION INDICATOR GLOWING RED.

ADJUSTING AIR FLOW DIRECTION

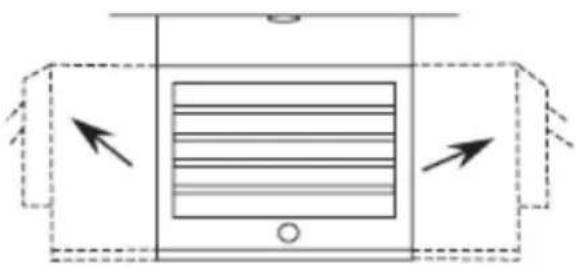

1. To turn the unit when it has been installed with a single lag bolt, simply turn the entire heater as needed. The unit cannot be turned horizontally if it has been installed with 2 lag bolts.
2. To tilt the unit vertically, loosen the bracket screws.

NOTE: For the heater to be tilted vertically, it must be mounted in bottom keyhole slots of mounting brackets to maintain adequate clearance and prevent possible overheating.

Diagram of a vehicle or container with horizontal stripes and directional arrows indicating flow or movement (no text or symbols)

Figure 8
Rotate

1. Adjust louvers to the desired position.

WARNING

To prevent possible electric shock, disconnect power to the heater at the main service box before attempting to adjust the heat output of this unit.

MAINTENANCE

1. Before cleaning, make sure the power has been turned off at the circuit breaker panel.
2. Let the heating element cool completely.
3. To keep the heater clean, the outer shell may be cleaned occasionally with a dry duster. During the summer months, or at other times when the appliance is not in use and is completely cold would be the best time to wipe over with a soft, damp cloth. Do not use any cleaning agents or detergents.
4. After cleaning, dry the unit with a soft cloth.
5. Wait until the unit is completely dry before use.
6. All other servicing should be performed by qualified service personnel.
   DO NOT try to repair the heater yourself.

WARNING

• DO NOT let liquid enter the heater.

- DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.

- DO NOT immerse the heater in water.

NOTICE: The product is equipped with an overheat safety feature protector which will switch off the heater in case of accidental over heating (ex. Obstruction of air intake and outlet grills, motor turning slowly or not at all).

5401 Dansher Road Countryside, IL 60525

844-4PA-AIRE | 844-472-2473 | [e-mail] CANADA SUPPORT 877-997-2473 | [e-mail] www.perfectaire.us
