USER MANUAL KL-400 JILONG

18s splicing

25s heating

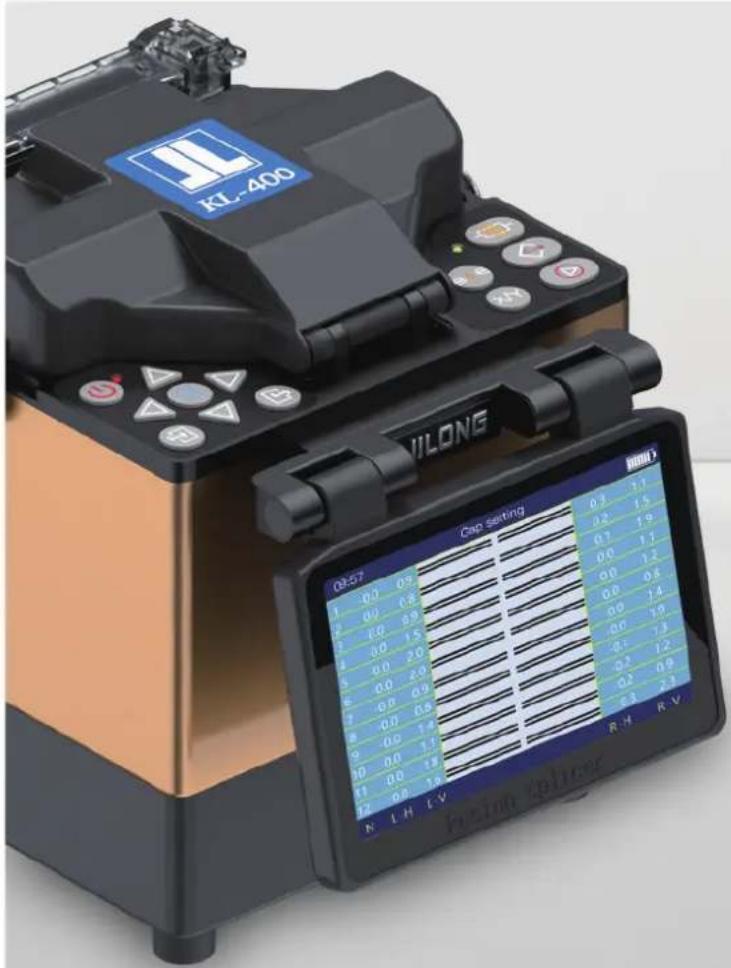

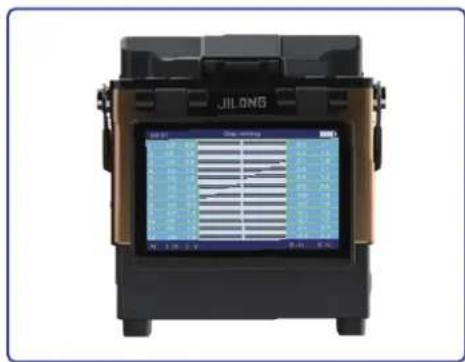

5.0" color LCD monitor

0.01dB 50 splicing loss

times electrodes life

Auto barometric compensation

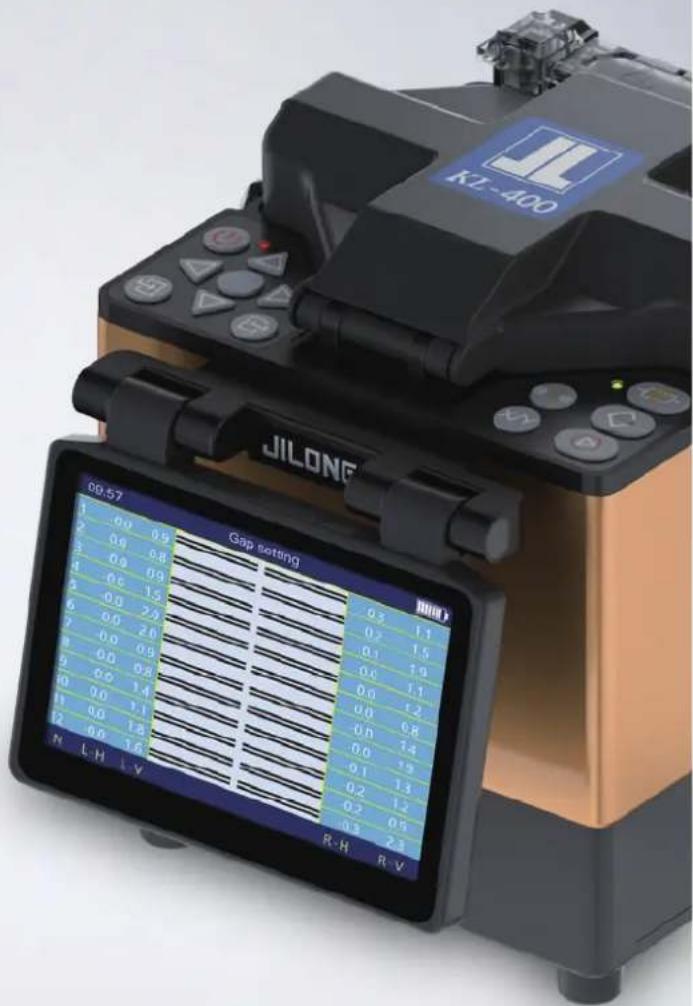

5.0" 640x480 color LCD monitor
36 / 48 / 72X Magnification

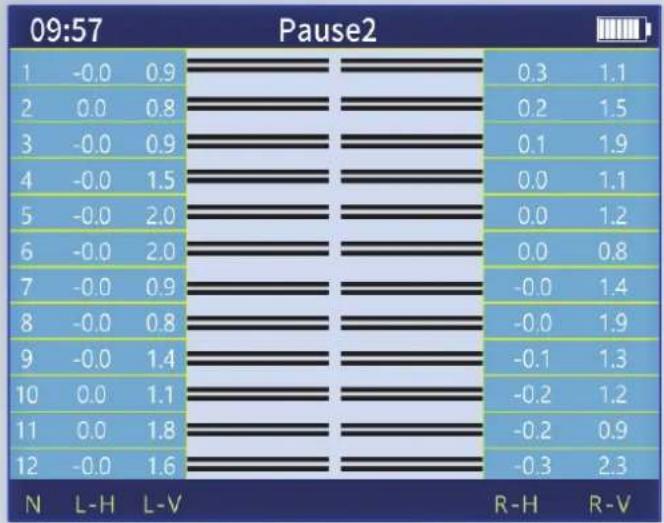

Suitable for single & 2–12 ribbon fiber
Average splicing loss: 0.01dB
Internal charging

18s splicing, 25s heating
Electrodes life: 5000 times
fiber holder supports single and 2/4/6/8/12 ribbon fiber
Save 10000 splicing results and 2000 images
7800mAh Li-Battery, 300 cycles splicing & heating

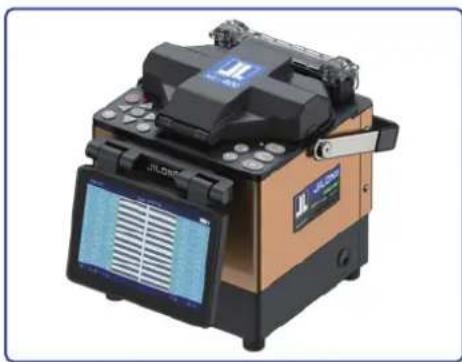

Advantages

Oven with removable SOC clamp

Durable ceramic fiber pressure heads

18s Splicing 25s Heating

No reflective mirror design, faster response and easy maintenance

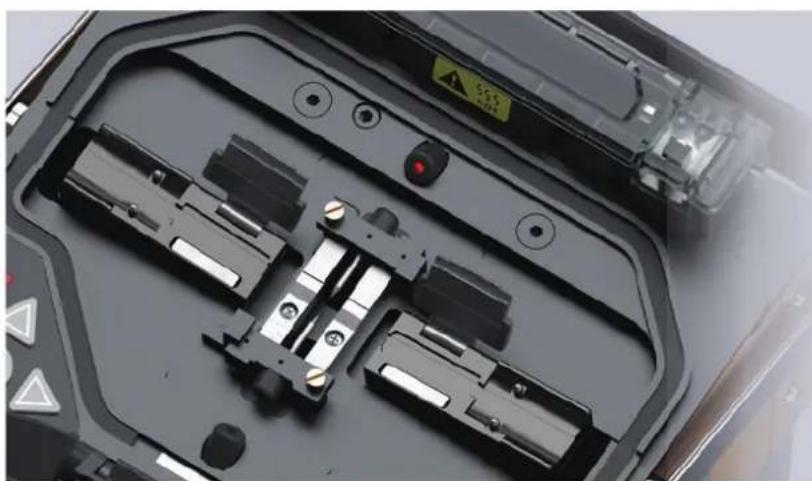

Special fiber holder

Special V-groove design

Close-up of a black electronic device casing with internal components and mounting holes (no visible text or symbols)

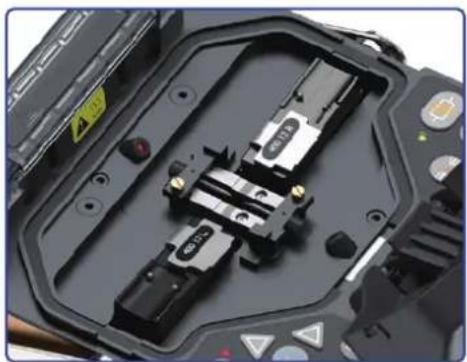

Special V-groove design

Special fiber holder

Support single and 2/4/6/8/12 ribbon fiber

18s splicing

25s heating

300
cycles splicing + heating

4 motors

7800mAh battery capacity

Splice Method	Active Clad-Alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	Ribbon : 0.25~0.4 mm / Single : 250μm & 900μm
Fiber Holder	Replaceable (Universal: FH-60)
Fiber Diameter	Cladding: 80-150μm, Coating: 100-1000μm
Fiber Cleave Length	8~16 mm
Splice mode	Max 128 modes
Typical Splice Loss	SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★1
Return Loss	>>60dB
Splicing Time	Quick mode : 18 sec
Estimated Splice Loss	Available
Heating Time	Quick mode 25 sec
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes
Battery	7800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★2
Electrode Life	5000 arcs, can be extended by using an electrode grinder ★3
Auto-start	Splice / Heating
Automatic Fiber Identification	Support
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	The last 10,000 splice records and 2,000 result images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C
Display	5.0" color high resolution (800 x 480) display
Fiber Magnification	36 / 48 / 72X Magnification
Power Supply	AC 100-240V, DC 9-14V
Terminal	USB2.0
Weight	2.1kg without battery / 2.6kg with battery
Size	168H x 150W x 165D mm

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
★③ Electrode life may vary depending on the operating environment.

Close-up of a mechanical device with internal components and mounting holes (no visible text or symbols)

Exterior view of a fiber optic transducer device (no visible text or symbols)

Configuration List

Close-up of a fiber optic transducer device with a digital display screen (no visible text or symbols)

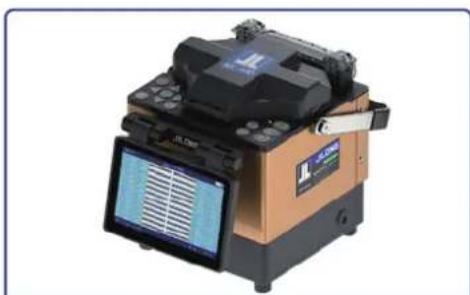

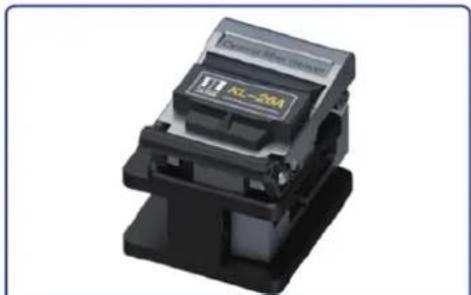

Fusion splicer Fiber cleaver

Close-up of a black electronic component with visible label 'XL-20A' (no readable text beyond label)

3D rendering of a black plastic enclosure with a green circular indicator and multiple slots (no text or symbols visible)

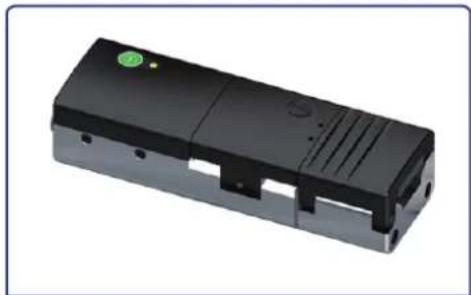

Ribbon fiber stripper

Cleaning wipes

Splice protector sleeves

Close-up of a transparent cylindrical device with black and white internal components (no visible text or symbols)

alcohol bottle

Red plastic hard case with visible internal compartments and a 'NILDS' logo (no text or symbols on the case itself)

Carry bag
