USB CHARGER - Battery charger Sven - Free user manual and instructions

Product Type	Battery Charger
Brand	Sven
Model	USB CHARGER
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	5 V DC
Output Current	2.1 A (max)
Number of USB Ports	2
Charging Technology	Smart IC, overcharge protection
LED Indicator	Yes, power on/off
Dimensions (L x W x H)	60 x 40 x 25 mm
Weight	50 g
Cable Length	1.5 m (integrated)
Material	ABS plastic
Safety Features	Short-circuit, overcurrent, overvoltage protection
Compatible Devices	Smartphones, tablets, GPS, cameras, etc.
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	5% to 90% RH
Cleaning	Wipe with dry cloth; do not use liquids
Maintenance	No user-serviceable parts; do not disassemble
Spare Parts	Not available individually
Repairability	Non-repairable; replace if faulty

Frequently Asked Questions - USB CHARGER Sven

Can I charge my iPhone with this charger?

Yes, the Sven USB CHARGER is compatible with iPhones, iPads, and other USB-powered devices.

What is the maximum output current?

The maximum output current is 2.1 A shared across both ports.

Does it support fast charging?

This charger provides standard 5V charging and does not support Qualcomm Quick Charge or USB PD.

Can I use it while charging?

Yes, you can use your device while it is charging, but charging speed may decrease.

Is it safe to leave plugged in overnight?

Yes, the charger has overcharge protection and will stop charging once the device is full.

What is the input voltage range?

The input voltage is 100-240 V AC, suitable for worldwide use.

How do I clean the charger?

Unplug the charger and wipe the exterior with a dry cloth. Do not use water or cleaning agents.

What should I do if the charger gets hot?

It is normal for the charger to feel warm. If it becomes extremely hot, unplug it and contact support.

Can I charge two devices at once?

Yes, both USB ports can be used simultaneously, but total current is limited to 2.1 A.

Does it come with a cable?

Yes, the charger has an integrated AC cable approximately 1.5 meters long.

USER MANUAL USB CHARGER Sven

Black electronic device with two pins and a USB port, no visible text or symbols on the body.

Congratulations on your purchase of the SVEN power supply!

USAGE

Sven USB Charger power supply is designed for providing power to USB speakers, MP3 players, PDAs, telephones, smartphones, communicators, portable gaming consoles, etc.

PACKAGE CONTENTS

• Power supply – 1 pc
• User's manual — 1 pc
• Warranty card — 1 pc

SPECIAL FEATURES

• Wide range of input voltage (100 – 240 V)
  • High power (1000 mA)
  • Guaranteed stable output voltage of 5 V
• Filter protecting form various interferences
• Overload resistant

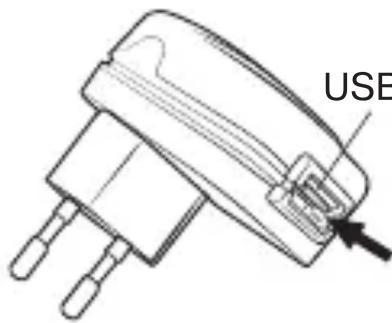

Socket

USB CHARGER

USB port

USB

日历

图

Fig. 1

CONNECTION

• Insert the plug of USB CHARGER power supply into a mains socket.
• Connect the power supply to an MP3 player, PDA, telephone, etc. (see Fig.1) using a USB cable.

- Connect the power supply to speakers, such as Sven DIVA, Sven FORZA, Sven OMNI (see Fig.2) or other USB speakers using a USB cable.

Simple line drawing of a wall-mounted electrical socket with a circular component and an arrow pointing to it (no text or symbols)

Socket

USB CHARGER
Fig. 2

DIVA

Line drawing of two speakers with circular tops and buttons (no text or symbols)

USB

FORZA

Illustration of two cylindrical electronic devices with a base, no text or symbols visible

OMNI

Illustration of two circular steamer-like objects with internal patterns (no text or symbols)

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Input voltage, ~V/Hz	100-240 / 50-60
Output voltage, =V/A	5 DC / 1
Package dimensions (W × H × D), mm	175 × 80 × 50
Weight, g	49

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to improvement of SVEN production.

Technical support is on www.sven.fi

Black electronic device with two pins and a USB port (no visible text or symbols)

Модель: USB CHARGER

Produced under the control of Oy Sven Scandinavia

Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310.

Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
