Product Type	In-wall/In-ceiling Subwoofer
Model	PRO-800SW
Brand	Klipsch
Driver Size	8 inches
Amplifier Power	200 Watts RMS
Frequency Response	28 Hz - 120 Hz
Impedance	8 ohms
Sensitivity	90 dB
Dimensions (H x W x D)	11.5 x 11.5 x 5.75 inches
Weight	11 lbs
Finish	White (paintable grille)
Mounting Type	In-wall / In-ceiling with dog ears
Grille	Magnetic, paintable
Cutout Dimensions	10.5 x 10.5 inches
Installation Depth	4.5 inches
Power Handling (Peak)	400 Watts
Maintenance	Wipe with dry cloth; do not use liquids
Safety	Ensure proper electrical installation; avoid water exposure
Spare Parts & Repairability	Contact Klipsch for replacement drivers or amplifiers

Frequently Asked Questions - PRO-800SW KLIPSCH

What type of speaker is the Klipsch PRO-800SW?

The Klipsch PRO-800SW is an in-wall/in-ceiling subwoofer designed for custom installation.

What is the power handling of the PRO-800SW?

It has a 200-watt RMS amplifier with a peak power handling of 400 watts.

What are the dimensions of the Klipsch PRO-800SW?

The dimensions are 11.5 x 11.5 x 5.75 inches (HxWxD), with a cutout of 10.5 x 10.5 inches and an installation depth of 4.5 inches.

How do I install the PRO-800SW?

Mount the subwoofer in the ceiling or wall using the included dog ears. Ensure the cutout is accurate and secure the unit by tightening the screws.

Can the grille be painted?

Yes, the magnetic grille is paintable to match your décor. Use spray paint designed for plastic.

What is the frequency response of the PRO-800SW?

The frequency response is 28 Hz to 120 Hz, providing deep bass for home theater or music.

How do I clean the subwoofer?

Wipe the grille and frame with a dry, soft cloth. Do not use water or cleaning solvents.

Is the PRO-800SW suitable for outdoor use?

No, it is designed for indoor installation in walls or ceilings and should not be exposed to moisture.

What spare parts are available for the PRO-800SW?

Common spare parts include replacement drivers and amplifier modules. Contact Klipsch customer support.

What is the warranty on the Klipsch PRO-800SW?

Klipsch typically offers a 5-year limited warranty for their architectural speakers. Check your documentation for details.

USER MANUAL PRO-800SW KLIPSCH

PRO-800SW OWNERS MANUAL

Klipsch®

PROFESSIONAL SERIES

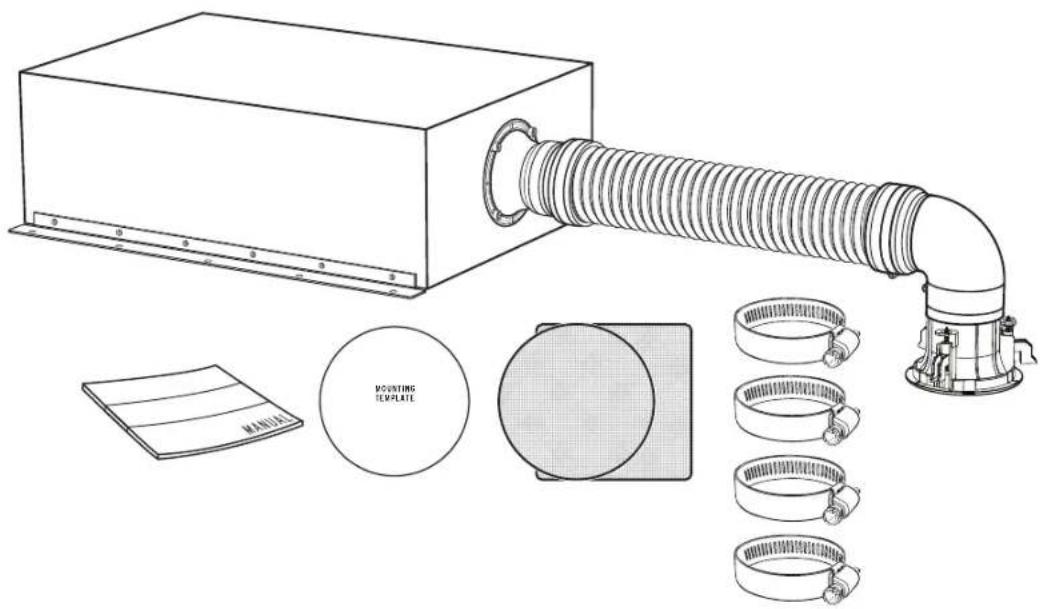

CONTENTS

CONTENTS CONTENU CONTENIDO INHALT CONTIENE CONTEÚDO 内容

Technical illustration of a mechanical assembly with labeled components including a rectangular housing, coiled tubing, and various circular components (no text or symbols present)

PLACEMENT 1 PRO-800SW WITH 2 FULL RANGE SPEAKERS

PLACEMENT 1 PRO-800SW WITH 4 FULL RANGE SPEAKERS

PLACEMENT 2 PRO-800SW WITH 4 FULL RANGE SPEAKERS

PLACEMENT 2 PRO-800SW WITH 6 FULL RANGE SPEAKERS

PLACEMENT 2 PRO-800SW WITH 8 FULL RANGE SPEAKERS

Exploded view diagram of a mechanical component showing internal parts and assembly (no text or labels)

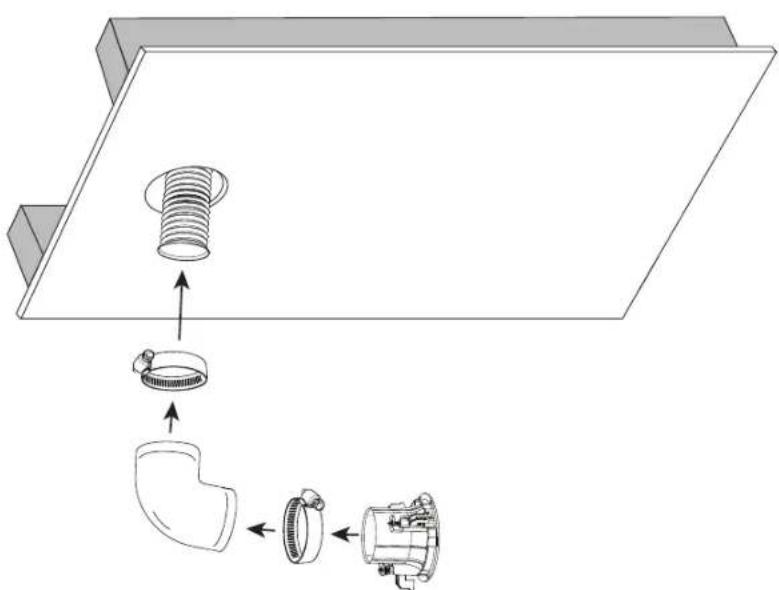

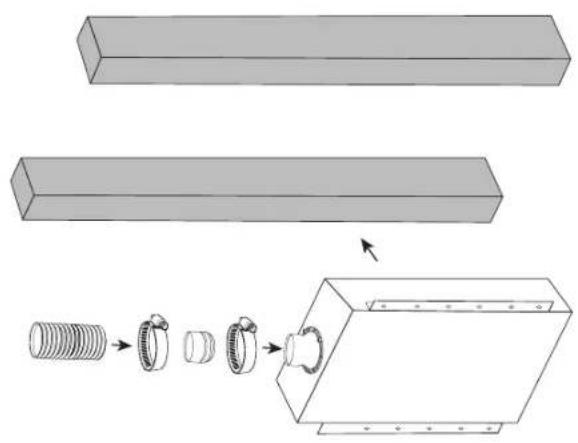

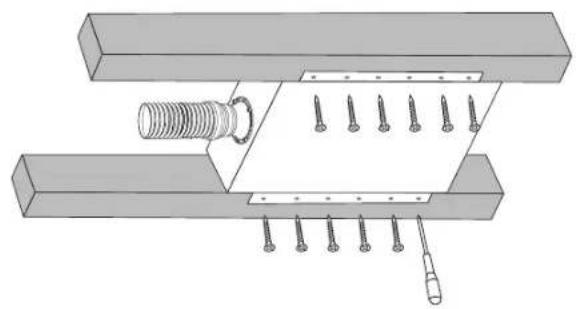

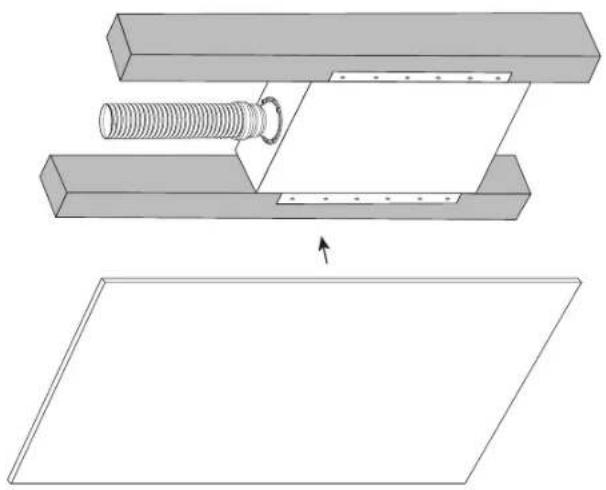

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置 التركيب

Diagram showing a mechanical assembly process with three rectangular blocks and a exploded view of a bearing assembly (no text or labels)

Technical diagram of a mechanical assembly with screws and a threaded bolt, no text or symbols present

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置 التركيب

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置 التركيب

Diagram showing a mechanical assembly with a threaded bolt and a flat plate, no text or symbols present

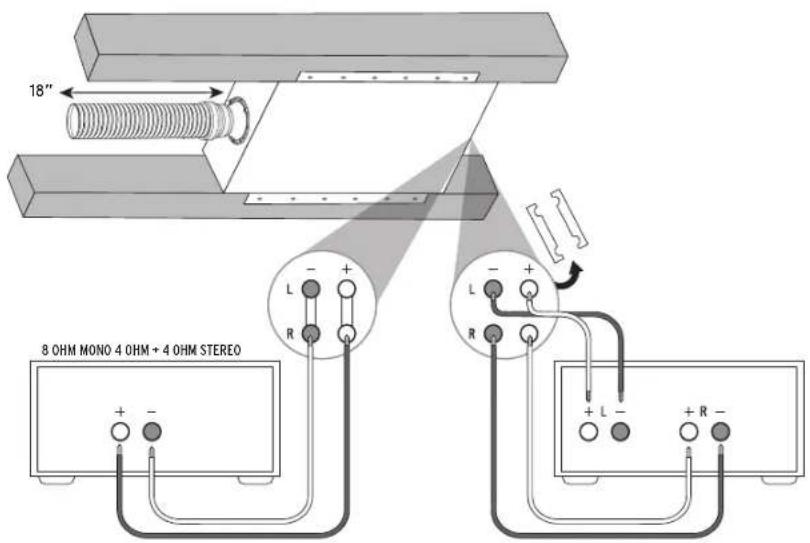

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置 التركيب

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置 التركيب

Diagram of a pipe fitting with a coiled spring, showing rotational motion (no text or symbols)

Simple line drawing of a mechanical setup with a tool, ring, and rectangular frame (no text or symbols)

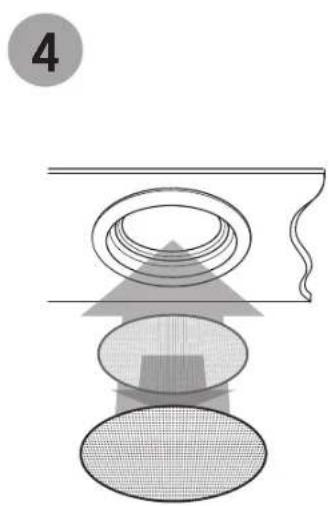

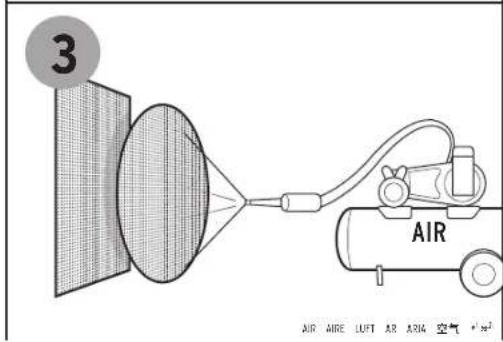

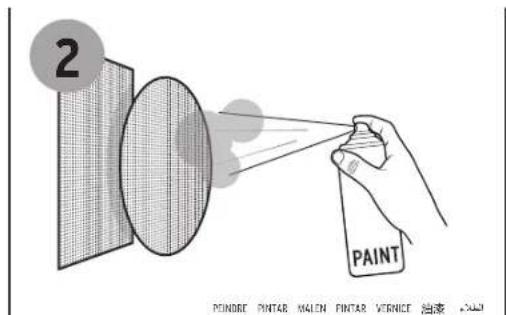

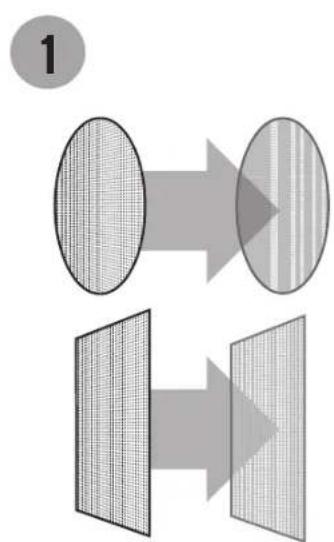

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

Diagram of layered geometric shapes with a numbered label '4' (no text or symbols on the shapes themselves)

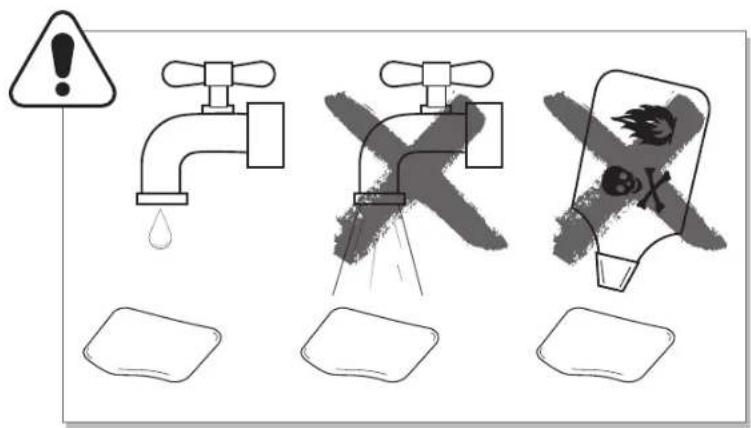

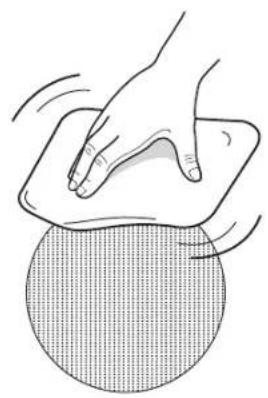

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁 العئاتية والتظيف

Illustration of a hand pressing down on a circular object with a textured surface (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES.

A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

CE

V01-171228
