Product Type	Home Theater Soundbar
Brand	iLive
Model	ITB037
Bluetooth Range	60 ft (18.3 m)
Audio Inputs	Bluetooth, Optical (Toslink), RCA Stereo, 3.5mm Line In
Built-in Speakers	Stereo speakers
Voice Prompts	Yes, announces speaker functions and source
Remote Control	Included, with CR2025 battery
Wall Mountable	Yes, hardware included
Power Adapter	AC/DC power adapter (included), DC input
Indicator Lights	Red (standby), Blue (Bluetooth), Green (Aux In), Orange (Optical)
Bluetooth Pairing	Press Pair button; default password 0000
Compliance	FCC Class B, California Proposition 65
Customer Service	1-888-999-4215
Warranty	Refer to www.iLiveElectronics.com

Frequently Asked Questions - ITB037 iLive

How do I pair my Bluetooth device with the ITB037 soundbar?

Power on the soundbar and press Source until Bluetooth mode is selected. Then press the Pair button on the right side. The pairing indicator will flash blue. On your device, search for ITB037 in Bluetooth settings and select it. If prompted, enter password 0000. Once paired, the indicator turns solid and a voice announces the connection.

Can I connect my TV to the soundbar?

Yes, use either the Optical digital audio input (requires a Toslink cable, not included) or the RCA stereo audio inputs (cable included). For optical, set your TV audio output to PCM or Optical Audio.

How do I switch between audio sources?

Press the Source button on the right side of the soundbar or use the remote control buttons: Bluetooth, Aux/Line In, or Optical. The voice prompt will announce the selected source.

The soundbar won't turn on. What should I check?

Ensure the AC/DC power adapter is securely plugged into the DC input on the back and into a working wall outlet. Press the Power button on the soundbar or remote. If the indicator light does not turn on, try a different outlet.

How do I reset the soundbar?

The manual does not specify a reset procedure. Unplug the power adapter, wait 30 seconds, then plug it back in. This should clear any minor glitches.

What is the range of Bluetooth connectivity?

The Bluetooth wireless range is up to 60 feet (18.3 meters) in open air. Walls and obstacles may reduce the range.

Can I mount the soundbar on the wall?

Yes, the soundbar is wall mountable. Mounting hardware and instructions are included in the box.

The remote control does not work. What can I do?

Check that the CR2025 battery is inserted correctly with the + side up. Replace the battery if needed. Ensure there are no obstructions between the remote and the soundbar.

How do I clean the soundbar?

Unplug the soundbar before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners.

Where can I find the full user manual or get support?

Visit the support section at www.iLiveElectronics.com or call customer service at 1-888-999-4215. You can also email [e-mail].

USER MANUAL ITB037 iLive

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ADDITIONAL WARNINGS

• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
• Only use the included power supply or a UL/ETL certified power supply of the same power output specifications.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complies with all Federal regulations.

Overview

Features

• Voice prompts announce speaker functions
• Bluetooth Wireless: 60 ft. range
• Built-in stereo speakers
• Line In (3.5mm audio input)
• Optical digital audio input
• RCA stereo audio inputs
- Wall mountable
- DC power input

Includes

• RCA stereo audio cable
• Wall Mounting hardware & instructions
• AC/DC Power adapter
• Remote control & battery

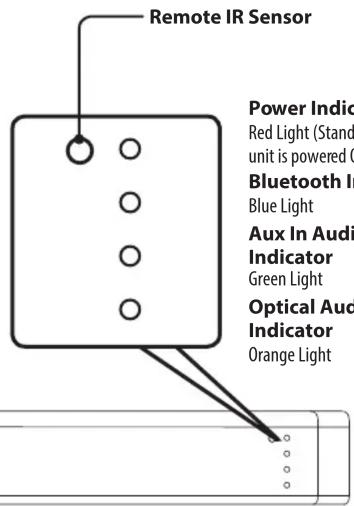

Power Indicator

Red Light (Standby, off when unit is powered ON)

Bluetooth Indicator Blue Light

Aux In Audio Indicator Green Light

Optical Audio Indicator

Orange Light

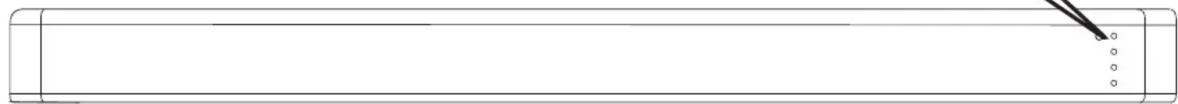

Front

Simple line drawing of a rectangular object with a small dot mark and a diagonal line extending from its top (no text or symbols)

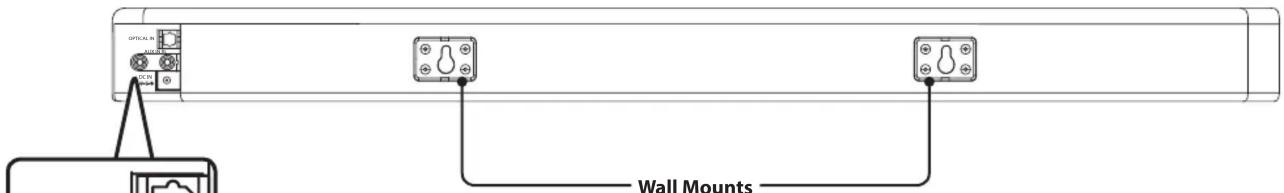

Rear

Optical Audio Input

Aux In

Requires RCA stereo audio cable (included).

DC Power Port

Remote Control & Battery

Power

Press to power ON/OFF.

Mute

Press to mute audio.

Bluetooth

Press to switch to Bluetooth audio source. Remote does not initiate pairing, use Pair button

on speaker.

Aux/Line In

Press to select

Aux In/ Line In source.

Optical

Press to select

Optical audio source.

Skip Back/Fwd

Press to skip the selected track

(BLUETOOTH MODE).

Play/Pause

Press to play or pause the

selected track

(BLUETOOTH MODE).

Volume -/+

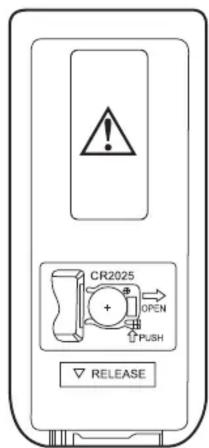

Remote requires 1

CR2025 button cell battery (included).

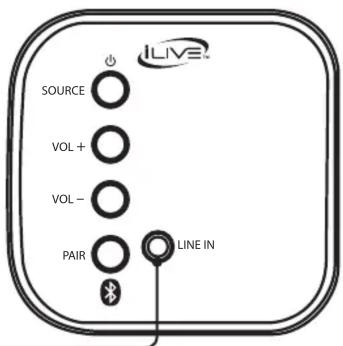

Right Side Controls & Input

Power/Source

Press to power ON.

Press and hold to power OFF.

Press to change audio source.

Volume +/-

Press to adjust the volume up or down.

Pair

Press to begin pairing to a Bluetooth device.

Line In

Requires 3.5mm audio cable

(not included).

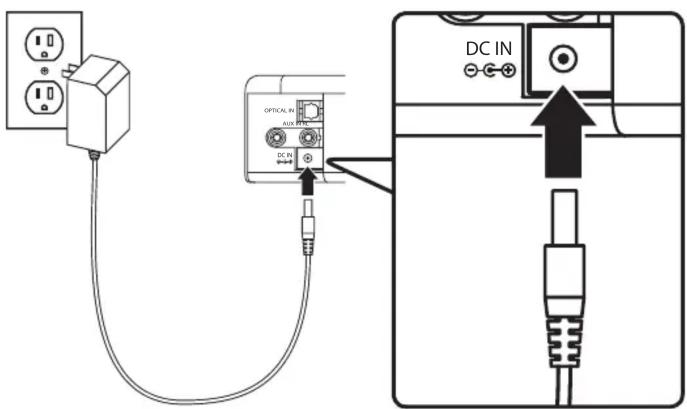

Power

Plug the AC/DC power adapter (included) into the DC Input on the back of the unit and a standard wall outlet.

Bluetooth Wireless Audio

Pairing to a Device & Playing Audio

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the steps listed here.

1. Power ON the soundbar and press Source on the soundbar or 📋 on the remote to select Bluetooth Mode. Press the Pair button to begin pairing. The Pairing Indicator will begin quickly flashing blue. When pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, search for and select ITB037 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0. If need be, refer to the user's manual for your specific device for instructions on connecting Bluetooth devices.
3. When successfully paired, the Pairing Indicator will turn solid, an audible chime will sound and a voice will announce the connection. Use the controls on the connected device to select and begin playing audio.

Previously Connected Devices

• The soundbar can remember multiple Bluetooth devices and will always try to re-connect to the last device used.
• To re-connect to a different device, turn off Bluetooth on unwanted devices, then access the Bluetooth settings menu on the device you wish to use and select ITB037.

Aux In (Stereo RCA Inputs)

Requires RCA stereo audio cable (included). When connecting an RCA stereo audio cable (Red/White), match the colored ports to their corresponding plugs.

1. Connect the RCA stereo audio cable to the Aux Inputs on the soundbar and the audio outputs on a television or other audio source.
2. Power ON the soundbar and press Source on the soundbar or Aux/Line In on the remote to select Aux In Mode. A voice will announce the source mode and the indicator will turn green.
3. Audio played through the television or other source should now be heard through the speakers.

Optical Input

Requires: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included).

1. Using a Digital Optical Audio Cable, connect the optical output on your audio source (TV, amplifier, etc.) to the Optical Input on the soundbar
2. Power ON the soundbar and press Optical on the remote or Source on the soundbar to select Optical/SPDIF Mode. A voice will announce the source mode and the indicator will turn orange.
3. On the connected audio source (TV, amplifier, etc.), make sure the audio settings are set to PCM or Optical Audio and are turned on.
4. Audio played through the connected audio source (TV, amplifier, etc.) should now be heard through the speakers.

Important tips for optical audio:

• Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.
• Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.
• The optical output is set to output PCM and not Dolby Digital.

Line In

Requires a 3.5 mm audio cable (not included).

1. Using a 3.5 mm audio cable, connect the Line In on the soundbar to the audio output/headphone jack on a smartphone or other audio source.
2. Power ON the soundbar and press Source on the soundbar or Aux/Line In on the remote to select Aux In Mode. A voice will announce the source mode and the indicator will turn green. Connecting via Line In overrides the Aux In source. Remove the 3.5mm audio cable to hear the Aux In source again.
3. Audio played through the connected device should now be heard through the speakers. Use the controls on the connected device to play, pause, or skip selected tracks.

International Support

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

For Warranty Information and the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail]

Copyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
