| Product Type | Under-cabinet range hood |
| Brand | ARC |
| Model | RFT9 |
| Width | 90 cm (35.4 inches) |
| Depth | 50 cm (19.7 inches) |
| Height | Adjustable, up to 120 cm (47.2 inches) |
| Weight | Approximately 15 kg (33 lbs) |
| Power Supply | 220-240 V, 50/60 Hz |
| Power Consumption | 200 W (motor) + 2 x 40 W (lights) |
| Airflow Rate | Max 650 m³/h |
| Noise Level | 36 - 68 dB(A) |
| Number of Speeds | 3 speeds + intensive mode |
| Lighting | 2 x LED lights (adjustable brightness) |
| Filter Type | Aluminum grease filter, washable |
| Charcoal Filter | Optional for recirculation mode |
| Ducting | 150 mm diameter outlet |
| Controls | Touch panel with display |
| Installation Type | Under cabinet or wall mount |
| Energy Class | A+ |
| Maintenance | Clean grease filter monthly; replace charcoal filter every 3-6 months |
| Safety Features | Automatic shut-off timer, overheat protection |
| Spare Parts | Grease filter (ref. AC-FIL-GREASE), charcoal filter (ref. AC-FIL-CHAR), LED module (ref. AC-LED-MOD) |
| Warranty | 2 years |
Frequently Asked Questions - RFT9 ARC
How often should I clean the grease filter?
We recommend cleaning the aluminum grease filter every month to maintain optimal performance. It is dishwasher safe.
Can the range hood be used in recirculation mode?
Yes, the ARC RFT9 can be used in recirculation mode. You will need to purchase the optional charcoal filter (model AC-FIL-CHAR) and install it behind the grease filter.
What are the dimensions of the range hood?
The hood is 90 cm wide, 50 cm deep, and has an adjustable height up to 120 cm including the chimney.
How do I adjust the fan speed?
Use the touch control panel. Press the speed button to cycle through 3 speeds. For maximum power, press and hold the speed button to activate intensive mode (runs for 10 minutes then returns to speed 2).
What type of ducting is recommended?
Use a rigid or flexible duct with a diameter of 150 mm. Ensure the duct is as short and straight as possible for best airflow.
Does the range hood come with a remote control?
No, the ARC RFT9 does not include a remote control. All functions are operated via the touch panel on the front of the hood.

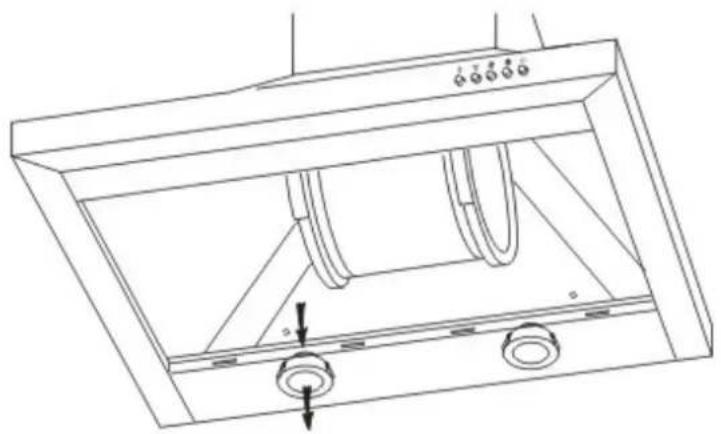

How do I replace the LED lights?
Turn off the power. Remove the glass panel by unscrewing the side screws. The LED module can be unplugged and replaced with a new one (ref. AC-LED-MOD).
The hood is noisy. What could be the issue?
Check if the grease filter is clogged or if the duct has obstructions. Also ensure the hood is properly mounted and not vibrating against the cabinet.
What is the warranty period?
ARC offers a 2-year warranty from the date of purchase for manufacturing defects. Register your product online to extend coverage.

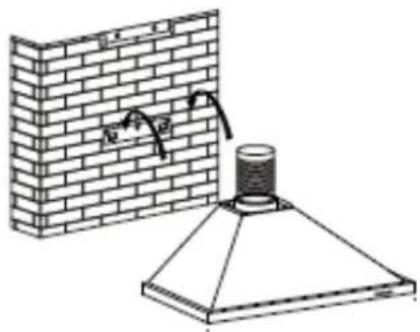

Can I install the hood myself?
While possible, we recommend professional installation to ensure proper ducting and electrical connection. Follow the installation manual carefully for safety.
