SPXRGBC - Lighting Stinger - Free user manual and instructions

Product Type	LED Light
Brand	Stinger
Model	SPXRGBC
Power Consumption	12W
Input Voltage	12V DC
Light Source	RGB LED
Color Options	16 million colors
Control Method	Remote control (included)
Mounting Type	Surface mount
Material	Aluminum + PC
IP Rating	IP44
Dimensions (L x W x H)	50 x 50 x 10 cm
Weight	0.5 kg
Lifespan	50,000 hours
Warranty	2 years
Operating Temperature	-20°C to 40°C
Certifications	CE, RoHS

Frequently Asked Questions - SPXRGBC Stinger

How do I install the Stinger SPXRGBC light?

Mount the light using the provided brackets and screws. Connect the red wire to positive 12V DC and the black wire to ground. Ensure the power is off during installation.

Can I control the light without the remote?

The light is primarily controlled via the included remote. If the remote is lost, you can use a compatible IR controller or replace the remote.

Is the Stinger SPXRGBC waterproof?

Yes, it has an IP44 rating, meaning it is splash-proof and suitable for outdoor use, but not fully submersible.

How do I change the color of the light?

Use the remote control to cycle through colors or select a specific color from the palette. The light supports 16 million colors.

What is the power consumption of this light?

The Stinger SPXRGBC consumes 12W at full brightness.

Can I connect multiple Stinger SPXRGBC lights together?

Yes, you can daisy chain up to 3 units using the provided connectors. Ensure total power does not exceed the power supply rating.

How do I reset the remote control?

Remove the battery from the remote, wait 10 seconds, and reinsert it. If issues persist, replace the battery with a new CR2025.

What is the lifespan of the LEDs?

The LEDs are rated for 50,000 hours of continuous use, which is approximately 5.7 years if used 24/7.

Is the light dimmable?

Yes, the remote control allows you to adjust brightness levels from 1% to 100%.

What should I do if the light stops working?

Check the power connections and fuse. If the light still does not work, contact Stinger support for troubleshooting or warranty replacement.

USER MANUAL SPXRGBC Stinger

Universal, waterproof, RGB controller with Bluetooth Control. Before you start, review directions completely. If your vehicle is not pre-wired for accessory lighting, you may need a switch and relay.

SPECIFICATIONS

• APP: EZ LED (iOS and Android)
- Operating temperature: -20\~80°C
• Voltage: DC12V/24V,
• Distance: 10-20M
• Maximum output current: 10A
- Outputs: 4

SMART RGB LED CONTROLLER (CONT)

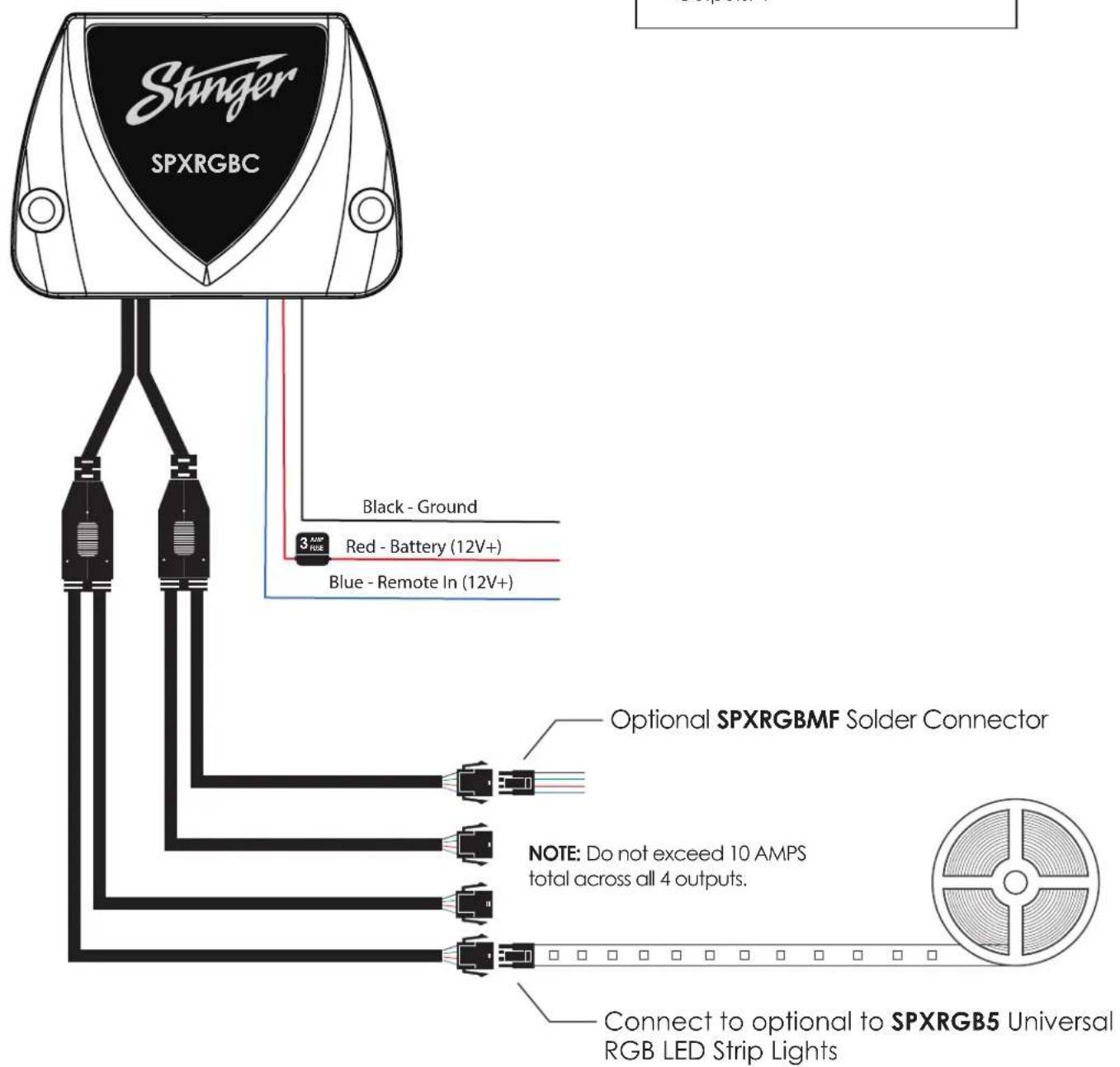

WIRING DIAGRAM

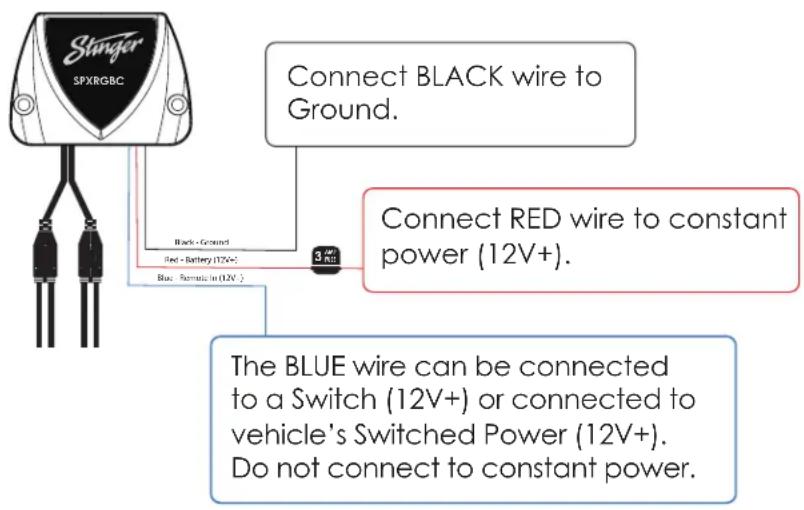

The SPXRGB C can be wired to a switch or to accessory power using the BLUE lead. The RED wire should be connected to constant power to save the RGB light settings.

NOTE: Do not connect the Red and BLUE to constant power and use the app to turn the module on and off. The module will draw power even when turned off with the app.

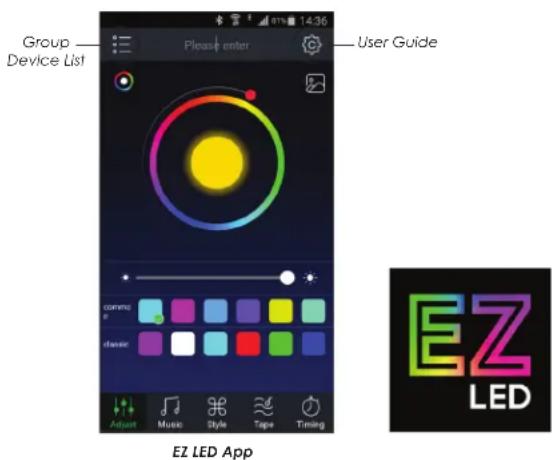

GET THE EZ LED APP

Scan the QR Code, or visit Google Play or iTunes to download the EZ LED app. Once the app is installed, power up the SPXRGBC Module and open the app. The module should auto-connect and be listed in the Group Device List.

SCAN for Apple iOS SCAN for Android

LIMITED WARRANTY:

Stinger warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Stinger dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Slinger will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

INTERNATIONAL WARRANTIES:

Products purchased outside the United States of America are covered only by that country's Authorized Stinger reseller and not by Stinger. Consumers needing service or warranty information for these products must contact that country's reseller for information.

Stinger is a Power Brand of AAMP Global

15500 Lightwave, Clearwater, Florida 33760

P: 888-228-5560

[e-mail]

www.stingerelectronics.com

© 2019 AAMP Global
