USER MANUAL 5100 NAVIGON

NAVIGON And the world is yours

NAVIGON 5100

User's Guide

English (US)

September 2007

Revision 1.1

Imprint

NAVIGON, INC

200 W Madison Street

Suite 650

Chicago, IL 60606

The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without the express written consent of NAVIGON, INC, nor transmitted in any form either electronically or mechanically, including photocopying and recording. All technical specifications, drawings, etc. are subject to copyright law.

© 2007, NAVIGON, INC

All rights reserved.

End User License Agreement

End User License Agreement (“Agreement”) – This is a legal agreement between you, the end user, and NAVIGON, Inc. (“NAVIGON”). By using all or any portion of the Software you are agreeing to be bound by the terms of this agreement. This Agreement applies to the use of software, pre-installed software on any of our hardware devices and accompanying items, including on CD-ROM, floppy disc, memory card, download package or any other data carriers, and all contents and contents programs (“Software”).

Please read this Contract carefully. By using this software you agree that this Agreement is enforceable like any written negotiated Agreement signed by you. This Agreement is enforceable against you and any legal entity that obtained the software.

If you do not agree to the terms of this Agreement, promptly return the unused software, unopened disk package and the accompanying items to the place where you obtained them for a full refund.

1. OWNERSHIP: It is hereby understood and agreed by you that NAVIGON is the owner of all title, ownership rights, intellectual property rights and copyrights in and to the Software. The Software shall remain the sole and exclusive property of NAVIGON and its licensors and NAV-IGON and its licensors will retain all patents, copyrights and other intellectual property rights in the Software, as applicable. You also hereby understand and agree that NAVIGON and/or its third party licensors own all right, title and interest in and to all content included in the Software, including, but not limited to, all intellectual property rights therein (the "Content").
2. GRANT OF LICENSE: NAVIGON grants you the right to use one copy of the Software, provided it is used on only one computer or hardware device at any time. The Software is in "use" on a computer or hardware device when it is loaded into temporary memory (e.g., hard disk, CD-ROM, or other storage device) of that computer. This license does not grant any right to obtain future upgrades, updates or supplements ("upgrades") of the Software. Any updates are similarly governed by this Agreement and any accompanying amendments. Updates may be subject to additional costs and provisions.
3. OTHER RESTRICTIONS: Except for the initial loading of the Software onto a Hardware Device or for archival/backup purposes as provided for above, you may not rent or lease, broadcast, present, transfer, or distribute the Software and accompanying written materials. You may not reverse engineer, decompile, reverse engineer or disassemble the Software. If Software is an upgrade, any transfer must include the upgrade and all prior versions. All rights not specifically granted in this Agreement are reserved by NAVIGON.
4. TRANSFER: You may transfer the Software and this Agreement to another party to whom you may transfer the hardware devices and accompanying items if the other party agrees to accept the terms and conditions of this Agreement. If you transfer the Software, you must simultaneously either transfer all copies whether in printed or machine-readable form to the same party or destroy any copies not transferred, including all modifications and portions of the program contained or merged into other programs.

You shall not sub-license, lease, assign, or transfer the Agreement or the Software except as expressly provided in this Agreement. Any attempt otherwise to sublicense, lease, assign, or transfer any of the rights, duties, or obligations hereunder renders this License VOID.

1. LIMITATION OF WARRANTIES AND LIABILITIES: EXCEPT FOR THE LIMITED WARRANTY DOCUMENT INCLUDED WITH THE HARDWARE DEVICE, IF ANY, AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ALL SOFTWARE, OTHER COMPONENTS THEREOF AND SERVICES ARE PROVIDED ON AN "AS IS" BASIS. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT YOUR USE OF THE SOFTWARE IS AT YOUR SOLE

RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU. EXCEPT AS OTHERWISE EXPRESSLY STATED IN THIS AGREEMENT, NAVIGON DOES NOT MAKE, AND HEREBY EXPRESSLY DISCLAIMS, ANY AND ALL EXPRESS AND/OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT AND TITLE, AND ANY WARRANTIES ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE. YOU UNDERSTAND AND AGREE THAT THE USE OF THE SOFTWARE IS DONE AT YOUR OWN DISCRETION AND RISK AND THAT YOU WILL BE SOLELY RESPONSIBLE FOR ANY DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY LAW AND EXCEPT AS OTHERWISE EXPRESSLY STATED IN THIS AGREEMENT, NAVIGON WILL NOT BE LIABLE OR RESPONSIBLE TO YOU OR ANY OTHER PERSON OR ENTITY FOR ANY TYPE OF DIRECT, INCIDENTAL, SPECIAL, PUNITIVE, INDIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST REVENUE, LOST PROFITS, REPLACEMENT GOODS, LOSS OF PROPRIETARY MATERIAL, RIGHTS OR SERVICES, BUSINESS INTERRUPTION, LOSS OR CORRUPTION OF ELECTRONIC COMMUNICATIONS, OR INTERRUPTION OR LOSS OF USE OF SERVICES OR EQUIPMENT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OTHER PECUNIARY LOSS, AND WHETHER ARISING UNDER THEORY OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, EVEN IF NAVIGON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR THEY ARE FORESEEABLE. IN NO EVENT SHALL NAVIGON'S TOTAL LIABILITY (WHETHER ARISING UNDER A THEORY OF CONTRACT, TORT, INCLUDING NEGLIGENCE, STRICT LIABILITY OR OTHERWISE) UNDER OR IN CONNECTION WITH THIS AGREEMENT OR BASED ON ANY CLAIM FOR INDEMNITY OR CONTRIBUTION EXCEED THE AMOUNT OF PURCHASE PRICE OF THE AGREEMENT. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU.

1. CONFIDENTIALITY: You acknowledge that the Software contains proprietary trade secrets and you hereby agree to maintain the confidentiality of Software and not to disclose or provide access thereto to any person.
2. THIRD PARTY SOFTWARE LICENSES: NAVIGON may make use of third party software. Notwithstanding the terms and conditions of this License, use of some third party materials included in the Software may be subject to other terms and conditions.
3. TERMINATION: This Agreement automatically terminates if you fail to comply with the terms hereof or if you attempt to assign the Agreement or transfer the Software to a third party except as expressly permitted in this Agreement. If such should occur, you must destroy all copies of the Software and all of its component parts. All provisions of this Agreement, except for the license grant above, survive the termination of this Agreement.
4. ENTIRE AGREEMENT: The terms and conditions of this Agreement, including any addendum or agreement to it which may be included with the accompanying package of the Software (and/or Hardware), plus the Limited Warranty, if applicable, reflect the entire agreement between You and NAVIGON with respect to the subject matter hereof and will supersede and replace all prior understandings and agreements, in whatever form, regarding the subject matter. This Agreement shall not be modified or amended except in writing signed by NAVIGON. This Agreement shall take precedence over any other documents that may be in conflict therewith.
5. TRANSLATIONS: The original English version of this Agreement may have been translated into other languages. The English version of this Agreement is the controlling version.

11. JURISDICTION AND DISPUTES

This Agreement is governed by the laws of the State of Illinois without regard to its conflict of laws rules.

All disputes hereunder shall be resolved in the applicable state or federal courts of the State of Illinois located within Cook County, Illinois. To the extent permitted by law the parties consent to the jurisdiction of such courts, agree to accept service of process by mail, and waive any jurisdictional or venue defenses otherwise available.

12. SEVERABILITY

If at any time any one or more of the provisions of this Agreement become invalid, illegal or unenforceable in any respect for any reason, the validity, legality and enforceability of any such provision in every other respect and of the remaining provisions of this Agreement shall not be in any way impaired.

13. ADDITIONAL TERMS AND CONDITIONS OF USE RELATING TO THE TOTAL TRAFFIC NETWORK DATA PROVIDED WITH YOUR NAVIGON ENABLED PRODUCT:

A. Total Traffic Network, a division of Clear Channel Broadcasting, Inc., holds the rights to the traffic incident data and RDS-TMC network through which it is delivered. You may not modify, copy, scan or use any other method to reproduce, duplicate, republish, transmit or distribute in any way any portion of traffic incident data. You agree to indemnify, defend and hold harmless Clear Channel Broadcasting, Inc. (and its affiliates) against any and all claims, damages, costs or other expenses that arise directly or indirectly out of (1) your unauthorized use of the traffic incident data or the RDS-TMC network, (2) your violation of this directive and/or (3) any unauthorized or unlawful activities by you in connection herewith.
B. Total Traffic Network traffic data is informational only. User assumes all risk of use. Total Traffic makes no representations about content, traffic and road conditions, route usability, or speed.
C. TOTAL TRAFFIC NETWORK TRAFFIC DATA IS PROVIDED "AS IS," AND "WHERE IS". TOTAL TRAFFIC NETWORK EXPRESSLY DISCLAIMS ALL WARRANTIES WITH RESPECT TO THE TRAFFIC DATA (INCLUDING, WITHOUT LIMITATION, THAT THE TRAFFIC DATA WILL BE ERROR-FREE OR WILL OPERATE WITHOUT INTERRUPTION), EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE, OR THOSE ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE.
D. TOTAL TRAFFIC NETWORK WILL NOT BE LIABLE TO YOU FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, EXEMPLARY, OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, LOST REVENUES, ANTICIPATED REVENUES, OR PROFITS RELATING TO THE SAME) ARISING FROM ANY CLAIM RELATING DIRECTLY OR INDIRECTLY TO USE OF THE TRAFFIC DATA, WHETHER A CLAIM FOR SUCH DAMAGES IS BASED ON WARRANTY, CONTRACT, TORT (INCLUDING, WITHOUT LIMITATION, NEGLIGENCE OR STRICT LIABILITY).

This page intentionally left blank.

Table of Contents

End User License Agreement .... iii

Introduction

About this manual....1

Conventions 1

Symbols 1

Legal notice .... 1

Liability .... 1

Trademarks....1

Customer Service 2

Telephone Support....2

E-mail 2

Welcome

Introducing Your NAVIGON 5100....3

About GPS navigation....4

Getting Started

What's included 5

Important safety information 6

Navigation safety information....6

Safety information for the navigation device 7

Safety guidelines when installing in your car 7

Preparing your NAVIGON 5100 for use....8

Charging the battery....8

Inserting a memory card 8

Removing the memory card....8

Securing the cradle 9

Securing the navigation device to the cradle 9

Supplying power to the navigation device....9

Connecting the TMC antenna 9

Basic Operations

Starting the NAVIGON 5100....11

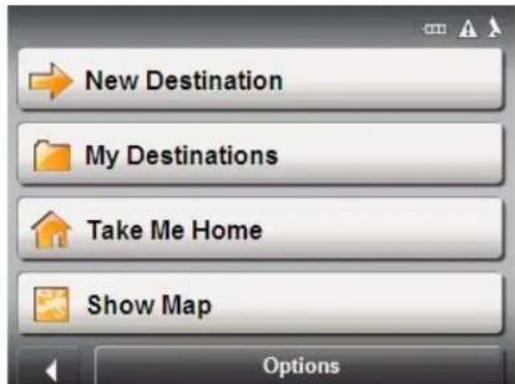

The Main Window 11

Returning to the Main Window 12

Initializing the GPS receiver....13

Setting the volume 13

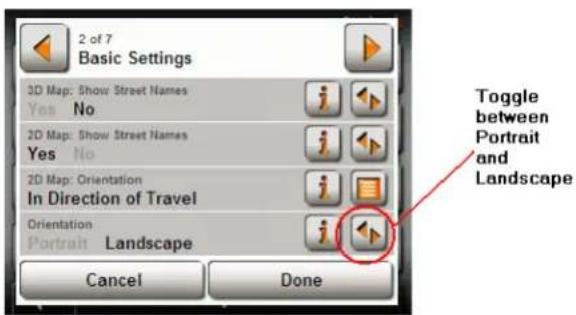

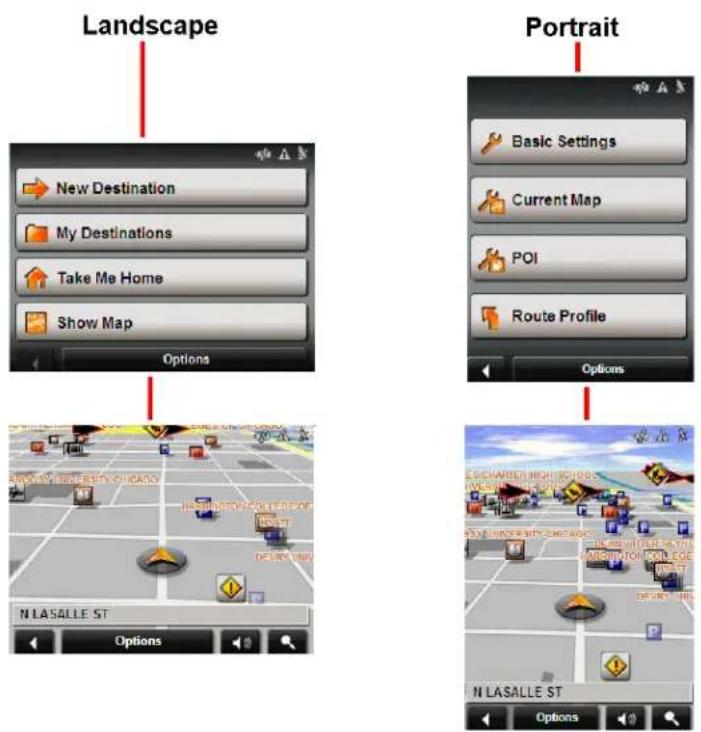

Selecting screen orientation.... 14

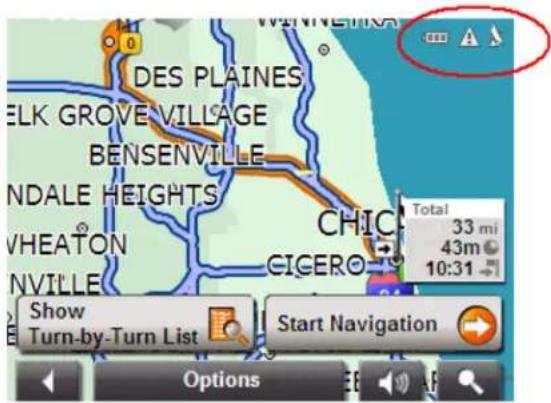

Viewing device statuses 16

GPS 16

Power 16

Direction 16

TMC (Traffic Information) 17

Using software keyboards .... 18

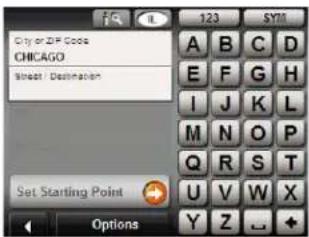

Alphabetic keyboard....18

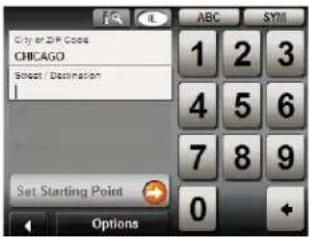

Numeric keyboard....18

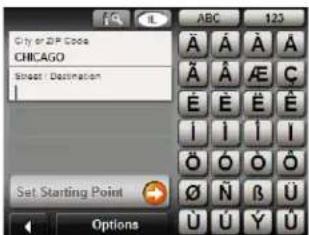

Special character/symbol keyboard 18

Special keys....19

Using menus....19

Security

Password protection 21

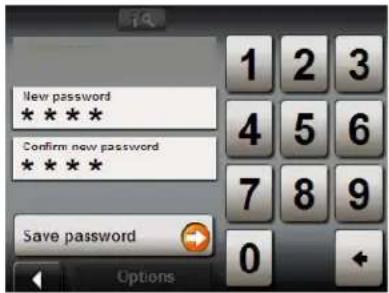

The Password Lock Window 21

Setting a password....21

Changing a password 21

Cancelling password protection 22

Forgotten your password?......22

Selecting Destinations

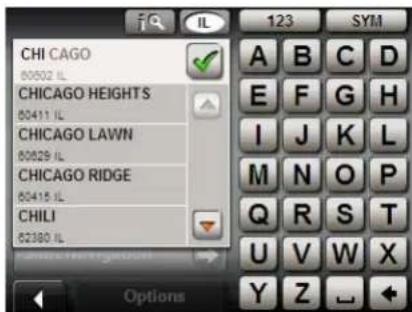

Using auto-complete to select a destination 23

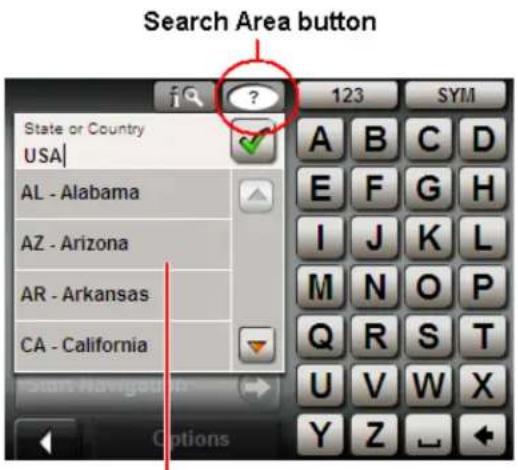

Selecting a search area....24

Selecting Destinations 25

Enter an Address....25

Search for POI....25

By Tapping on the Map 25

Entering an address....26

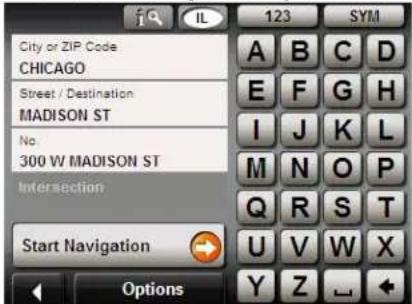

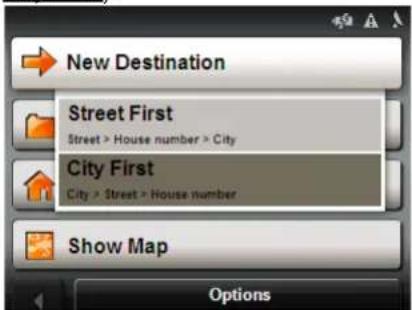

Specifying a city first 26

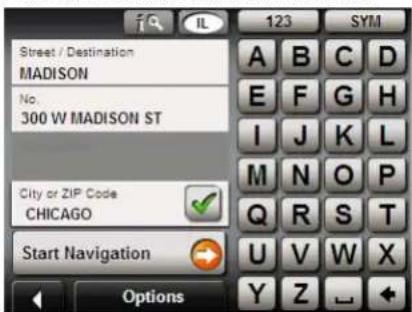

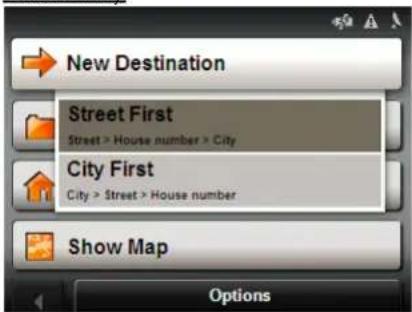

Specifying a street first....27

Selecting a Point of Interest (POI) destination....28

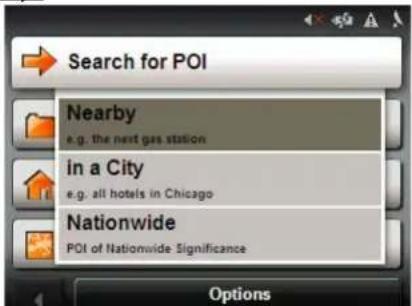

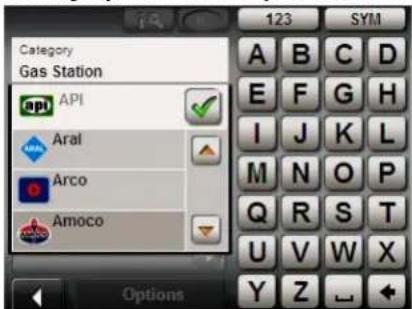

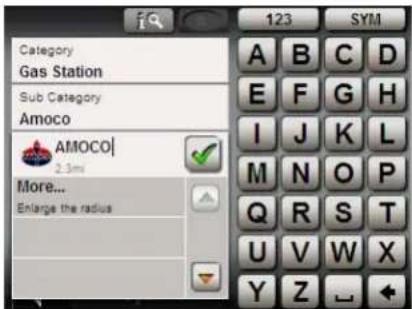

POIs nearby 28

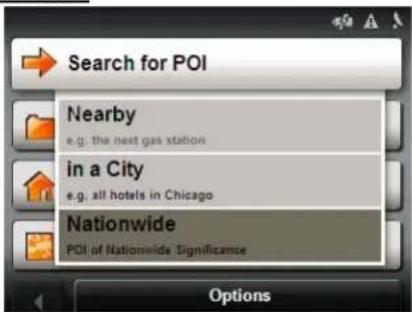

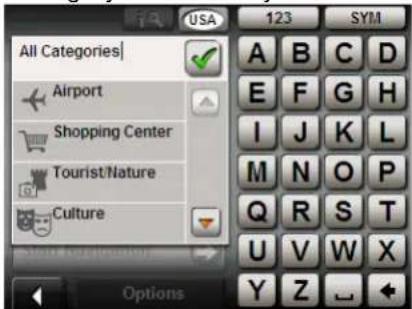

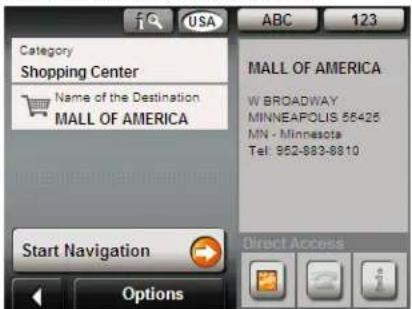

National POIs 29

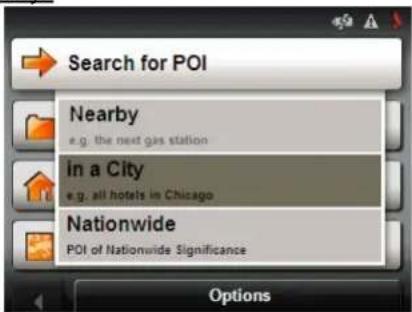

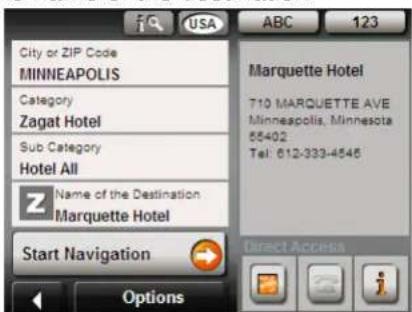

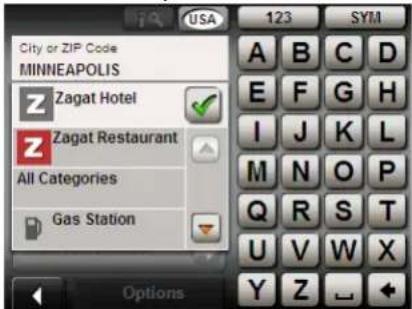

POIs in a specified city....30

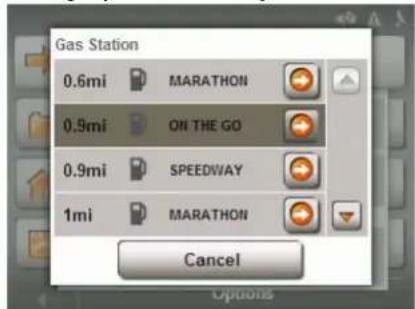

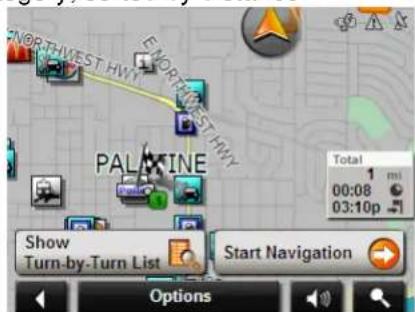

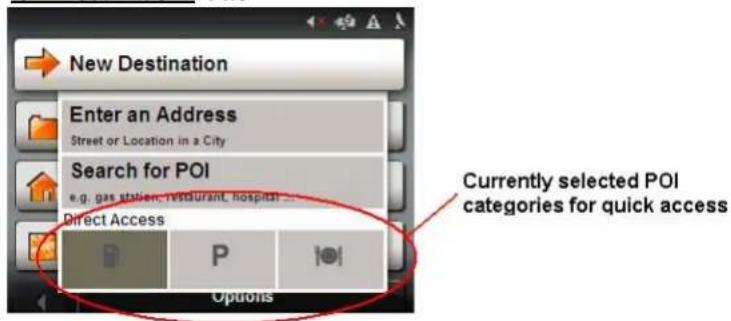

POI direct access....31

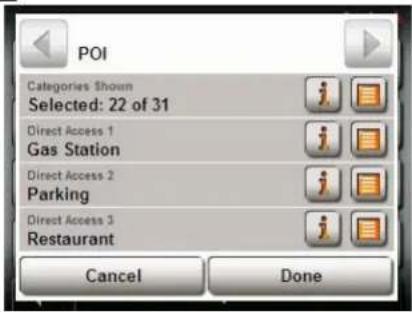

Specify direct access POI categories....32

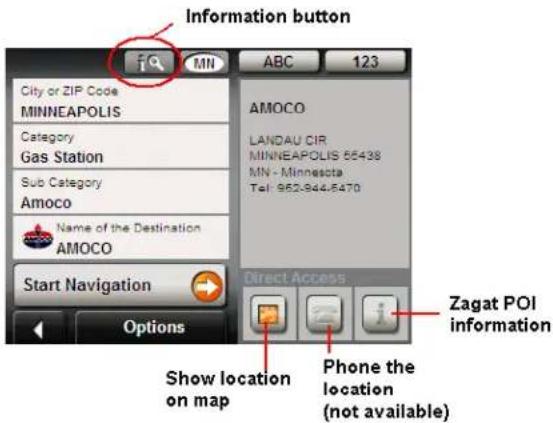

Information about the POI 33

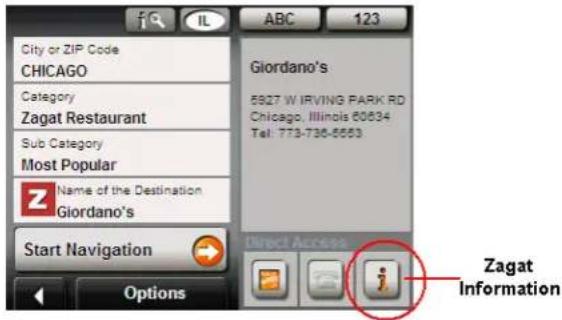

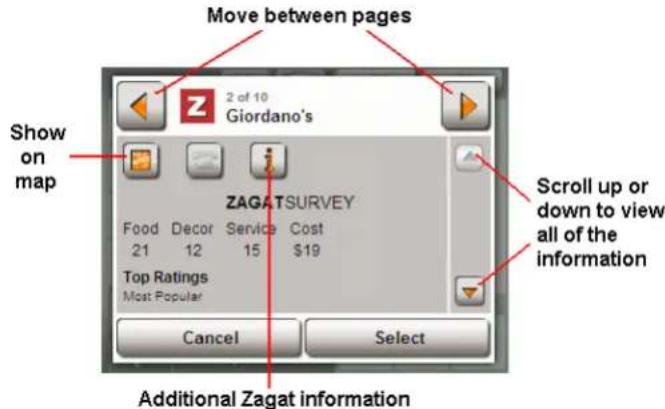

Zagat POI Information....34

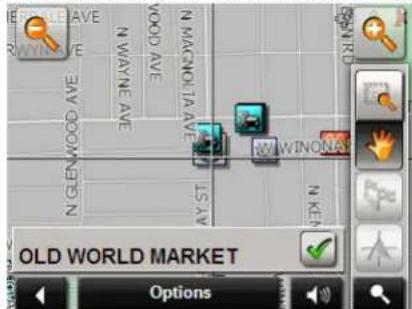

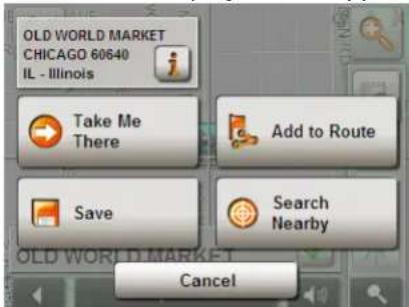

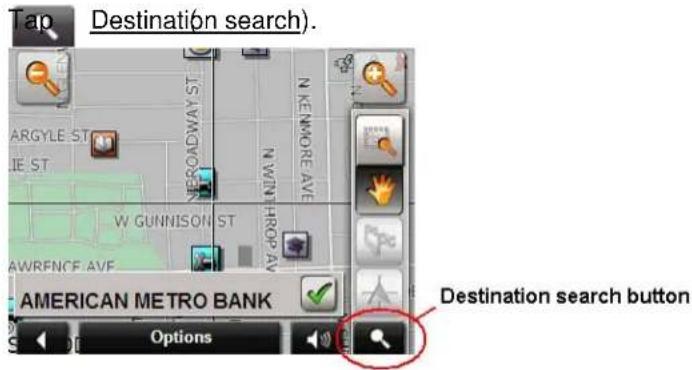

Selecting a destination by tapping the map 35

My Destinations

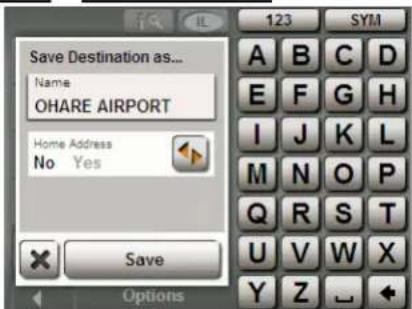

Saving a destination 37

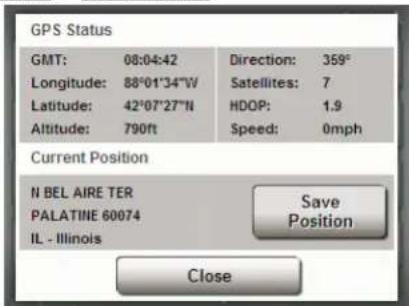

Saving the current location using GPS 37

Saving your home address as a destination ....38

Selecting a saved destination....39

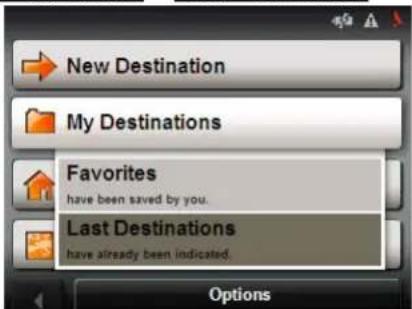

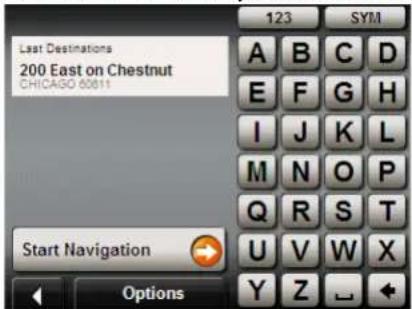

Selecting a destination from the Last Destinations list.... 39

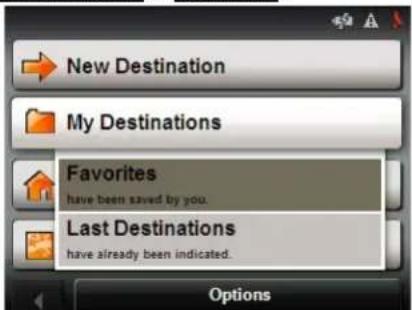

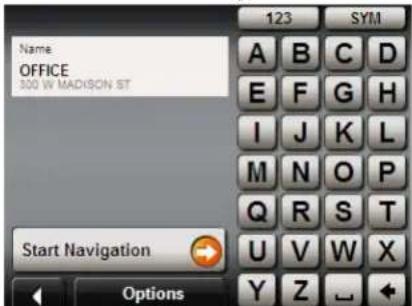

Selecting a destination from the Favorites list.... 40

Navigating homewards 41

Starting navigation 42

Quitting navigation 42

No GPS reception 42

Working With Routes

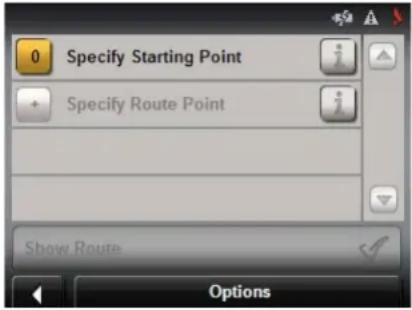

Accessing the Route Planning Window 43

Entering the starting point 43

Changing the starting point 44

Entering route points.... 44

Changing the order of route points.... 44

Managing routes 45

Saving routes 45

Loading routes 45

Navigation....46

Calculating and displaying routes 46

Viewing the Route Profile....46

Simulating routes....47

Starting a route simulation 47

Ending simulation....47

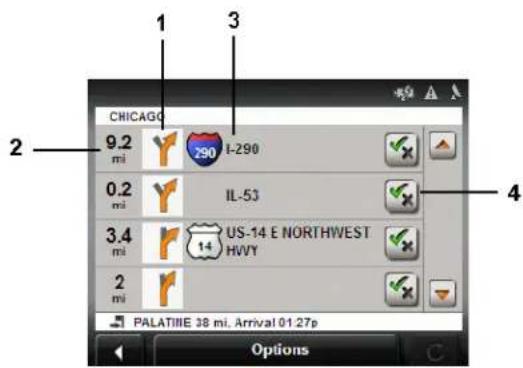

Viewing a Turn-by-Turn List....48

Blocking route sections 48

Removing blocks and using original routes....48

Arriving at your destination 49

Working With Maps

View Information About the Map Currently in Use 51

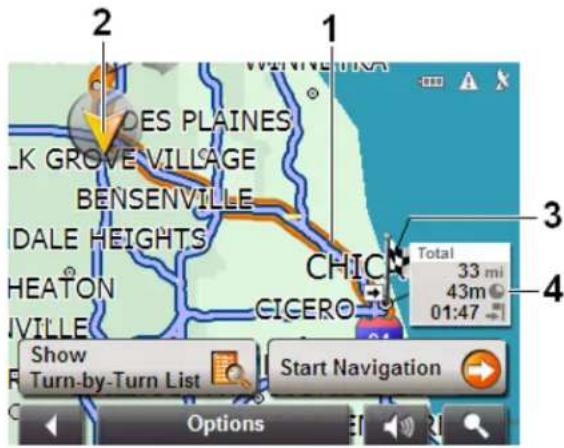

Map in Preview mode 52

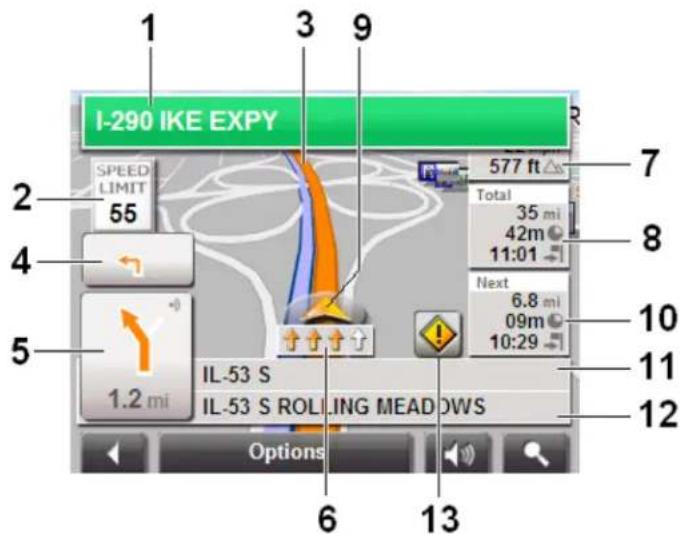

Map in Navigation mode 53

Map functions in Navigation mode 54

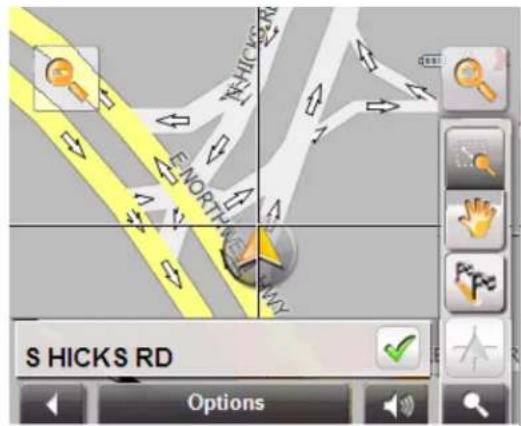

Map in Destination search mode 55

Operating in Destination search mode....56

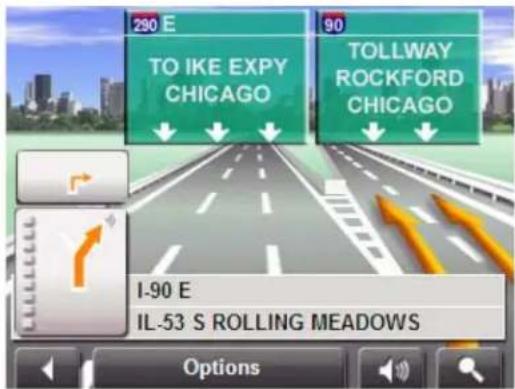

Reality View (Junction View) 57

TMC (Traffic Information)

Accessing the TMC (Traffic Information) Window....59

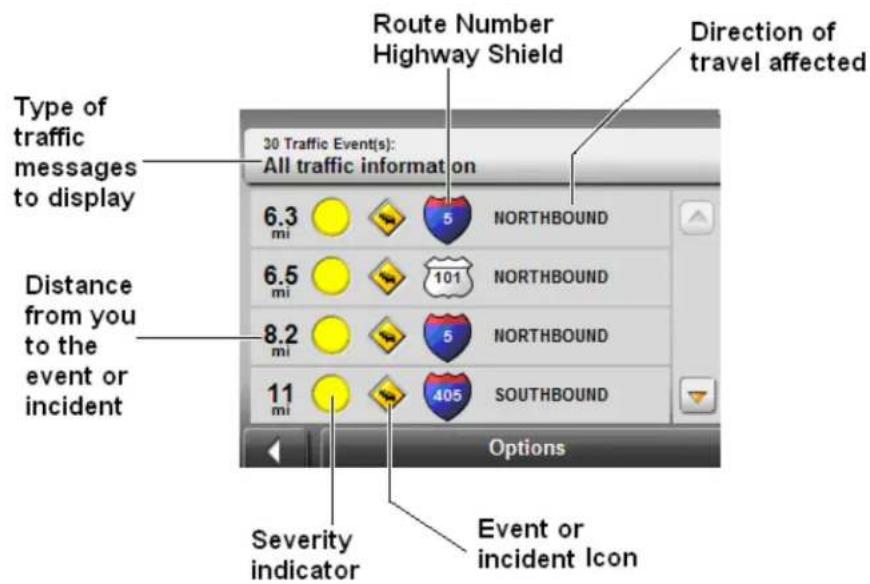

The TMC (Traffic Information) Window....60

Types of Messages 60

Severity Indicators....61

Event or Incident Icons....61

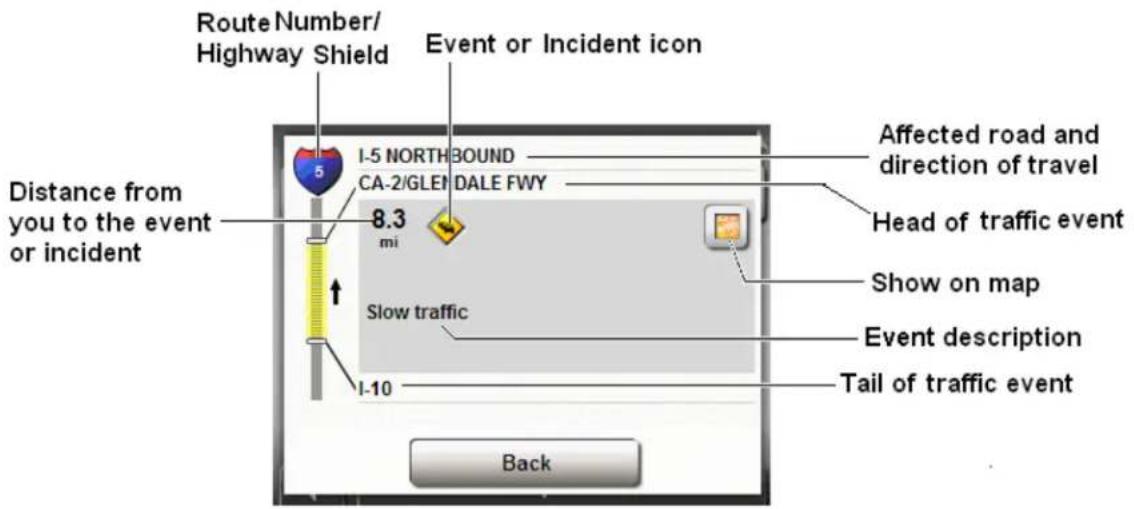

The TMC Detail Window 62

Displaying traffic messages 62

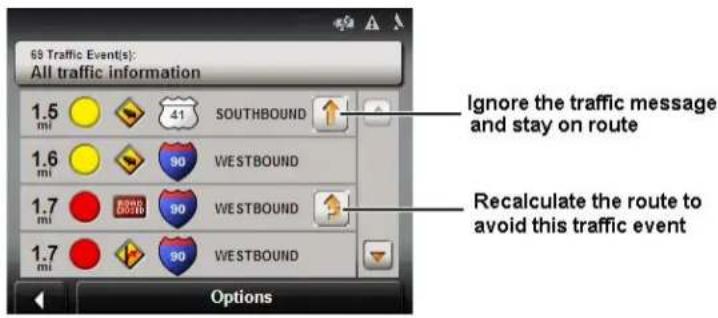

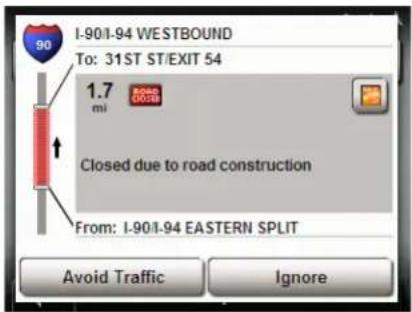

Requesting a route recalculation....63

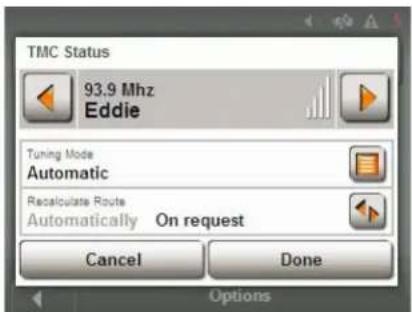

TMC Settings Window 64

Select another station 64

Select Tuning Mode Settings 64

Select Reroute Settings 65

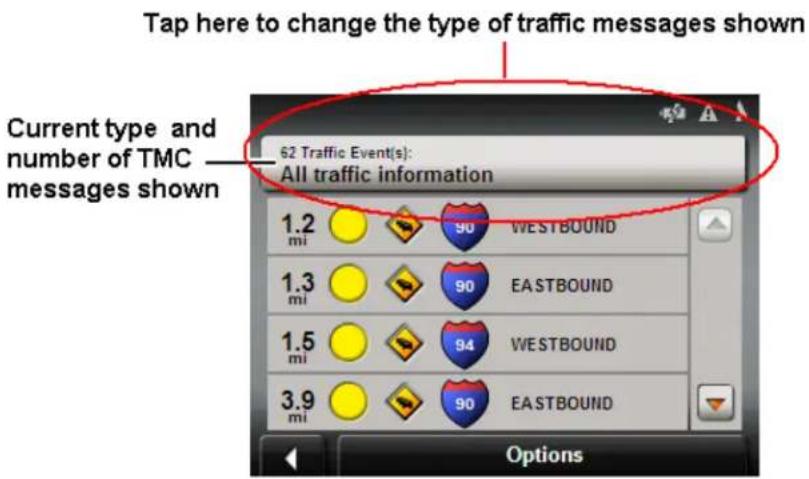

Specify the type of traffic messages to display 65

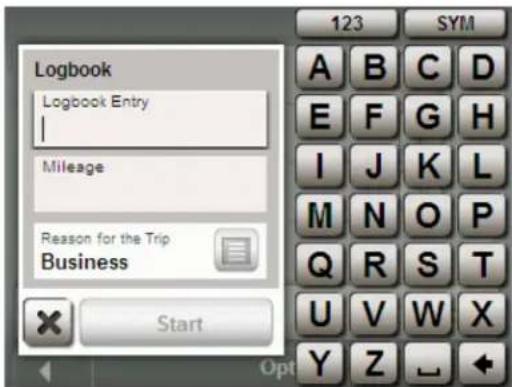

Logbook

Starting a recording....67

Stopping the recording....67

Customizing Your NAVIGON 5100

Accessing the Settings window....69

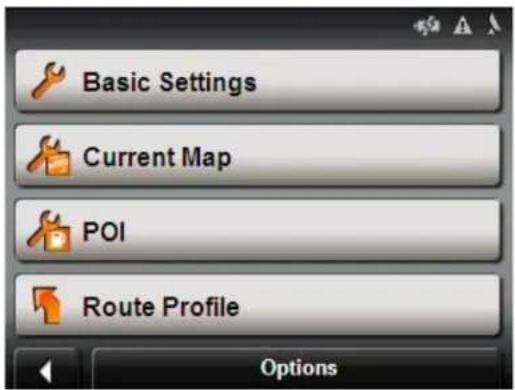

The Settings window....69

Basic Settings 69

Current Map Settings 71

POI Settings....71

Route Profile Settings 71

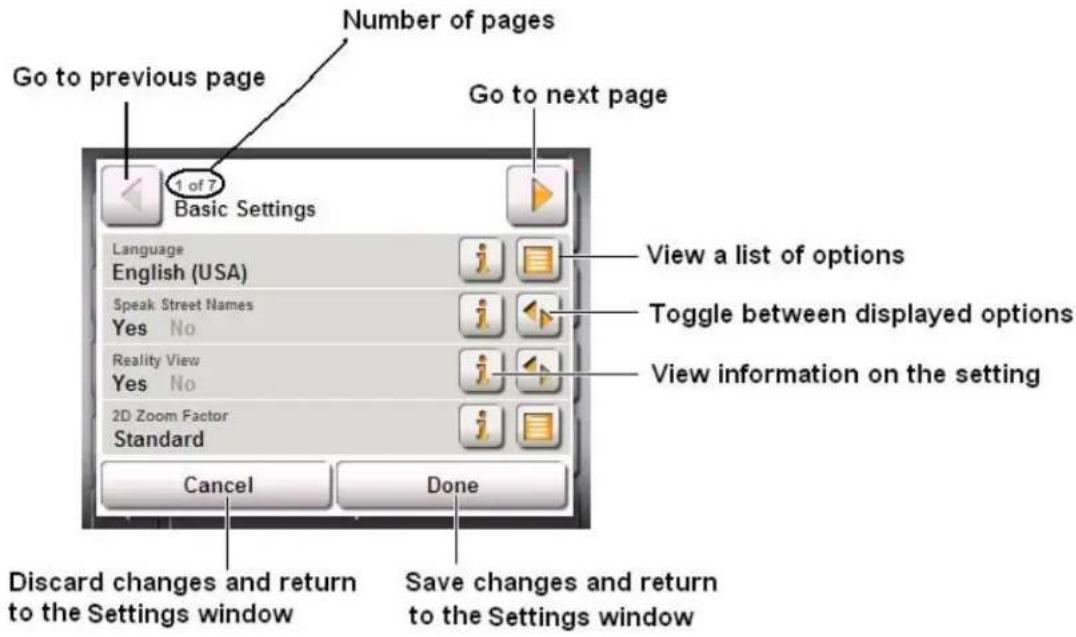

Selecting options 73

Moving between pages 73

Viewing a list of options for a setting....73

Toggling between options 73

Viewing information about a setting 74

Saving changes....74

Discarding changes....74

Legal Notices

NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA .....75

GPS....75

Technical Data

Specifications....77

Compliance Notices 78

Index

This page intentionally left blank.

Introduction

About this manual

Conventions

For better legibility and clarification, the following styles are used in this manual:

Bold and italics: Registered names, company and product descriptions.

SMALL CAPITALS: WINDOW AND DIALOG BOX TITLES.

Bold: Highlighting of important parts in the text.

Underlined: Descriptions of buttons, input fields and other elements on the user interface.

Symbols

The following symbols refer to specific passages of text:

Warnings

Instructions and tips for operating the software

More detailed information and explanations

Legal notice

Liability

The software and the manual are subject to change without notice. NAVIGON, INC is not liable for the accuracy of the information contained in this manual or for damages resulting from the use of this manual.

Trademarks

All brands and trademarks mentioned in this document are possibly registered by third parties and are subject to the current legislation and to the rights of their respective owners without reservation. All mentioned names of products, societies, or brands may be registered trademarks of their respective owners. Every right that is not explicitly accorded is reserved.

The absence of the explicit labelling of registered trademarks used in this manual does not imply that the brand is not subject to the rights of a third party.

Microsoft, Windows and Excel are trademarks of the Microsoft Corporation.

NAVIGON is a registered trademark of NAVIGON, INC.

NAVTEQ is a registered trademark of NAVTEQ.

ZagatSurvey is a registered trademark of Zagat Survey, LLC.

Total Traffic Network is a registered trademark of Total Traffic Network.

Clear Channel is a registered trademark of Clear Channel.

ZENRIN is a registered trademark of ZENRIN EUROPE GmbH.

Customer Service

Our service team is available via telephone or E-mail.

Telephone Support

Telephone: [phone] (Toll Free)

Service Hours: Monday through Friday, 9 a.m. to 8 p.m. CT (except official holidays)

E-mail

To ensure as timely a response via e-mail, visit http://www.navigon.com and select:

US and Canada > Support > Email

Customers will receive a response within 2 business days.

Introducing Your NAVIGON 5100

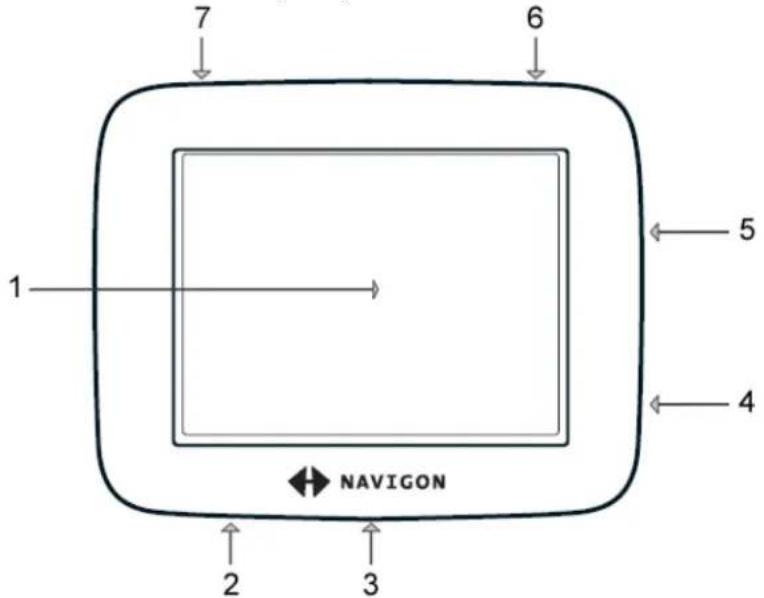

Welcome to the exciting world of handheld navigation. The NAVIGON 5100 offers Global Positioning System (GPS)-based navigation, real-time traffic messaging, and millions of Points Of Interest (POIs).

7 6 1 5 4 2 3 NAVIGON

1		Touch screen
2		Power Connector Port
3		L E D
4		External Antenna/Headset Socket
5		SD memory card slot
6		On/Off
7		External GPS antenna Socket

About GPS navigation

GPS is based on a total of 24 satellites that circle the earth and are constantly transmitting their position. The GPS receiver uses this data and calculates its own geographical position on the basis of the information transmitted by the various satellites.

For a sufficiently precise positioning it is necessary to obtain the data from at least three satellites. With the data from 4 or more satellites the altitude above sea level can also be ascertained. The determination has an accuracy of about 3 yards.

Once the navigation device has determined your position, it can be used as a starting point for route calculation.

The map data on your navigation device includes the geographical coordinates of all digitally recorded Points Of Interest (POIs), streets and places. This enables the device to calculate a route between a starting point and a destination.

The calculation of the current position and its representation on the map takes place once every second so your current position is always shown on the map.

If GPS reception is impaired, navigation is interrupted. The navigation software remains active.

As soon as GPS reception is restored, the navigation system calculates any change of position which has occurred in the meantime. Navigation may simply be continued.

Caution! The United States government operates the Global Positioning System (GPS) and is solely responsible for its accuracy and maintenance. Changes by the United States government may affect the accuracy and performance of all GPS equipment, including your personal navigation device.

Caution! Ordinances or laws may restrict use of certain abilities of your navigation device on public or private land.

Getting Started

What's included

Your NAVIGON 5100 comes with the following accessories. If the contents are incomplete, please notify us within 14 days of purchase. The purchased product includes:

• NAVIGON 5100 navigation device
- Car cradle
• Car charger cable (12 volt adapter)
- SD card containing software and navigation maps
- Documentation CD (PDFs in English, French and Spanish)

Important safety information

Please read the following notices and safety information carefully before starting to use your navigation system.

Navigation safety information

Use this navigation system at your own risk.

Caution! To prevent accidents, do not operate the navigation system while driving.

Caution! Do not look at the display unless it is absolutely safe to do so!

Caution! Traffic regulations have priority over any instructions from the navigation system.

Caution! Follow the instructions of the navigation system only when the circumstances and the road traffic regulations allow you to do so! The navigation system guides you to your destination even if you deviate from the calculated route.

Caution! Check that the cradle is secured and adjusted properly before each journey.

Note: If you have not understood the spoken instructions, or you're not sure about what to do next, you can briefly refer to the map or arrow view of your navigation system.

Safety information for the navigation device

Caution! Protect the device from moisture. The device is not waterproof and is not protected against water damage.

Caution! Do not run cables directly next to safety-relevant devices and supply lines.

Caution! After installation, check all safety-relevant equipment in the car.

Caution! Unplug the navigation device's power supply when you park the vehicle. The navigation device requires power in standby mode, and may drain the vehicle's battery.

Caution! Do not open the navigation device's casing under any circumstances.

Caution! Do not expose the navigation device to extreme heat or cold. This may damage the device or impair its function.

Caution! Use only the charger provided or one that has been approved by the manufacturer.

Connect the charger to a suitable power supply. The voltage requirements can be found on the device case and/or the packaging.

Note: Ensure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

Note: To clean the navigation device, use a moist cloth only.

Note: Do not unplug by pulling on the cable. Doing so could damage the cable!

Note: Create a backup of the data contained on the memory card provided.

Note: The memory card must remain inserted in the device during operation of the navigation system.

Note: Use SD or MMC memory cards only! Ensure that memory card contacts are clean and undamaged.

Safety guidelines when installing in your car

Caution! Secure the cradle and the TMC antenna in such a way that the driver's visibility is not impaired.

Caution! Do not attach the cradle within the deployment zone of airbags.

Caution! When installing the cradle, ensure that it does not represent a risk in the event of an accident.

Caution! Do not run cables directly next to safety-relevant devices and power supplies.

Caution! After installation, check all safety-relevant equipment in the car.

Caution! The car charger cable is to be connected to cigarette lighters with an operating voltage of 12V only.

Preparing your NAVIGON 5100 for use

Use the navigation system at your own risk.

Caution! Please be sure to see the safety information in "Important safety information" on page 6.

Charging the battery

1. Connect the car charger cable to the navigation device and to the vehicle's cigarette lighter.

The LED of the NAVIGON 5100 indicates the current battery charge. The LED lights:

• No light, the battery is flat.
• Orange during charging.
• Green when the battery is fully charged.

Note: It takes approximately 6 hours to charge the device when the battery is flat. A fully charged battery provides 4-5 hours of use.

Inserting a memory card

The SD memory card contains maps and navigation software. It also stores saved destinations, routes, and logbook entries.

- Insert the memory card provided into the slot on the side of the device. Press the card into the device until it locks into place.

Simple line drawing of a door frame and a window with an arrow (no text or symbols)

Removing the memory card

1. Switch the navigation device off by pressing the ⏻ (On/Off/Standby) switch for at least 6 seconds.
2. Press the memory card gently into the device until the lock disengages.

Securing the cradle

Clean and dry the windshield as well as the suction cup on the base of the cradle. These areas must be dry and free of dirt and grease.

Line drawing of a mechanical component with a cylindrical shaft and handle, resting on a curved surface (no text or symbols)

1. Using the suction cup, fix the cradle provided to the windshield. The cradle should be as level as possible.
2. Press the lever on the suction cup down.

Securing the navigation device to the cradle

The navigation device is secured to the cradle by means of a bayonet fitting. This connection functions in a similar way to attaching a lens to a camera.

1. Place the navigation device on the bayonet and align the bayonet ring with the recesses on the cradle. This is achieved by rotating it approx. 30° to the left.
2. Turn the navigation device clockwise until the bayonet fitting locks into place.
3. Adjust the navigation device so that it can be seen easily.

Supplying power to the navigation device

Included in delivery of the NAVIGON 5100 is a car charger cable with which power can be supplied to the navigation device via the vehicle's cigarette lighter.

The car charger cable is connected to the NAVIGON 5100 via the power connection port on the bottom of the device.

Caution! The car charger cable is to be connected to cigarette lighters with an operating voltage of 12V only.

Connecting the TMC antenna

The NAVIGON 5100 has an integrated TMC receiver. For optimal reception, you should use the TMC antenna provided.

1. Connect the TMC antenna to the external antenna/headset socket on the bottom of the NAVIGON 5100.
2. Secure the antenna to the windshield using the suction cups.

This page intentionally left blank.

Starting the NAVIGON 5100

1. Press and hold the ⏻ (On/Off/Standby) switch for at least 6 seconds. If password protection has been activated, the ENTER PASSWORD WINDOW opens.

2. Enter the password.

3. Tap the Continue button. Each time the navigation device is turned on, the following message appears when the software is started again:

"Please do not operate the device while driving. Road conditions and traffic conditions enforced by law enforcement shall always supercede guidance given by your navigation device."

User agrees that he/she has read and accepts the End User License Agreement (EULA) contained in the User Manual."

1. After you have read and fully understood the text, tap OK.

Note: If you do not accept these instructions, tap Cancel to exit the navigation software.

The MAIN WINDOW displays.

The Main Window

The MAIN WINDOW opens when the navigation software starts.

You can reach all of the navigation software functions from this window.

New Destination My Destinations Take Me Home Show Map Options

New Destination

Tap this button to:

• Select an address by city or street. (See page 26.)
• Select a POI as a destination. (See page 28.)
• Select a POI by tapping on the map. (See page 35.)

My Destinations

Tap this button to select a destination from:

• A list of destinations you have saved. (See page 40.)
  • A list of the most recently entered destinations. (See page 39.)

Take Me Home

Tap this button to:

• Specify your home address as a destination. (See page 38.)
• Quickly create a route back to your home address from your present location. (See page 41.)

Show Map

Tap this button to:
- Show your location on the current map.

The Options Button

Tap this button to:

• A c c OOTESPLANNING WINDOW to:
Create a route. (See page 43.)
Save a route. (See page 45.)
Load a saved route. (See page 45.)

- A c c e ESTINGS WINDOW to Set: Basic Settings. (See page 69.)

Show information on the current map or change maps. (See page 71.)

POI settings. (See page 71.)

View or change route profile information. (See page 71.)

• Save the current location as a destination. (See page 37.)
  • View the TMC T RAFFIC WINDOW information. (See page 62.)
• Go to the L OGBOOK WINDOW. (See page 67.)

Returning to the Main Window

To return to the Main Window from any other window:

- T a p Back) repeatedly, until the MAIN WINDOW redisplays.

Initializing the GPS receiver

Note: It can take up to 20 minutes to initialize the integrated GPS receiver for the first time.

Each time you turn on the device, GPS reception starts within one minute.

If the navigation device has been switched off for more than a week, the next initialization can take up to 10 minutes.

As soon as the navigation device has been switched on, initialization of the GPS receiver begins.

In the upper right-hand corner of the display, the GPS symbol appears. As soon as data from at least 3 satellites is received, the symbol changes to 📍 GPS Ready.

Note: If the GPS symbol displays GPS Ready after considerably less than 20 minutes, it is advisable to leave the receiver switched on for at least an additional 15 minutes to ensure reliable operation.

Caution! If you have connected the navigation device to the power supply via the vehicle's cigarette lighter, remove the connector before you leave the vehicle standing for a longer period of time.

As the GPS receiver requires a constant supply of power, it could drain the vehicle's battery.

Setting the volume

The volume of the spoken driving instructions can be adjusted during navigation.

With a map displayed:

1.

Volume).

The volume bar opens. It contains three buttons for adjusting the volume:

(Louder),

(Quieter),

(Volume on/off).

2.

Volu(ne) again.

The volume bar closes.

Selecting screen orientation

The NAVIGON 5100 screen orientation can be set to either landscape or portrait.

When the screen orientation is set to portrait, Reality View map mode is not available.

Landscape New Destination My Destinations Take Me Home Show Map Options Portrait Basic Settings Current Map POI Route Profile Options N LASALLE ST Options N LASALLE ST Options

All screens shown in this document are in landscape display.

From the MAIN WINDOW:

1. Tap Options > Settings.
   The Settings window opens.

2. Tap Basic Settings.

2 of 7 Basic Settings 3D Map: Show Street Names Yes No 2D Map: Show Street Names Yes No 2D Map: Orientation In Direction of Travel Orientation Portrait Landscape Cancel Done Toggle between Portrait and Landscape

1. In the Orientation field, tap (Toggle) to switch between Portrait and Landscape. The selected value is shown in bold.

2. Tap Done to save the change.

Viewing device statuses

Symbols located at the top of the screen are used to display information.

DES PLAINES ELK GROVE VILLAGE BENSENVILLE NDALE HEIGHTS VHEATON NVILLE CHIC CIGERO Total 33 mi 43m 10:31 Show Turn-by-Turn List Start Navigation Options

GPS

The GPS symbol can show the following GPS reception status:

No Symbol The built-in GPS receiver is not operational. Contact customer service if the problem persists.

No Signal Data is being received from less than three satellites. Position cannot be calculated.

GPS Ready Data is being received from at least three satellites. Position can be calculated.

For more information, see "About GPS navigation" on page 4.

Power

The Power symbol can display the following conditions of the built-in battery:

The device is powered by an external power source. The battery is charging.

The device is powered by its internal battery. Battery is fully charged.

The device is powered by its internal battery. Battery charge is sufficient.

The device is powered by its internal battery. Battery charge is low.

Direction

The Direction symbol shows the direction you are currently heading. It can show the following points of the compass: N, NE, E, SE, S, SW, W and NW.

TMC (Traffic Information)

The NAVIGON 5100 has an integrated TMC receiver which provides the navigation system with up to date traffic messages. If necessary, it can alter the route dynamically in order to avoid a traffic jam.

Note: This function is only available if TMC traffic messages are being transmitted in the country in which you are travelling. Traffic messages are not available in all countries.

The TMC symbol can display the following TMC reception status:

No Symbol There is no TMC receiver connected, or the connected or built-in TMC receiver is not operational.

Tuning

The TMC receiver is operational, but cannot find a station that is transmitting TMC signals.

TMC Ready Traffic messages can be received.

For more information, see "Displaying traffic messages" on page 62.

Using software keyboards

Software keyboards appear on the screen when text entries are necessary.

All entries can be made on the software keyboard using the fingertips. Only capital letters can be entered. When entering town or street names you need not enter any special characters. The navigation system fills in these characters for you automatically. Three keyboards are available for entering destination information.

Alphabetic keyboard

City or ZIP Code CHICAGO Street / Destination Set Starting Point Options

Tap to display the alphabetic keyboard. Only capital letters can be entered.

Numeric keyboard

City or ZIP Code CHICAGO Select / Destination 1 2 3 4 5 6 7 8 9 Set Starting Point 0 Options

Tap to display the numeric keyboard.

Special character/symbol keyboard

City or ZIP Code CHICAGO Street / Destination Set Starting Point Options

Tap to display the special character keyboard. As soon as you have entered a special character, the letter keyboard reappears automatically.

Special keys

On the Alphabetic and Numeric keyboards, enters a space character.

On the Alphabetic and Numeric keyboards, deletes the previous character and moves the cursor back one space.

On the Alphabetic and Special Character keyboards, opens the Numeric keyboard.

On the Numeric and Special Character keyboards, opens the Alphabetic keyboard.

On the Alphabetic Numeric keyboards, opens the Special Character keyboard.

Using menus

Some buttons have menus which open when activated.

To select a function:

- Tap on a menu button to execute its function.

To close a menu without selecting a function:

- Tap on the button you used to open the menu.

This page intentionally left blank.

Password protection

By creating a password, you can protect your navigation system from unauthorized use.

Note: Password protection takes effect after the navigation device has been switched off completely. To do this, press the On/Off/Standby switch for at least 6 seconds.

The Password Lock Window

New password * * * * Confirm new password * * * * Save password 1 2 3 4 5 6 7 8 9 0 Options

Setting a password

Note: The password must be exactly 4 digits.

In the MAIN WINDOW:

1. Tap Options > Settings The SETTINGS WINDOW opens.

2. Tap Options > Password Lock. The PASSWORD LOCK WINDOW opens.

3. In the New password field, type the password.

4. Re-type the new password in the Confirm new password field.

5. Tap Save password.

Changing a password

In the MAIN WINDOW:

1. Tap Options > Settings The SETTINGS WINDOW opens.

2. Tap Options > Password Lock. The PASSWORD LOCK WINDOW opens.

3. Type the current password in the Old password field.

4. Type the new password in the New password field.

5. Re-type the new password in the Confirm new password.

6. Tap the Change Password button.

Cancelling password protection

In the MAIN WINDOW:

1. Tap Options > Settings The SETTINGS WINDOW opens.
2. Tap Options > Password Lock. The PASSWORD LOCK WINDOW opens.
3. Tap Options > Deactivate password lock.
4. Enter the current password in the Enter password field.
5. Tap the Deactivate password lock button.

Forgotten your password?

If you have forgotten your password, do the following:

On any password window:

1. Tap Info). (
2. Call the number displayed in the window.
3. Follow the instructions given by the service personnel.

Selecting Destinations

Caution! Use the navigation system at your own risk.

Caution! Please be sure to refer to the safety information in "Important safety information" on page 6.

New destinations for the NAVIGON 5100 are destinations that you have not yet navigated to or those that you have not yet stored.

You can enter an address, select a POI, or select a destination from the quick search function.

Using auto-complete to select a destination

Lists often appear from which you can select an entry. This is the case, for example, when you enter a location. After you type the first letter, the largest city in the selection area appears. Once you type a second letter, the list shows all map areas that begin with the typed letters.

CHI CAGO 80602 IL CHICAGO HEIGHTS 80411 IL CHICAGO LAWN 80829 IL CHICAGO RIDGE 80415 IL CHILI 82380 IL 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z + Options

If you enter additional letters, the list only contains entries that begin with your typed characters. The more characters you enter, the shorter the returned list becomes.

You can move though a list using (Up_) and (Down).

To accept an entry from the list:

- Tap on the entry.

The list closes once an entry is accepted.

Selecting a search area

The Search Area button, used to select a map area, is located at the top of a location entry window. Once an area is selected, a code on the button reflects the selection. For example, is the United States is selected, "USA" appears on the button. If the Canadian province of Alberta is selected, the code "AB" is shown.

Search Area button 123 SYM State or Country USA AL - Alabama AZ - Arizona AR - Arkansas CA - California Start Navigation Options

List of search areas

When you enter a new destination for the first time, the SEARCH AREA list opens. To select an area that is different from the one currently shown, do the following:

1. Tap (Search Area).

The SEARCH AREA list opens.

1. Tap on the area (country, state, or province) in which your destination lies.

The button displays the code for the selected destination area.

Note: Only areas that are represented in the currently loaded map can be selected.

Selecting Destinations

Enter an Address

To find an address, you can specify a:

City first If you do not know the exact street address.

Street first If you do not know the actual city.

Search for POI

Points of Interest, (POIs) are useful addresses that are organized according to particular criteria. POIs include airports, restaurants, hotels, gas stations, government offices, banks, hospitals, shopping centers, etc. Icons representing the POIs can be displayed on the map.

Nearby POIs nearby are special destinations that are located

within a given radius of your current location. This means you can always find the nearest gas station, for example, no matter where you are.

Nationwide POIs of nationwide significance are airports, places of

interest, national monuments, etc. This enables you to find places of interest, for example, without having to know the actual place where it is located.

In a City POIs in a given location can be useful when navigating in

an unfamiliar town.

Direct Access POI direct access system contains three categories of

special destinations. POIs in your vicinity that correspond to these categories can be listed quickly, without the need for additional entry.

Zagat POIs

The NAVIGON 5100 also offers Zagat survey information for the following POI categories:

• Attractions
• Golf Courses
• Hotels
  • Nighte
• Restaurants

When selecting destinations, the Zagat POI icon appears in front of a Zagat POI category.

By Tapping on the Map

You may indicate a destination directly on the map. In addition to towns and streets, you may also select POIs.

Entering an address

Specifying a city first

In the MAIN WINDOW:

1. Tap New Destination > Enter an Address.

2. Select (City First).

New Destination Street First Street > House number > City City First City > Street > House number Show Map Options

The ADDRESS WINDOW opens.

1. Enter the name of the city or the postal code of the destination location.

City or ZIP Code CHICAGO Street / Destination MADISON ST No. 300 W MADISON ST Intersection Start Navigation Options 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ...

1. Enter the name of the destination street.

2. Enter the house number. If you don't know the number of the house, leave this field blank to display the Intersection field.

3. If you don't know the house number, but know the name of a nearby side street, tap in the Intersection field and enter the name of this street. The navigation system calculates a route to the intersection of the streets you have specified.

Note: You do not have to enter all the address details. If you only specify the:

• Town - a route is calculated to the town center.

• Town and street - a route is calculated to the center of the street.

• Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Specifying a street first

In the MAIN WINDOW:

1. Tap New Destination > Enter an Address.

2. Select ( Street First).

New Destination Street First Street > House number > City City First City > Street > House number Show Map Options

The ADDRESS WINDOW opens.

1. Enter the name of the destination street.

Street / Destination MADISON No. 300 W MADISON ST City or ZIP Code CHICAGO Start Navigation Options 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z _

1. Enter the house number. If you don't know the number of the house, leave the field blank to display the Intersection field.

2. If you don't know the house number, but know the name of a nearby side street, tap on the Intersection field and enter the name of this street. The navigation system calculates a route to the intersection of the streets you have specified.

Note: You do not have to enter all the address details. If you only specify the:

• Town - a route is calculated to the town center.

• Town and street - a route is calculated to the center of the street.

• Tap the Start Navigation button.

The map opens in Preview mode.

Note: For more information, see "Starting navigation" on page 42.

Selecting a Point of Interest (POI) destination

POIs nearby

Note: GPS reception must be sufficient for determining position. You can see if GPS reception is sufficient by looking at the (GPS Ready) symbol. For more information, see "GPS" on page 16.

In the MAIN WINDOW:

1. Tap New Destination > Search for POI.

2. Tap Nearby.

Search for POI Nearby e.g. the next gas station in a City e.g. all hotels in Chicago Nationwide POI of Nationwide Significance Options

1. Specify a category from which you would like to select a POI.

Category Gas Station API Aral Arco Amoco 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ...

1. If a sub-category exists, specify a sub-category.

The Name of the Destination list opens. It contains the nearest POIs in the specified category, sorted by distance.

1. Tap on the name of the destination.

Category Gas Station Sub Category Amoco AMOCO 2.3mi More... Enlarge the radius 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z _ + +

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

National POIs

In the MAIN WINDOW:

1. Tap New Destination > Search for POI.

2. Tap Nationwide.

Search for POI Nearby e.g. the next gas station in a City e.g. all hotels in Chicago Nationwide POI of Nationwide Significance Options

The POI OF NATIONAL SIGNIFICANCE WINDOW opens.

1. Specify a category from which you would like to select a POI.

All Categories Airport Shopping Center Tourist/Nature Culture 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z _ + Options

The Name of the Destination list opens. It contains a list of national POIs, sorted by distance.

Enter the first characters from the beginning of the POI name to shorten the returned list of POIs.

1. Tap on the name of the destination.

Category Shopping Center Name of the Destination MALL OF AMERICA Start Navigation Options ABC 123 MALL OF AMERICA W BROADWAY MINNEAPOLIS 55425 MN - Minnesota Tel: [phone] Direct Access

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

POIs in a specified city

On the MAIN WINDOW:

1. Tap New Destination > Search for POI.

2. Tap in a City.

Search for POI Nearby e.g. the next gas station in a City e.g. all hotels in Chicago Nationwide POI of Nationwide Significance Options

1. Enter the name or the postal code of the destination location.

City or ZIP Code MINNEAPOLIS Zagat Hotel Zagat Restaurant All Categories Gas Station 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z _ + Options

1. Specify a category from which you would like to select a POI.

2. If sub-categories exist for the category, specify a sub-category.

The Name of the Destination list opens. It contains POIs from the specified category, sorted alphabetically.

Enter the first characters from the beginning of the POI name to shorten the returned list of POIs.

1. Tap on the name of the destination.

City or ZIP Code MINNEAPOLIS Category Zagat Hotel Sub Category Hotel All Z Name of the Destination Marquette Hotel Start Navigation Options ABC 123 Marquette Hotel 710 MARQUETTE AVE Minneapolis, Minnesota 65402. Tel: [phone] Direct Access

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

POI direct access

Note: GPS reception must be sufficient for determining position. You can see if GPS reception is sufficient by looking at the 🎩 (GPS Ready) symbol. For more information, see "GPS" on page 16.

In the MAIN WINDOW:

1. Tap the New Destination button.

New Destination Enter an Address Street or Location in a City Search for POI e.g. gas station, restaurant, hospital Direct Access P Options Currently selected POI categories for quick access

The NEW DESTINATION MENU opens.

The symbols of the categories which have been selected for direct access can be seen in the menu at the bottom.

1. Tap on a category from which you would like to select a POI.

Gas Station 0.6mi MARATHON 0.5mi ON THE GO 0.9mi SPEEDWAY 1mi MARATHON Cancel Options

The Name of the Destination list opens. It contains the nearest POIs in the specified category, sorted by distance.

NORTHWEST HWY EMORTHWEST HWY PALKINE Total 1 mi 00:08 03:10p Show Turn-by-Turn List Start Navigation Options

1. Tap on the name of the destination.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Specify direct access POI categories

In the MAIN WINDOW:

1. Tap Options > Settings

2. Tap POI.

POI Categories Shown Selected: 22 of 31 Direct Access 1 Gas Station Direct Access 2 Parking Direct Access 3 Restaurant Cancel Done

1. In the Direct Access 1 field, tap (List) and select a POI category.
2. Repeat the above step in the Direct Access 2 and Direct Access 3 fields.
3. When finished, tap Done to save the changes.

Information about the POI

For many destinations that you specify, there will be additional information available, stored in the navigation system's database.

For example, for many restaurants there is a telephone number available. You can call the restaurant in order to reserve a table, for example.

Information button City or ZIP Code MINNEAPOLIS Category Gas Station Sub Category Amoco Name of the Destination AMOCO Start Navigation Options ABC 123 AMOCO LANDAU CIR MINNEAPOLIS 55438 MN - Minnesota Tel: [phone] Direct Access Show location on map Phone the location (not available) Zagat POI information

On the DESTINATION SELECTION WINDOW, the following buttons are available:

	Destination Info	Opens the DESTINATION INFO WINDOW. It contains basic information about the POI including address and phone number.
	Show on Map	Show the POI on a map relative to your current location.
	Call the POI	Phone the POI.(Not available with NAVIGON 5100.)
	Zagat Information	Displays Zagat survey information about the POI.(This button is only available for Zagat POIs.)

Zagat POI Information

On a POI DESTINATION SELECTION WINDOW:

1. Tap on a Zagat POI category.
2. If sub-categories exist for the category, tap the subcategory.
3. Tap on the name of a POI.

The DESTINATION INFO WINDOW opens and displays basic POI information.

City or ZIP Code CHICAGO Category Zagat Restaurant Sub Category Most Popular Name of the Destination Giordano's Start Navigation Options ABC 123 Giordano's 5827 W IRVING PARK RD Chicago, Illinois 60634 Tel: [phone] Direct Access Zagat Information

1. Tap Zagat Information) to view Zagat survey information about the POI.

The ZAGAT DETAIL WINDOW opens and displays detail information for the POI including hours of operation, costs, offered services, etc.

Move between pages 2 of 10 Giordano's Show on map ZAGATSURVEY Food Decor Service Cost 21 12 15 $19 Top Ratings Most Popular Scroll up or down to view all of the information Additional Zagat information Cancel Select

1. Tap (Additional Zagat Information) to view an explanation of Zagat Survey results.

Zagat Restaurant Survey Rating Explanation Food, Decor and Service are each rated on a scale of 0 to 30 0-9 poor to fair 10-15 fair to good 16-19 good to very good OK Options

Selecting a destination by tapping the map

On the MAIN WINDOW:

1. Tap the Show on Map button.

2.

Tap Destination search). ARGYLE ST W GUNNISON ST AMERICAN METRO BANK Options Destination search button

The map opens in Destination search mode.

1. Tap on the point to which you wish to navigate.

The destination that you have selected appears under the cross hairs.

OLD WORLD MARKET Options

4.

OK). (

The DESTINATION ON MAP WINDOW opens. Detailed address information for the selected destination displays in the upper left-hand corner.

OLD WORLD MARKET CHICAGO 60640 IL - Illinois Take Me There Add to Route Save Search Nearby Cancel

1. Tap the Take Me There button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

This page intentionally left blank.

My Destinations

Every destination that you enter and the destinations from the LAST DESTINATIONS list can be saved to the FAVORITES list. This is useful if you often navigate to a particular destination.

Saving a destination

1. Enter a destination. (See "Selecting Destinations" on page 23. Do not tap the Start Navigation button!
2. Tap Options > Save Destination.

- OR -

1. Select a destination from the LAST DESTINATIONS LIST. (See page 39.) Do not tap the Start Navigation button!

2. Tap Options > Save as Favorite.

Save Destination as... Name OHARE AIRPORT Home Address No Yes Save Options

1. Enter a name for the destination.
2. If you want to define the destination as your home address, tap (◀ Toggle) so that the value Yes is highlighted in black.
3. Tap the Save button.

Saving the current location using GPS

The GPS STATUS WINDOW provides you with an overview of the data the navigation system calculates from the received GPS signals.

GPS status is available via the options of several windows.

In the GPS STATUS WINDOW:

1. Tap Options > GPS status.

GPS Status GMT: 08:04:42 Direction: 359° Longitude: 88°01'34"W Satellites: 7 Latitude: 42°07'27"N HDOP: 1.9 Altitude: 790ft Speed: 0mph Current Position N BEL AIRE TER Save PALATINE 60074 Position IL - Illinois Close

The current location can be stored in the FAVORITES list.

1. Tap the Save Position button.
   The SAVE DESTINATION AS... WINDOW opens. The cursor blinks in the Name field.
2. Enter a name for the destination.
3. Specify whether your current position should be stored as the home address.
4. Tap the Save button.

Saving your home address as a destination

Only one destination from the FAVORITES list can be defined as your home address.

You can begin navigation to this destination quickly by tapping the Take Me Home button in the MAIN WINDOW.

1. Select the destination which you want to define as your home address from the FAVORITES list. (See page 40.)

2. Tap Options > Home Address. The selected destination is saved as your home address. On the FAVORITES list, a house icon is shown next to your home address.

Selecting a saved destination

The following lists of destinations and addresses are available for selection in NAVIGON 5100 under My Destinations.

LAST DESTINATIONS Destinations you have previously navigated to.

FAVORITES Destinations you have stored in NAVIGON 5100.

Selecting a destination from the Last Destinations list

NAVIGON 5100 saves the last 30 destinations to which you have navigated in the LAST DESTINATIONS list.

In the MAIN WINDOW:

1. Tap My Destinations > Last Destinations.

New Destination My Destinations Favorites have been saved by you. Last Destinations have already been indicated Options

1. Tap the destination to which you would like to navigate.

Last Destinations 200 East on Chestnut CHICAGO 60011 Start Navigation Options 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ...

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Selecting a destination from the Favorites list

Destinations to which you often travel can be saved in the FAVORITES list.

In the FAVORITES list, up to 300 destinations can be saved.

Information on how to store a destination can be found in "Saving a destination" on page 37.

In the MAIN WINDOW:

1. Tap My Destinations > Favorites.

New Destination My Destinations Favorites have been saved by you. Last Destinations have already been indicated.

1. Tap the destination to which you would like to navigate.

Name: OFFICE 300 W MADISON ST 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Start Navigation Options

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Navigating homewards

With NAVIGON 5100 you can save an address as a home address. You can navigate to your home address at anytime by activating a single button.

The first time you tap the Take Me Home button, you are asked to enter your address.

For more information, see "Saving your home address as a destination" on page 38.

In the MAIN WINDOW:

- Tap the Take Me Home button.

If you have not yet entered your home address, a window displays.

Navigation, using the current route profile information to calculate the route, begins.

For more information, "Starting navigation" on page 42.

Starting navigation

With the map open in Preview mode, the destination is shown as a small flag. The route and the estimated trip time are displayed.

With the map open in Preview mode:

- Tap the Start Navigation button or simply start driving.

Quitting navigation

- T a p ____ ( Back) to quit navigation.

A window prompts you to confirm.

No GPS reception

When GPS signal is interrupted, the following message appears:

"GPS reception is currently not sufficient. Navigation starts automatically as soon as GPS reception is OK again."

You have the following options:

• Wait until GPS reception is sufficient for determining position, the route is recalculated and you can begin navigation.
• Tap the Cancel button. The MAIN WINDOW opens. Your destination is saved in the LAST DESTINATIONS list.
• Tap the Demo button. The route is calculated using the center of the specified location as starting point. The simulation of the calculated route begins.

- T a <p Back) to end( the demonstration.

With the NAVIGON 5100, you can preplan routes. Planned routes can be saved for later use, allowing you to create as many routes as you like.

Accessing the Route Planning Window

In the MAIN WINDOW:

1. Tap the Options button. The options list opens.

2. Tap the Route Planning option. The ROUTE PLANNING WINDOW opens.

Specify Starting Point Specify Route Point Show Route Options

Entering the starting point

The starting point of a route, is the point at which you want to begin your trip. This does not need to be the current location. If you are at home planning a route for your vacation, you could, for example, enter your hotel as the starting point.

The starting point is only important if you want to see a planned route on the map, but currently have no GPS reception, or you are not currently at the planned starting point. The starting point that you enter therefore has the flow number "0".

As soon as you begin navigation, your current location is used as the starting point for the route calculation.

The first stage is the trip to the route point with the flow number "1".

On the ROUTE PLANNING WINDOW:

1. Tap the Specify Starting Point button. The STARTING POINT menu opens.

2. Select:

3. Enter an Address to search for a location address.
   • Search for a POI to search for a POI.
   • My Destinations to select a location from the FAVORITES or LAST DESTINATIONS lists.

4. My Address to select your home address. (Only available if you have already specified a home address.)
   • Current Position to specify your current position as the starting point.

5. Enter the starting point. (See the corresponding section of "Selecting Destinations" on page 23.)

6. Tap the Set Starting Point button.

The selected destination appears next to the 0, indicating that it is the Starting Point of the route.

Changing the starting point

On the ROUTE PLANNING WINDOW:

1. Tap the Specify Starting Point button.

The STARTING POINT menu opens.

1. Select a different starting point by following the above steps.

Entering route points

Route points are destinations on the route that you want to navigate to.

The flow number for each route point can be found on a button in front of it.

1. Tap the Add Route Point field.

The ROUTE POINT menu opens.

1. Tap on the button for the desired destination entry type.

2. Enter the route point. (See the corresponding section of "Selecting Destinations" on page 25.)

3. Tap the Add button.

The selected route point is shown next to its flow number.

1. Repeat these steps for each additional destination that you want to add to your route.

Changing the order of route points

Route points can be deleted from a route. The order of the route points can be varied as you wish.

Note: The starting point (flow number "0") can not be moved nor deleted.

On the ROUTE PLANNING WINDOW:

- Tap on the route point that you want to edit.

The context menu contains the following buttons:

Route Point Up: Moves the selected route stage forwards. (Example: route point 2 becomes route point 1).

Route Point Down: Moves the selected route point backwards. (Example: route point 2 becomes route point 3).

Delete: Deletes the selected route point. A window prompts you to confirm deletion.

Managing routes

You can save each planned route under a particular name.

Note: Only the start point and route points are saved. The calculated route is not. If you load a route that has been saved, it must be recalculated before navigation can begin.

You can load, rename or delete stored routes.

Saving routes

You can save a route after you have entered the starting point and at least one route point.

On the ROUTE PLANNING WINDOW:

1. Tap Options > Save Route.
2. Enter a name for the route.
3. Tap the Save button.

The route is saved to the SAVED ROUTES list.

Loading routes

On the ROUTE PLANNING WINDOW:

1. Tap Options > Saved Routes.
2. Tap the route you want to load.
3. Tap the Load Route button.

The ROUTE PLANNING WINDOW displays the starting point and the route points of the selected route.

Navigation

After the route is calculated, you can begin navigation or view a simulation of the route.

Calculating and displaying routes

With the NAVIGON 5100, you can preplan routes. Planned routes can be saved for later use, allowing you to create as many routes as you like.

On the ROUTE PLANNING WINDOW:

1. Load a saved route.
2. OR -

3. Enter a starting point and at least one route point.

4. Tap the Show Route button. The map opens in Preview mode.

The starting point and the route points are marked by flags. For each stage, the distance and the estimated trip time is given. This information is also displayed for the entire route.

1. Tap the Start Navigation button or simply start driving.

Viewing the Route Profile

The calculation of a route is based on route options. Create a route or load a previously saved route.

On the ROUTE PLANNING WINDOW:

1. Tap the Show Route button.
   The map opens in Preview mode and displays the calculated route.

2. Tap Options > Route Profile.

You can view and, if necessary, change any of the displayed options.

Note: Once options are changed, they remain in effect for all subsequent navigation. You can get information regarding changing individual route profiles by tapping the corresponding 📄 (Heppiton.

Simulating routes

You can also view a simulation of a calculated route.

Note: GPS signal reception is not required for simulation. Simulations are restricted to routes of a maximum of 60 miles.

Starting a route simulation

You have calculated and displayed a route.

With the route displayed in Map Preview mode:

- Tap Options > Simulation.

The route is recalculated for simulation purposes. Simulation starts when calculation has finished.

Ending simulation

You can end simulation at any time.

While viewing the route simulation:

• T a p ____ ( Back).

A window prompts you to confirm your decision to cancel navigation.

The ROUTE PLANNING WINDOW redisplays.

Viewing a Turn-by-Turn List

You can display detailed directions of the calculated route before starting navigation or at any time during navigation. This list displays all of the driving instructions in table form.

With the route displayed in Preview, Navigation, or Reality View mode:

- Tap the Show Turn-by-Turn List button.

The TURN-BY-TURN LIST WINDOW opens.

CHICAGO 9.2 mi 0.2 mi 3.4 mi 2 mi I-290 IL-53 US-14 E NORTHWEST HVY PALATINE 38 mi. Arrival 01:27p Options

1. Schematic depiction of the next junction where you must turn.

2. Distance to this junction.

3. Name of the street onto which you must turn.

4. Indicates whether you want to travel on the section of the route.

(Allow) Include this section in the route.

(Forbid) Exclude this section from the route.

Blocking route sections

On the TURN-BY-TURN LIST WINDOW:

1. Tap on the route section you do not want to travel on, so that the (Forbid) symbol appears next to them.

2. Tap Modify Route).

The navigation system calculates an alternative route avoiding the route sections selected. The new driving instructions are displayed in the TURN-BY-TURN LIST WINDOW.

1. Tap Back) to (close the TURN-BY-TURN LIST WINDOW.

Removing blocks and using original routes

Section blocks can be removed at anytime.

On the TURN-BY-TURN LIST WINDOW:

- Tap Options > Calculate original route.

Arriving at your destination

A message displays when you have reached your destination.

Your current position (indicated by an orange triangle) is shown on the map.

This page intentionally left blank.

Working With Maps

Even if you have stored several navigation maps on the navigation system's memory card, NAVIGON 5100 can only operate with one map at a time.

View Information About the Map Currently in Use

You can see information about the map currently in use or select another map.

On the MAIN WINDOW:

• T aOptions > Settings > Current Map.

Map in Preview mode

You have entered a destination and tapped the Start Navigation button.

- OR -

You have planned or loaded a route and tapped the Show Route button.

The map opens in Preview mode. The entire route is visible.

2 1 DES PLAINES LK GROVE VILLAGE BENSENVILLE DALE HEIGHTS HEATON IVILLE CHIC CIGERO Total 33 mi 43m 01:47 Show Turn-by-Turn List Start Navigation Options

1. The route is highlighted in orange.
2. A triangle in orange shows your current position.

If you display a planned or loaded route and the specified starting point is not the same as your current location, the current position may or may not be shown on the preview.

1. The destination is marked with a small flag.

When you have planned or loaded a route and displayed it, the starting point and each route point is marked with a small flag.

1. The total distance for the route is shown in a small information box, together with the estimated trip time and the estimated time of arrival.

This information can be displayed or hidden by tapping on Options > Settings > Basic Settings.

If you display a route with several stages, information for each stage is shown.

1. Tap:

2. The Show Turn-by-Turn button to view detailed directions for the route. (See "Viewing a Turn-by-Turn List" on page 48.)
   • The Start Navigation button to begin the journey.

When you display a planned or loaded route, the route may be recalculated. Starting point for the calculation is your current location. Once the route is calculated, you are guided to the first route point.

• Options > Route Profile to view or change the settings used to calculate the route.
  (Destination search) to view the map in Destination search mode.

Map in Navigation mode

After the route has been viewed in Preview mode, navigation starts.

Navigation is shown in Navigation mode.

I-290 IKE EXPY SPEED LIMIT 55 4 5 1.2 mi 7 577 ft △ Total 35 mi 42m 11:01 Next 6.8 mi 09m 10:29 10 11 12 IL-53 S IL-53 S ROLLING MEADOWS Options 6 13

1. Signposting to be followed is displayed here.
2. Posted speed limits are displayed here (where available).
3. The route is marked in orange.
4. When two maneuvers need to be executed in quick succession, the small arrow field indicates the second maneuver to be executed.
5. The large arrow field shows a schematic depiction of the next maneuver. The remaining distance to the junction is displayed below the arrow.

As you get closer to the junction, the spot diagram, rather than the distance, is shown.

The nearer you get to the junction, the more yellow spots are displayed.

If you don't have to change direction for a longer period, you see only a forward-facing arrow. The distance you travel on the road you are on displays beneath the arrow.

- Tap the large arrow field to hear current route instructions.

1. The traffic lanes to be followed to your destination are shown in orange.

2. The your current speed and the height above sea level are displayed here.

3. The remaining distance to the destination, the estimated duration of the trip, and the estimated time of arrival are shown.

4. A triangle in orange shows your current position on the map. The map area displayed continually changes so that your current position is always centered on the map.

5. If you are navigating a route with several stages, you see the remaining distance, estimated duration of the trip, and the estimated time of arrival for the next interim destination in the Next field.

6. The name of the next stretch of road that you must travel on is displayed in the upper street field.
7. The name of the street you are currently travelling on is displayed in the lower street field.
8. TMC shortcut button. The TMC shortcut button only displays when traffic messages have been received and are currently available. Tap the button to display the TRAFFIC INFORMATION WINDOW.

Note: The displays for many of the above mentioned fields can be configured via Options > Settings > Basic Settings. Some displays only function if the corresponding information is available on the map.

Note: If you tap on the large arrow field, the current route instruction is repeated.

• T Options > Show Turn-by-Turn List to view detailed directions for the route. (See "Viewing a Turn-by-Turn List" on page 48.)
• T a op Destination search) to view the map in Destination search mode. (See "Map in Destination search mode" on page 55.)
• T a <p Back) to quit(navigation

Map functions in Navigation mode

When the map is open in Navigation mode, tap any point on the map. Buttons with various functions are displayed.

2D/3D: Changes between 2D and 3D mode. The symbol for the mode that is currently set is marked orange.

Day/Night Changes between "day" and "night" display modes. The symbol for the mode that is currently set is marked orange.

Interim Destination Opens a menu for entering an interim destination. The navigation system first guides you to this interim destination. Afterwards, you can simply continue navigation to your original destination.

Skip Route Point Tap this button to omit the next route point. This button is inactive when less than 2 route points are pending.

Block Tap this button in order to block a section of the route that lies in front of you, i.e. to recalculate the route in order to avoid this section of the route, e.g. if you have heard of a traffic jam relating to this section on the radio. Tap this button again to remove the block.

POI on Your Route Tap this button to display POIs on your route. This enables you to find out, for example, how far it is to the nearest services. A destination shown here can be added as an interim destination by tapping the (Interim Destination) button to the right of its entry in the list.

Map in Destination search mode

The map is always in Destination search mode when a pair of cross hairs can be seen.

When you are driving, the map's orientation does not change. It is always oriented with north at the top.

S HICKS RD Options

Zoom Out The map section shown becomes larger, but fewer details are shown.

Zoom In The map section becomes smaller, but more details are shown.

Zoom Mode When this button is active, you can plot a map section with your finger.

Plot the map section from upper left to bottom right and it zooms to fit the size of the screen.

Plot the map section from bottom right to top left, and the map zooms out.

Pan Mode When this button is active, you can move the map section with your finger. Tap on the map and drag it in the desired direction.

Entire Route Zooms the map so that the entire route is visible.

Current Position Selects the map section shown so that the current location is centered.

Operating in Destination search mode

1. Tap on the point to which you wish to navigate.

The destination that you have selected appears under the cross hairs.

2.

OK). (

Buttons with various functions appear.

Take Me There Begins navigation to the selected point. If you are currently navigating, navigation stops.

Interim Destination

Sets the selected point as an interim destination. The navigation system first guides you to this interim destination. Afterwards, you can continue navigation to your original destination.

This function is only active during navigation.

Set as Destination Adds the selected point as the last point in the route plan. If no route plan was open, the selected point becomes the first point in a new route plan.

Save

Opens the SAVE DESTINATION AS... WINDOW. You can enter a name for the selected point to be stored in the FAVORITES list.

For more information, see "Starting navigation" on page 42.

Search Nearby

Opens the POI NEARBY WINDOW. Here you can search for destinations near the specified point. (See “POIs nearby” on page 28.).

- Tap (Destination search) to quit the Destination search mode. You are returned to the window from which you started this mode.

- Tap (Back) to return to the MAIN WINDOW. If you are currently navigating, you are prompted to confirm your decision to quit navigation.

Reality View (Junction View)

When, during navigation, you approach a highway junction, the map changes to Reality View mode.

When the screen orientation is set to portrait, Reality View map mode is not available.

290 E TO IKE EXPY CHICAGO 90 TOLLWAY ROCKFORD CHICAGO I-90 E IL-53 S ROLLING MEADOWS Options

The Reality View mode shows the signposting and lanes you must follow.

This display remains unchanged until you have passed the highway junction. The map changes back to Navigation mode.

- If you want to change to Navigation mode before you have passed the junction, just tap anywhere on the map.

Note: Reality View mode is not available for every highway junction. Availability is dependent on the map data currently in use.

This page intentionally left blank.

TMC (Traffic Information)

If your device has an integrated TMC receiver, or if you have connected an external TMC receiver, the navigation system can receive the latest traffic information available. If necessary, it can change your route dynamically in order to avoid a traffic jam, for example.

Accessing the TMC (Traffic Information) Window

The traffic reports that are currently valid are available via the options of several windows.

On the MAIN WINDOW:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

The TMC (Traffic Information) Window

Route Number Highway Shield Direction of travel affected 30 Traffic Event(s): All traffic information Type of traffic messages to display 6.3 mi 5 NORTHBOUND Distance from you to the event or incident 6.5 mi 101 NORTHBOUND 8.2 mi 5 NORTHBOUND 11 mi 405 SOUTHBOUND Options Severity indicator Event or incident Icon

Types of Messages

All traffic information Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings received in the area, based on TMC antenna reception.

On route Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings occurring along the route.

Not on route: all Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings not occurring on the route, based on TMC antenna reception.

Not on route: traffic jams Information on severe traffic events (traffic jams) not occurring on the route, based on TMC antenna reception.

Not on route: obstructions Information on moderate traffic events (obstructions) not occurring on the route, based on TMC antenna reception.

Not on route: weather warnings Information on weather warnings not occurring on the route, based on TMC antenna reception.

Severity Indicators

The color of the severity indicator reflects the impact of the traffic occurrence on traffic flow:

Red Heavy traffic, expect delays.

Yellow Slow moving traffic.

Green Normal traffic flow.

Event or Incident Icons

On the Traffic Information window, the following icons are used to represent traffic events or incidents:

Slow traffic. Construction.

Accident. Slippery road due to weather

(snow, ice, rain, etc.).

General problem affecting traffic flow.

Wind.

Lane closures. Flooding.

Road closed or blocked. Informational only. No nega-

tive affect on traffic flow.

Ramp problems. On- or off-ramp closures, etc.

The TMC Detail Window

Route Number/ Highway Shield Event or Incident icon Distance from you to the event or incident I-5 NORTH BOUND CA-2/GLEN DALE FWY 8.3 mi Slow traffic I-10 Back Affected road and direction of travel Head of traffic event Show on map Event description Tail of traffic event

Displaying traffic messages

The traffic reports that are currently valid are available via the options of several windows.

On the MAIN WINDOW:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

Above the list, the Traffic information button indicates the type of traffic information listed (on-route, off-route, etc.) and how many messages of this type are listed.

For each traffic message in the list, information about the location and type of traffic obstruction is displayed.

1. Tap a message to view more information on the traffic event.

The TMC DETAIL WINDOW displays.

1. When finished, tap (Back ____ ) to return to the TRAFFIC INFORMATION WINDOW.

Requesting a route recalculation

Note: This procedure is only available when the TMC Setting Recalculate Route is set to On Request. For more information, see "Select Reroute Settings" on page 65

During navigation, a message displays when a traffic message indicates a traffic event exists on your current route. Details of the event are shown on the TMC DETAIL WINDOW.

I-90/I-94 WESTBOUND To: 31ST ST/EXIT 54 1.7 mi Closed due to road construction From: I-90/I-94 EASTERN SPLIT Avoid Traffic Ignore

On the TMC DETAIL WINDOW:

1. Select how you want the traffic block to be handled. Options are:

Avoid Traffic The navigation software recalculates a route to avoid the traf-

fic obstruction. A ☑ Avoid) appears next to the traffic segment on the TMC (TRAFFIC MESSAGE) WINDOW.

Ignore The navigation software ignores the traffic message and

remains on the current route. A (↑ Ignore) appears next to the traffic segment on the TMC (TRAFFIC MESSAGE) WINDOW.

1. Tap the button to select the alternative setting.

68 Traffic Event(s): All traffic information 1.5 mi 41 SOUTHBOUND Ignore the traffic message and stay on route 1.6 mi 90 WESTBOUND 1.7 mi 90 WESTBOUND Recalculate the route to avoid this traffic event 1.7 mi 90 WESTBOUND Options

1. Tap ____ to close(BaccRAFFIC INFORMATION WINDOW.

TMC Settings Window

In the TMC SETTINGS WINDOW, you can set and configure the TMC receiver, these settings determine how received traffic messages will affect subsequent routing.

On the MAIN WINDOW:

1. Tap Options > Traffic.

2. Tap Options > TMC Settings.

TMC Status 93.9 Mhz Eddie Tuning Mode Automatic Recalculate Route Automatically On request Cancel Done Options

Select another station

On the TMC SETTINGS WINDOW:

- Tap

tune into another station.

Select Tuning Mode Settings

On the TMC SETTINGS WINDOW:

1. In the T_uning_Mode field, select a TMC receiver options.

Automatically	The system searches for another station if reception becomes poor.
Hold station	The system searches for the same station on a different frequency if the signal becomes poor.
Hold frequency	The system does not search for another station if reception becomes poor.

1. Tap (List) to view the list and select an option.

2. Tap the Done button to save your changes.

Select Reroute Settings

You can select whether the navigation software recalculates a route automatically when a TMC message indicates that a problem exists on your current route.

On the TMC SETTINGS WINDOW:

1. Tap Options > TMC Settings

2. In the Recalculate Route, select how you want to set route recalculation:

Automatically

The navigation system determines when to recalculate a route and when to ignore a traffic event, based on the severity of the impact on traffic flow. When a traffic message is received that severely impacts your current route, the navigation software displays a message indicating that it has recalculated a route avoiding the event.

On request

Each received traffic message displays on screen. You can specify whether to calculate an alternative route.

1. Tap Toggle) to switch between options.

The selected value is in bold.

1. Tap the Done button to save your changes.

Specify the type of traffic messages to display

On the MAIN WINDOW:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

On the Navigation map, the TMC shortcut) button can also be used to display the TRAFFIC INFORMATION WINDOW. The TMC shortcut button displays when traffic messages have been received and are currently available. See “Map in Navigation mode” on page 53.

The Traffic information button shows the type of traffic messages listed and how many messages of this type are listed.

Tap here to change the type of traffic messages shown Current type and number of TMC messages shown 62 Traffic Event(s): All traffic information 1.2 mi 90 WESTBOUND 1.3 mi 90 EASTBOUND 1.5 mi 94 WESTBOUND 3.9 mi 90 EASTBOUND Options

1. Tap the Traffic information button to view a list of available traffic message types. Options are:

All traffic information Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings received in the area, based on TMC antenna reception.

On route Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings occurring along the route.

Not on route: all Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings not occurring on the route, based on TMC antenna reception.

Not on route: traffic jams Information on severe traffic events (traffic jams) not occurring on the route, based on TMC antenna reception.

Not on route: obstructions Information on moderate traffic events (obstructions) not occurring on the route, based on TMC antenna reception.

Not on route: weather warnings Information on weather warnings not occurring on the route, based on TMC antenna reception.

1. Tap on the type of error messages to display.
2. Tap the OK button to save your changes.

Logbook

You can use the NAVIGON 5100 to record your vehicle mileage for tax purposes or for expense reports. The logbook is recorded in the Logbook.xls file. You can open the file with Microsoft Excel spreadsheet program. Each recorded trip is added at the bottom of the spreadsheet as a new entry.

When first used, the Logbook.xls file is created in the MN6\Logbook directory on the navigation device's memory card. If you delete or move this file, a new file is created when you next record a trip.

The device supports various types of trips for which one could record mileage. You can record mileage for Business, Personal, Commutes to work, etc.

Note: When logbook recording starts, every movement of the vehicle is recorded, even when you are not navigating.

Logbook Logbook Entry Mileage Reason for the Trip Business Start 123 SYM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Starting a recording

From the MAIN WINDOW:

1. Tap Options > Logbook.
2. Enter the required details.
3. Tap the Start button.

Stopping the recording

From the MAIN WINDOW:

1. Tap Options > Logbook.
2. Tap the Stop button.

Note: A window opens when you have reached your destination. Specify whether you would like to end logbook recording.

This page intentionally left blank.

Customizing Your NAVIGON 5100

Accessing the Settings window

The settings can be reached via the options of several windows.

• T aOptions > Settings.

The Settings window

The SETTINGS WINDOW is where you can customize your NAVIGON 5100 to suit your personal needs and preferences.

Basic Settings Current Map POI Route Profile Options

The SETTINGS WINDOW has several buttons.

- Tap a button to open the corresponding settings window.

Basic Settings

These settings include:

Language Select the language to display on the screen.

Options are English, Spanish, or French.

Speak Street Names

Indicate whether street names are spoken during navigation.

Reality View

Indicate whether Reality View displays a visual representation of an approaching junction. Highway signs and the lane to be used are indicated. (This feature is dependent on the selected map and may not be available in all areas.)

2D Zoom Factor

Indicate how auto-zoom behaves by default when a 2D view mode is selected. The zoom changes, based on speed. When driving slower, the map scale gets smaller. When driving faster, the map scale gets larger. Options are no automatic zoom, smaller or larger map sections, or standard.

3D Map:Show Street Names Indicate whether to show street names on maps displayed in 3D view mode.

2D Map:Show Street Names Indicate whether to show street names on maps displayed in 2D view mode.

2D Map Orientation Indicate the orientation of maps shown in 2D map view mode. Options are direction of travel, or whether to show 2D map view orientation in the direction of travel (the direction you are driving is always at the top of the map), or Always North (magnetic North is always at the top of the map).

Orientation Indicate the orientation of the display. Options are Portrait or Landscape. Note: Reality View map mode is not available when the screen orientation is set to Portrait.

Show Altitude and Speed Show or hide the altitude and current speed on a displayed map.

Display Compass Show or hide a small compass on screen during navigation.

Show Remaining Distance Show or hide the distance remaining to the destination or an interim destination, if applicable.

Show Duration of Journey Show or hide the travel time remaining to the destination or an interim destination, if applicable.

Show Time of Arrival Show or hide the time of arrival at the destination or an interim destination, if applicable.

Info When Crossing Borders Show or hide local speed restrictions when crossing a country border.

Show Speed Limits Select whether to show highway speed limits. Options are always, only when exceeding the speed limit, or never.

Warnings Within Urban Areas Indicate whether a warning displays when exceeding the speed limit in densely populated areas. Options are to never warn, or to display a warning when 5, 10, 15 or 20 mph over the stated speed limit.

Warnings Outside of Urban Areas Indicate whether a warning displays when exceeding the speed limit in less densely populated or rural areas. Options are to never warn, or to display a warning when 5, 10, 15 or 20 mph over the posted speed limit.

Warn Against Certain Speed Limits Show or hide speed limit restrictions in force during special situations, such as rain, snow, time of day restrictions, etc.

Menu Animation Indicate whether the opening of menus is animated.

Distance Unit Indicate the distance unit to be used, either Miles or Kilometers.

Time Format Indicate how times are displayed, either a 12 hour format (with am and pm), or a 24 hour format.

Coordinates Display Show or hide coordinates.

Coordinate Format If coordinates are shown, indicate whether they display in decimal format or in minutes and seconds format.

Brightness Day Indicate the display brightness for use during the daytime. Options are from 1 (less bright) to 8 (most bright).

Brightness Night Indicate the display brightness for use at night. Options are from 1 (less bright) to 8 (most bright).

Speed-Dependent Volume Indicate whether you want the volume level to increase when your speed increases. Options are never, yes with a low amplification, or yes with a high amplification.

In-Store Demo Enable or disable the in-store demo. (When enabled, the demo starts after 5 minutes.)

Current Map Settings

These settings include:

Current Map Displays information on the currently displayed map. If additional maps are available, you can select a different map. Options are: Alaska, Hawaii, Puerto Rico, or USA and Canada.

POI Settings

These settings include:

Categories Shown Specify the number of POI categories that are shown on the displayed map.

Direct Access 1 Select the first POI category to display for use with the POI direct access and POI nearby functions.

Direct Access 2 Select a second POI category to display for use with the POI direct access and POI nearby functions.

Direct Access 3 Select a third POI category to display for use with the POI direct access and POI nearby functions.

Route Profile Settings

These settings include:

Speed Profile Select the type of transport, such as, fast or slow car, truck, motorcycle, bicycle, or pedestrian. This is used for calculating routes and arrival times.

Type of Route Select the type of route to be calculated: Fast, Optimum, Short, or Scenic.

Consider Traffic Information	Select whether TMC (traffic information) is used when calculating a route. (This requires a TMC receiver and may not be available in all areas.)
Highways Select whether highways are included in a calculated route.
Toll Roads Select whether toll roads are included in a calculated route.
Ferries Select whether ferries are included in a calculated route.
Calculate the Next Stage For routes with multiple stages. After reaching a route point, select whether the next stage is calculated automatically.
U-turn allowed Select whether u-turns are considered when calculating a route.

Selecting options

Number of pages Go to previous page 1 of 7 Basic Settings Go to next page Language English (USA) Speak Street Names Yes No Reality View Yes No 2D Zoom Factor Standard View a list of options Toggle between displayed options View information on the setting Cancel Done Discard changes and return to the Settings window Save changes and return to the Settings window

Moving between pages

The settings of the individual windows are distributed on several windows.

- Move between windows by tapping (To the Left) and (To the Right).

Viewing a list of options for a setting

Some settings have several values. A value can be selected from a list. The value that is currently valid is shown.

1. Tap List). (

A list with all potential values opens. The value that is currently valid is marked.

1. Tap the desired value. It is now marked.

2. Tap the OK button.

The list closes. The new value is displayed.

Toggling between options

Some settings can only accept two or three different values. All values are displayed with the currently selected value shown in black.

- T a p Toggle) to(alternate between values.

- Tap (Toggle) to alternate between the potential values.

Viewing information about a setting

For each setting there is a 📄 (Help) button. When you tap it, you see a precise explanation of the corresponding setting.

Saving changes

- Tap the Done button. Any changes you have made are saved.

Discarding changes

- Tap the Cancel button. Any changes you have made are discarded. The SETTINGS WINDOW opens again.

Legal Notices

NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA

State law prohibits drivers in California and Minnesota from using mounts on their windshields while operating motor vehicles. NAVIGON does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71)

GPS

Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability of the Global Positioning System ("GPS") hardware, operating software or other aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL's Standard(s) for Safety (UL 60950-1, cUL 991). UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT.

This page intentionally left blank.

Specifications

Dimensions 4.2" x 3.3" x .9"
Weight Approx. 145 g
Operating conditions Operating temperature -10°C to 60°C
	Storage temperature -20°C to 70°C
	Humidity 0% to 90%, non-precipitating
CPU Samsung 2440-400Mhz
Operating System		Microsoft Windows® CE Net 5.0
Display 3.5"-LCD-Color display with resistive Touch-		Panel320 x 240 pixels (WQVGA)Landscape format, permeable
Memory	ROM	256 MB
	RAM	64 MB
GPS Built-in (SiRF GPS III, 20 channels)		Built-in antennaSocket for external antenna
TMC		Built-in (GNS FM4_V7)
I/O	Keyboard	Software keyboard
	Loudspeaker	Built-in
	Headset	3.5 mm phone jack
	Memory card	SD, MMC
	USB	USB 1.1
Rechargeable battery	Type	Li-Ion, 1200 mAh
	Period of operation	Approx. 4-5 hours of use.1
Charging	Electronic	Built-in
	Duration	Approx. 6 hours
Car charger cable	Input	12V = (Direct current, DC)
	Output	5V =, 1A (Direct current, DC)

1. Some NAVIGON 5100 features can reduce battery operation time. These include TMC (Traffic Information) service, GPS antenna reception, Daytime backlight feature, etc. When on full power mode, battery time is approx. 2-3 hours.

Compliance Notices

The NAVIGON 5100 complies with Part 15 of the FCC interference limits for Class B digital devices for home or office use.

"Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."

(Carrier frequency: 1575.42MHz, receiver only)

Index

A

arriving at your destination 48, 49

C

configuration 69

options

discard changes 74

move between pages 73

save changes 74

selecting 73

toggle between options 73

view a list 73

view information 74

current location

save 37

D

data entry 23

destiantion

search for POI 25

destination 38

current location 37

Favorites 40

home address 38, 41

Last Destinations 39

My Destinations 39

new 23

new location

select by city 26

select by street 27

no GPS reception 42

POI information 33

quit navigation 42

save 37

search for national POIs 25

search for POIs nearby 25

select a map area 24

start navigation 42

Take Me Home 41

tap on the map 25

destination search

POI direct access 25

POI in a city 25

destination search mode ....55

functions 56

operating in 56

E

end user license .... iii

entering data 23

G

GPS

current location 37

faulty reception 4

signals 4

symbols 16

H

home address 38,41

hotline 2

J

junction view 57

K

keyboards 18

L

Liability 1

license iii

logbook 67

start recording 67

stop recording 67

M

main window 11

manual

symbols 1

maps 51, 52

destination search mode 55, 56

junction view 57

navigation mode 53

functions 54

Reality View 57

view info on current map 51

menus 19

message types to display 65

My Destinations 39

Favorites 40

Last Destinations 39

N

navigation 46

block a route section 48

no GPS reception 42

quit 42

remove a block on a route section 48

route profile 46

start 42

navigation mode 53

functions 54

NAVIGON 5100

description 3

installation 8

power 9

start 11

storage card 8

TMC 9

what's included 5

new destination 23

P

password lock 21

POI

direct access 25

in a city 25

POIs national 25

POIs nearby 25

power 9

symbols 16

preview mode 52

R

Reality View 57

recalculate route 65

route planning 43

route points

delete 44

entering 44

order of 44

route profile ....46

routes

arrive at your destination 48, 49

block a route section 48

calculate and display 46

load a saved 45

manage 45

navigation 46

planning 43

remove a block on a route section 48

route points 44

route profile 46

save 45

simulation 47

end 47

start 47

starting point 43

changing 44

current location 43

S

safety information 6

search

national POIs 25

POIs nearby 25

Search for POI

direct access 25

in a city 25

search for POI

information 33

service 2

settings

configuration 69

discard changes 74

move between pages 73

save changes 74

selecting 73

TMC 64

toggle between options 73

view a list 73

view information 74

volume 13

settings window 69

accessing 69

simulation

end 47

start 47

software keyboards 18

storage card 8

support 2

symbols used in the manual 1

T

Take Me Home 38,41

TMC

recalculate route 65

show 59,62

symbols 17

traffic message types to display 65

tuning 64

TMC settings

recalculate route 65

trademarks ....1

traffic information 65

recalculate route 65

settings 64

show 59,62

tuning 64

tuning

TMC 64

turn-by-turn list 48

block a route section 48

remove a block on a route section 48

view a 48

V

volume 13

W

what's included 5

This page intentionally left blank.
