Eclipse - Pool Robot MAYTRONICS - Free user manual and instructions

Product Type	Robotic Pool Cleaner
Brand	Maytronics
Model	Eclipse
Motor Protection	IP68
Minimum Operating Depth	0.80 m (2.6 ft)
Maximum Operating Depth	5 m (16.4 ft)
Power Supply	Original supplied power supply; requires GFI/ELI protection; position at least 3 m (10 ft) from pool edge
Cable Type	Floating cable
Brushes	All-surface climbing brush (combined); optional PVC brush for concrete, PVC, fiberglass, liner; Wonder brush for smooth ceramics
Filtration	Filter bag or frame cartridges with ultra-fine filters
Water Conditions	Chlorine max 4 ppm; pH 7.0-7.8; Temperature 6°C-34°C (43°F-93°F); NaCl max 5000 ppm
Cleaning Cycle	Automatic, runs until cycle completion
Climbing Capability	Climbs walls with all-surface climbing brush
Safety Features	Do not enter pool while cleaner is operating; unplug before servicing; power supply out of standing water
Storage	Store on caddy in shaded area; temperature 5°C-45°C (41°F-113°F)
Maintenance	Clean filter bag/cartridge after each cycle; wash filter bag in washing machine gentle cycle; clean brushes with hose; clean impeller if debris trapped
Minimum Depth	0.80 m (2.6 ft)
Maximum Depth	5 m (16.4 ft)
Included Accessories	Power supply unit, floating cable, filter bag/cartridges, brushes
Pool Compatibility	In-ground pools

Frequently Asked Questions - Eclipse MAYTRONICS

How do I set up the Maytronics Eclipse pool cleaner for the first time?

Unwind the cable completely to remove kinks. Position the power supply about 3 m (10 ft) from the pool edge, centered on the long side. Remove any plastic coverings on brushes. Attach the floating cable by aligning the notch and turning clockwise. Plug in the power supply but leave it OFF initially. Then proceed to put the cleaner in the pool.

How do I put the pool cleaner into the pool?

If brushes contain sponges, dip them and squeeze to absorb water. Hold the cleaner upside down in the water, gently rock it back and forth while holding the bottom lid flaps open to release trapped air. Release when no more bubbles appear. Ensure the floating cable is free and place enough cable in the water to reach the farthest corner. Turn the power supply ON.

How do I remove the pool cleaner from the pool?

Turn OFF and unplug the power supply. Use the floating cable to bring the cleaner to the pool edge, then use the handle to lift it out. Never pull the cleaner out by the cable. Place on the pool edge to drain water.

How do I clean the filter bag or cartridges?

After each cleaning cycle, unplug the power supply. Turn the cleaner upside down and open the bottom lid. Remove the filter bag or cartridges. Clean with a hose. For filter bags, periodically wash in a washing machine on gentle cycle. Reinstall properly: for bag, ensure strap is centered on shortest side; for cartridges, insert with plastic backing outward.

What should I do if the robot is moving in circles?

Possible causes: dirt stuck in moving parts, clogged filter, incorrectly positioned power supply, incorrect bottom lid mounting, or poor water conditions. Clean moving parts and filter, reposition power supply so robot can reach all walls, ensure bottom lid is locked correctly, and adjust water chemistry (pH 7.0-7.8, chlorine max 4 ppm).

Why doesn't the robot climb walls?

Check if filter bag/cartridge is full (clean it), if walls have algae (brush them), if water temperature is too low (ideal 6°-34°C), if brushes are worn (replace), or if there is debris in the impeller (clean it). Also ensure no trapped air in the cleaner (turn upside down in water to release). Adjust pH if needed.

How do I clean the impeller?

Unplug the power supply. Use a screwdriver to remove the two screws on the impeller cover and remove the cover. Clear any debris from the impeller. Replace the cover and screws.

The robot won't sink – what to do?

Trapped air in filter bag/cartridge or dry brushes can cause floating. Turn the cleaner upside down in water to release air. Wash the filter bag/cartridge. Open the two inlet flaps in the bottom lid to release trapped air or dirt. If brushes are dry, soak them in water.

How do I store the pool cleaner during off-season?

Disconnect from mains. Ensure no water remains inside. Thoroughly clean filter bag/cartridges and reinsert. Roll up the cable without kinks and place on the caddy. Store upright on the caddy or upside down in a protected area away from direct sun, rain, or snow, at a temperature between 5°C and 45°C (41°F-113°F).

What are the recommended water conditions for using the pool cleaner?

Chlorine: max 4 ppm. pH: 7.0-7.8. Water temperature: 6°C to 34°C (43°F to 93°F). Salt (NaCl): max 5000 ppm. Operating outside these conditions may affect performance or damage the cleaner.

USER MANUAL Eclipse MAYTRONICS

Robotic Pool Cleaner

User Instructions....p. 1-11

Eclipse

EN

Robotic Pool Cleaner

User Instructions

Contents

1. INTRODUCTION ...... 2
2. SPECIFICATIONS ...... 2
3. WARNINGS AND CAUTIONS ...... 2

3.1. Warnings....2
3.2. Cautions....2

1. POOL CLEANER PARTS 3
2. USING THE POOL CLEANER....4

5.1. Setup....4

5.2. Putting the Pool Cleaner into the pool....5
5.3. Removing the Pool Cleaner from the pool....6

1. CLEANING THE FILTER BAG OR CARTRIDGES .... 7

6.1. Removing and cleaning the filter bag....7
6.2. Replacing the filter bag 8
6.3. Cleaning the filter cartridges 8
6.4. Cleaning the impeller 10

1. OFFSEASON STORAGE....10
2. TROUBLESHOOTING....11

Robotic Pool Cleaner

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene.

Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and easy maintenance. You and your family will be free to enjoy your swim with the full confidence that it is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on the Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6°-34°C/43°-93°F
NaCl Maximum = 5000 ppm

4. POOL CLEANER PARTS

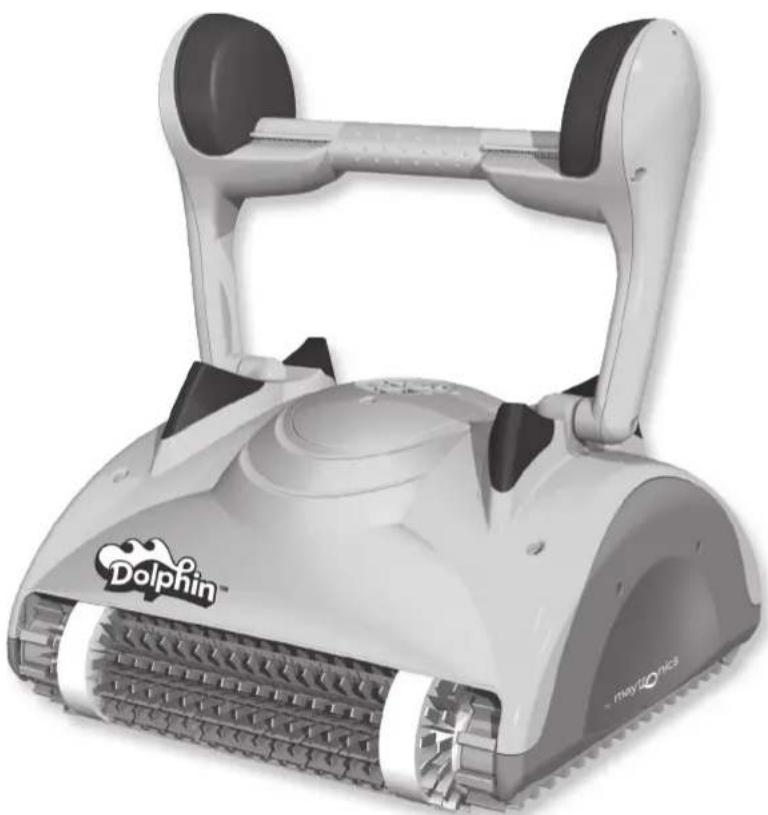

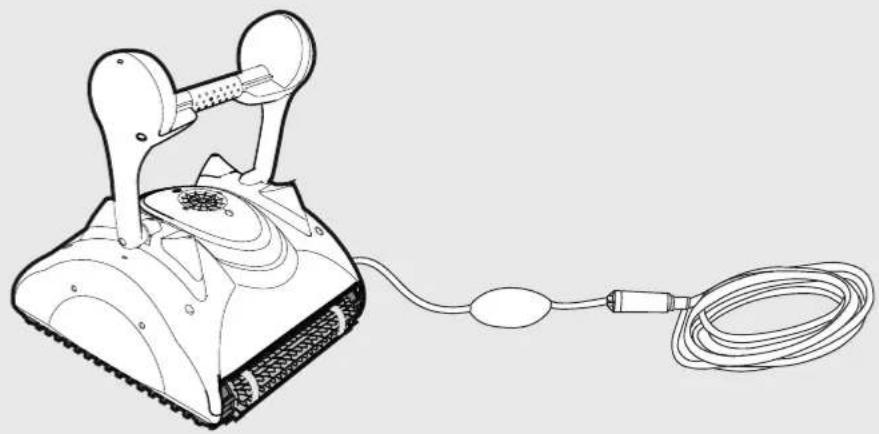

▶ Robotic Pool Cleaner Classic

Brushes

Combined Brush

All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush

For concrete, PVC, fiberglass and liner.

Wonder Brush

For smooth ceramics.

▶ Filtration Options

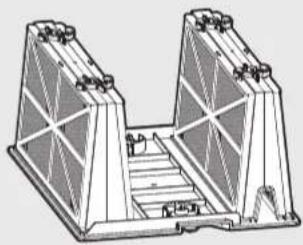

Frame Cartridges and 4 ultra-fine filtersBottom lid and filter Bag Spring clean-up filt

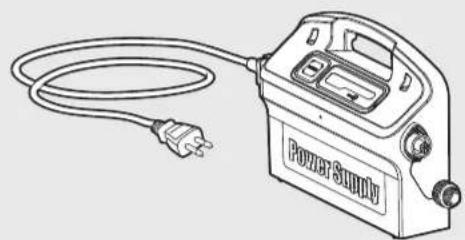

Power Supply Unit

5. USING THE POOL CLEANER

The Pool Cleaner is very easy to use. Just follow the simple steps to get started, and your Pool Cleaner is ready to go.

5.1. Setup

Before using the Pool Cleaner for the first time perform the following steps:

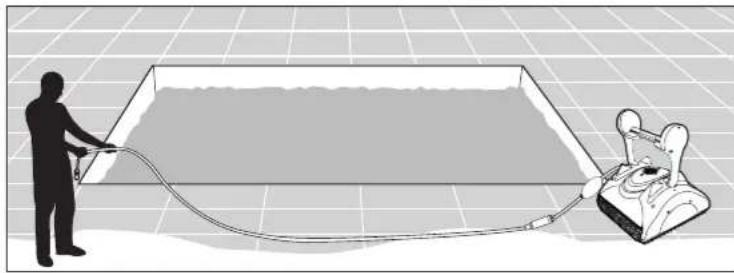

Unwind the cable and stretch it out completely so that it has no kinks.

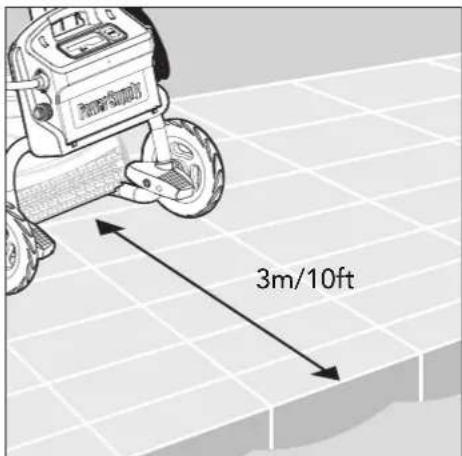

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.

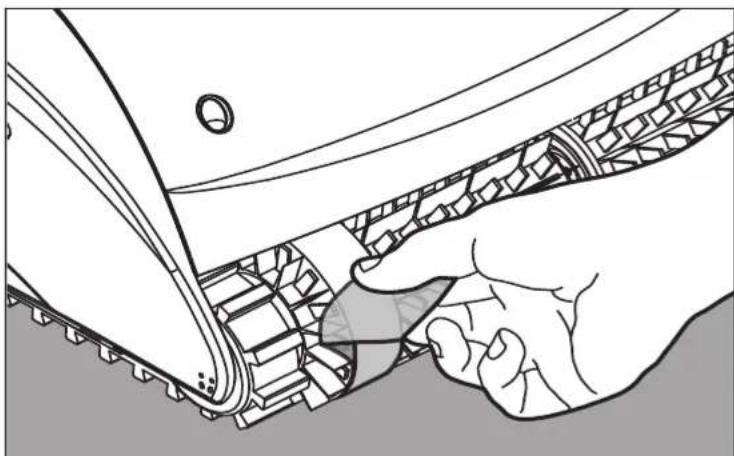

Some models arrive with plastic coverings on the brushes. Remove them before use.

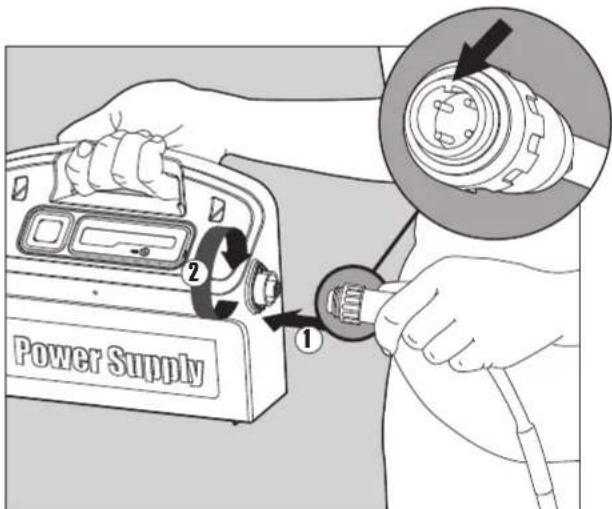

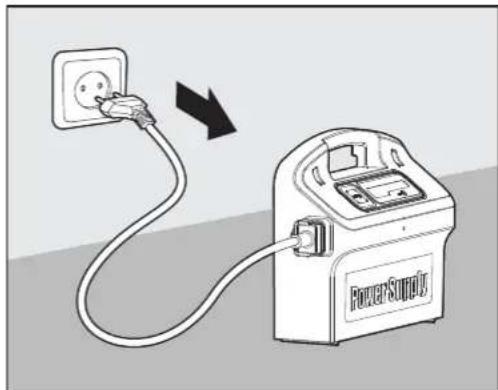

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

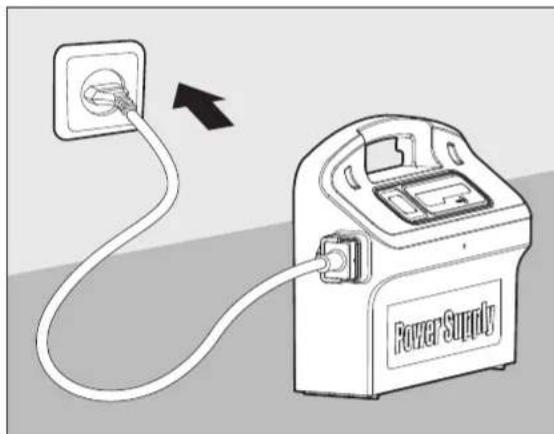

Plug in the power supply and leave it in the OFF position.

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that contain sponges, dip the brushes in the water and squeeze them so that they will absorb water the first time you use the Pool Cleaner, or if the brushes have dried out between uses.

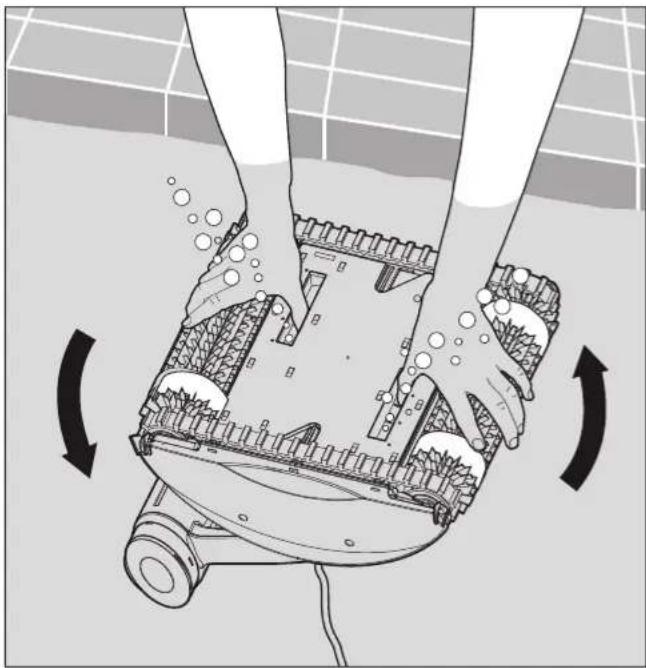

Holding the Pool Cleaner upside down in the water, gently rock it back and forth with your fingers holding the plastic doors on the bottom lid open to release trapped air. Continue until no more bubbles are released.

Release the Pool Cleaner and let it sink to the floor of the pool.

Make sure that the floating cable is free of any obstructions.

To avoid kinks in the floating cable, place approximately enough cable in the water for the Pool Cleaner to reach the farthest corner of the pool.

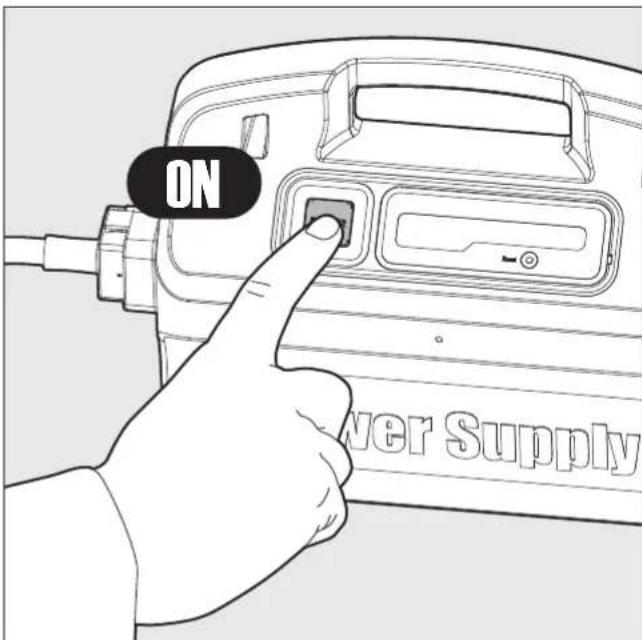

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

5.3. Removing the Pool Cleaner from the pool

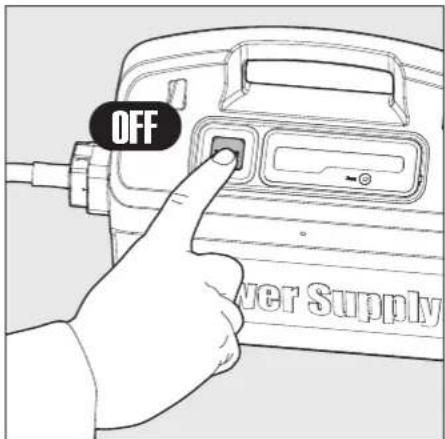

Turn OFF and unplug the power supply.

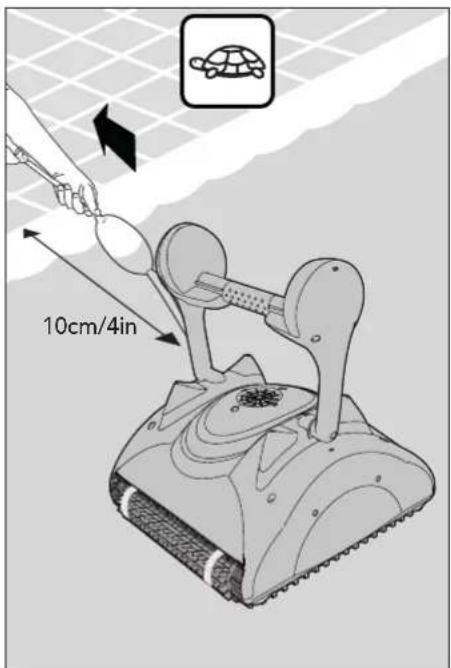

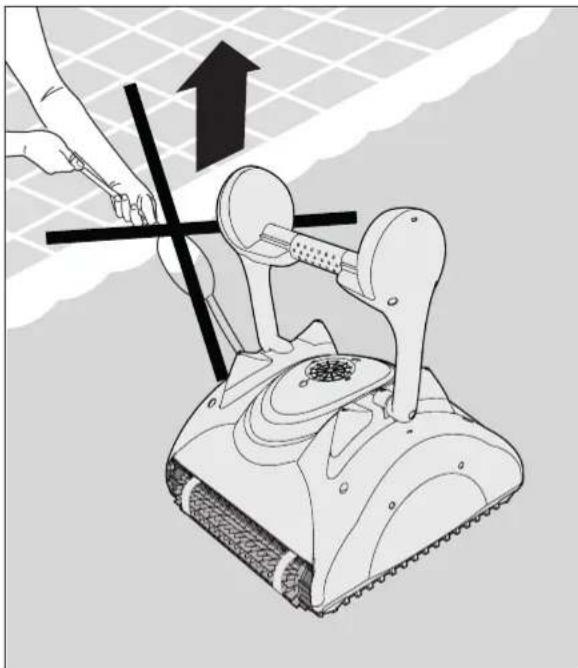

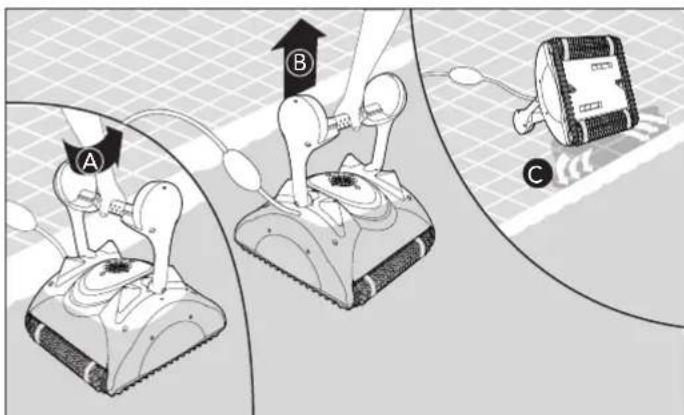

Using the floating cable, bring the Pool Cleaner to the pool's edge. Using the handle, remove the Pool Cleaner from the pool.

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Place the Pool Cleaner on the edge of the pool and let the water drain out.

6. CLEANING THE FILTER BAG OR CARTRIDGES

Depending on the model, your Pool Cleaner may be equipped with a filter bag or cartridges. It is recommended to clean the filter bag or cartridges after each cleaning cycle.

6.1. Removing and cleaning the filter bag

Unplug the power supply.

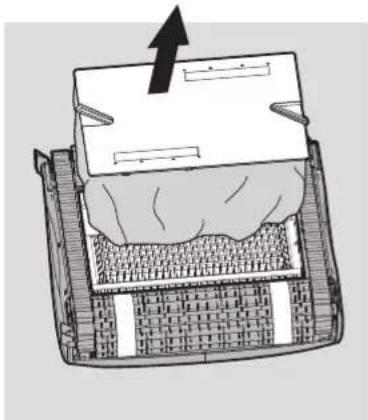

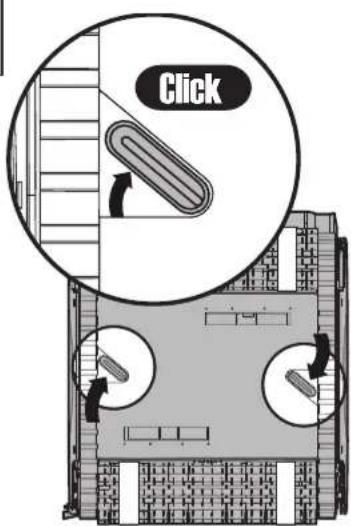

Turn the Pool Cleaner upside-down. Open the bottom lid.

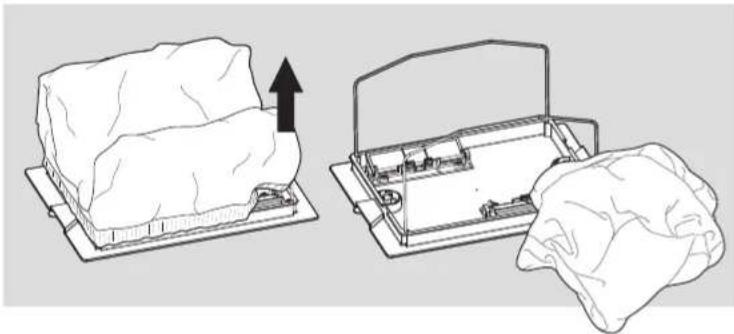

Remove the filter bag.

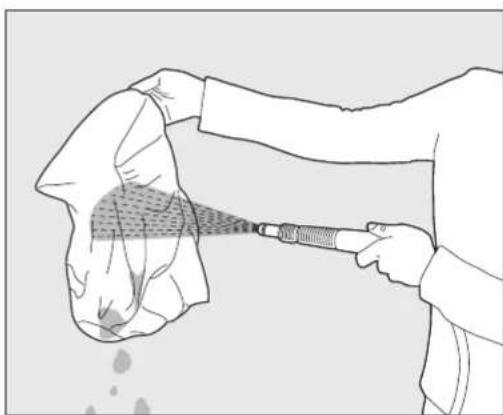

Clean the filter bag with a hose.

We recommend that you periodically wash the filter bag in a washing machine using the gentle cycle program.

Periodically clean the brushes with a hose.

6.2. Replacing the filter bag

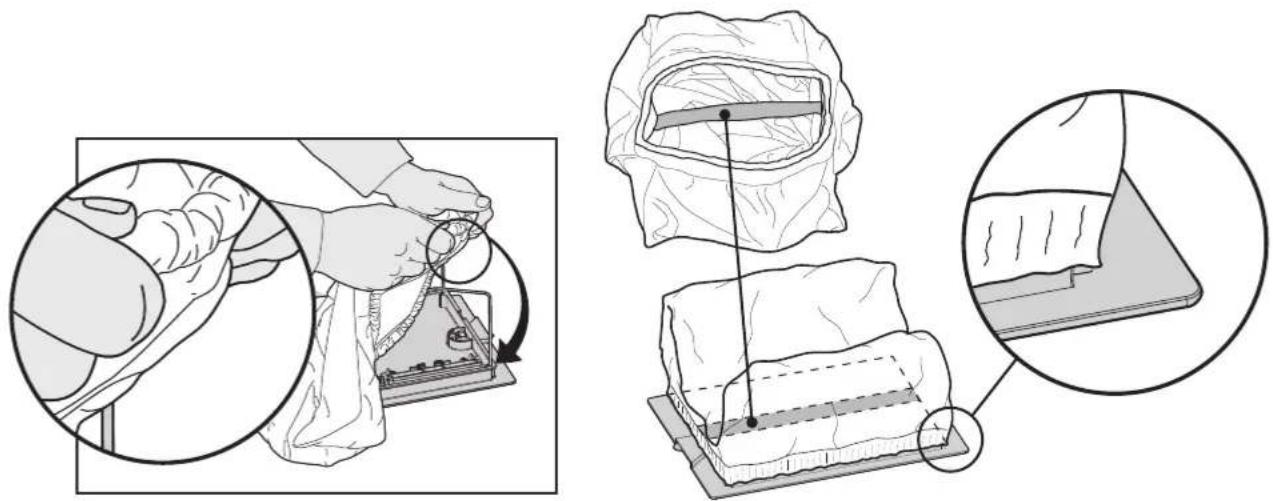

Put the filter bag over the frame so that the strap is in the middle of the shortest side. Make sure that filter bag is positioned properly on the frame.

6.3. Cleaning the filter cartridges

Note: Don't let the filter cartridges dry out before cleaning.

Unplug the power supply.

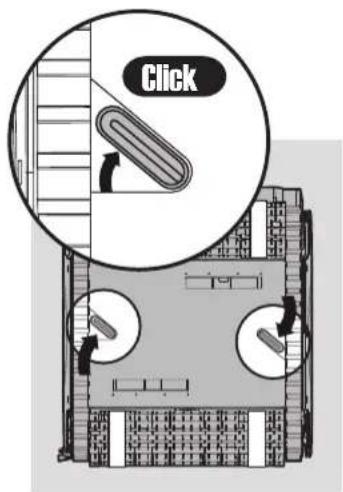

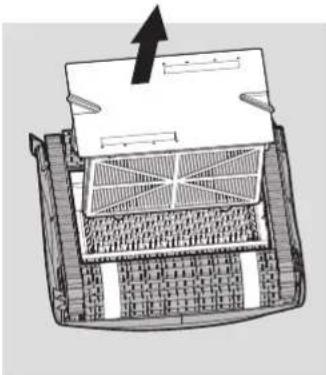

With the Pool Cleaner upside down open the bottom lid and pull it out.

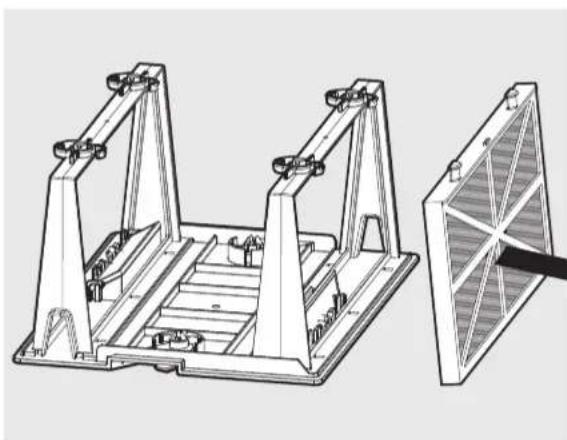

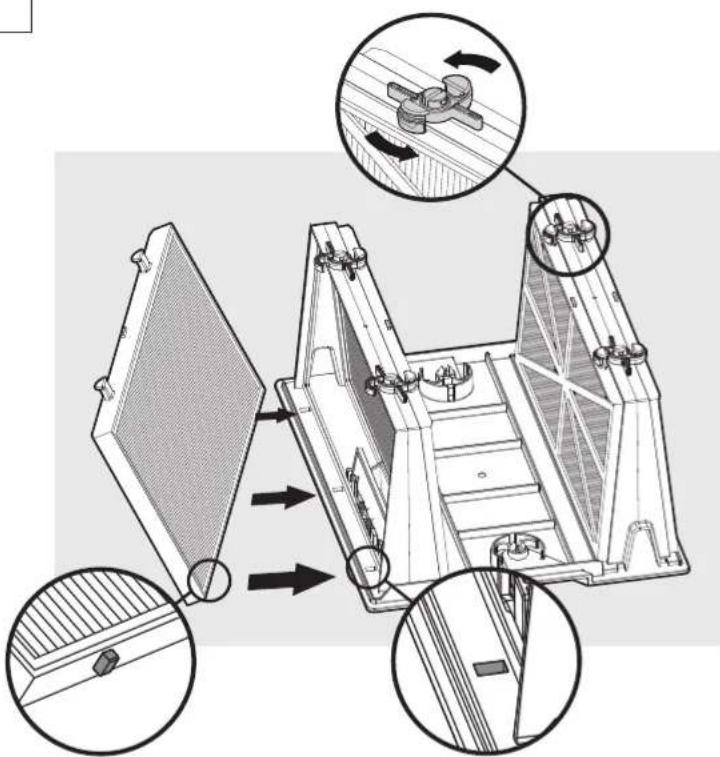

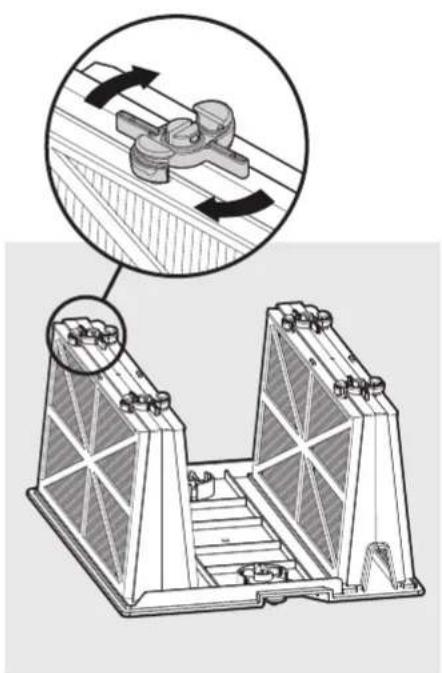

Open the clips and remove the filter.

Clean the filters with a hose.

Insert the filters with the plastic backing facing out.

Insert the cartridge unit.

6.4. Cleaning the impeller

If you notice debris trapped in the impeller open the impeller and remove the debris.

Unplug the power supply.

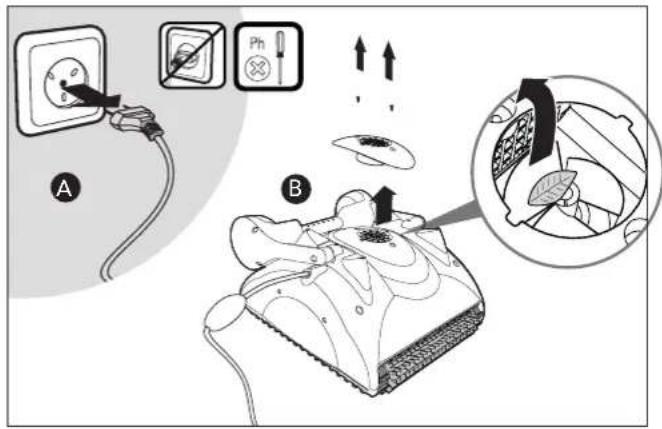

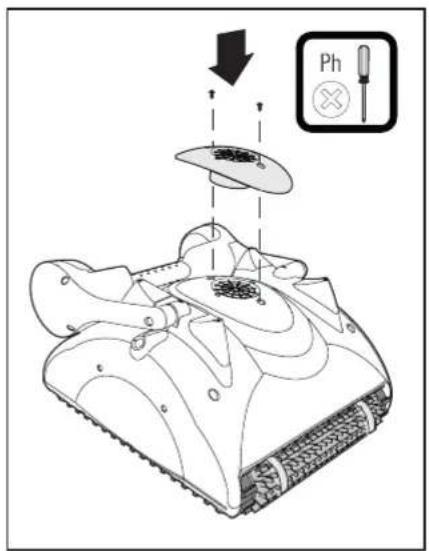

Using a screwdriver, remove the two screws on the impeller cover and remove it.

Clear any debris that may be in the impeller.

Replace the screws.

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Disconnect the Pool Cleaner from mains
  • Make sure that no water is left in the Pool Cleaner
  • Thoroughly clean the filter bag or cartridges and insert in place
  • Roll up the cable so that it has no kinks and place on the Caddy
• Store the Pool Cleaner upright on the Caddy or simply upside down in a protected area out of direct sun / rain / snow at a temperature of between 5°-45°C / 41°-113°F

8. TROUBLESHOOTING

If the suggest solutions do not solve the problem contact your dealer

Symptom Possible	reason Corrective action
1. Cable twisting or cable coils up	Obstruction in poolExcess cable in the poolFilter bag/cartridge dirtyIn all abovementioned cases	Remove obstruction in pool.Remove excess cable out of the pool.Clean filter bag/cartridge.Straighten cable and lay in sun periodically.
2. The Pool Cleaner is moving in circles	Dirt stuck in moving partsClogged filter bag/cartridgePower supply incorrectly positionedIncorrect mounting of bottom lidAlgae or pool water is out of Spec	Remove dirt from moving parts.Clean filter bag/cartridge.Place power supply in a position so that the Pool Cleaner can reach all walls.Lock bottom lid in the right position.Correct pool and water conditions.
3. The Pool Cleaner does not cover the entire pool	Power supply incorrectly positionedThe handle is not positioned in accordance to the pool conditions	Place power supply in a position so that the Pool Cleaner can reach all walls.You may enhance the pool coverage by adjusting the handle float. For optimal pool coverage the Pool Cleaner should turn on the floor at 90° angle (the Pool Cleaner rotates twice before completing the 90° turn).If the Pool Cleaner does not complete a 90° turn, shift the float opposite to the cable's entry-side towards the handle center.If the Pool Cleaner turns in an angle wider than 90°, shift the float on the cable's entry-side towards the handle center.
4. The Pool Cleaner does not climb walls	Filter bag/cartridge is fullAlgae on wallsWater temperature too lowBrushes wornSlippery ceramic wall tilesDebris caught around impellerThe Pool Cleaner is too light - trapped airUnsuitable pH level	Empty and wash filter bag/cartridge.Brush walls.Ideal water temperature between 6°-34°C/43°-93°F.Replace brushes - contact your dealer.Consult with your dealer about special brushes.Remove impeller tube. Clean impeller.Turn the Pool Cleaner upside down under water to remove trapped air.Check pH level between 7 and 7.8.
5. Motors not working	Impeller blockedDrive system blockedElectrical problem - motor unit, cable or power supply	Remove impeller tube and clean impeller.Clean tracks and wheels.Consult with your dealer and Service Center.
6. The Pool Cleaner will not sink	Air caught in filter bag/cartridgeSpecial combined climbing brushes are dry	Turn the Pool Cleaner upside-down under water to remove trapped air. Wash the filter bag/ cartridge.Open two inlet flaps in the bottom lid to remove dirt and/or trapped air.Soak brushes in water.
7. Power supply or power supply switch light is not working	Not plugged properly or non-functioning socket	Check power to the socket and reconnect the Pool Cleaner.
