Product Type	LCD Monitor
Brand	Chimei
Model	CMV-T39D
Screen Size	19 inches (48.3 cm)
Display Resolution	1440 × 900 (WXGA+)
Aspect Ratio	16:10
Brightness	300 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Viewing Angle	170° horizontal / 160° vertical
Input Connectors	VGA (D-Sub), DVI-D
Power Consumption	40 W (typical), <1 W (standby)
Power Input	AC 100-240V, 50/60 Hz
Dimensions (with stand)	19.7 × 14.6 × 7.9 inches (500 × 370 × 200 mm)
Weight (with stand)	9.9 lbs (4.5 kg)
VESA Mount	100 × 100 mm
Main Functions	On-Screen Display (OSD), Auto Adjust, Color Temperature Control
Cleaning Instructions	Wipe screen with a soft, dry cloth. Do not use harsh chemicals.
Safety Notes	Keep away from heat sources and ensure proper ventilation.
Spare Parts	Contact Chimei support or authorized service centers for replacement parts.
Repairability	Designed for professional repair. Do not attempt self-repair.

Frequently Asked Questions - CMV-T39D Chimei

How do I connect my computer to the CMV-T39D monitor?

Connect the VGA or DVI cable from your computer to the corresponding port on the monitor. Ensure both devices are turned off during connection, then power on.

What is the recommended resolution for this monitor?

The native resolution is 1440x900. For best image quality, set your computer to this resolution via display settings.

Why is there no signal on my screen?

Check that the video cable is securely connected. Try a different cable or port. Also ensure the correct input source is selected using the monitor's OSD menu.

How do I clean the monitor screen?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water. Wipe gently; do not spray liquid directly.

Can I mount this monitor on a wall?

Yes, the CMV-T39D supports VESA 100x100 mm mounting. Use a compatible wall mount kit and follow the included instructions.

What do the buttons on the monitor do?

The buttons control the On-Screen Display (OSD) menu, including brightness, contrast, input source, and auto adjust. Refer to the manual for detailed functions.

How do I adjust the screen position?

Use the OSD menu to adjust horizontal and vertical position, as well as phase and clock settings for analog VGA input. For digital DVI, adjustments are usually automatic.

Is the monitor compatible with Mac computers?

Yes, the monitor works with Macs via VGA or DVI. You may need an adapter if your Mac uses Mini DisplayPort or USB-C.

What is the warranty period for Chimei monitors?

Typically, Chimei monitors come with a 3-year limited warranty. Check your purchase documentation or contact support for specific coverage.

My screen flickers. What should I do?

Try adjusting the refresh rate in your computer's display settings to 60 Hz. Also check the video cable for damage and ensure it is firmly connected.

USER MANUAL CMV-T39D Chimei

Simple line drawing of a computer monitor on a stand, no text or symbols present

Contents

PRODUCT....2

Contents....2

Features 2

Power saver 2

Plug & play....2

SAFETY 3

Electrical....3

Common....4

SET UP YOUR LCD MONITOR....5

Installation 5

Screen Adjustments ....5

OSD Control 6

Description 8

TROUBLE SHOOTING....9

MAINTENANCE....10

PRODUCT

Note : Save the original box and packing material for future shipping needs.

Contents
Features	LCD monitor and Base. Please refer toQuick Setup.Accessories for this LCD monitor Model. Please refer toQuick Setup.
Power saver	Bright imageLightweightFast response timeStereo speakers (If there is no speaker installed, please skip this item.)Power saving featuresLow electromagnetic radiation outputKensington security lockSafety certifications
Plug & play	Power control system, also called (Power Saver), is installed inside the LCD monitor.If the monitor has not been used for a certain period of time, the system will turn the monitor to low voltage mode to save power. Slight movement of the mouse or any pressing key on the keyboard will return the original image.The VGA card inside the computer configuresPower Saver. You can use your PC to set the function.The LCD monitor is compatible with EPA ENERGY STAR and NÜTEK if used with a VESA DPMS computer.To save power, turn off the LCD monitor power when not in use.
	The new VESA Plug and Playfunction is used, eliminating the complicated and time-consuming installation process.Use thePlug and Playsystem without encountering the usual installation problems. Your computer system can easily identify and automatically adjust the monitor.The LCD monitor usesDisplay Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can auto adjust your monitor.

SAFETY

Note: Note the following safety precautions before using this monitor.

Electrical

Check the Voltage

Electrical Shock

Unusual conditions

This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
To prevent electrical shock, do not insert any metal object into any opening in the LCD monitor casing.
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
If the power cord is damaged, do not use the LCD monitor. Do not place any object on the power cord, and place the power cord away from crowded areas.
While pulling the LCD monitor plug away from the socket on the wall, hold the plug not the power cord.
Do not expose the LCD monitor to rain and do not use in environments near water (such as in the kitchen, or near a swimming pool).
If the LCD monitor becomes wet, unplug the power cord immediately and contact a Service Center.
If the LCD monitor begins to perform abnormally, makes a noise, or emits smoke or odors, unplug it immediately and contact a service center.

Common

Monitor and Screen Care

Cleaning the screen

Avoid touching the screen with your fingers or any hard objects. Oil from the skin is difficult to remove, and touching the screen with anything may damage the panel. Clean the monitor using a soft, dry cloth after first turning it off.
The LCD monitor should not be used in dusty or humid environments.
The LCD monitor should be kept away from heat sources and radiation. Such as: stoves, ovens, or direct sunlight.
To reduce glare, avoid placing the monitor in a place that receives direct sunlight.
Avoid letting small children play with monitor. Frequent touching of the panel will leave marks on the screen and lower the image quality.
◆ Handle with care when unplugging and moving the monitor.
Do not place items on top of the LCD monitor.
If the LCD monitor is not in use for a long time, unplug it and store it in the proper package. The original carton and packaging should be used if possible.
The openings in the LCD monitor casing are for ventilation. To prevent overheating, the openings should not be blocked or covered. Do not place the LCD monitor on a bed, sofa, blanket or other soft surfaces; as soft objects may block the vents in the LCD monitor.
If you place the LCD monitor on a bookshelf or other enclosed space, it is essential to leave an air-space of 4-inches (10cm) between the monitor and the enclosure.
- Ensure that the area around the LCD monitor is clean and free of moisture. Please refer to "Maintenance" for normal maintenance information.

SET UP YOUR LCD MONITOR

Installation

Note: Read the last section "Safety" before you install the LCD monitor.

Notes

Installation Position

Workstation Height

Angle of Vision

Quick Installation

Screen Adjustments

Auto Adjust

Self Test Function Check (STFC):

Note the instructions below prior to installing your LCD monitor.

For the best image quality, choose a position away from any windows to minimize reflection of light on the panel.
It is important to view the LCD monitor from at least 30 cm to minimize eyestrain.
◆ Position the LCD monitor slightly above your horizontal vision.
Tilt the LCD monitor either forward or backward for the most comfortable viewing angle.
This LCD monitor supports connection to a personal computer or workstation. The steps are described as Quick Setup.
After installation, refer to "Auto Adjust" for automatic adjustment procedures.

Though your computer system can automatically identify the new LCD monitor system, the Auto Adjust function can enhance the display. To enter adjust mode, refer to "OSD Control".

◆ Turn the computer and LCD monitor on.
Press the 'Auto' button to start Auto Adjust.
The LCD monitor starts the Auto Adjust process. The process will continue for 10 seconds. You will notice the image change as the Auto Adjust is working.
Your LCD monitor provides a STFC function, through which you can check whether the LCD monitor is working properly.
If your LCD monitor is properly connected, but there is no image showing and the indicator light remains orange, follow these steps to start STFC.

□ Shutdown computer and LCD monitor.
□ Unplug the signal connector from the back of computer.
□ Turn the LCD monitor on.

If the image connector is disconnected or damaged, the following message will appear during normal operation.

No Signal Input

☐ Turn off the LCD monitor and reconnect the signal cable. Turn the computer and LCD monitor on.

If the LED on the LCD monitor remains orange after completing the steps above, check your VGA card, cable, and computer system. Your monitor should be operating properly.

OSD Control

The user-friendly OSD (On Screen Display) design enables you to adjust your monitor using the keypad on the front panel.

Keypad Button Definition

6 5 4 3 2 1

1		Power On/Off button and indicator LED.Green: Normal.Orange: Power Saving.Off: Power Off.
2		Enter and exit the OSD menu.
3		·Quick brightness adjustment and increase contrast/brightness.·Move selection right when OSD is displayed.
4 /		·Quick contrast adjustment and decrease contrast/brightness.·Move selection left when OSD is displayed.
5	Auto/▼	·Automatically optimize positions, phase, and clock when OSD is not displayed.·Move selection down when OSD is displayed.
6	Turbo/▲	·Switch between picture, text and economy modes.·Move selection up when OSD is displayed.
7	Speakers	Audio output.( If there is no speaker installed, please skip this item.)

Operation

Your LCD monitor has been adjusted to its optimal settings before shipment. You can also adjust the image using the following illustrations and steps.

Press the "Menu" button to display the OSD.
◆ Press the▲ or ▼ button to select the function to be adjusted.
Press the button to access the function to be adjusted.
Press the◀ or ▶ buttons to change the current setting of the function.
To go back to the previous menu, press the ☐ button. Changes are saved automatically.
To exit the OSD menu press "Menu" again.

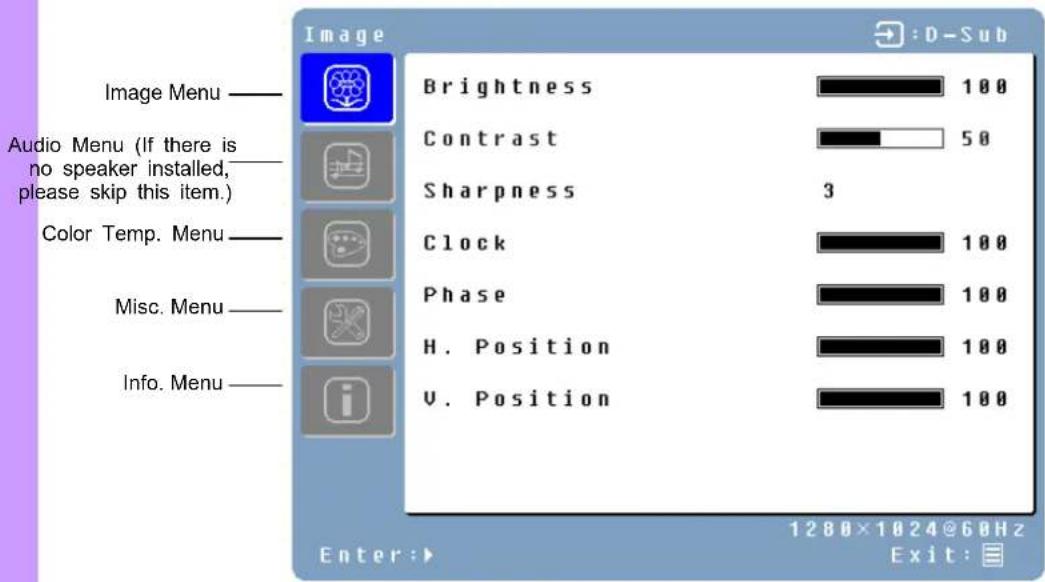

Image Image Menu —— Audio Menu (If there is no speaker installed, please skip this item.) Color Temp. Menu —— Misc. Menu —— Info. Menu —— Brightness 100 Contrast 50 Sharpness 3 Clock 100 Phase 100 H. Position 100 V. Position 100 Enter: 1280×1024@60Hz Exit:

Notes

The OSD turns off several seconds after you stop pressing the buttons while performing an adjustment.
Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the menu.
Adjustments for clock, phase and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
To select function, click the blue cursor on the desired one.

Function Definition

Primary Menu	Secondary Menu	Description
Image	Brightness	Adjust the brightness of the screen.
	Contrast	Adjust the contrast of the image.
	Sharpness	Adjust the picture sharpness of low resolution pictures.
	Clock	Adjust the monitor clock. (Optional)
	Phase	Adjust the monitor phase. (Optional)
	H.	Positherimage left or right on the screen. (Optional)
	V.	Positherimage up or down on the screen. (Optional)
Audio(If there is no speaker installed, please skip this item.)	Volume	Adjust the volume of the audio.
	Mute	Disable the audio.
Color	Color	temp/9300K/7500K/6500K/sRGB
	Red	Adjust red color.
	Green	Adjust green color.
	Blue	Adjust blue color.
Misc	Language	English, Français, Deutsch, Español, Italiano,日本語, Русский,繁陽日処,简体日処,한국어
	OSD time-out	Adjust OSD display time setting.
	OSD position	Move OSD display position to any one of the following 5 positions within the overall screen.
	Reset	Restore LCD monitor to factory settings.
	Input Select	Analog / Digital
	Auto setting	Adjust clock, phase and positions automatically. (Optional)
	CM Engine	Color Management Engine. (Optional)
Info	Resolution	Displays resolution.
	Horizontal frequency	Displays horizontal frequency.
	Vertical frequency	Displays vertical frequency.
	Version	Displays firmware version.

Quick Adjustment

You can skip the Menu pages and display an adjustment scale directly by using the following button operations:

Brightness: Press the ⚙️ Brightness button when the Menu is not displayed.
◆ Contrast: Press the ⬆ Contrast button when the Menu is not displayed.
Auto Setting: Press the Auto button when the Menu is not displayed.
Turbo: Press the Turbo button when the Menu is not displayed to switch between picture modes.

☐ Picture Mode - High brightness
□ Text Mode - Normal
□ Economy Mode - Brightness of back-light is reduced
□ Changing to a lower brightness mode can lessen eye fatigue.
☐ Change from Picture Mode to Text Mode when working with text.
☐ Change from Text Mode to Economy Modes when viewing the screen for long periods.

TROUBLE SHOOTING

	Check the information in this section to see if problems can be solved before requesting repair.Note:Users should only attempt to solve the problems described below. Any unauthorized product modification, or failure to follow instructions supplied with the product, will void the warranty immediately.
No image	Make sure power is ON.Check whether the LCD monitor and computer power cords are plugged in and whether there is power.
No Signal Input	Check the signal connection between the computer and LCD monitor.
“Out Of Range”	Check the computer image output resolution and frequency and compare the value with the preset values.
Fuzzy image	Perform Auto Adjust, or adjust clock and phase.
Image too bright	Adjust brightness and contrast using OSD.
Image too dark
Irregular image	Check the signal connection between the computer and LCD monitor.Perform Auto Adjust.
Distorted image	Reset the LCD monitor. (perform the “Reset” function using OSD)Remove extra accessories (such as signal extension cord).
Image is not centered	Use OSD Image Menu to adjust H. Position and V. Position.
Size is not appropriate	Check image size setting.Perform Auto Adjust.
Uneven color	Use OSD Color Menu to adjust color setting.
Color too dark
Dark area distorted
White color is not white
Can’t adjust the LCD monitor with the buttons on the front panel.	Contact the store where you purchased the unit or service center listed on your warranty card.
Can’t display the LCD monitor with resolution 1400x1050	Please download the video card driver from websites below:Nvidia:http://www.nvidia.com/content/drivers/drivers.aspIntel:http://downloadfinder.intel.com/scripts-df/support_intel.aspATI:https://support.ati.com/ics/support/default.aspVideo chips below support the resolution 1400x1050:Geforce4 Ti4200,Geforce FX5200,Geforce PCX6200,G5 Geforce FX5200,ATI Radeon 9600,ATI RadeonRX300Matrox P750,Nvidia Geforce2,I865G,I915G

MAINTENANCE

This product has undergone strict quality control during the production process. For maintenance of the LCD monitor, refer to the information below. Maintenance is important for maximizing the display performance and product life.

Warning: To prevent electrical shock, do not open the LCD monitor casing. Users should not attempt to repair the LCD monitor on their own. User maintenance is limited to the procedures listed below.

Unplug the power

Check the cover

Clean

Cleaner

Screen

Case

Accessory

Conserve

Disclaimer

◆ Unplug the LCD monitor from the AC socket before conducting maintenance.
Check to see if the LCD monitor and accessories are damaged or broken..
◆ Never spray or pour any liquid directly onto the screen or case.
Do not allow water or liquid to enter the LCD monitor or accessories.

□ Use pure water or non-ammonia, non-alcohol based glass cleaner.
☐ Do not use ketene (such as acetone), ethanol, toluene, acetic acid, methane, chloride, or abrasive detergent to clean the monitor because these chemicals can damage the LCD monitor.
☐ To clean your LCD monitor screen, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
☐ If possible, use a special screen cleaner sheet or a solution suitable for static electricity application.
☐ To clean your LCD monitor case, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
☐ To clean your accessories, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.

If the LCD monitor is not in use for a long time, please unplug and store in the original box in order to avoid any unexpected damage.

Any damage resulting from use of any cleaner that is not mentioned above is not covered under this warranty term.
