USER MANUAL SuperServer 1019P-WTR Supermicro

Front view of a rack-mounted server or network equipment unit (no visible text or labels)

USER'S MANUAL

Revision 1.0

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin calls. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro claims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: July 27, 2017

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2017 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 1019P-WTR. Installation and maintenance should be performed by experienced technicians only.

Please refer to the 1019P-WTR server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: ftp://ftp.supermicro.com
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website

for possible updates to the manual revision level.

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

PrefaceSuperServer 1

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 Unpacking the System 8
1.3 System Features 9
1.4 Server Chassis Features....10

Control Panel 10
Front Features....12
Rear Features 12

1.5 Motherboard Layout....13

Quick Reference Table....14

Chapter 2 Server Installation

2.1 Overview....17
2.2 Preparing for Setup....17

Choosing a Setup Location....17

Rack Precautions....17
Server Precautions....18

Rack Mounting Considerations....18

Ambient Operating Temperature....18

Airflow....18
Mechanical Loading....18
Circuit Overloading 19
Reliable Ground....19

2.3 Installing the Rails....20

Identifying the Sections of the Rack Rails....20
Assembling the Outer Rails 20
Installing the Outer Rails onto the Rack....21

2.4 Installing the Server into a Rack....22

Installing the Chassis into a Telco Rack....23

Chapter 3 Maintenance and Component Installation

3.1 Removing Power....24
3.2 Accessing the System 24

3.3 Motherboard Components....25
Processor and Heatsink Installation....25
The Intel Xeon 81xx/61xx/51xx/41xx/31xxSeries Processor ....25
Overview of the Processor Socket Assembly....26
Overview of the Processor Heatsink Module (PHM)....27

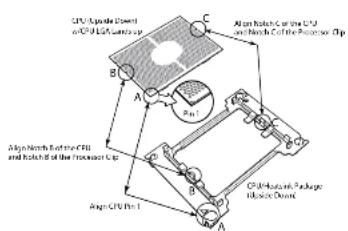

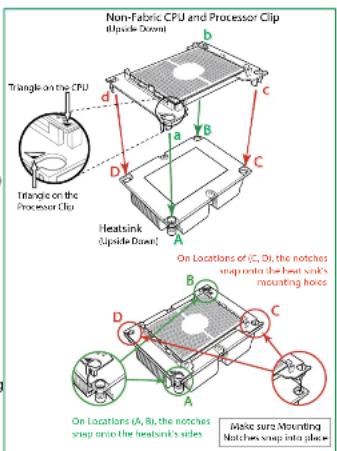

Attaching the Non-F Model Processor to the Processor Clip to Create the Processor
Carrier Assembly 28
Attaching the Non-F Model Processor Carrier Assembly to the Heatsink to Form the
Processor Heatsink Module (PHM)....29
Preparing the CPU Socket for Installation....30

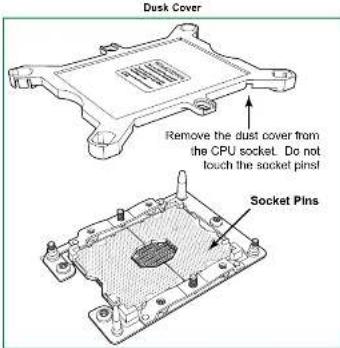

Removing the Dust Cover from the CPU Socket 30

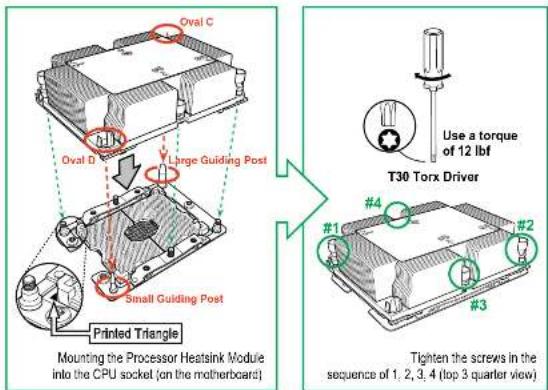

Installing the Processor Heatsink Module (PHM) 31
Removing the Processor Heatsink Module (PHM) from the Motherboard....32
Memory Installation....33
Memory Support....33

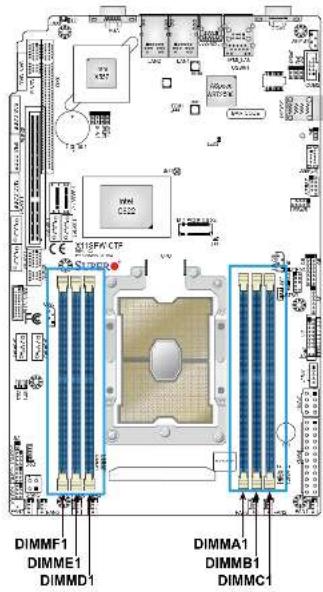

DIMM Module Population Sequence 34
DIMM Installation 35
DIMM Removal 35
PCI Expansion Card Installation 36
Daughter Cards....38
Motherboard Battery 38
3.4 Chassis Components 39
Front Bezel....39
Hard Drives 39
Hard Drive Carrier Indicators....40
System Cooling 42
Installing Fans....42
Checking the Airflow 43
Power Supply 44
Power Supply Failure 44
Data Cables....46
4.1 Power Connections....46
4.2 Front Control Panel 48

Chapter 4 Motherboard Connections

PrefaceSuperServer 1

4.3 Ports and Headers ....50

Rear I/O Ports 50

Connectors 53

Headers....54

4.4 Jumpers....57

Explanation of Jumpers....57

4.5 LED Indicators....59

Chapter 5 Software

5.1 OS Installation....61

Installing the Windows OS for a RAID System ....61

Installing Windows to a Non-RAID System 61

5.2 Driver Installation....62

5.3 SuperDoctor ^® 5....63

5.4 IPMI....64

5.5 RAID Utility 64

Chapter 6 BIOS

6.1 Introduction....65

Starting the Setup Utility 65

6.2 Main Menu....66

6.3 Advanced Setup Configurations....68

6.4 Event Logs 92

6.5 IPMI 94

6.6 Security....97

6.7 Boot 101

6.8 Save & Exit....104

Appendix A BIOS Error Codes

Appendix B Standardized Warning Statements for AC Systems

Appendix C System Specifications

Appendix D UEFI BIOS Recovery

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

This chapter provides a brief outline of the functions and features of the 1019P-WTR. The 1019P-WTR is based on the X11SPW-TF motherboard and the SC116AC2-R504WB chassis. In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

Main Parts List
Description Part Number Quantity
Air Shroud MCP-310-81305-0B 1
1U Passive Heat Sink with Narrow Retention Mechanism SNK-P0067PS 1
SATA round 59-cm 26AWG cable. CBL-0207L 2
8-pin to 8-pin SGPIO SATA round cable, 61.5-cm, 26AWG cable	CBL-CDAT-0662	1
Internal side ext (right) mini-SAS to mini-SAS HD 65-cm, 30AWG cable	CBL-SAST-0657	1
cross-over mini-SAS HD to 4 SATA, 75-cm, 30AWG cable	CBL-SAST-0591	1
40x56-nm, 4 Pin PWM cooling fans	FAN-0101L4	5
Black gen 3rd hot-swap 2.5" HDD tray	MCP-220-00047-08 10
10-Port 1U Backplane for 8x2.5" SAS3/SATA3 HDD/SSD and 2xSAS2/SATA3 HDD/SSD or NVMe SSD	BPN-SAS3-116A-N2	1
Riser Card	RSC-R1UW-2E16	1
Riser Card	RSC-R1UW-E8R	1
Rail Set	MCP-290-00063-DN	1 set

1.2 Unpacking the System

Inspect the box the SuperServer 1019P-WTR was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the server. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix B.

1.3 System Features

The following table provides you with an overview of the main features of the 1019P-WTR. Please refer to Appendix C for additional specifications.

System Features

Motherboard

X11SPW-TF

Chassis

SC116AC2-R504WG

CPU

Intel® Xeon® 81xx/61xx/51xx/41xx/31xx series with Thermal Design Power (TDP) of up to 205W and 28-coresNote: The X11SPW-TF motherboard does not support FPGA or Fabric processors.

Socket Type

Socket PD-LGA3647

Memory

Up to 192 GB of RDIMM, 384 GB of LRDIMM, and 384 GB of 3DS LRDIMM DDR4 (288-pin) ECC memory with speeds of up to 2666 MHz

Chipset

Intel PCH C622 chipset

Expansion Slots

Two (2) full-height, full-length PCI-E 3.0 x16One (1) low-profile, half-length PCI-E 3.0 x8

Hard Drives

Up to len (10) 2.5" drives and one (1) M.2 connector x4 (22110/2280)

Power

Dual 500 Walls power supplies

Other

ASpeed AST 2500 BMC

Form Factor

1U Rack mount server

Dimensions

(WxHxD) 17.2 x 1.7 x 23.5 in. (437 x 43 x 597 mm)

1.4 Server Chassis Features

Control Panel

There are two buttons located on the front of the chassis: a power on/off button and a UID button. In addition there are five LEDs. The locations of these buttons and LEDs on the control panel are described below. See Chapter 4 for details on the control panel connections.

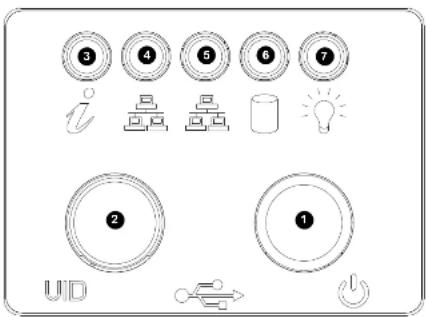

③ ④ ⑤ ⑥ ⑦ i ② ① UID

Figure 1-1. Control Panel View

Control Panel Features
Item Feature Description
1 Power Button		The main power switch is used to supply or remove power from the power supply to the server system. Turning off system power with this button removes the main power but keeps standby power supplied to the system. Therefore, you must analog system before servicing.
2 UID Button		Depressing the UID (until identifier) button illuminates an LED on both the front and rear of the chassis for easy system location in large stock configurations.The LED will remain on until the button is pushed a second time. Another UID button on the rear of the chassis serves the same function. See the table in Figure 3-1 for descriptions of UID LED states.
3 Universal Information LED See the following table for the status shown by this LED.
4 NIC1 LED Indicates network activity on GLAN1 when flashing.
5 NIC2 LED Indicates network activity on GLAN2 when flashing.
6 HDD LED		Indicates IDE channel activity. SAS2/SATA drive and/or DVD-ROM drive activity when flashing.
7 Power LED		Indicates power is being supplied to the system's power supply units.This LED should normally be illuminated when the system is operating.

Universal Information LED
Status Description
Continuously on and red An	overheat condition has occurred. (This may be caused by cable congestion.)
Blinking red (1 Hz) Fan failure: check for an inoperative fan.
Blinking red (0.25 Hz) Power failure: check for an inoperative power supply.
Solid blue Local UID has been activated. Use this function to locate the server in a rack environment.
Blinking blue (300 msec)	Remote UID has been activated. Use this function to locate the server from a remote location.

SuperServer 1019P-WTR User's Manual Chapter 1: Introduction

Front Features

The SC116AC2-R504WB is a mini 1U chassis. See the illustration below for the features included on the front of the chassis.

Figure 1-2. Chassis Front View

Front Chassis Features
Item Feature Description
1 Hot-swap drive bays (10) Drive bays for hot-swap 2.5" drive carriers
2	Control Panel	Control panel for the server. See the Control Panel section above for details.

Rear Features

The illustration below shows the features included on the rear of the chassis.

Figure 1-3. Chassis Rear View

Rear Chassis Features
Item Feature Description
1 Power Supplies Two hot-susposable redundant power supplies are available for use.
2 Rear I/O ports See Motherboard Layout below for details on the rear I/O ports.
3 Rear PCI-E Expansion Slot		Three slots are provided in the chassis rear for accessing a PCI-E Expansion cards using a riser card.

1.5 Motherboard Layout

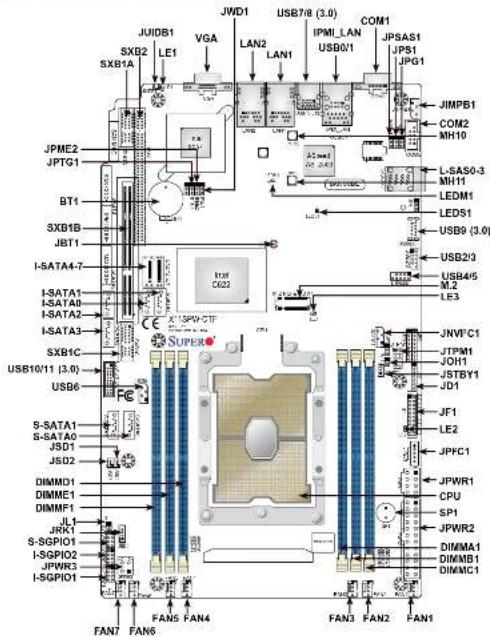

Below is a layout of the X11SPW-TF with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4.

JUIDB1 VGA LAN2 LAN1 JWD1 USB7/8 (3.0) COM1 IPMI_LAN USB6/1 JPSAS1 JPS1 JPG1 JMPB1 COM2 MH10 JPME2 JPTG1 BT1 SXB1B JBT1 I-SATA4-7 I-SATA1 I-SATA0 I-SATA2 I-SATA3 SXB1C USB10/11 (3.0) USB6 S-SATA1 S-SATA0 JSD1 JSD2 DIMMD1 DIMME1 DIMMF1 JL1 JKR1 S-SGPIO1 I-SGPIO2 JPWR3 I-SGPIO1 FAN7 FAN6 FAN5 FAN4 FAN3 FAN2 FAN1 INTX CE22 SUPER JNVI*CI JTPM1 JOH1 JSTBY1 JD1 JF1 LE2 JPFC1 JPWR1 CPU SP1 JPWR2 DIMMA1 DIMMB1 DIMMC1

Figure 1-4. Motherboard Layout

SuperServer 1019P-WTR User's Manual Chapter 1: Introduction

Quick Reference Table
Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JRME2 ME Manufacturing Mode Pins 1-2 (Normal)
JPS1 SAS 3.0 Enable/Disable Pins 1-2 (Enabled)
JPSAS1 SAS HDD Enable/Disable		Pins 1-2 (Enabled)
JPTG1	LAN Enable/Disable	Pins 1-2 (Enabled)
JWD1	Watch Dog Timer	Pins 1-2 (Reset)
LED	Description	Status
LE1	Unit Identifier (UID) LED	Solid Blue: Unit Identified
LE2	Onboard Power LED	Solid Green: Power On
LE3	M 2 LED	Blinking Green: Device Working
LEDM1	BMC Heartboat LED	Blinking Groom: BMC Normal
LEDS1	SAS Activity LED	Blinking Green: SAS Active
		Solid Red: SAS Error

Connector	Description
B11	Onboard Battery
COM1, COM2	COM Port, COM Header
FAN1 ~ FAN7	System Fan Headers
IPMI_LAN	Dedicated IPMI LAN Port
I-SATA0-7	Inters PCH SATA 3.0 Ports (with RAID 0, 1, 5, 10)
I-SCPIO1, I-SCPIO2, S-SCPIO1	Serial Link General Purpose I/O Headers
JD1	Speaker/Power LED Indicator (Pins 1-3; Power LED, Pins 4-7; Speaker)
JF1	Front Control Panel Header
JIPMS1	4-pin SMC External FC Header (for an IPMI card)
JL1	Chassis Intrusion Header
JKWFC1	NVMe FC Header
JOH1	Overheat LED Header
JPYC1	Power System Management Bus (SMB) I2C Header
JPWR1	8-pin 12V DC Power Connector for CPU (Required)
JPWR2	24-pin A1X Power Connector
JPWR3	4-pin 12V Power Connector for GPU Card (Requires an extra 12V power at up to 75W)
JKX1	Intel RAID Key Header
JSD1, JSD2	SATA DOM Power Connectors
JSTBY1	Standby Power Header
JTPM1	Trusted Platform Module (IPM)Port 80 Connector
JUIDB1	Unit Identifier (UID) Switch

Note: Table is continued on the next page.

Connector	Description
LAN1, LAN2	10GIE LAN Ports
L-SAS0-3	Four SAS 3.0 Ports (with RAID 0, 1, 10) (X11SPW-CTF only)
M.2	M.2 PCI-E 3.0 X4 or SATA 3.0 Slot
MH10, MH11	M.2 Mounting Holes
SP1	Internal Speaker/Duzzer
S-SATA0-1	SATA 3.0 Ports with SATA DOM Power
5XB'A, 5XB1B, 5XB1C	Supermicro Proprietary W/O Left Add-on Card Slot
5XB2	Supermicro Proprietary W/O Right Add-on Card Slot
USB01	Back Panel Universal Serial Bus (USB) 2.0 Ports
USB2/3, USB4/5	Front Accessible USB 2.0 Headers
USB6	USB 2.0 Header (Not customized for the front panel)
USB7/9	Back Panel USB 3.0 Ports
USB9	USB 3.0 Type-A Header
USB10/11	Front Accessible USB 3.0 Header
VGA	VGA Port
        AV["C622 X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]
    end

    subgraph System Power
        AW["VCCP0 12v VR13 5+1 PHASE 205W"]
        AX["VDDRIV 2133/2666"] --> AY["VCCP0"]
        AZ["VCCP0"] --> BA["VCCP0"]
        BB["DMI3"] --> BC["DMI3"]
    end

    subgraph System Power
        BD["SATA"] --> BE["SATA"]
        BF["SATA-DOM"] --> BG["SATA-DOM"]
    end

    subgraph System Power
        BH["USB"] --> BI["USB 2.0"]
        BJ["USB 3.0"] --> BK["USB 3.0"]
    end

    subgraph System Power
        BL["USB"] --> BM["USB 2.0"]
        BN["USB 3.0"] --> BO["USB 3.0"]
    end

    subgraph System Power
        BP["USB"] --> BQ["USB 2.0"]
        BR["USB 3.0"] --> BS["USB 3.0"]
    end

    subgraph System Power
        BT["USB"] --> BU["USB 2.0"]
        BV["USB 3.0"] --> BW["USB 3.0"]
    end

    subgraph System Power
        BX["USB"] --> BY["USB 2.0"]
        BZ["USB 3.0"] --> CA["USB 3.0"]
    end

    subgraph System Power
        CB["USB"] --> CC["USB 2.0"]
        DD["USB 3.0"] --> DE["USB 3.0"]
    end

    subgraph System Power
        EF["SATA"] --> GF["SATA"]
        GH["SATA-DOM"] --> GF["SATA"]
    end

    subgraph System Power
        IG["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        JH["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        KJ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        LQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        MZ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        NQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        OQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        PQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        QX["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        RY["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        SB["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BTQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BUQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        VQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        WQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        XQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        YQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ZQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AAQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ABQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ACQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ADQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AEQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AFQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AGQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AHQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AIQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AJQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AKQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ALQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AMQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ANQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AOQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        APQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AQS["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ARQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ASQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        ATQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AUQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AVQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AWQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AXQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AYQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        AZQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BAQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BBQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BCQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BDQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BEQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BFQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BGQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BHQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BIQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BJQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BKQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BLQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BNQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BOQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BPQ["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BQX["SATA"] --> GF["SATA"]
    end

    subgraph System Power
        BQY["X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]
        BQX --> C["PCH C622 X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]
        BQY --> D["PCH C622 X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]
        BQX --> E["PCH C622 X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]
        BQY --> F["PCH C622 X8 UPLINK NO QAT 2*10G+2*1G(-17W)"]

    subgraph System Power
        GND["PCI-E X8 G3"] & GND[GPI-X8 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, PCI-E X16 G3, CPI-E X8 G3 & GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-GPI-SI, SPI, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, Com, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, COM, PCHEX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPX:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPXI:SPEX:SPXE:
      BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:BCA:AFCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCBCCC(B) : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX : SPX :
      BCA_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_75_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7L_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7U_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7V_BCM_7U_A/BC

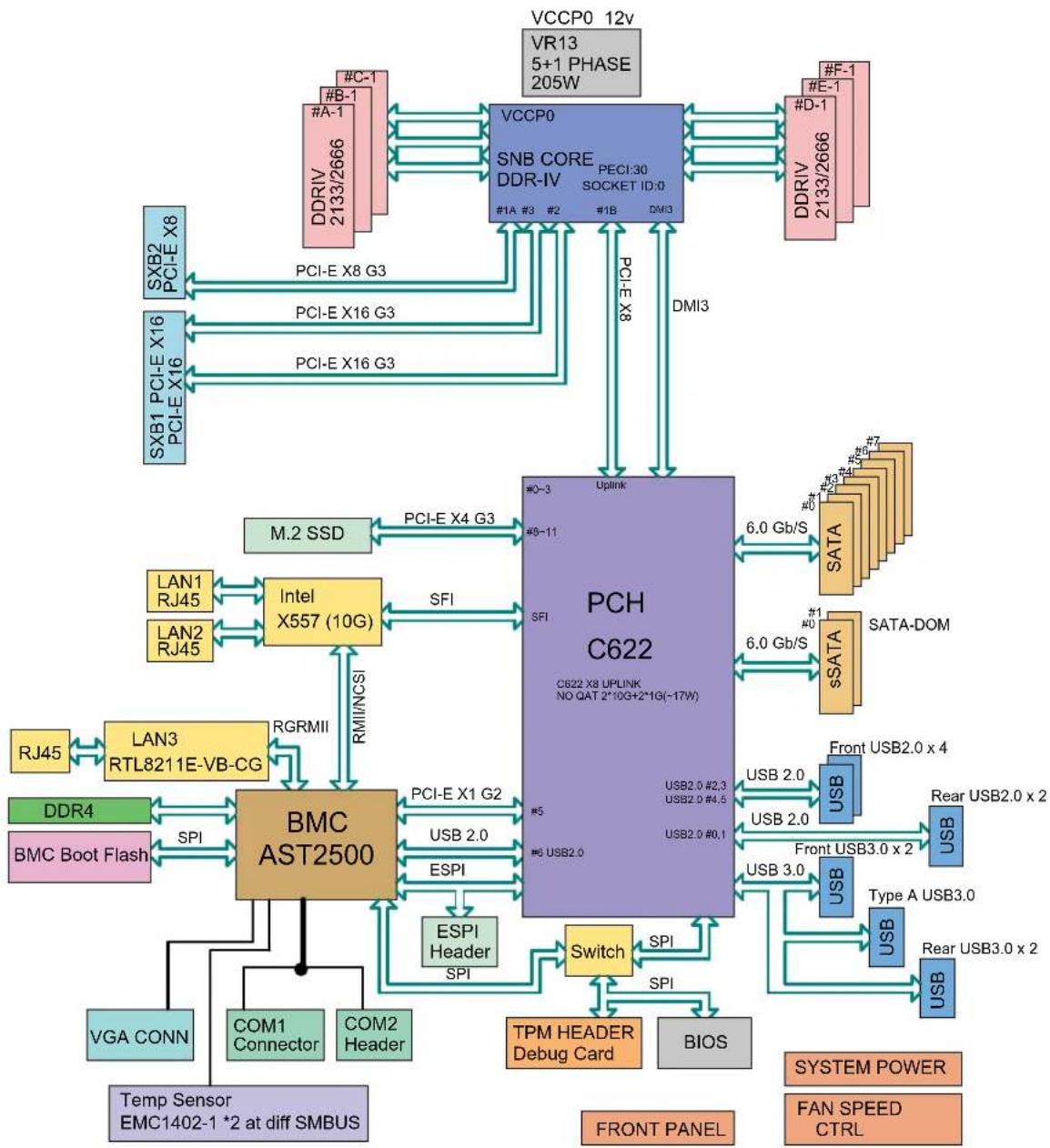

Figure 1-5. Intel PCH C622 Chipset: System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the System Specifications appendix for the actual specifications of your motherboard.

Chapter 2

Server Installation

2.1 Overview

This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges and keep them in anti-static bags when not in use.

2.2 Preparing for Setup

The box in which the system was shipped should include the rackmount hardware needed to install it into the rack. Please read this section in its entirety before you begin the installation.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.
• Leave enough clearance in front of the rack so that you can open the front door completely (\~25 inches) and approximately 30 inches of clearance in the back of the rack to allow sufficient space for airflow and access when servicing.
• This product should be installed only in a Restricted Access Location (dedicated equipment rooms, service closets, etc.).
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Rack Precautions

- Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

• In single rack installations, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.
• Always make sure the rack is stable before extending a server or other component from the rack.
• You should extend only one server or component at a time - extending two or more simultaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Appendix B.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components at the bottom of the rack first and then work your way up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges and voltage spikes and to keep your system operating in case of a power failure.
• Allow any drives and power supply modules to cool before touching them.
• When not servicing, always keep the front door of the rack and all covers/panels on the servers closed to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (TMRA).

Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

2.3 Installing the Rails

This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure differs slightly. You should also refer to the installation instructions that came with the rack unit you are using.

These rails fit a rack between 26" and 33.5" deep.

Identifying the Sections of the Rack Rails

The chassis package includes a rail set includes the outer rail pieces that attach to the rack

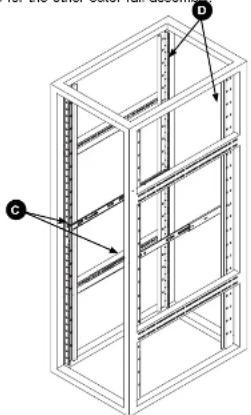

Assembling the Outer Rails

Each outer rail comes in two sections that must be assembled before mounting onto the rack.

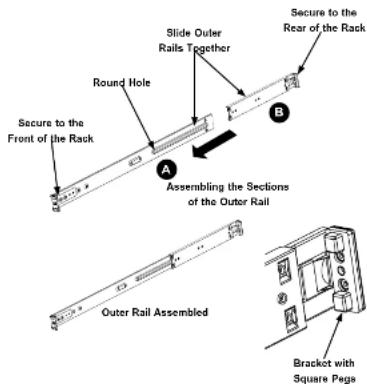

Assembling the Outer Rails

1. Identify the left and right outer rails by examining the ends, which bend outward. Match the left front outer rail with the left rear outer rail and the same for the right rails.
2. Align the round post in the rear rail (B) with the round hole at the end of the slot in the front rail (A), and slide the front section into the rear section.

Secure to the Rear of the Rack Slide Outer Rails Together Round Hole Secure to the Front of the Rack Assembling the Sections of the Outer Rail Outer Rail Assembled Bracket with Square Pegs

Figure 2-1. Assembling the Outer Rails

Slide rail mounted equipment is not to be used as a shelf or a work space.

Warning: do not pick up the server with the front handles. They are designed to pull the system from a rack only.

Installing the Outer Rails onto the Rack

Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes. If you have an older rack with round holes, these brackets must be removed, and you must use screws to secure the rail to the rack.

Outer Rail Installation

1. Align the square pegs on the front end of the rail with the square holes on the front of the rack (C). Push the rail into the rack until the quick release bracket snaps into place, securing the rail to the rack. Keep the rail horizontal.
2. Adjust the rail to reach just past the full depth of your rack.
3. Align the square pegs on the rear end of the rail to the holes on the rack (D) and push the rail into the rack until the quick release bracket snaps into place, securing the rail to the rack.
4. Repeat the procedure for the other outer rail assembly

Isometric line drawing of a multi-story building facade with labeled components (no text or symbols)

Figure 2-2. Installing the Outer Rails to the Rack

Note: The figure above is for illustrative purposes only. Always install servers at the bottom of the rack first.

Warning: Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

2.4 Installing the Server into a Rack

You should now have rails attached to both the chassis and the rack. The next step is to install the server into the rack.

Installing the Chassis into a Rack

1. Confirm that chassis includes the inner rails and inner rail extensions. Also confirm that the outer rails are installed on the rack.
2. Align the chassis inner rails with the front of the out rails on the rack.
3. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting). When the server has been pushed completely into the rack, you should hear the locking tabs click into position.
4. (Optional) Insert and tighten the thumbscrews that hold the front of the server to the rack.

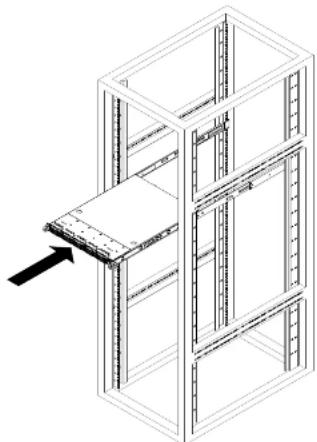

Isometric line drawing of a multi-level storage unit with a central shelf and an arrow indicating direction (no text or symbols)

Figure 2-3. Installing the Server into a Rack

Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first.

Installing the Chassis into a Telco Rack

To install the chassis into a Telco or post-style rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back. If a bezel is included on your server, remove it. Then attach the two front brackets to each side of the chassis, then the two rear brackets positioned with just enough space to accommodate the width of the telco rack. Finish by sliding the chassis into the rack and tightening the brackets to the rack.

Isometric line drawing of a vertical shelf with a horizontal shelf and a small rectangular component (no text or symbols)

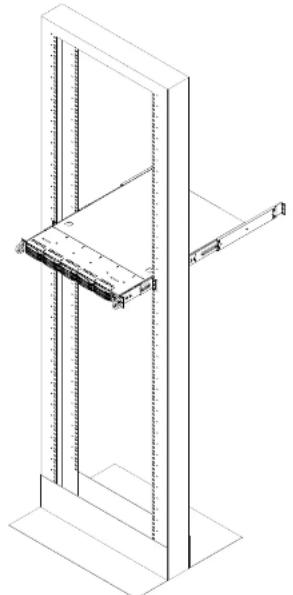

Figure 2-4. Installing the Server into a Telco Rack

Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first.

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Use the following procedure to ensure that power has been removed from the system. This step is necessary when removing or installing non hot-swap components or when replacing a non-redundant power supply.

1. Use the operating system to power down the system.

2. After the system has completely shut-down, disconnect the AC power cord(s) from the power strip or outlet. (If your system has more than one power supply, remove the AC power cords from all power supply modules.)

3. Disconnect the power cord(s) from the power supply module(s).

3.2 Accessing the System

The SC116AC2-R504WB features a removable top cover, which allows easy access to the inside of the chassis.

Removing the Top Cover

1. Begin by removing power from the system as described in Section 3.1.
2. Remove the screws securing the cover to the chassis.
3. Slide the cover toward the rear of the chassis. See Figure 3-1.
4. Lift the cover from the chassis.

Warning: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow for proper airflow and to prevent overheating.

3.3 Motherboard Components

Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area of the CPU or CPU socket. Also, improper CPU installation or socket misalignment can cause serious damage to the CPU or motherboard which may result in RMA repairs. Please read and follow all instructions thoroughly before installing your CPU and heatsink.

Follow the procedures in this section to install a processor (CPU) and heatsink to the motherboard.

Notes:

• Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.
• Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components. Please note that the processor and heatsink should be assembled together first to form the Processor Heatsink Module (PHM), and then install the entire PHM into the CPU socket.
• When you receive a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately.
• If you bought a CPU separately, make sure that you use an Intel-certified multi-directional heatsink only.
  • Refer to the Supermicro website for updates on CPU support.

The Intel Xeon 81xx/61xx/51xx/41xx/31xxSeries Processor

SKX Processor

Note: All graphics, drawings, and pictures shown in this manual are for illustration only. The components that came with your machine may or may not look exactly the same as those shown in this manual.

Overview of the Processor Socket Assembly

The processor socket assembly contains 1) the Intel SKX processor, 2) the processor clip,

3) the dust cover, and 4) the CPU socket.

1. SKX Processor

2. Processor Clip (the plastic processor package carrier used for the CPU)

3. Dust Cover

4. CPU Socket

Technical line drawing of a mechanical housing or mounting bracket with mounting holes and internal components (no text or symbols)

Note: Be sure to cover the CPU socket with the dust cover when the CPU is not installed.

Overview of the Processor Heatsink Module (PHM)

The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a processor clip, and 3) the SKX processor.

1. Heatsink

2. Processor Clip

3. SKX Processor

Processor Heatsink Module (PHM)

(Bottom View for a non-F Model)

Attaching the Non-F Model Processor to the Processor Clip to Create the Processor Carrier Assembly

To properly install the CPU into the processor clip, please follow the steps below:

1. Locate pin 1 (notch A), which is the triangle located on the top of the processor clip. Also locate notch B and notch C on the processor clip.
2. Locate pin 1 (notch A), which is the triangle on the substrate of the CPU. Also, locate notch B and notch C on the CPU as shown below.
3. Align pin 1 (the triangle on the substrate) of the CPU with pin 1 (the triangle) of the processor clip. Once they are aligned, carefully insert the CPU into the processor clip by sliding notch B of the CPU into notch B of the processor clip, and sliding notch C of the CPU into notch C of the processor clip.
4. Examine all corners of the CPU to ensure that it is properly sealed on the processor clip. Once the CPU is securely attached to the processor clip, the processor carrier assembly is created.

Note: Please exercise extreme caution when handling the CPU. Do not touch the CPU LGA-lands to avoid damaging the LGA-lands or the CPU. Be sure to wear ESD gloves when handling components.

CPU Interface (CDD) and CPU HLD (CDD) connection A B C E A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82 A83 A84 A85 A86 A87 A88 A89 A90 A91 A92 A93 A94 A95 A96 A97 A98 A99 A100

Allow Natch C in latch on to CPU Allow Natch B to latch on to CPU

Processor Carrier Assembly (with CPU mounted on the Processor Clip)

Attaching the Non-F Model Processor Carrier Assembly to the Heatsink to Form the Processor Heatsink Module (PHM)

After you have made a processor carrier assembly by following the instructions on the previous page, please follow the steps below to mount the processor carrier assembly onto the heatsink to create the Processor Heatsink Module (PHM):

1. Locate "1" on the heatsink label and the triangular corner next to it on the heatsink. With your index finger pressing against the screw at this triangular corner, carefully hold and turn the heatsink upside down with the thermal-grease side facing up. Remove the protective thermal film if present, and apply the proper amount of the thermal grease as needed. (Skip this step if you have a new heatsink because the necessary thermal grease is pre-applied in the factory.)

2. Holding the processor carrier assembly at the center edge, turn it upside down. With the thermal-grease side facing up, locate the hollow triangle located at the corner of the processor carrier assembly ("a" in the graphic). Note a larger hole and plastic mounting clicks located next to the hollow triangle. Also locate another set of mounting clicks and a larger hole at the diagonal corner of the same (reverse) side of the processor carrier assembly ("b" in the graphic).

3. With the back of the heatsink

and the reverse side of the processor carrier assembly facing up, align the triangular corner on the heatsink ("A" in the graphic) against the mounting clips next to the hollow triangle ("a") on the processor carrier assembly.

1. Also align the triangular corner ("B") at the diagonal side of the heatsink with the corresponding clips on the processor carrier assembly ("b").
2. Once the mounting clips on the processor carrier assembly are properly aligned with the corresponding holes on the back of the heatsink, securely attach the heatsink to the processor carrier assembly by snapping the mounting clips at the proper places on the heatsink to create the processor heatsink module (PHM).

Non-Fabric CPU and Processor Clip (Upside Down) Triangle on the CPU Triangle on the Processor Clip Heatsink (Upside Down) On Locations of (C, D), the notches soap onto the heat sink's mounting holes On Locations (A, B), the nonches soap onto the heat sink's sides Make sure Mounting Notches soap into place

Preparing the CPU Socket for Installation

This motherboard comes with the CPU socket pre-assembled in the factory. The CPU socket contains 1) a dust cover, 2) a socket bracket, 3) the CPU (P0) socket, and 4) a back plate. These components are pre-installed on the motherboard before shipping.

Technical line drawing of a mechanical component with mounting holes and a central rectangular feature (no text or symbols)

CPU Socket wDust Cover On

Removing the Dust Cover from the CPU Socket

Remove the dust cover from the CPU socket, exposing the SKX socket and socket pins as shown on the illustration below.

Note: Do not touch the socket pins to avoid damaging them, causing the CPU to malfunction.

Dusk Cover Remove the dust cover from the CPU socket. Do not touch the socket pins! Socket Pins

SKX CPU Socket

Installing the Processor Heatsink Module (PHM)

Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 26, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below:

1. Locate the triangle (pin 1) on the CPU socket, and locate the triangle (pin 1) at the corner of the PHM that is closest to "1." (If you have difficulty locating pin 1 of the PHM, turn the PHM upside down. With the LGA-lands side facing up, you will note the hollow triangle located next to a screw at the corner. Turn the PHM right side up, and you will see a triangle marked on the processor clip at the same corner of hollow triangle.)
2. Carefully align pin 1 (the triangle) on the the PHM against pin 1 (the triangle) on the CPU socket.
3. Once they are properly aligned, insert the two diagonal oval holes on the heatsink into the guiding posts.
4. Using a T30 Torx-bit screwdriver, install four screws into the mounting holes on the socket to securely attach the PHM onto the motherboard starting with the screw marked "1" (In the sequence of 1, 2, 3, and 4).

Note: Do not use excessive force when tightening the screws to avoid damaging the LGA-lands and the processor.

Oval C Oval D Large Guiding Post Small Guiding Post Printed Triangle Mounting the Processor Heatsink Module into the CPU socket (on the motherboard) Use a torque of 12 lbf T30 Torx Driver #1 #2 #3 Tighten the screws in the sequence of 1, 2, 3, 4 (top 3 quarter view)

Removing the Processor Heatsink Module (PHM) from the Motherboard

Before removing the processor heatsink module (PHM), unplug the power cord from the power outlet.

1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with the screw marked #4 (in the sequence of 4, 3, 2, 1).
2. After all four screws are removed, wiggle the PHM gently and pull it up to remove it from the socket.

Note: To properly remove the processor heatsink module, be sure to loosen and remove the screws on the PHM in the sequence of 4, 3, 2, 1 as shown below.

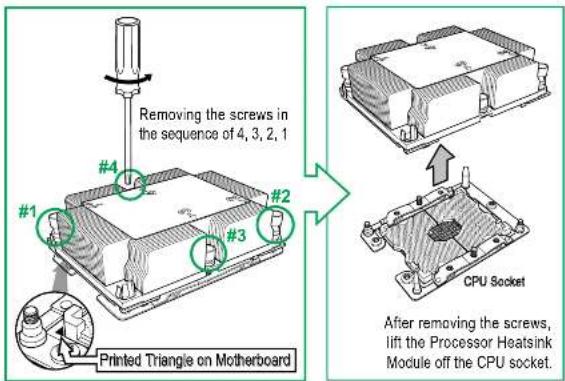

Removing the screws in the sequence of 4, 3, 2, 1 #1 #2 #3 #4 Printed Triangle on Motherboard CPU Socket After removing the screws, lifts the Processor Heatsink Module off the CPU socket.

Memory Installation

Memory Support

The X11SPW-TF supports up to 192 GB of RDIMM, 384 GB of LRDIMM, and 768 GB of 3DS LRDIMM DDR4 (288-pin) ECC memory with speeds of up to 2666 MHz in six (6) memory slots.

Note: Check the Supermicro website for possible updates to memory support. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules
Type	Ranks Per DIMM and Data Width	DIMM Capacity (GB)		Speed (MT/s); Voltage (V); Slots per Channel (SPC) and DIMMs per Channel (DPC)
				1 Slot per Channel	2 Slots per Channel
		DRAM Density 1 DPC		1 DPC 2 DPC
		4 GB 8 GB 1.2 V 1.2		V 1.2 V
RDIMM SR	4 GB 18 GB 2666 2666 2666
RDIMM SR	8.4 GB 8 GB	2666	2666
RDIMM DR	8.8 GB 16 GB 2666 2666 2666
RDIMM	DRx4	16 GB	32 GB	2666	2666	2666
RDIMM 3DS	QRx4	NA	2H-94 GB	2666	2666	2666
LRDIMM	8Rx4 NA	4H-126 GB	2666	2666 2666 2666
	QRx4	32 GB	84 GB	2666	2666	2666
LRDIMM 3DS	QRx4	NA	2H-94 GB	2666	2666	2666
	8Rx1 NA	4H-126 GB	2666	2666 2666 2666

Note: Visit the product page on the Supermicro website for possible updates to memory support (www.supermicro.com).

DIMM Module Population Sequence

When installing memory modules, the DIMM slots must be populated in the following order: DIMMA1, DIMMD1, DIMMB1, DIMME1, DIMMC1, DIMMF1.

• Always use DDR4 memory of the same type, size and speed.
- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The motherboard will support odd-numbered modules (1 or 3 modules installed). However, to achieve the best memory performance, a balanced memory population is recommended.

DIMF1 DIMME1 DIMMD1 DIMMA1 DIMMB1 DIMMC1

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots in the following order: DIMMA1, DIMMD1, DIMMB1, DIMME1, DIMMC1, DIMMF1. For the best performance, please use the memory modules of the same type and speed.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Press the notches on both ends of the module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

DIMM Removal

Press both release tabs on the ends of the DIMM module to unlock it. Once the DIMM module is loosened, remove it from the memory slot.

Top-down view of a computer motherboard showing CPU socket and drive slots (no text or labels visible)

PCI Expansion Card Installation

The system includes two pre-installed riser cards (RSC-R1UW-E8R for a low-profile PCI-E x8 slot, and RSC-R1UW-2E16, which supports 2x PCI-E x16) that positions expansion cards at a 90-degree angle, allowing them to fit inside the chassis.

Installing PCI Expansion Cards

The riser card has already been pre-installed into the motherboard. Perform the following steps to install an add-on card:

1. Remove the riser card bracket from the chassis by unscrewing only those screws indicated by the screwdriver icon as illustrated in Figure 6-7.
2. Lift the riser card bracket from the chassis.
3. Install the riser card on the bracket using the two screws provided.
4. Open the latch on the end of the bracket.
5. Install the expansion card by sliding the card into the appropriate slot in the riser card, and then close the bracket latch over the end of it.
6. Install the entire assembly into the appropriate slot on the serverboard while aligning the bracket in the rear of the chassis.

Isometric technical drawing of a server rack with internal components and ventilation ducts (no text or labels)

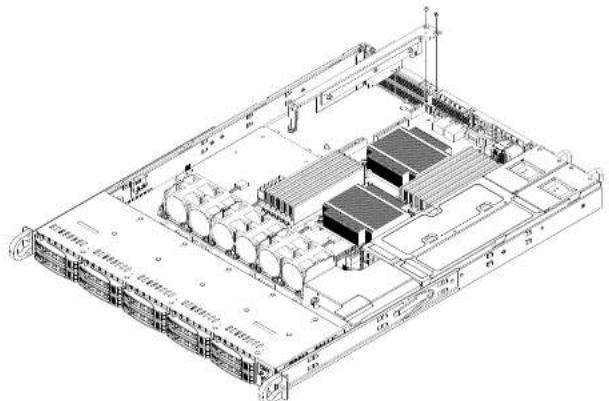

Figure 3-1. Removing the Riser Bracket

Technical line drawing of a server rack with internal components and ventilation ducts (no text or labels)

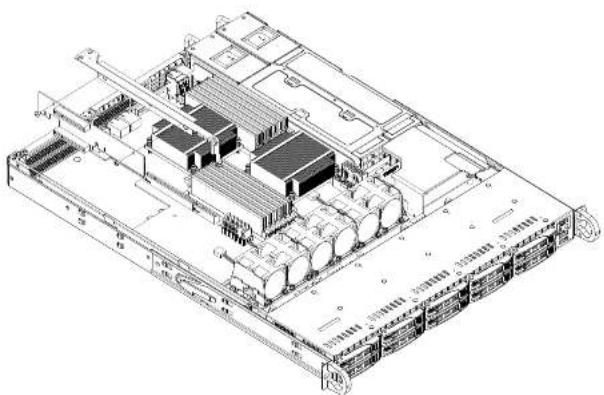

Figure 3-2. Installing Expansion Cards

Note: The figures above are intended to show the PCI-E expansion card installation locations only. The serverboard may differ from that found in the 1019P-WTR.

Daughter Cards

An IPMI card can be installed into the motherboard for remote management capabilities. See the board layout for the location of the daughter board connector.

Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

Begin by removing power from the system as described in section 3.1.

1. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
2. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

LITHUM BATTERY

[Non-Text]

BATTERY HOLDER

Figure 3-3. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

3.4 Chassis Components

Front Bezel

If your system has an optional bezel attached to the front of the chassis, you will need to remove it to gain access to the drive bays.
1. Unlock the front of the chassis and then press the release knob.
2. Carefully remove the bezel with both hands. A filter located within the bezel can be removed for replacement/cleaning.

It is recommended that you keep a maintenance log to list filter cleaning/replacement dates, since its condition affects the airflow throughout the whole system.

Hard Drives

Your server may or may not have come with hard drives installed. Up to ten (10) 2.5" hard drives are supported by the chassis.

The SAS/SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. (Both procedures may be done without removing power from the system.)

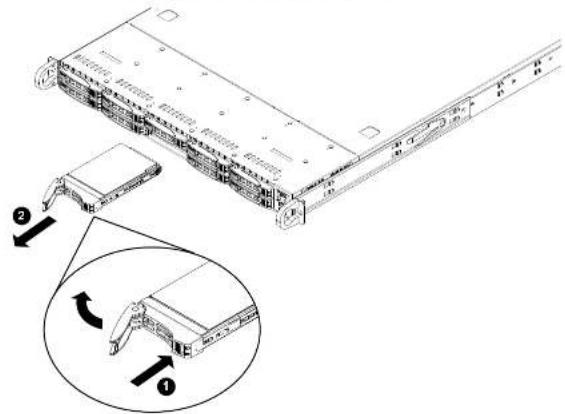

Removing a Hot-Swap Drive Carrier

1. Push the release button on the carrier.
2. Swing the handle fully out.
3. Grasp the handle and use it to pull the drive carrier out of its bay.

Mounting a Drive in a Drive Carrier

1. To add a new drive, install it into the carrier with the printed circuit board side facing down so that the mounting holes align with those in the carrier.
2. Secure the drive to the carrier with the screws provided, then push the carrier completely into the drive bay. You should hear a 'click' when the drive is fully inserted. This indicates that the carrier has been fully seated and connected to the midplane, which automatically makes the power and logic connections to the hard drive.

Removing a Drive from a Drive Carrier

1. Remove the screws that secure the hard drive to the carrier and separate the hard drive from the carrier.
2. Replace the carrier back into the drive bay.

Note: Your operating system must have RAID support to enable the hot-plug capability of the hard drives.

Note: Refer to the following FTP site for RAID setup guidelines: ftp://ftp.supermicro.com/driver/SAS/LSI/LSI_SAS_EmbMRAID_SWUG.pdf and Supermicro's web site for additional information http://www.supermicro.com/support/manuals/.

Hard Drive Carrier Indicators

Each hard drive carrier has two LED indicators: an activity indicator and a status indicator. In RAID configurations, the status indicator lights to indicate the status of the drive. In non-RAID configurations, the status indicator remains off. See the table below for details.

	LED Color	State Status
Activity LED	Blue Solid Or	SAS/NVMe drive installed
	Blue Binking	IO activity
Status LED	Red Solid On	Failed drive for SAS/SATA/NVMe with RSTe support
	Red Binking	at 1 Hz Rebutic drive for SAS/SATA/NVMe with RSTe support
	Red Binking	with two sinks and one stop at 1 Hz	Hot spare for SAS/SATA/NVMe with RSTe support
	Red	On for five seconds, then off	Power on for SAS/SATA/NVMe with RSTe support
	Red Binking	at 4 Hz identify drive for SAS/SATA/NVMe with RSTe support
	Green	Solid On Safe to remove NVMe device
	Amoer	Binking at 1 Hz Attention state-do not remove NVMe device

Isometric line drawing of a server rack with mounting holes and ventilation slots (no text or labels)

Figure 3-4. Mounting a Drive in a Carrier

Technical diagram of a server rack with labeled components and directional arrows indicating assembly steps

Figure 3-5. Removing a Drive Carrier

Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www.supemicro.com/products/info/files/storage/SBB-HDDCompList.pdf

Caution: Use caution when working around the hard drive backplane. Do not touch the backplane with any metal objects and make sure no ribbon cables touch the backplane or obstruct the holes, which aid in proper airflow.

Caution: Regardless of how many hard drives are installed, all drive carriers must remain in the drive bays to maintain proper airflow.

System Cooling

Up to six 4-cm counter-rotating fans provide the cooling for the system. Each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions. This counter-rotating action generates exceptional airflow and is effective in dampening vibration levels. The chassis provides two additional open fan housings, where an additional system fan may be added for optimal cooling.

It is very important that the chassis top cover is installed for the cooling air to circulate properly through the chassis and cool the components.

Installing Fans

The SC116 chassis includes five pre-installed fans. One additional open slot is available so that one more fan may be added if additional cooling is required. These fans are NOT redundant, hot-plug, and so must be replaced when they fail.

Fan speed is controlled by system temperature via IPMI. If a fan fails, the remaining fans will ramp up to full speed. Replace any failed fan at your earliest convenience with the same type and model (the system can continue to run with a failed fan).

1. Open the chassis while the system is running to determine which fan has failed. Never run the server for an extended period of time with the chassis open.
2. Turn off the power to the system and unplug the power cord from the power supply.
3. Remove the failed fan's wiring from the fan header on the serverboard.
4. Lift the failed fan from the chassis and pull it completely out.
5. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.
6. Reconnect the fan wires to the same chassis fan header as the previous fan.
7. Power up the system and check that the fan is working properly before replacing the chassis cover.

Technical diagram of a server rack with labeled components and an inset magnified view showing internal structure.

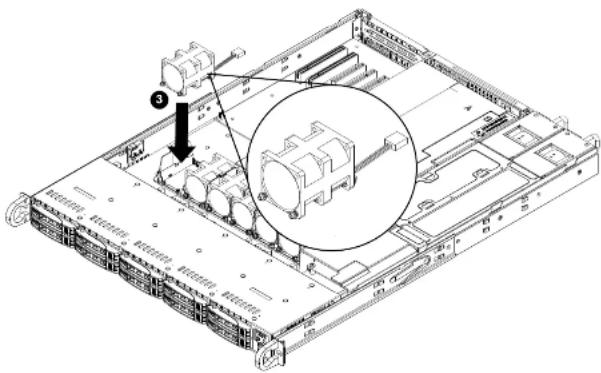

Figure 3-6. Replacing a System Fan

Note: The figure above is intended to show the Fan locations only. The serverboard and chassis may differ from that found in the 1019P-WTR.

Checking the Airflow

Check the Airflow

1. Make sure there are no objects obstructing the airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically.
2. Do not operate the server without hard drives or drive carriers in the drive bays. Use only recommended server parts.
3. Make sure no wires or foreign objects obstruct airflow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.
4. The control panel LEDs inform you of system status. See Chapter 4 System Interface for details on the LEDs and the control panel buttons.

Power Supply

The SC116 chassis comes equipped with two redundant 500 Watts, hot-plug power supplies. These power supplies are auto-switching capable and automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.

The SC116 chassis comes equipped with two redundant 500 Watts, hot-plug power supplies. These power supplies are auto-switching capable and automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.

Power Supply Failure

The SC116 chassis includes a redundant power supply, which allows the server to continue running when one power supply has been removed. Replacement units can be ordered directly from Supermicro.

Replacing the Power Supply

1. Unplug the AC power cord from the failed power supply module (with the RED LED lit up).
2. Push the release tab (on the back of the power supply) as illustrated, then pull the power supply out using the handle provided.
3. Push the new power supply module into the power bay until you hear a click (replace with the same model).
4. Reconnect the power cord to the new module and make sure the GREEN LED is lit up and the power supply fans are rotating..

Release Tab

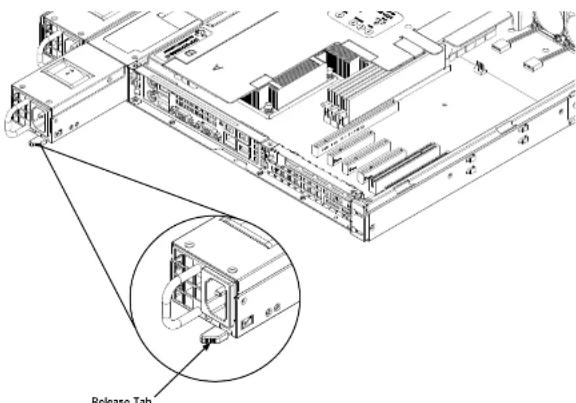

Figure 3-7. Removing/Replacing a Power Supply

Note: The figures above is intended to show the power supply locations only. The chassis and serverboard may differ from that found in the 1019P-WTR.

Chapter 4

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A serverboard layout indicating component locations may be found in Chapter 1.

Please review the Safety Precautions in Chapter 3 before installing or removing components.

Data Cables

The data cables in the system have been carefully routed to maintain airflow efficiency. If you disconnect any of these cables, take care to re-route them as they were originally when reconnecting them.

Important! Make sure the cables do not come into contact with the fans.

4.1 Power Connections

Two power connections on the X11SPW-TF must be connected to the power supply. The wiring is included with the power supply.

• 24-pin Primary ATX Power (JPWR1)
• 8-pin Processor Power (JPWR2)

Important: To provide adequate power to the motherboard, connect the 24-pin and the 8-pin power connectors to the power supply. Failure to do so may void the manufacturer's warranty on your power supply and motherboard.

Chapter 4: Motherboard ConnectionsSuperServer 1

Main ATX Power Connector

The primary power connector (JPWR1) meets the ATX SSI EPS 24-pin specification. You must also connect the 8-pin (JPWR2) processor power connector to your power supply (see below).

ATX Power 24-pin ConnectorPin Definitions
First Definition Find Definition
13 +13 V 1 +3.5V
14 -12V 2 +3.5V
15 COM 3 COM
16 PS ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9.5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.5V

Required Connection

Processor Power Connector

JPW2 must also be connected to the power supply. This connector is used to power the processor(s).

+12V 8-pin Power Pin Definitions
Pin# Definition
1 - 4	Ground
5 - 8	+12V

Power Connector for GPU

JPWR3 is a 4-pin 12V power connector for GPU cards that requires an extra 12V power with up to 75W.

4.2 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

PWR Reset Power Button Reset Button 1 2 Ground Ground 3.3 V 5V Sibby 3.5V Sibby 3.2V Sibby 3.3V Sibby 3.1V Sibby X NM Power Fail LED UID LED NIC2 Active LED NIC1 Active LED HDD LED PWR LED X Ground 10 20

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend mode, press the button for at least 4 seconds. Refer to the table below for pin definitions.

Power ButtonPin Definitions (JF1)

Pins Definition

1 Signal

2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions.

Reset ButtonPin Definitions (JF1)

Pins Definition

3 Reset

4 Ground

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table below for pin definitions.

PWR Fail LEDPin Definitions (JF1)

Pins Definition

5 3.3V

8 Power Fail

UID LED

The UID LED is on pins 7 and 8 of JF1. Connect a cable here to show the UID activity. Refer to the table below for pin definitions.

UID LEDPin Definitions (JF1)

Pins Definition

7.5V Sby

8. UID LED

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. NIC1 LED and NIC2 LED are 2-pin NIC LED headers. Attach NIC LED cables to NIC1 and NIC2 LED indicators to display network activities. Refer to the table below for pin definitions.

LAN1/LAN2 LEDPin Definitions (JF1)
Pins Definition
9/11 Voc
10/12 N	C2 Active LED/NIC1 Active LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of HDD-related activities, including IDE and SATA activities. See the table below for pin definitions.

HDD LEDPin Definitions (JF1)

Pins Definition

13 3.3V Stay

14 HDD LED

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions.

Power LEDPin Definitions (JF1)
Pins	Definition
15	3.3V
16	Ground

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions.

NMI ButtonPin Definitions (JF1)
Pins	Definition
19	Control
20	Ground

4.3 Ports and Headers

Rear I/O Ports

See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

Diagram of a network device rack with labeled ports and connectors

Figure 4-2. Rear I/O Ports

# Description # Description
1. C 3M Port 1 B USB7 (3.0)
2. Dedicated IPMI LAN 7. LAN1
3 USB1 (2.0) 8 LAN2
4 USB0 (2.0) 9 VGA Port
5. USB8 (3.0) 10 UIO Switch

COM Port

There is one COM port (COM1) on the I/O back panel and one COM header (COM2) on the motherboard. See the table below for pin definitions.

VGA Port

The onboard VGA port is located next to LAN Port 2 on the I/O back panel. Use this connection for VGA display.

LAN Ports

Two 10 Gigabit Ethernet ports (LAN1, LAN2) are located on the I/O back panel. In addition, a dedicated IPMI LAN is located above USB ports 0/1 on the back panel. All of these ports accept RJ45 type cables. Please refer to the LED Indicator section for LAN LED information

Unit Identifier Switch/UID LED Indicator

A Unit Identifier (UID) switch and an LED Indicator are located on the motherboard. The UID switch is located at JUID1, which is next to the VGA port on the back panel. The UID LED (LE1) is located next to the UID switch. When you press the UID switch, the UID LED will be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator provides easy identification of a system unit that may be in need of service.

Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com.

UID Switch Pin Definitions
Pin#	Definition
1	Ground
2	Ground
3	Button In
4	Button In

UID LEDPin Definitions
Color	Status
Blue, On	Unit Identified

Universal Serial Bus (USB) Ports

There are two USB 2.0 ports (USB0/1) and two USB 3.0 ports (USB7/8) on the I/O back panel. The motherboard also has three front access USB 2.0 headers (USB2/3, USB4/5, USB6) and one front access USB 3.0 header (USB10/11). The USB9 header is USB 3.0 Type A. The onboard headers can be used to provide front side USB access with a cable (not included).

Back Panel USB 3.0Pin Definitions
Pink Definition PinA Definition
A1 V B/S B1 Power
A2 D- A2 USB 2.0 Differential Pair
A3 D+ B3
A4 Ground B4 Ground of PWR Return
A5 SbA_SSRX-B6 SuperSpeed Receiver
A6 SbA_SSRX-B6 Differential Pair
A7 GN_D_DRAIN B7 Ground for Signal Return
A8 SbA_SSTX-B8 SuperSpeed Transmitter
A9 SbA_SSTX-B9 Differential Pair

Front Panel USB 2.0Header Pin Definitions
Pin# Definition Pin# Definition
1 +5V	2 +5V
3 USB	N 4 USB_N
5 USB	P	6 USB P
7 Ground	8 Ground
9 Key	10	NC

USB Type AHeader Pin Definitions
Pin# Definition Pin# Definition
1 VBUS 2 D-N
3 D-P	4 GND
5 Sida_SSRX-N	6 Sida_SSRX-P
7 GND_DRAIN 8 Sida_SSTX-N
9 Sida_SSTX-P	10	CG
11	CG	12	CG
13	CG

Connectors

Disk-On-Module Power Connector

The Disk-On-Module (DOM) power connectors at JSD1 and JSD2 provide 5V power to a solid-state DOM storage device connected to one of the SATA ports. See the table below for pin definitions.

DOM PowerPin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

SATA Ports

The X11SPW-CTF/-TF has eight I-SATA 3.0 ports and two S-SATA 3.0 ports that are supported by the Intel C622 chipset.

M.2 Slot

M.2 is formerly known as Next Generation Form Factor (NGFF). The M.2 slot is designed for internal mounting devices. The X11SPW-TF motherboard deploys an M key dedicated for SSD devices with the ultimate performance capability in a PCI Express 3.0 X4 interface for native PCI-E SSD support. It can also support SATA devices.

Headers

Fan Headers

There are seven fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management (via Hardware Monitoring) in the BIOS. When using Thermal Management setting, please use all 3-pin fans or all 4-pin fans.

Fan HeaderPin Definitions

Pin Definition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

SGPIO Headers

I-SGPIO1, I-SGPIO2 and S-SGPIO1 (Serial General Purpose Input/Output) headers are used to communicate with the enclosure management chip on the backplane.

SGPIO HeaderPin Definitions
Pin Definition Pin Definition
1 NC 2 NC
3 Ground 4 DATA	Cul
5 Load 6 Ground
7 Clock 8 NC

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available from a third-party vendor. A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. See the table below for pin definitions.

TPMPin Definitions
Pin# Definition Pin# Definition
1 P3V8 6 GND
2	CS_N	7	MOSI
3	Reset	8	NC
4	MISO	9	P3V3 STBY
5 CLK	10 RQ_N

Standby Power

The Standby Power header is located at JSTBY1 on the motherboard. See the table below for pin definitions.

Standby PowerPin Definitions
Pind Definition
1 +5V	Standby
2 Ground
3 No Connection

Power SMB (I²C) Header

A Power System Management Bus (I'C) header at JPFC1 monitors the power supply, fan, and system temperatures. See the table below for pin definitions.

Power SMB HeaderPin Definitions

Pind Definition

1 Clock

2 Data

3 PMBUS_Aerot

4 Ground

5 +3.3V

Internal Speaker/Buzzer

The Internal Speaker/Buzzer (SP1) is used to provide audible indications for various beep codes. See the table below for pin definitions.

Internal BuzzerPin Definitions
Pin# Definition
1 Pos[+]	Beep In
2 Neg[-]	Alarm Speaker

4-pin BMC External I²C Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect a cable to this header to use the IPMB I'C connection on your system. See the table below for pin definitions.

External PC HeaderPin Definitions

Pin Definition

1 Data

2 Ground

3 Clock

4 No Connection

Overheat/Fan Fail LED Header

Connect an LED indicator to JOH1 to display warnings of chassis overheating and fan failure. See the table below for the LED status.

Overheat LED Header Status

State Definition

Solid Overheat

Blinking Fan Fail

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to the header to inform you when the chassis is opened.

Chassis Intrusion Pin Definitions

Pins Definition

1 Intrusion Input

2 Ground

4.4 Jumpers

Explanation of Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s) and power on the system.

Notes: Clearing CMOS will also clear all passwords.

Do not use the PW ON connector to clear CMOS.

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled.

VGA Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enshed

Pins 2-3 Disabled

10Gb LAN Enable/Disable

JPTG1 allows you to enable or disable the 10Gb LAN. The default setting is Enabled.

10Gb LAN Enable/DisableJumper Settings
Jumper Setting Definition
Pins 1-2 Enabled
Pins 2-3 Disabled

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user needs to write a separate application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled

ME Manufacturing Mode

Close JPME2 to bypass SPI flash security and force the system to use the Manufacturing Mode, which will allow you to flash the system firmware from a host server to modify system settings. See the table below for jumper settings.

Manufacturing ModeJumper Settings
Jumper Setting Definition
Pins 1-2 Normal	(Default)
Pins 2-3 Manufacturing Mode

4.5 LED Indicators

LAN LEDs

Two LAN ports (LAN 1 and LAN 2) are located on the I/O back panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables below for more information.

LAN1/2 Activity LED (Right)LED State
Color Status Definition
Green Flashing Active

Dedicated IPMI LAN LEDs

In addition to LAN1 and LAN2, an IPMI LAN is also located on the I/O back panel. The amber LED on the right of the IPMI LAN port indicates activity, while the green LED on the left indicates the speed of the connection. See the table below for more information.

IPMI LAN LEDs
LED	Color-State Definition
Link (left)	Green: SolidAmber: Solid	100 Miois1Gbos
Activity (right)	Amber: Binsang	Active

Onboard Power LED

LE2 is an Onboard Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator
LED Color	Definition
Off	System Off(power cable not connected)
Green	System On

BMC Heartbeat LED

LEDM1 is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning normally. See the table below for the LED status.

BMC Heartbeat LED Indicator
LED Color Definition
Green:Blinking	BMC Normal

Unit ID LED

A rear UID LED indicator at LE1 is located near the UID switch on the I/O back panel. This UID indicator provides easy identification of a system unit that may need service.

UID LEDLED Indicator
LED Color Definition
Blue: On Unit	Identified

M.2 LED

The M.2 LED is located at LE3. When LE3 is blinking, M.2 functions normally. Refer to the table below for more information

M.2 LED State
LED Color Definition
Green:Blinking	Device is working

Chapter 5

Software

After the hardware has been installed, you should install the Operating System (OS), configure RAID settings and install the drivers. Necessary drivers and utilities may be found at ftp://ftp.supermicro.com/driver.

5.1 OS Installation

You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, please refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the Windows OS for a RAID System

1. Insert Microsoft's Windows Setup DVD in the DVD drive and the system will start booting up from the DVD.
2. Insert the USB stick containing Windows drivers to a USB port on the system. Note: for older legacy OS's, please use a method to slipstream the drivers.
3. Select the partition on the drive in which to install Windows.
4. Browse the USB folder for the proper driver files.
5. Choose the RAID driver indicated in the Windows OS Setup screen, then choose the hard drive in which you want to install it.
6. Once all devices are specified, continue with the installation.
7. After the Windows OS installation is completed, the system will automatically reboot.

Installing Windows to a Non-RAID System

1. Insert Microsoft's Windows OS Setup DVD in the DVD-ROM drive and the system will start booting up from the DVD.
2. Continue with the installation. The Windows OS Setup screen will display.
3. From the Windows OS Setup screen, press the key. The OS Setup will automatically load all device files and then continue with the Windows installation.
4. After the installation has completed, the system will automatically reboot.

5.2 Driver Installation

The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro.com. Some of these must be installed, such as the chipset driver.

After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure 5-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

Figure 5-1. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

5.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Naglos to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is admin / admin.

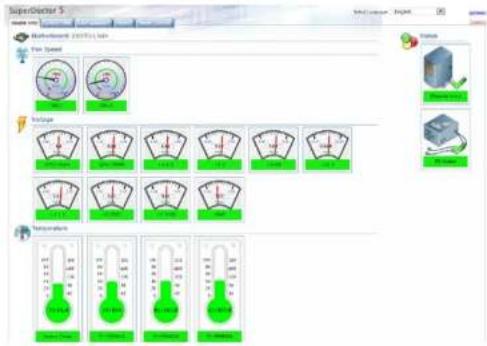

SuperDirector 5 SuperDirector (2019) Ltd. Status Status Temperature Temperature Temperature Temperature

Figure 5-2. SuperDoctor 5 Interface Display Screen (Health Information)

5.4 IPMI

The X11SPW-TF support the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI.

For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

5.5 RAID Utility

Chapter 6

BIOS

6.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the X11SPW-TF motherboard(s). The is stored in a flash chip and can be easily upgraded using a floppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , keys, etc.) can be used at any time during the setup navigation process.

6.2 Main Menu

When you first enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys.

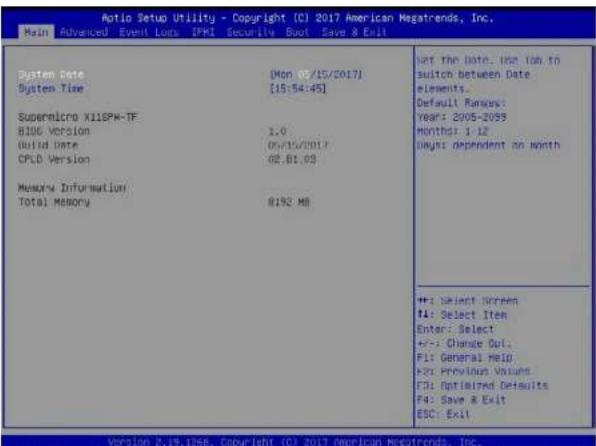

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss IPRI Security Boot Save & Exit System Date Mon 05/15/2017 System Time [15:54:45] Supermicro X11SPM-TF B10G Version 1.0 Build Date 06/15/2017 CPLD Version 08.01.03 Memory Information Total Memory B192 MB Wet the date, use time to switch between Date elements. Default Range: Years: 2005-2009 Month: 1-12 Days dependent on month ++: Select Screen T#: Select Item Enter: Select +/-: Change Out.. F1: General Help +2: Previous Volume CD#: Optimized Defaults P4: Save & Exit ESC: Exit Version 2.19.1268. Copyright (C) 2017 American Megatrends, Inc.

The Main Menu screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this field to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields. The date must be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format. Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as 05:30:00 and 5:30 P.M. as 17:30:00.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro X11SPW-TF

BIOS Version

This item displays the version of the BIOS ROM used in the system.

Build Date

This item displays the date when the version of the BIOS ROM used in the system was built.

CPLD Version

This item displays the Complex Programmable Logic Device version.

Memory Information

Total Memory

This item displays the total size of memory available in the system.

6.3 Advanced Setup Configurations

Use the arrow keys to select Boot Setup and press to access the submenu items.

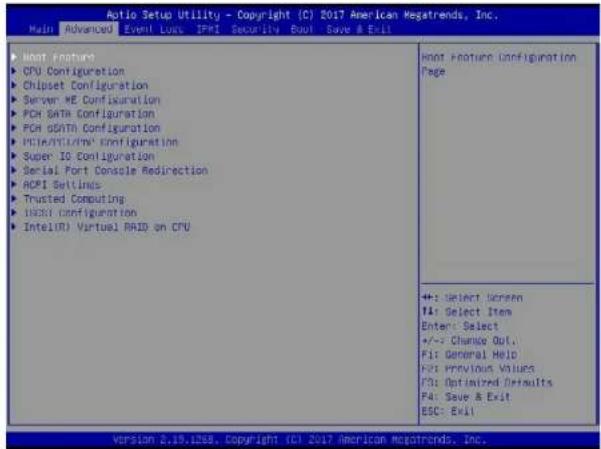

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss IPRI Security Buy Save & Exit Host Feature CPU Configuration Chipset Configuration Server ME Configuration PCH SATA Configuration PCH oDATA Configuration PCIe/INTU/m² Configuration Super IO Configuration Serial Port Console Redirection ACRI SetLinks Trusted Computing IN3X1 Configuration Intel(R) Virtual RAID on CPU Host Feature Configuration Page +: Select Screen F4: Select Item Enter Select +/-: Change Out. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit version 2.19.1258, Copyright (C) 2017 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between the POST messages and the OEM logo upon bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the key. The options are On and Off.

Wait For "F1" If Error

Use this feature to force the system to wait until the "F1" key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Install Windows 7 USB Support

Enable this feature to use the USB keyboard and mouse during the Windows 7 installation, since the native XHCI driver support is unavailable. Use a SATA optical drive as a USB drive, and USB CD/DVD drives are not supported. Disable this feature after the XHCI driver has been installed in Windows. The options are Disabled and Enabled.

Port 61h Bit-4 Emulation

Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management Mode). The options are Disabled and Enabled.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reset or generate NMI based on jumper settings when it has expired for more than five minutes. The options are Disabled and Enabled.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Stay Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Throttle on Power Fail

Use this feature to decrease system power by throttling CPU frequency when one power supply has failed. The options are Disabled and Enabled.

▶CPU Configuration

The following CPU information will display:

• Processor BSP Revision
• Processor Socket
• Processor ID
• Processor Frequency
• Processor Max Ratio
• Processor Min Ratio
• Microcode Revision
  L1 Cache RAM
  • L2 Cache RAM
  • L3 Cache RAM
• Processor 0 Version

Hyper-Threading (ALL) (Available when supported by the CPU)

Select Enable to support Intel Hyper-threading Technology to enhance CPU performance. The options are Disable and Enable.

Execute Disable Bit (Available if supported by the OS & the CPU)

Select Enabled to enable the Execute-Disable Bit, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack. The default is Enable. (Refer to the Intel® and Microsoft® websites for more information.)

Intel Virtualization Technology

Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disable and Enable.

PPIN Control

Select Unlock/Enable to use the Protected-Processor Inventory Number (PPIN) in the system. The options are Unlock/Disable and Unlock/Enable

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Disable and Enable.

Adjacent Cache Prefetch (Available when supported by the CPU)

The CPU prefetches the cache line for 64 bytes if this feature is set to Disable. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enable.

DCU Streamer Prefetcher (Available when supported by the CPU)

Select Enable to enable the DCU (Data Cache Unit) Streamer Prefetcher, which will stream and prefetch data and send it to the Level 1 data cache to improve data processing and system performance. The options are Disable and Enable.

DCU IP Prefetcher (Available when supported by the CPU)

Select Enable to enable DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to improve network connectivity and system performance. The options are Enable and Disable.

LLC Prefetch

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L3 cache to improve CPU performance. The options are Disable and Enable.

Extended APIC

Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable.

▶Advanced Power Management Configuration

▶CPU P State Control

This feature allows the user to configure the following CPU power settings:

Speedstep (Pstates)

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable.

EIST PSD Funtion

This feature allows the user to choose between Hardware and Software to control the processor's frequency and performance (P-state). In HW_ALL mode, the processor hardware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors. In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state, and must initiate the transition on all Logical Processors. In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state and may initiate the transition on any Logical Processors. The options are HW_ALL, SW_ALL, and SW_ANY.

Turbo Mode

This feature will enable dynamic control of the processor, allowing it to run above stock frequency. The options are Disable and Enable.

▶Hardware PM State Control

Hardware P-States

This setting allows the user to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance. Selecting Native Mode with No Legacy Support functions as Native Mode with no support for older hardware. The options are Disable, Native Mode, Out of Band Mode, and Native Mode with No Legacy Support.

▶CPU C State Control

Autonomous Core C-State

Enabling this setting allows the hardware to autonomously choose to enter a C-state based on power consumption and clock speed. The options are Disable and Enable.

CPU C6 Report

Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off. The options are Disable, Enable, and Auto.

Enhanced Halt State (C1E)

Select Enable to use Enhanced Hall-State technology, which will significantly reduce the CPU's power consumption by reducing the CPU's clock cycle and voltage during a Hall-state. The options are Disable and Enable.

▶Package C State Control

Package C State

This feature allows the user to set the limit on the C State package register. The options are C0/C1 State, C2 State, C6 (Non Retention) State, C6 (Retention) State, No Limit, and Auto.

▶CPU T State Control

Software Controlled T-States

Use this feature to enable Software Controlled T-States. The options are Disable and Enable.

▶Chipset Configuration

Warning: Setting the wrong values in the following features may cause the system to malfunction.

▶North Bridge

This feature allows the user to configure the following North Bridge settings:

▶UPI Configuration

The following UPI information will display:

• Number of CPU
• Number of IIO
• Current UPI Link Speed
• Current UPI Link Frequency
  • UPI Global MMIO Low Base / Limit
  • UPI Global MMIO High Base / Limit
  • UPI Pci-e Configuration Base / Size

Degrade Precedence

Use this feature to set degrade precedence when system settings are in conflict. Select Topology Precedence to degrade Features. Select Feature Precedence to degrade Topology. The options are Topology Precedence and Feature Precedence.

Link L0p Enable

Select Enable for the QPI to enter the L0p state for power saving. The options are Disable, Enable, and Auto.

Link L1 Enable

Select Enable for the QPI to enter the L1 state for power saving. The options are Disable, Enable, and Auto.

IO Directory Cache (IODC)

IO Directory Cache is an 8-entry cache that stores the directory state of remote IIO writes and memory lookups, and saves directory updates. Use this feature to lower cache to cache (C2C) transfer latencies. The options are Disable, Auto, Enable for Remote InvItoM Hybrid Push, InvItoM AllocFlow, Enable for Remote InvItoM Hybrid AllocNonAlloc, and Enable for Remote InvItoM and Remote WViLF.

Chapter 6: BIOSSuperServer 1

Isoc Mode

Isochronous (Isoc) mode allows time-sensitive processes to be given priority. The options are Disable, Enable, and Auto.

▶ Memory Configuration

Enforce POR

Select POR (Plan of Record) to enforce POR restrictions on DDR4 frequency and voltage programming. The options are POR and Disable.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1866, 2000, 2133, 2200, 2400, 2600, and 2666.

Data Scrambling for NVDIMM

Use this feature to enable or disable data scrambling for non-volatile DIMM (NVDIMM) memory. The options are Auto, Disable, and Enable.

Data Scrambling for DDR4

Use this feature to enable or disable data scrambling for DDR4 memory. The options are Auto, Disable, and Enable.

tCCD\_L Relaxation

Select Enable to get TCDD settings from SPD (Serial Presence Detect) and implement into memory RC code to improve system reliability. Select Disable for TCCD to follow Intel POR. The options are Disable and Enable.

Enable ADR

Select Enable for ADR (Automatic Diagnostic Repository) support to enhance memory performance. The options are Disable and Enable.

2X REFRESH

Use this feature to select the memory controller refresh rate to 2x refresh mode. The options are Auto and Enable.

▶ Memory Topology

This feature displays DIMM population information.

▶ Memory RAS Configuration

Static Virtual Lockstep Mode

Select Enable to run the system's memory channels in lockstep mode to minimize memory access latency. The options are Disable and Enable.

Mirror Mode

This feature allows memory to be mirrored between two channels, providing 100% redundancy. The options are Disable, Mirror Mode 1LM, and Mirror Mode 2LM.

UEFI ARM Mirror

Select Enable to support the UEFI-based address range mirroring with setup option. The options are Disable and Enable.

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve memory performance. The options are Disable and Enable.

Correctable Error Threshold

Use this item to specify the threshold value for correctable memory-error logging, which sets a limit on the maximum number of events that can be logged in the memory-error log at a given time. The default setting is 10.

SDDC Plus One

Single device data correction +1 (SDDC Plus One) organizes data in a single bundle (x4/x8 DRAM). If any or all the bits become corrupted, corrections occur. The x4 condition is corrected on all cases. The x8 condition is corrected only if the system is in Lockstep Mode. The options are Disable and Enable.

ADDDC Sparing

Adaptive Double Device Data Correction (ADDDC) Sparing detects when the predetermined threshold for correctable errors is reached, copying the contents of the failing DIMM to spare memory. The failing DIMM or memory rank will then be disabled. The options are Disable and Enable.

Patrol Scrub

Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this item is set to Enable, the IO hub will read and write back one cache line every 16K cycles, if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub will be scrubbed every day. The options are Disable and Enable.

Chapter 6: BIOSSuperServer 1

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The default setting is 24.

▶IIO Configuration

EV DFX Features

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶CPU Configuration

IOU0 (II0 PCIe Br1)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (II0 PCIe Br2)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU2 (II0 PCIe Br3)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

MCP0 (II0 PCIe Br4)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x16 and Auto.

MCP1 (II0 PCIe Br5)

This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x16 and Auto.

▶IOAT Configuration

Disable TPH

Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature will increase performance. The options are No and Yes.

Prioritize TPH

Use this feature to enable Prioritize TPH support. The options are Enable and Disable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support, which will allow certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued. The options are Disable and Enable.

▶Intel® VT for Directed I/O (VT-d)

Intel ^3 VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security and availability in networking and data-sharing. The options are Disable and Enable.

Interrupt Remapping

Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Enable and Disable.

PassThrough DMA

Use this feature to allow devices such as network cards to access the system memory without using a processor. Select Enable to use the Non-Isoch VT_D Engine Pass Through Direct Memory Access (DMA) support. The options are Enable and Disable.

ATS

Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS) support. ATS translates virtual addresses to physical addresses. The options are Enable and Disable.

Posted Interrupt

Use this feature to enable VT_D Posted Interrupt. The options are Enable and Disable.

Coherency Support (Non-Isoch)

Use this feature to maintain setting coherency between processors or other devices. Select Enable for the Non-Iscoh VT-d engine to pass through DMA to enhance system performance. The options are Enable and Disable.

Intel® VMD Technology

▶Intel® VMD for Volume Management Device on CPU

VMD Config for PStack0\~PStack2

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

"If the item "Intel VMD for Volume Management Device" above is set to Enable, the following Item will be displayed:

Hot Plug Capable (Available when the device is detected by the system)

Use this feature to enable hot plug support for PCIe root ports 1A\~1D/2A\~2D/3A\~3D.

The options are Disable and Enable.

PCI-E Completion Timeout Disable

Use this feature to enable PCI-E Completion Timeout support for electric tuning. The options are Yes, No, and Per-Port.

▶ South Bridge

This feature allows the user to configure the following South Bridge settings:

- USB Module Version

- USB Devices

Legacy USB Support

This feature enables support for USB 2.0 and older. The options are Enabled and Disabled, and Auto.

XHCI Hand-off

When disabled, the motherboard will not support USB 3.0. Options are Enabled and Disabled.

Port 60/64 Emulation

This feature allows legacy I/O support for USB devices like mice and keyboards. The options are Enabled and Disabled.

▶Server ME Configuration

The following General ME Configuration will display:

• Oper. Firmware Version
- Backup Firmware Version
- Recovery Firmware Version
• ME Firmware Status #1
• ME Firmware Status #2
- Current State
- Error Code

▶PCH SATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items:

SATA Controller

This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Disable and Enable.

Configure SATA as

Select AHCI to configure a SATA drive specified by the user as an AHCI drive. Select RAID to configure a SATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

SATA HDD Unlock

This feature allows the user to remove any password-protected SATA disk drives. The options are Enable and Disable.

Aggressive Link Power Management

When this item is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

*If the item "Configure SATA as" above is set to RAID, the following items will display:

SATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to SATA controller The options are Disable and Enable.

SATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

SATA Port 0 \~ Port 7

This item displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity
• Software Preserve Support

Port 0 \~ Port 7 Hot Plug

Set this item to Enable for hot-plugging support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

Port 0 \~ Port 7 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Disable and Enable.

Port 0 \~ Port 7 SATA Device Type

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCH sSATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items:

sSATA Controller

This item enables or disables the onboard sSATA controller supported by the Intel PCH chip. The options are Enable and Disable.

Configure sSATA as

Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

SATA HDD Unlock

This feature allows the user to remove any password-protected SATA disk drives. The options are Disable and Enable.

Aggressive Link Power Management

When this item is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

*If the item above "Configure sSATA as" is set to RAID, the following items will display:

sSATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to sSATA controller. The options are Disable and Enable.

sSATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

sSATA Port 0 \~ Port 5

This item displays the information detected on the installed sSATA drive on the particular sSATA port.

• Model number of drive and capacity

- Software Preserve Support

Port 0 \~ Port 5 Hot Plug

Set this item to Enable for hot-plugging support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

Port 0 \~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to initialize the device. The options are Disable and Enable.

Port 0 \~ Port 5 sSATA Device Type

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCIe/PCI/PnP Configuration

The following information will display:

• PCI Bus Driver Version
  • PCI Devices Common Settings:

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

SR-IOV Support

Use this feature to enable or disable Single Root IO Virtualization Support. The options are Disabled and Enabled.

MMIO High Base

Use this item to select the base memory size according to memory-address mapping for the IO hub. The options are 56 TB, 40 TB, 24 TB, 16 TB, 4 TB, and 1 TB.

MMIO High Granularity Size

Use this item to select the high memory size according to memory-address mapping for the IO hub. The options are 1 GB, 4 GB, 16 GB, 64 GB. 256 GB, and 1024 GB.

PCI PERR/SERR Support

Select Enabled to allow a PCI device to generate a PERR/SERR number for a PCI Bus Signal Error Event. The options are Disabled and Enabled.

Maximum Read Request

Use this item to select the Maximum Read Request size of the PCI-Express device, or select Auto to allow the System BIOS to determine the value. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

MMCFG Base

Use this item to select the low base address for PCIE adapters to increase base memory. The options are 1G, 1.5G, 1.75G, 2G, 2.25G, and 3G.

NVMe Firmware Source

Use this item to select the NVMe firmware to support booting. The options are Vendor

Defined Firmware and AMI Native Support. The default option, Vendor Defined Firmware, is pre-installed on the drive and may resolve errata or enable innovative functions for the drive. The other option, AMI Native Support, is offered by the BIOS with a generic method.

VGA Priority

Use this feature to select VGA priority when multiple VGA devices are detected. Select Onboard to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.

M.2 PCI-E 3.0 X4 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

Onboard SAS Option ROM

Select Enabled to enable SAS Option ROM support to boot the computer using a SAS device specified by the user. The options are Disabled, Legacy, and EFI.

Onboard LAN Device

Use this feature to enable or disable Onboard LAN devices. The options are Disabled and Enabled.

Onboard LAN1 Option ROM

Use this feature to select which firmware function to be loaded for LAN Port1 used for system boot. The options are Disabled, Legacy, and EFI.

Onboard LAN2 Option ROM

Use this feature to select which firmware function to be loaded for LAN Port2 used for system boot. The options are Disabled, Legacy, and EFI.

Onboard Video Option ROM

Use this item to select the Onboard Video Option ROM type. The options are Disabled, Legacy, and EFI.

▶Network Stack Configuration

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

IPv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.

IPv4 HTTP Support

Select Enabled to enable IPv4 HTTP boot support. The options are Disabled and Enabled.

IPv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.

IPv6 HTTP Support

Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled.

PXE Boot Wait Time

Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media Detect Count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

▶Super IO Configuration

The following Super IO information will display:

• Super IO Chip AST2500

▶ Serial Port 1 Configuration

This submenu allows the user to configure the settings of Serial Port 1.

Serial Port 1

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Serial Port 1 Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4:), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12:), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12:), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12:), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12:).

▶ Serial Port 2 Configuration

This submenu allows the user the configure settings of Serial Port 2.

Serial Port 2

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This item displays the status of a serial part specified by the user.

Serial Port 2 Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address.

The options for Serial Port 2 are Auto, (IO=2F8h; IRQ=3,), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12,), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12,), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12,), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Attribute (Available for Serial Port 2 only)

Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The options are SOL and COM.

▶Serial Port Console Redirection

COM1 Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for the user's configuration:

▶COM1 Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM1 Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM1 Bits Per Second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

COM1 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits.

COM1 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM1 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM1 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM1 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM1 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM1 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM1 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM1 Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

COM1 Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to Bootloader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

SOL/COM2 Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for user's configuration:

▶SOL/COM2 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM2 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are ANSI, VT100, VT100+, and VT-UTF8.

COM2 Bits Per Second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

COM2 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits.

COM2 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

COM2 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM2 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM2 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM2 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM2 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM2 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM2 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2 Redirection After BIOS POST

Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

Legacy Console Redirection

Legacy Serial Redirection Port

Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1 and SOL/COM2.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If the item above is set to Enabled, the following items will become available for user's configuration:

▶EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits Per Second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits, Parity, Stop Bits

▶ACPI Settings

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring. The options are Disabled and Enabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RD TSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

▶Trusted Computing

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

▶iSCSI Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

▶ Add an Attempt

▶ Delete Attempts

▶ Change Attempt Order

▶Intel(R) Virtual RAID on CPU

Intel(R) VROC with VMD Technology 5.1.0.1007

RAID volumes and Intel VMD Controllers information will be displayed if they are detected by the system.

6.4 Event Logs

Use this feature to configure Event Log settings.

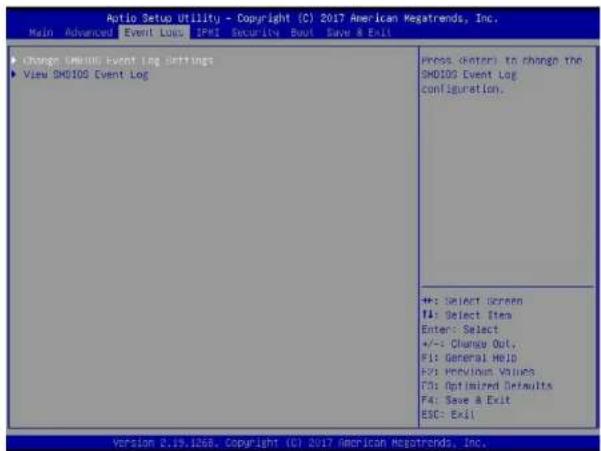

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Log IPei Secure Boot Save & Exit Change SMODS Event Log Settings View SMODS Event Log Press Enter to change the SMODS Event Log configuration. +: Select Screen T1: Select Item Enter: Select +/-: Change Out, F1: General HELD F2: Previous Values T3: Optimized Defaults F4: Save & Exit ESC: Exit Version 0.19.1268, Copyright (C) 2017 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Change this item to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Enabled and Disabled.

Erasing Settings

Erase Event Log

If No is selected, data stored in the event log will not be erased. Select Yes. Next reset, data in the event log will be erased upon next system reboot. Select Yes. Every reset, data in the event log will be erased upon every system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

When Log is Full

Select Erase Immediately for all messages to be automatically erased from the event log when the event log memory is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled.

MECI

The Multiple Event Count Increment (MECI) counter counts the number of occurrences that a duplicate event must happen before the MECI counter is incremented. This is a numeric value. The default value is 1.

METW

The Multiple Event Time Window (METW) defines number of minutes must pass between duplicate log events before MECI is incremented. This is in minutes, from 0 to 99. The default value is 60.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

▶View SMBIOS Event Log

Select this submenu and press enter to see the contents of the SMBIOS event log. The following categories will be displayed: Date/Time/Error Codes/Severity.

6.5 IPMI

Use this feature to configure Intelligent Platform Management Interface (IPMI) settings.

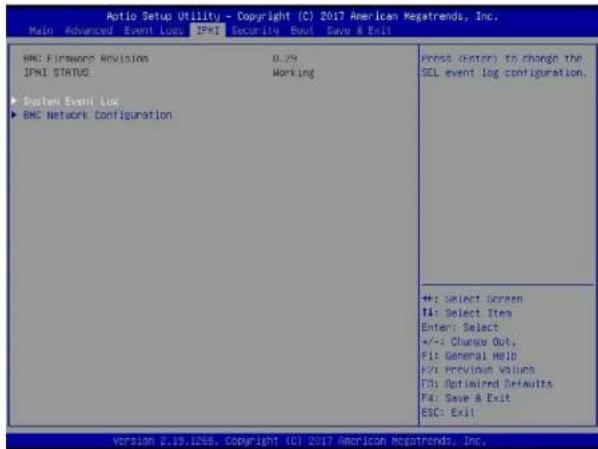

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss IPXE Security Boot Save & Exit RMC Framework REVISION 0.2% IPME STATUS Working System Event Log BMC Network Configuration Press (Enter) to change the SEL event log configuration. +: Select Screen F4: Select Item Enter: Select +/-: Change Out, F1: General HELD +F2: REVENUE Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1258, Copyright (C) 2017 American Megatrends, Inc.

BMC Firmware Revision

This item indicates the IPMI firmware revision used in your system.

IPMI Status (Baseboard Management Controller)

This item indicates the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Enabled and Disabled.

Erasing Settings

Chapter 6: BIOSSuperServer 1

Erase SEL

Select Yes. On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

▶BMC Network Configuration

BMC Network Configuration

Configure IPV4 Support

This section displays configuration features for IPV4 support.

IPMI LAN Selection

This item displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This item displays the IPMI Network Link status. The default setting is Shared LAN.

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes.

*If the item above set to Yes, the following item will become available for user's configuration:

Configuration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are DHCP and Static.

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

VLAN

This item displays the virtual LAN settings. The options are Disable and Enable.

Configure IPV6 Support

This section displays configuration features for IPV6 support.

LAN Channel 1

IPV6 Support

Use this feature to enable IPV6 support. The options are Enabled and Disabled.

Configuration Address Source

This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system regularly in the field. If BUCB is selected, the BUCB will search from BUCB IP generic User

Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are Unspecified, Static, and DHCP.

"If the item "Configuration Address Source" above is set to Static, the following items will become available for configuration:

• Station IPV6 Address
• Prefix Length
• IPV6 Router1 IP Address

6.6 Security

This menu allows the user to configure the following security settings for the system.

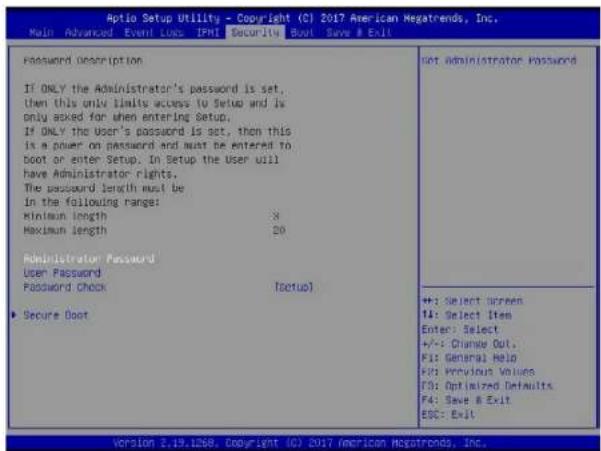

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Log IPHT Securit/ Boot Save & Exit Password Description IF ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. IF ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be In the following range: Minimum length 3 Maximum length 20 Administrator Password User Password Password Check (setup) Secure Boot Not Administrator Password +: Select Screen 1: Select Item Enter: Select +/-: Change Out. F1: General Help +F2: Previous Values T3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1258, Copyright (C) 2017 American Megatrends, Inc.

Administrator Password

Press Enter to create a new, or change an existing. Administrator password.

User Password

Press Enter to create a new, or change an existing, User password.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

▶Secure Boot

This section displays the contents of the following secure boot features:

• System Mode
• Secure Boot
• Vendor Keys

Secure Boot

Use this item to enable secure boot. The options are Disabled and Enabled.

Secure Boot Mode

Use this item to configure Secure Boot variables without authentication. The options are Standard and Custom.

CSM Support

Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The options are Enabled and Disabled.

▶Key Management

This submenu allows the user to configure the following Key Management settings.

Provision Factory Default Keys

Select Enabled to install the default Secure-Boot keys set by the manufacturer. The options are Disabled and Enabled.

▶Enroll All Factory Default Keys

Select Yes to install all default secure keys set by the manufacturer. The options are Yes and No.

▶Enroll EFI Image

This feature allows the image to run in Secure Boot Mode. Enroll SHA256 Hash Certificate of the image into the Authorized Signature Database.

▶ Save All Secure Boot Variables

This feature allows the user to decide if all secure boot variables should be saved.

▶ Platform Key (PK)

This feature allows the user to configure the settings of the platform keys.

Set New

Select Yes to load the new platform keys (PK) from the manufacturer's defaults. Select No to load the platform keys from a file. The options are Yes and No.

▶Key Exchange Key

Set New

Select Yes to load the KEK from the manufacturer's defaults. Select No to load the KEK from a file. The options are Yes and No.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Set New

Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file. The options are Yes and No.

Append

Select Yes to add the database from the manufacturer's defaults to the existing DB. Select No to load the DB from a file. The options are Yes and No.

▶Forbidden Signatures

Set New

Select Yes to load the DBX from the manufacturer's defaults. Select No to load the DBX from a file. The options are Yes and No.

Append

Select Yes to add the DBX from the manufacturer's defaults to the existing DBX. Select No to load the DBX from a file. The options are Yes and No.

▶ Authorized TimeStamps

Set New

Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No.

Append

Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file. The options are Yes and No.

▶OsRecovery Signature

This item uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are:

1) Public Key Certificate

a. EFI Signature List

b. EFI CERT X509 (DER Encoded)

c. EFI CERT RSA2048 (bin)

d. EFI SERT SHA256 (bin)

2) EFI Time Based Authenticated Variable

When prompted, select "Yes" to load Factory Defaults or "No" to load from a file.

Set New

Select Yes to load the DBR from the manufacturer's defaults. Select No to load the DBR from a file. The options are Yes and No.

Append

This item uploads and adds an OSRecovery Signature into the Key Management. You may insert a factory default key or load from a file. When prompted, select "Yes" to load Factory Defaults or "No" to load from a file.

6.7 Boot

Use this feature to configure Boot Settings.

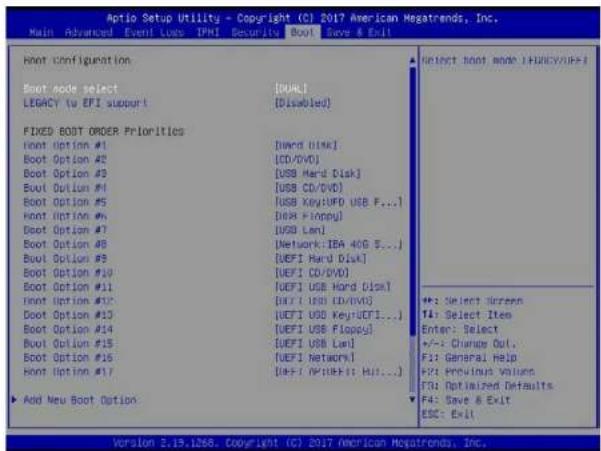

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPHI Security BOOT save & Exit Boot Configuration Boot mode select [DUAL] LEGACY to EFI support [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key/UPD USB F...] Boot Option #6 [DBF Flippy] Boot Option #7 [USB Lml] Boot Option #8 [Network: IBA 40G 5...] Boot Option #9 [UEFI Hard Disk] Boot Option #10 [UEFI CD/DVD] Boot Option #11 [UCFI USB Hard Disk] Boot Option #12 [DCI: IBD KD/DVD] Boot Option #13 [UCFI UDD Key/UEFI...] Boot Option #14 [UEFI USB Floppy] Boot Option #15 [UEFI USB Lml] Boot Option #16 [UEFI Network1] Boot Option #17 [UDEI N/UEFI: Hit...] Add New Boot Option Select boot mode [FUNCY/URS] #: Select Screen T4: Select Item Enter: Select +/-: Change Out... F1: General Help +F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1288, Copyright (C) 2017 American Megatrends, Inc.

Boot Mode Select

Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual.

Legacy to EFI Support

This feature enables the system to boot to EFI OS if boot fails from Legacy boot order. The options are Enabled or Disabled.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices that the system boots from. Press on each entry from top to bottom to select devices.

*If the item above is set to Legacy, UEFI, or Dual the following items will be displayed:

• Legacy/UEFI/Dual Boot Option #1
• Legacy/UEFI/Dual Boot Option #2
  • Legacy/UEFI/Dual Boot Option #3
• Legacy/UEFI/Dual Boot Option #4
  • Legacy/UEFI/Dual Boot Option #5
  • Legacy/UEFI/Dual Boot Option #6
  • Legacy/UEFI/Dual Boot Option #7
• Legacy/UEFI/Dual Boot Option #8
  • UEFI/Dual Boot Option #9
  • Dual Boot Option #10
• Dual Boot Option #11
• Dual Boot Option #12
• Dual Boot Option #13
  • Dual Boot Option #14
• Dual Boot Option #15
• Dual Boot Option#16
  • Dual Boot Option #17

▶ Delete Boot Option

This feature allows the user to select a boot device to delete from the boot priority list.

Delete Boot Option

Use this item to remove an EFI boot option from the boot priority list.

▶NETWORK Drive BBS Priorities

This feature sets the system boot order of detected devices.

- Boot Option #1

▶UEFI Application Boot Priorities

This feature allows the user to specify which UEFI devices are boot devices.

• UEFI Boot Option #1

*If any storage media is detected, the following items will become available for configuration:

▶Add New Boot Option

This feature allows the user to add a new boot option to the boot priority features for your system.

Add Boot Option

Use this item to specify the name for the new boot option.

Path for Boot Option

Use this item to enter the path for the new boot option in the format fsx:\path\filename.efi.

Boot Option File Path

Use this item to specify the file path for the new boot option.

Create

Use this item to set the name and the file path of the new boot option.

▶UEFI Hard Disk Drive BBS Priorities

This feature sets the system boot order of detected devices.

- Boot Option #1

▶Hard Disk Drive BBS Priorities

This feature sets the system boot order of detected devices.

- Boot Option #1

6.8 Save & Exit

Use this feature to save, discard, and reset setting changes.

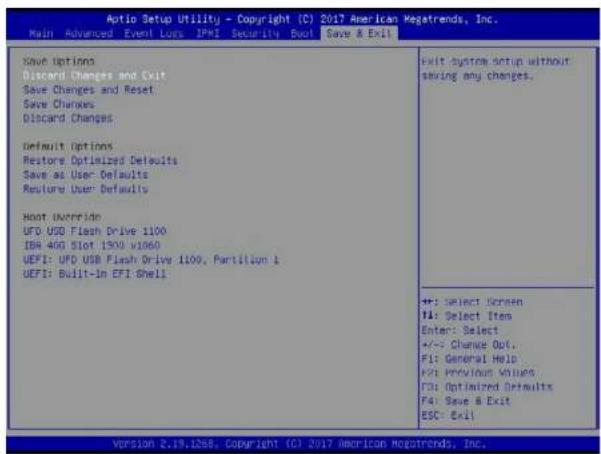

Aptio Setup Utility) - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IP#1 Security Exit Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Host Override UFO USD Flash Drive 1100 IBA 400 Slot 1500 v1060 UEFI: UFO USB Flash Drive 1100, Partition 1 UEFI: Built-In EFI Shell Exit system setup without saving any changes. ++: Select Screen TI: Select Item Enter: Select +/-: Change Out, F1: General Hold F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1268, Copyright (C) 2017 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Save & Exit menu and press .

Save Changes and Reset

After completing the system configuration changes, select this option to save the changes you have made. This will not reset (reboot) the system.

Save Changes

When you have completed the system configuration changes, select this option to leave the BIOS setup utility and reboot the computer, so the new system configuration parameters can take effect. Select Save Changes from the Save & Exit menu and press .

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS utility program.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Defaults from the Save & Exit menu and press . These are factory settings designed for maximum system stability, but not for maximum performance.

Save As User Defaults

To set this feature, select Save as User Defaults from the Save & Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Save & Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

Listed in this section are other boot options for the system (i.e., Built-in EFI shell). Select an option and press . Your system will boot to the selected boot option.

Appendix A

BIOS Error Codes

A-1 BIOS Error Beep (POST) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list (on the following page) correspond to the number of beeps for the corresponding error. All errors listed, with the exception of Beep Code 8, are fatal errors.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A-2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Standardized Warning Statements for AC Systems

B.1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Warnung

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Warnung

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Backplane Voltage

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックブレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

SuperServer 1019P-WTR User's Manual Appendix B: Standardized Warning Statements

Warnung

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Single Intel Xeon 81xx/61xx/51xx/41xx/31xx in an Socket P0-LGA3647 type socket

Note: Please refer to the motherboard specifications pages on our website for updates to supported processors.

Chipset

Intel PCH C622 chipset

BIOS

256 Mb SPI AMI BIOS® SM Flash UEFI BIOS Flash ROM

Memory

Up to 192 GB of RDIMM, 384 GB of LRDIMM, and 768 GB of 3DS LRDIMM DDR4 (288-pin) ECC memory with speeds of up to 2666 MHz

Note: See the memory section in Chapter 3 for details and our website for updates to supported memory.

SATA Controller

On-chip (Intel PCH C622) controller

Drive Bays

Ten (10) 2.5" hot-swap drive bays to house up to ten SATA drives

PCI Expansion Slots

Two (2) full-height, full-length PCI-E 3.0 x16

One (1) low-profile, half-length PCI-E 3.0 x8

Motherboard

X11SPW-TF; 8" (W) x 13" (L) (203.2 mm x 330.2 mm)

Chassis

SC116AC2-R504WB; 1U Rackmount, (WxHxD) 17.2 x 1.7 x 23.5 in. (437 x 43 x 597 mm)

System Cooling

Five (5) 4-cm counter-rotating PWM fans

Power Supply

Model: PWS-504P-1R

AC Input Voltages: 100-240 VAC

Rated Input Current: 6.1-2.6A

Rated Input Frequency: 50-60 Hz

Rated Output Power: 500 Watts

Rated Output Voltages: +12V 42A, +5Vsb 3A

Operating Environment

Operating Temperature: 5° to 35° C (41° to 95° F)

Non-operating Temperature: -40^ to 70^ C ( -40^ to 158^ F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Note: The system power supplies are redundant, hot-plug.

Regulatory Compliance

Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/3-3, CISPR 22 Class A

Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)

Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

Appendix D

UEFI BIOS Recovery

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

D.1 Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

D.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The boot block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a new BIOS image if the original main BIOS image is corrupted. When the system power is first turned on, the boot block codes execute first. Once this process is completed, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS boot crashes.

Note 2: When the BIOS boot block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. (For a RMA request, please see section 3.5 for more information). Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

D.3 Recovering the BIOS Block with a USB Device

This feature allows the user to recover a BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by UEFI is FAT (Including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "1" directory of a USB device or a writable CD/DVD.

Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super.ROM" for BIOS recovery use.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and power on the system

2. While powering on the system, please keep pressing and simultaneously on your keyboard until the following screen (or a screen similar to the one below) displays.

SUPERMICRO © 2018-03-16, 1976

Note: On the other hand, if the following screen displays, please load the "Super.ROM" file to the root folder and connect this folder to the system. (You can do so by inserting a USB device that contains the new "Super.ROM" image to your machine for BIOS recovery.)

NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TEST SENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION NEW TENSITATION

Warning: Please stop pressing the and keys immediately when you see the

Start What Status: Copyright (1) Of Fire or Support. It and, the following: Next! After: 00:00:00 Status: Not Start; Status: Not End End Start Status: Not Start Status: Not End Status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next Start Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: • Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next End Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: - Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status: • Next Event Cash Status:

screen (or a similar screen) below; otherwise, it will trigger a system reboot.

1. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

MASCULAR Format Document is being updated. sequence: Lasted as not done the Page (1) or file version: All-Go To Compared please you have to protect the page. Program Files Project this Web Page... 1.0 My Start Window My Start This Windows Not Started My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New... My Start New...

1. When the screen as shown above displays, use the arrow keys to select the item

MUSTAIN YOUR ITEMS FOR YOUR ITEMS IS NOT TO BE USED. Please click the following: You can't use your computer to create a new button, or make it easy to add your text. • Fruit Answer Fruit answer: commercial, then say yes, to create the options. • Quick answers: • Make your choice • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a listing • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a list • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a lists • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks • Create a ranks

"Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

Note: Do not interrupt the BIOS flashing process until it has completed.

Name: Windows Server Name: Windows 10.0 (Windows NT) Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT Name: Windows NT

1. After the BIOS recovery process is completed, press any key to reboot the system.

2. Using a different system, extract the BIOS package into a USB flash drive.

1. Press continuously during system boot to enter the BIOS setup utility. From the

Scanned text of a document with multiple paragraphs and columns, likely from a form or report.

top of the tool bar, click on Boot and press to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, boot Option #1 to [UEFI

Scanned text of a document with multiple paragraphs and bullet points, likely from a software interface or report.

AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS setup utility.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 7. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

Note: Do not interrupt this process until the BIOS flashing is complete.

1. The screen above indicates that the BIOS update process is completed. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

2. Press continuously to enter the BIOS setup utility.

3. Press to load the default settings.

4. After loading the default settings, press to save the settings and exit the BIOS setup utility.
