USER MANUAL SW-SATA2X4 Coolgear
SW-SATA2X4 SATA II 4-Port Switch with Key Lock User Manual
This SATA2/SAS Switch (SW-SATA2X4) is designed to be used as a SATA (or SAS) hard drive selector. It provides a high performance link between a single SATA 2 host port and 4 SATA device ports. It connects the host upstream port to one of the 4 downstream SATA devices (one device at the same time. It is done by simply pressing the push button switch.
With its Power Switching circuits, the SATA switch can switch the device's power according to the settings of the SATA2 signal switch. It only allows the selected device to be powered and cuts off the power of the other unselected devices. This will reduce

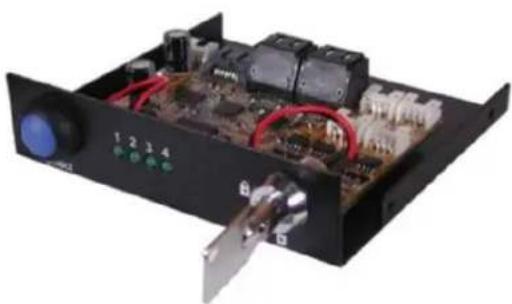

Moreover, it provides a key lock switch to prevent from any unauthorized changes to the settings. It helps home and school users to manage the devices easily.
The adapter can be fit into any standard 3.5-inch bay or 5.25-inch bay (by a 3.5 to 5.25 adapter frame kit), it provides the immediate upgrade of your PC storage system.
Features
• 1 to 4 SATA2 Switch for Selecting among 4 Devices
- Provides a SATA host to one of the 4 SATA Device Connectors
• Built-in High Speed SATA2 Signal Switch
- Select the drive simply by a push button switch
• SATA2 compliant at 1.5Gbps and 3.0Gbps
- Switch off power of the unused drives to save the power consumption and put them True Off-Line
• Save the current settings by Built-in EEPROM
• 3.5-inch Bay form factor, easy to fit in normal PC Systems
• Key lock to prevent from unauthorized changing
- Provides LEDs to indicate the active drive
• Transparent installation, no added driver required

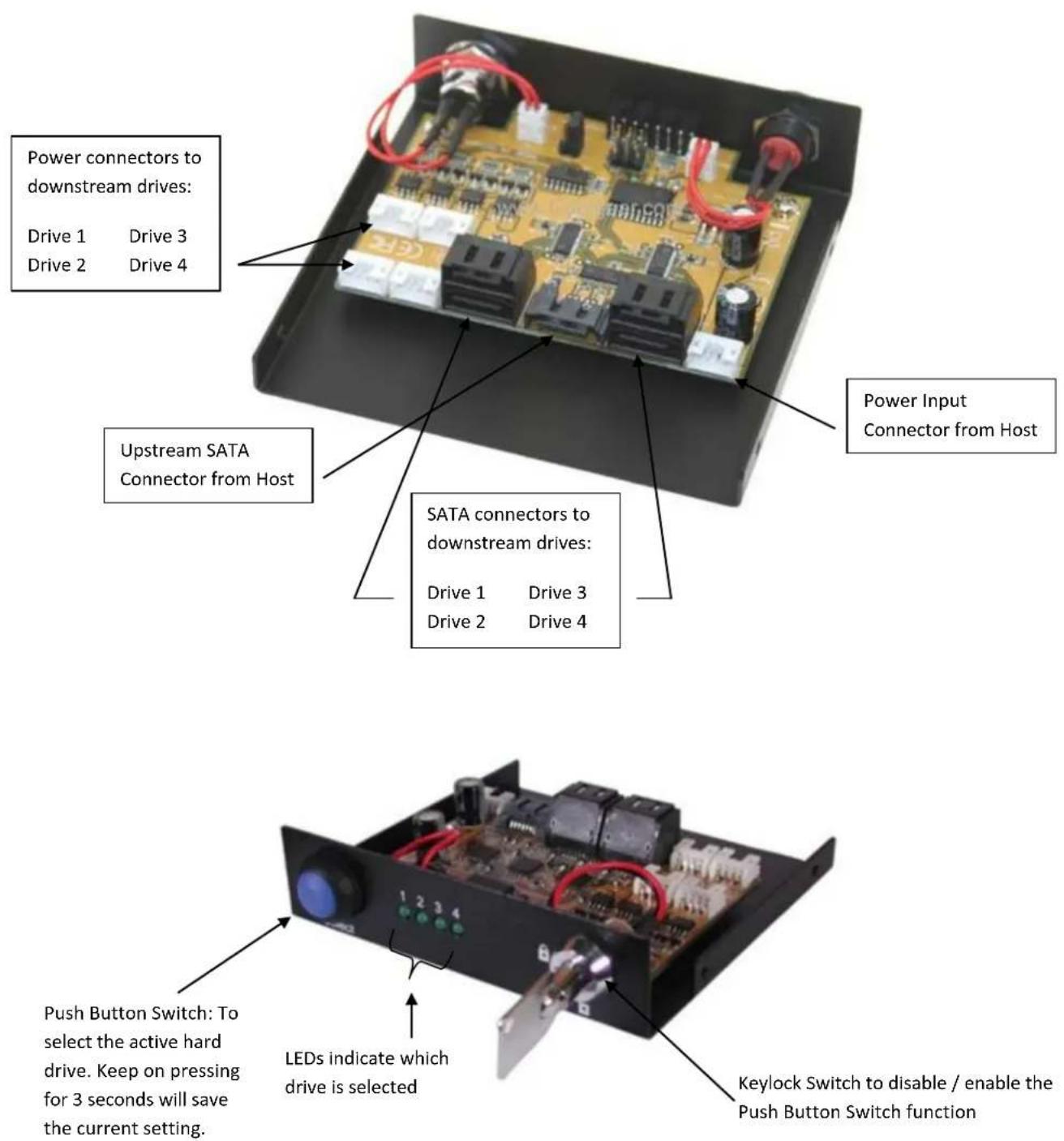

Front Panel and Board Layout
Installation
Before installing this product, please make sure the following accessories are well packed in the box:
• SATA Switch 3.5-inch Bay x 1
• 3.5-inch to 5.25-inch Converting Frame
• 7-pin to 7-pin Host SATA Cable x 1
• Mini 4-pin to Large 4-pin Host Power Cable x 4
• Installation Guide

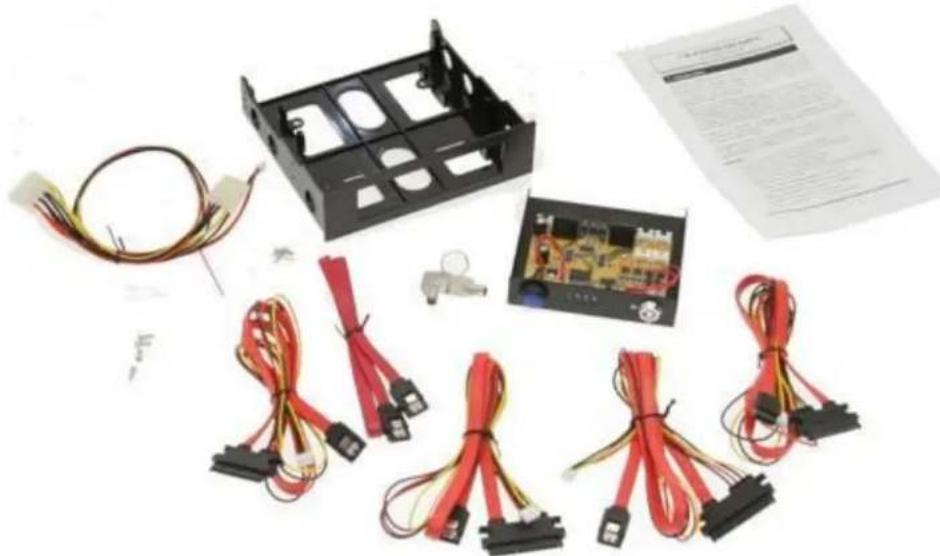

- Install the host power cable and Host SATA cable to the connectors. Leave the other end (to Host) of the cables unconnected ted at the moment. You will connect them after installing the unit into the 3.5-inch bay.
- Install each 7+15 pin device cable(s) to the downstream connector(s) of the product.
- Remove the chassis cover from your computer; install the product into the 3.5-inch bay in your PC. If your drive bay is 5.25 inch instead, you may need the supplied 3.5-inch to 5.25-inch adapter frame kit,
- Install the host SATA cable to your SATA port in the motherboard or add-in cards. Install the power cable to your system power supply's large 4-pin connector. Put the chassis cover back on the computer.
Selecting the SATA Drive
When you are switching the drives, if the selected SATA drive does not appear automatically, then your SATA host port may not be hot-pluggable and hot-swappable, in this case you have to reboot your system to let the new selected drive to take effect. Most of add-in SATA cards support hot-swap features, but the motherboard's onboard ports usually don't.
coolgear®

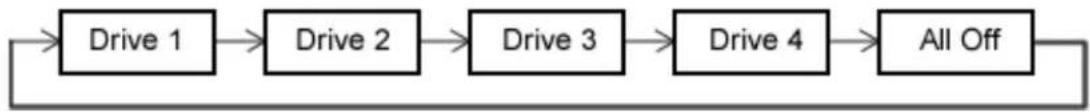

There are 5 states that can be changed by the push button sequentially. The default setting is Drive 1. However, you can change the setting anytime by pressing the push button and hold for over 3 seconds.
When the push button switch is pressed and held for over 3 seconds, all 4 LEDs will light and flash 3 times, when this happens the current settings will be saved as the power-up default setting. This setting will be restored whenever the product is powered up.
