Product Type	8-Port HDMI Splitter
Brand	Smart-AVI
Model	HDS-8PS
Input Interface	1x HDMI (Type A Female)
Output Interface	8x HDMI (Type A Female)
Supported Resolution	Up to 1080p (1920x1080@60Hz)
Video Bandwidth	2.25 Gbps per channel
HDCP Support	Yes, HDCP 1.4
Power Supply	5V DC, 2A (external adapter)
Power Consumption	5W (max)
Dimensions (W x H x D)	8.5 x 1.75 x 4.5 inches (216 x 44 x 114 mm)
Weight	2.2 lbs (1 kg)
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Enclosure Material	Metal (steel)
Mounting Options	Desktop or rack mount (bracket included)
LED Indicators	Power and signal status per port
Main Functions	Distributes one HDMI source to eight displays simultaneously; supports EDID pass-through and equalization
Cleaning and Maintenance	Wipe with a dry, soft cloth; do not use liquids or solvents
Safety Precautions	Do not expose to moisture; use only provided power adapter; keep away from heat sources
Spare Parts and Repairability	Contact Smart-AVI support for replacement power adapter; no user-serviceable parts inside
Compliance	CE, FCC, RoHS

Frequently Asked Questions - HDS-8PS Smart-AVI

What is the maximum resolution supported by the HDS-8PS?

The HDS-8PS supports resolutions up to 1080p (1920x1080@60Hz).

Can I use the HDS-8PS with a 4K source?

No, the HDS-8PS is designed for 1080p signals. For 4K, consider a 4K-capable splitter.

Does the HDS-8PS require external power?

Yes, it requires a 5V DC, 2A power adapter (included).

How many displays can I connect to the HDS-8PS?

You can connect up to 8 displays simultaneously.

Does the HDS-8PS support HDCP?

Yes, it supports HDCP 1.4 for protected content.

Can I mount the HDS-8PS in a rack?

Yes, it includes rack-mount brackets for a 1U rack.

What is the power consumption of the HDS-8PS?

Maximum power consumption is 5W.

Does the splitter amplify the HDMI signal?

Yes, it features signal equalization to maintain signal integrity over longer cables.

What should I do if no signal appears on one of the outputs?

Check the HDMI cable connection, try a different cable, and ensure the display is powered on. If the issue persists, the port may need service.

How do I clean the HDS-8PS?

Wipe the enclosure with a dry, soft cloth. Do not use liquids or abrasive cleaners.

USER MANUAL HDS-8PS Smart-AVI

Technical Specifications

VIDEO
Format	HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance	Single-link DVI-D 1.1
HDCP Compliance	1.0/1.1
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Resolution	480i,480p,720i,720p,1080i,1080p
Input Interface	(1) HDMI[7.1ch audio & video]
Output Interface	(8) HDMI[7.1ch audio & video]
Connector	Type A[19-pin female]
Maximum Distance	25 ft.
OTHER
DDC Signal	5 Volts [peak-to-peak], TTL
TDMS Signal	1.2 Volts[peak-to-peak], TTL
Power	External 5VDC4A
Dimensions	17"W x 1.75"H x 5"D
Weight	2 lbs.
Approvals	Device: CE, ROHSPower Supply: C-UL US, CE

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

Smart-AVI SMART AUDIO VIDEO INNOVATION

Installation Manual

HDS-8P
8-Port HDMI Splitter

Exterior view of a black Smart-AM server rack unit with ports and indicator lights (no readable text or symbols)

Connect One HDMI/HDTV Component to Eight Displays

Smart-AVI SMART AUDIO VIDEO INNOVATION

SmartAVI, Inc. / Twitter: smartavi 11651 Vanowen St. North Hollywood, CA 91605 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

www.smartavi.com

Introduction

The HDMI Splitter allows set-top boxes, DVD players, HDMI game console, and other HDTV devices with a HDMI output to be connected to eight HDTV displays.

Supports HDTV's 480i/480p/720i/720p/1080i/1080p & PC's WUXGA/1900x1200 and works with flat panel, plasma screen, projector, switch, splitter, computer video display, HDTV/HDCP, set-top boxes, DTV and DVD.

HDMI can output up to 20 feet from an HDMI device to the HDMI splitter, and then 20 feet from the HDMI splitter to the displays.

Features

• HDMI 1.3c and DVI 1.0 compliant
• HDCP 1.2 compliant
• Wide Frequency Range: 25MHz\~225MHz
• Video bandwidth: 6.7GBPS
• Resolution up to 1080p or WUXGA
• Supports CEC (not bypassing)
• Supports Dolby Digital, DTS-HD and Dolby True HD audio
- Easy installation

Applications

• Home Theater Integration
• Restaurants and Bars
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

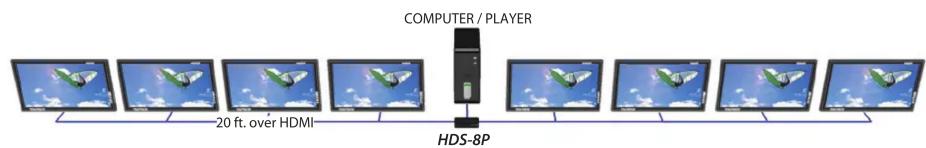

Product - Installation Diagram

Installation

1. Turn off the HDMI device and the displays.
2. Connect an HDMI cable from the HDMI output device to the input port on the HDS-8P.
3. Connect the displays to the HDMI outputs on the HDS-8P.
4. Connect the power cord to the HDS-8P.
5. Power on the HDMI device and the displays.

Front view of a Smart-AM HDS-8P server unit (no visible text or symbols on the device body)
