SLGLF120 - Indoor Garden SereneLife - Free user manual and instructions

Product Type	Indoor Garden
Model	SLGLF120
Brand	SereneLife
Dimensions (L x W x H)	12 x 12 x 18 inches
Weight	4.5 lbs
Power Supply	12V DC adapter (included)
Light Type	Full Spectrum LED
Light Output	12W
Timer Function	Auto cycle: 14h on / 10h off
Number of Planting Slots	3
Water Capacity	1.5 liters
Material	ABS Plastic
Adjustable Height	Yes, up to 24 inches
Wattage	12W
Voltage	110-240V AC
Included Accessories	Grow light, water tank, 3 planting pots, seeds (herb mix)
Cleaning Instructions	Wipe with damp cloth; unplug before cleaning
Safety Features	Low voltage operation; automatic shut-off when water low
Warranty	1 year limited
Certifications	ETL, RoHS

Frequently Asked Questions - SLGLF120 SereneLife

How do I set up the SereneLife SLGLF120 indoor garden?

Place the garden on a level surface, fill the water tank, insert the planting pots with soil and seeds, connect the power adapter, and set the timer using the control panel. Refer to the manual for detailed steps.

What type of seeds can I use with this indoor garden?

You can use a variety of small herb, lettuce, or flower seeds. The included seed mix is suitable for beginners. Avoid large seeds that may not fit the planting slots.

How often should I water the plants?

Check the water level indicator regularly. Typically, you need to refill the tank every 1-2 weeks depending on plant growth and humidity. Always keep the water level above the minimum mark.

Can I adjust the light height?

Yes, the light arm is adjustable. You can raise or lower it to accommodate plant growth. Ensure the light is 2-4 inches above the tallest plant for optimal growth.

How long should the grow light be on each day?

The built-in timer provides a 14-hour on, 10-hour off cycle. This mimics natural daylight and is suitable for most herbs and leafy greens. You can override the timer if needed.

What is the power consumption of this device?

The LED light consumes 12 watts. The total power consumption is low, making it energy-efficient for continuous use. Cost is approximately $1-2 per month depending on local electricity rates.

How do I clean the indoor garden?

Unplug the unit. Remove the water tank and pots. Wipe all surfaces with a damp cloth. Do not use abrasive cleaners or submerge electrical parts. Allow to dry completely before reassembling.

Is the SereneLife SLGLF120 safe to use around pets?

Yes, the low voltage (12V) power supply and enclosed design make it safe. However, prevent pets from chewing on the cord or drinking the water to avoid contamination.

What should I do if the light stops working?

First, check the power connection and ensure the adapter is plugged in. If still not working, contact SereneLife support. The LED module is not user-serviceable; do not attempt to open it.

Can I grow plants without soil?

This model is designed for soil-based planting. The pots have drainage holes. For hydroponic use, you would need a different system. Stick to soil for best results.

USER MANUAL SLGLF120 SereneLife

Questions? Comments?

We are here to help!

Phone: [phone]

Email: [e-mail]

serenelife™

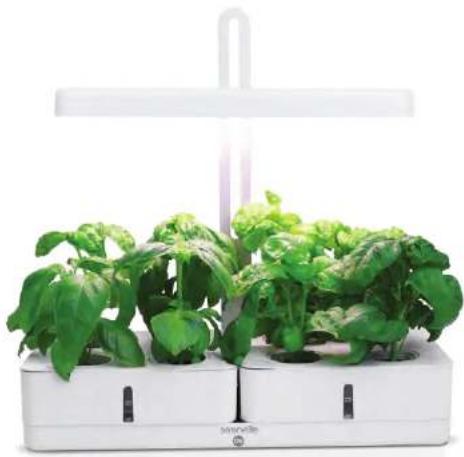

White indoor hydroponic plant setup with green leafy plants under a vertical bar (no text or symbols visible)

LED Grow Light with Hydroponic Boxes

User Manual

Read all instructions before using this Smart Indoor Garden.

SAFETY INSTRUCTIONS:

• This product is intended for household and residential use only. Do not use outdoors.
• IMPORTANT SAFETY INSTRUCTIONS: This portable luminaire has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not alter the plug.
• Unplug the Smart Indoor Garden from the power outlet before making any changes to the product.
• Never operate the Smart Indoor Garden, if it has been dropped or damaged.
• Do not place or submerge Smart Indoor Garden in water or other liquid to clean it.
• Do not use near heat or gas source.
• For ON/OFF manual control of the lights, use the switch located on the power cord.

STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation."

Notice:

The product only provides the necessary light for growth of plant.

Reasonable moisture, nutrients, temperature and timely maintenance and other essential factors are also necessary to maintain the health of plants.

GARDENING TIPS:

1. Suitable for operation in ambient not exceeding 40°C or 104°F
2. Keep the lighting panel 1"-2" above the plants to make sure they get the right amount of light.

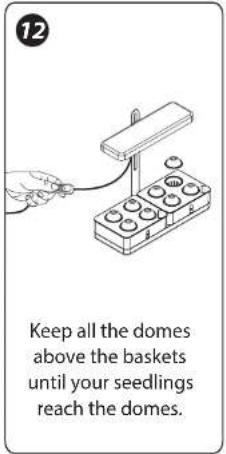

3. Remove the transparent domes when the seedlings touch the domes.
4. Suggested plants to grow

Herbs: Basil, Thyme, Peppermint, Lemon balm, Catnip, Sage, Dill, Coriander.

Technical line drawing of a mechanical device with a top bracket and two internal compartments (no text or symbols)

Vegetables: Romaine Lettuce, Red Sails Lettuce, Micro Tom Tomato.

Flowers: Petunia, French Marigold, Garden Balsam, English Daisy, Viola Tricolor. For lettuce we suggest to put 1-2 seeds into each pod, for herbs we suggest to put 1-3pcs. For tomatoes or radish, we suggest to put 1 seed into each pod. Check the seed packet for information regarding temperature and days to germination. The number of seeds also depends on germination rate and personal preference.

1. Before grow seedlings, leave the water level at Min. and no more water. When seedlings are growing up, middle water level is recommended. You may have overwatered your garden, it is very important that water not exceed the Max scale. If your smart soils are still too wet, you can lower the water level below Min. or take the soil out to dry for 1-2 days.
2. The smart soils themselves are already integrated with nutrients, the nutrients inside will last at least 3 months for greens and herbs. For fruiting plants, plant food may be required within 3 months if you find the plant stop growing bigger or fruiting.

Note:

The space lids are used to cover the holes on the grow deck where you don't want to grow anything sometimes and these lids can also efficiently prevent algae growth.

DIMENSIONS

COMPOSITION OF THE SMART SOIL

45-55% (4.5-5.5g) Polyurethane sponge.
25-35% (2.5-3.5g) Canadian imported sphagnum peat moss.
15-25% (1.5-2.5g) Sri Lanka imported coconut coir fiber And we have 1-2g Osmocote Controlled Release Fertilizer inserted into this soil.

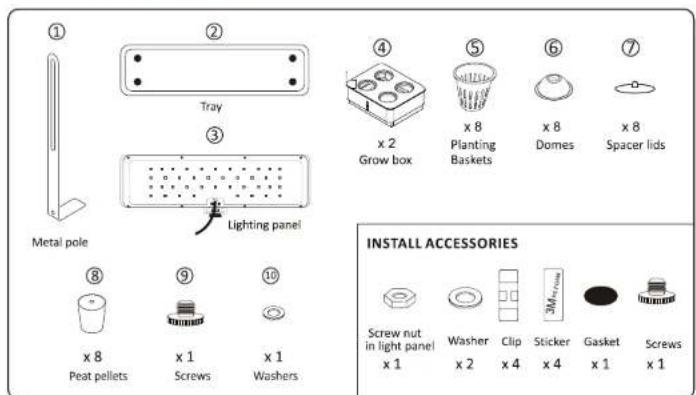

INCLUDED IN PACKAGE

ASSEMBLY GUIDE

Technical diagram showing a bracket with mounting holes and a close-up of the detail (no text or symbols)

Insert the metal pole into the tray.

Technical line drawing of a mechanical support or bracket with a vertical rod and circular head (no text or symbols)

Fix the metalpole with screw and washer.

Diagram showing a rectangular container with dots inside, connected to a small hexagonal nut (no text or symbols)

Make sure the screw nut is inside the lighting panel.

Simple line drawing of a rectangular object with a curved line and a small circle labeled '4' in the top-left corner (no text or symbols on the object itself)

Screw out the screw and washer of the lighting panel

Simple line drawing of a mechanical device with a rotating arm and base, no text or symbols present.

Fix the lighting Screw out the screw and washer of the lighting panel. panel with screw and washer.

Fix the power cord with the 2-3 clips and 3M stickers.

FEATURES:

- Up to 8 Plants Grow at a Time

- Up to 13" Inches Tall with this Indoor Garden

- No Soil, No Mess

- Easy to Use

• Height Adjustment

- Self Watering Plant

• 16 Hours On, 8 Hours Off Automatically

- LED Grow Lights

- For Indoor Use Only

- Energy Efficient LED Grow Lights for Faster Growth

• Simple Reminders Take the Guesswork Out of Growing

- Sprouts in Days, Harvest in Weeks, Enjoy for Months

WHAT'S IN THE BOX:

- Metal Pole

• (2) Grow Box

• (8) Spacer Lids

• (1) Washers

- Tray

• (8) Planting Baskets

• (8) Peat Pellets

- Accessories

- Lighting Panel

• (8) Domes

• (1) Screw

CONSTRUCTION MATERIALS:

- Light Diffusor: PC

- Screw: Metal

• Light Cover: Engineered ABS

- Base: Engineered ABS

- Rod: Metal

TECHNICAL SPECS:

• Power Supply:18W

• Working Temperature: 14 \~ 104°F

• Storage temperature/Humidity: -13 \~149°F/85%

- Input Voltage: 120V AC

- Input Current: 244mA (@120V/60HZ)

• Output Voltage: 60-68V typical data 61.8V

- Output Current: 250±10mA

- Spectrum: 3500K

- Frequency: 50/60Hz

• Life Time: 25,000 H

- IP Rate: IP20

• Product Dimensions (L x W x H): 17.72"x 7.68" x18.74"-inches
