PLBLSP40 - Rear Camera Pyle - Free user manual and instructions

Product Type	Rear View Camera
Brand	Pyle
Model	PLBLSP40
Image Sensor	1/3-inch CMOS
Resolution	480 TV Lines
Viewing Angle	110 Degrees
Night Vision	Built-in IR LEDs (up to 15 ft)
Waterproof Rating	IP68
Power Supply	12V DC (from reverse light)
Video Output	Composite RCA (NTSC/PAL)
Dimensions	1.5 x 1.2 x 1.1 inches (38 x 30 x 28 mm)
Weight	0.2 lbs (90 g)
Main Functions	Rear view monitoring, parking aid, mirror/reverse image switchable
Mounting Type	Surface mount or license plate bracket
Cable Length	20 ft (6 m) video/power cable included
Maintenance	Clean lens with soft dry cloth; check connections periodically
Safety	Professional installation recommended to avoid electrical shorts
Spare Parts	Replacement cables and brackets available online
Reparability	Non-repairable; replace unit if faulty
Compatibility	Works with most monitors and head units with RCA input

Frequently Asked Questions - PLBLSP40 Pyle

How do I install the Pyle PLBLSP40 rear camera?

Installation requires connecting the camera's power wire to the reverse light circuit (12V DC) and the RCA video cable to a monitor or head unit. Mount the camera on the rear license plate bracket or drill a hole for surface mount. For detailed steps, refer to the user manual included.

Does the camera have night vision?

Yes, the PLBLSP40 features built-in IR LEDs for night vision, providing clear visibility up to 15 feet in complete darkness.

Can I use this camera with aftermarket monitors?

Yes, it outputs a standard composite video signal (NTSC/PAL) via RCA, compatible with most aftermarket monitors and head units that have a video input.

Is the camera waterproof?

The PLBLSP40 has an IP68 rating, meaning it is fully sealed against dust and can be submerged in water up to 1.5 meters for 30 minutes. Suitable for outdoor use.

Does the camera provide a mirror image?

Yes, the camera includes a mirror/reverse image switch (usually a toggle wire) so you can choose a normal view or a mirrored view for rear-facing use.

How do I adjust the camera angle?

The camera mount is adjustable: you can rotate the camera up/down and left/right before tightening the screws. Once positioned, tighten to secure the angle.

What is the viewing angle?

The camera offers a 110-degree viewing angle, providing a wide rear view to minimize blind spots while reversing.

Can I connect multiple cameras?

This is a single camera unit. For multiple cameras, you would need a separate video switcher or a monitor with multiple inputs.

How do I clean the camera lens?

Gently wipe the lens with a soft, dry cloth to remove dirt or moisture. Avoid using harsh chemicals or abrasive materials that could scratch the lens.

What should I do if the camera stops working?

First, check the power connections and fuses. Ensure the video cable is securely plugged in. If the problem persists, the camera may be defective and should be replaced.

USER MANUAL PLBLSP40 Pyle

Close-up of a magnifying glass with a glowing yellow logo and white circular emblem, held in a dark cloth (no visible text or symbols)

PLBLSP40

Ultrasonic Blind Spot Detection System

BSD Change Lane Safer, BSA BSM Blind Spot Monitoring Assistant Car Driving Security with Reverse Parking System

USER GUIDE

Please read this manual for proper operation and keep it for future reference.

Ultrasonic Blind Spot Detection System is designed for safety driving warning assistant only. It is the driver's responsibility to always drive safely.

Step 1: Installation

1. Tools

The diameter of drill bit depends on the sensors

Electric drill

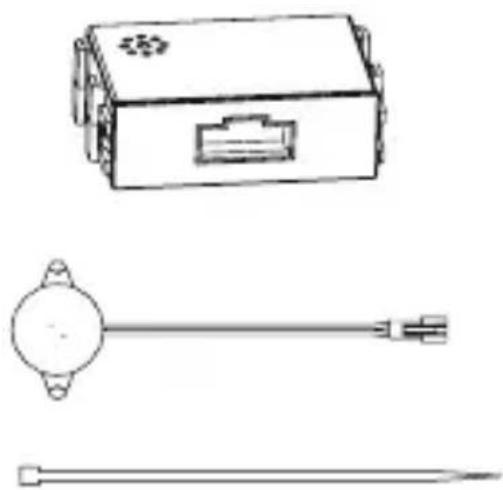

2. What's in the Box:

Two types of electronic components or connectors, one with a circular icon and the other with a plus sign (no text or symbols)

LED extension cable

Technical line drawings of a device with a rectangular box, a circular component, and a linear pointer (no text or symbols)

Nylon cable tie

1. Wiring Diagram


Step 2: Sensor Installation

1. The ideal height to mount L & R sensors (Up 7°) is about 60cm-70cm where the bumper is vertical to the ground, CL & CR sensors (0°) is about 50cm-65cm. Otherwise it may cause false alarm.

1. Keep the drilled hole clean after drilling to make sure the proper size of installing sensors. Keep sensors away from sponge, metal plate or anything on the sensors surface, otherwise it may cause false alarm.

Function Introduction

Blind Spot Dectection Function

(Blind spot detection are both for XY-BSD500-4 and XY-BSD500-2) System is activated when vehicle is driving. Detection area is 5m long and 2.5m wide at the rear side of vehicle. LED indicator turns ON if the sensor detects another vehicle that comes near the next lane.

If switching ON turn signal at the same side when object is detected, LED indicator will flash and buzzer will have 3 beeps.

Buzzer beeps three times once turn signal is switched ON. If emergency button is switched ON, both sides will turn ON.

Notes for installation, test and tips

1. Installation

a. This product is applied to 12V battery vehicles, please read manual carefully before installation.
b. To insure the length of cables fit the vehicles and convenience of routing cables, please install control box at the left trunk.
c. Please connect cables as Wiring Diagram.

2. Test

a. If the system didn't work please check and insure all cables connected properly.
b. If the system can't detect the obstacles behind the vehicle, please check sensors if properly in upward position.

3. Tips

a. Please have a test first on this system before operating.
b. If dirt, rain or snow builds up on the sensor, the sensor may not function properly. If water droplets, snow or mud adhere to the sensor and its components, rinse with water and wipe with a dry cloth.

c. When reversing down a steep slope or driveway, gravel, lawn and/or the road surface may cause momentary detection signals due to the sensors following the sloping angle of the vehicle which may cause false alarm.

d. Sensors can't detect well on sponge, glossy sphere, spiky objects or very tiny obstacles.

Features:

• Helps Driver Lane Changing Safely During Driving
- With the Aid of 58KHZ Ultrasonic Sensor
- Two Ultrasonic Sensors
- Two Blind Regions Monitor (or LED Light)
- With Buzzer and the Wire Harness, Perfect Connection of Ultrasonic and Computer
• Integrates Blind Spot Detection and Reversing Assistance
• High-speed Frequency Sensors for the Left-rear and Right-rear of the Vehicle
- Buzzer Warning Indicators for the Right and Left Side

Technical Specs:

• BSD Function: Blind Spot Detecting System Function
  • LCA Function: Lane Change Assist
  • RCTA Function: Rear Cross Traffic Alert Function
• Type: Universal Blind Sport Monitoring System (BSM)
  • Electricity Voltage: 12V
  • Maximum Power: 5W (max)
• Working Temperature: -40^ C +85^ C (- 40^ F 185^ F )
• Storage Temperature: -40^ C +85^ C (-40°F\~185°F)
• Waterproof Level: IP67K
• Detection Range: 0m – 5m.
  • Detection Range Accuracy: ±3cm
• Product Dimensions: 3.47" x 2.36" x 11" -inches
