Product Type	Cove Heater
Brand	KING
Model	KCV2009-W
Category	Heating
Voltage	240V (typical for this series)
Power Output	2000W (estimated based on model number)
Installation	Wall-mounted, surface mount
Minimum Mounting Height	6 ft above floor
Minimum Clearance from Ceiling	2.5 inches (drywall), 6 inches (vinyl/drop ceilings)
Clearance from Draperies	6 inches front and top, 2.5 inches below
Electrical Connection	Hardwired, junction box on either side
Construction	Aluminum heating panel, steel back frame
Safety Features	Overheat protection (implicit), do not cover
Certifications	UL Listed (File #E41422)
Maintenance	Periodic dusting of front panel
Moving Parts	None
Warranty	2 years from date of installation
Compliance	Local electrical codes
Wiring Diagram	Included in manual
End Caps	Included, do not overtighten

Frequently Asked Questions - KCV2009-W KING

What voltage does the KCV2009-W heater require?

The heater is available in 120V and 240V versions. Check the rating nameplate to ensure the supply voltage matches. Using the wrong voltage can cause poor performance or damage.

How high should the cove heater be installed above the floor?

The heater must be installed a minimum of 6 feet above the floor for safety and proper operation.

Can the cove heater be recessed into the wall?

No, do not recess the heater. It is designed for surface mounting only.

How do I wire the heater for left or right side supply?

The heater can be wired from either side. Connect the supply wires on one side only. In the opposite junction box, connect the white and black element wires together with a wire nut. See Figures D and E in the manual.

What is the warranty period for this heater?

The King KCV series cove heater carries a 2-year warranty from the date of installation. Refer to the manufacturer's warranty statement for details.

How do I clean and maintain the heater?

The heater is maintenance-free with no moving parts. Periodic dusting of the front panel is recommended. Do not use water or cleaning solvents.

Can the heater be painted?

No, never paint the heater. Painting can affect performance and void the warranty.

What happens if I connect a 240V heater to a 120V supply?

Powering a 240V unit with 120V supply will reduce heater output by approximately 75%. Conversely, powering a 120V unit with 240V supply will destroy the heater and void all guarantees.

What are the clearance requirements near draperies?

Draperies should clear the front and top of the heater by 6 inches. Draperies hung below the heater should have a 2.5 inch clearance.

Does the heater include a built-in thermostat?

No, the base model does not include a thermostat. A thermostat must be wired separately according to the wiring diagram provided.

USER MANUAL KCV2009-W KING

INSTALLATION INSTRUCTIONS

king

KCV SERIES Cove Heater

DANGER

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

WARNING

It is extremely important to verify the electrical power supply is the same voltage as the heater being installed. 240 and 120 Volt heaters are not interchangeable. Powering a 240 Volt unit with 120 Volt supply wires will reduce heater output by approximately 75%. Powering a 120 Volt unit with 240 Volt supply wires will destroy the heater and voids all guarantee and warranties.

CAUTION: Turn off power source supplying heater before attempting any installation, maintenance or repairs. Lock or tag circuit breaker/fuse panel door. Failure to do so could result in serious electrical shock, burns or possible death.

WARNINGS: To insure proper operation of this heater it should be a minimum of 6 feet above the floor and no closer than 2½" below drywall ceiling (6" vinyl or drop ceilings). Draperies should clear the front and the top of this heater by 6". Draperies hung below the heater should have a 2½" clearance. Do not block the heater in any manner. Never paint the heater.

MAINTENANCE & WARRANTY

Following the guidelines herein listed will result in a maintenance-free heater. There are no moving parts or motors to maintain. Periodic dusting of the front panel is all that is suggested.

The KCV Cove Heater carries a (2) warranty form date of installation. Please refer to the manufacturer's warranty statement for further information.

GENERAL INFORMATION

Cove heaters are completely assembled and pre-wired. To prepare the heater for installation, carefully check the voltage to be used is the same as stated on the rating nameplate. Operating voltage can not exceed 5% of nameplate voltage. Operating heater above listed voltage ratings voids all gaurantees and warranties.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Following are some general guidelines:

• Do not recess this cove heater.
• Disconnect power at main panel.

• Make certain all wiring is in accordance with all local codes and units are properly grounded.

• Voltage rating of heater should be the same as supply load.

• Do not install the heater on vinyl wall coverings.

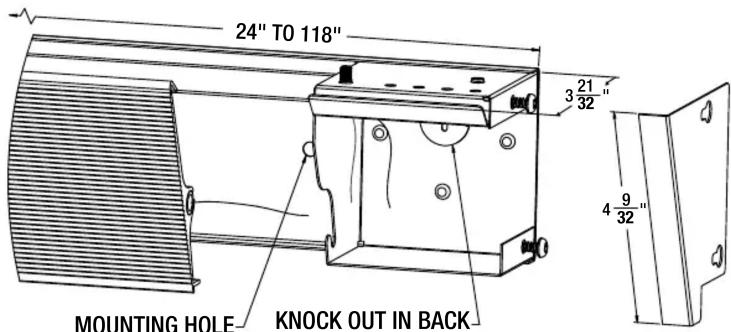

• Remove heater from carton. Disassemble the aluminum heating panel from the back support frame. Remove knock out in junction box for electrical supply connection. See Figure A & B.

• To install the back support frame on the wall, locate the studs in the wall and use existing mounting holes or pre-drill 3/16" holes as needed. Use appropriate fasteners to securely mount to wall. See Figure B.

Fig. B

Technical line drawing of two mechanical components with mounting holes and a labeled top view (no text or symbols on the diagram itself)

Fig. A

1. Temporarily hang the aluminum heating panel from the top lip of both junction boxes. This will support the heater while the electrical connections are made and allow one person to wire the heater without having to hold the panel at the same time. See Figure C.

2. Connect the supply cable grounding wire to the green wire pigtail in wiring compartment.

3. Follow the desired wiring diagram, to connect the power supply to the heater using approved wire nuts.

Instructions for left or right side wiring

1. Heater can be wired from either side - wire one side only.
   Caution: Power wires should be connected on one side only.
   In the opposite junction box, connect the white and black element wires together using an approved wire nut. See Figures D and E.

Fig. C

SAVE THESE INSTRUCTIONS

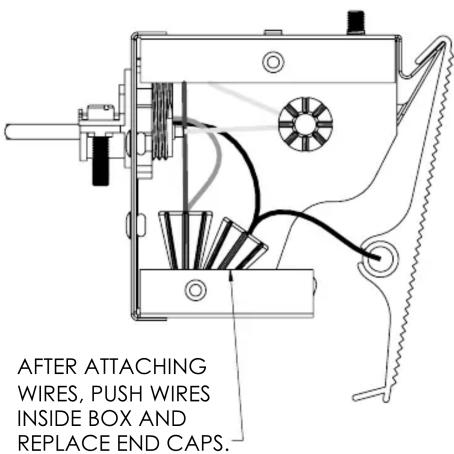

1. After wiring is complete, carefully press the electrical wires into the junction box, making sure not to pinch any wires between the junction box and the heating panel.

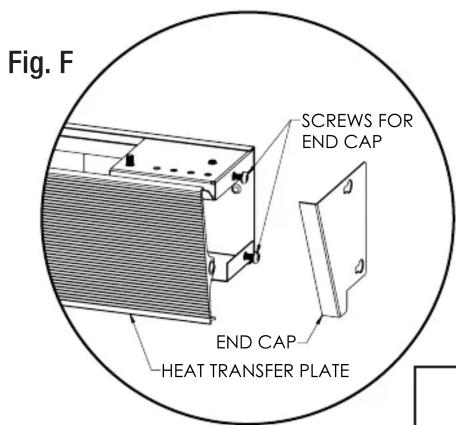

2. Install the end caps: Push the bottom edge of the aluminum heating panel towards the back panel, while installing the end caps and lightly tighten the 2 screws to secure it. Do Not Overtighten, as the aluminum heating panel will expand and contract during heating, requiring it to move freely. See Figure F.

CAUTION

File #E41422

The heater should not be covered or blocked in any manner.

SAVE THESE INSTRUCTIONS
