LPWA2445-TP-W - Heating KING - Free user manual and instructions

Product Type	Space Heater
Model	LPWA2445-TP-W
Brand	King
Power Source	Electric
Wattage	1500 W
Heating Type	Fan-forced convection
Coverage Area	Up to 300 sq ft
Thermostat	Adjustable
Safety Features	Overheat protection, tip-over switch
Dimensions (W x D x H)	10 x 8 x 12 in
Weight	5 lbs
Cord Length	6 ft
Color	White
Control Type	Manual dial
Certifications	ETL listed
Noise Level	< 45 dB
Warranty	1 year
Cleaning	Unplug and wipe with dry cloth
Repair	Contact authorized service center

Frequently Asked Questions - LPWA2445-TP-W KING

How do I clean the King LPWA2445-TP-W heater?

Unplug the heater and let it cool completely. Wipe the exterior with a dry cloth. Do not use water or cleaning agents. Clean the air intake grille with a vacuum brush attachment.

What should I do if the heater does not turn on?

Check that the power cord is plugged in securely and the outlet is working. Ensure the thermostat is set above room temperature. If still not working, check the circuit breaker. If the problem persists, contact King customer support.

Is the heater safe to leave unattended?

It is recommended to never leave the heater unattended. Always turn off and unplug when leaving the room. The heater has built-in safety features like overheat protection and tip-over switch, but supervision is advised.

Can I use an extension cord with this heater?

No, do not use an extension cord. Plug the heater directly into a wall outlet. Using an extension cord may cause overheating and fire hazard.

How much area does the LPWA2445-TP-W heat?

The heater can effectively warm a room up to 300 square feet depending on insulation and ambient temperature.

What is the power consumption of this heater?

The heater has a wattage of 1500 W. At maximum setting, it consumes 1.5 kWh per hour of operation.

Does the heater have a thermostat?

Yes, it has an adjustable thermostat that allows you to set your desired temperature. The heater will cycle on and off to maintain that temperature.

Is the heater noisy?

The heater operates with a fan that produces a low noise level, typically less than 45 dB, which is comparable to a quiet conversation.

What is the warranty period?

The King LPWA2445-TP-W comes with a 1-year limited warranty against defects in materials and workmanship. Retain your receipt for warranty service.

Can I use the heater in a bathroom?

This heater is not designed for bathroom use unless it is specifically rated for damp locations. Keep it away from water to avoid electric shock.

USER MANUAL LPWA2445-TP-W KING

INSTALLATION INSTRUCTIONS

SAVE THESE INSTRUCTIONS

LPW2045T, LPWA2045T, LPW2445T, LPWA2445T, LPW2740T, LPWA2740T 240 VOLT MODELS with Disconnect Breaker and Remote User Switch

It is ALWAYS recommended to order your unit with or without the thermostat for your particular application. If your unit has been ordered incorrectly please contact the factory and we can exchange it for the proper unit. Adding a built-in thermostat after installation is complicated and could result in creating wiring errors and shorting out the unit.

Instructions for wall mount heater with built-in thermostat

It is extremely important to verify the electrical power supply is the same voltage as the heater you are installing. 208, 240, 277 and 120 Volt heaters are not interchangeable. Powering a 208, 240 or 277 Volt unit with 120 Volt supply wires will reduce the heater's output by approximately 75%. Powering a 120 Volt unit with 208, 240 or 277 Volt supply wires will destroy the heater and voids all warranties.

NOTICE: For heaters without built-in thermostats, using remote or wall-mounted thermostats: the power must be brought to the heater first (not to the wall-mounted or remote thermostat). This is necessary to provide power for the fan to cool down the element after the thermostat has opened. Use only a single pole line voltage wall thermostat or switch to control this heater.

CAUTION: Open the circuit breaker supplying the heater before attempting installation, maintenance, or repairs. Lock or tag circuit breaker panel door. Failure to do so could result in serious electrical shock, burns, or possible death.

1. Remove heater contents from carton and check for shipping damage.

2. Remove grille by loosening the four mounting screws along the sides of the front panel.

3. Detach interior assembly from the wall can by removing the four screws along each side of the interior panel. Lift and tilt assembly away from the top of the wall can. Free the bottom edge from the metal lip inside the wall can. Place the interior assembly in a safe location until the wall can is mounted.

4. Remove one knockout from the wall can and thread supply wires through the hole. Use an approved cable connector to prevent wires from chafing. Connect groundwire to green pigtail.

5. Mount heater wall can on wall studs a minimum of 6" from side wall and 4" from floor, using the holes provided in the sides of the box. The face of the box should be flush with the finished wall. Installation of the interior and grille to the wallbox cover an approximate 5/8" periphery along the outer area of the opening.

6. After wall can is secured interior assembly leads may be attached to supply wires and interior secured to wall can. NOTE: The LPW wall heater is equipped with two steel elements having a capacity of 2250 Watts each, for a combined capacity of 4500 Watts. The heater is factory-wired at 4500 Watts. To adjust the heater for lower wattages remove the appropriate colored wire according to the illustration and wattage diagram provided on the back side of this sheet. Be sure to insulate and secure the unused lead.

7. Reinstall interior assembly on wallbox using screws provided.

8. Mount grille to interior with screws provided.

9. Installation is now complete and the heater ready for use.

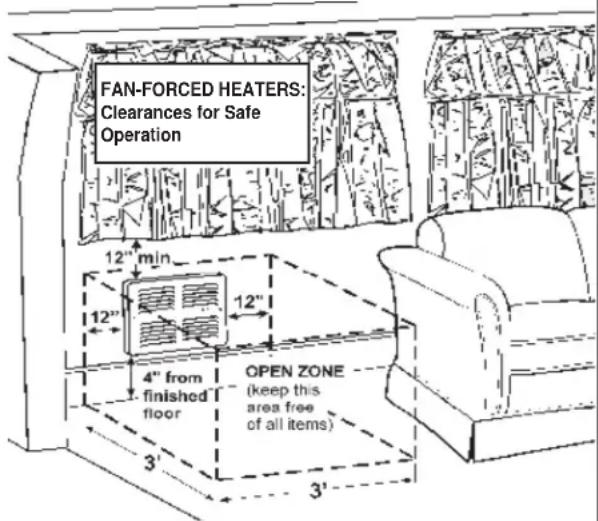

FAN-FORCED HEATERS: Clearances for Safe Operation 12" min 12" 4" from finished floor OPEN ZONE (keep this area free of all items) 3' 3'

VISUAL ALARM

This heater includes a visual alarm to warn that parts of the heater are getting excessively hot. If the alarm flashes, immediately turn the heater off and inspect for any objects on or adjacent to the heater that may cause high temperatures. Do not operate the heater with the alarm flashing.

Maintenance & Warranty

The high quality and superior design of this unit will enable years of maintenance free performance. Once yearly the heater should be checked for lint or dust accumulation but no further maintenance is required. The motor is permanently lubricated and sealed. A 5-year warranty is provided on the Pic-A-Watt® element and 1-year on all materials, components and workmanship.

LPW-As with disconnect.indd : 8/09

OWNERS GUIDE & INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH HEATER FOR HOME OWNER

INSTALLATION INSTRUCTIONS

This heater includes a visual alarm to warn that parts of the heater are getting excessively hot. If the alarm flashes immediately turn the heater off and inspect for any objects on or adjacent to the heater that may cause high temperatures. Do not operate the heater with the alarm flashing.

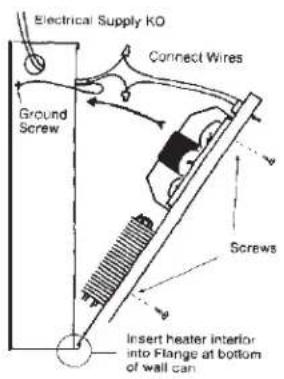

Electrical Supply KO Connect Wires Ground Screw Screws Insert heater interior into Flange at bottom of wall can

SAVE THESE INSTRUCTIONS

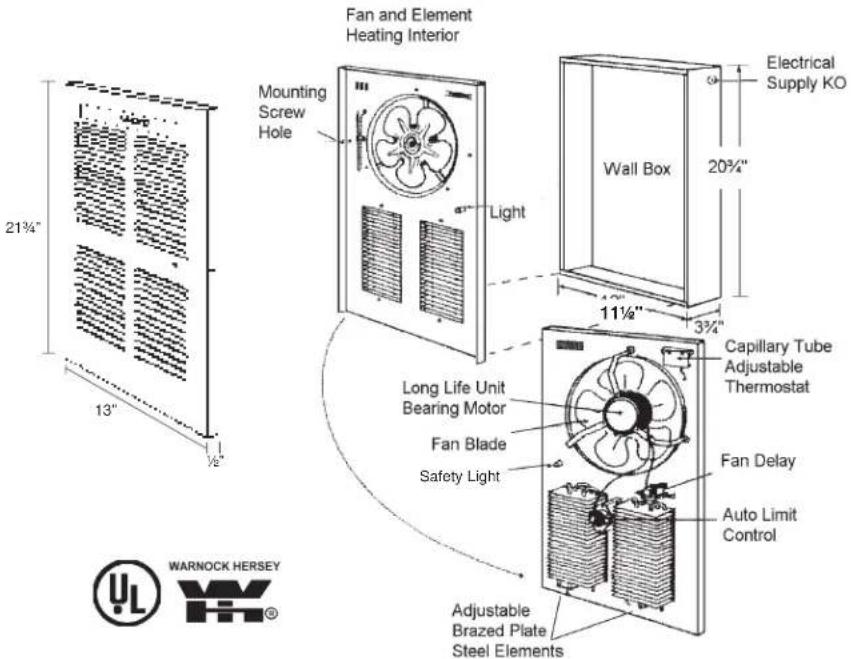

Fan and Element Heating Interior Mounting Screw Hole Light Wall Box Electrical Supply KO 20¾" 11½" 3¾" Capillary Tube Adjustable Thermostat Long Life Unit Bearing Motor Fan Blade Safety Light Fan Delay Auto Limit Control Adjustable Brazed Plate Steel Elements 21¾" 13" ½" WARNOCK HERSEY

INSTALLATION INSTRUCTIONS

This heater is shipped from the factory wired for maximum wattage of 4500 Watts. To reduce the wattage unplug (disconnect) an insulated push on terminal and wrap with electrical tape to prevent the possibility of electrical contact with other parts.

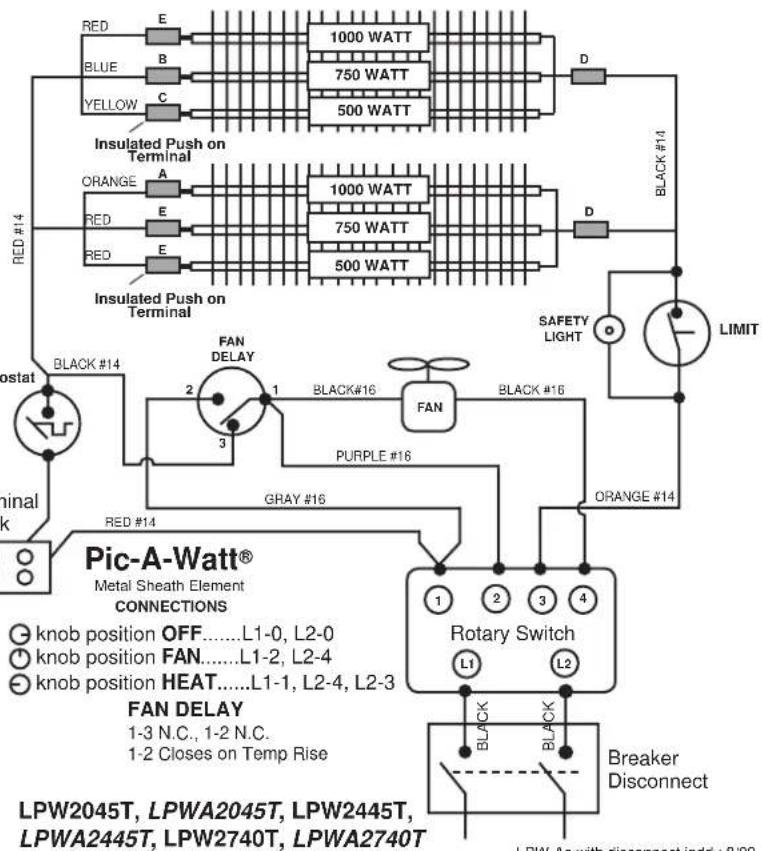

Field Wattage Selection

A - ORANGE Disconnects 1000 Watts
B-BLUE Disconnects 750 Watts
C - YELLOW Disconnects 500 Watts
D - BLACK Do Not Disconnect (Common)
E - RED Do Not Disconnect

D Common E 1000 B 750 C 500

D Common A E E 1000 750 500

END VIEW OF ELEMENT
SHOWING QUICK CONNECT TERMINALS

2250·2750·3000·3250·3750·4000·4500

WATTAGES AVAILABLE IN ONE UNIT

RED E BLUE B YELLOW C 1000 WATT 750 WATT 500 WATT D INSULATED PUSH ON Terminal ORANGE A RED E RED E 1000 WATT 750 WATT 500 WATT D INSULATED PUSH ON Terminal POSTAT BLACK #14 FAN DELAY 2 1 BLACK#16 FAN 3 PURPLE #16 GRAY #16 ORANGE #14 SAFETY LIGHT LIMIT PIC-A-Watt® Metal Sheath Element CONNECTIONS knob position OFF.....L1-0, L2-0 knob position FAN.....L1-2, L2-4 knob position HEAT.....L1-1, L2-4, L2-3 FAN DELAY 1-3 N.C., 1-2 N.C. 1-2 Closes on Temp Rise Rotary Switch L1 L2 Breaker Disconnect LPW2045T, LPWA2045T, LPW2445T, LPWA2445T, LPW2740T, LPWA2740T LPWAs with disconnect indd : 8/09
