CS-E15CKP - Air conditioner PANASONIC - Free user manual and instructions

Product Type	Wall-mounted split air conditioner
Brand	Panasonic
Model	CS-E15CKP
Indoor unit	Wall-mounted type with removable front panel
Outdoor unit	Standard type with air intake and outlet
Refrigerant	R410A, ozone-friendly
Power supply	220-240 V ~ 50 Hz
Standby consumption	Approximately 2.8 W
Operating modes	Auto, Heat, Cool, Gentle Dry, Fan
Special functions	Power Mode, Quiet Mode, Ionizer Mode, On/Off Timer
Airflow direction	Vertical and horizontal with automatic louvers
Remote control	Wireless, maximum range 10 m, with display and backlit buttons
Filters	Washable air filter, catechine air purifying filter (CZ-SF70P), triple deodorizing filter (CZ-SFD72P)
Air filter cleaning	Every 2 weeks in dusty environment, wash with water and dry
Replacement of purification filters	Every 6 months for the catechine filter, every 3 years for the catechine filter, every 6 months for the deodorizing filter (reusable after sunlight exposure)
Front panel cleaning	Removable, washable with water and mild detergent, dry in shade
Automatic restart	Yes, after a power outage (if not turned off by remote control)
Electrical protection	Surge protection device, turn off power during thunderstorms
Remote control batteries	2 non-rechargeable R03 (AAA) batteries, battery life approximately 1 year
Operating temperatures (indoor/outdoor)	Cooling: 16-32°C indoor, 16-43°C outdoor; Heating: 2-30°C indoor, -5-24°C outdoor
Installation precautions	Professional installation required, mandatory grounding, proper piping connection

Frequently Asked Questions - CS-E15CKP PANASONIC

How to clean the air filters?

Remove the filters, vacuum the dust, then wash them with clean water or mild detergent. Let them dry completely before reinstalling. It is recommended to clean the filters every two weeks if the environment is dusty.

How to set the start timer?

Ensure the time is correct. Press the ON-TIMER button, set the time using the +/- buttons, then confirm. To cancel, press CANCEL. The timer can be set to start up to 35 minutes before the desired time.

What to do if the remote control doesn't work?

First check the batteries: replace them if the display is dim. Make sure the batteries are oriented correctly. If the problem persists, use the automatic operation button on the indoor unit (lift the front panel).

How to interpret flashing error codes?

If the timer LED flashes, press the TIMER button on the remote control for 5 seconds. A three-character error code will be displayed. For example, H23 allows temporary operation in cooling mode. Note the code and contact an authorized technician.

The unit doesn't cool well, what to check?

Check that the temperature is set correctly, the air filters are clean, the intake and outlet louvers are not obstructed, and doors and windows are closed. If after 15 minutes the temperature difference between intake and outlet air is less than 8°C in cooling mode, contact a professional.

How to use the Power mode?

Press the POWERFUL button on the remote control. The orange indicator lights up. Power mode increases the set temperature by 3.5°C in heating or decreases it by 2°C in cooling for the first 20 minutes, and increases the fan speed. Press again to deactivate.

Why is there a water flowing sound?

This sound is normal: it comes from the refrigerant circulating inside the unit. It may also be heard after shutdown, when the refrigerant flows in reverse. It is not a malfunction.

How to maintain the deodorizing filter?

The triple deodorizing filter is reusable. Vacuum it and expose it to sunlight for 6 hours every 6 months. Reinstall it after drying. Replace it if damaged.

What to do in case of a power outage?

The unit will automatically restart in the previous mode if the remote control hasn't turned off the unit. If you do not want this automatic restart, turn off the main switch. Timer settings are canceled and must be reset.

Can I use rechargeable batteries in the remote control?

No, only use alkaline R03 (AAA) batteries or equivalent. Rechargeable (Ni-Cd) batteries are not recommended because their voltage may be insufficient and damage the remote control.

USER MANUAL CS-E15CKP PANASONIC

Before using your air-conditioner, please read this operating instructions carefully and keep it for future reference.

INVERTER MODEL :-

(Refrigerant: R410A)

Indoor

CS-E9CKP

CS-E12CKP

CS-E15CKP

Outdoor

CU-E9CKP5

CU-E12CKP5

CU-E15CKP5

ENGLISH P. 1 - P. 10

PORTUGUES P. 11 - P. 20

DEUTsCH P.21-P.30

FRANÇAIS. P. 31 - P. 40

NEDERLAND. P. 41 - P. 50

ITALIANO P.51-P.60

GREEK P.61-P.70

ESPANOL P.71-P.81

RUSSIAN P.82-P.93

LOT 2, PERSIARAN TENGKU AMPUAN, SECTION 21,

SHAH ALAM INDUSTRIAL SITE, SELANGOR, MALAYSIA

Thank you for purchasing our Panasonic Room Air Conditioner.

CONTENTS

Features 1

Safety Precautions 2

Installation Precautions
Operation Precautions

▶Name of Each Part 3~4

Indoor Unit
Outdoor Unit
Accessories
Remote Control

Preparation Before Operation 5

Indoor Unit
Remote Control

How to Operate 5~6
Setting the Timer 7
Convenience Operation 7

Powerful Mode Operation
Quiet Mode Operation
Ionizer Mode Operation

Care and Maintenance 8

Cleaning the Indoor Unit and Remote Control
Cleaning the Air Filter
Cleaning the Front Panel
Air Purifying Filters
Pre-season Inspection
When the Air Conditioner is Not Used for an Extended Period of Time
Recommended Inspection

Helpful information 9
Energy Saving and Operation Hints... 9
Troubleshooting 10
Call the Dealer Immediately

Note:

Before using your air conditioner, please read this operating instructions carefully and keep it for future reference.

FEATURES

Cool, quiet, comfort from Panasonic Inverter Aided air conditioner

• Illuminating Button

For your convenience to operate in the dark.

(Refer page 4)

Automatic Operation

Sense indoor temperature to select the optimum mode.

(Refer page 5)

Vertical / Horizontal Air Swing

Auto swing for vertical and horizontal airflow direction.

(Refer page 6)

• Quiet Mode

To provide quiet operation.

(Refer page 7)

• Ionizer Mode

Produce negative ion for fresh air.

(Refer page 7)

Powerful Mode

Reaches the desired room temperature quickly.

(Refer page 7)

• Removable Front Panel

For quick and easy cleaning. (washable)

(Refer page 8)

Catechin Air Purifying Filter

Filter that can trap dust, tobacco smoke and tiny particles in the room. It can also prevent growth of bacteria and viruses trapped in this filter.

(Refer page 8)

• Triple Deodorizing Filter

Absorb odours produced by wall paper, construction material and living environment.

(Refer page 8)

• Auto Restart Control

Restart the unit automatically after power failure.

(Refer page 9)

• Environmental Friendly (For Refrigerant: R410A Model)

Zero ozone depleting potential and low global warming potential by using R410A refrigerant.

Warning

1) If the supply cord is damaged or needed to be replaced, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2) Remove power plug or disconnect from the main before servicing this appliance.
3) Do not repair by yourself.

In case of malfunction of this appliance, do not repair by yourself. Contact the sales dealer or service dealer for a repair.

4) Turn off the power (Isolation from main power supply). Pull off the power plug from the receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the equipment from the main power supply in case of an emergency.
5) The appliance is not intended for use by young children or infirm person without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Caution

DISCONNECT THE MAIN PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE, WHERE SUPPLY CONNECTION IS VIA MAIN PLUG.

Airborne noise.

A-weighted sound pressure level of this appliance is less than 70dB (A) under the JIS C 9612 test conditions.

Maximum cooling operation

1 m from the unit

IMPORTANT

Replacement or installation of power plugs shall be performed by authorised/qualified personnel only.

The wires in this main lead are coloured in accordance with the following code:

Green and Yellow : Earth

Blue Neutral

Brown :Live

"As the colours of the wires in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follow :

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked by the letter E or by safety earth symbol or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with letter L or coloured red."

SAFETY PRECAUTIONS

Before operating, please read the following "Safety Precautions" carefully.

• To prevent personal injury, injury to others and property damage, the following instructions must be followed.
• Incorrect operation due to failure to follow instructions will cause harm or damage, the seriousness of which is classified as follow:

Warning

This sign warns of death or serious injury.

Caution

This sign warns of damage to property.

The instructions to be followed are classified by the following symbols:

This symbol (with a white background) denotes an action that is PROHIBITED.

These symbols (with a black background) denote actions that are COMPULSORY.

Installation Precautions

Warning

• Do not install, remove and reinstall the unit by yourself.

Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or specialist for the installation work.

Caution

This room air conditioner must be earthed.

Improper grounding could cause electric shock.

• Ensure that the drainage piping is connected properly.

Otherwise, water will leak out.

• Do not install the unit in a potentially explosive atmosphere.

Gas leak near the unit could cause fire.

Operation Precautions

Warning

This sign warns of death or serious injury.

• Do not share outlet.
• Do not insert plug to operate the unit. Do not pull out plug to stop the unit.
• Do not operate with wet hands.
• Do not damage or modify the power cord.
• Do not insert finger or other objects into the indoor or outdoor units.
• Do not expose directly to cold air for a long period.

• Plug in properly.
• Use specified power cord.

• If abnormal condition (burnt smell, etc.) occurs, switch off and unplug the power supply.

Caution

This sign warns of injury.

• Do not pull the cord to disconnect the plug.
• Do not wash the unit with water.
• Do not use for other purposes such as preservation.
• Do not use any combustible equipment at airflow direction.
• Do not sit or place anything on the outdoor unit.

• Switch off the power supply before cleaning.
• Ventilate the room regularly.
• Pay attention as to whether the installation rack is damaged after long period of usage.

• Switch off the power supply if the unit is not used for a long period.

NAME OF EACH PART

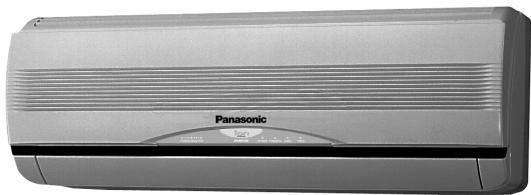

Indoor Unit

1 Front Panel
2 Air Intake Vent
3 Power Supply Cord
4 lonizer
Vertical Airflow Direction Louver
6 Horizontal Airflow Direction Louver
7 Indicator Panel
Air Outlet Vent

1 Auto Operation Button

(when the front panel is opened)

2 Power Monitor Lamps - ORANGE

• Lights up from LOW to HIGH to show the compressor operating condition.
  Light off when then compressor stops.

3 Ionizer Mode Indicator - GREEN
4 Power Indicator - GREEN
5 Powerful Mode Indicator - ORANGE
6 Quiet Mode Indicator - ORANGE
7 Timer Mode Indicator - ORANGE

Indoor Unit

(when the front panel is opened)

1 Front Panel
2 Air Filters
3 Air Purifying Filter

Outdoor Unit

Air Intake Vents
Ground Terminal (Inside cover)
3 Piping
4 Connecting Cable
5 Drain Hose
6 Air Outlet Vents

Accessories

Remote Control
Remote Control Indication Sticker

Remote Control Holder

- Two RO3 (AAA) dry-cell batteries or equivalent

Air Purifying Filter
(Catechin Air
Purifying Filter)

(Triple Deodorizing
Filter)

NAME OF EACH PART

Remote Control

Remote Control Signal.

• Make sure it is not obstructed.
  Maximum distance : 10 m.
• Signal received sound.

One short beep or one long beep.

Notes for Remote Control.

• Do not throw or drop.
• Do not get it wet.
• Certain type of fluorescent lamps may affect signal reception. Consult your dealer.

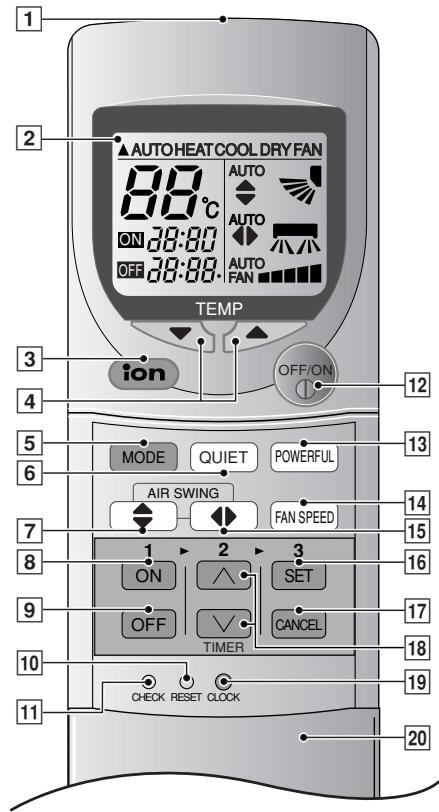

1 Signal Transmitter
Operation Display
3 Ionizer Mode Operation Button
4 Room Temperature Setting Button (Illuminating button)
5 Operation Mode Selection Button
6 Quiet Mode Operation Button
7 Vertical Airflow Direction Button
8 ON-Timer Button
9 OFF-Timer Button
10 Reset Point (Press with fine-tipped object to clear the memory)
11 Check Point To be used by the service technician only.
OFF/ON Button (Illuminating button)
13 Powerful Mode Operation Button
14 Fan Speed Selection Button
15 Horizontal Airflow Direction Button
16 Timer Set Button
17 Timer Cancellation Button
18 Time-Setting Button
19ClockButton
Remote Control Cover

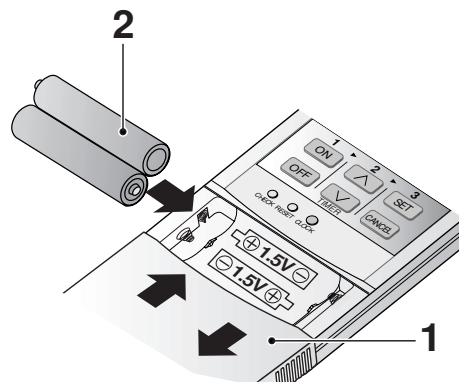

- How to Insert the Batteries

1 Slide down the remote control cover completely

2 Insert the batteries

• Be sure the direction is correct.
• 12.00 at display - flashing
• Set the current time (CLOCK) immediately to prevent battery exhaustion.

- About the batteries

• Can be used for approximately one year.

- Observe the following when replacing the batteries

• Replace with new batteries of the same type.
• Do not use rechargeable batteries (Ni-Cd).
• Remove the batteries if the unit is not going to be used for a long period.

1 Connect the power supply cord to an independent power supply

2 Open the front panel

3 Remove the air filters

4 Fit the air purifying filters in place

5 Insert the air filters

6 Close the front panel

Remote Control

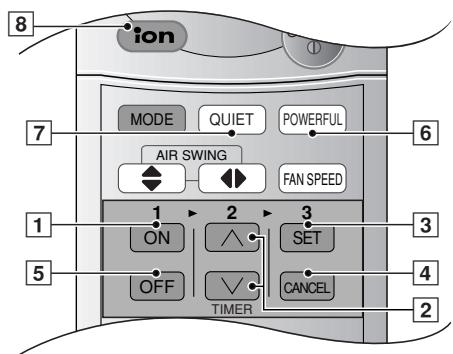

• To set the current time

1 Press 1.
2 Then press 2 to increase or decrease the time.
3 Press 1 again. Set time at display will light up.

HOW TO OPERATE

To start the operation

• Press 1.
• POWER indicator (green) on the indoor unit will light up. (LED blinks when the room temperature is low at the start of heating or operation mode is selected during Automatic Operation.) The power monitor lamps light up to show the compressor operating condition.
• To stop, press once more.

Setting Mode

• Press 2 to select:

AUTO - Automatic Operation

HEAT - Heating Operation

COOL - Cooling Operation

DRY - Soft Dry Operation

FAN - Fan Operation

Setting Temperature

• Press 3 to increase or decrease the temperature.
• The temperature can be set between 16^ 30^ . (Not adjustable during Fan Operation.)
  Recommended temperature:

HEAT : 20^ 24^

COOL : 26^ C 28^ C

DRY : Approx. room temperature

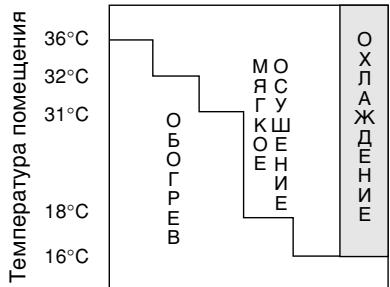

Automatic Operation

• At the start of the Automatic operation, Heating, Cooling or Soft Dry is automatically selected according to the outdoor temperature, indoor temperature and setting temperature.
• The operation mode changes every half hour, when necessary.

Outdoor Temperature

Setting the Fan Speed

• Press |4|to select:

There are five stages of fan speed in addition to Auto Fan speed.

AUTO

FAN - Heating

When the temperature of the discharge air increases, the fan speed increases.

Cooling Dry

Changes the fan speed to generate a cool breeze. The air starts to blow out approximately 40 seconds after the start of Cooling or Soft Dry.

Setting the Vertical Airflow Direction.

• Press [5] to select:

• For COOL/DRY operation. Swing up/down automatically.

• For HEAT operation When the discharge air temperature is low such as at the start of the heating operation, the air blows at horizontal level. As the temperature rises, the hot air blows in a downwards direction.

Louver adjustment range

• The adjustment range is different for each operation i.e. Heating, Cooling and Soft Dry. (Fig.at left)
• The angle indicated on the remote control is different from that on the indoor unit.
• The louver angle automatically changes to prevent condensation during Cooling and Soft Dry.
• When operation stops, the louver automatically closes.

Five stages of adjustments can be made in this range.

Notes

• Do not adjust the vertical airflow direction louver downward during Cooling and Soft Dry. Drops of water may condense on the air outlet vent and drip down.
• Use the remote control to change the vertical airflow direction louver. Using your hands to adjust the direction may cause the louver to malfunction. If this happens, stop operation immediately and restart.

Setting the Horizontal Airflow Direction.

• Press [6] to select:

Horizontal Airflow Direction	Indoor Unit	→→→→→→
	Remote Control	→AUTO→→→→→→→

• For COOL/DRY operation. Louvers swing horizontally at a fixed speed.

• For HEAT operation When air temperature is low, air is sent in. When temperature goes up, louver swing horizontally at a fixed speed.

- Use this air conditioner under the following conditions:

Unit in ^ C

DBT: Dry Bulb Temp WBT: Wet Bulb Temp	Indoor		Outdoor
	DBT	WBT	DBT	WBT
Maximum Temperature-Cooling (Maximum Temperature-Heating)	32 (30)	23 (-)	43 (24)	26 (18)
Minimum Temperature-Cooling (Minimum Temperature-Heating)	16 (2)	11 (-)	16 (-5)	11 (-6)

Notes

• If the unit is not going to be used for an extended period of time, turn off the main power supply. If it is left at the ON position, approximately 2.8 W of electricity will be used even if the indoor unit has been turned off with the remote control.
  If operation is stopped, then restart immediately, the unit will resume operation only after 3 minutes.

Operation Details

COOL - Cooling Operation

• To set the room temperature at your preference cooling comfort.

AUTO - Automatic Operation

• Sense indoor temperature to select the optimum mode.
• Temperature is not displayed on the remote control during AUTO operation.

DRY - Soft Dry Operation

• Dehumidifies while maintaining the setting temperature. The Soft Dry Operation is recommended during the rainy season.
  If the room temperature exceeds the setting temperature, operation switches to Cooling.
• The fan speed is rather slow during Soft Dry Operation.
• The humidity may not decrease when the indoor temperature is lower than the setting temperature on the remote control.

HEAT - Heating Operation

• To warm up the room temperature upon your preference setting temperature.
• Heat is obtained from outdoor air to warm up the room. When the outdoor ambient air temperature falls, the heating capacity of the unit might be reduced. We recommend that you use an additional heating device when the outdoor ambient air temperature is low.

FAN - FAN Operation

• Circulates air throughout the room.
• Purifies and deodorizes the air if the air purifying filter is used. Fan Operation is recommended during seasons in which neither Heating nor Cooling is used.

SETTING THE TIMER

Ensure that the current time is correct before setting the timer. The timer cannot be set if the time display is flashing.

ON-TIMER Operation

To start the air conditioner operation automatically.

• Press 1 to set the operation.
• Press 2 to increase or decrease the time.
• Then press 3.
  To cancel this operation, press 4.

OFF-TIMER Operation

To stop the air conditioner operation automatically.
- Press 5 to set the operation.
- Press 2 to increase or decrease the time.
- Then press 3.
To cancel this operation, press 4.

Timer Mode Operation Details

• When the ON-Timer is set, operation will start before the actual set time. This is to allow the room temperature to reach the setting temperature by the setting time. (Maximum of 35 minutes in advance).
• Once the timer is set, operation will start and stop at the same time everyday.
• The current time is not displayed when the timers are set.
• When both timers are used together, the TIMER mode indicator on the indoor unit remains lit even when the operation is stopped by the OFF-TIMER.

Powerful Mode Operation

To obtain the set temperature quickly.
- Used in winter to warm yourself quickly upon returning home (Heating + Powerful).
- Used in summer to cool yourself after a hot bath (Cooling + Powerful).
Press 6.
× Powerful mode indicator (orange) on the indoor unit will light up.
- To cancel this operation, press once more.

Note

• The setting temperature and the fan speed changes automatically in order to heat, cool or dehumidify the room quickly.

Operation		Temperature	Fan Speed
Automatic	HEAT	3.5°C higher	Slightly Stronger
	COOL	2°C lower (For first 20 minutes)
	DRY	1°C lower (For first 20 minutes)

Quiet Mode Operation

To provide quiet operation.

Press 7.
※ Quiet mode indicator on the indoor unit will light up.
- To cancel this operation, press once more.

Operation Details

Air flow sound will reduce during operation.

Ionizer Mode Operation

Produce negative ion for fresh air.
Press 8.
※ Ion mode indicator on the indoor unit will light up.
- To cancel this operation, press once more.

Operation Details

Air conditioner ON:
Provide negative ion during operation.
Air conditioner OFF:
Provide negative ion with FAN operation.
- If blinking, press 8 twice.
If still blinking, please call service.

CARE AND MAINTENANCE

■ Cleaning the Indoor Unit and Remote Control

• Wipe gently with a soft, dry cloth.
• Do not use water hotter than 40^ or polishing fluid to clean the unit.

Cleaning the Air Filter

(Recommendation: If the unit is operated in a dusty environment, clean the filters every two weeks, continuous use of this dirty filters will reduce cooling or heating efficiency)

1 Remove dirt using a vacuum cleaner.
2 Wash back of the air filter with water.
3 If badly soiled, wash it with soap or a mild household detergent.
4 Let it dry and reinstall it.
Be sure the "FRONT" mark is facing you.

× Damaged air filter.

Consult the nearest authorized dealer. Part No.: CWD001047.

• Do not use benzene, thinner, scouring powder or clothes soaked in caustic chemical to clean the unit.

Cleaning the Front Panel

Must be removed before washing)

1 Raise the front panel higher than the horizontal and pull to remove it.
2 Gently wash with water and a sponge.

• Do not press the front panel too hard when washing.
• When use kitchen cleaning fluid (neutral detergent), rinse thoroughly.
• Do not dry the front panel under direct sunlight.

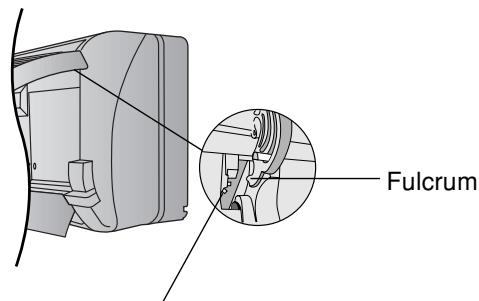

3 To fix the front panel, raise the front panel horizontally, match the protruding portion on the indoor unit to the fulcrum and push into place.

Protruding portion on indoor unit

Air Purifying Filters

- Triple Deodorizing Filter

• Absorb odours produced by wall paper, construction material and living environment.
  Reusable.
  Vacuum, place under direct sunlight for 6 hours and fit it back in place.

(Recommended:every6months)

Catechin Air Purifying Filter

• The filter is coated with catechin to prevent growth of bacteria and viruses.
• Reusable.
  Vacuum and fit it back in place

(Recommended: every 6 months)

• Recommended to change these filters every 3 years. Do not reuse damaged filters.

Consult the nearest authorized dealer to purchase a new filter.

Catechin Air Purifying Filter No.: CZ-SF70P

Triple Deodorizing Filter No.: CZ-SFD72P

• If you operate the air conditioner with dirty filters:

Air is not purified
- Cooling capacity decreases
-Foul odour is emitted

Pre-season Inspection

Is the discharged air cold/warm?

Operation is normal if 15 minutes after the start of operation, the difference between the air intake and outlet vents temperature is:-

COOL - 8^ or above

HEAT - 14^ or above

• Are the air intake or outlet vents of the indoor or outdoor units obstructed?
• Are the remote control batteries weak?

If the remote control display appears weak, replace the batteries.

■ When the Air Conditioner is Not Used for an Extended Period of Time

1 To dry the internal parts of the indoor unit, operate the unit for 2 - 3 hours using:

FAN operation

2 Turn off the power supply and unplug.

Note: If the unit is not switched off by the remote control, it will start operating when you plug in (because the unit is equipped with Auto Restart Control).

3 Remove the remote control batteries.

Recommended Inspection

• After used over several seasons, the unit will become dirty and thus decreases the unit's performance. Depending on the operation conditions, a dirty unit may produce odour and dust may pollute dehumidification system. Therefore, a seasonal inspection is recommended in addition to regular cleaning. (Consult an authorized dealer).

HELPFUL INFORMATION

Auto Operation Button

Automatic Operation

• If the remote control fails to function or has been misplaced, press the Auto Operation button to start the Automatic operation.
• The Automatic operation will be activated immediately once the Auto operation button is pressed. However, temperature cannot be adjusted in this operation.
• The power indicator on the indoor unit will blink until the operation mode is selected automatically.
• To cancel this operation, press once more.

Auto Restart Control

• If there is a power failure, operation will be automatically restarted under the previous operation mode and airflow direction when power is resumed. (When the operation is not stopped by remote control).
• If you do not want the unit to restart automatically when power is resumed, switch off the power supply.
• If you do not require Auto Restart Control, consult your dealer.
• Auto Restart Control is not available when Timer Mode is set.
• When the operation restarts, the outdoor unit will operate only after 3 4 minutes.

Timer Setting

• When power failure occurs, the timer setting will be cancelled. Once power is resumed, reset the timer.

Thunder and Lightning

• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may switch off the main power supply and unplug from power socket.

Voltage fluctuation

• The outdoor unit stops operation frequently due to a fluctuation in the voltage. Consult your dealer.

Here are some useful tips for optimum performance and cost-effective operation.

Setting the Temperature

• Approximately 10% of electricity can be saved.
• Set the temperature higher or lower than the desired temperature.

Cooling Operation : 1^ C higher Heating Operation : 2^ C lower

Air Filters and Air Purifying Filters

• Clean the air filters every 2 weeks and the Air Purifying Filters every 6 months.
• Dirty filters may reduces cooling or heating efficiency.

■ Keep All Doors and Windows Closed

• Otherwise, cooling or heating performance will be reduced and electricity cost is wasted.

Outdoor Unit

• Do not block the air outlet vents. Otherwise, it will lower the cooling or heating performance.

Timer Mode

• To prevent wastage of electricity, use Timer when going out.

Avoid Direct Sunlight

• Keep curtains or drapes closed to avoid direct sunlight during cooling operation.

TROUBLESHOOTING

Before calling your dealer, refer to the checklist

Problem?	Check
· The unit does not operate	· Has a circuit breaker been tripped or a fuse blown? · Is the power supply plug disconnected from the outlet? · Is the Timer being used correctly?
· The unit does not cool or heat effectively	· Has the temperature been set correctly? · Are the air filters dirty? · Are the air intake or outlet vents blocked? · Are all the windows and doors closed? ※ Measure the temperature difference. Operation is normal if, 15 minutes after the start of operation, the temperature difference between the air intake and outlet vents is 8°C or above for cooling and 14°C or above for heating.
· The unit does not receive remote control signals, or the remote control display is weak or non-existent	· Are the batteries weak? · Have the batteries been inserted with the ⊕ and ⊙ poles in the correct position?
Problem?	Reason
· Air is not discharged immediately	· At Cooling • Soft Dry (auto Fan Speed) Air will not be discharged for approximately 40 seconds. The unit is designed to prevent tobacco, cooking and body odors from being discharged together with the cool air. · At Heating (POWER LED blinks) This is to prevent cold air from blowing out. Please wait.
· Operation stops suddenly	· At Cooling • Soft Dry (auto Fan Speed) The indoor fan repeatedly stops for 80 seconds and operates for 20 seconds to check the indoor temperature. Whenever the temperature reaches the setting temperature, operation starts again. · At Heating (POWER LED blinks) When the outdoor temperature is low and humidity is high, frost accumulates on the outdoor unit. The POWER LED blinks when the unit is melting the frost. (Please wait as defrosting may take up to 10 minutes.)
· Fog is blowing out from the unit	· This occurs when the airflow from the air conditioner comes to the room.
· There is a noise	· A 'pass' sound is heard during defrosting or when the air conditioner operation has been stopped. This is caused by the refrigerant inside the air conditioner flowing in the opposite direction. · The air conditioner will expand or contract due to changes in temperature, causing a cracking sound. · The sound of water flowing is caused by the refrigerant flowing inside the unit.
· The outdoor unit gives off water and steam	· When defrosting, the frost melts and changes to water and steam.

Call the Dealer Immediately

If the following conditions occur, turn off and unplug the main power supply, and then call the dealer immediately.

Abnormal noise is heard during operation.
Water or foreign material gets into the remote control by mistake.
Water leak from the indoor unit.
- Switches or buttons do not operate properly.
- Circuit breaker trips or fuse blows frequently.
- Power supply cord and plug become unusually warm.
- A smell of burning is emitted.

When the Timer LED at indoor unit blinks

The Timer LED blinks indicating abnormality.

Press the check button at remote control for 5 seconds, error code will be displayed.

Remote Control Display.

Press TIMER or button to identify the error code

Beep sound (4 times) will be heard for the correct error code shown.
Turn off the power supply and remove the power supply plug.
Inform the error code to an authorised dealer.

Depending on which 3 characters are displayed, temporary operation may be possible.

Characters allowing temporary operation	Possible temporary operations	Description of operation
H23	Cooling	Emergency operation with limited functions. (The Timer LED continues to blink.)
H27	Heating
H28	Cooling

Temporary operation

1. Press the MODE button and select Heating or Cooling.
2. Press the operation OFF/ON button ('beep! beep! beep! beep!' sound is heard).
   ※ Use this operation temporarily, until repairs can be made.

Obrigado por ter adquirido o/DDs Aparelho de Ar Condicionado Panasonic.

INDICE

Characteristicas 11

2 Instalar as pilhas

• Comprove sé a posicao correcta
• 12.00 no visor - piscando
• Acerte a hora actual (CLOCK) imeditamente, para evitar desgaste das pilhas.

Sobre as pilhas

1 Frontgitter
2 Grobstaubfilter
3 Feinfilter

AuBengerat

Feinfilter
(Catechin-Feinfilter)

PpoulaEic ykaTaaOanC

△npoooxñ

Mny tonop0eTeiTe, mny apaipEiTE kai mny εnavaTOnoTeTeiTe Tn moVába móvoI oac. Eopaalμevn yKataoTaon μnpεi va npokaLéoi δiappoŋ, nEktponληxià n npkayia. I apakaalouμε ouβouλeuθεite Tov εgouioobotnevo avtinpóωno η iDko TexviKO γia tIC epyaOIEc yKataoTaONC.

Baon TnC EoWTePiknC movadac

Bo3nyhblnBtp cKaTexHOM

C NOMOUsbIO 3TOro QmNbTpMa MoXHO NOrIoUaTb NbIb, Ta6aHbI DbIM N MeJKe NcactuB B NOMEueHIN. OH TAKKe CnOCo6eN npedOTbpaauTa b poCT n pa3Bntne nonabux H Hero 6akTeprn u BnpycoB.

(CMOTpncTpaHnUy 89)

TpoHOn De3oOpnpuyuOuNnΦnIbTp

TOrnoaet 3anaxn, nCnyckaembIe o6oAMN, CTPONTeJIbHbIMM MaTePnaIaMn I KInIOI cpeIoN.

(CMOTpncTpaHnUy 89)

• ABTO3anyck

ABTomatnueckn BkIIOucaET yCTpoIcTBO BCclyae 06pbIbA 3JIeKTPoNITAHNA.

(CMOTpn CTpaHnU 90)

HE 3AΓPRA3HRET OKPYXKAIOUYIO CPEy

(Дяхладагента:ТиR410A)

IcnoIb3yEmbI oxnaInteIb R410A He Bbl3bIbAeT pa3pyeHnO 03OHOBOr cNo I yMeHbIaET pNCK co3dAnHr TeJIINHOro 3ΦΦeKTa.

PPEyPPEKDEHNE

1）Bcnyae nobpeKdHn Hhpya nTaHnN nn B03HKnHOBeHn Heo6xOJIMOCt n ero 3aMeHbI, 3Ty OnepaunIO, BO n36ExaHne HeCuaCTHO r cyuA, DOnJKeH BblONHrTb TOnbKO n3ROBOTeNb, ero npedctabntel Nnn KBaInΦnupOBaHnh pa60THNK.
2)П配电д,чЕМпpoBOOHTbTEXHnueCKM OCMOTpycTPOIcTBA, BbIKJIOnHTe HAnPRAKeHNe IINBbIePPhIte UHyp n3 pO3ETK.
3) He npo3BODnTe peMOHT caMoCTOReTbHO. B Cnyae HEmCnpaBHOCTN yCTPOIcTBa, He NItaIteCb OTPeMOHTnpoBaTbERO CaMOCTOReTbHO. IIO BCem Bonpocam, CB83aHHbIM C peMOHTOM, ObaPauTecb K pnoDaBuY iIN aAreHtY no 06CNyKBAHnO.
4) OTKIIOHNTe NITAHne (OTcoEINHnTe arperaT ot 3NeKtpocetn).B abapnnHOI CNTuAun BbDEpHnTE BUNky 7Hypa nITAHnI N3 pO3eTN, INcNtob3yIe NpepbBaTeJIb TOKa IIN C NOMoUbIO BbIKIQUaTeJIa pa3OmKHnTe 3NeKtpuYeCKHo cTe b TEM, UTO6bl IOJNOHOCTbIO H3OJInPOBaTb arperaT OT 3NeKtpocetn.

ПРЕДОCTEPEЖЕНЕ

ECJIIN B DAHHbI MOMEHT Bbl HE NOLb3YET ECB YCTPOIcTBOM, BblDEPHNTE BNJIKY I3 PO3ETKN (ECJIIN FIIbTP NOIDKJIIOUeH K CETN C POMOUsbIO LITENCEJIbHOrO PA3bEMA).

Cozdaebmy

По дньим, польецьим в pe3ультые Иснытainedу COOTBETCTBи CO.staHdapTom JIS C 9612, cpeДнeВЗБ ueHoe 3haueHne 3ByKOBOrO DAbIeHnR, co3ДаBaEМОг noHactOuIIM arperatOM, He npeBbIwaet 70 d5 (A).

MaKcImaJIbHaN cNoCObHocTb OxJaXeHnA

1 M ot arperata

BAKHAR INHΦOPMALI

3aMeHy nIy uCTaHOBky 7TeNceJIbHbIX pa3bEmOB DoJIKeH npOn3BOIDITb TOnbKO yNoIHOMOeHHbIK BaJIuΦnUPOBaHHbI nepcoHaJ.

Побова BCETeBOM KaBeNe IMeHOT pa3JIuHnyU OBeTobYIO MAPKINPOBky:

3eJIeHbI n JxJeJIbI 3emJr
CnHn HeItpaIb
KopnHeBbI :Φa3a

"Ecnn CEBT npoBOOB B cTeBOM Ka6eJe yCTpoiCTBa He COBnadaet C MapKnPOBKO KoHTaKTOB BaIeO pa3bema, DeIeCTByTE CneDyUOUM O6pa30M:

ПобOD, OKpaшeHHb B 3eJIeHb I JKeIbI ΚBETA DoJIXeH 6bITb ПОДСоЕнен K KOТаКу, МарКИрOBaHHOMY 6yKBOE E, ЛбБ ИМЕОШЕМу CпeциАль bHbI CMNBOI 3aEмLEнгЯ ⊙, ЛбБ OKpaшeHHOMY B 3eJIeHb I NII 3eJIeHb I JKeIbI ΚBETA.

ПобOD, OKpaшeньВ BCINHи CBET,ДОЛжEN 6bITb ПОДСоЕДИЕН K KOТаRTy, МарКИрOBaHHOMY 6уКВоN NпИ OKpaшeHHOMY BЧернь ΚБET.

ПобOD, OKpaш�нь в КоричевыйцВET, Должен 6ытБпдбодинен K KOТаКу, МаркірованHomу 6укBoi L Илп Okраш�нHomу в КрасныцВET."

MEPbI INPEIOCTOPOXHOCTN

Ipeed nauJOM 3KcnIyatauIN KOHnIuHOhepa TtateIbHo n3yUHTe pa3JeI "Mepbl npedocToXHOCTH".

Bo n36eKaHne nOlyeHn TpaBM nOlb3oBaTeIeM n OkpykaIOUIMN IIObMn HeyKOCHNTeIbHO Co6IIOaIte npuBeDeHHbIe HIXe IHCTpyKcII.
- HenpaBnIbHoe o6paueHHe n c KOHduuHepom BCJeCTBne HrhopuOBaHn IprNBeDeHHbIX HNKe IHCTpyKm MOKeT NocJyKntb npUHNoI npUHHeHn BpeDa 3DopOBbIO INI NOBpeXdHn KOHduuHOHa, CTeNEh CepBe3HOCTN KOTOpBX yCNoBHO 06O3NaueHa B TeKCTe HaCTOnuSei NHCTpyKcN CLeDuOuMMn CmMBOJaMn:

PPEyPPEKDEHNE

3TOT 3nak npedynpejkaeTo BO3MOXHOCTn IetalbHOro nCxOda nn Cepbe3Ho TpaBMbl.

ПЕДОCTEРЖЕНЕ

3TOT 3HaK npeDynpexKaeT O BO3MOxHOCTNOJyHeHn TpaBMbl.

• Yka3aHn, KOtOpbIe DoJIxHbI OBa3aTeIbHO BblIOJIHaTbCn, Obo3HaayoTcB TEKCTe CJeDyOuIMN CmMBOJAmN:

3TOT CUMBOJ (C 6eIbIM 3aHINM FOHOM) O3Haayae TdEiCTBVE, BblONHeHne KOTOPORO 3APPEUJAETCA.

3TOT CnMBOJbI (c 6eJIbIM 3aHnIM fOHOm) O3NaHaIoT DeiCTBnKOTOpblE HEO5XoINMbI.

Mepbl npedoctopoxhoctn npn 3KcnpyaTaun

PPEyPPEKDEHNE

He yctaHaBnBaIte, He demOnThpyIte n He nepeHocHTe yCTpOJcTBO cAmOCToRTeJIbHO.

HenpaBnIbHa yCTaHOBka MoKet npBecTn K yTeYkAm BObl, nopaKeHHO 3JIeKTPnueCKM TOKOM IIN BO3HNKHOBEHHIO NOXapa.ДЯ YcTaHOBKn O6paUaIteCb K yN0NJHomOeHHOMy ppeCTaBtEnIO IIN CpeuaJIncTAM fnpMbI.

ПЕДОCTEPEЖЕНИ

JaHHbIK KOMHaTHbIK KOHNzHOHeP DOJXeH 6bTb 3a3eMJIeH.

HekaeeCTBeHHoe 3a3eMJIeHne rpo3nt IopaxKeHEm 3JekTpueckm TOKOM.

He cTaBbTe yCTpoIcTBo B NOMeueHnX, rIe cyuEcTByet yrpo3a B3pbIbA.

Yteka rataa B6n3n KOHNIOHepa MoKeT cTaB npuHNO IOKapa.

• He kndaIte n He poHnTe.
  Bounc cyloctn.
• HeKOTOpBIE TINbI NaMn DHeBHOrO CBeTa MOryT MeMaTb npnEmy CnHana. PpOKoHcyNbTpPyuYTeCb C npOdaBcOm.

1 PeredaTnK KOMaHdHbIX INCTaHcNoHHbIX CnHaJIOB
2 KOnTpOJIbHbI dIcPJIeI
3 KhoNka Bb6opa peXnMa noHn3aTopa
4 KhoNka yctaHOBKN TeMpepaTpybl NOMEeHn (KhoNka C noDcBETKO)
5 KhoIka BbIbopa pa6oeryo peXIMa
6 KhoNka BbIbopapeKMa Tnxn
7 KhoNka peryu npOBKn HnpaBHeHn nToKa Bo3dyxa B BePTUKaJIbHOI NLOCKOCTN.
8 KhoNka BkIIOueHn TaMepa
9 KhoNka BbIKHoueHn TaMepa
10 KOnTaKtbl c6poca (HaxMMte octpOKHeuHbIM npEaMeTOM, yTo6bI OUnCTnTb nAmrTb)
11ДиarHocHTnueckne BbIXObl ToIbKO IJIa cepBnCHbIX INHXeHepOB
12 KhoNka OFF/ON (BbIKJIIOYEHO/BKJIIOYEOH) (KhoNka c noDCBeTkoI)
13 KhoNka BbIbopa peKIma NOBbIeHHo MoUHOCHTn
14 KhoNka BbIbopa ckOpocTn BpaueHnBENTnAToPA
15 KhoNka peryu npOBKn HnpaBHeHn nToKa Bo3Dyxa B roPn3OHTaJIbHOH nIOCKoCTn
16 KhoNka yctaHOBKn BpeMeHH
17 KhoNka OTKNoUeHnTaMepa
18 KhoNka yctaHOBKn TaMepa
19 KhoNka yacOB
20 KpbIka npIbTa dNCTaHcNHOHHo ynpaBHeHH

Kak BCTaBtB 6aTapeKn

• HaxmTe KhoNky 2 yTo6bI Bbl6paTb:-

AUTO - ABTomatnueckn pekIM
HEAT - Pekim HargebaHIA
COOL - Pekim oxlaqdeHn
DRY -PexmMraKoCyckn
FAN -Pexm uPkynuIN BO3dyxa

YctahOBka temnepaTypa

• HaxMMTe KHOKNy 3 YTObbl yBEnuHTb nIyMeHbWNb TEMnepaTyp.
  Tempeatpa MoKet 6bItb yCTaHOJIeHa B INHTepBaIe MeKJy 16^ n 30^
• PekomehnyeMaT TempeaTypa:

HEAT(OBOPEB) 20^ 24^

COOL (OXIIAXKDEHNE) : 26°C ~ 28°C

DRY (OCUHEHIE) : npn6J. KOMHaTHa

Temnepatypa

■ ABTomatnueckn pexkum

• B haçaJIe aBTOMaTnueCKOro peKIMa IpOncXoIInT aBTOMaTnueCKn BbIbOp o6OrpeBa, OxJaXeHnI INJ MЯrKOrO OcyUeHnB C COOTBeTCTBnC TEmpePaTpyOI HApyXHOrO BO3dYxa, TEmpePaTpyOI NOMEuEHNr N 3aJaHHoI TEmpePaTpyOI.
• Пру Нeoбхоюмoctnи ржим pa60ы мehнетс Кждьгплчaca.

(Ex) 3aànhaŋ TaempeaTpya - 25°C

13^ 19^ 21^ 23^ 25^

Hapykha TemnepaTypa

YctahOBka CKOpOCTn BpaueHn BEHTNlAToPA

• HaxMMTe KhoNky 4 yTo6bl BbI6paTb:-

Kpome aBtOMaTnueCKOrO BbIbOpa CkOpocTN BeHTnJIrTopa, ectb nTb peXmOB CKOpocTN BeHTnJIrTopa.

AUTO

FAN -

06orpeB

Kornda TemnepaTypa Bb6paacbBaemoro BO3dyxa NOBbIaAeTcR,CKOpOCTb BEHTINJTopa TAKKe NOBbIaAeTcR.

OxlaXdHne OcyuHeHne

MeHReT CKOpocTb BEHTINrTopa dIa cO3dAnHn IpoXnAaHOro BeTePka. Bo3dyx NaHHaet BbIXoHntb IprMepHoYepe3 40 cekyHn IocNe Haayana peKmOB OxJaXdHeHne nn MArkoe ocUeHne.

YctaHObKa BepTnKajIbHOrO HapPaBHeHn NOtOKa BO3dYxa

• HaxMnte KhoNky [5] UTo6bl BbIbpaTb:-

Дяразьв ржиме OXЛАЖДЕНЯ/OCYLUEHIN.

ABTomatnueckoe nokayubahne XkaH03n BBepx/Bn3.

Haxmte KhoNky 6yTO6bY BblpaTb:

BkIIOUeHnE no taMepy

PexkIM BeHTnIaun (FAN)

2 BbIKIIOUHTe NITaHHe N BbIePHTe WHyp n3 po3eTKn. PnIMeuaHHe: Ecnn He BbIKIIOHTb yCTpoiCTBO npn NOMOuN PyNbTa dNCTaHcIOHNOHorO ynpabJIeHNo, OHO CaMO ABTOMaTtueCKN BKJIIOHTcN, KAc TOJIbKO BbI BCTABNTe 6JTOENB B PO3eTKy (NOCOKIbKy yCTpoiCTBO OCHaSeHo 6JLOKOM aBTOMaTtueCKOTO BKJIIOUeHn).
3 DoctaHbTe 6aTapeKu n3 nyIbTa duCTaHcNoHHoro ynpabHeHn.

■ PekomeHnyeMbI OCMOTp

• Послес Heckoьки Xлет 3KcNlpyatauyn yctpoiCTBO 3aRpa3HaeTcA,чTO npINBODIT K CHNXeHNO eRO 3ΦΦeKTHBHOCTN. Пи HeHaIJIeJaIeM ObaIeHIMN, 3aRpa3HHeHoe yCTpoiCTBO CnOC6HcMo cTaTB NCTOChNKOM HePnIaTHbIX 3anaxOB, a CkONIBuaIcR B HEm nbIb MOKET BbIECTN I3 CTPOr CNCTeMy BlaIaONOrIIOUSeHIN. ПOTOMy, крОme peYIaRPhO YuIcTkN, peKOMeHduTeCппрIoDUnCeCKN pOnI3BODITb TExHNUeCKN OCMOTp. (PpOKOHcYbIbTnpYIteCB y yNoIhOMOueHHORO dInepa).

Pone3naHnΦopMaun

KhoNka ABToMaTnueckn peXkIM

- POnHmMTe nepeDnIO paHeIb nHaXMMTe

- ABTomatnueckn peXm pa6oTbI

• Ecni npIbT dncTaHcUHOHOrO ynpaBHeHn BblweI n3 cTpor nIIN 6bl yTePAH, IJI BKNIOueHn HaxMNTe KHOJky aBTOMaTHueCKOrO pexima.
• ABTomatnueckn pexim pa60tbl BKHouaetc HEmeJenHNO, KaT ToIbKO HaXImaetc KHOJa ABTomatnueckn pexim. Ondako, TemepaTypa He MoKTe perylnpoBaTcB 3tOM pexim pa60tbl.
• INHДИКаTOp NITaHЯ, paCNoIoxKeHHbI Ha yCTpoIcTBe, KOTOpOE HAXODNTcB HByTpN IOMeIeHnI, 6yDet MIRaTb Do Tex nop, NOKa yCTpoIcTBo He 3aBepuHT abTomatNuYeCKyO yCTaHOBky peKIma pa6oTbI.
  -ДИЯOTMeHbI 3TOTopeKIMCJIeIyER eUe pa3HaKaTb HaKHONKY.

BbIKHouateIb aBO3aNycka

• Пис сбоe питань усточь bo abTomatчeckn nepe3anyctntc nocle BOCCTaHOBJIeHNЯ питань C npexHM peKIMOM pa60tBu HappaBHeHem Bo3dyuHoro notoka. (Korda pa60ta He ocTaHOBJIeHa c NOMOsbIpylbTaДИСТаHUNOHORуnpaBJIeHN.)
• EcIn Bbl He XOTnTe, YTObI yCTpoiCTBO aBTOMaTnueeCKn Ipe3aNyCKaIOcB IocNe BOCCTaHOBJEHHI INTaHIN, BBIKJIIOChTE NCTOCHNK INTaHIN.
• EcIn Bam He Tpe6yETcA BtOMaTnueCKoe ynpabJIeHne nepe3anyckOM, npOKOHcyIbTnpuYTEcb C BaIIM dIJIepOM.
• ABTomatuueckoe ynpablenHe nepe3anycOM He DeiectByET,ecIn yCTaHOBlen pexm TaMepa.
• Пи перазусян Нарухим Блор НачNET paBOTaTb TOnbko uepe3 3-4 MInHyTbl.

UctaHOBKn TaMepa

• KaK TOnIbKO npOpaTe 3NeKTPoNITaHne, npOu3OyIeT c6poc yCTaHOBOK TaIMepa. NocLe TOrO, KaK 3NeKTPoNITaHne BOCCTaHOBITcR, nepeUcTaHOBITE TaIMep.

P03a

-Данн布局КондиционерВОзухаоборуован BCTpoeHHO3aUNTOIOTNEpenaIOB HaprJKeHnB 3JIeKTPocETn.Tem He MeHee, C cIeIbIO dIaNbHeiUeI 3aUNTBI KOnDIIzUHOHa OT NOBpeXJDeHn BO BpEmA OcO6eHHBOBICOKOITPO3OBOaKTINBHOCTN,MOxH0 OTKJIIOHTb OCHOBHoi NCTOuHNK PINTaHnIBbITaUNTb 1TENCElbHyU BnIKy n3 pO3eTKn.

KoJIe6aHnHa npJxKeHn

HapyxHoe yctpoiCTBO qacto npekpaaet pa60taTb 13-3a KOle6aHn HnpaXeHn. IpokohcyIbTppyItecB C BaWM dInepom.

CobetbI NO 3KcPnyaTaunn N 3KOHOMN 3JIeKTPo3Heprnn

Hnke npBBeHebI NOJe3HbIe COBtbl JIy o6ecneueHnOITmAlhBbIX XapaKTePncTnK m 3KOHOHNO pa60tbl.

YctahOBka TemnepaTypbl

• MoXhO c3KoHOMHTb Do 10% ΝIeKtpo3Heprn.
• YctaHOBInTe TempepaTypy BblSe NJIH HIXe XeJaEMOn OTMETKN.

PexnM oxlaXdHn : 1oC Bblse

Pexm HarpBaHn : 2°C HnXe

Bo3dyhbln BO3dyxoouchntteIbhlbIΦnlbTpbl

OuIaIte Bo3dyHbI KIbTp KaJIbIe 2 HeJIeN I 3aMeHJIte Bo3dyXOOHCTIeJIbHbI KIbTp KaJIbIe 6 MEcra.
3aqr3HennbI qnIbTp cHnkaet OXlaJdaOuSyIO NnHarpeBaHOuNIO CNOco6HocTb KOHNIOHepa.

CnTuaun, KOrJa Heo6XoIm cPoHbIy Bbl3OB CneuHaNCTa fnpMbI

Bcnyae BO3HKnHOBeHHN HXKe nepeuNCJIeHHbIX HeucnpaBHOCTeB, BbIKNoHTe 3NeKTPoNTaHHe, BbITAHHTe UHyp n3 pO3eTKn HMeEJNeHHO 6ObpaTtEc b K npOaBu.

Bo Bpempa60bI KOHNzHHepe cJIbIeH HeHOpMaIbHbI ShM.
Boda nnn kakne-lnbo noctopohnme MaepnaJIbI no Own6Ke nonanin Bnylt dntaunOHoro ynpabHeHra.
- I3 BnytpenHero 6noka Ha6nIoJaTcYyTeuKa BObl.
- PepeKlHouateJIIN nn KhoNKn pa6OtaHt HenpaBnIbHO.
- ABTomatnueckn BbIKJIIOHATeJIb YACTO BbIKJIIOHauaETCA.
- NobbiueHHbH HarpeB uHypa nTuHaNn BUNKn.
- BbIeJIaTeTc3anax rapn.

Korda Miraet CBeToNDIO TaMepa Ha BHytpenHem 6Ioke

CBeToND TaMepa MnaeT, yka3bIbIa Ha HeHOpMaIbHyU pa60Ty. HAnKMTe KhONky PNOBepKn (CHECK) Ha npIbTe DnCTaHIOHOHOrO ynpabHeHnIu npE HaxaTOB B TeueHne 5 cekyHd, npN 3OTm HA nDCnIeep NOBnTCo KOD OOn6Kn.

He npimehaTb rheepaToPbIe ycTaHOBKn IJIa NITaHnA.

1. Tempepatphtbye ycIOBn

Bpekme oxlaekdeHnA

Tempepatya BHytpn nOmeueHn 16-32°C

Tempepatya BHe nomeueHHa 16-43°C

BpeKmme o6oRpeBa

Tempepatya BHytpn NomeuHn 2-30°C

TemnepaType BHe NomeuHn -5-24°C

1. YcnoBnYyCTaHOBKn

CneNyTe HNcTpyKuIN NO yCTaHOBKe I pa3MeueHHo He yctaHaBnBaTb CNEyUOuX MeCTax:

• Meça t c noBbIeHHbIM coepKaHnem Macna (HaNPmEp - npeccOBouhbluex, aTOMaCTepcKaa)
• MeCTa C NOBbIeHbIM COepeXaHHeM CoJI (HaNPImep - OKoJOMOpCKOrO no6epeXbI)
• MecTa C Bo3MOxHbIM BbIXoDOM cepHOro ra3a (Ha npImep - OkOLO roPryuX nCTouHnKOB)

• Meça co Chéxhhbim 3aHOCOM BHeuHINx ΒnIPKyIaIouHOHHbIX nyTei (Heo6xOДIMO 3aUIIaTb OT IOnaIaHnI CHera).

• YcIobNIAKcnJyatauIN

Co6nOaIte NHTpyKcNIO no 3KcNpyTaCIN.

1. CoctoHne n3eJnA

UcnoBnI npOn3BOJCTBa NCKHIOaHT MoNΦnKaunIO NOBpeKdEHNr pI rTaHCnOpTnPOBKe.

6.Прпрдьгье CTUXHьгд eДСТВИ

Ha daHHOe m3dEne He paacnpocTpaHReTcra papaTnpi npoBpeXKeHmOT npipOaNbIbIX CTxNnHbIX beDCTBn (Haepmep - B pe3yIbTaTe HABoDHeHn).

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/

© Первов на ручим язblК Panasonic (CIS) Oy 1998

Note

Please remember to record the following:

Model Number
- Serial Number
Dealer's Name
- Date Purchased

Nota
