Product Type	In-wall Speaker
Brand	Klipsch
Model	PRO-4800-W
Woofer Size	8 inches
Tweeter Size	1 inch
Tweeter Type	Titanium Dome
Frequency Response	50 Hz - 20 kHz
Sensitivity	92 dB
Impedance	8 ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	100 Watts
Dimensions (H x W x D)	14.5 x 9.5 x 4 inches
Cutout Dimensions	13.5 x 8.5 inches
Weight	8 lbs
Grille	Magnetic, Paintable
Pivoting Horn	Yes
Installation	New or existing construction
Care Instructions	Wipe with dry cloth
Safety	Follow local electrical codes
Repairability	Replaceable components available

Frequently Asked Questions - PRO-4800-W KLIPSCH

What is the recommended amplifier power for the PRO-4800-W?

The speaker handles up to 50 watts RMS and 100 watts peak. An amplifier delivering 25-100 watts per channel is recommended.

Can the PRO-4800-W be painted?

Yes, the grille is paintable. Remove the grille, apply thin coats of spray paint, and let dry completely before reattaching.

What is the cutout size for installation?

The required cutout is 13.5 x 8.5 inches. Ensure proper clearance for clamps.

Is the tweeter adjustable?

Yes, it features a pivoting horn design that allows you to direct sound toward the listening area.

Can I use this speaker outdoors?

The PRO-4800-W is designed for indoor use only. Exposure to moisture may damage it.

Does it include a backbox?

No, it is an open-back design. For best sound, consider installing a backbox or using fire-rated enclosures if required by code.

What if the speaker produces no sound?

Check amplifier connections, ensure the speaker wire is properly stripped and inserted into the terminals, and verify the speaker is not in a 'protection' mode.

How do I clean the speaker?

Use a soft, dry cloth to dust the grille and baffle. Do not use liquid cleaners or abrasive materials.

What is the warranty period?

Klipsch offers a limited lifetime warranty for the original purchaser. Proof of purchase is required.

Can I use this speaker in a home theater system?

Yes, it works well as a front, center, or surround speaker. Match with other Klipsch speakers for a seamless soundstage.

USER MANUAL PRO-4800-W KLIPSCH

OWNERS MANUAL

Klipsch®

PROFESSIONAL SERIES

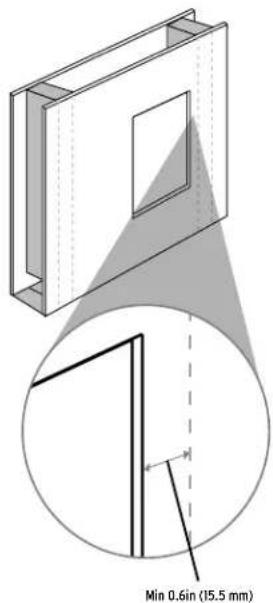

PLACEMENT

PLACEMENT

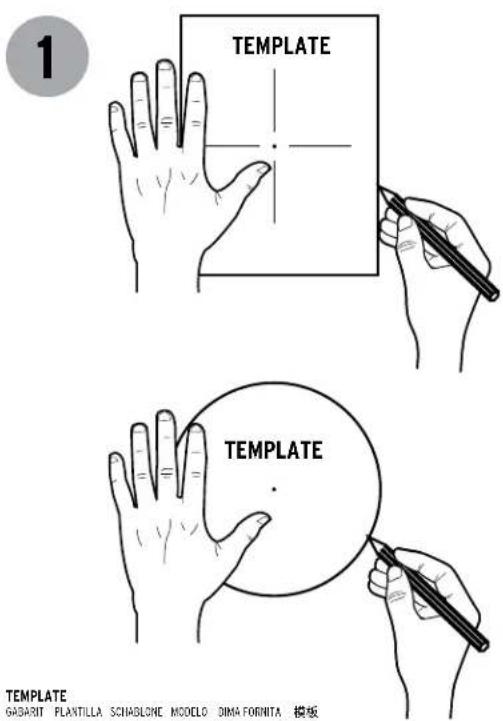

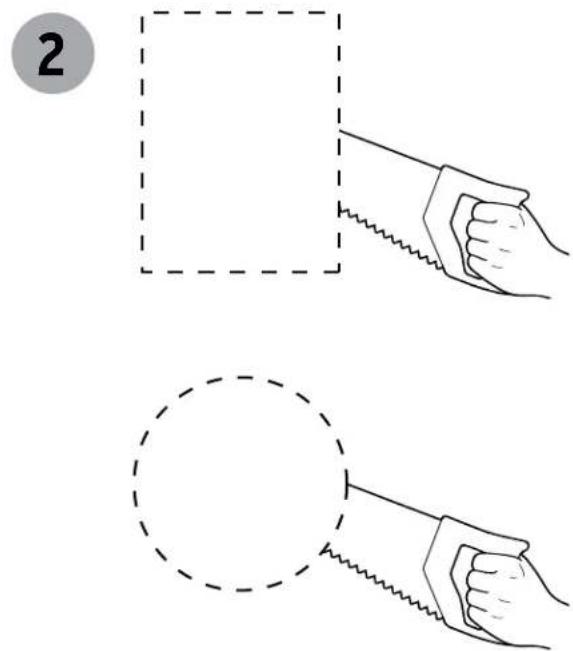

CUT OUT

DÉCOUPER SEPARAR AUSGESCHNITTEN RECORTAR RITAGLIARE 剪下

TEMPLATE GABARIT PLANTILLA SCHABLONE MODELO DIMA FORNITA 模板

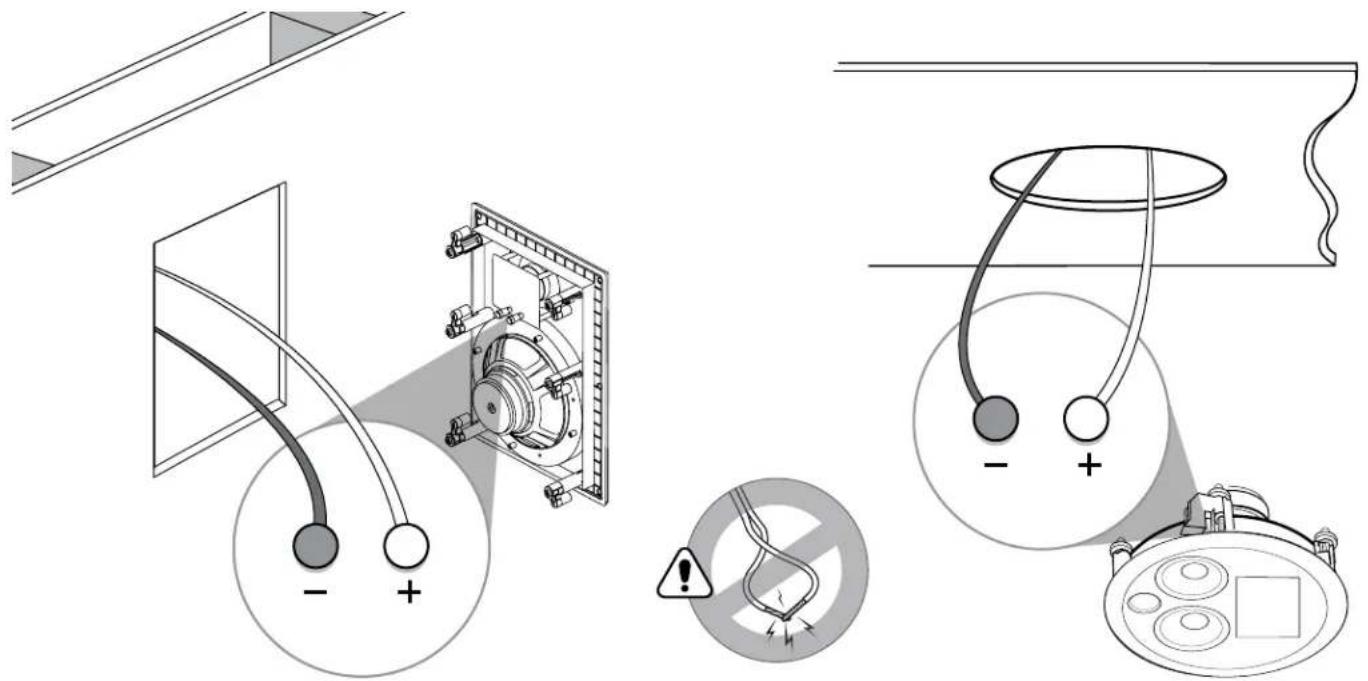

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

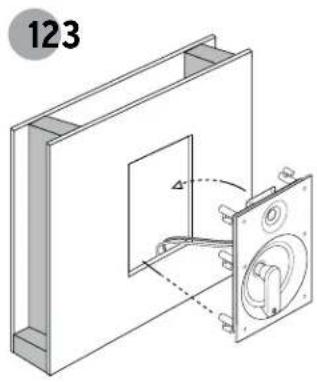

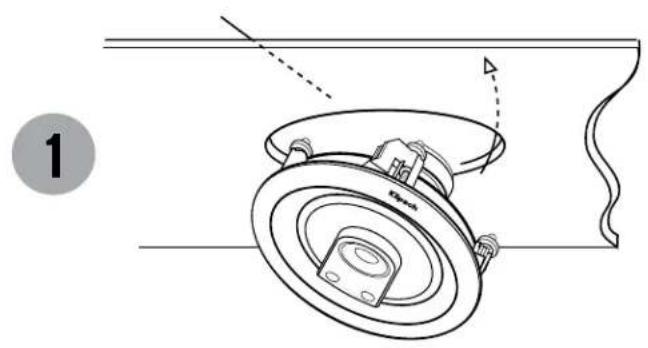

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical assembly with a component and housing (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and mounting bracket (no text or symbols)

Technical illustration of a mechanical assembly with a housing, mounting bracket, and clamping elements (no text or symbols)

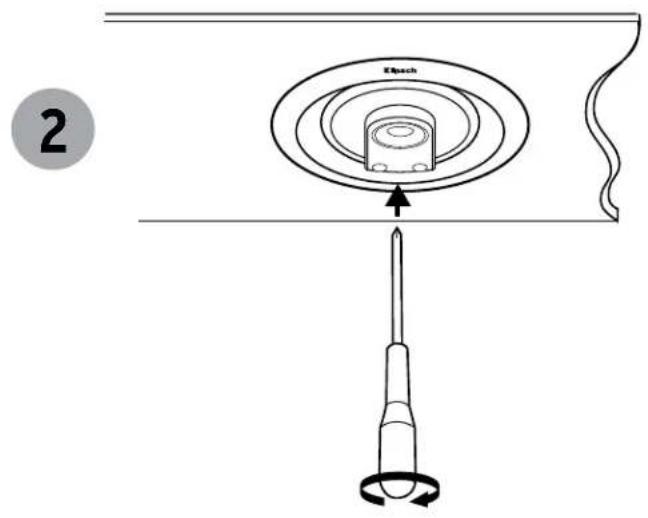

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical component with no visible text or symbols

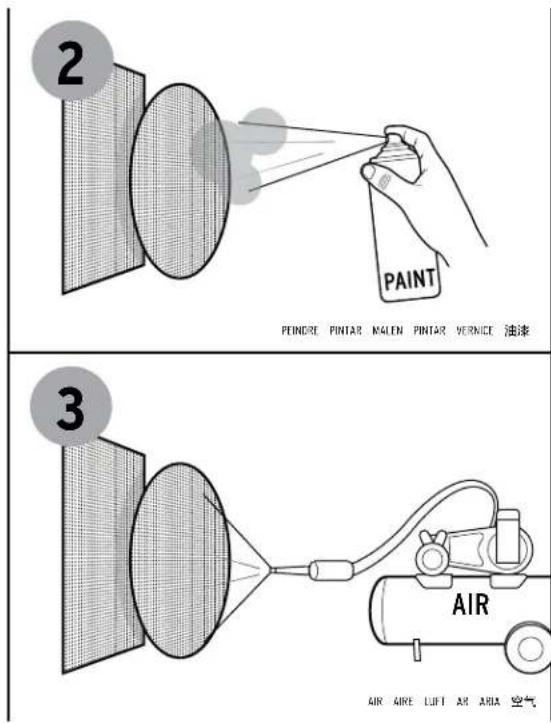

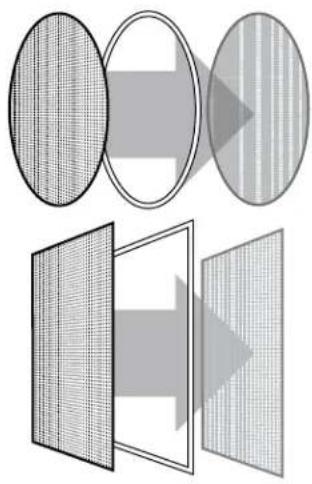

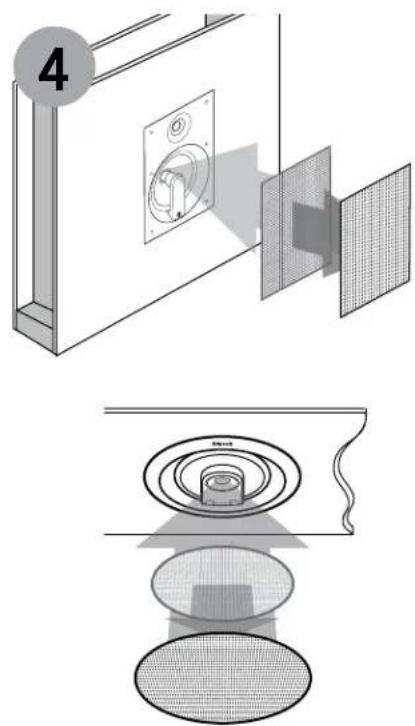

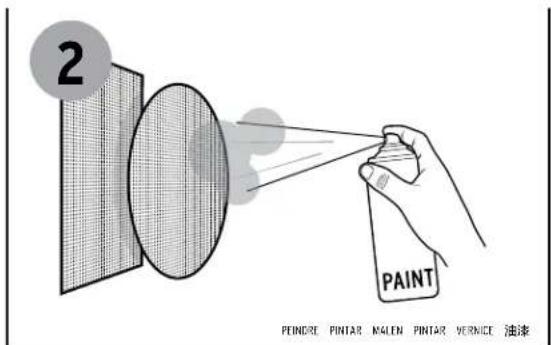

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

Technical diagram showing a solar panel installation and its cross-sectional view of a filter structure (no text or symbols)

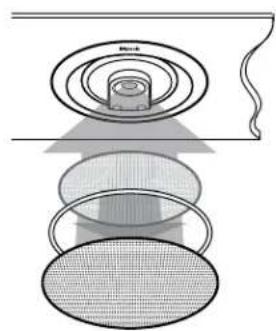

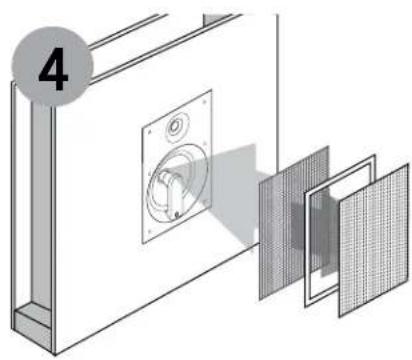

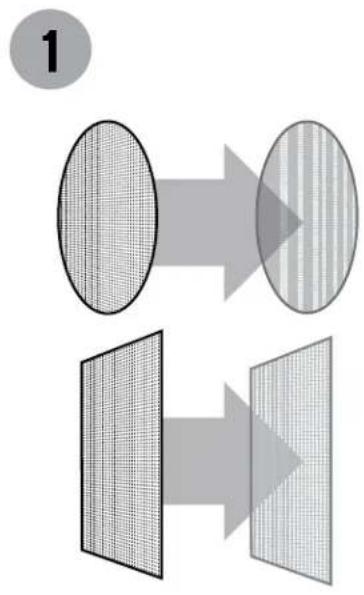

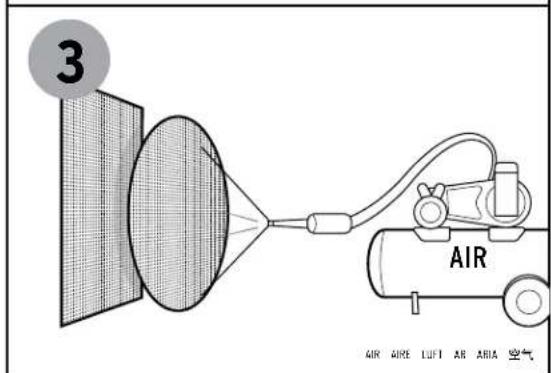

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

1

Diagram showing three types of optical filters with different patterns and orientations, no text or symbols present.

Diagram of a layered structure with concentric circular components and a wavy top section (no text or symbols)

ADJUSTMENTS

AJUSTEMENTS AJUSTES ANPASSUNGEN AJUSTES RETTIFICHE 调整

TWEETER LEVEL (TW)

MIDRANGE LEVEL (MR)

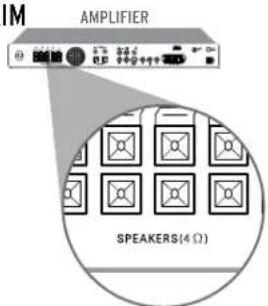

IMPEDANCE (Imp) ACOUSTIC AIM

AMPLIFICATEUR AMPLIFICADOR VERSTÄRKER AMPLIFICATORE 扩音器

Simple line drawing of a person in bed with sound waves and a circular diagram showing light rays (no text or symbols)

Simple line drawing of a person in bed with sound waves and a circular light source, no text or symbols present

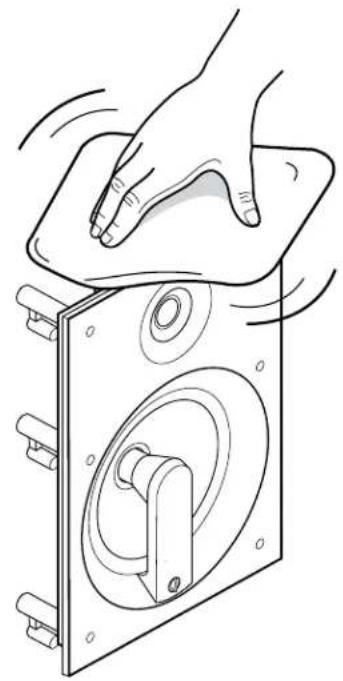

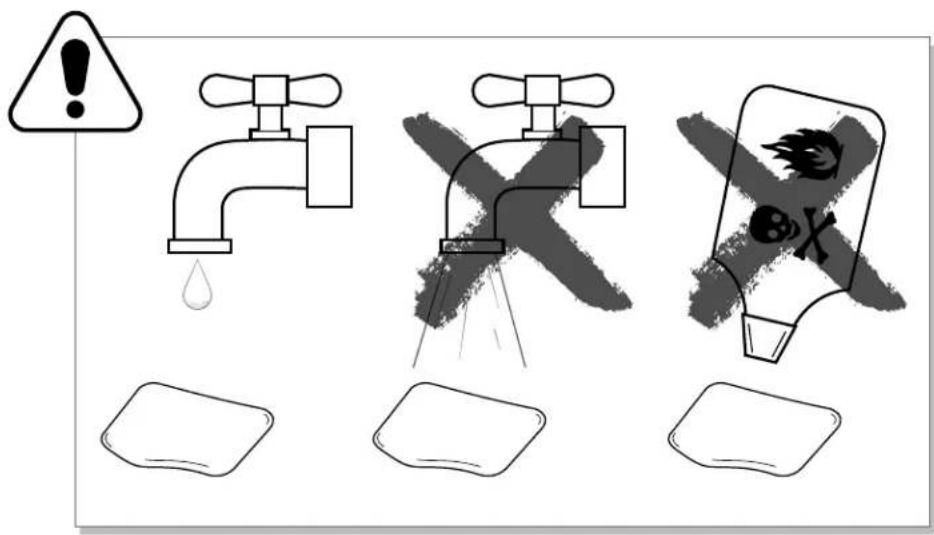

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁

Illustration of a hand cleaning a mechanical device with a circular component (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES. A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

V03-0407
