PRO-6602-W - Pregnant KLIPSCH - Free user manual and instructions

Product Type	In-Wall/In-Ceiling Speaker
Brand	Klipsch
Model	PRO-6602-W
Series	Professional Series
Color	White
Woofer	6.5" (165mm) Polypropylene
Tweeter	1" (25mm) Aluminum Dome
Frequency Response	50 Hz - 20 kHz ±3dB
Sensitivity	91 dB @ 2.83V / 1m
Impedance	4Ω or 8Ω (switchable)
Power Handling (RMS)	50 Watts
Power Handling (Peak)	100 Watts
Cutout Diameter	7.5" (190mm)
Overall Diameter	9.5" (241mm)
Mounting Depth	4.5" (114mm)
Weight	5.5 lbs (2.5 kg)
Grille Material	Perforated Steel (Paintable)
Adjustments	Tweeter Level, Midrange Level, Acoustic Aim
Recommended Amplifier Power	Up to 100W
Care and Cleaning	Use a soft damp cloth; do not use abrasive cleaners.

Frequently Asked Questions - PRO-6602-W KLIPSCH

How do I install the Klipsch PRO-6602-W speaker?

To install, first cut a hole using the provided template with a diameter of 7.5 inches. Run speaker wire through the hole, connect to the terminals on the speaker, then insert the speaker into the cutout and tighten the spring-loaded clamps by screwing the mounting screws until the speaker is snug against the drywall. For detailed steps, refer to the installation section of the manual.

Can I paint the speaker grille to match my walls?

Yes, the grille is paintable. Remove the grille from the speaker, spray or brush paint it with a thin coat of water-based paint, and allow it to dry completely before reattaching. Avoid using thick paint that may clog the perforations. The bezel can also be painted if desired. See the painting section for more details.

What amplifier power is recommended for this speaker?

The Klipsch PRO-6602-W has a power handling of 50W RMS and 100W peak. It is recommended to use an amplifier with a power output of up to 100W per channel. For best performance, match the impedance setting (4Ω or 8Ω) to your amplifier's specifications.

How do I adjust the tweeter and midrange levels?

On the front baffle of the speaker, there are adjustment switches labeled 'TW' (tweeter level) and 'MR' (midrange level). Use a small flat-head screwdriver to rotate the switches. Typically, the tweeter level can be set to +3dB, 0, or -3dB, and the midrange level similarly. Adjust based on your room acoustics and personal preference. Refer to the adjustments section for exact settings.

What impedance should I set the speaker to?

The speaker has a switch on the side labeled 'Imp' with options for 4Ω and 8Ω. If your amplifier is stable at 4Ω, you can use the 4Ω setting for higher power output. For most home receivers, the 8Ω setting is safer. Always check your amplifier's impedance specifications before setting the switch.

What is the required cutout size for installation?

The cutout diameter required is 7.5 inches (190mm). Use the included template to trace the hole onto the drywall before cutting. Ensure the hole is clean and exactly 7.5 inches to allow the mounting clamps to secure properly.

How do I clean the speaker?

To clean the speaker, use a soft damp cloth to gently wipe the grille and bezel. Do not use any abrasive cleaners or solvents as they may damage the finish. The care and cleaning section advises against using water directly on the driver components. Keep the speaker dry.

Does the speaker come with a cutout template?

Yes, the Klipsch PRO-6602-W includes a cutout template in the packaging. Use it to mark the exact hole location and size. If lost, you can create a template by cutting a circle of 7.5 inches diameter.

Can this speaker be used outdoors?

The PRO-6602-W is designed for indoor use only. It is not weatherproof or outdoor-rated. Exposure to moisture or extreme temperatures can damage the speaker. For outdoor applications, consider Klipsch's outdoor series.

How do I aim the acoustic focus?

The speaker features an acoustic aim adjustment. On the front, there is a small lever or rotating mechanism that allows you to angle the tweeter towards the listening area. Gently rotate the tweeter assembly to direct sound. This helps optimize soundstage and imaging.

USER MANUAL PRO-6602-W KLIPSCH

OWNERS MANUAL

Klipsch®

PROFESSIONAL SERIES

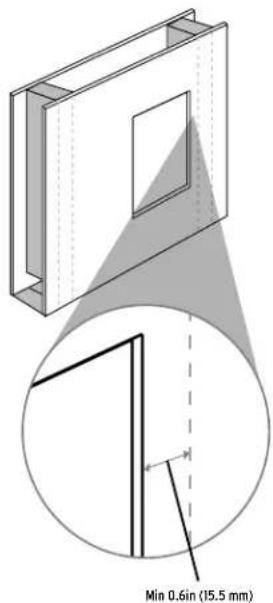

PLACEMENT

PLACEMENT

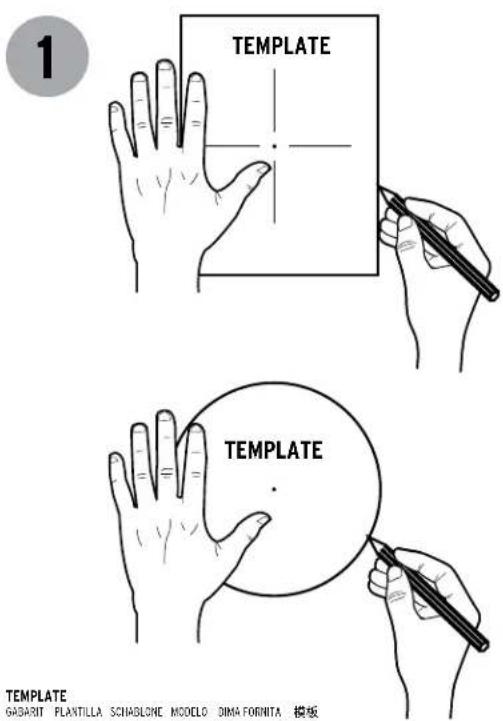

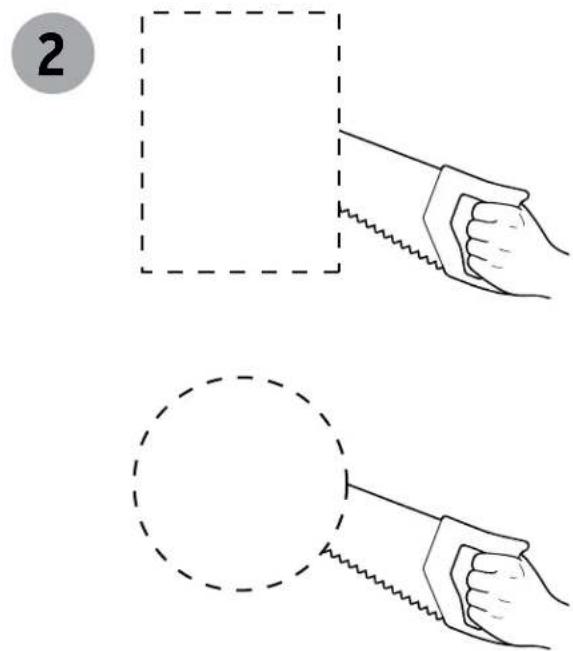

CUT OUT

DÉCOUPER SEPARAR AUSGESCHNITTEN RECORTAR RITAGLIARE 剪下

TEMPLATE GABARIT PLANTILLA SCHABLONE MODELO DIMA FORNITA 模板

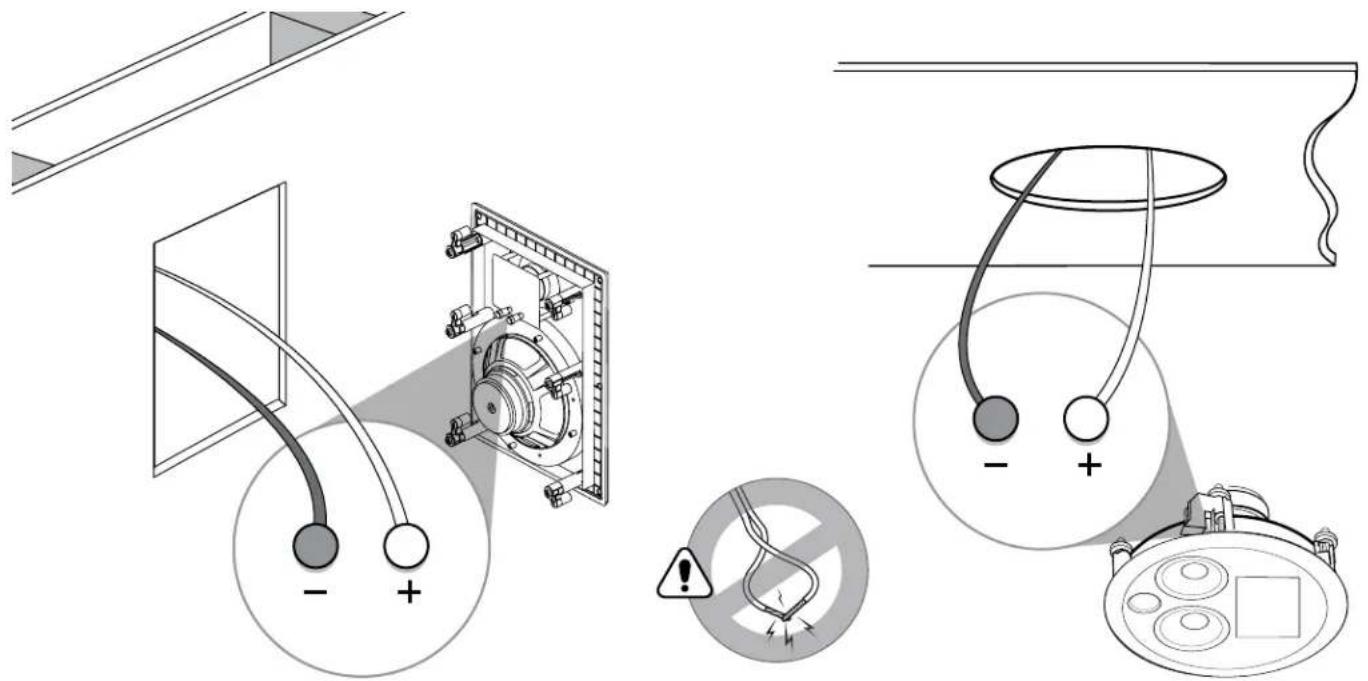

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

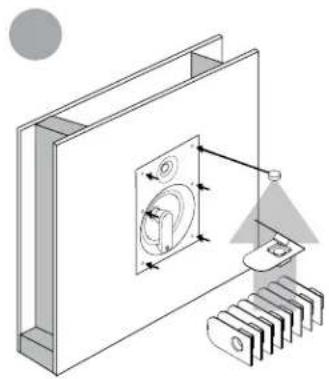

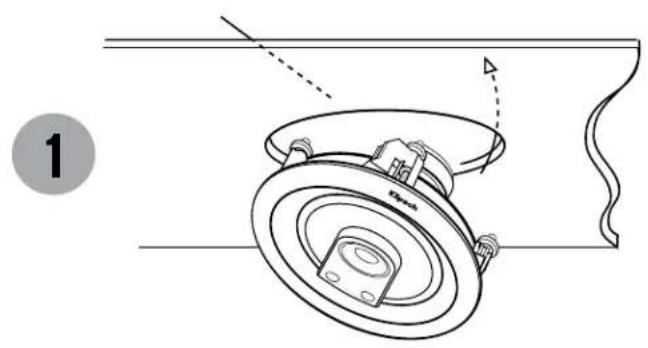

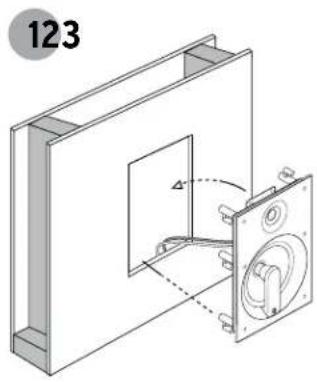

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical assembly with a component and housing (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and mounting bracket (no text or symbols)

Technical illustration of a mechanical assembly with a component, showing internal components and a bracket (no text or symbols)

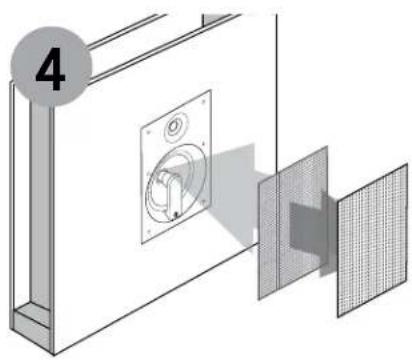

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical component with no visible text or symbols

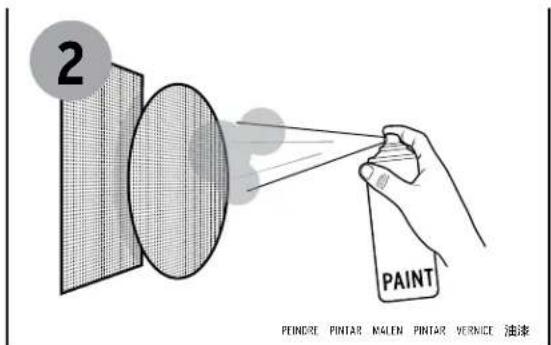

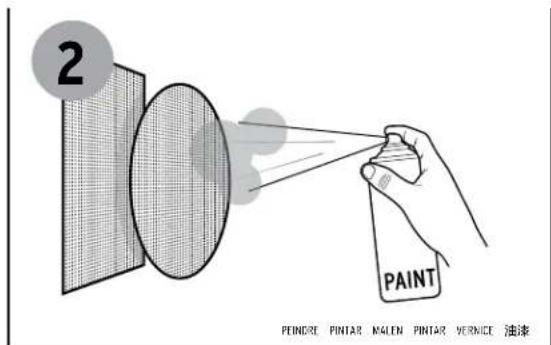

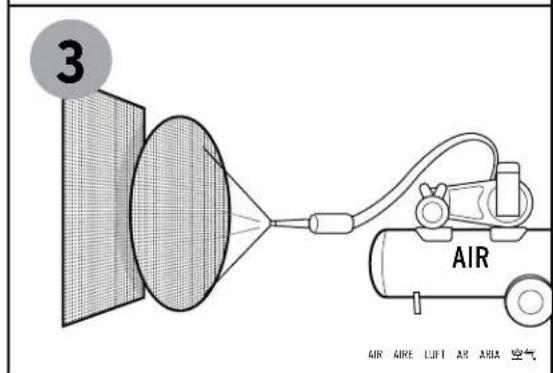

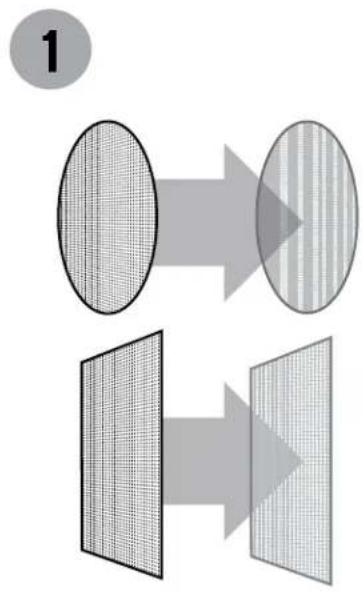

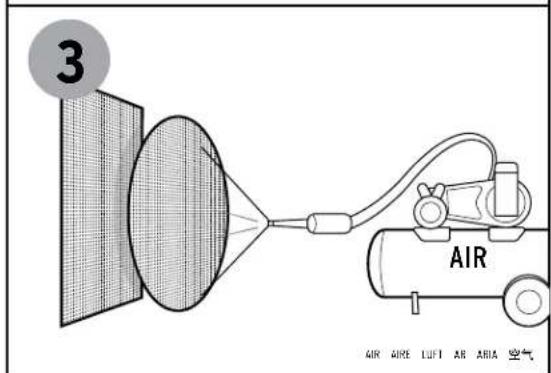

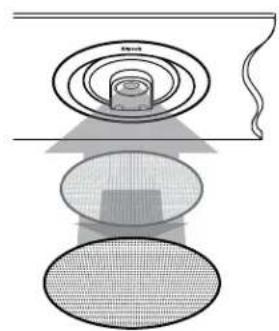

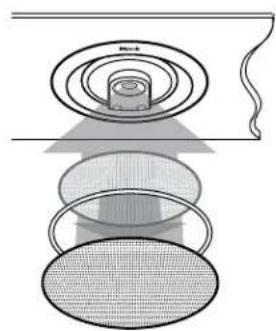

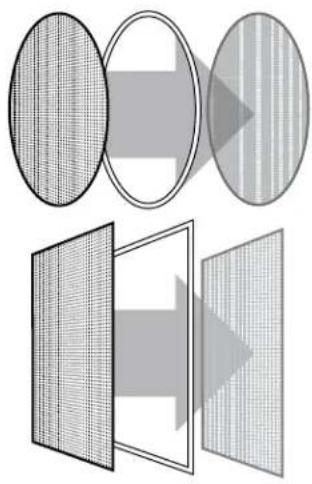

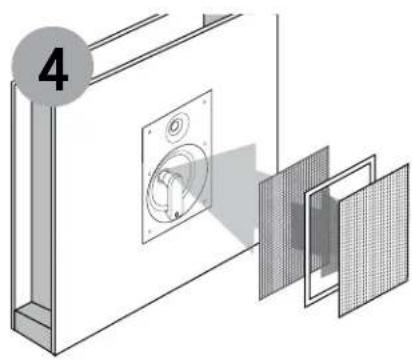

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

Diagram of a layered structure with concentric circular components and a wavy line above, showing no text or symbols.

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

1

Diagram showing three types of optical filters with different patterns and light paths, no text or symbols present.

Diagram of a layered structure with concentric circular components and a wavy top section (no text or symbols)

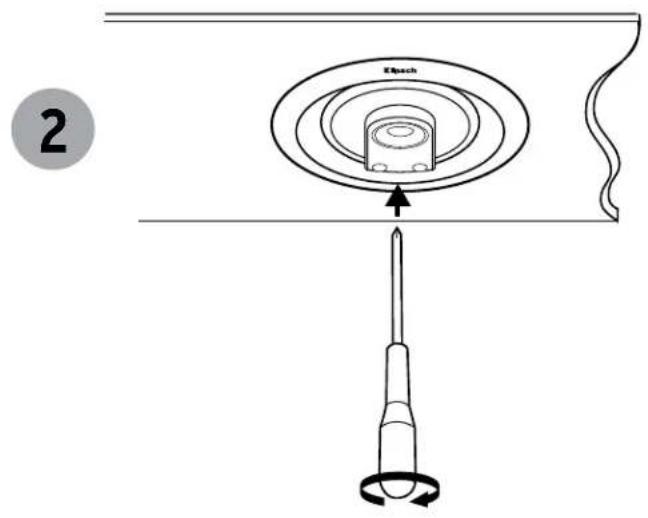

ADJUSTMENTS

AJUSTEMENTS AJUSTES ANPASSUNGEN AJUSTES RETTIFICHE 调整

TWEETER LEVEL (TW)

MIDRANGE LEVEL (MR)

IMPEDANCE (Imp) ACOUSTIC AIM

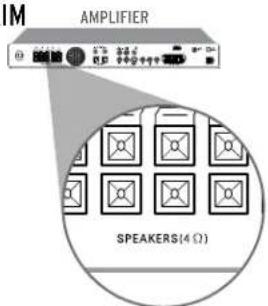

AMPLIFICATEUR AMPLIFICADOR VERSTÄRKER AMPLIFICATORE 扩音器

Simple line drawing of a person in bed with sound waves and a circular diagram showing light rays (no text or symbols)

Simple line drawing of a person in bed with sound waves and a circular diagram above, no text or symbols present.

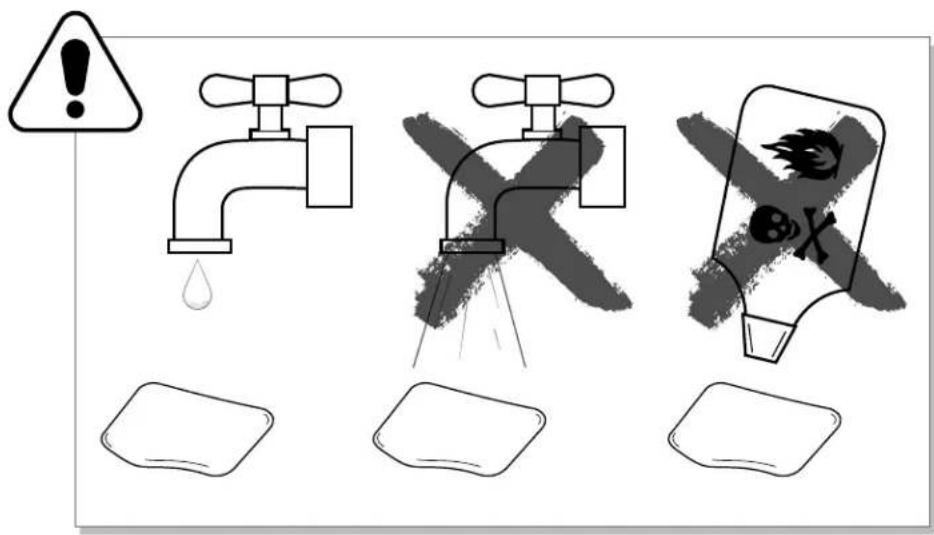

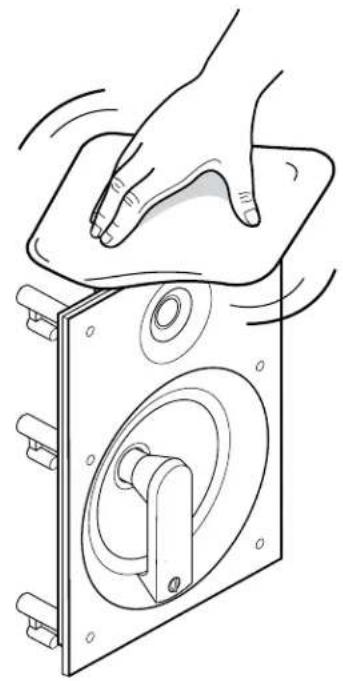

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁

Illustration of a hand cleaning a mechanical device with a circular component (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES. A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

V03-0407
