Product Type	Range Hood
Brand	Artusi
Model	AUM51X
Width	51 cm
Depth	Approx. 45 cm
Height (without chimney)	Approx. 10 cm
Weight	Approx. 12 kg
Power Supply	220-240 V, 50 Hz
Maximum Power Consumption	200 W
Motor Power	150 W
Extraction Rate (max)	600 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Lighting Type	LED
Number of Lights	2
Filter Type	Aluminum grease filter
Filter Cleaning	Washable in dishwasher or by hand
Controls	Slider or push buttons
Installation Type	Built-in or wall-mounted
Exhaust Outlet Diameter	150 mm
Energy Efficiency Class	A (typical)
Safety Features	Auto shut-off, thermal cutout
Maintenance	Clean filters monthly, wipe exterior with damp cloth
Spare Parts Available	Filters, lights, motor
Manual Languages	English, French, Spanish (typical)

Frequently Asked Questions - AUM51X Artusi

How do I install the Artusi AUM51X range hood?

Installation should be done by a qualified professional. Ensure the hood is at least 65 cm above the cooktop. Connect the exhaust duct to a 150 mm outlet. Secure the hood to the wall or cabinet following the provided template. Connect to a 220-240 V power supply.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months or more frequently if cooking heavily. It can be washed by hand with warm soapy water or in a dishwasher on a low temperature cycle. Allow it to dry completely before reinstalling.

Can I use the range hood without an external exhaust?

Yes, the AUM51X can be used in recirculation mode with a carbon filter (sold separately) to remove odors. Ensure the air outlet is open to the room if not ducted outside.

Why is my range hood noisy?

Noise can be due to a dirty filter or loose installation. Ensure the filter is clean and the hood is securely mounted. If noise persists, check for obstructions in the ductwork or contact a technician.

How do I change the LED lights?

The LED lights are integrated and may not be user-replaceable. If a light fails, contact Artusi customer service or a qualified electrician for replacement. Do not attempt to open the light assembly.

What is the maximum extraction rate?

The maximum extraction rate is 600 m³/h, which is suitable for most home kitchens. Use higher speeds for strong odors and steam.

How do I reset the filter alarm?

If your model has a filter alarm, press and hold the speed button for 3-5 seconds until the indicator light turns off. Refer to the manual for exact procedure.

Can the ducting be horizontal?

Yes, the exhaust duct can run horizontally but should have a slight upward slope to prevent condensation. Use smooth pipes for better airflow.

What should I do if the hood stops working?

Check the power supply and circuit breaker. Ensure the hood is properly plugged in. If it still does not work, contact Artusi support or a qualified electrician.

How do I know if the carbon filter needs replacing?

Replace the carbon filter every 3-6 months or when you notice reduced odor absorption. The filter cannot be washed; discard and replace with a new one.

USER MANUAL AUM51X Artusi

Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.

This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.

We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read this section you will be able to choose the most appropriate settings for your appliance when cooking different types of food.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617

LEICHHARDT NSW 2040

Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not be available on your appliance.

All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.

"THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE"

"Conforms with the WEEE Regulations."

Here are some important points to consider when choosing and/or installing a range hood:

• An externally ducted range hood will generally outperform a recirculating range hood.
• We discourage the use of flexible ducting as this has a significant negative impact on airflow and noise due to turbulence
• caused by the ribs. Instead consider using semi-rigid or rigid duct.
- Avoid using a narrower duct than specified as this will reduce airflow; the best performance is obtained when the range hood is installed with a short duct with minimal bends.
- To determine the required clearance between the cooktop and the range hood always consult the installation manual for both the range hood and cooktop. The required clearance is the greater of the distance specified in either manual (and a minimum of 600mm between the highest point of the highest burner for gas cooktops).

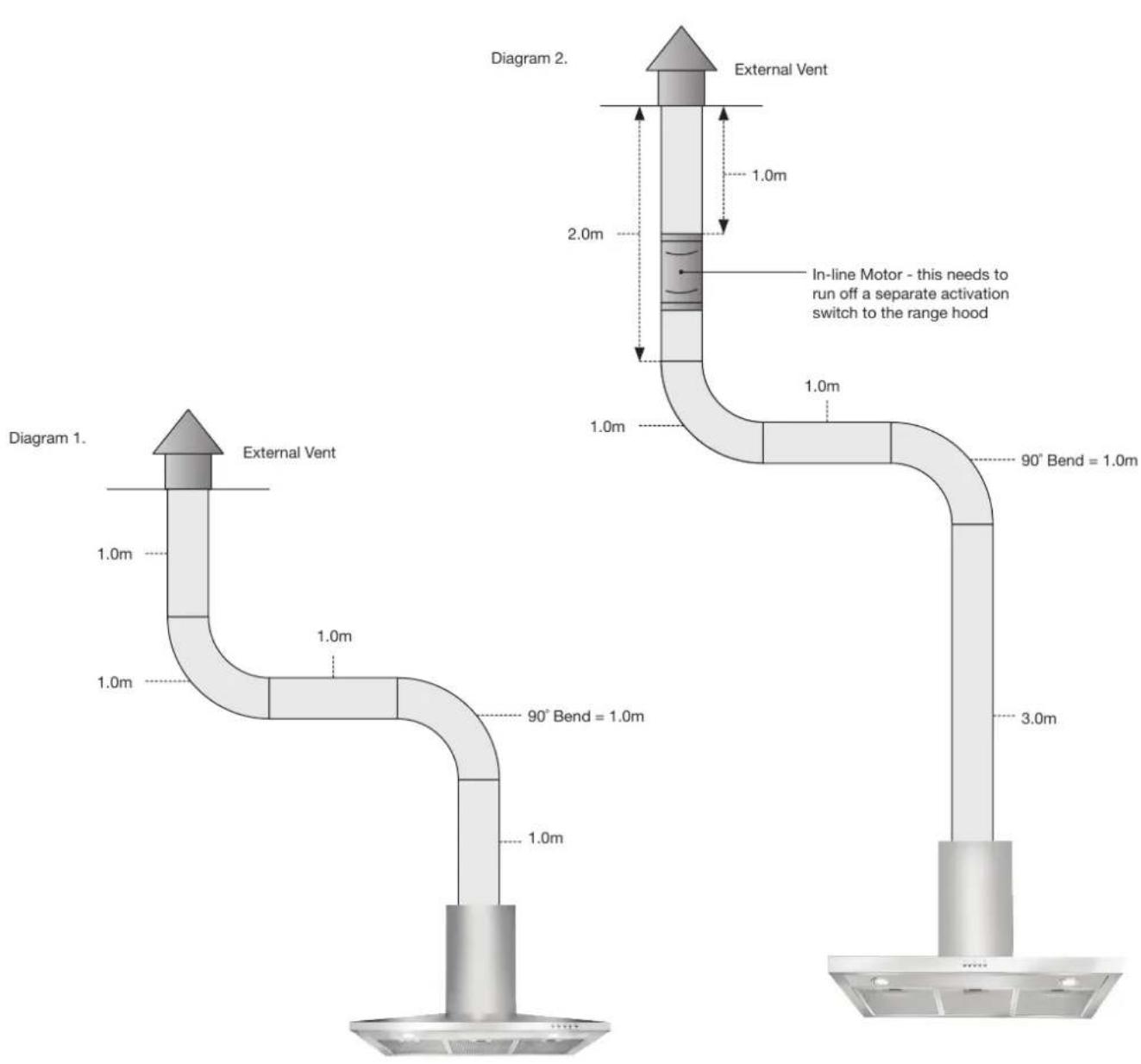

- Five metres is the recommended maximum length for ducting (see diagram 1.). When the ducting exceeds five metres in length the installation of a TD500 or TD350 in-line motor is required, which must be placed one metre from the external vent (see diagram 2.).

Safety

These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference.

• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.

This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent the surfaces of the appliance from heating up during use and remaining hot during its operation.

Accessible parts may become hot during use. Young children should be kept away. Care should be taken to avoid touching the appliance.

The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

not be made by children unless they are older than 8 and supervised.

√ Keep the appliance and its cord out of reach of children less than 8 years.
√ Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
√ Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.
Do not allow the electric cables to touch the hot parts of the appliance.
√ Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.
Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
√ Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
☑ Please dispose of the packing material carefully.

Safety

Do not use flammable sprays in close vicinity to the appliance.
We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
√ The appliance is not intended to be operated by means of external timer or separated remote-control system.
√ The appliance is for domestic use only.
√ Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities. Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar). The room must have adequate ventilation if an extractor hood is used simultaneously with appliances that run on gas or other fuels. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations regarding air extraction must be complied with.

√ Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

√ Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This

involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
☑ Flambe cooking must not be carried out underneath this appliance.
When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 600mm.
Electric hobs: 650mm.

The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
√ Regarding the information pertaining to installation, thanks to refer to the below paragraph of the manual.
√ Regarding the information for replacing the bulb, please see section "Care and maintenance".

Warning

There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.

Things to check before you start

To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. After unpacking the cooker hood please check that it is not damaged. If in doubt, do not use the appliance but contact Customer Services on 0344 800 1128 (UK) and 01 4475261 (Ireland).

Check the package and make sure you have all of the parts listed.

Decide on the appropriate location for your product.

If this product contains glass please take care with fitting or handing to prevent personal injury or damage to the product.

This specifications plate is available on this appliance. This plate displays all the necessary identification information for ordering replacement parts.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the new owner can become familiar with the appliance and its safety warnings.

You will need

Product functions

- This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area.

Switching on/off

- Switch on the appliance at the switched fused connection unit. The appliance is ready for use.

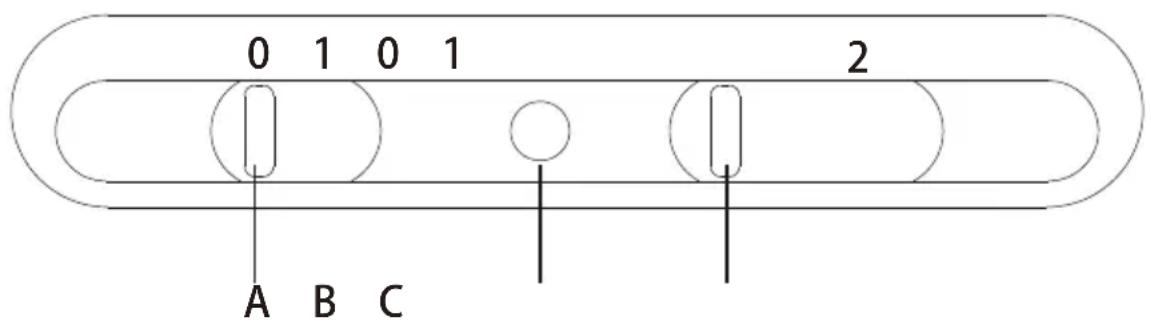

Motor control light(Ref. B)

Light switch(Ref. A)

3 position motor control swtich(OFF, 1st and 2nd speed position) (Ref.C)

To obtain the best results from your cooker hood it is recommended that you leave it switched on for 15 minutes after you have finished cooking.

Care and maintenance

Warning

Always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services.

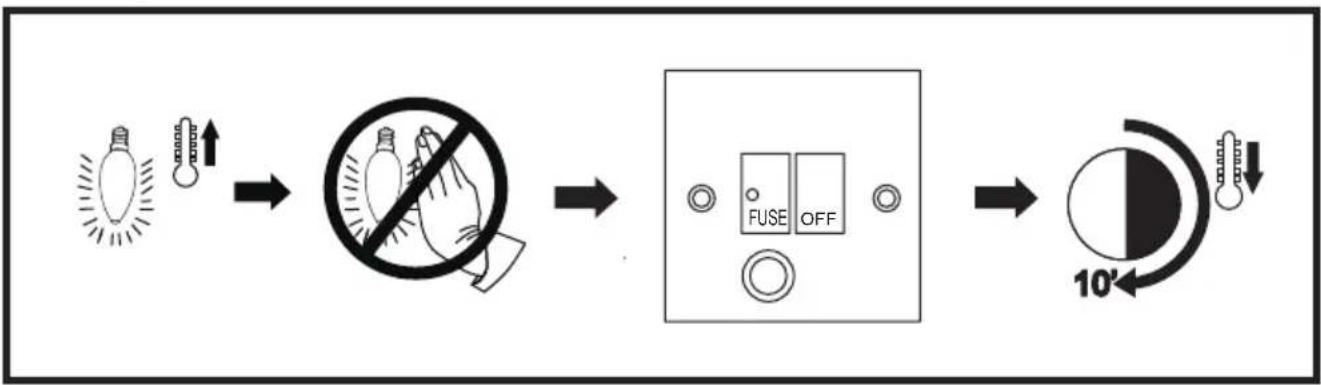

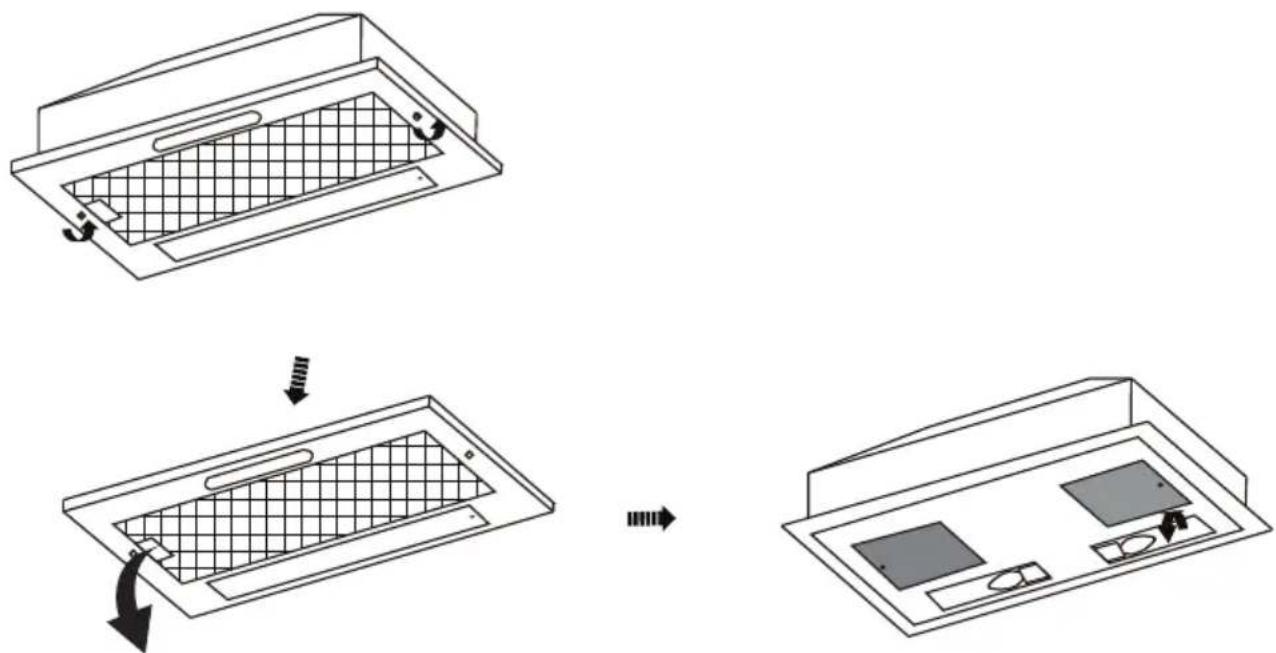

Bulb replacement

The Bulb may be hot, leave it 10 minutes before replacement.

Turn to remove the bulb.

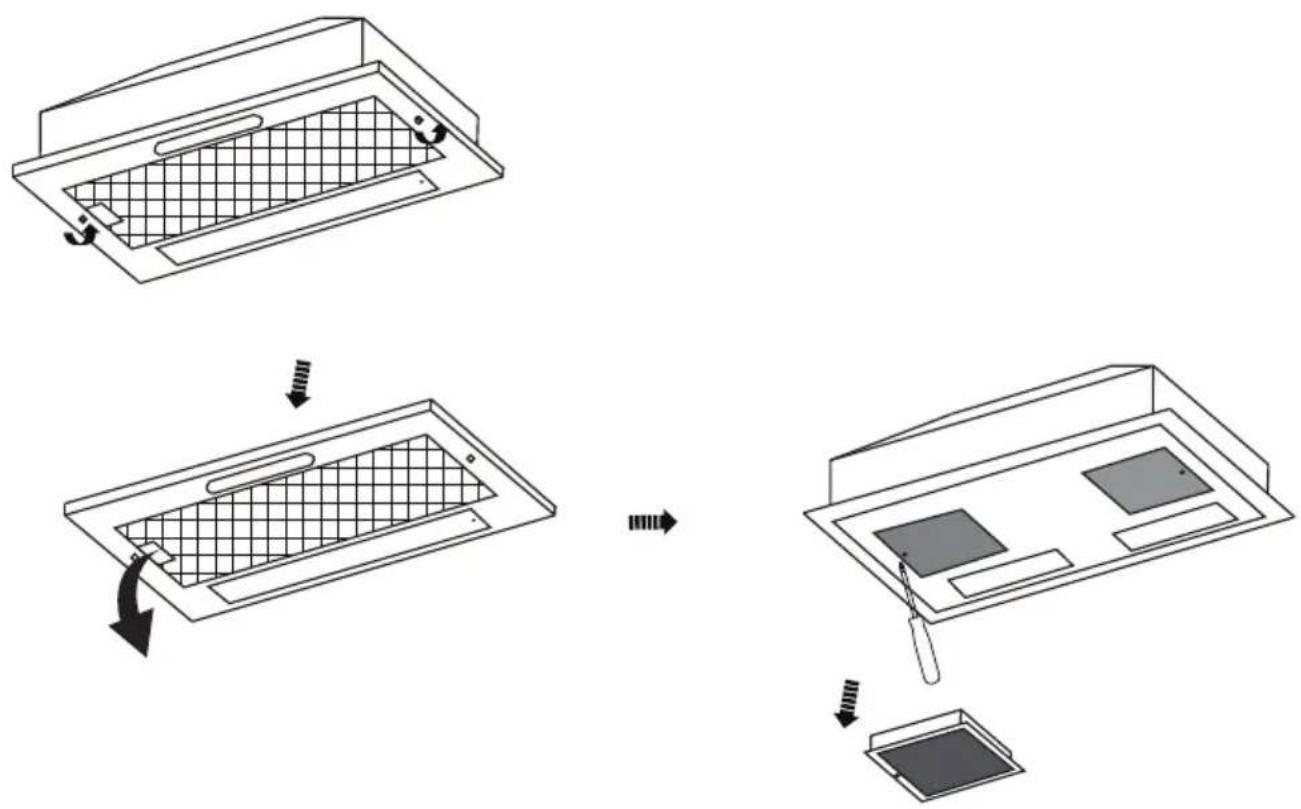

Active charcoal filter replacement

1 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED).

MODEL NUMBER 02825263 (UK & IE)

CARBON FILTER ORDERING HOTLINE

0344 800 1128 (UK)

014475261 (IE)

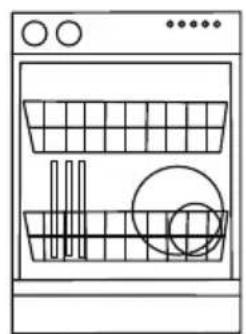

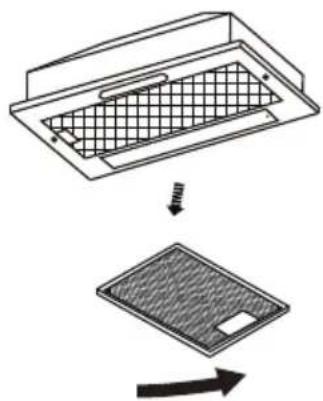

Aluminium and active charcoal filters replacement

1 MONTH

Diagram showing a device with a mesh grille and a separate panel with a slot, both without any text or symbols.

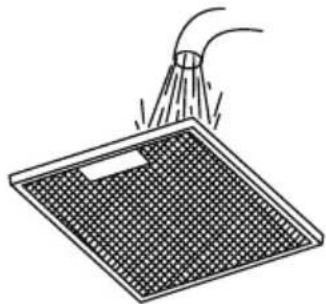

Line drawing of a kitchen appliance with a front sink, basket, and dish (no text or symbols)

Diagram of a showerhead spraying water onto a square grid-patterned surface (no text or symbols)

MAX.65°C

Aluminium filters: To avoid fires, clean thoroughly once a month or whenever the display pilot light lights up (if fitted). To do so, remove the filters and soak in hot water and detergent for an hour. If using a dishwasher, position the filters vertically to improve the cleaning process.

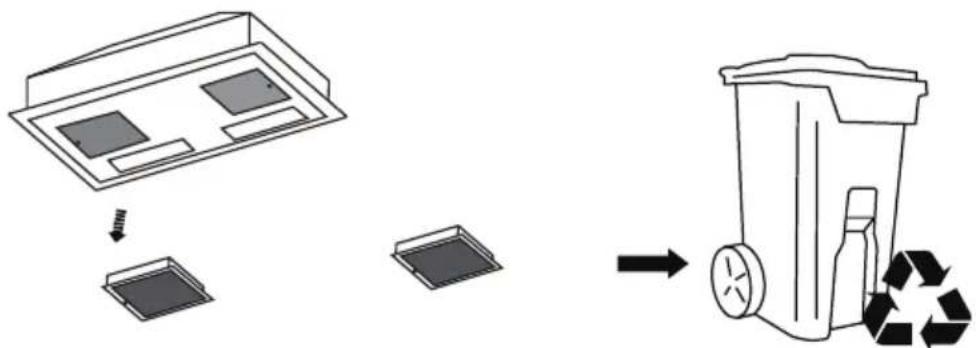

Active charcoal filters:

Replace every 3 months.

3 MONTHS

Note: Increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

Troubleshooting

FaultCauseSolution
Excessive vibration.	The appliance is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan blade is damaged.	Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
Light on, but motor does not work.	The fan blade is jammed.
	The motor is damaged.
Both light and motor do not work.	Light bulb blown.	Replace with a bulb with correct rating.
		Check power supply.Power connection
Suction performance reduced.	Speed may be too low. Select a higher speed.
	Distance between the cooker hood and the hob is too great.	Readjust the distance to:Gas hobs: 750mmElectric hobs: 650mm
	Aluminium grease filter is dirty.	Clean filters. See Care and maintenance section.
	Top vent might be obstructed.	Clear any obstruction.
	Optional vent kit might be twisted.	Ensure that the vent kit is fitted to the manufacturers instructions.
Works normally but cooking smells linger.	Charcoal filter not fitted in recirculation mode or charcoal filter is full of grease.	Fit charcoal filter if recirculating or change the filter. See Care and maintenance section.

Recycling and disposal

Environmental protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. This product must be handed over to an electric and electronic equipment collection point for recycling.

On ensuring that this product is disposed of correctly, you will help to avoid possible negative consequences for the environment and public health, which could occur if this product is not handled correctly. To receive more detailed information about recycling this product, contact your local government, domestic waste disposal services or the outlet where the product was bought.

Technical specification

Supply voltage 220-240V~, 50Hz
Power consumption - Fan 100W
Power consumption - Luminary 2 x 28W Max
Power consumption - Total 156W
Protection class I

Wiring

All installation work must be carried out by a competent person or qualified electrician.

Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

WARNING: THIS APPLIANCE MUST BE EARTHED.

Mains Supply could be connected to the Mains Voltage by Direct Connection

Direct Connection

If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Technical and legal information

The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance.

Electrical Requirements

Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.

Electrical Connection

Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the appliance.

WARNING: THIS APPLIANCE MUST BE EARTHED

The appliance is supplied with a 3-core mains cable and must be connected to the electricity supply via a double pole switch having a 3mm minimum contact gap on each connector.

For UK only

A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.

The fuse must be rated at 3 Amps.

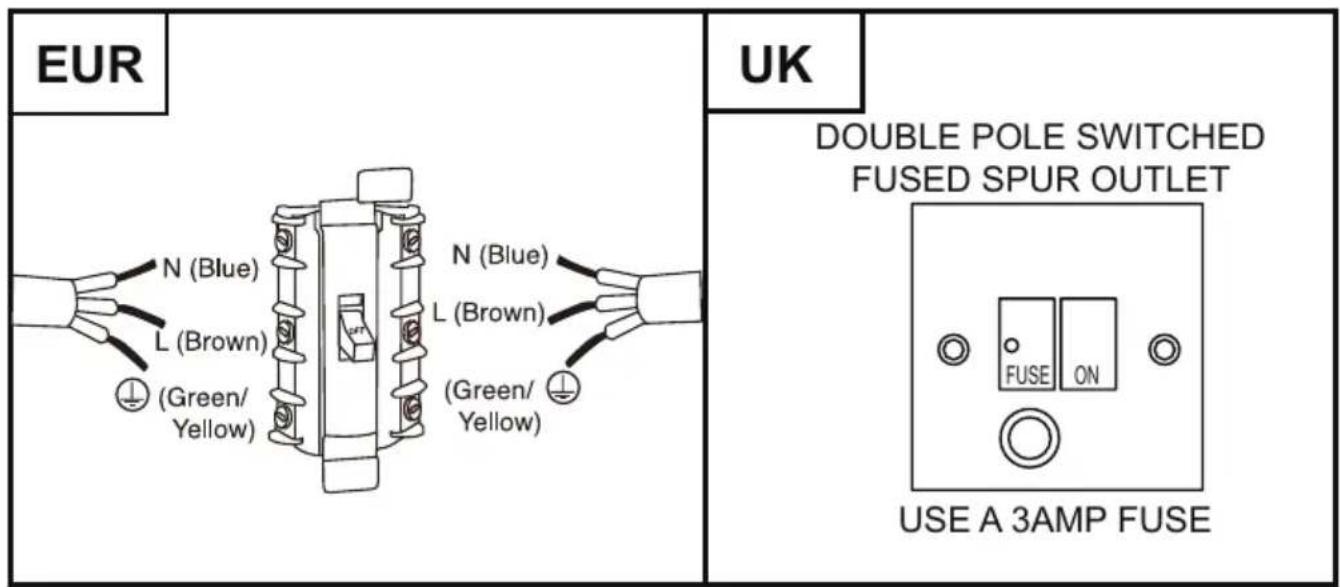

The wires in the mains lead are coloured in accordance with the following code:

Brown = L - Live

Blue = N - Neutral

Green/Yellow = ⏻ - Earth

The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown.

02

[02] × 1

[06] × 2

Technical line drawing of a circular mechanical component with mounting flanges and a central hole, labeled [06] (no text or symbols on the diagram itself)

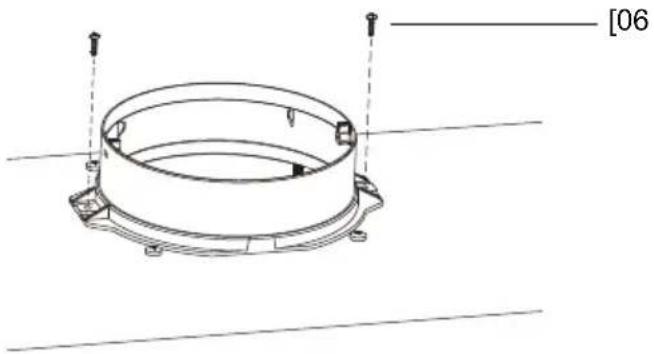

Fix the collar.

03

Technical line drawing showing a device interior with grid patterns before and after assembly (no text or symbols)

Remove the front panel.

MOUNTING THE HOOD UNDERNEATH A CUPBOARD

Both extraction and recirculation options can be used

EXTRACTION

Cut a hole in the cupboard base to suit the position of the exhaust vent in the visor hood and size to suit the vent kit being used.

Connect collar vent kit.

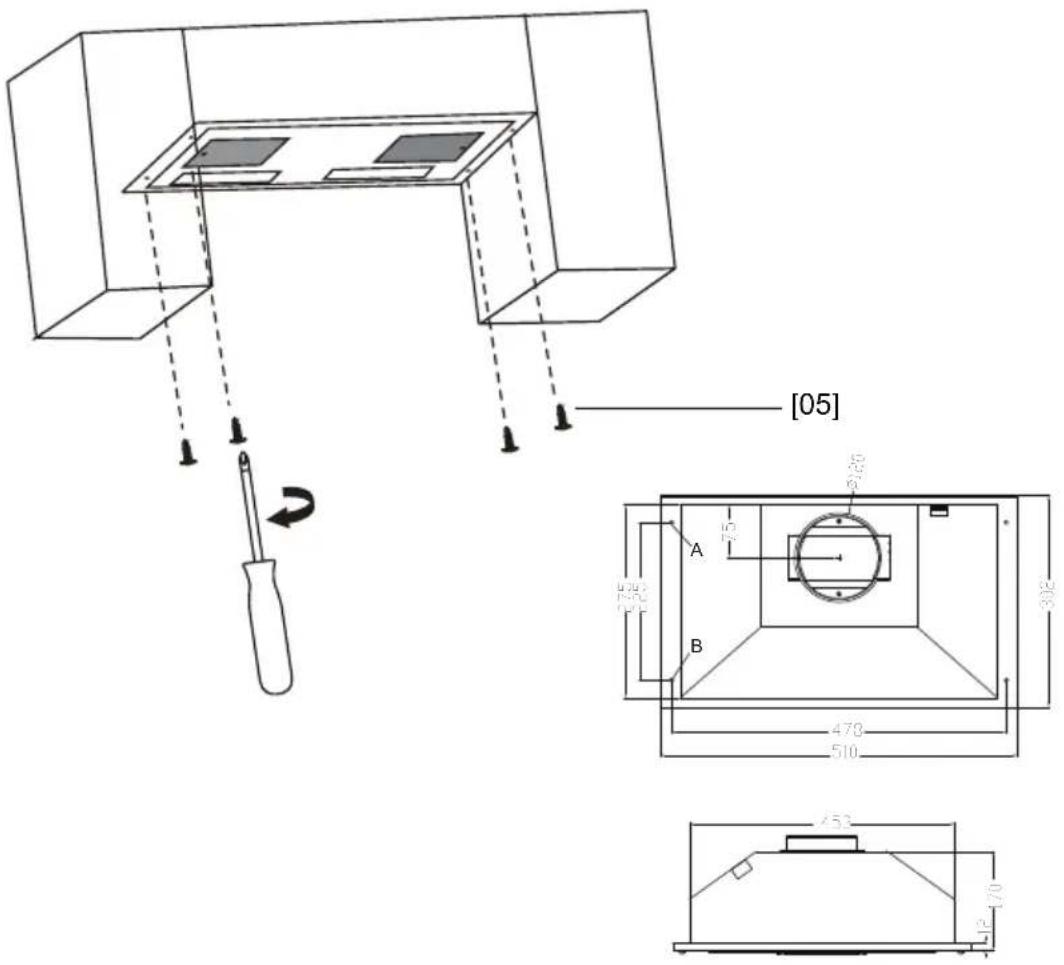

Using 4 screws [05] attach the cooker hood to the underside of the cupboard using the 2 hole position (A) and 2 hole position (B).

Connect vent kit as per manufacturers instructions if applicable.

Important: The exhaust air must not be expelled through a smoke or waste gas chimney, which is in use, or through a shaft used for ventilating rooms or into the cavity of a wall.

RECIRCULATION

Using 4 screws [05] attach the cooker hood to the underside of the cupboard using the 2 hole position (A) and 2 hole position (B).

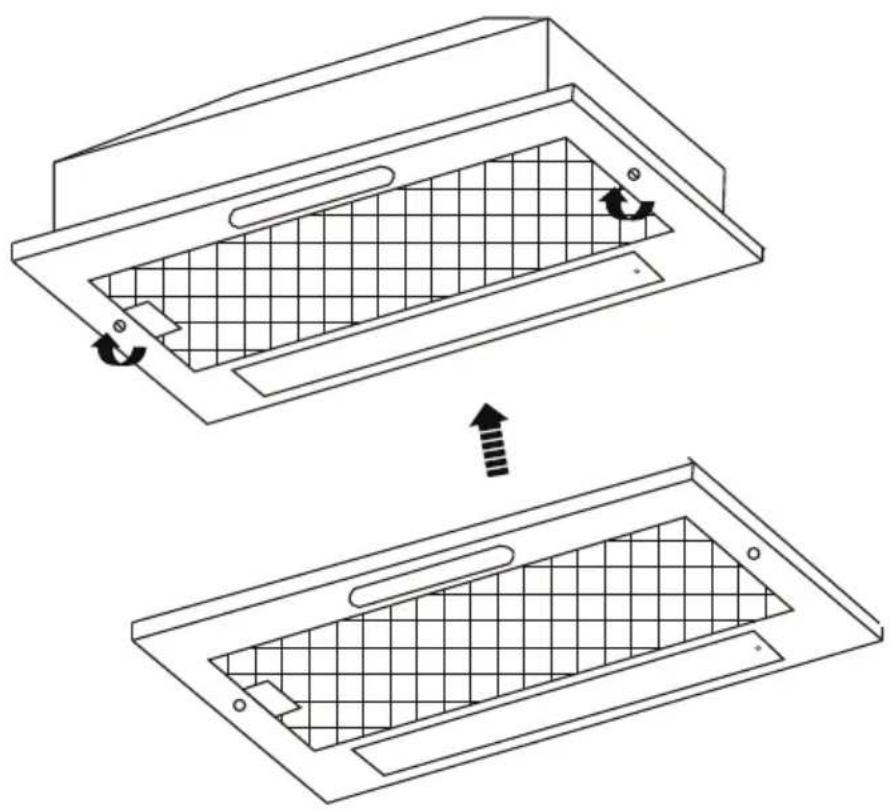

Ensure correct recirculation filters are fitted, please refer to Care and maintenance section

Important: If the room contains a fuel burning appliance, such as a gas, or oil fired, central heating boiler, which is not of the 'Balanced Flue' type, you should make sure that there is adequate air inlet into the room at all times so that fumes from the boiler are not drawn back into the room by the Cooker Hood.

For electrical connection see Technical and legal information section.

04

[05] × 4

05

Technical line drawing showing two views of a device with grid patterns and directional arrows indicating movement (no text or symbols)

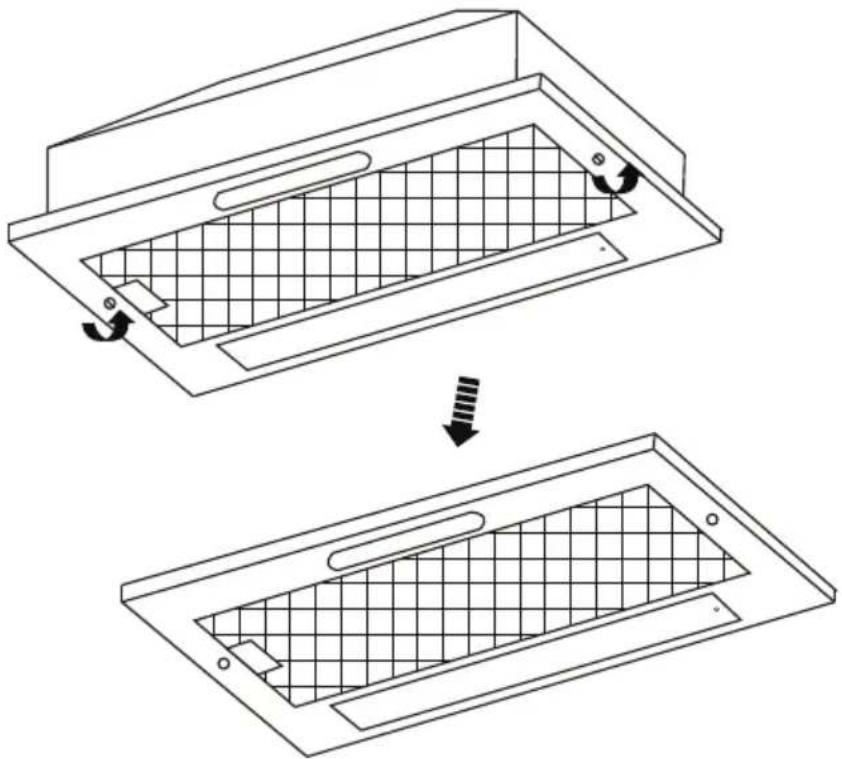

Replace the aluminium Filter

ARTUSI THE ART OF LIVING

Worldwide Appliances Pty Limited

A.B.N. 45868077422

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038

P: 1300 694 583

WARRANTY REGISTRATION

Your ongoing satisfaction with your artusi product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the artusi product purchased by you.

PRIVACY

Worldwide Appliances respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the Worldwide Appliances Privacy Policy is available at www.artusi.com.au. Worldwide Appliances will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services to artusi or assist artusi in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is

to keep a record of the artusi product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your artusi product. Worldwide Appliances may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact artusi on 1300 694 583 should you not wish to be contacted by Worldwide Appliances.

WARRANTY

1. Warranty

Worldwide Appliances warrants that each artusi product will remain, for a period of either 12 months or 24 months of warranty. All Warranties are valid from the original date of purchase, And warranty claims must be accompanied by the proof of purchase.

24 months warranty products: All Built-in Appliances – Limited to Ovens, Gas, Induction and Electric Cooktops, and All Rangehoods

Freestanding Cookers - Gas and Electric Models (900mm Width)

Dishwashers - Freestanding, Fully Integrated, Semi Integrated and built-in

12 months warranty products: Freestanding Cookers - Gas and Electric Models in 50cm, 54cm and 60cm Widths Portable Appliances* – Benchtop Models and Portable Gas Models

2. What is not Covered by the Warranty.

The Warranty does not apply if an artusi product is defective by a factor other than a defect arising in the manufacture of the artusi product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the artusi product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when Worldwide Appliances is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or Worldwide Appliances;

(g) repair, modification or tampering by the purchaser or any person other than Worldwide Appliances, an employee of Worldwide Appliances or an authorised artusi service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by artusi.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the artusi product handbook provided to the purchaser upon purchase of the artusi product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or

(k) damages, dents or other cosmetic imperfections not affecting the performance of the artusi in respect of an artusi product purchased as a “factory second” or from display

The Warranty does not extend to light globes used in artusi products.

3. Domestic Use

Each artusi product is made for domestic use. This Warranty may not extend to artusi products used for commercial purposes.

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.

5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an artusi product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless Worldwide Appliances determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to Worldwide Appliances at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:

(i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void.

(c) Worldwide Appliances excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the artusi product) and (other than expressly provided for in these terms and conditions) subject to all terms,

conditions and warranties implied by custom, the general law, the Act or other statute.

(d) The liability of Worldwide Appliances to you

Warranty Card tear off

for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of Worldwide Appliances to:

(i) replacing or repairing the defective part of the artusi product;
(ii) paying the cost of replacing or repairing the defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an artusi product deemed to be defective and replaced by Worldwide Appliances is the property of Worldwide Appliances.

Worldwide Appliances reserves the right to inspect and test artusi products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*To locate your closest artusi authorised service agent please contact us on 1300 652 100 or visit www.artusi.com.au

ALL SERVICE CALLS MUST BE BOOKED

THROUGH AN AUTHORISED DEALER OR

WARRANTY DEPARTMENT ON 1300 652 100

OR stokesaps.com.au/artusi-service

0 1 0 3 2

ARTUSI

THE ART OF LIVING

WARRANTY REGISTRATION CARD 01052013

Please complete and send to ARTUSI at:

REPLY PAID 83617

LEICHHARDT NSW 2040

Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER	SERIAL NUMBER(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4

ARTUSI

THE ART OF COOKING

DISCLAIMER

Worldwide Appliancees PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.

ARTUSIOFFICES ARE OPEN DAILY FROM 9AM-5PM AND SATURDAYS 10AM-4PM

NSW & ACT (HEAD OFFICE)

48-50 MOORE STREET

LEICHHARDT

FO285694699

VIC. TAS & SA

1211 TOORAK ROAD

CAMBERWELL

FO398092155

QLD

1/42 CAVENDISH ROAD

COORPAROO

F0733970850

WA&NT

UNIT 10/55 HOWE STREET

OSBORNE PARK

F0892019188

NZ

PO BOX 11.160

SOCKBURN CHRISTCHURCH

FO33445906
