Product Type	Subwoofer
Brand	Deaf Bonce
Model	Machete M15D2/D4
Size	15 inches (38 cm)
Impedance	Dual 2 Ohm (D2) or Dual 4 Ohm (D4)
Power Handling (RMS)	2000 Watts
Peak Power Handling	4000 Watts
Sensitivity	89 dB (1W/1m)
Frequency Response	20 Hz - 500 Hz
Mounting Depth	8.6 inches (21.8 cm)
Cutout Diameter	14.0 inches (35.6 cm)
Overall Diameter	15.6 inches (39.6 cm)
Weight	35 lbs (15.9 kg)
Voice Coil	Dual voice coil, high-temperature
Cone Material	Pressed paper with high damping
Surround	High-roll foam
Magnet Type	Ferrite
Recommended Enclosure	Sealed or ported
Recommended Sealed Volume	2.0 cubic feet (56.6 L)
Recommended Ported Volume	4.0 cubic feet (113.3 L)
Cleaning Instructions	Wipe with a dry microfiber cloth; avoid liquids
Safety Warning	Use caution with high power levels to prevent hearing damage

Frequently Asked Questions - Machete M15D2/D4 Deaf Bonce

What is the difference between the D2 and D4 models?

The D2 model has dual 2-ohm voice coils, and the D4 model has dual 4-ohm voice coils. This affects wiring configurations: D2 can be wired to 1 or 4 ohms, while D4 can be wired to 2 or 8 ohms.

What is the recommended box volume for a sealed enclosure?

The manufacturer recommends a sealed enclosure volume of 2.0 cubic feet (56.6 liters) for optimal performance.

Can I use this subwoofer with a ported enclosure?

Yes, a ported enclosure is also suitable. The recommended ported volume is 4.0 cubic feet (113.3 liters) tuned to around 35 Hz.

What is the RMS power rating of this subwoofer?

It has an RMS power rating of 2000 Watts, with a peak handling of 4000 Watts.

What is the mounting depth required?

The mounting depth is 8.6 inches (21.8 cm). Ensure your enclosure provides sufficient clearance.

How should I break in the subwoofer?

Play music at moderate volume (50% of RMS) for about 10-20 hours to allow the suspension to loosen. Avoid heavy distortion during break-in.

What type of enclosure material should I use?

Use 3/4-inch (19mm) MDF or birch plywood for rigidity. Seal all joints with silicone to prevent air leaks.

Can I wire the dual voice coils to 1 ohm?

Only the D2 model can be wired to 1 ohm by connecting the two coils in parallel. The D4 model wired in parallel gives 2 ohms.

What is the frequency response range?

The subwoofer responds from 20 Hz to 500 Hz, making it suitable for deep bass extension.

How do I clean the subwoofer?

Gently wipe the cone and surround with a dry microfiber cloth. Do not use any liquids or chemical cleaners.

USER MANUAL Machete M15D2/D4 Deaf Bonce

1. Introduction
2. Safety instructions
3. Wiring diagrams
4. Recommended enclosure parameters
5. How to use
6. Specifications

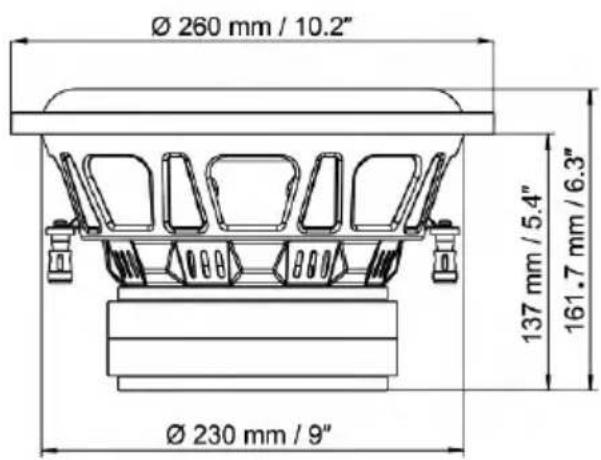

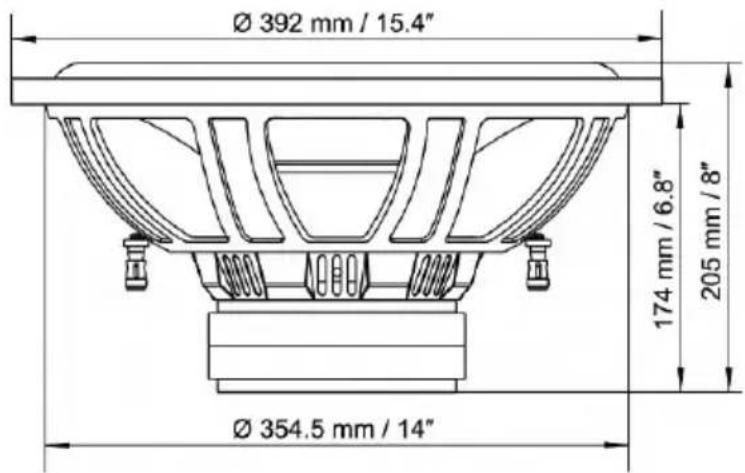

7. Dimensions
8. Box contents

9. Warranty and maintenance info

10. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

GLOBAL SPONSOR

dbDRA

1. INTRODUCTION

EN

Thank you for purchasing the Deaf Bonce product of Machete series! Our company is committed to the creation of extremely high-profile systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Fasten the subwoofer properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the vehicle or another vehicle.
2. Before installing the components, if possible store the product in its original package to avoid accidental damage to the product.
3. Be careful when installing and dismantling the subwoofer! Do not let the subwoofer drop to avoid damage of its moving parts.
4. When working with tools follow safety rules.
5. Before the installation switch off the head unit and all other audio devices to avoid their damage.
6. Make sure that the location of the subwoofer does not hinder the proper operation of mechanical and electrical devices of the vehicle.
7. Do not install components in places exposed to water, excessive humidity, high or low temperature, dust or dirt. ATTENTION!!! The product may be operated at +5 to +40 °C. In case of moisture condensation, let the product to dry.
8. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.
9. When stretching back the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are firmly fixed and protected over the entire length.
10. The diameter of the speaker cables must be selected in accordance with the length and applied power.
11. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.
12. To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

CAUTION! High sound pressure can damage your health!

Please use the common sense when controlling volume!

3. WIRING DIAGRAMS

Attention! You need to connect both voice coils of the subwoofer.

Do not expose your amplifier to loads below the value predetermined by the manufacturer.

Various examples of connection types are given at the pages below. Use these examples to determine the required load impedance of your connection.

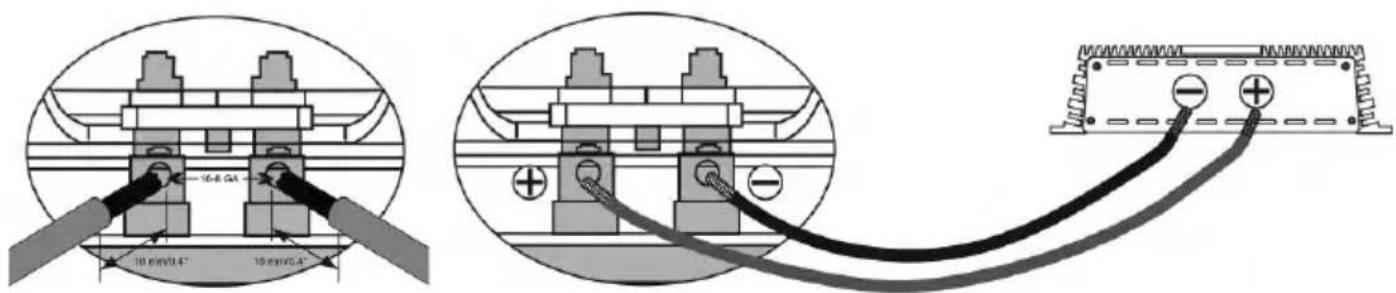

CONNECTION OF TERMINALS

SERIAL CONNECTION

Total impedance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

PARALLEL CONNECTION

EN

Total impedance = 11 Sub 1 + 1 Sub 2 + 1 Sub 3

SCHEMES OF ENABLING THE LOAD OF THE SUBWOOFER

VOICE COILS 2+2,4+4 Ohm

The subwoofer has voice coil D2 or D4.

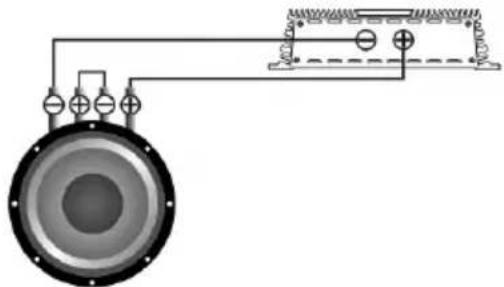

ONE SUBWOOFER, COILS IN SERIES.

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

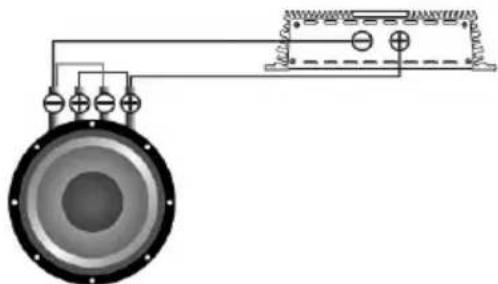

ONE SUBWOOFER, COILS IN PARALLEL

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

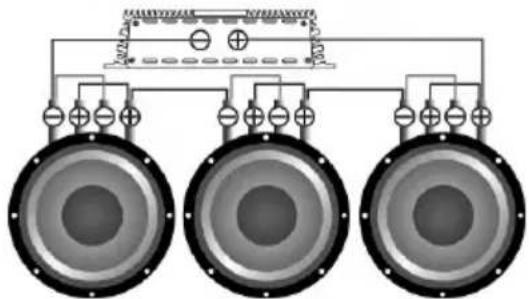

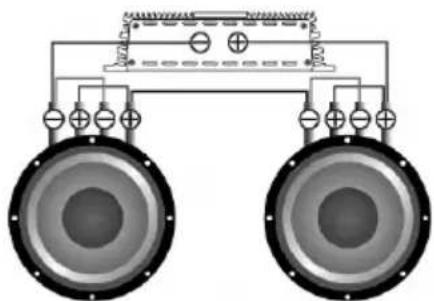

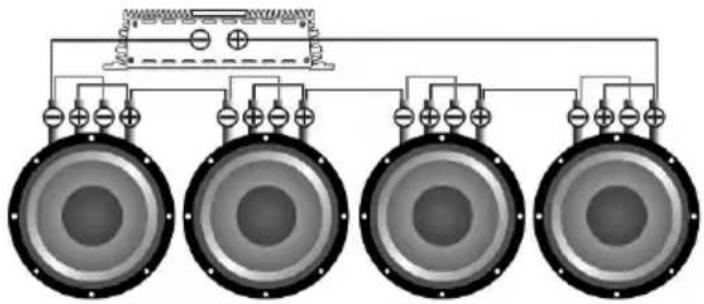

SUBWOOFERS IN SERIES, COILS IN PARALLEL

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

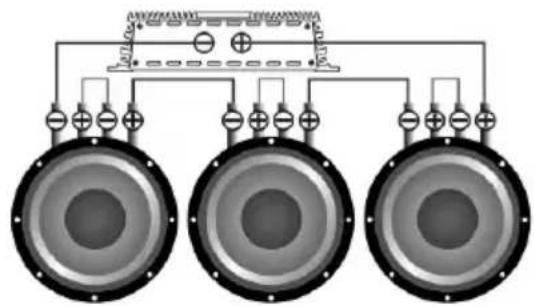

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	3 Ohm
4+4 Ohm	6 Ohm

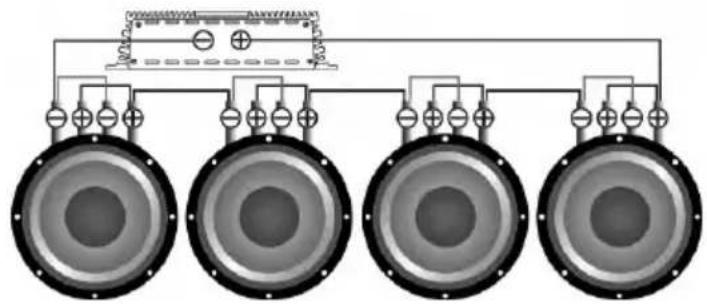

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	4 Ohm
4+4 Ohm	8 Ohm

EN

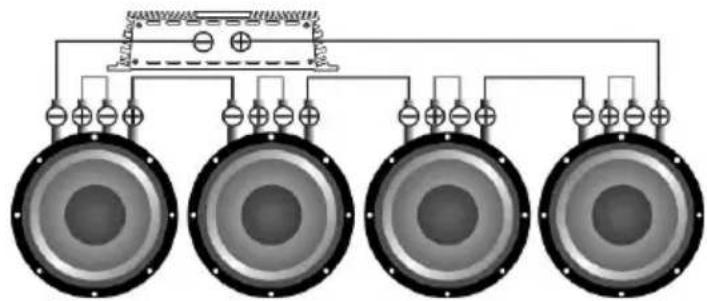

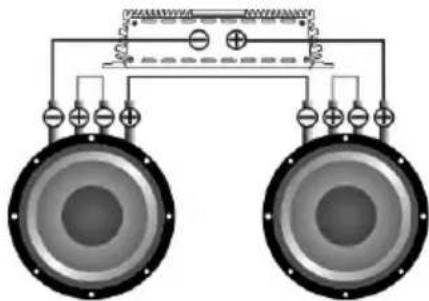

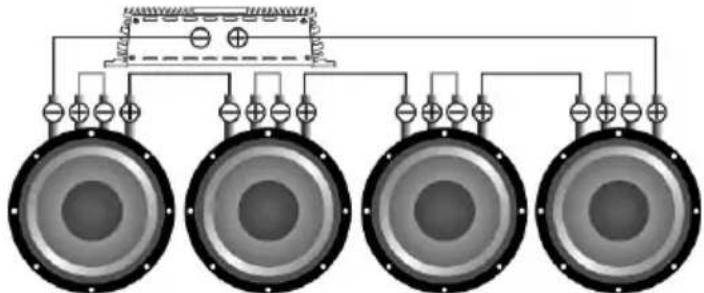

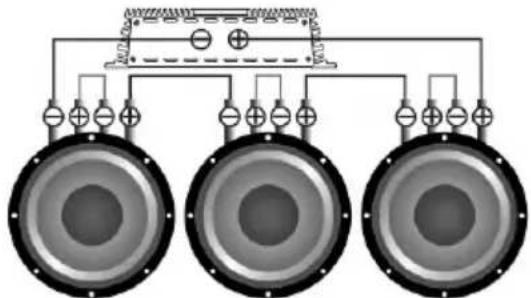

SUBWOOFERS IN SERIES, COILS IN SERIES

Diagram of two speakers with power supply connections (no text or labels)

Voice coils	Total impedance
2+2 Ohm	8 Ohm
4+4 Ohm	16 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	12 Ohm
4+4 Ohm	24 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	16 Ohm
4+4 Ohm	32 Ohm

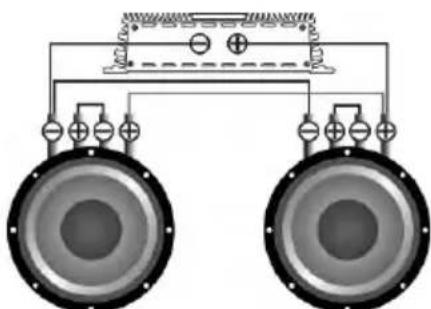

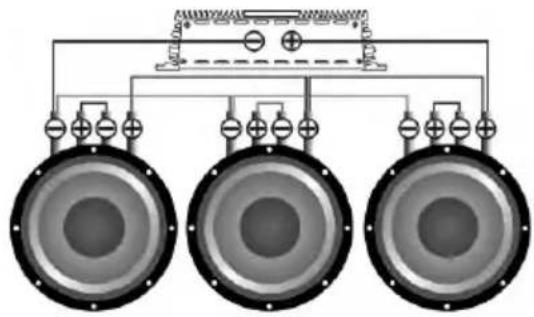

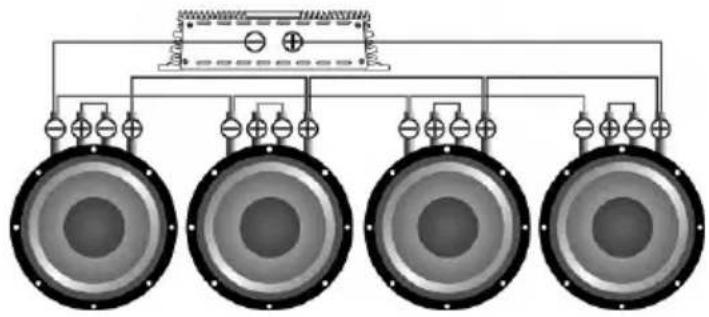

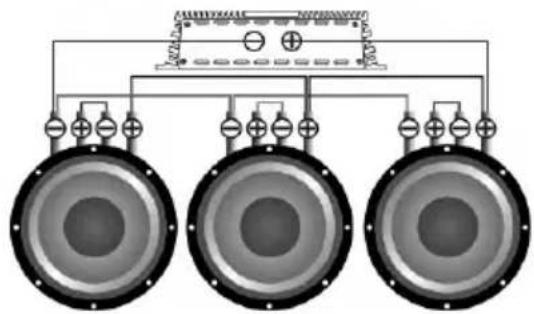

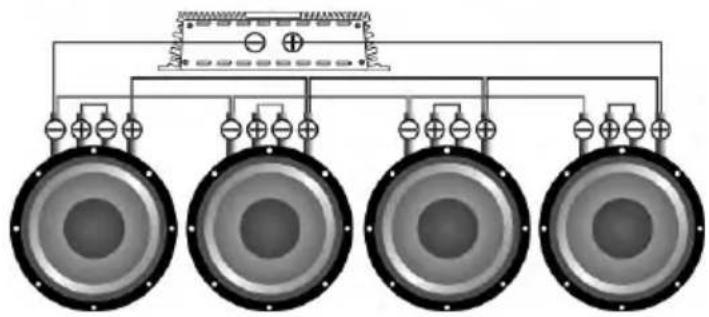

SUBWOOFERS IN PARALLEL, COILS IN SERIES

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	2 Ohm
4+4 Ohm	4 Ohm

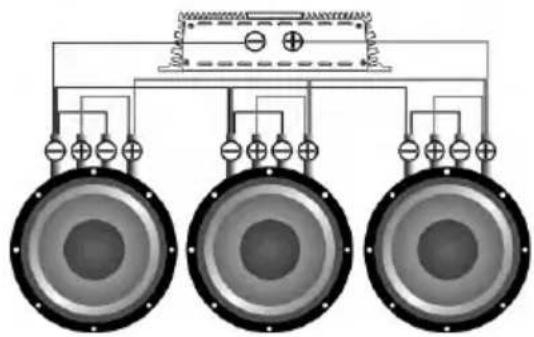

Pure electrical circuit lines without any symbols

Diagram of four speakers arranged in a row connected to a central speaker block (no text or labels)

Voice coils	Total impedance
2+2 Ohm	1,33 Ohm
4+4 Ohm	2,66 Ohm

Voice coils	Total impedance
2+2 Ohm	1 Ohm
4+4 Ohm	2 Ohm

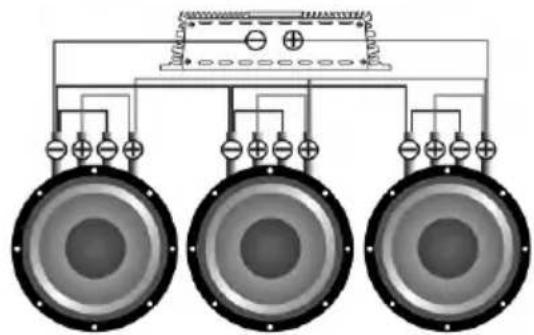

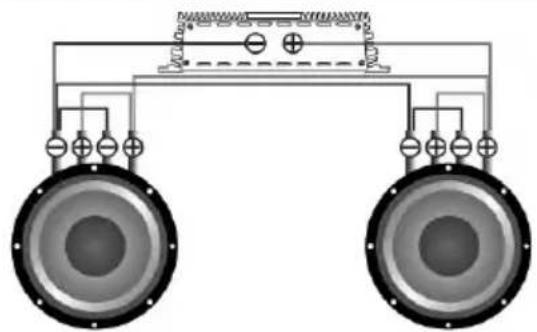

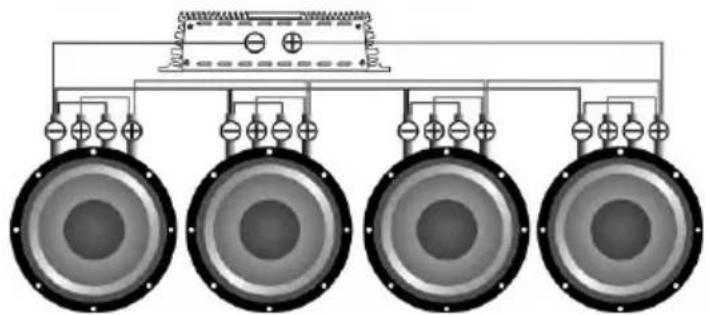

SUBWOOFERS IN PARALLEL, COILS IN PARALLEL

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of four identical speaker amplifiers connected to a central control panel (no text or symbols)

Voice coils	Total impedance
2+2 Ohm	0,5 Ohm
4+4 Ohm	1 Ohm

Voice coils	Total impedance
2+2 Ohm	0,33 Ohm
4+4 Ohm	0,66 Ohm

Voice coils	Total impedance
2+2 Ohm	0,25 Ohm
4+4 Ohm	0,5 Ohm

Caution! High sound pressure can damage your health.

Please be responsible and practice safe sound.

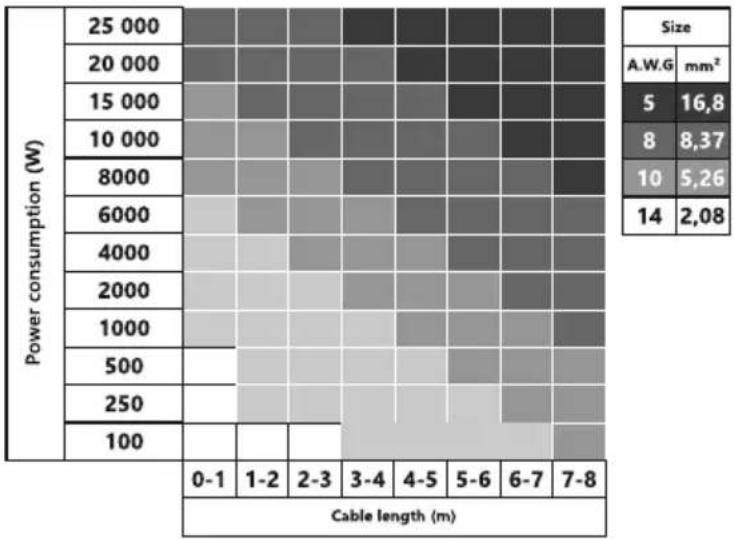

SELECTION OF THE DIAMETER OF SPEAKER CABLES

EN

Use the table below to select the desired diameter based on the length and the power consumption.

4. RECOMMENDED ENCLOSURE PARAMETERS

Bass reflex box

3D mechanical assembly diagram showing a housing with labeled components (w, A, B) and circular cutouts (no text or symbols beyond labels)

W*H*L = body volume

Parameters/Model	M10	M12	M15
The recommended amount of liters	40	50	90
Port area, cm^2	80	150	200
Port length, cm	35	62	40
Hz setting	37	35	35

5. HOW TO USE

The correct choice of the amplifier, its settings and enclosure design prolongs the lifetime of your subwoofer. You should select an amplifier with a nominal power below the nominal power of the subwoofer. Proper coordination of the head unit (HU) with the amplifier will provide a clean, undistorted signal fed to the subwoofer, which prevents overheating and voice coil damage. Like any other speaker, the subwoofer has moving and stationary parts. We strongly recommend that the moving parts of the subwoofer should be warmed up at the beginning of operation. Be extra careful when warming up the parts. Warm up the subwoofer using musical material for 40 hours at medium power. If, during operation at maximum volume you feel strange smell, you should lower the volume of the subwoofer and let the device to cool down at a low volume.

Recommended settings of the amplifier and HU: Volume of HU should not exceed 80%. The amplifier sensitivity should be set to 50%, subsonic filter frequency (Subsonic) should be set to 5 Hz below the port settings. For example, if you configure the port at 30 Hz, Subsonic should be set to 25 Hz. The low pass filter LPF (the filter that cuts all the frequencies above those set for the filter) should be set to 63-80 Hz, bassboost should be set to 0.

1. SPECIFICATIONS
   EN

Model	M10	M12	M15
Size	10"	12"	15"
Surround	Foam	Foam	Foam
Cone	Pressed paper	Pressed paper	Pressed paper
Frame	Stamped steel	Stamped steel	Stamped steel
Magnet type	Ferrite	Ferrite	Ferrite
Power RMS	350 W	350 W	350 W
Power MAX	1000 W	1000 W	1000 W
Voice coil size	2.5"	2.5"	2.5"
Voice coil wire	Copper	Copper	Copper

THIELE-SMALL PARAMETERS

Parameters	M10 D2/D4	M12 D2/D4	M15 D2/D4
Impedance (Ohm)	2+2/4+4	2+2/4+4	2+2/4+4
Re (Ohm)	1.4+1.4/2.8+2.8	1.4+1.4/2.8+2.8	1.4+1.4/2.8+2.8
Spl (dB)	85.37/85.15	87.79/86.87	88.28/87.38
Xmax (mm)	14	14	14
Fs (Hz)	29.87/32.05	33.10/34.60	34.10/33.40
Vas (L)	36.50/37.82	37.93/37.93	75.36/78.08
Qts	0.49/0.45	0.55/0.52	0.63/0.75
BL	14.46/17.23	15.83/20.93	16.70/20.55

This specified sensitivity is not directly connected with the sound pressure in the vehicle, and therefore should not be used as the sole indicator for comparison with other subwoofers.

M10 D2/D4

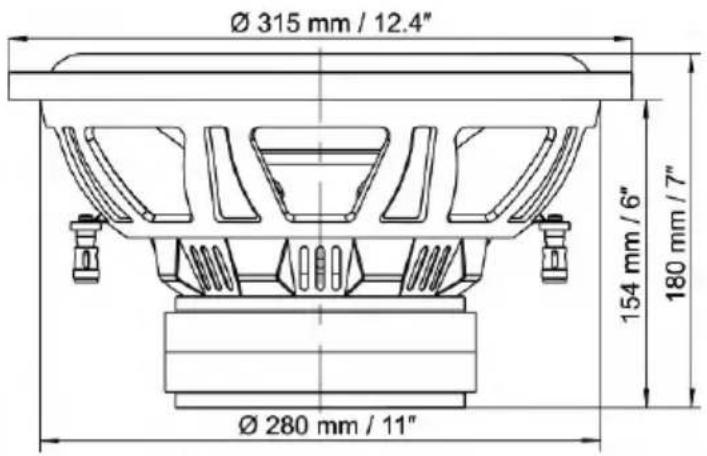

M12 D2/D4

M15 D2/D4

8. BOX CONTENTS

1. Subwoofer - 1 pcs.
2. Owner's Manual - 1 pcs.
3. Warranty card - 1 pcs.

9. WARRANTY AND MAINTENANCE INFO

EN

Deaf Bonce product of Machete series are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card. The manufacturer reserves the right to change design and specification without prior notice.

10. INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.
