Product Type	Canister Vacuum Cleaner
Model	V-CR403STU
Brand	LG
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000 W
Suction Power	400 Air Watts
Dust Capacity	3.5 L
Filtration System	HEPA H13 Filter
Noise Level	75 dB(A)
Dimensions (L x W x H)	450 x 300 x 250 mm
Weight	5.2 kg
Cord Length	8 m
Operating Radius	12 m
Floor Nozzle	Combination Floor Tool (Hard Floor & Carpet)
Accessories Included	Crevice Tool, Dusting Brush, Upholstery Tool
Wheels	4 Swivel Wheels
Control Type	Electronic Variable Power Control
Washable Filter	Yes (Pre-motor filter)
Bagless	Yes (Cyclonic Action)
Maintenance	Empty dust container after each use; clean filter monthly
Spare Parts	Available: Filter sets, floor nozzle, accessories
Safety Features	Thermal overload protection; motor safety switch
Certifications	CE, RoHS

Frequently Asked Questions - V-CR403STU LG

How often should I wash the filter?

Wash the pre-motor filter at least once a month or when it appears dirty. Allow it to dry completely for 24 hours before reinserting. Do not wash the HEPA filter.

What should I do if the suction power reduces?

Check for blockages in the hose, nozzle, or dust container. Empty the dust container if full. Clean the filter as described in the manual. If problem persists, inspect the motor protection filter.

Can I use the vacuum on hardwood floors?

Yes, the included combination floor tool is designed for both hard floors and carpets. For delicate hard floors, you can also use the hard floor brush accessory (if included).

How do I empty the dust container?

Press the button to release the dust container. Hold over a trash bin, open the bottom lid, and tap gently. For thorough cleaning, rinse the container with water and dry completely before reinstalling.

What is the warranty period for this model?

The LG V-CR403STU typically comes with a 2-year warranty for manufacturing defects. Register your product on the LG website for extended warranty options.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6-12 months, depending on usage. For homes with pets or allergies, more frequent replacement is recommended.

Why does the vacuum smell bad?

A musty smell can indicate a damp or dirty filter. Clean the pre-motor filter and check for blockages. Ensure the dust container is emptied regularly. If the smell persists, replace the HEPA filter.

Can I wash the dust container?

Yes, the dust container is washable. Remove it, open the lid, and rinse with warm water. Make sure it is completely dry before reattaching to avoid mold growth.

What accessories are included?

The package includes a combination floor nozzle, crevice tool, dusting brush, and upholstery tool. Additional accessories can be purchased separately from LG spare parts.

How to replace the headlight bulb?

The V-CR403STU does not have a headlight. If your unit has one not listed, refer to the manual. For other models, the LED lights are non-replaceable and should last the lifetime of the product.

USER MANUAL V-CR403STU LG

Model	V-CR4*3S*U
Language	English/Hungarian/Bulgaria/Romanian/Czech/Polish
Page	43 page	Color(cover/body)	1/1
Material	Weight 40g	Size(W*H)	150 × 220(mm)
Date	2007.12.20	Designer	Tanjy
Part No.	MFL38130316	Description	owner's manual

Chage Record

No.	Change content	ECO No.	Date	Designer	Confirm
1	add the warning sentence	ACTT905221	09.08.04	Z.Y.C	Cuiyt
2
3
4
5
6
7
8
9

Line drawing of a mechanical device with labeled components (no text or symbols)

V-CR403S*U

V-CR483S*U

V-CR473S*U

V-CR463S*U

V-CR453S*U

V-CR443S*U

E | English

M I Magyar

P I Polski

C I Česky

L I Limba Română

Б 1 Български

Technical diagram of a vacuum cleaner with numbered parts for identification

t ght. z 4 5 6

Diagram of three types of worm-like structures with numbered labels indicating anatomical parts.

Illustration of various mechanical components with no visible text or symbols

Accessory Tartozékok Akcesoria

Technical diagram showing exploded view of a mechanical component with numbered parts and assembly instructions below.

Technical diagram of a vacuum cleaner with numbered parts labeled 1, 2, and 3

4 16 17

6 5

Technical diagram showing two mechanical components with numbered annotations indicating parts of each.

Line drawing of a portable vacuum cleaner with labeled component 9 (no text or symbols beyond label)

9

10

Illustration of a hand using a tool to press or mark a surface, with a numbered label '11' on the surface (no text or symbols beyond the number)

12

Diagram of a mechanical joint or tool with labeled component '13' (no text or symbols beyond label)

14 15

18

19

20

21

Technical illustration of a robotic device with labeled parts (no text or symbols present)

Diagram of a robotic device with labeled parts and a close-up view showing internal components (no text or symbols present)

24

25

26

27

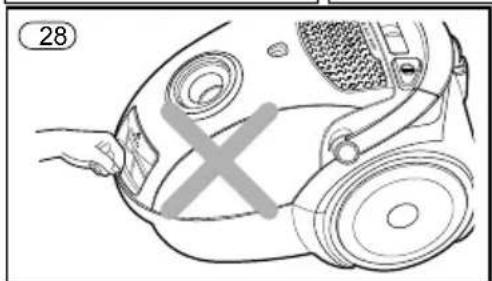

28

Line drawing of a hand using a vacuum cleaner to clean the air (no text or symbols)

USER'S GUIDE FOR TURBINE NOZZLE

Technical diagram of a vacuum cleaner with numbered parts labeled 1, 2, and 3

4 16 17

6 5

Technical diagram showing two mechanical components with numbered annotations indicating parts of each.

Line drawing of a portable vacuum cleaner with labeled component 9 (no text or symbols beyond label)

9

10

Illustration of a hand using a tool to press or mark a surface, with a numbered label '11' on the surface (no text or symbols beyond the number)

12

Diagram of a mechanical joint or connection with labeled component '13' (no text or symbols beyond label)

14 15

18

19

20

21

Technical illustration of a robotic device with labeled parts (no text or symbols present)

Technical illustration of a robotic device with labeled parts and a close-up view showing internal components (no text or symbols present)

24

Technical diagram of a mechanical device with labeled part '25' (no readable text or symbols beyond label)

26

27

28

Line drawing of a hand using a vacuum cleaner to clean the air (no text or symbols)

UŽIVATELSKÁ PŘÍRUČKA PRO TRYSKU TURBÍNY

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following ECDirectives:-2006/95/EC Low Voltage Directive-2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.” These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.
  Failure to do so could result in electrical shock or personal injury.

- Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

- Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

- Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

- Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

WARNING

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner

Fire hazard or product damage could result.

- Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not plug in if control knob is not in OFF position.

Personal injury or product damage could result. (Depending on model)

- Keep children away and beware of obstructions when rewinding the cord to prevent personal injury.

The cord moves rapidly when rewinding. (Depending on model)

- The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.

Failure to do so could result in death, or electrical shock. (Depending on model)

CAUTION

• Do not put any objects into openings. Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

- Do not use vacuum cleaner without dust tank and/or filters in place.

Failure to do so could result in product damage.

- Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

- Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

- Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

- To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in sofa mode. Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

• Do not dry the filter in an oven or microwave.
  Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.
• Do not dry near an open flame. Failure to do so could result in fire hazard.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products clog the filters, reduce airflow and can cause damage to the cleaner.

Failure to clean the dust bin could cause permanent damage to the cleaner. (Depending on model)

• Don 't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you aremoving the vacuum cleaner. (Depending on model)
• If after emptying the dust tank the indicator light is on(red), clean the dust tank.
  Failure to do so could result in product damage. (Depending on model)

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

FONTOS BIZTONSÁGI ELÓÍRÁSOK

INSTRUCTIUNI IMPORTANTE PENTRU SIGURANTĂ

INSTRUCTIUNI IMPORTANTE PENTRU SIGURANTĂ

PRECAUTII

Connecting the flexible hose

Push the end of the head(1) on the flexible hose(2) into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press on the button(3) situated on the head, then pull upwards.

Assembling the tubes

(depending on model)

• Metal(or Plastic) Pipe(4)

- Fit together the two tubes by twisting slightly.

-Telescopic tube(5)

• Push spring latch(6) forward.
• Pull out tube to required length.
• Release spring latch to lock.

Using the cleaning head and Accessory

Nozzles (depending on model)

Fit the large cleaning head onto the end of the tube.

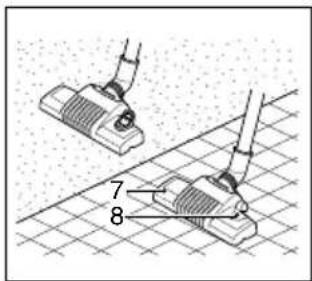

- The 2 position head(7) is equipped with a pedal(8) which allows you to alter its position according to the type of floor to be cleaned.

Hard floor position(tiles, parquet floors...). Press on the pedal to lower the brush.

Carpet or rug position. Press on the pedal to lift the brush up.

- Crevice Tool(9)

Flexible Crevice Tool (optional)(13)

For vacuuming in those normally inaccessible places i.e. reaching cobwebs, or down the side of a sofa!

• Dusting brush(10)

For vacuuming picture frames furniture outlines, books and other uneven objects.

• Upholstery Nozzle(11)

For vacuuming upholstery, mattresses, etc. The thread collectors help to pick up the threads and fluff.

- Accessory Holder (12) can be attached on the Extention wands using clamping hook. Accessories can be stored in the holder.

How to plug in and use

Pull out the supply cord to the desired length and plug into the socket.

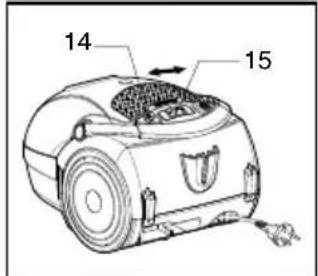

Press button (14) to start the vacuum cleaner. To stop it press the button (14) again.

Adjusting the power level

• If your appliance is equipped with an electronic variable power control(15), you can choose the power appropriated for the task. The more you slide the button towards the right, the greater the suction power.
• The flexible hose handle(16) has a manual air flow regulator(17) which allows you to briefly reduce the suction level.

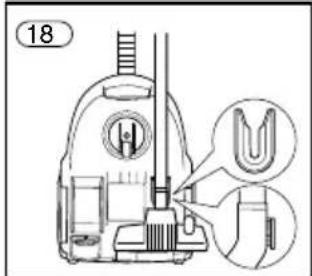

Storage(18)

When you have switched off and unplugged the appliance, press on the button (19) to automatically rewind the cord.

You can move or store your appliance in a vertical position by sliding the hook on the large cleaning head into the clip on the underside of the appliance.

Changing the dust bag

The dustbag needs changing when the cleaner is set to maximum power and the cleaner head is off the floor but the "bag full" indicator window(20) is completely coloured red.

Even if the dustbag does not appear to be full at this stage, it should be changed.

It could be that a great deal of very fine dust has clogged up the pores of the dust bag.

• Turn off the appliance and unplug it.
• Open the cover by pressing the hook(21) and lifting it up until it snaps into place.

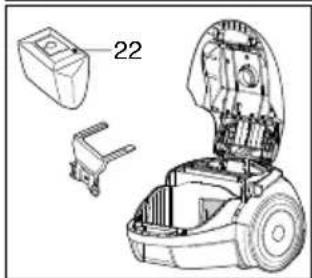

Your appliance is equipped with either a paper dust bag (22) or a fabric dust bag (24)(depending on model).

• Take hold of the dust bag by the handle and pull. Remove the bag and throw it away.
• To refit a new bag push the cardboard support of a new bag into the bag mount (23) until it will go no further.

If your appliance is fitted with a fabric dust bag follow the same instructions as above.

Empty it and replace it(24).

Note: as the appliance is fitted with a safety device which checks that the bag is in place you cannot close the lid if the bag is not fitted correctly.

Cleaning the motor filter

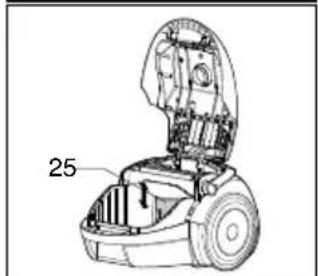

The motor filter is situated inside the appliance between the dust bag and the motor. Each time that you change the air outlet filter we advise you to remove the motor filter(25)and to clean it by tapping to remover the dirt and then replacing it in the vacuum cleaner.

Changing the air outlet filter

• To change these filters remove the cover of the filter compartment (26) situated at the inner of the appliance.
• Cleaning the washable HEPA filter with water at least once a year.

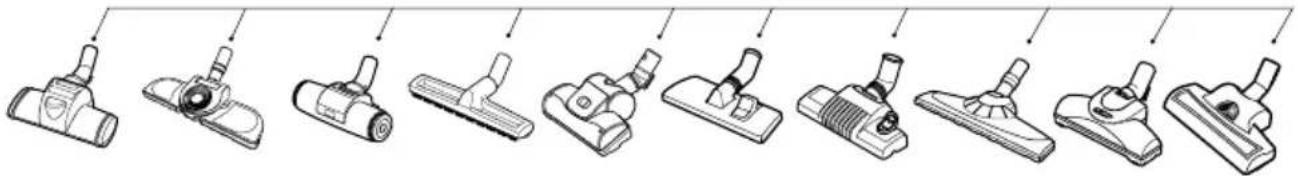

• Hard floor Nozzle(27)

Efficient cleaning of hard floors (wood, linoleum, etc.)

WARNING

Please never close the Filter Cover like (28), To avoid nipping your hand.

Please do not hold the hose when we lift the main body off the floor (29).

What to do if your appliance does not work?

Check that the appliance is correctly plugged in and that the electrical socket is working.

What to do when the suction performance reduces?

• Stop the appliance and unplug it.
• Check that the tubes, flexible hose and cleaning tool are not blocked.
• Check that the dust bag is not full. Replace if necessary.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
