Product Type	Isolation Stand
Brand	IsoAcoustics
Model	ISO-130
Dimensions (W x D x H)	13 in x 9 in x 2.5 in (33 cm x 22.9 cm x 6.4 cm)
Weight	2.2 lbs (1.0 kg)
Maximum Load Capacity	30 lbs (13.6 kg)
Material	Aluminum alloy frame with rubber dampening
Color	Black
Isolation Type	Decoupling springs and dampening elastomer
Compatible Speaker Size	Bookshelf speakers up to 8" woofer
Number of Units per Package	1 (sold as pair)
Height Adjustment	Fixed height
Mounting	Free-standing on base plate
Included Accessories	User manual, isolation pads
Cleaning	Wipe with dry cloth; avoid solvents
Safety	Ensure stable placement; do not exceed load
Spare Parts Availability	Contact IsoAcoustics for replacements
Warranty	5 years limited

Frequently Asked Questions - ISO-130 IsoAcoustics

What is the purpose of the IsoAcoustics ISO-130 stand?

The ISO-130 is an isolation stand designed to decouple speakers from surfaces, reducing vibration and improving sound clarity.

What speakers are compatible with the ISO-130?

The stand supports bookshelf speakers weighing up to 30 lbs (13.6 kg) with a maximum width of 13 inches. It works well with speakers up to 8-inch woofers.

How do I set up the ISO-130?

Place the stand on a firm level surface. Position your speaker on top, centering it. No tools required; the base has non-slip pads.

Can I stack two stands for height adjustment?

No, stacking is not recommended. The ISO-130 is designed as a single-layer isolator. For height, consider using IsoAcoustics stands with adjustable legs.

Is the ISO-130 sold as a pair?

Each package contains one stand. For a stereo pair, purchase two units. Some retailers offer them in pairs.

How do I clean the ISO-130?

Wipe with a soft dry cloth. Avoid liquids, abrasives, or solvents that may damage the rubber dampening elements.

Does the ISO-130 require assembly?

No assembly is needed. It comes pre-assembled; simply place it under your speaker.

Will the ISO-130 improve sound quality?

Yes, by isolating vibrations, it reduces cabinetry resonance and bass muddiness, resulting in clearer mids and tighter bass.

What is the warranty on the ISO-130?

IsoAcoustics offers a 5-year limited warranty against defects in materials and workmanship.

Can I use the ISO-130 with subwoofers?

The stand is best for bookshelf speakers. For subwoofers, consider IsoAcoustics ISO-Puck or dedicated subwoofer isolators with higher weight capacity.

USER MANUAL ISO-130 IsoAcoustics

Black industrial equipment with vertical rods and a coiled base, no visible text or symbols

Installation Guide

Mechanical structure with multiple cylindrical components arranged in a staggered pattern (no text or symbols visible)

Congratulations on your purchase of the Installation Guide award-winning IsoAcoustics ISO-Series series of speaker stands for audio speakers and studio monitors. You're well on your way to getting superior, authentic and accurate sound.

We've incorporated PIF principles in acoustics to deliver this unique, patented "floating" architecture:

Placement/Proximity – reduces reflections by raising the speakers or monitors off the supporting surfaces and away from adjacent surfaces.

Isolation – reduces vibrational energy from exciting other objects through decoupling the speakers or monitors from the supporting surface; speakers and enclosures float independently.

Focus – creates the ideal listening position; raising and tilting speakers and monitors to form an equilateral triangle from the speakers to the listener. The more directional frequencies emitted by the tweeters can be tilted to the level of the listener's ear, greatly improving the stereo soundstage.

Simple diagram of a robot with two diamonds connected to a central figure (no text or symbols)

The ISO-Series stands have isolators that feature a unique bi-directional design that responds to the energy in audio speakers and studio monitors while resisting lateral motion.

For optimum performance the stand should be rotated to be aligned in the same direction as the speaker cabinet, and with the cabinet resting directly on upper isolators.

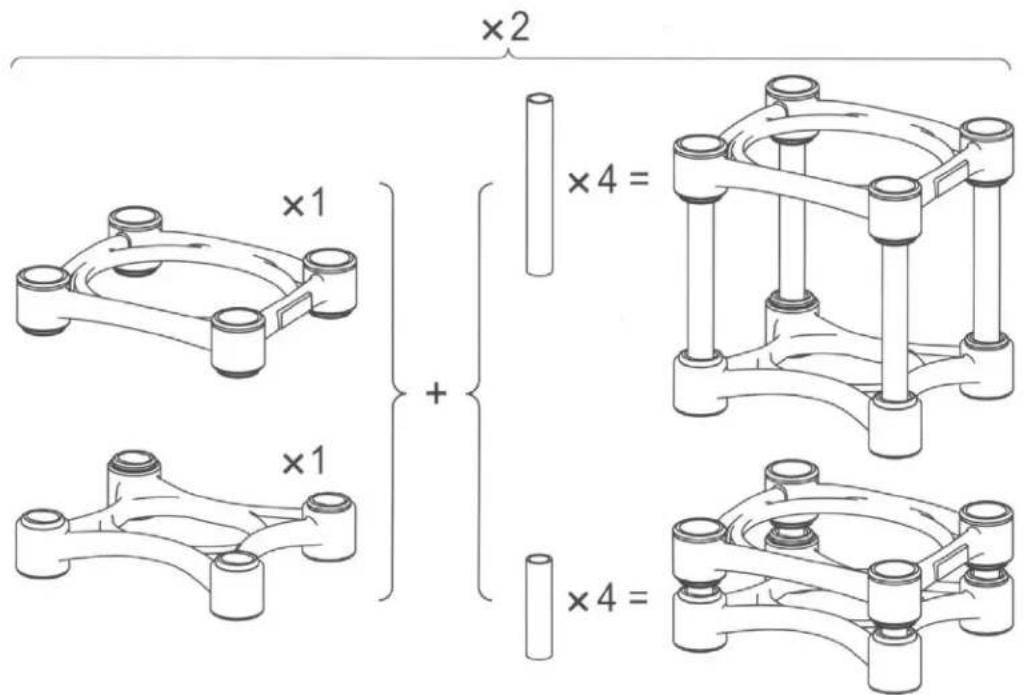

Each kit contains the following items (sufficient for two speakers):

Installation Guide

1. Select either the long or short tubes to get the appropriate height for the speaker to achieve optimal audio performance.

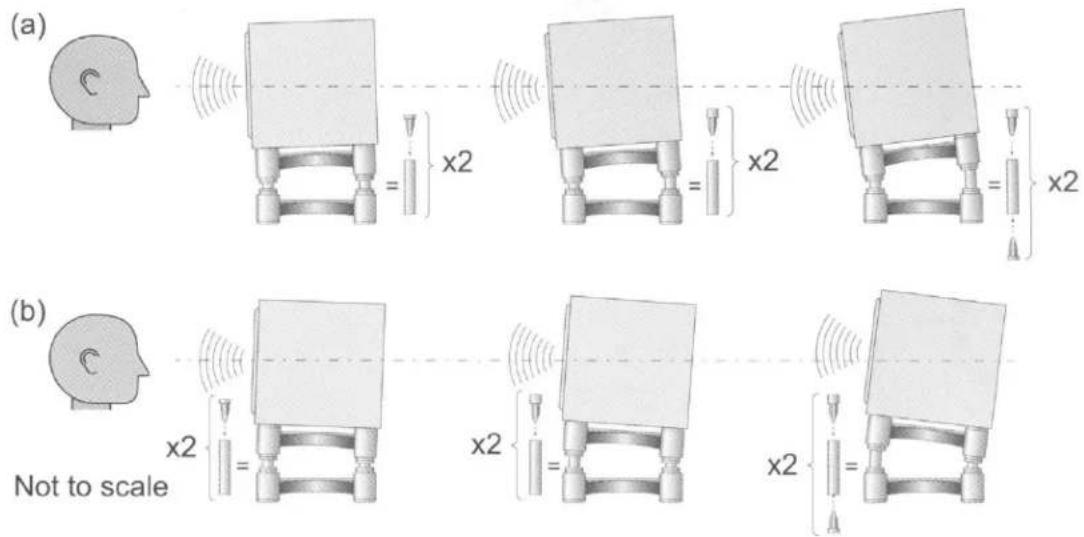

2. Fit the inserts in either the front tubes to tilt the speaker upwards or in the back tubes for a downward tilt, if necessary. Some examples are illustrated below:

1. Inserts are always installed as an identical pair - both at the back for a forward tilt (a), or both in the front for a backward tilt (b).
2. Complete step 3 before firmly pressing the tubes into the isolators.
3. Complete assembly by firmly pressing the top and bottom isolators in place.
4. Check that the speaker is securely in place and will not slip or fall off the assembly.
5. Check that the surrounding surface will support the full weight of the speaker plus the stand.

Assembly instruction video can be found at: www.isoacoustics.com/iso-l8r-series-isolation-stands-instruction-video/

IsoAcoustics warrants the ISO-Series products against evident defects in material and workmanship for a period of two years from the date of original purchase. This warranty does not cover mechanical damage resulting from misuse or abuse, lack of reasonable care, damage due to force majeure or natural forces. IsoAcoustics shall not be liable for any special, indirect, direct or consequential damages to other products or property.
