Product Type	Security Camera
Brand	Bolide
Model	BN8019B/NDAA
Resolution	5MP (2560 x 1920) @ 15FPS, 4MP (2592 x 1520) @ 15FPS, 1080P (1920 x 1080) @ 15FPS, 720P (1280 x 720) @ 15FPS, 960H (960 x 480) @ 15FPS
Lens	2.8mm Fixed Lens
Aperture	F 2.0 ± 5%
Day & Night	IR Cut Filter with Auto Switch
IR Range	Up to 75 Feet
Video Compression	Smart H.265 / H.264
Video Bit Rate	256 Kbps ~ 8 Mbps
Triple Stream	Yes
Image Settings	Flip, Rotate, Saturation, Brightness, Contrast, Hue, Sharpness Adjustable, Corridor Mode
Built-in Features	BLC, ROI, Privacy Mask
WDR	Digital WDR
Slow Shutter	Supported
Network Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Compatibility	ONVIF
Power over Ethernet (PoE)	Yes
Weather Rating	IP67
Power Supply	DC 12V / PoE
Power Consumption	Max 5W (Max 7W with IR Cut Filter ON)
Net Weight	0.95 lb (0.43 kg)
Maintenance	Clean lens with a soft, dry cloth. Check cables periodically for damage.
Safety	Use only specified power supply. Do not expose to water beyond IP67 rating.
Spare Parts & Repairability	Contact Bolide support for replacement parts. No user-serviceable components.
General Information	Color: Black. Suitable for indoor and outdoor use.

Frequently Asked Questions - BN8019B/NDAA Bolide

What is the maximum resolution of the Bolide BN8019B/NDAA camera?

The camera supports up to 5MP (2560x1920) at 15 FPS. It also supports 4MP, 1080P, 720P, and 960H resolutions.

Does the camera support night vision?

Yes, it features IR cut filter with auto switch and IR range up to 75 feet for night vision.

Can I power the camera using Power over Ethernet (PoE)?

Yes, the camera supports PoE (Power over Ethernet) as well as DC 12V power supply.

Is the camera weatherproof?

Yes, it has an IP67 weather rating, making it suitable for outdoor use.

What type of lens does the camera have?

It has a 2.8mm fixed lens with an aperture of F2.0.

Can I adjust the camera’s image settings?

Yes, you can adjust brightness, contrast, saturation, hue, sharpness, flip, rotate, and enable corridor mode via the web interface.

Is the camera compatible with third-party NVRs?

Yes, it supports ONVIF for compatibility with many third-party recording devices.

What video compression formats are supported?

The camera supports Smart H.265 and H.264 compression for efficient bandwidth usage.

What is the power consumption of the camera?

Maximum power consumption is 5W (7W with IR cut filter on).

How do I maintain the camera?

Clean the lens with a soft, dry cloth. Check cables periodically. Use only the specified power supply.

USER MANUAL BN8019B/NDAA Bolide

Slow Shutter Support

Lens 2.8mm Fixed Lens

F No. F 2.0 ± 5%

Day & Night IR Cut Filter with Auto Switch

WDR Digital

Video Compression Support Smart H.265 / H.264 Coding

Video Bit Rate 256Kbps \~ 8Mbps

Triple Stream Yes

Image Settings Flip, Rotate, Saturation, Brightness, Contrast, Hue, Sharpness Adjustable, Corridor Mode

BLC Support

ROI Support

Privacy Mask Support

Networking TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP

Compatibility ONVIF

IR Range Up to 75 Feet

POE Yes

Weather Rating IP67

Power Supply DC 12V / POE

Power Consumption Max .5W (Max .7W with IR Cut Filter ON)

Net Weight 0.95lb

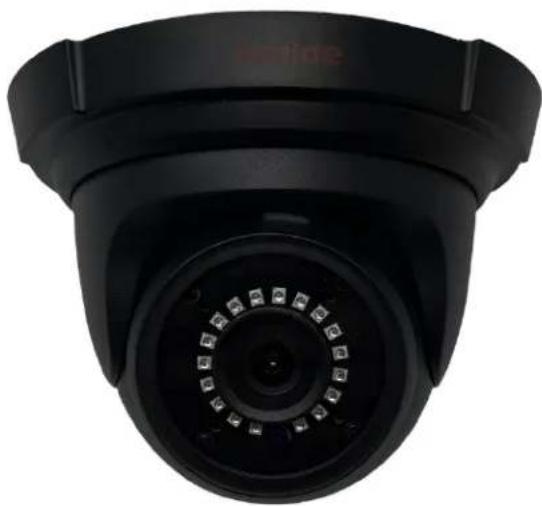

Close-up of a black security camera with circular lens and sensor array (no visible text or symbols)

Resolution 5MP (2560 x 1920) @ 15FPS

4MP (2592 x 1520) @ 15FPS

1080P ( 1920 x 1080 ) @ 15FPS

720P (1280 x 720) @ 15FPS

960H ( 960 X 480 ) @ 15FPS

DIMENSIONS
