Product Type	Security Camera
Model	ES-32D11J
Brand	ZKTeco
Resolution	2 Megapixels (1920x1080)
Lens	2.8mm fixed lens
Night Vision	IR up to 30m
Connector Type	PoE (Power over Ethernet)
Dimensions (WxHxD)	Approx. 70x70x150 mm
Weight	Approx. 500 g
Power Supply	12V DC or PoE (IEEE 802.3af)
Power Consumption	<5W
IP Rating	IP67 (weatherproof)
Main Functions	Motion detection, ONVIF compliance, H.265 compression, remote viewing
Care and Cleaning	Wipe with dry cloth; avoid abrasive cleaners
Safety	Use only supplied power adapter; avoid exposure to extreme temperatures
Spare Parts	Mounting bracket, screws, power adapter (if not PoE)
Repairability	Contact authorized service center for repairs
General Information	Indoor/outdoor use; compatible with ZKBioSecurity or third-party VMS

Frequently Asked Questions - ES-32D11J ZKTeco

How do I reset the ES-32D11J camera to factory defaults?

Locate the reset button on the camera (usually a small pinhole). Press and hold it for about 10 seconds while the camera is powered on. The camera will reboot and restore factory settings.

Can I use this camera without a PoE switch?

Yes, the camera also supports 12V DC power. You can use the included power adapter if you don't have a PoE switch. Note that Ethernet is still required for data.

What is the maximum resolution supported?

The camera supports up to 2 Megapixels (1920x1080) at 30fps. It uses H.265 compression to reduce bandwidth and storage.

How do I access the camera remotely?

Connect the camera to your network, then use the ZKBioSecurity app or a web browser (by its IP address). Ensure port forwarding is configured on your router for remote access.

Does the camera have night vision?

Yes, it features infrared LEDs with a range of up to 30 meters in complete darkness. The IR cut filter switches automatically for day/night mode.

What is the field of view?

With a 2.8mm lens, the camera has a horizontal angle of view of approximately 105 degrees, suitable for wide-area monitoring.

Is the camera weatherproof?

Yes, it has an IP67 rating, meaning it is dust-tight and protected against temporary immersion in water. It can be used outdoors.

Can I record video to an SD card?

Yes, the camera supports a microSD card (up to 128GB) for local storage. You can also configure motion-triggered recording.

How do I clean the lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using any liquids or abrasive materials that may damage the coating.

What software is compatible with this camera?

The camera supports ONVIF Profile S, making it compatible with many third-party NVRs and software like ZKBioSecurity, Blue Iris, or Synology Surveillance Station.

USER MANUAL ES-32D11J ZKTeco

Close-up of a white surveillance camera with lens and control panel (no visible text or symbols)

· 1/2.7" 2MP Sensor
· AHD/TVI/CVI/CVBS Video Output
· IR Effective Range 10\~20m
· High Quality Optical Lens 2.8mm/3.6mm Optional

System Overview

L series HD analog camera adopts advanced 4-in-1 ISP and 1/2.7" image sensor, featured by the excellent image details with wide FOV, compact design with unique 1-key installation base. It offers built-in UTC function to switch the signal output flexibly among the 4 popular technologies. It's ideal solution for SMB solution with high cost-performance ratio and simplicity for installation.

Functions

Long Distance Transmission

Powered by leading HD Videoloss technology, it supports up to 500m/800m transmission over RG59/RG6 coaxial cables separately.

Smart IR

L series is designed with smart IR function to avoid of the IR LED overexposure when object/people is getting closer to the camera in the night, ensuring the light intensity is changing proportionally with the distance between camera and objects.

Advanced 4 in 1 technology

L series is built in with advanced 4 in 1 technology, it's equipped with UTC chipset on board which could support to adjust HD analog signal output flexibly, such as AHD/TVI/CVI/CVBS. It's the final solution for true plug-n-play to work with any brand of HD analog DVR seamlessly.

Protection

Support ±30% input voltage tolerance, it could work safely in extreme unstable power condition.

With working temperature range -30^ to +60^ , it works well in a variety of harsh outdoor environments.

Technical Parameters

Camera

Model	ES-32D11J	ES-32D12J	Effective Pixels	1920(I)* 1080(V)
Image Sensor	1/2.7" 2MP Sensor		S/N Ratio	More than 52dB
Scanning System	Progressive		IR Distance	10~20m
Min. Illumination	Color: 0.01Lux@(F1.2, AGC ON), 0 Lux with IRB/W: 0.001Lux@(F1.2, AGC ON), 0 Lux with IR		IR LED No	1

Lens

Focal Length	2.8mm	3.6mm	FOV	100°	90°
Aperture	F2.0

Video

Video Output	A1ID/TVI/CVI/CVBS	AGC	Supported
Resolution	25/30fps@1080P	Day/Night	Auto(ICR)/Manual
OSD Menu	Supported	White Balance	Supported
BLC	Supported	Noise Reduction	2D DNR
WDR	DWDR

General

Working Temperature	-30°C~+60°C	Ingress Protection	N/A
Working Humidity	10~90%	Dimensions	92 × 78 mm
Power Supply	DC12V±10%	Net Weight	0.15KG
Power Consumption	<3.2W(R cut off)	Gross Weight	0.2KG

Ordering Information

Type	Part Number Description
2MP Camera	ES-32D11J	2MP Analog Camera(2.8mm Lens)
	ES-32D12J	2MP Analog Camera(3.6mm Lens)

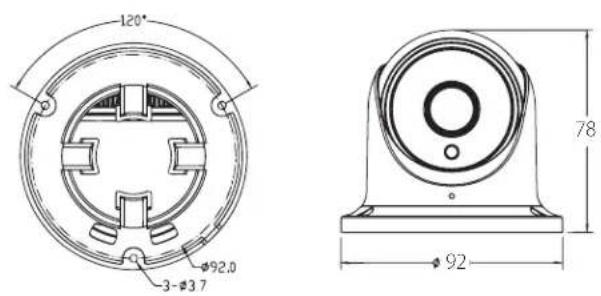

Dimensions (mm)
