Product Type	Security Camera
Brand	ZKTeco
Model	BS-32E12K
Image Sensor	1/2.7" CMOS
Resolution	1920 x 1080 (2 MP)
Lens	2.8 mm fixed
Night Vision	IR LEDs up to 30 m
Field of View	90° horizontal
Video Compression	H.265 / H.264
Power Supply	DC 12V ±10% or PoE (802.3af)
Power Consumption	≤ 8 W
Dimensions (Φ x L)	70 mm x 180 mm
Weight	Approx. 500 g
Ingress Protection	IP67
Operating temperature	-30 °C to +60 °C
Motion Detection	Yes
Audio	Built-in microphone
Storage	Micro SD card up to 128 GB
Compatibility	ZKBioSecurity, ONVIF
Mounting	Wall or ceiling mount

Frequently Asked Questions - BS-32E12K ZKTeco

How do I reset the camera to factory defaults?

Press and hold the reset button on the camera for about 10 seconds until the LED flashes. Alternatively, you can reset via the web interface under Maintenance > Factory Default.

Can I use this camera outdoors?

Yes, the BS-32E12K has an IP67 rating, making it suitable for outdoor use in rain or dust.

What power supply do I need?

The camera supports DC 12V (not included) or Power over Ethernet (PoE) with a compatible PoE switch or injector.

How do I access the camera remotely?

Connect the camera to your network, download the ZKBioSecurity app, and scan the QR code on the device. Follow in-app instructions to add the camera.

What is the maximum SD card size supported?

The camera supports Micro SD cards up to 128 GB (Class 10 or higher recommended).

Does the camera have audio?

Yes, it has a built-in microphone for audio capture. It does not have a speaker for two-way audio.

How do I clean the camera lens?

Use a soft, lint-free cloth slightly dampened with water or a mild lens cleaner. Avoid abrasive cleaners or solvents that may damage the lens coating.

What is the night vision range?

The IR LEDs provide night vision up to 30 meters in complete darkness.

Is PoE supported?

Yes, the camera supports PoE (802.3af) for both power and data over a single Ethernet cable.

How do I update the firmware?

Download the latest firmware from the ZKTeco website. Access the camera's web interface, go to Maintenance > Firmware Upgrade, and upload the file.

USER MANUAL BS-32E12K ZKTeco

White ZKTeco security camera with a circular head and mounting bracket (no visible text or symbols on body)

· 1/2.9" 2MP Sony Low light Sensor
· AHD/TVI/CVI/CVBS Video Output
· IR Effective Range 10\~20m
· High Quality Optical Lens 3.6mm/6mm Optional
· Lightning Protection Up to 6KV
· IP67 Ingress Protection

2MP

2D DNR

IP67

System Overview

E series HD analog camera adopts advanced 4-in-1 ISP and 1/2.9" image sensor, featured by the excellent low light image details with wide FOV, compact design with unique 1-key installation base. It offers built-in UTC function to switch the signal output flexibly among the 4 popular technologies. It's ideal solution for SMB solution with high cost-performance ratio and simplicity for installation.

Functions

Long Distance Transmission

Powered by leading HD Videoloss technology, it supports up to 500m/800m transmission over RG59/RG6 coaxial cables separately.

Smart IR

E series is designed with smart IR function to avoid of the IR LED overexposure when object/people is getting closer to the camera in the night, ensuring the light intensity is changing proportionally with the distance between camera and objects.

Advanced 4 in 1 technology

E series is built in with advanced 4 in 1 technology, it's equipped with UTC chipset on board which could support to adjust HD analog signal output flexibly, such as AHD/TVI/CVI/CVBS. It's the final solution for true plug-n-play to work with any brand of HD analog DVR seamlessly.

Protection

With precise mechanical and rugged casing design, it stands against water and dust with industrial IP67 rank.

Support ±30% input voltage tolerance, it could work safely in extreme unstable power condition.

With working temperature range -30^ to +60^ , it works well in a variety of harsh outdoor environments.

Technical Parameters

Camera

Model	BS-32E12K BS-32E13K	Effective Pixels	1920(II)* 1080(V)
Image Sensor	1/2.9" 2MP Sony Low Light Sensor	S/N Ratio	More than 52dB
Scanning System	Progressive	IR Distance	10~20m
Min. Illumination	Color: 0.01Lux@(F1.2, AGC ON), 0 Lux with IRB/W: 0.001Lux@(F1.2, AGC ON), 0 Lux with IR	IR LED No	1

Lens

Focal Length	3.6mm 6mm		FOV	85° 56°
Aperture	F2.0

Video

Video Output	A1ID/TVI/CVI/CVBS	AGC	Supported
Resolution	25/30fps@1080P	Day/Night	Auto(ICR)/Manual
OSD Menu	Supported	White Balance	Supported
BLC	Supported	Noise Reduction	2D DNR
WDR	DWDR

General

Working Temperature	-30°C~+60°C	Ingress Protection	IP67
Working Humidity	10~90%	Dimensions	160.3 (L)*63.4 (W)*64.5 (H)mm
Power Supply	DC12V±10%	Net Weight	0.2KG
Power Consumption	<3.2W(R cut off)	Gross Weight	0.41KG

Certifications

CE

EN55032, EN55024, EN61000-3-2, EN61000-3-3

FCC

Part 15 Subpart B, ANSI C63.4-2014

Ordering Information

Type	Part Number Description
2MP Camera	BS-32E12K	2MP Analog Camera(3.6mm Lens)
	BS-32E13K	2MP Analog Camera(6mm Lens)

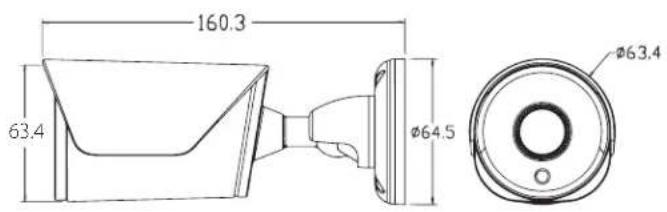

Dimensions (mm)
