Product Type	Dual Energy X-ray Inspection System
Brand	ZKTeco
Model	ZKX5030C
Tunnel Size	W507mm x H305mm
Conveyor Speed	0.20 m/s
Belt Height	1000 mm
Maximum Load	≤120 kg (evenly distributed)
Wire Resolution	38 AWG (0.1mm metal wire)
Space Resolution	Horizontal Φ1.0mm, Vertical Φ2.0mm
Penetration	32 mm steel board
Monitor	17 inch LED
X-ray Tube Voltage	140 kV
Cooling	Seal oil cooling
Single Inspection Dose	≤1.0 μGy
Radiation Leakage	0.1 μGy/h (at 5cm from surface)
Power Consumption	1 kVA
Noise Level	53.8 dB(A)
Package Dimensions	L1990mm x W990mm x H1320mm
Package Weight	450 kg
Detector	HAMAMATSU® X-ray detector
Image Type	True-color scanning image
System Functions	High-density alarm, explosive/drug detection, TIP, luggage counter, timer, training, 64x zoom
Optional Features	Bidirectional scan, electrical weighing, fingerprint console
Safety Standards	ASA/ISO1600 film safety
Maintenance	Regular calibration and cleaning of conveyor belt and detectors

Frequently Asked Questions - ZKX5030C ZKTeco

What is the ZKX5030C used for?

The ZKX5030C is a dual-energy X-ray inspection system designed to scan briefcases, carry-on baggage, and small cargo parcels to identify potential threats.

What are the tunnel dimensions?

The tunnel size is 507mm wide and 305mm high, allowing for scanning of typical luggage.

How heavy can the items be?

The conveyor can handle items up to 120 kg, provided the weight is evenly distributed.

What kind of detector does it use?

It uses a HAMAMATSU® X-ray detector for high wire resolution and clear imaging.

Is there a risk of radiation exposure?

The system is designed with safety in mind. Radiation leakage is measured at 0.1 μGy/h at 5cm from the surface, which is well within safe limits.

Can I identify drugs or explosives?

Yes, the system includes auxiliary detection functions for explosives and drugs, along with high-density alarm and TIP (Threat Image Projection) capabilities.

Does the system require special maintenance?

Regular maintenance includes cleaning the conveyor belt, checking the X-ray generator, and calibrating the detector. Refer to the manual for detailed schedules.

What are the power requirements?

The system consumes 1 kVA power. Ensure a stable power supply with proper grounding.

Is there a biometric login feature?

Yes, the ZKX5030C supports biometric identification (fingerprint) for operators to enhance security and eliminate password issues.

What optional accessories are available?

Optional accessories include bidirectional scanning, an electrical weighing system, and a fingerprint console board.

USER MANUAL ZKX5030C ZKTeco

Dual Energy X-ray Inspection System

ZKX5030C

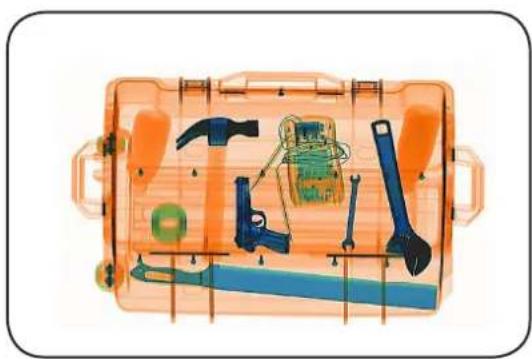

Illustration of an orange hard-shell toolbox containing various mechanical components (no text or symbols visible)

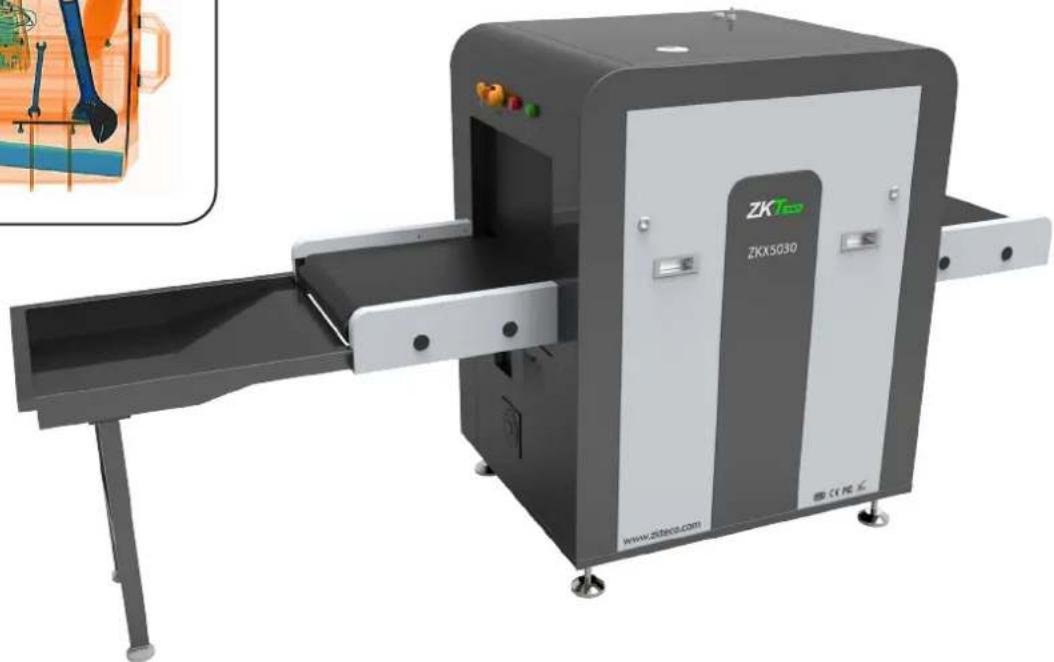

Exterior view of a ZKX5G30 industrial machine with conveyor belt and control panel (no readable text or symbols)

Highlights

• Offer higher Wire Resolution with HAMAMATSU® X-ray detector
  • True-color scanning image
  • Widely usable for small parcels
  • Excellent, ergonomic industrial design

Standard

• Energy Saving Mode

Optional

• Bidirection scan
  • Electrical weighing system
  • Fingerprint Console Board
• Console Desk

Introduction

ZKX5030C X-ray inspection system increases the operator's ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.

ZKX5030C uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX5030C could offer clear scanning image, which allows operators to identify potential threat items visually.

ZKX5030C has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.

With ergonomic modern design, ZKX5030C could help operators to identify suspicious items fast and accurately.

Specifications

Tunnel Size W507mm × H305mm
Speed 0.20 m/s
Height of Transmission Belt 1000 mm
Maximum Load ≤120 kg (Adequate distribution)
Wire Resolution 38 AWG (0.1mm metal wire)
Space Definition	Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition	32 AWG
Penetration	32mm Steel board
Monitor	17 inch LED
System Function	High density alarm, Explosive/Drug auxiliary detect, TIP, Luggage counter, System running timer, X-ray emitting timer, Training, 64 times continuous zoom in
Film Safety	ASA/ISO1600 standard of film safety

X-ray System

Tube Voltage 140 Kv
Cooling Seal oil cooling / 100%
Single Inspection Dosage Rate ≤1.0 μ Gy
Radiation Leak Dosage 0.1μ Gy/h (5cm from the surface)

Installation Specification

Package Size L1990mm × W990mm × H1320mm
Package Weight 450 KG
Power Consumption 1 kVA
Noise 53.8 dB(A)

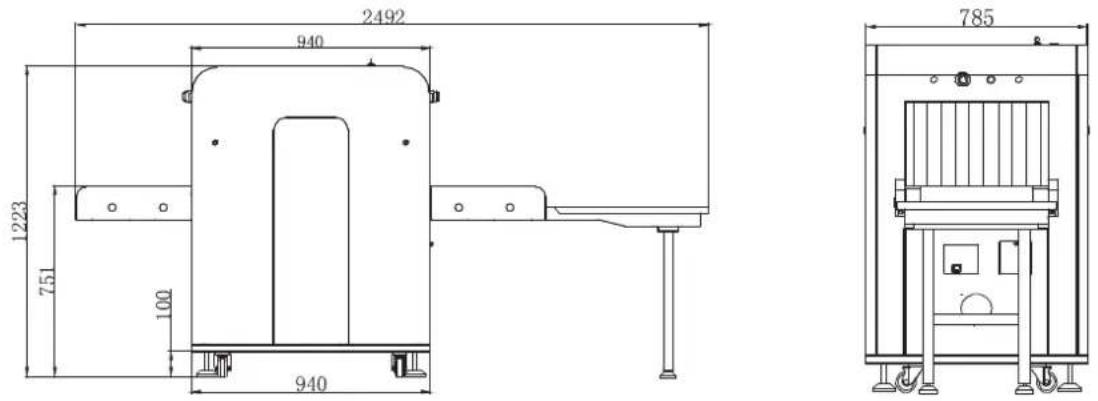

Dimension
